RWD R650-OH

Veterinary practices, clinics and hospitals that run the R650 from an oxygen concentrator are where the R650-OH belongs. Small animal and mixed practices, along with exotic animal services, fit that description wherever a concentrator supplies the oxygen for anaesthesia. It suits operating theatres, dental suites and procedure rooms alike. Referral and teaching hospitals with several R650 machines can fit a holder to each one, so every station carries its concentrator in the same arrangement and staff moving between rooms meet a familiar layout.

Vets, veterinary nurses and technicians set up and run the station. With the concentrator seated on its tray at the machine, the oxygen source stays in the same place for every anaesthetic of the day, whatever species is on the table. The person preparing the room starts from a known arrangement, and the concentrator has a home to return to when the list ends. When the R650 is moved to another room, the concentrator travels on the holder, so the oxygen source arrives with the machine.

The floor area around a table is shared by the surgeon, the anaesthetist, and the instrument trolley, and the R650 is designed for compact installation with its companion devices. Keeping the concentrator on the machine keeps the installation compact, which matters most in smaller theatres and procedure rooms where every part of the floor is in use. The holder itself takes up a 428 × 396 mm span within that installation, and because it is unpowered, noit needs  extra mains point i

A fixed place for the oxygen source

The concentrator has its own position on the R650, on a purpose-built tray. Finding room for it is settled once, when the holder goes on, and not again at the start of each list.

One compact installation

RWD designs the R650 for compact installation of its companion equipment. Seating the concentrator on the R650-OH brings the oxygen source into that installation, so machine and supply are set up as one.

A defined 428 × 396 mm span

Its 428 × 396 mm span gives the concentrator's base a set area to stand within, and the station a known footprint to plan around.

Edges that frame the concentrator

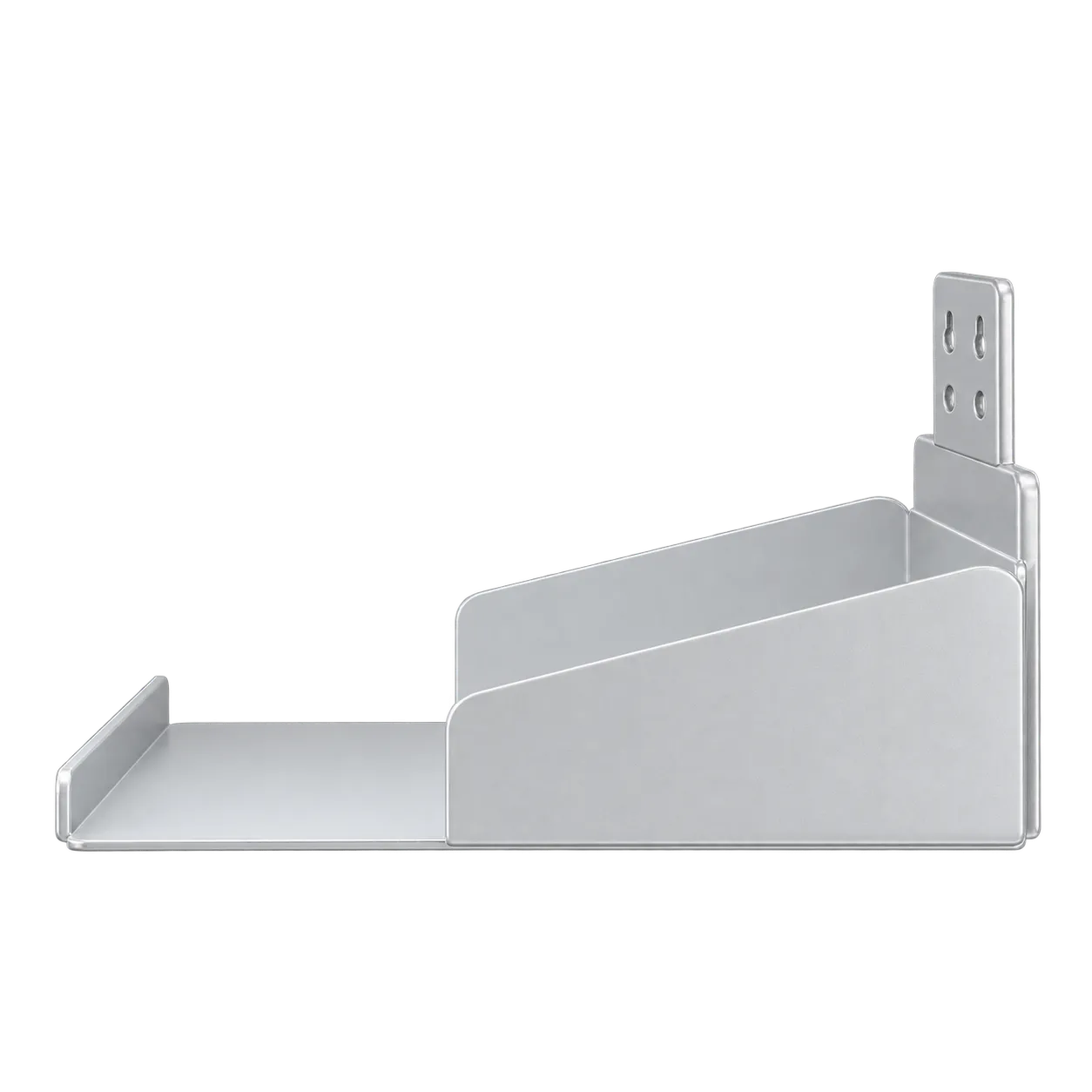

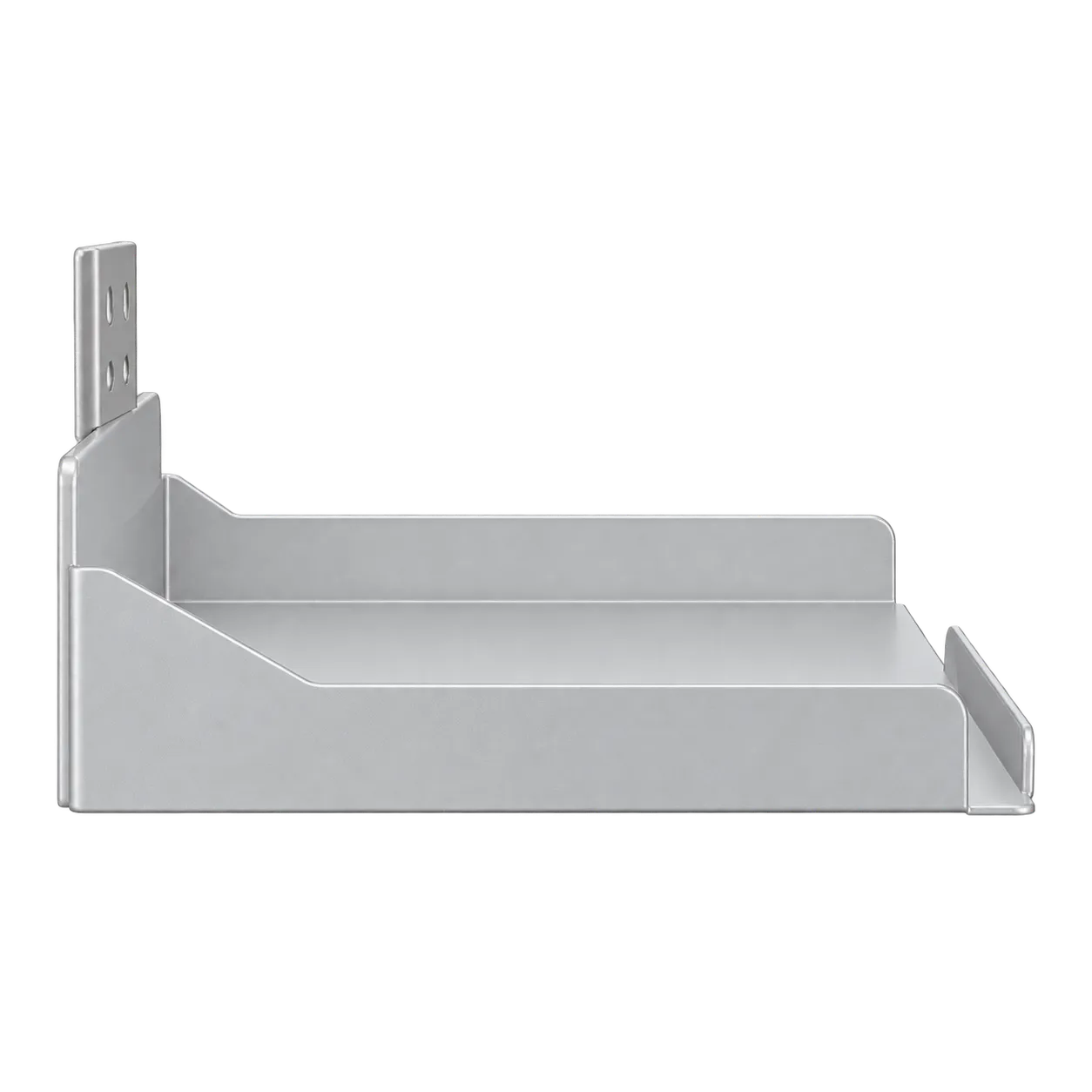

Upturned side edges and a low back upstand border the tray. They frame the base of the concentrator at the sides and rear while it stands on the holder.

Mounting at a single tab

All four fixing holes sit in one rear tab, so the holder attaches to the machine at a single point. It is a simple arrangement to fit and to inspect.

A slim 89.4 mm build

With an overall height of 89.4 mm, the holder stays slim, adding little bulk around the concentrator.

Nothing to charge or test

As an unpowered holder, the R650-OH adds no charging or electrical testing to the station. It adds a concentrator position without another powered item to look after.

Matched to concentrator set-ups

An optional accessory, the holder fits into the R650's configuration when the machine draws oxygen from a concentrator. Practices running the R650 that way make it part of their standard station.

Oxygen concentrator holder

Carrying an oxygen concentrator on the R650 is the whole job of the R650-OH, and its tray and tab are shaped around that job.

Made for the R650

RWD designates the holder for its R650 veterinary anaesthesia machine, within that machine's compact installation of companion equipment.

Flat tray floor

A flat floor gives the concentrator a level surface to stand on.

428 × 396 mm span

Length and width come to 428 mm and 396 mm, the area the holder covers.

89.4 mm overall height

The overall height is 89.4 mm, keeping the holder shallow.

Upturned side edges

Both side edges turn up along their full length.

Low back upstand

A low upstand runs across the back, closing off that side of the tray.

Central rear tab

The mounting tab sits at the centre of the rear edge and rises above the back upstand.

Four fixing holes

The tab has four fixing holes set out in a square pattern.

Light grey finish

The tray, its edges, and the tab share a single light grey finish.

Unpowered construction

The holder is unpowered, so it brings nothing to charge or electrically test.

Optional accessory

RWD supplies it as an option for the R650.

Catalogue number R650-OH

Catalogue number R650-OH identifies the holder for ordering and replacement.

The R650-OH suits veterinary practices that run the R650 from an oxygen concentrator and want that concentrator to have a fixed home on the machine. Its strength is compactness. The machine and oxygen source are installed together, so each site keeps one layout, and the concentrator never needs to be placed again. For a hospital standardising several R650 stations, one holder per machine gives each of them the same arrangement. Being unpowered, it adds nothing to charge or electrically test the station. It measures 428 × 396 × 89.4 mm and mounts through a single rear tab carrying four fixing holes.
