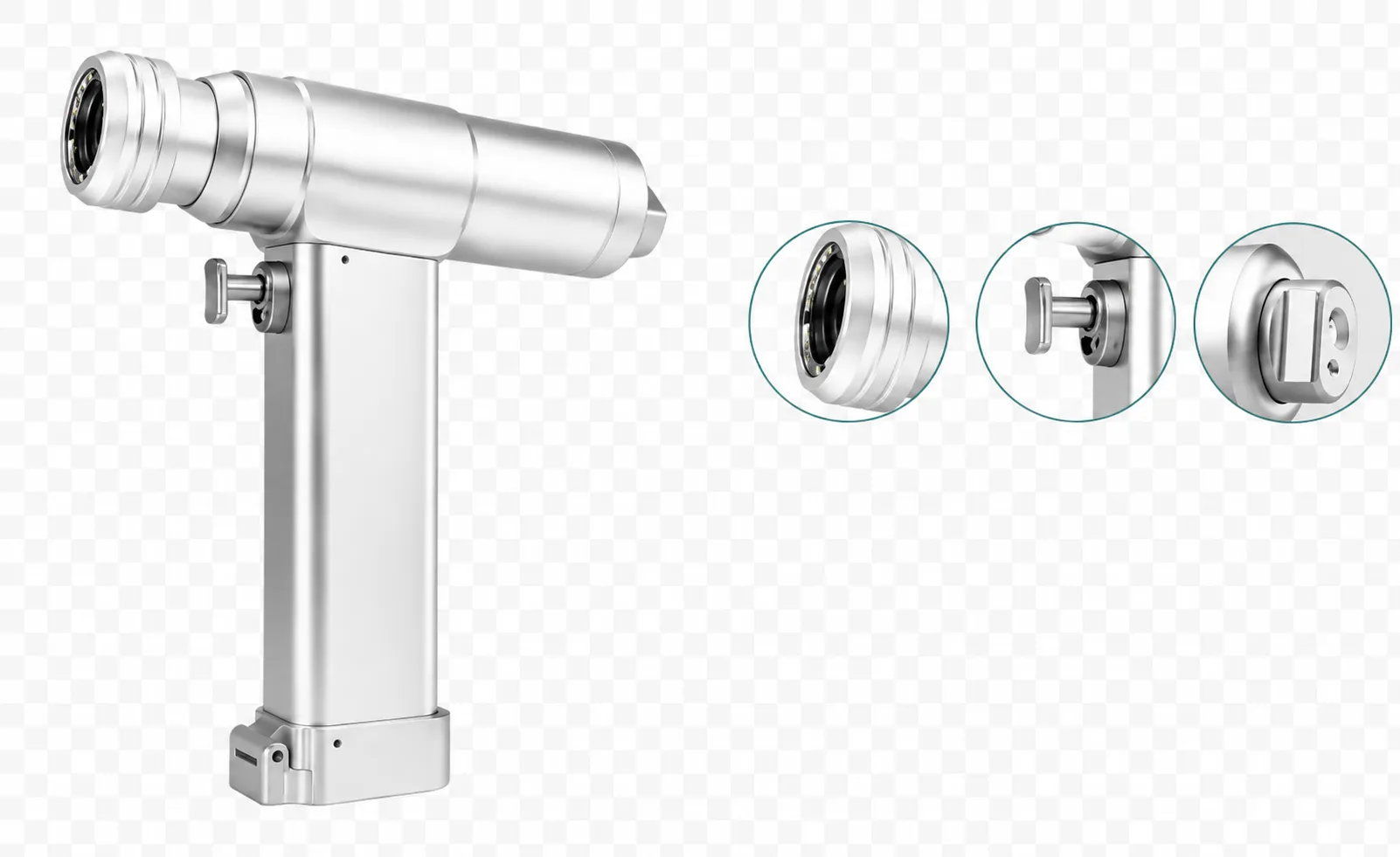

XC N-Series Multifunctional Handpiece

General orthopaedic theatres performing joint replacement, acetabular preparation, and trauma plating benefit from the N Series Multifunctional Handpiece's ability to replace multiple single-function instruments with one autoclavable, quick-coupling platform, reducing the instrument tray count, sterilisation load, and procurement cost per surgical power tool. The N Series Multifunctional Handpiece, available through Medigear.uk, covers bone drilling at approximately 1100 rpm, oscillating saw bone cutting at up to 16000 cpm, and acetabular reaming at approximately 300 rpm from a single handpiece body. CE Certification and ISO 13485-aligned documentation support the approval requirements of hospital procurement teams and NHS buying frameworks.

In cardiac and thoracic surgery theatres, the sternum saw, with its 360° rotating head and sternum guard, provides the mediastinal protection needed for median sternotomy at approximately 4000 rpm, and the handpiece platform means the same instrument used for orthopaedic drilling can also be configured for sternal division. Medigear.uk can supply full documentation confirming the attachment-specific speed specifications for institutional review by clinical engineering, theatre management, and procurement departments.

Neurosurgical and cranial surgery teams benefit from the automatic-stopping cranial drill attachment, which disengages upon skull perforation to protect the dura mater, and the high-speed craniotomy mill at up to 40000 rpm for burring, both available in the same handpiece platform. The 4.2 mm cannula diameter supports wire and pin fixation techniques via the included wire and pin chuck attachment. The complete set from Medigear.uk arrives ready for immediate CSSD commissioning.

B2B distributors building multi-speciality surgical power-tool catalogues can position the N Series Multifunctional Handpiece as an all-in-one platform for orthopaedic, cardiothoracic, and neurosurgical applications. Volume pricing, OEM labelling, and CE and ISO documentation packages are available through the Medigear.uk procurement team.

One Handpiece, 12 Attachments — Replaces Multiple Single-Function Instruments

The N Series Multifunctional Handpiece consolidates the functions of a bone drill, oscillating saw, acetabular reamer, sternum saw, craniotomy mill, cranial drill, and wire-and-pin chuck into a single autoclavable platform, reducing the number of powered instruments on the theatre tray and simplifying the sterilisation load for the CSSD. This single-platform approach is particularly valuable for procurement teams building multi-speciality theatre equipment sets or for distributors seeking a single stock unit with broad surgical applicability. Medigear.uk supplies the N Series Multifunctional Handpiece as a complete, configured set.

Quick-Coupling Interface — Toolless Attachment Changes in Seconds

The toolless quick-coupling mechanism allows each of the 12 attachments to be assembled and disassembled in seconds, enabling the scrub nurse to reconfigure the handpiece between operative steps without interrupting the surgical flow. Attachment and detachment require only a twist or click action within the confirmed coupling interface of the N Series Multifunctional Handpiece, and the firm lock prevents inadvertent detachment during use at any operating speed.

Auto-Stopping Cranial Drill Attachment — Dural Protection at Skull Perforation

The automatic-stopping cranial drill attachment disengages the drive immediately upon full penetration through the inner cortical table, preventing post-perforation dural injury. This safety mechanism is the primary patient-safety feature of cranial drilling and is included as a standard attachment in the N Series Multifunctional Handpiece set from Medigear.uk.

High-Speed Craniotomy Mill at 40000 rpm — Neurosurgical Bone Burring Precision

The craniotomy mill attachment operates at up to 40000 rpm, providing the rotational speed needed for efficient, precise neurosurgical bone burring during craniotomy access. This high-speed capability distinguishes the N Series Multifunctional Handpiece from standard orthopaedic drill platforms and confirms the system's neurosurgical cross-speciality reach.

Sternum Saw with 360° Rotating Head and Sternum Guard — Cardiac Safety Standard

The sternum saw attachment features a 360° rotating head and a sternum guard for controlled, safe median sternotomy, with the sternum guard protecting mediastinal soft tissues along the length of the sternal division. This attachment operates at approximately 4000 rpm, appropriate for efficient sternal bone cutting with the protected blade-advance geometry of a dedicated sternum saw.

CE Certified and ISO 13485-Aligned — Multi-Speciality Procurement Compliance.

The N Series Multifunctional Handpiece is CE-certified and manufactured to ISO 13485 standards, meeting the compliance baseline required by NHS trust procurement committees across orthopaedic, cardiothoracic, and neurosurgical specialities. Medigear.uk has the Declaration of Conformity ready to issue with the product, enabling procurement teams to complete institutional approval submissions in any applicable speciality.

Autoclavable Silver Stainless Steel Body — CSSD Integration Across All Specialities

The N Series Multifunctional Handpiece is manufactured from high-strength biomedical stainless steel and is autoclavable at up to 135°C once the battery is removed. It integrates into standard Class B CSSD reprocessing cycles used across orthopaedic, cardiac, and neurosurgical hospital sterile services. The silver body identifies the N Series NM-100 platform within the Medigear.uk product range.

4.2 mm Cannula — Wire and Pin Chuck Guided Technique

The 4.2 mm cannula diameter of the N Series Multifunctional Handpiece supports the wire and pin chuck attachment for K-wire and fixation pin technique, providing the through-bore dimension needed for standard guide pin diameters used across orthopaedic trauma and fixation procedures.

OEM and Volume Supply — Multi-Speciality Surgical Platform for Distributor Catalogues

Medigear. The UK offers OEM configuration, volume pricing, and custom attachment-set composition for the N Series Multifunctional Handpiece, making it a high-value single-unit catalogue product for B2B distributors building multi-speciality surgical power-tool ranges. CE and ISO documentation packages are provided by the Medigear.uk business team for distributor regulatory submissions.

Quick-Coupling Attachment Interface — Toolless, Up to 12 Attachments

The toolless quick-coupling interface connects all 12 attachments without tools. The N Series NM-100 platform's coupling interface accepts the complete attachment suite confirmed in the standard set, and the lock mechanism prevents inadvertent detachment during operation. Replacement attachments are available through Medigear.uk.

Quick Chuck: ~1100 rpm — General Orthopaedic Drilling

The quick chuck attachment is a standard keyed drill chuck that accepts the instrument diameters used in orthopaedic bone drilling and operates at approximately 1100 rpm. This is the primary drilling mode for trauma plating and joint arthroplasty steps.

Oscillating Saw Attachment: Up to 16000 cpm — Bone Cutting

The oscillating saw attachment provides lateral cutting motion at up to 16000 cpm for resection cuts in total knee and hip arthroplasty, osteotomies, and trauma reconstruction. The 360° rotating saw head can be positioned at any angle relative to the handpiece body.

Sternum Saw Attachment: ~4000 rpm — Cardiac Sternotomy with 360° Head and Sternum Guard

The sternum saw attachment operates at approximately 4000 rpm with a 360° rotating head and an integrated sternum guard for median sternotomy. The guard protects the mediastinal soft tissues throughout the entire sternal division. The rotating head allows the blade to be aligned with any sternotomy vector.

Craniotomy Mill Attachment: Up to 40000 rpm — Neurosurgical Burring

The craniotomy mill attachment operates at up to 40000 rpm for high-speed bone burring during craniotomy access. This speed provides the rotational efficiency needed for safe, rapid removal of the bone flap in neurosurgical procedures.

Cranial Drill Attachment: ~900 rpm with Auto-Stop — Skull Perforation Safety

The automatic-stopping cranial drill attachment operates at approximately 900 rpm and disengages immediately upon full skull perforation, preventing post-perforation dural injury. This auto-stop feature is confirmed to be standard on the N Series Multifunctional Handpiece cranial drill attachment.

Acetabular Reamer Attachment: ~300 rpm — Hip Socket Preparation

The acetabular reamer attachment is driven at approximately 300 rpm to achieve controlled, progressive hip socket reaming during total hip replacement. The low speed is appropriate for the high-torque demands of acetabular bone removal and is compatible with universal mill systems from multiple brands.

Wire and Pin Chuck Attachment: ~600 rpm — K-Wire and Fixation Pin Technique

The wire-and-pin chuck attachment operates at approximately 600 rpm to drive K-wires, intramedullary pins, and fixation wires. The 4.2 mm cannula diameter supports the cannulated pin technique, where the pin passes through the handpiece bore during wire driving.

Cannula Diameter: 4.2 mm — Standard Guidewire Through-Pass

The 4.2 mm centre-bore cannula accommodates standard K-wires and guide pins used across orthopaedic trauma fixation and guided technique. This dimension is confirmed in the N Series Multifunctional Handpiece specification available from Medigear.uk.

Battery: 14.4 V NiMH — Non-Autoclavable, Removed Before Sterilisation

The 14.4 V NiMH battery powers the handpiece across all attachment modes and must be removed before autoclave sterilisation. Replacement batteries are available through Medigear.uk.

Handpiece Material: High-Strength Biomedical Stainless Steel — Autoclavable at 135°C

The silver-body handpiece is manufactured from high-strength biomedical stainless steel and is autoclavable at up to 135°C once the battery is removed. Stainless steel construction is the standard for reusable Class II surgical power tools across all applicable specialities.

Certification: CE Certified, ISO 13485-Aligned Manufacturing

CE Certification confirms the N Series Multifunctional Handpiece meets the essential requirements of the applicable Medical Device Directive for a Class II reusable powered multi-speciality surgical instrument. ISO 13485 quality management alignment provides recognised assurance. Full conformity documentation is available from Medigear.uk.

The N Series Multifunctional Handpiece is a CE-certified, autoclavable silver-body surgical power tool platform accepting up to 12 quick-coupling attachments for joint arthroplasty, orthopaedic trauma fixation, acetabular reaming, median sternotomy, craniotomy, and neurosurgical burr hole drilling procedures. Its comprehensive attachment suite, single-platform clinical versatility, and ISO 13485-aligned compliance documentation make it a practical and reliable choice for hospital multi-speciality theatre procurement, B2B distributor catalogues, and institutional surgical instrument programmes. CE conformity paperwork and full technical documentation are available through the Medigear.uk procurement team to support institutional approval at any level. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
