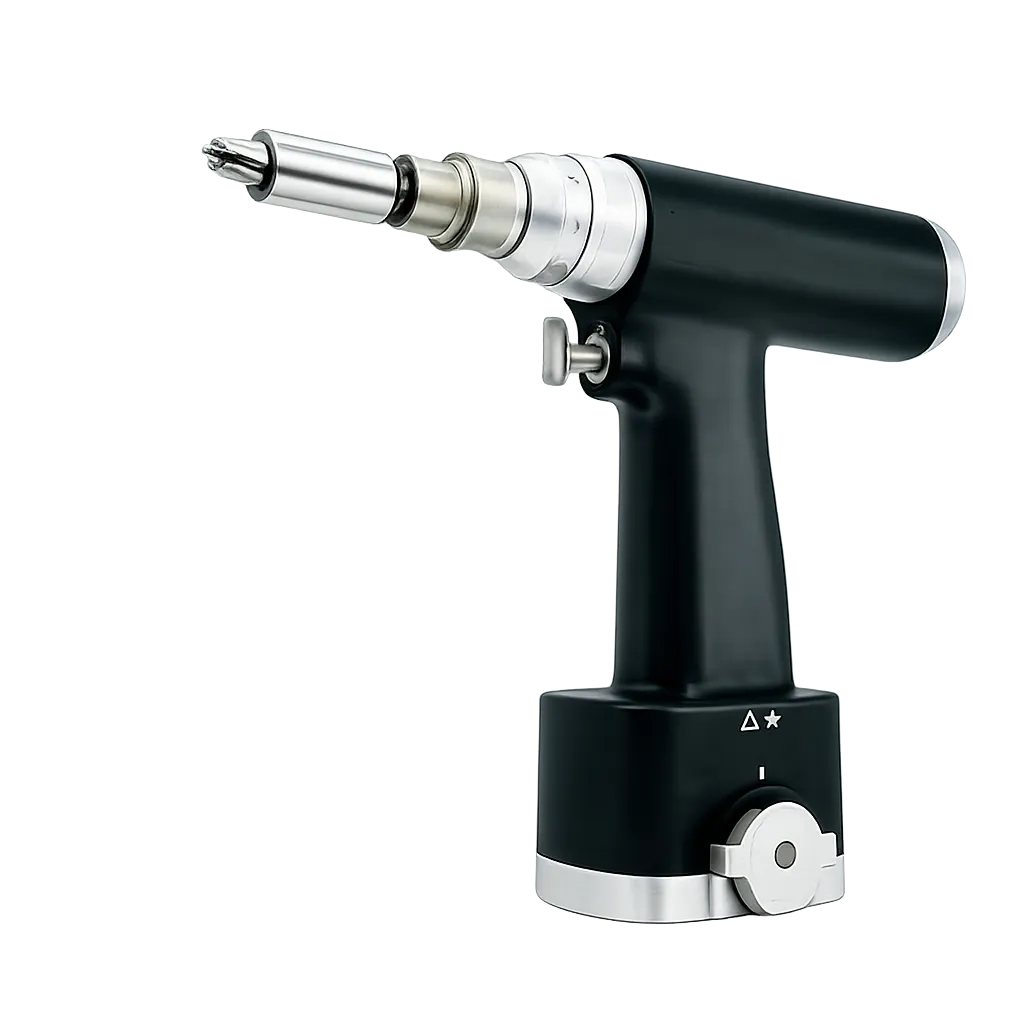

XC N-Series Cranial Drill

Neurosurgical theatres performing craniotomy, craniectomy, and burr hole procedures require a dedicated cranial drill with a reliable auto-stopping safety mechanism to prevent post-perforation dural injury, which is the primary risk during powered cranial drilling. The N Series Cranial Drill, available through Medigear.uk, provides variable speed from 0 to 800 rpm with an automatic stopping mechanism that disengages the drill immediately upon full-skull-thickness perforation, protecting the dura mater and intracranial structures from inadvertent drill contact. CE Certification and ISO 13485-aligned documentation support the institutional approval requirements of hospital neurosurgery programmes and NHS buying frameworks.

In awake craniotomy and delicate neurosurgical approaches where patient movement or procedural complexity increases the risk of dural injury during cranial drilling, the N Series auto-stop mechanism provides a reliable primary safety safeguard. The low 800 rpm maximum speed further reduces the risk of thermal damage to the dura and superficial cortex during penetration of thin or irregular cranial anatomy. Medigear.uk can provide the full technical specification, including speed, output power, and the auto-stop mechanism, for neurosurgical clinical engineering and procurement review.

Hospital neurosurgery units commissioning new cranial instrument sets can specify the N Series Cranial Drill as a standalone battery-powered burr hole drill for emergency ventriculostomy, emergency decompressive burr holes, and elective craniotomy alongside their existing powered cranial system. The complete set from Medigear.uk includes the aseptic battery transfer kit, enabling sterile battery management protocols consistent with the infection control requirements of open-skull neurosurgical procedures.

B2B distributors building neurosurgical power-tool catalogues can include the N Series Cranial Drill as a dedicated low-speed cranial-drilling platform. Volume pricing, OEM labelling, and CE and ISO documentation packages are available through the Medigear.uk procurement team.

Auto-Stopping Safety Mechanism — Immediate Drill Disengagement on Full Skull Perforation

The N Series Cranial Drill disengages automatically the moment the drill bit completes penetration through the inner cortical table of the skull, preventing the powered momentum of the drill from advancing the bit into the epidural space, dura mater, or underlying brain tissue after perforation. This automatic stopping feature is the primary patient safety mechanism for powered cranial drilling in neurosurgery and is confirmed as a standard feature of the N Series Cranial Drill. Medigear.uk can provide the auto-stop mechanism specification for institutional neurosurgical patient safety review.

0 to 800 rpm Low-Speed Ceiling — Controlled Penetration for Cranial Vault Safety

The 800 rpm maximum speed of the N Series Cranial Drill is the appropriate ceiling for powered cranial drilling, providing the controlled penetration rate that preserves tactile feedback through the handpiece as bone thickness changes and reduces thermal transfer to the dura and cortex. Higher-speed cranial drills produce greater vibration and thermal energy, which can reduce the surgeon's ability to feel the change in resistance that signals the approach to the inner cortex. The 800 rpm ceiling is consistent with the speed class specified for auto-stopping cranial drills in this product category and is confirmed in the technical documentation available from Medigear.uk.

CE Certified and ISO 13485-Aligned — Neurosurgery Procurement Compliance Ready.

The N Series Cranial Drill's CE Certification and ISO 13485-aligned manufacturing meet the compliance requirements of NHS trust neurosurgery procurement committees, hospital medical device approval panels, and government framework buying assessors. Medigear.uk holds the Declaration of Conformity and technical documentation ready to issue alongside the product, reducing the administrative preparation time for clinical governance submissions in neurosurgical departments. For multi-instrument procurement, including a cranial drill, oscillating saw, and bone drill, the Medigear.uk team can supply consolidated documentation for the full set.

Aseptic Transfer Kit Included — Sterile Battery Protocol for Open-Skull Neurosurgery

The aseptic transfer kit included with every N Series Cranial Drill set provides the sterilisable components needed to transfer a charged battery into the neurosurgical operative sterile field without compromising the stringent sterile-field management requirements of open-skull procedures. This kit is included as a standard component of the N Series Cranial Drill set through Medigear.uk, rather than as a separately procured accessory. The transfer protocol is documented in the Medigear.uk user manual for sterile services and scrub nurse programme review.

Stepless Variable Speed Trigger — Real-Time Drilling Intensity Control

The full 0 to 800 rpm range is delivered through a proportional, stepless trigger, allowing the neurosurgeon to begin at zero speed for accurate bit positioning on the outer cortex, advance to the appropriate working speed through the dura mater, and reduce speed as the inner cortex is approached. This stepless control characteristic allows the surgeon to respond immediately to any change in tactile resistance that signals the approach to full skull thickness. The auto-stop mechanism provides a final safety layer once the inner cortex is penetrated, regardless of the speed setting at which that penetration occurs.

Autoclavable Handpiece at 135°C — Validated for Neurosurgical CSSD Reprocessing

The N Series handpiece is autoclavable at up to 135°C using high-temperature, high-pressure sterilisation once the NiMH battery is removed, integrating directly into standard Class B CSSD reprocessing cycles used in hospital neurosurgical sterile services. We can provide the validated sterilisation protocol from Medigear.uk to sterile services departments and neurosurgical theatre managers on request.

Complete Set — Theatre Ready With Aseptic Transfer Kit and Cranial Drill Bit Attachment

The N Series Cranial Drill is supplied as a complete set, including the handpiece, battery, charger, cranial drill bit attachment in the selected size, aseptic transfer kit, and aluminium alloy carrying case. This all-in-one configuration eliminates the need to procure the aseptic kit and drill bit separately after the handpiece arrives, and the aluminium case protects all components during transit and storage. Individual replacement components, including batteries, aseptic transfer kits, and drill bit attachments, are available through Medigear.uk.

OEM and Volume Supply — Cranial Drill Platform for Neurosurgical Distributor Catalogues

Medigear. The UK offers the N Series Cranial Drill for OEM configuration, volume pricing, and custom set composition, making it a viable dedicated neurosurgical power tool for B2B distributors building cranial and neurosurgical instrument catalogues. We can provide white-label branding and regulatory documentation in different market formats, depending on order volume. The Medigear.uk business team provides CE and ISO documentation packages for distributor regulatory submissions in each operating market.

High-Strength Biomedical Stainless Steel — Long-Life Autoclavable Instrument

The N Series Cranial Drill handpiece is manufactured from high-strength biomedical stainless steel that maintains structural integrity and corrosion resistance through repeated autoclave sterilisation at 135°C, suitable for the frequent sterilisation cycles of a busy neurosurgical programme.

Minimum Speed: 0 rpm — Zero-Start for Accurate Outer Cortex Engagement

The N Series Cranial Drill starts from zero rpm, allowing the drill bit to be positioned accurately against the outer cortical surface before any rotation begins. This zero-start prevents skating at the initial point of engagement on the smooth cranial vault surface.

Maximum Speed: 800 rpm — Low-Speed Ceiling for Safe Cranial Vault Penetration

The 800 rpm maximum speed is the appropriate ceiling for powered cranial drilling, providing sufficient penetration force while maintaining tactile feedback and reducing thermal transfer to dura and cortex. This ceiling is confirmed as the operating speed class for auto-stopping cranial drills in this product category.

Total Speed Range: 0 to 800 rpm — Stepless Variable Control

The full 0 to 800 rpm range is continuously variable via the trigger, without stepped transitions, allowing real-time speed modulation as the skull thickness varies across the outer cortex, diploe, and inner cortex during the drilling pass.

Auto-Stopping Safety Feature — Drill Disengages on Full Skull Penetration

The auto-stopping mechanism disengages the drill immediately upon full penetration of the inner cortical table, preventing post-perforation advancement into the dura and intracranial space. This safety feature is confirmed as standard on the N Series Cranial Drill and is documented in product specifications from Medigear.uk.

Output Power: ≥ 20 W — Sustained Cranial Drilling Efficiency

A minimum output power of 20 W provides the rotational energy needed to maintain a consistent drilling speed through the full thickness of the cranial vault, including dense areas of the outer cortex. This power specification is confirmed in the N Series Cranial Drill technical data sheet.

Temperature Rise: ≤ 25°C — Comfortable Neurosurgical Handpiece Operation

The motor and handpiece temperature rise during sustained operation is maintained at or below 25°C above ambient, ensuring the handpiece remains comfortable to hold during craniotomy bone access procedures.

Aseptic Transfer Kit: Included as Standard

The aseptic transfer kit for sterile battery delivery to the neurosurgical operative field is supplied as a fixed standard component with every N Series Cranial Drill set through Medigear.uk. The transfer protocol is documented in the user manual and available from the Medigear.uk team.

Battery: 14.4 V NiMH — Non-Autoclavable, Aseptic Transfer Required

The 14.4 V NiMH battery must be removed before handpiece sterilisation and delivered to the operative sterile field using the aseptic transfer kit. Replacement batteries are available as spare parts through Medigear.uk.

Handpiece Material: High-Strength Biomedical Stainless Steel — Autoclavable at 135°C

The handpiece is manufactured from high-strength biomedical stainless steel that is autoclavable at up to 135°C once the battery is removed. Stainless steel construction is the standard for reusable Class II neurosurgical power tools.

Charger: AC 220 V, 50 Hz Input — 14.4 V at 900 mA Output, 30 VA Input Power

The included charger accepts 220 V AC at 50 Hz and delivers 14.4 V at 900 mA to the NiMH battery, with an input power of 30 VA. Confirm compatibility of the Medigear.uk procurement team with local input voltage requirements before placing the order.

Set Contents: Handpiece, Battery, Charger, Cranial Drill Bit, Aseptic Transfer Kit, Aluminium Case

The complete N Series Cranial Drill set is supplied in an aluminium alloy case containing all components required for immediate neurosurgical clinical deployment. Individual replacement items are available through Medigear.uk for ongoing set maintenance.

Certification: CE Certified, ISO 13485-Aligned Manufacturing

CE Certification confirms the N Series Cranial Drill meets the essential requirements of the applicable Medical Device Directive for a Class II reusable powered neurosurgical instrument. ISO 13485 quality management system alignment provides recognised assurance for institutional neurosurgical procurement reviewers. Full conformity documentation is available from Medigear.uk.

The N Series Cranial Drill is a CE Certified, autoclavable neurosurgical power tool delivering safe variable speed from 0 to 800 rpm with an automatic stopping mechanism that disengages upon full skull perforation, for craniotomy, craniectomy, and burr hole procedures. Its auto-stop patient safety feature, low-speed precision, aseptic transfer kit, and ISO 13485-aligned compliance documentation make it a practical and reliable choice for hospital neurosurgery theatre procurement, B2B distributor catalogues, and institutional neurosurgical instrument programmes. CE conformity paperwork and full technical documentation are available through the Medigear.uk procurement team to support institutional approval. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
