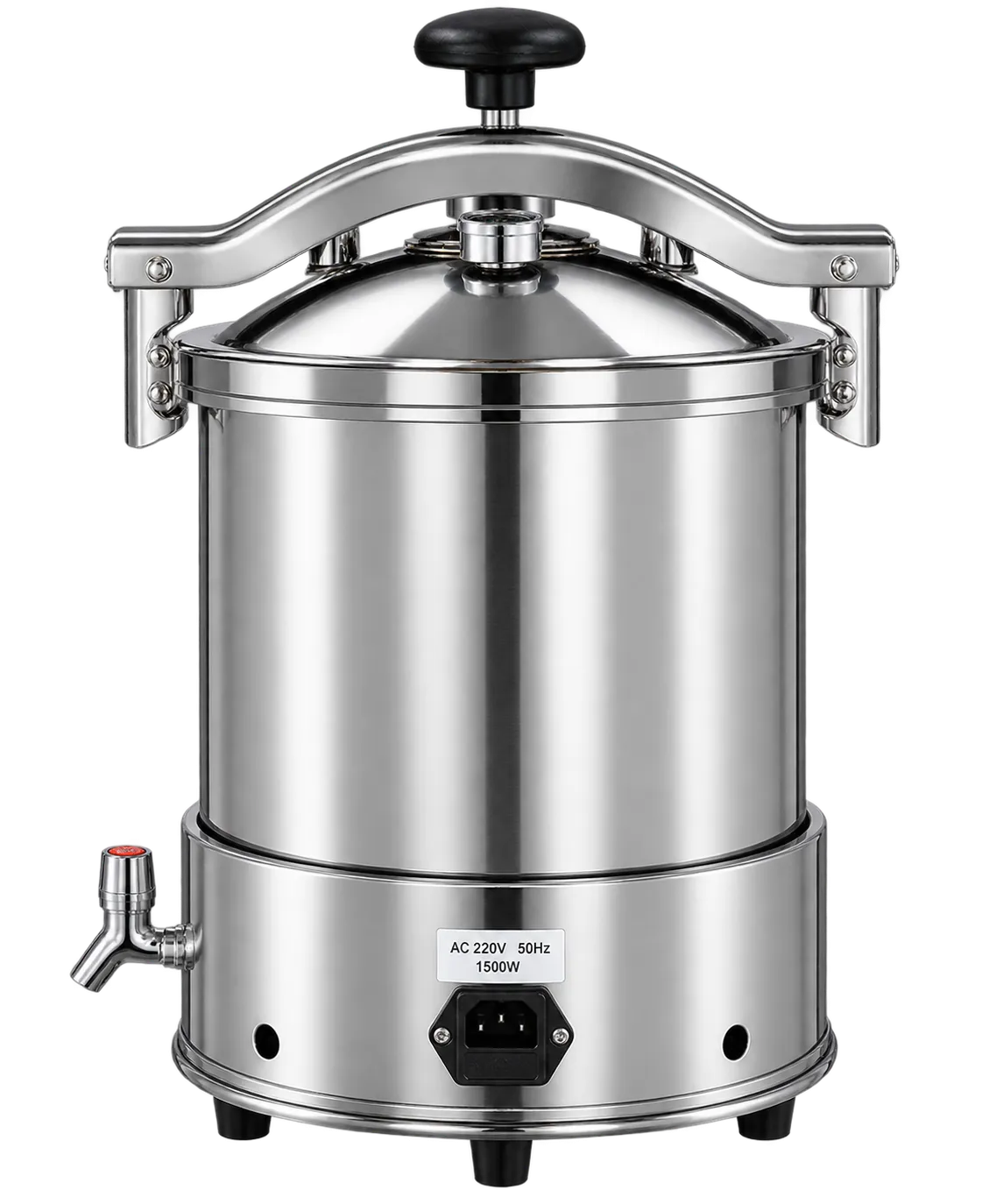

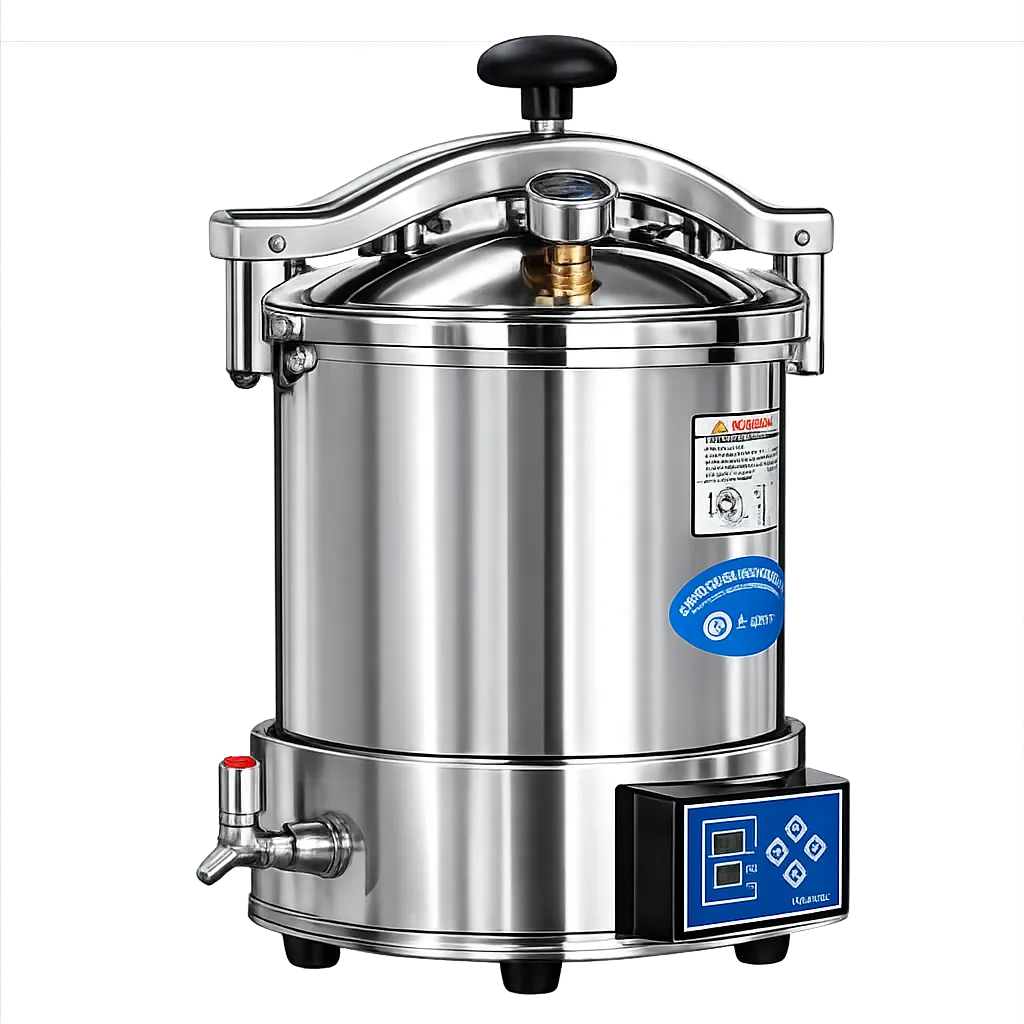

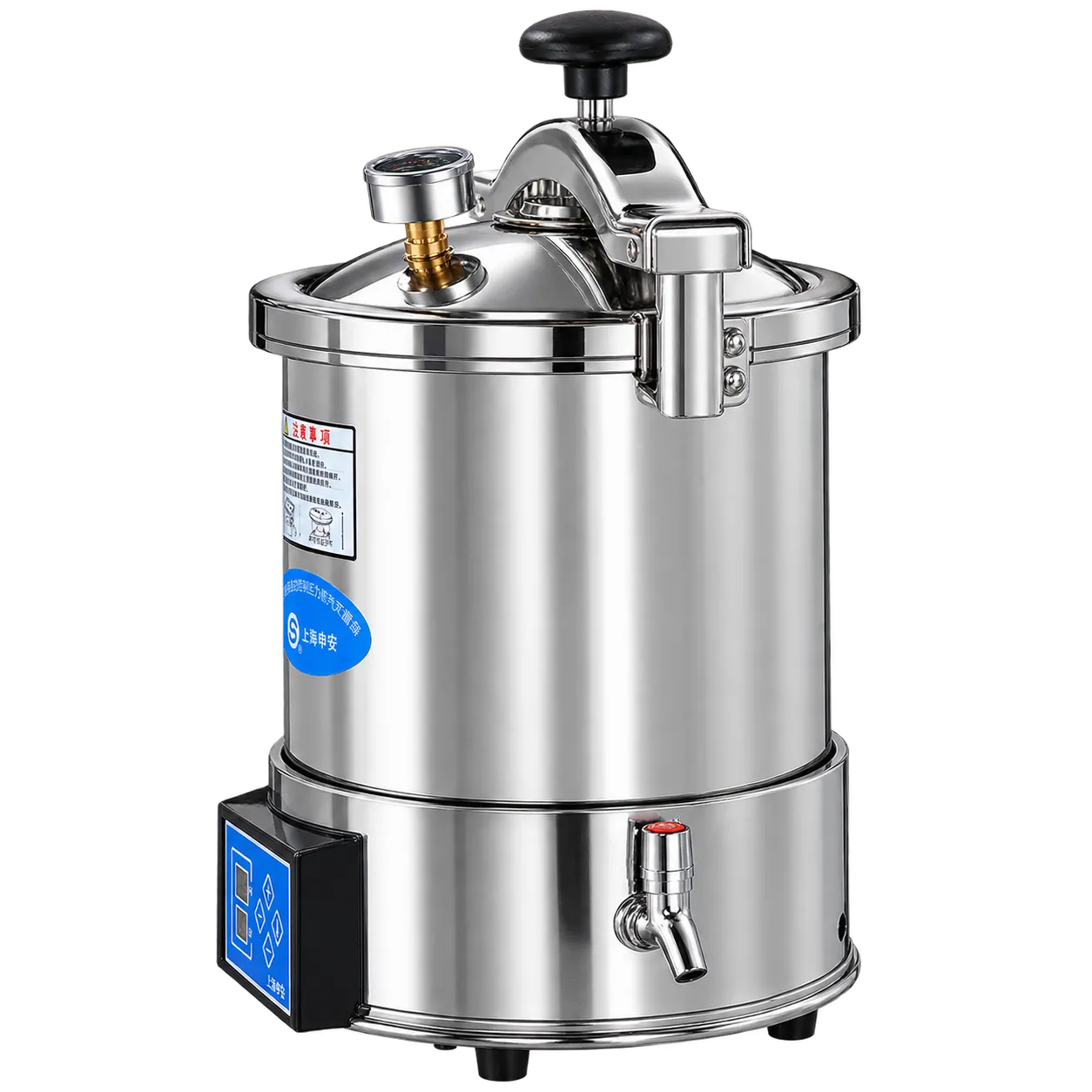

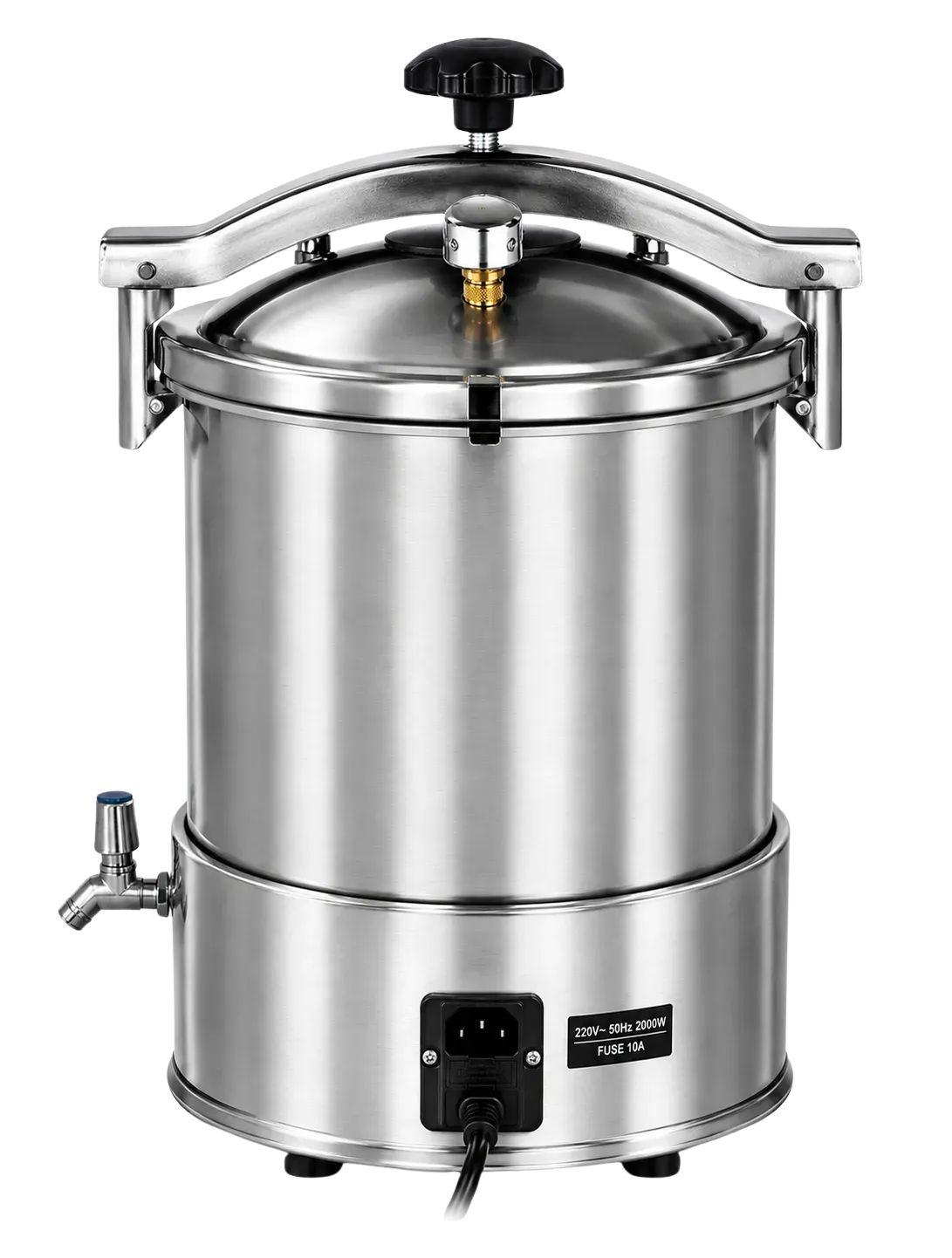

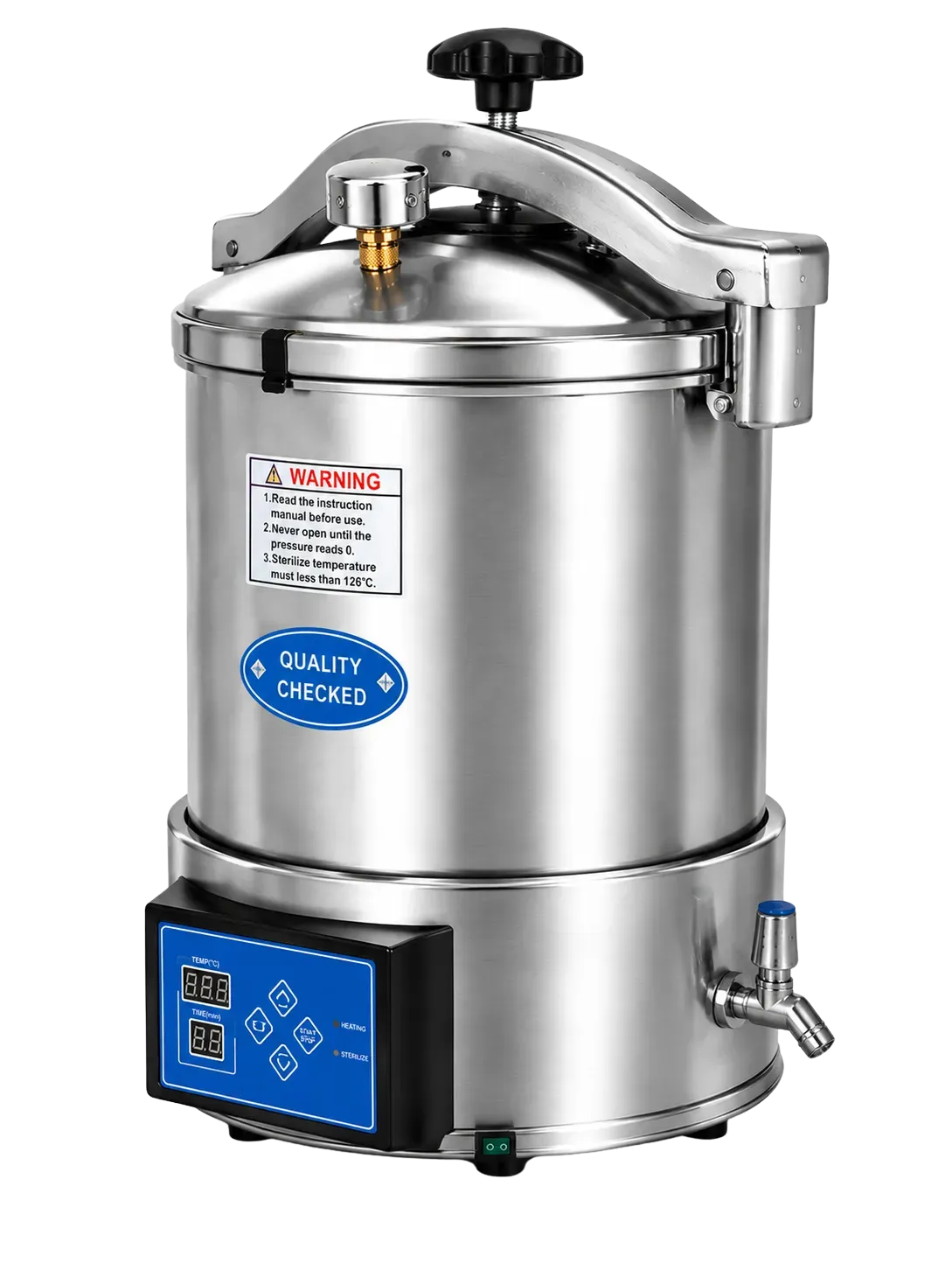

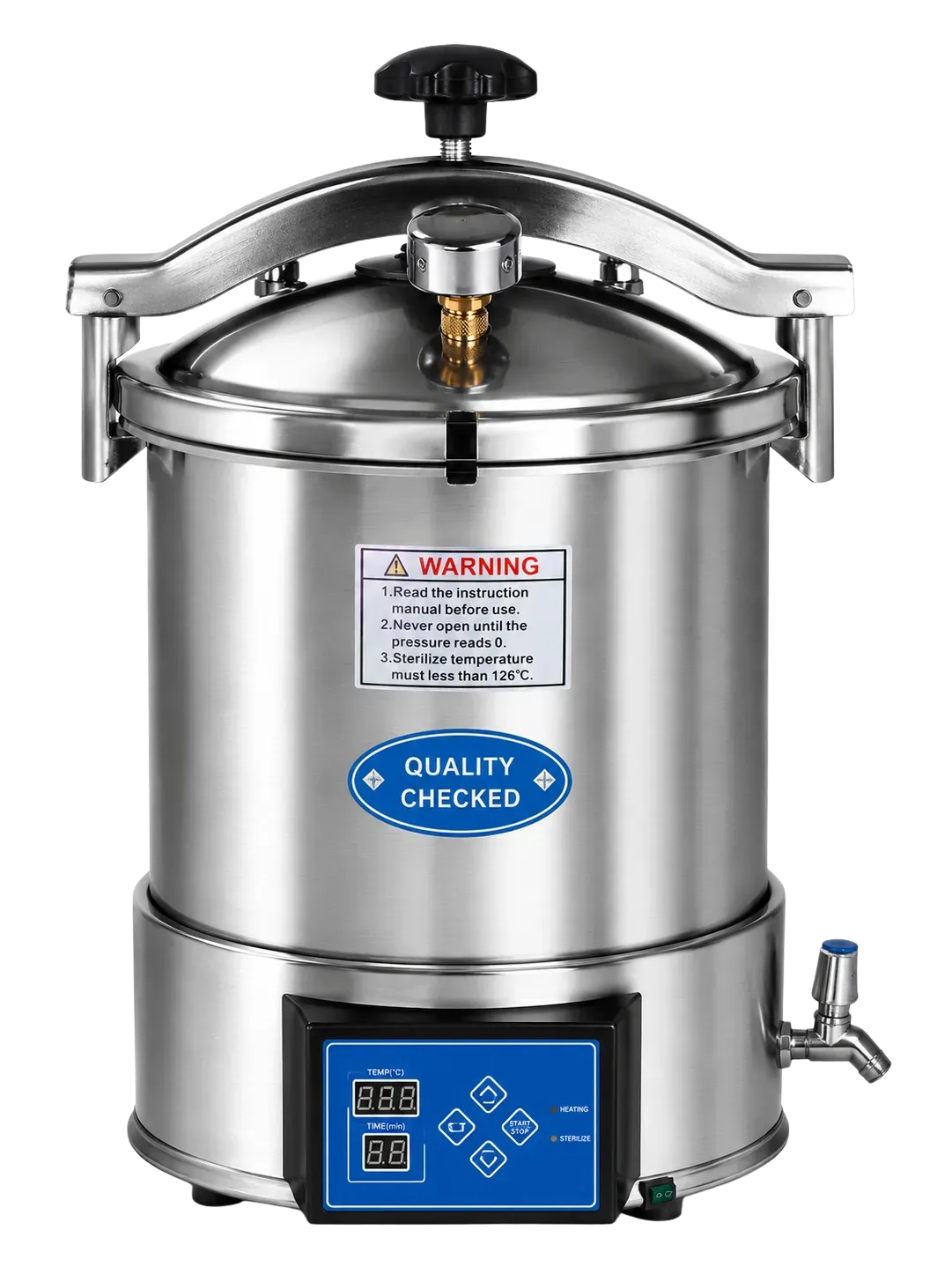

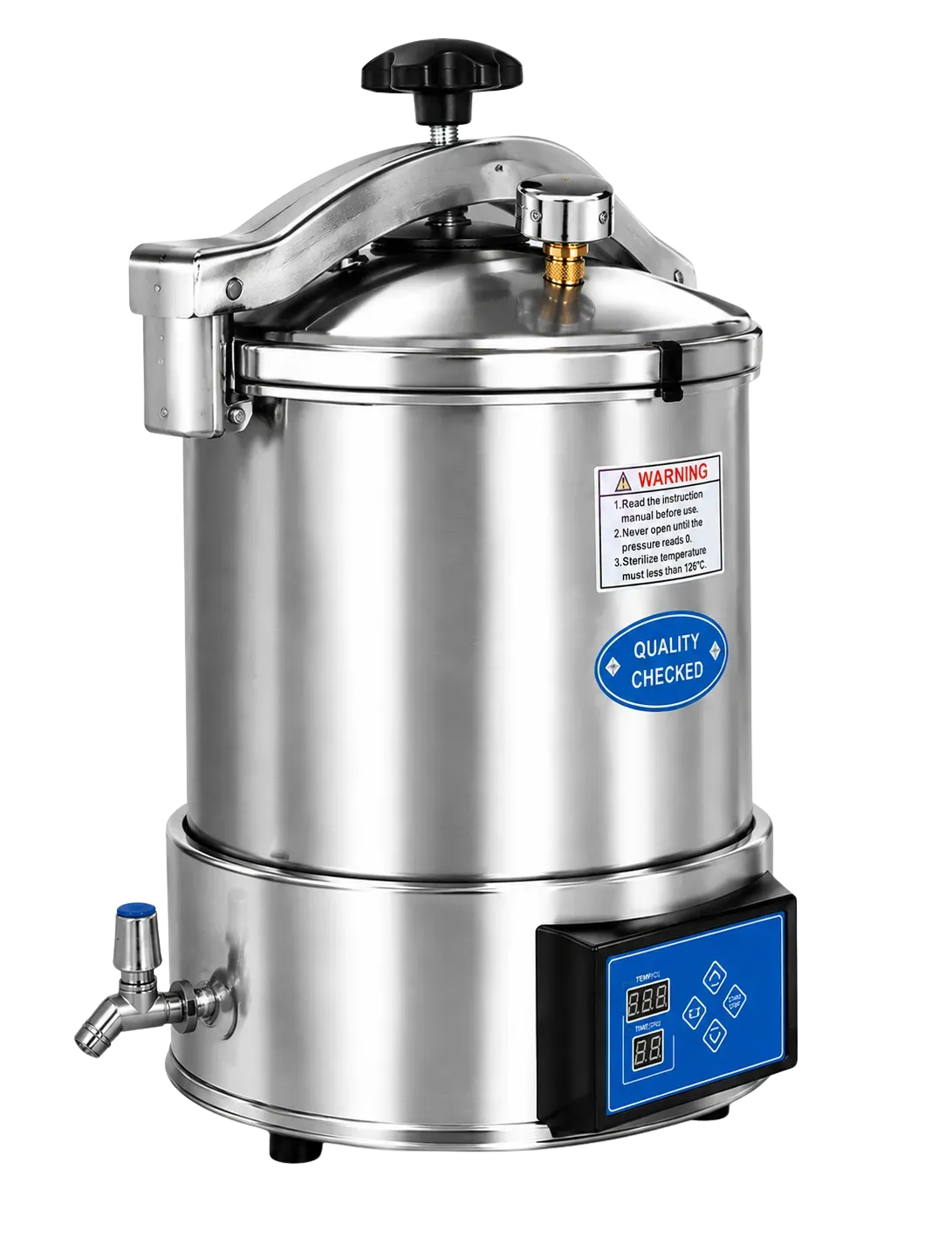

Visionstar YX-24LM

Twenty Four Litre Chamber

Sterilising volume is listed at 24L within a chamber of 280 by 390mm, the single specified difference between this model and the smaller capacity version.

Depth Rather Than Width

Chamber diameter remains 280mm, so the additional capacity comes from depth alone, accommodating taller packs and longer instruments standing upright.

Electric or Gas Heating

This variant is listed as electric or LPG heated, allowing operation where an electrical supply is absent or unreliable rather than only where a mains socket happens to be available.

Working Pressure Range

Working pressure is listed from 0.14 to 0.16 MPa, with maximum safety pressure given separately at 0.165 MPa above the normal operating band of the vessel.

Rated Working Temperature

Working temperature is 126 degrees, rated on this variant rather than adjustable across a range, so the cycle condition is fixed by design.

Heat Average Within One Degree

Heat average is quoted at within plus or minus 1 degree, describing how evenly the stated temperature is held across the chamber during a cycle.

Full Stainless Steel Structure

The structure is stainless steel throughout, which the manufacturer relates to durability under the repeated steam and condensate exposure sterilising duty involves.

Butterfly Nut Lid and Gauge

The lid is secured by butterfly nuts tightened by hand, and a double scale indication pressure gauge shows internal pressure to the operator throughout the whole of a cycle.

Practices Processing Larger Loads

The whole reason to choose this version is capacity. A practice regularly filling the smaller chamber, or waiting for a second cycle to process the remainder of a session's instruments, gains substantially more volume without changing anything whatever about how the equipment itself works. Where instrument turnaround governs how quickly a clinical list moves, that extra capacity converts directly into time saved across a busy working day.

Taller Packs and Longer Instruments

Because the extra volume comes from depth and not diameter, this model takes items the shallower chamber cannot. Longer instruments standing upright, taller dressing packs and awkwardly shaped loads all now fit where they previously would not fit. For a laboratory or a practice with a mixed instrument inventory, that is often more useful than the raw litre figure alone would suggest to a prospective buyer.

Outreach and Field Clinics

The ability to heat by bottled gas is what makes this variant unusual. A clinic operating from a temporary building, a mobile unit or any location with intermittent power can still process its instruments properly, where a mains only steriliser would simply stop working. For outreach programmes, sterilising capability that does not assume electricity is often the difference between running a session at all and cancelling it outright.

Veterinary and Laboratory Settings

Pressure vessel sterilisers remain common in veterinary practice and in laboratories, where glassware, media, packs and consumables need processing at a known temperature and loads are often awkwardly shaped. A vertical chamber of this depth accommodates items that would never sit conveniently inside a shallow drawer style unit at all.

Capacity Without Complication

Where two models differ only in chamber size, choosing the larger one costs nothing in capability or in how the equipment is operated. Every pressure, temperature and construction figure is identical, so a practice taking the 24L version gets more volume and the same machine. That is a straightforward decision, and it is worth saying plainly rather than implying some broader superiority that the data does not support.

Independence From the Electrical Supply

Electric or LPG heating separates this variant from others in the family and changes where the equipment can go. Bottled gas is available almost anywhere, needs no infrastructure and is unaffected by a power cut. For a service working outside fixed premises, that turns sterilising from a constraint on the location into something the team simply brings with them and sets up on arrival.

Very Little to Go Wrong

A stainless vessel, a butterfly nut lid and a pressure gauge amount to a machine with almost no failure modes beyond the seal and the gauge itself. There is no control board, no touch screen and no interlock circuit. In settings where a service visit means a long journey, the absence of electronics is worth more than the convenience they would have provided in a fixed clinical building.

The Visionstar YX-24LM holds 24L in a chamber of 280 by 390mm, with working pressure from 0.14 to 0.16 MPa at a rated 126 degrees, maximum safety pressure of 0.165 MPa and heat average within plus or minus 1 degree. Construction is full stainless steel, the lid is secured by butterfly nuts and a double scale gauge indicates internal pressure. Heating is listed as electric or LPG. The only stated difference from the smaller model is chamber capacity and depth.

What this variant does not have is stated as plainly as what it does. No timer, digital display, digital control display or finishing alarm is fitted, and none of those provisions has been carried across from the other variants shown on the manufacturer's own comparison. Electrical supply, gas connection requirements, weight, external dimensions and cycle documentation are absent from the material held. Nothing here should be read as a claim about testing or regulatory approval, and a pressure vessel of this kind requires trained operators working within local pressure equipment rules.

If your service processes larger loads, works outside fixed premises, or needs a simple robust vessel for a practice or laboratory, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm the heating arrangement, the documentation and what installation would involve.
