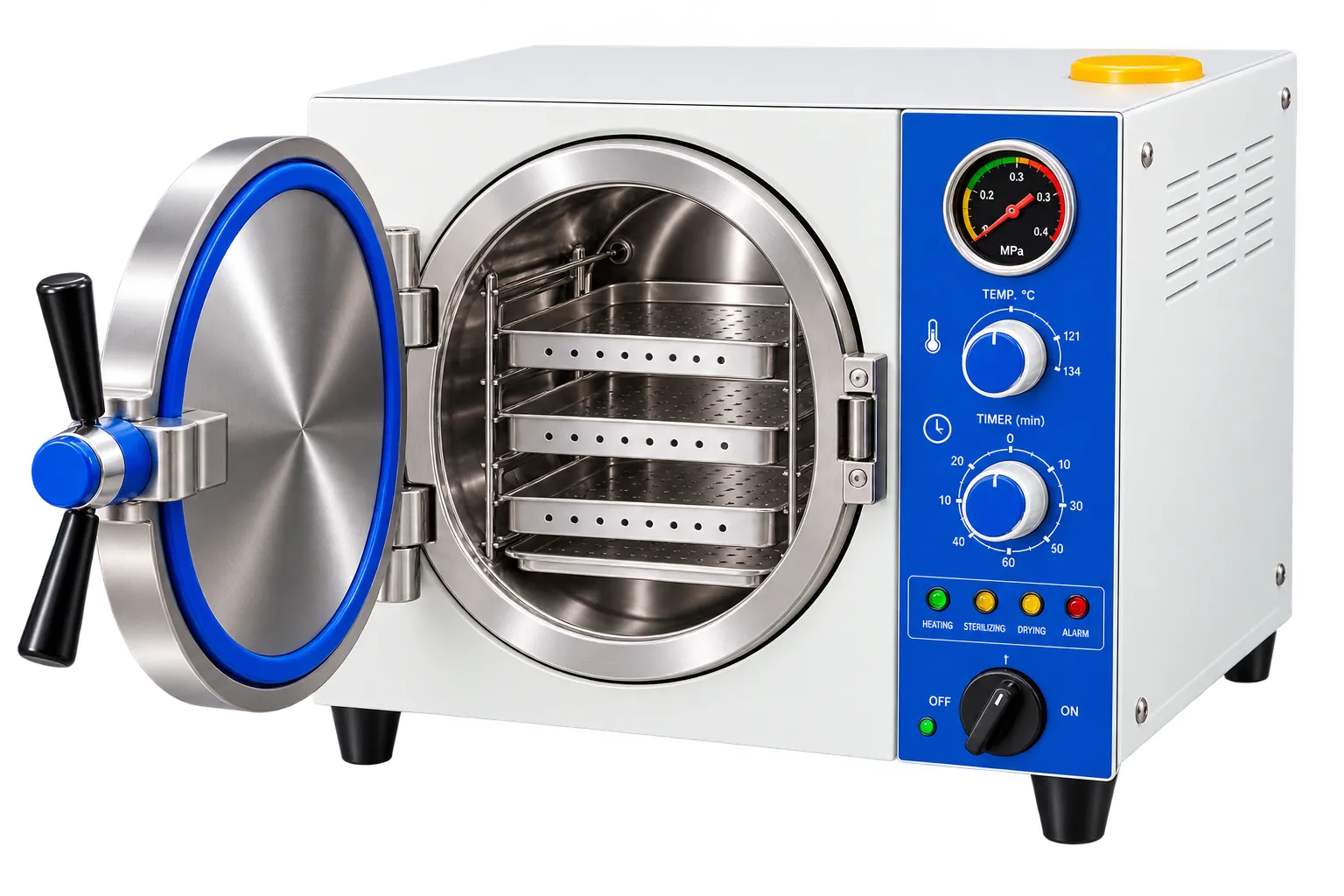

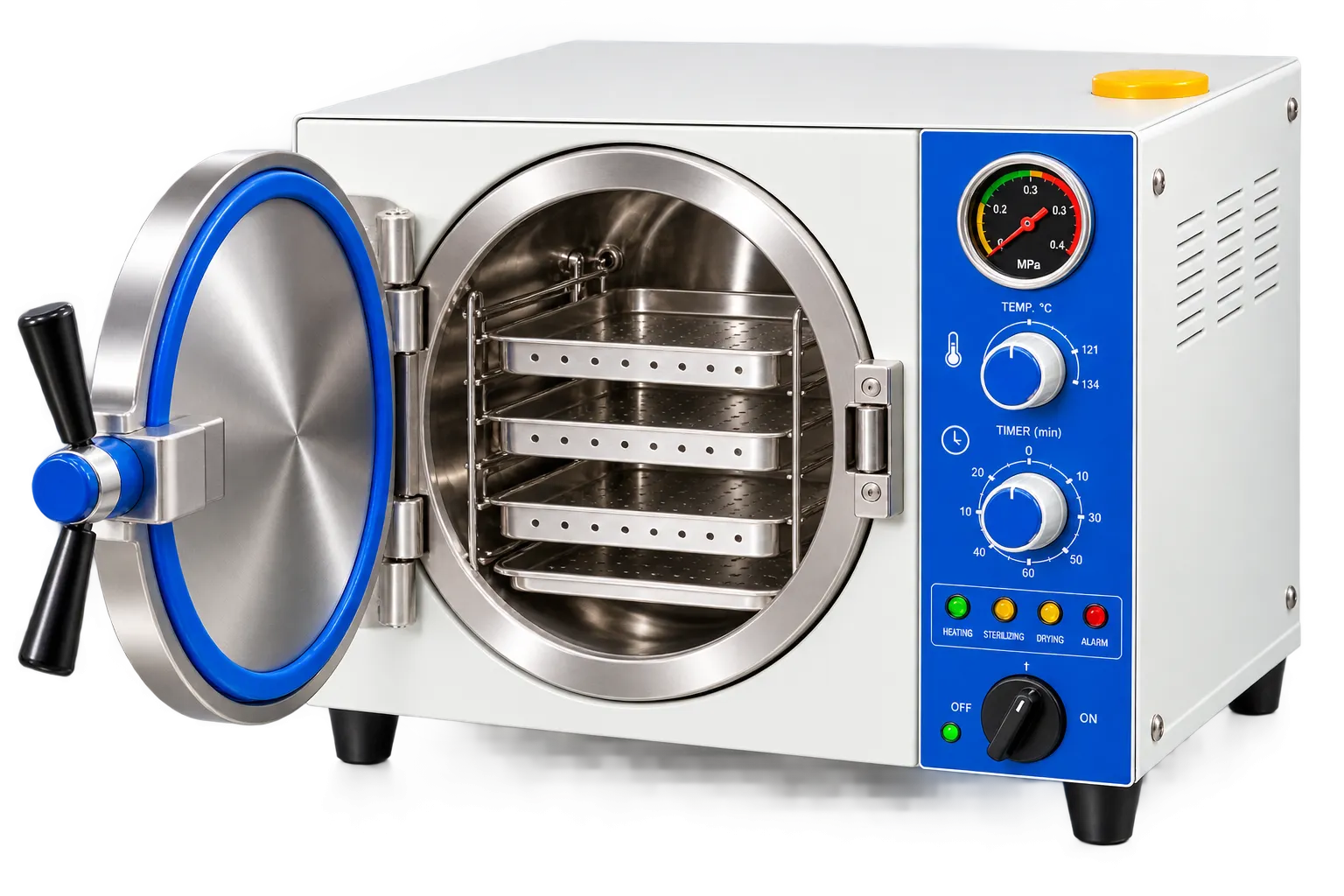

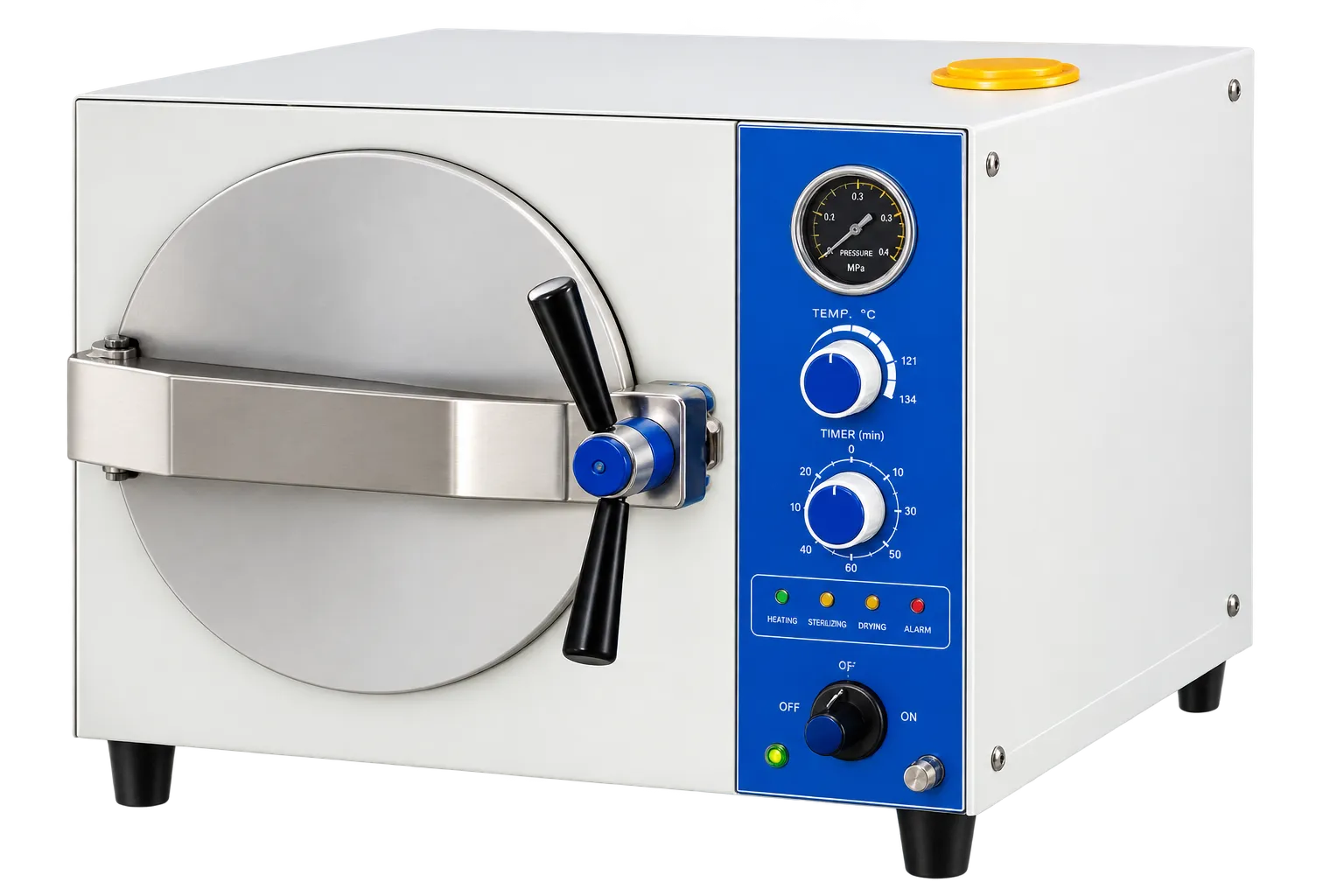

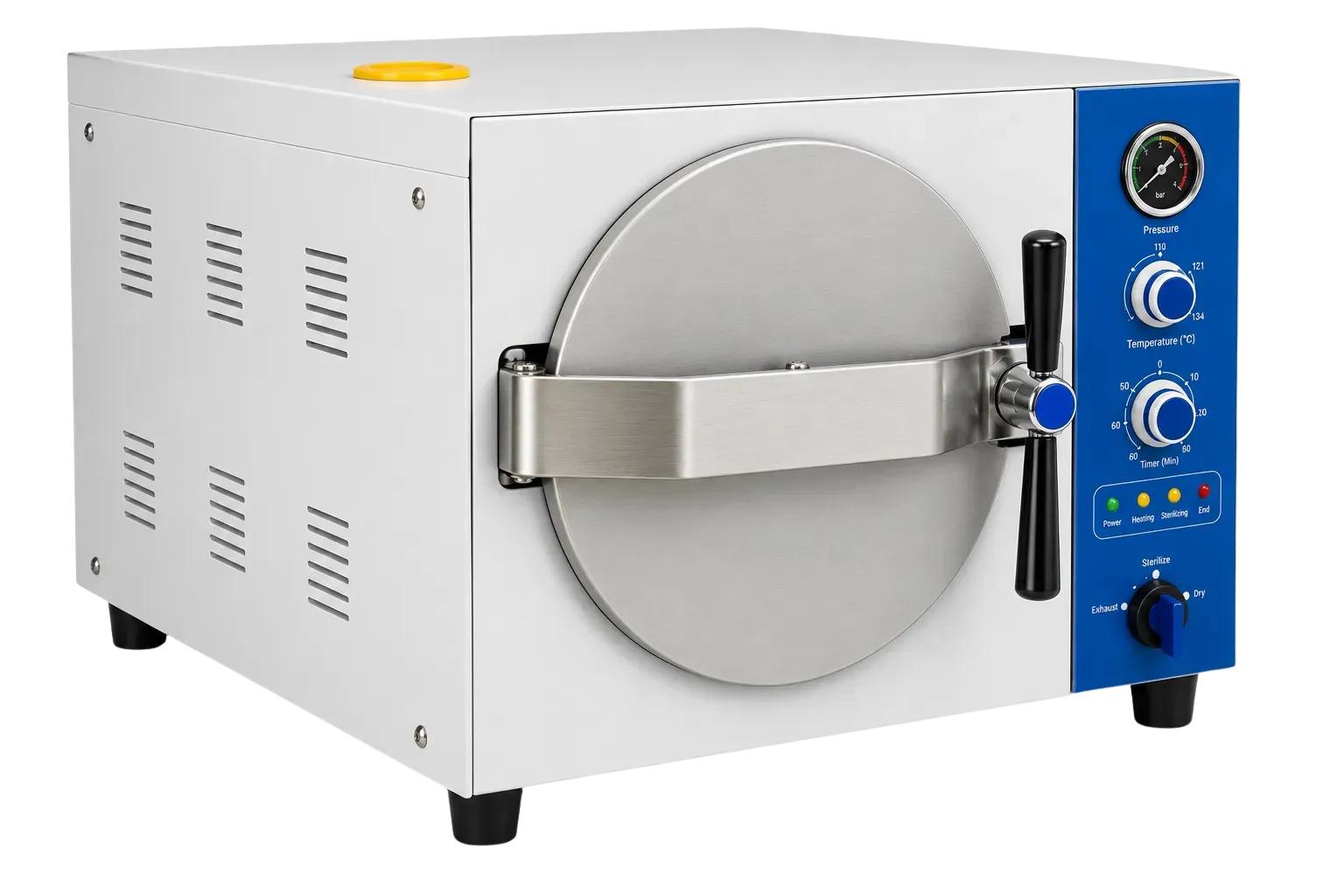

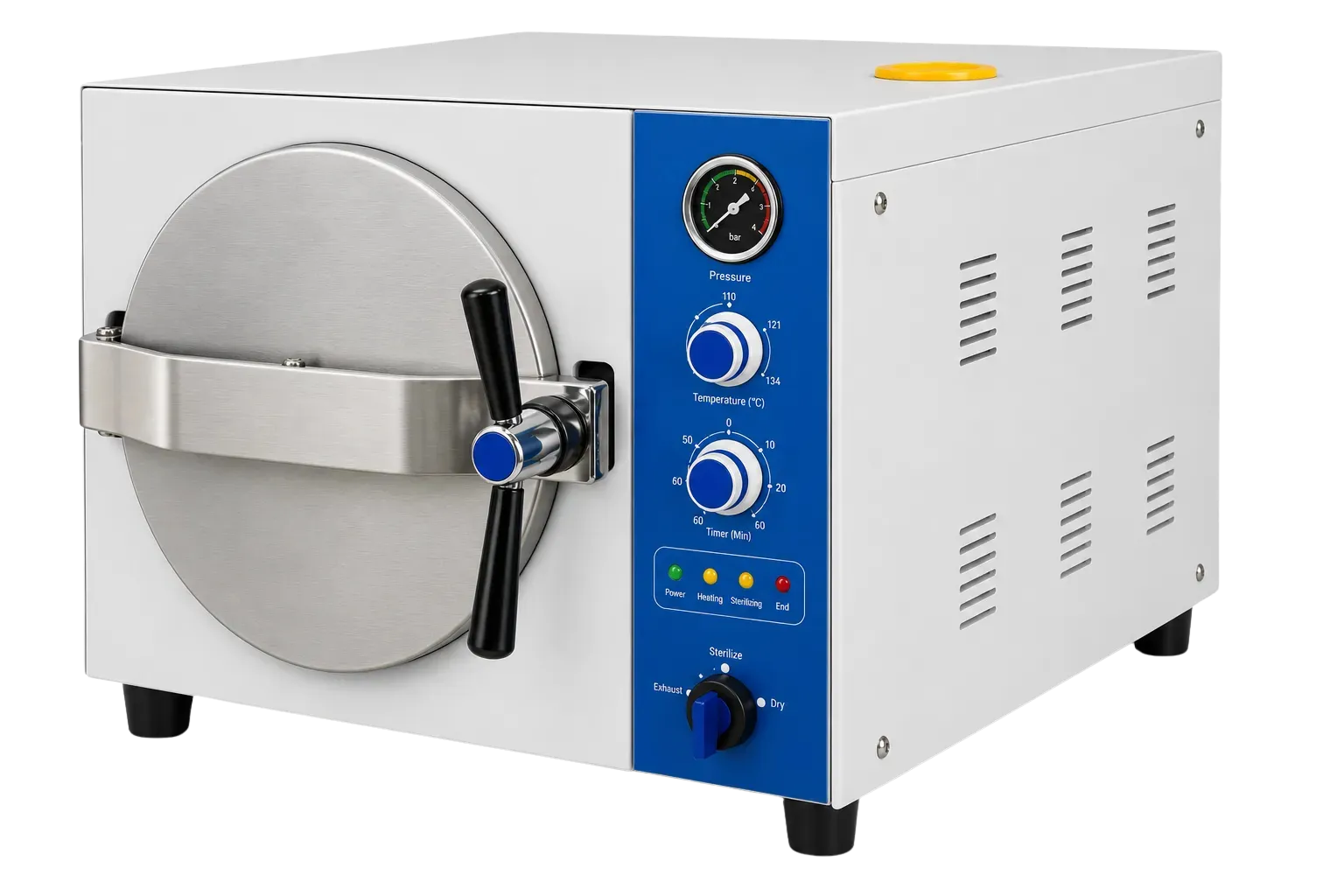

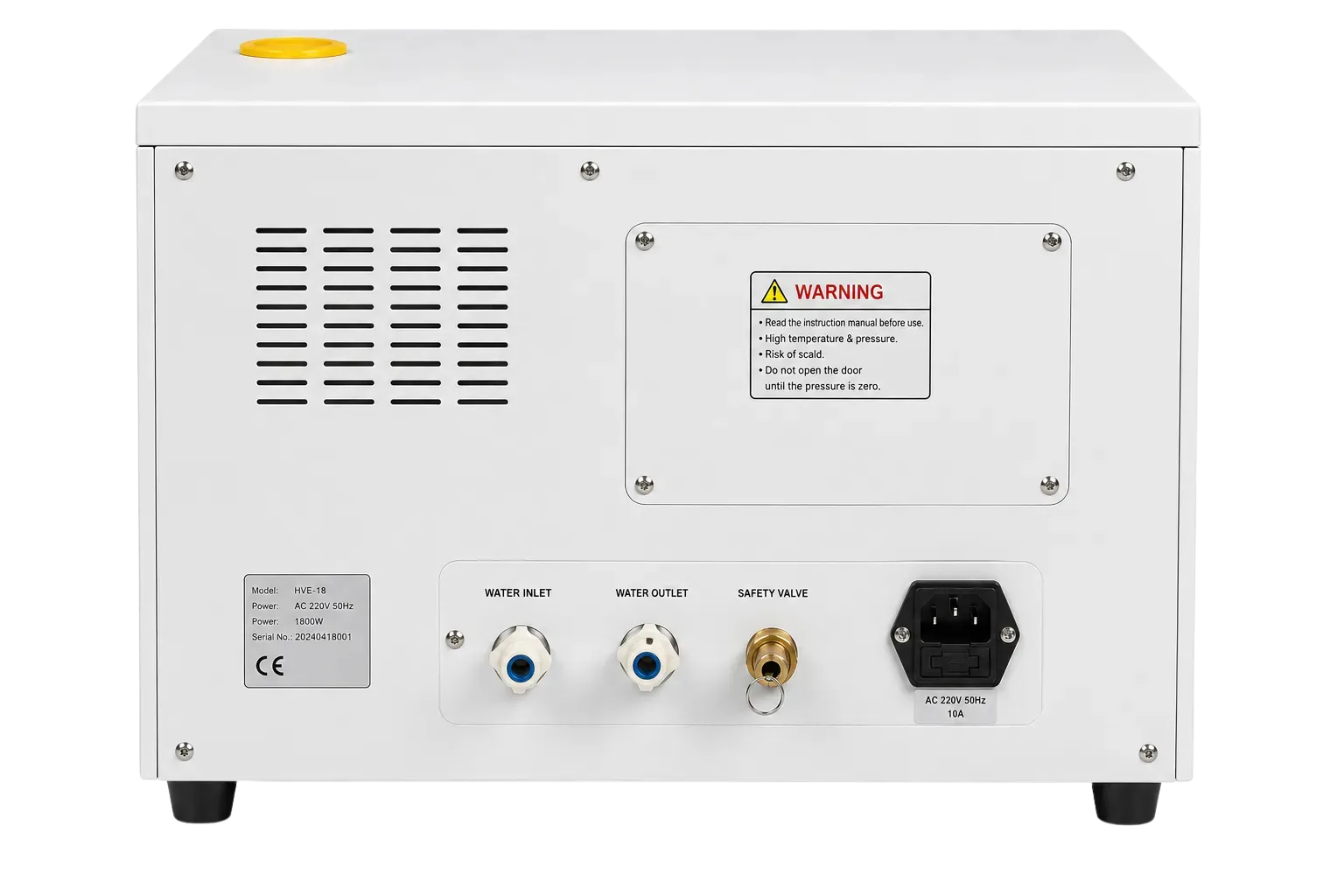

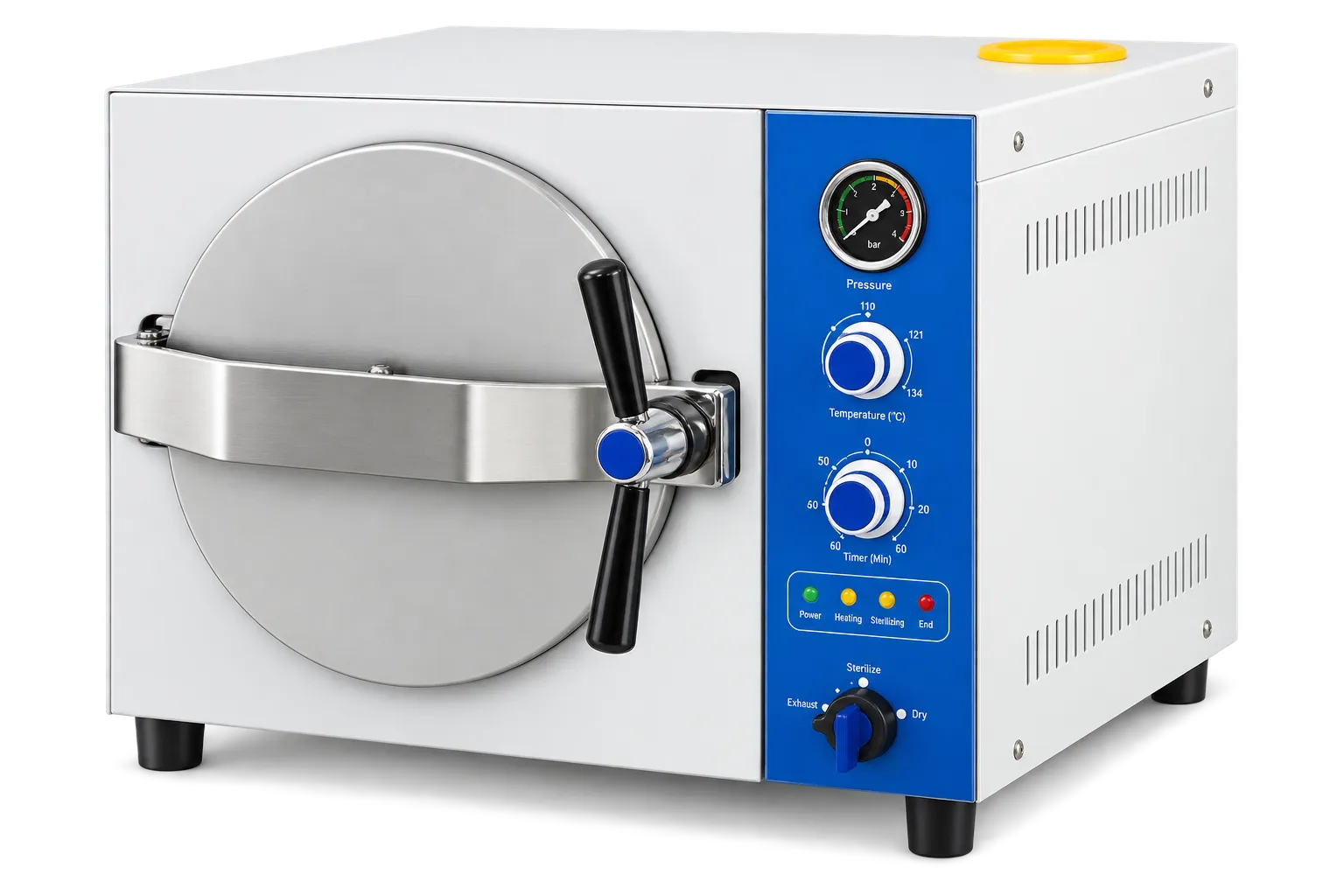

Visionstar TM-XB24J

Twenty Four Litre Chamber

Sterilising chamber volume is 24L in a chamber of 250 by 520mm, the single specified difference between this model and the smaller capacity version of the same unit.

Depth Rather Than Diameter

Chamber diameter stays at 250mm across both models, so the additional capacity is entirely in length, accommodating longer instruments laid flat within the chamber.

Four to Six Minute Cycle

The manufacturer states rapid sterilising in four to six minutes, unchanged from the smaller model, so capacity rises with no penalty at all in turnaround speed.

Preset Temperature and Time

Sterilising temperature and time can both be preset, with adjustment across 105 to 134 degrees and a timer running from 0 to 60 minutes on the unit.

Three Longer Sterilising Plates

Three stainless steel sterilising plates of 400 by 200 by 30mm are supplied, sized to match the deeper chamber of this particular model in the range.

No Steam Discharge

A steam water inner circulation system means no steam is discharged, which the manufacturer relates to a clean and dry environment for sterilising work.

Automatic Air Exhaust and Protection

Cool air is exhausted automatically, with over temperature and over pressure auto-protection fitted alongside safe protection of water lacking on the unit.

Stainless Chamber and Signalling

The chamber is made of stainless steel, an indicator light shows the working state, and the unit shuts off automatically with a beep once sterilising is complete.

Practices With Longer Instruments

The whole reason to choose this version is chamber length. Because the extra capacity is depth and not diameter, instruments that would not lie flat in the shallower model fit here. For a practice whose sets include longer items, that is a more useful gain than the litre figure alone suggests, and it is the question worth asking before finally choosing between the two versions of this particular unit.

Busier Dental and Podiatry Practice

A four to six minute cycle with more chamber to fill means more instruments processed in the same time. Where a practice is running consecutive appointments and cycling its sets continuously, the additional volume converts directly into fewer cycles across a day. The capital saved on duplicate instrument sets is frequently the real argument for buying a rapid steriliser in the first place.

Treatment Rooms Without Extraction

No steam discharge matters more for a bench unit than for a vessel in a plant room, because the machine sits where people are working. A unit that recirculates rather than venting keeps the treatment room dry and removes any need for extraction above it, which is often what decides whether a steriliser can be sited in a particular room at all in the first place.

Veterinary and Studio Settings

Veterinary instrument sets and studio equipment both tend toward the longer items, and both cycle constantly through a working day. Stainless construction with automatic over temperature, over pressure and water shortage protection addresses the practical reality that any worktop unit runs repeatedly with limited supervision while staff attend to other duties entirely.

Length Where It Is Needed

Capacity figures rarely tell a buyer what really matters, and here the useful detail is that the whole gain is entirely in depth. An instrument that will not lie flat inside the shallower chamber will lie flat in a 520mm one, and no amount of extra litres in a wider chamber would achieve that. For anyone choosing between the two versions, the instrument sets rather than the raw volume figure should really decide it.

Nothing Given Up for the Extra Capacity

Cycle time, working pressure, temperature range, timer, protections and construction are identical to the smaller model. A practice choosing the larger chamber therefore keeps the same four to six minute turnaround and the same operating behaviour, which is worth stating quite plainly because buyers reasonably assume a bigger chamber means a longer wait, or else a compromise made somewhere rather less visible.

Sited Where It Is Needed

A 580 by 480 by 384mm footprint and no steam discharge together mean the unit goes on a worktop in the room where instruments are used, with no extraction installed above it. For premises that cannot dedicate a separate decontamination room, being able to site the equipment sensibly is precisely what makes properly compliant processing practical rather than merely aspirational for a small premises.

The Visionstar TM-XB24J holds 24L in a chamber of 250 by 520mm and completes a cycle in a stated four to six minutes. Maximum working pressure is 0.22 MPa, maximum working temperature 134 degrees, temperature adjustment covers 105 to 134 degrees, the timer runs 0 to 60 minutes and chamber temperature is equal within plus or minus 1 degree. Three stainless sterilising plates of 400 by 200 by 30mm are supplied, the chamber is stainless steel, and a steam water inner circulation system means no steam discharge. The unit measures 580 by 480 by 384mm and weighs 50kg gross.

The difference between this model and its companion is chamber capacity and depth, and nothing else on the data supplied. The electrical specification is not reproduced here, and accessories, cycle documentation, configuration and condition do not appear on the material held. Nothing here should be read as a claim about testing or regulatory approval, and a pressure vessel of this kind requires appropriately trained operators.

If your practice processes longer instruments, or simply needs more capacity at the same turnaround speed, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm whether this chamber suits the instrument sets you actually run.
