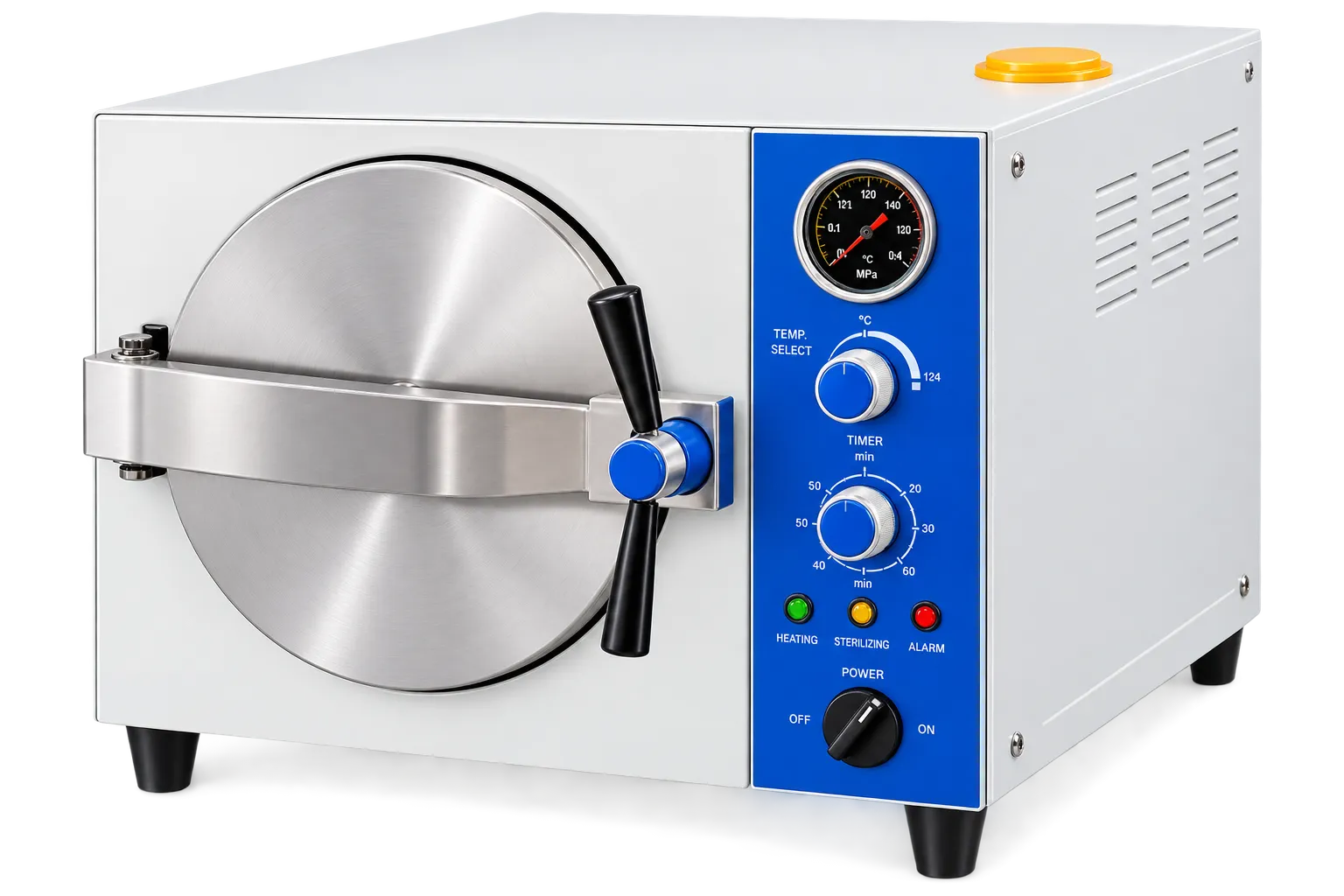

Visionstar TM-XB20J

Four to Six Minute Cycle

The manufacturer states rapid sterilising in four to six minutes, which is what makes returning a set to service between appointments realistic rather than merely possible.

Twenty Litre Chamber

Sterilising chamber volume is 20L in a chamber of 250 by 420mm, sized for instrument sets rather than for bulk or heavily packaged loads.

Preset Temperature and Time

Sterilising temperature and time can both be preset, with adjustment across 105 to 134 degrees and a timer running from 0 to 60 minutes.

No Steam Discharge

A steam water inner circulation system means no steam is discharged, which the manufacturer relates to a clean and dry environment for sterilising work.

Automatic Air Exhaust

Cool air is exhausted from the chamber automatically, which is what allows steam to reach the load instead of being held away from it by trapped air.

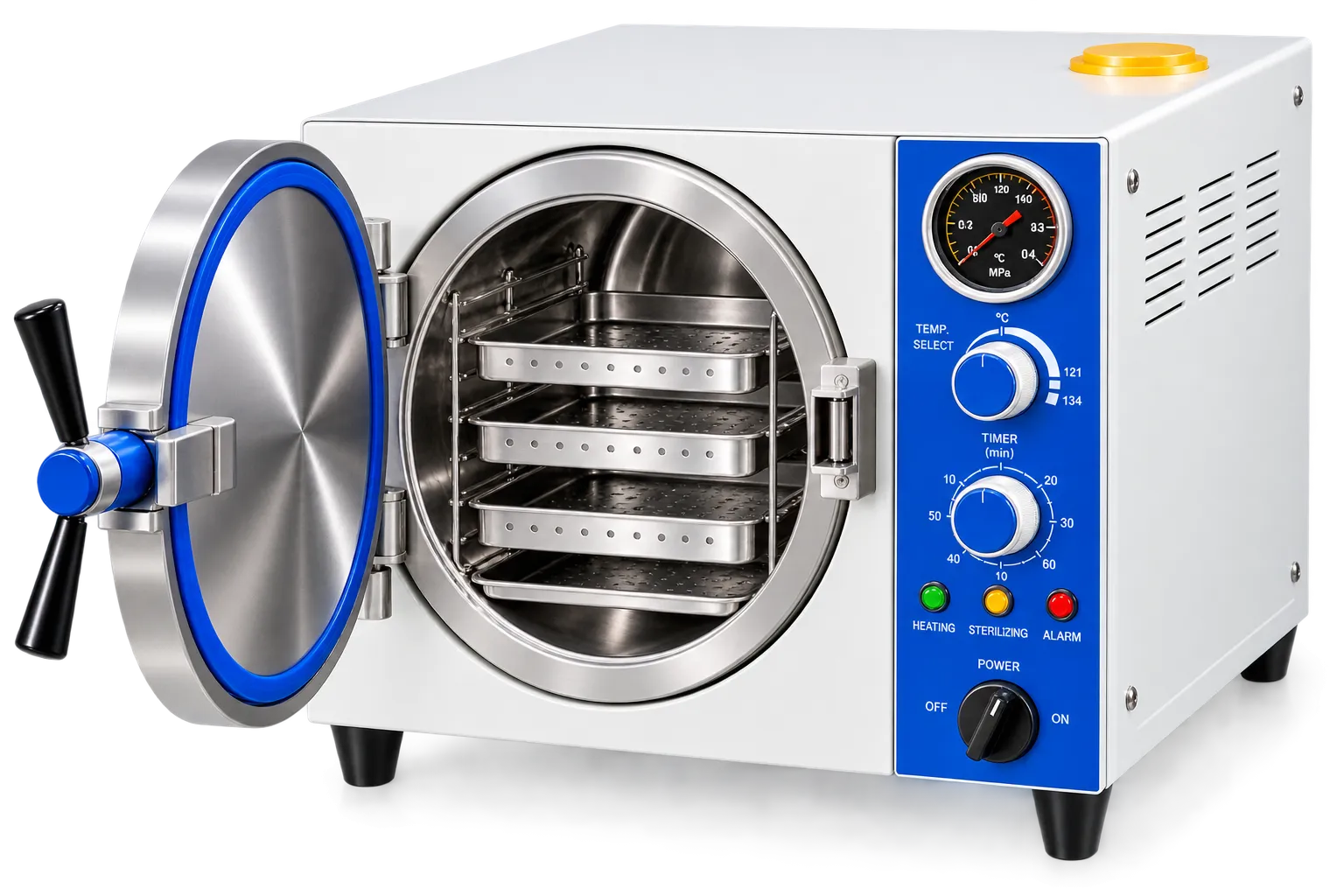

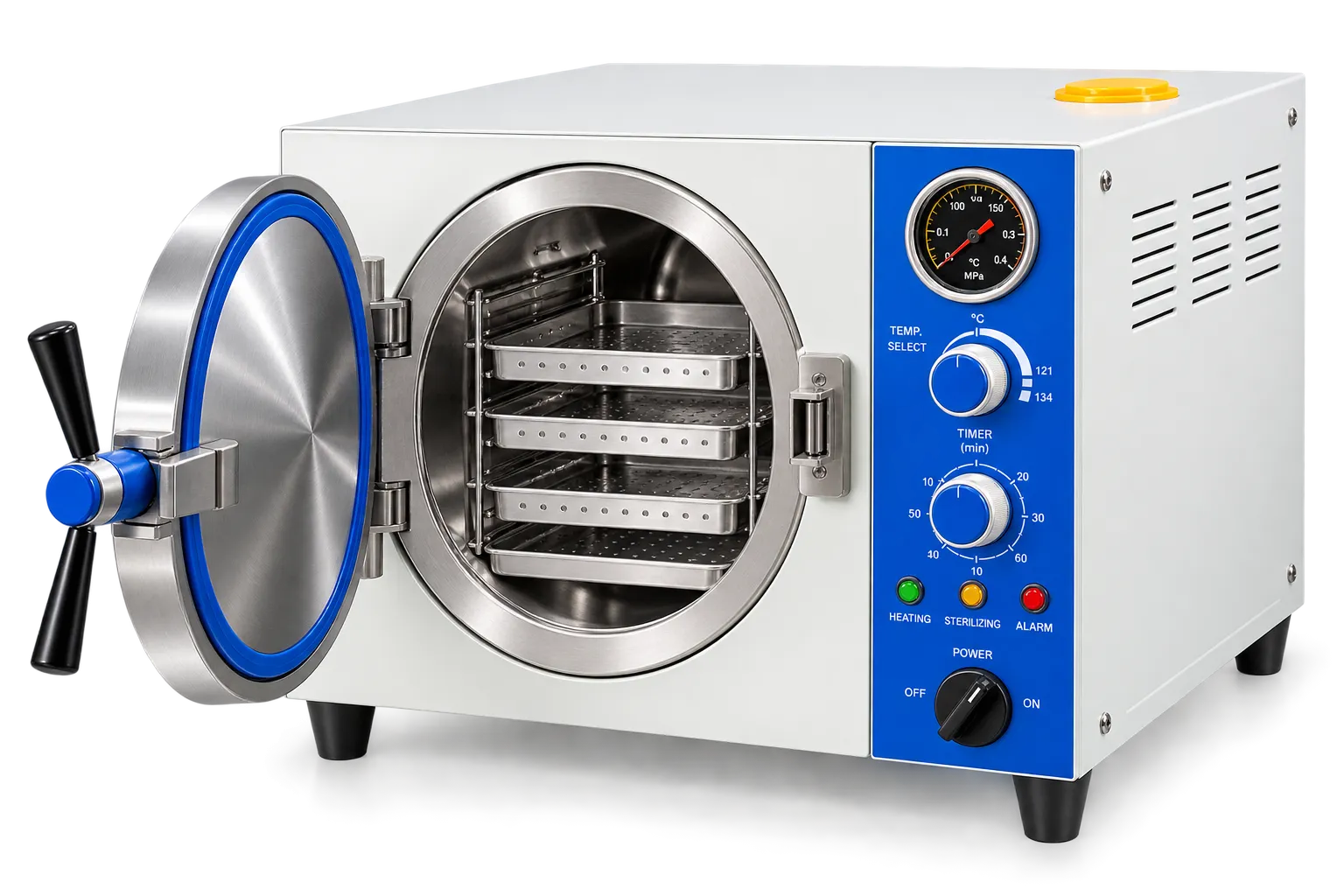

Three Sterilising Plates

There are also three stainless steel sterilising plates of 340 by 200 by 30mm are supplied, so a load can be separated across shelves rather than heaped into a single space.

Automatic Protections

Over temperature and over pressure auto-protection is fitted, along with safe protection of water lacking, with chamber temperature equal within plus or minus 1 degree.

Stainless Chamber and Signalling

The chamber is made of stainless steel, an indicator light shows the working state, and the unit shuts off automatically with a beep once sterilising is complete.

Dental and Podiatry Practice

A four to six minute cycle changes the arithmetic of instrument stock. Where a longer cycle forces a practice to buy several duplicate sets so one is always available, a rapid unit lets the same set return between patients. The capital saved on duplicate instruments frequently exceeds the difference in price between one steriliser and another, which is the argument genuinely worth making to a practice principal.

Treatment Rooms Without Extraction

No steam discharge matters more for a bench unit than for a vessel in a plant room, because the machine sits where people are working. A unit that recirculates rather than venting keeps the treatment room dry and removes any need for extraction above it, which is often the deciding factor in whether a steriliser can be sited in a particular room at all in the first place.

Beauty, Tattoo and Piercing Studios

Settings outside conventional healthcare face much the same decontamination obligations and rarely have a dedicated room for them. A 480 by 480mm footprint sits on a worktop, three plates separate small instrument loads neatly, and preset temperature and time together mean a consistent cycle can be run by whoever is on duty without a decision being made afresh on each occasion.

Veterinary and Small Animal Practice

Veterinary instrument sets cycle constantly through a consulting day, and a 20L chamber with its three shelves suits that pattern. Stainless construction with automatic over temperature, over pressure and water shortage protection addresses the practical reality that a bench unit runs repeatedly with limited supervision while staff attend to the animals in their care.

Turnaround Measured in Minutes

A cycle of four to six minutes is the figure that decides how many instrument sets a practice must own. Rapid turnaround lets one set serve consecutive patients, and the saving on duplicate instruments is real capital rather than a merely notional convenience. For any small practice buying its first steriliser, that calculation usually matters considerably more than almost any other single specification printed on the data sheet.

Sited Where It Is Needed

A 480 by 480 by 384mm footprint and no steam discharge together mean that the unit goes on a worktop in the room where instruments are used, without extraction being installed above it. For premises that cannot easily dedicate a separate decontamination room, being able to site the equipment sensibly is precisely what makes properly compliant processing practical rather than merely aspirational for a small premises to achieve.

Consistent Cycles Without Decisions

Preset temperature and time, automatic air exhaust, the automatic protections and an audible completion signal mean the same cycle runs the same way regardless of who starts it. In a practice where several people share the equipment and none of them is a decontamination specialist, removing judgement from routine operation is what keeps results consistent across a whole working week and well beyond it.

The Visionstar TM-XB20J holds 20L in a chamber of 250 by 420mm and completes a cycle in a stated four to six minutes. Maximum working pressure is 0.22 MPa, maximum working temperature 134 degrees, temperature adjustment covers 105 to 134 degrees, the timer runs 0 to 60 minutes and chamber temperature is equal within plus or minus 1 degree. Three stainless sterilising plates of 340 by 200 by 30mm are supplied, the chamber is stainless steel, and a steam water inner circulation system means no steam discharge. The unit measures 480 by 480 by 384mm and weighs 44kg gross.

This page states what the technical data states for this model. The electrical specification is not reproduced here, and accessories, cycle documentation, configuration and condition do not appear on the material held. Nothing here should be read as a claim about testing or regulatory approval, and a pressure vessel of this kind requires appropriately trained operators.
