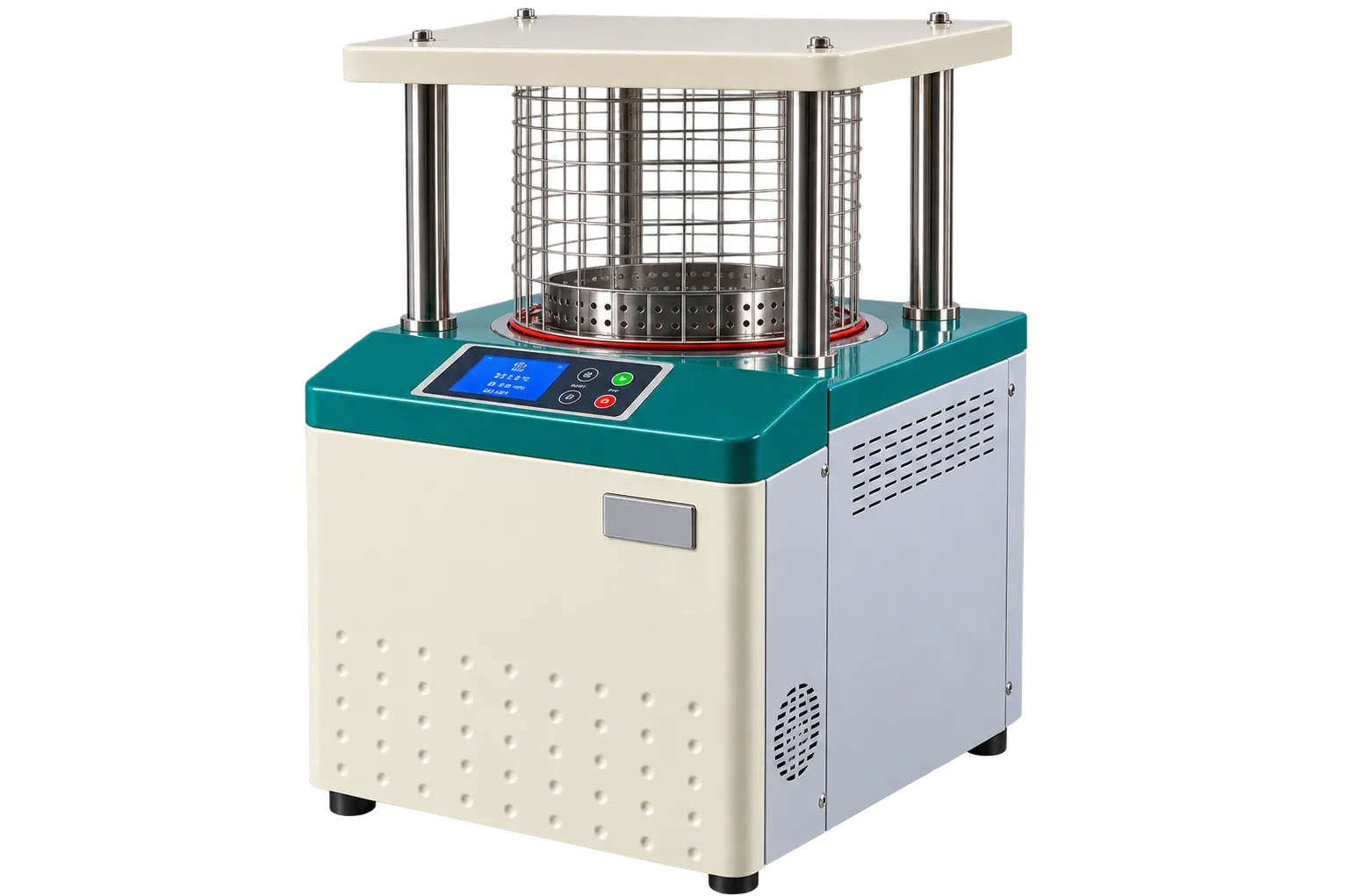

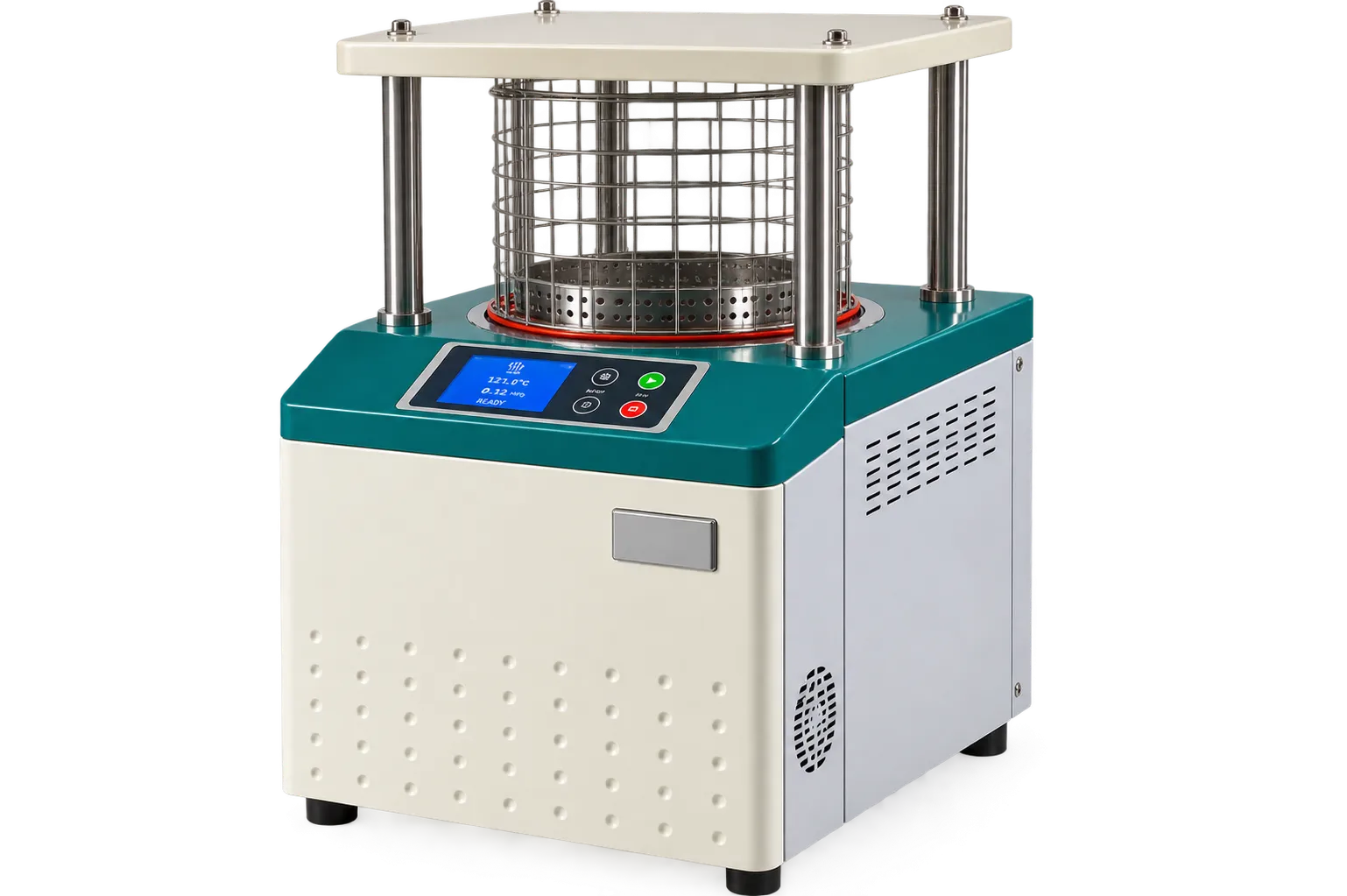

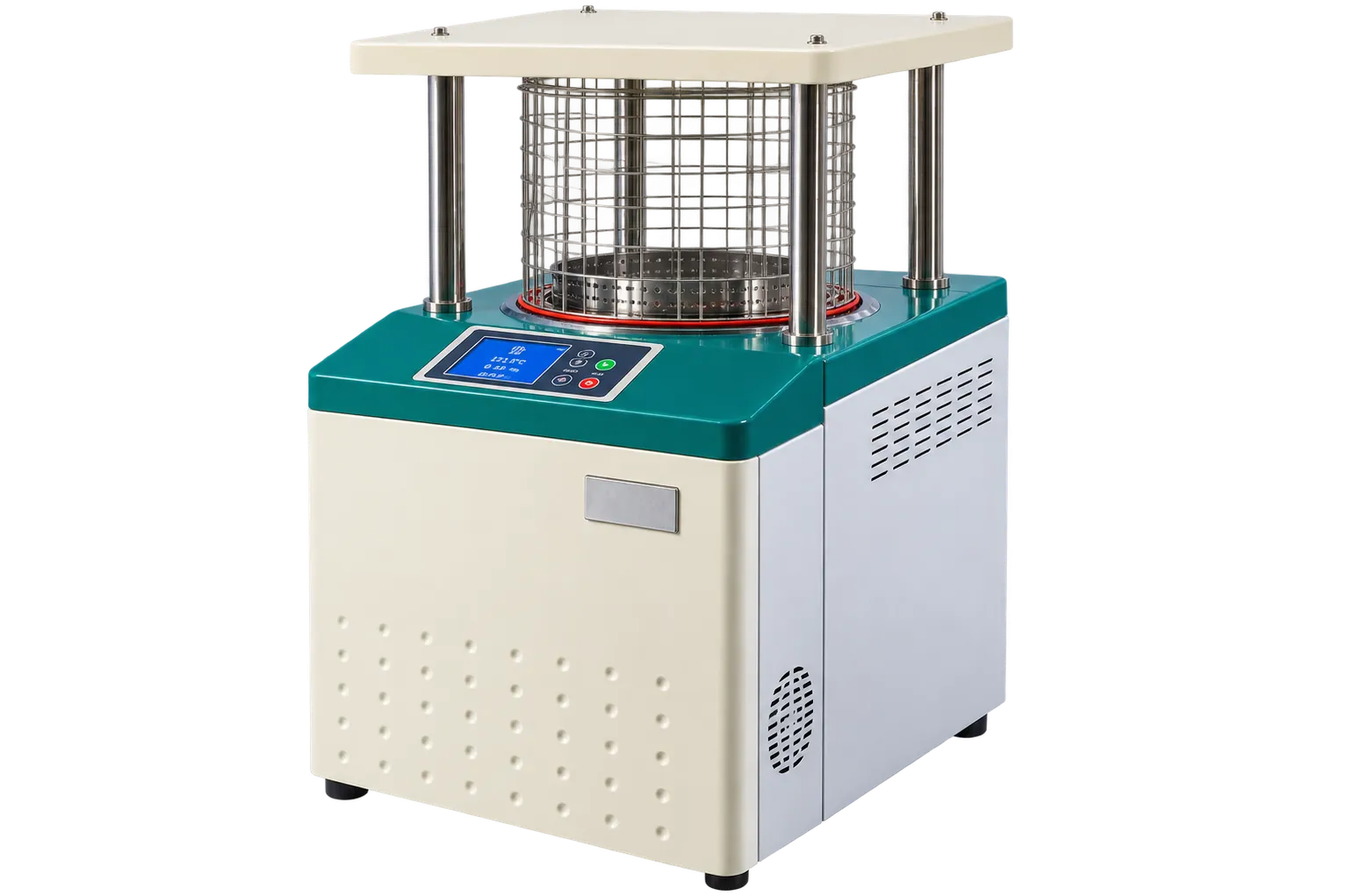

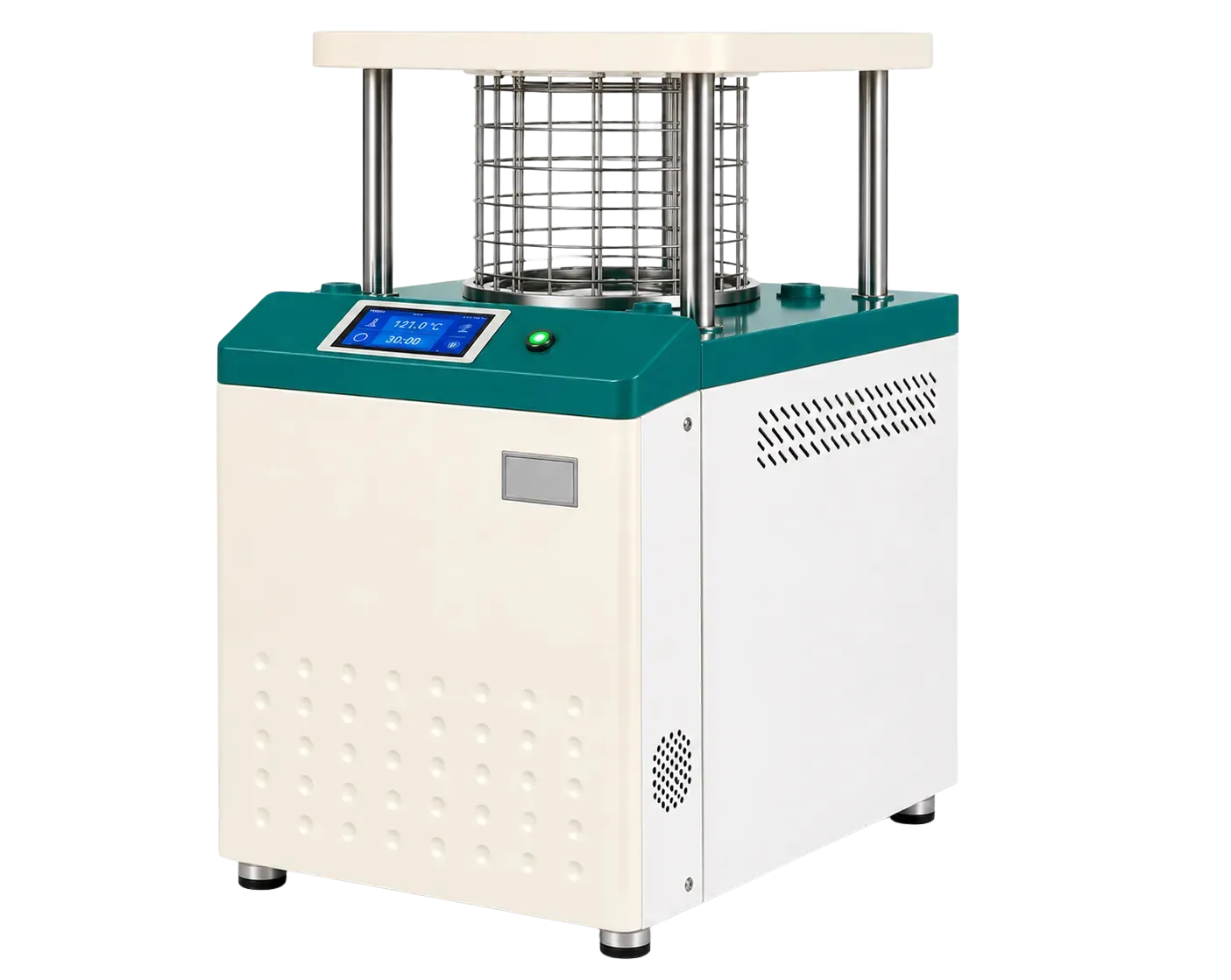

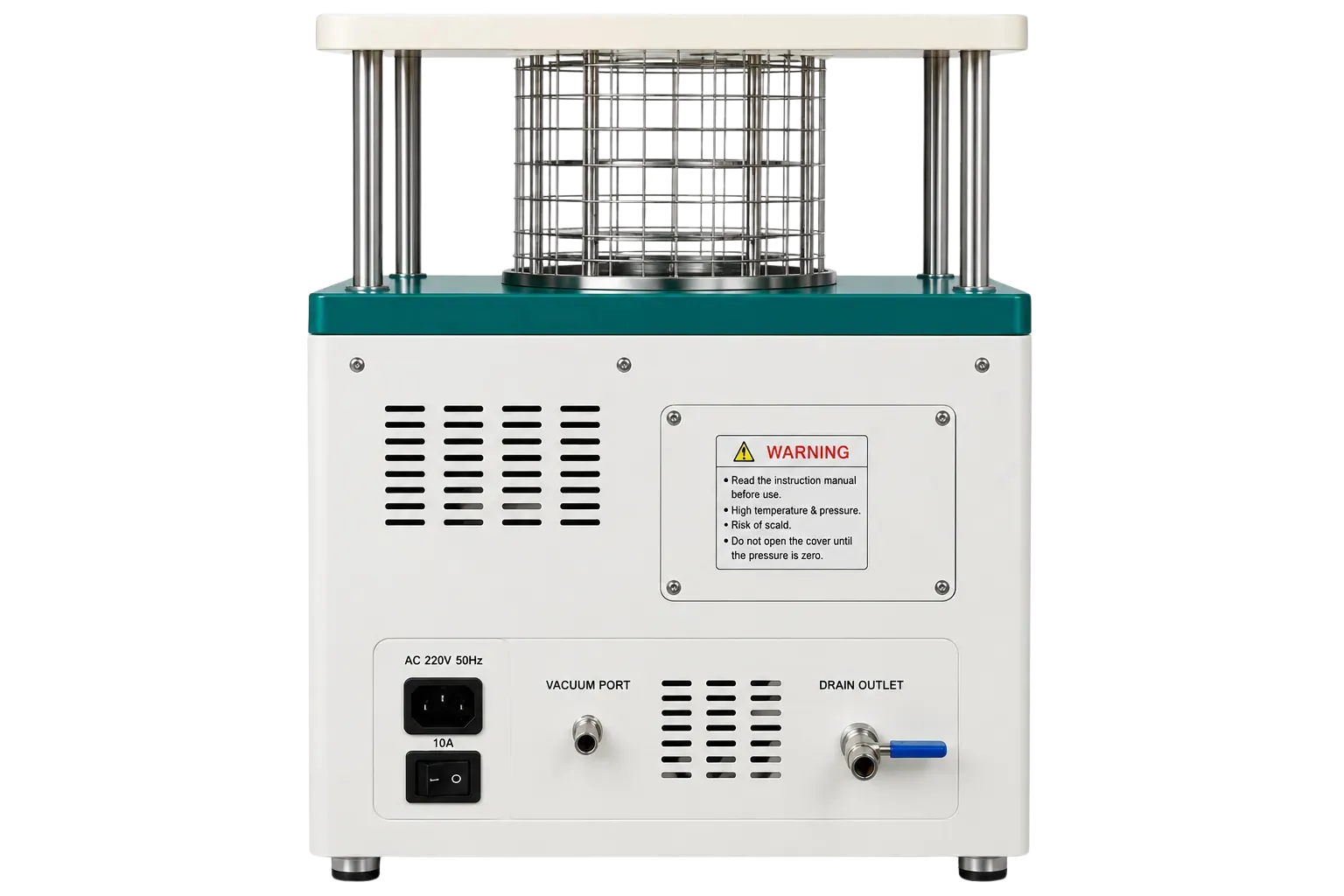

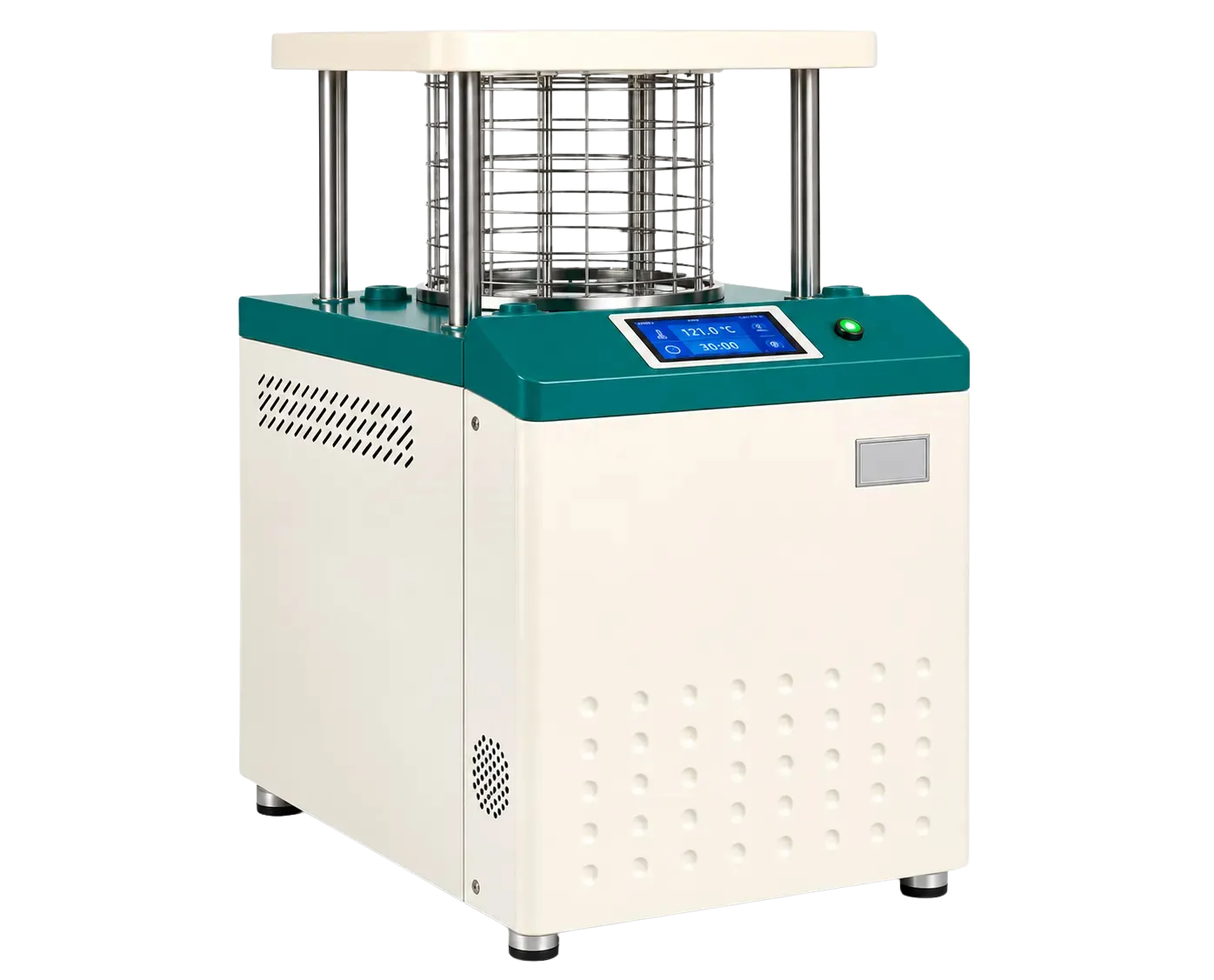

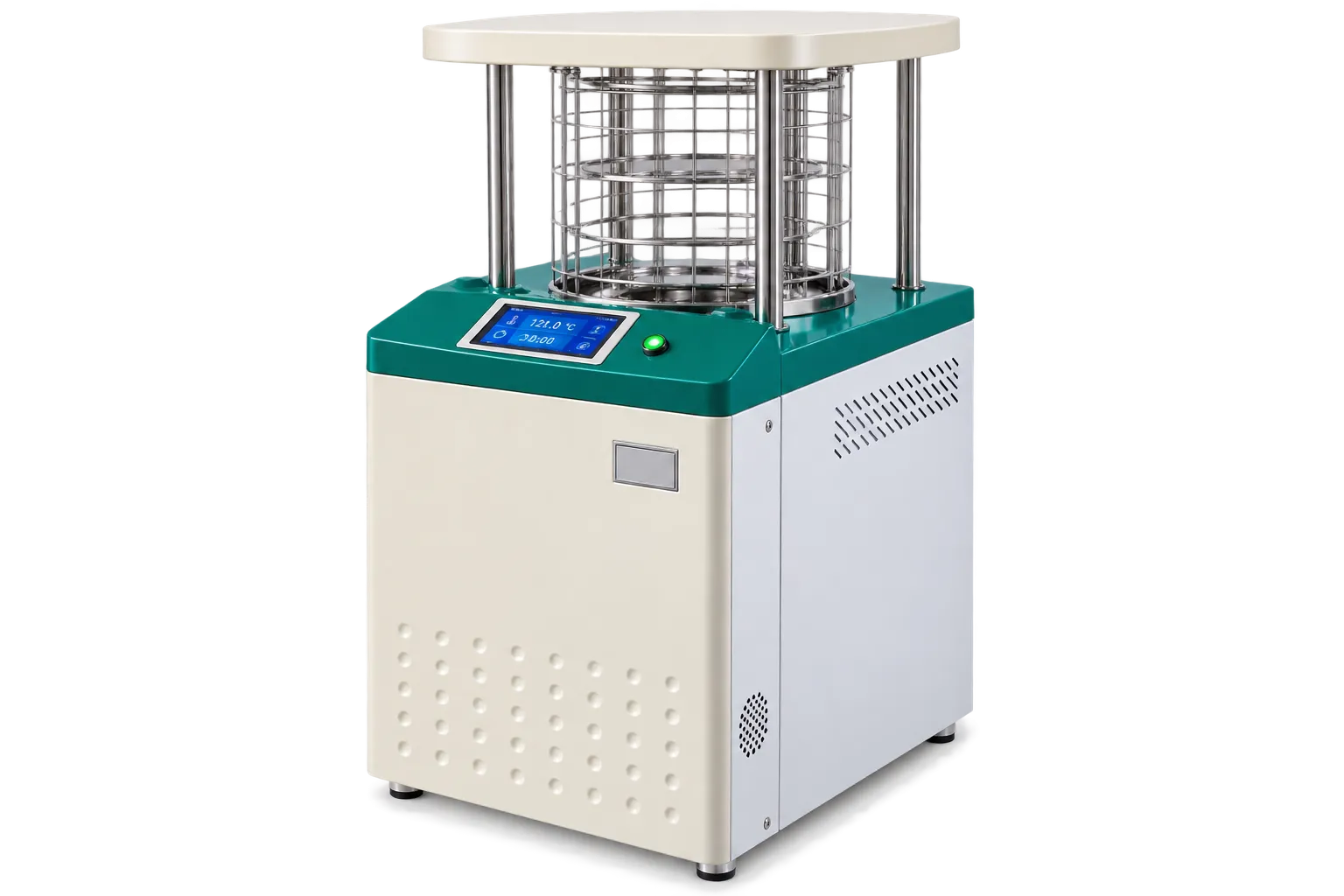

Visionstar LS-SV

Elevating Type Door

The lid rises clear of the chamber, which the manufacturer relates to placing and fetching objects from the autoclave far more conveniently than a fixed lid allows.

Separated Steam Generator

A steam generator sits apart from the chamber, related by the manufacturer to energy saving against normal heating and to preventing the sterilising objects from being oxidised.

Pulse Vacuum to 0.080 MPa

The pulse vacuum limit is 0.080 MPa, which the manufacturer relates to ensuring the sterilising process is more completely carried out on the load.

Four Chamber Capacities

Volumes of 60L, 80L, 100L and 120L are offered, at 396 by 490mm and 396 by 650mm diameter, then 500 by 404 by 502mm and 504 by 404 by 590mm respectively.

Height After Rising

The height after rising is listed for every model, from 1310mm to 1590mm, which should be checked against available ceiling height before an installation is planned.

Seven Inch Capacitive Touch Screen

A 7 inch capacitive touch screen provides full automatic control, with the whole procedure running from a single key press once a program has been chosen.

Shared Operating Parameters

Working temperature is 134 degrees and working pressure 0.22 MPa on every model, with heat average within plus or minus 1 degree and a 105 to 134 degree adjust range.

Filtered Air and Test Port

A sterile ventilation filter rated at 0.20 micron keeps incoming air sterile, and a PT-TT testing port is fitted for running routine tests on the equipment.

Laboratories Handling Awkward Loads

An elevating lid earns its place wherever the loads are heavy, bulky or awkward to lower into a deep chamber. With the lid lifted entirely clear, the chamber mouth is left unobstructed and a basket can be lowered straight down rather than manoeuvred past a hinged cover. For a laboratory loading glassware or media flasks repeatedly through a day, that difference is felt in the back and not on the specification sheet.

Materials That Suffer From Direct Heating

The manufacturer relates the separated steam generator to preventing sterilising objects from being oxidised. Where a material would degrade through prolonged contact with a directly heated vessel wall, then supplying steam from a generator sited apart from the chamber addresses that at its source. Which materials benefit is a judgement for the laboratory concerned rather than something any product listing should determine.

Hollow and Wrapped Loads

Pulse vacuum to a limit of 0.080 MPa removes air before steam is admitted, and vacuum drying follows the sterilising stage. Air trapped in a lumen or a wrapped pack is what prevents steam reaching the surface it must contact, so active extraction and not mere displacement is what makes those loads properly processable in the first place at all.

Larger Research Operations

Capacities up to 120L place this range above the smaller vertical vessels in the family, suiting an institute or a production laboratory processing substantial volumes of work. Several loaded programs, single key operation and a touch screen interface together mean the equipment can be run consistently by different people across shifts without each developing a method of their own.

Access the Chamber Properly

A lid that rises entirely clear is a small mechanical change with a considerable practical effect. Deep top loading vessels are awkward to load precisely because something usually sits over the opening, and staff end up lifting baskets awkwardly at an angle. Removing that obstruction removes the awkwardness entirely, and over hundreds of cycles a year that matters far more to the people actually using the equipment than most headline specifications ever do for them.

Steam Supplied Rather Than Generated in Place

A separated generator is a genuinely different architecture, and not merely a refinement. The manufacturer connects it to lower energy consumption and to protecting the objects from oxidation, both of which follow from the chamber wall no longer serving as the heat source. For laboratories processing materials sensitive to that contact, it is the reason to choose this particular range in place of a directly heated vessel instead.

Automatic From One Key

Water inlet, pulse vacuum, heating, sterilising, water outlet, exhausting and vacuum drying all run automatically once a program is selected. Combined with a capacitive touch screen and several loaded programs, that makes the equipment straightforward to operate consistently, which matters most where several people must share one single machine and the results must remain properly comparable between all of them.

The Visionstar LS-SV range offers four elevating door autoclaves at 60L, 80L, 100L and 120L, with chamber dimensions from 396 by 490mm to 504 by 404 by 590mm and heights after rising from 1310mm to 1590mm. All four share a working temperature of 134 degrees, working pressure of 0.22 MPa, heat average within plus or minus 1 degree, a 0 to 99 minute timer and a 105 to 134 degree adjust range. Pulse vacuum reaches 0.080 MPa, the whole procedure runs automatically from one key through a 7 inch capacitive touch screen, and a separated steam generator, sterile ventilation filter, PT-TT testing port and inner circulation system are all fitted.

Two points are handled deliberately. The card names a particular filter manufacturer and product for the ventilation filter; that branding is not reproduced here, though the 0.20 micron rating is stated. The electrical specification is likewise not reproduced. Documentation, configuration and condition do not appear on the material held, and nothing here should be read as a claim about testing or regulatory approval.

If your laboratory processes bulky loads, materials sensitive to direct heating, or substantial volumes needing a larger chamber, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm which capacity suits your work and what height clearance an installation would need.
