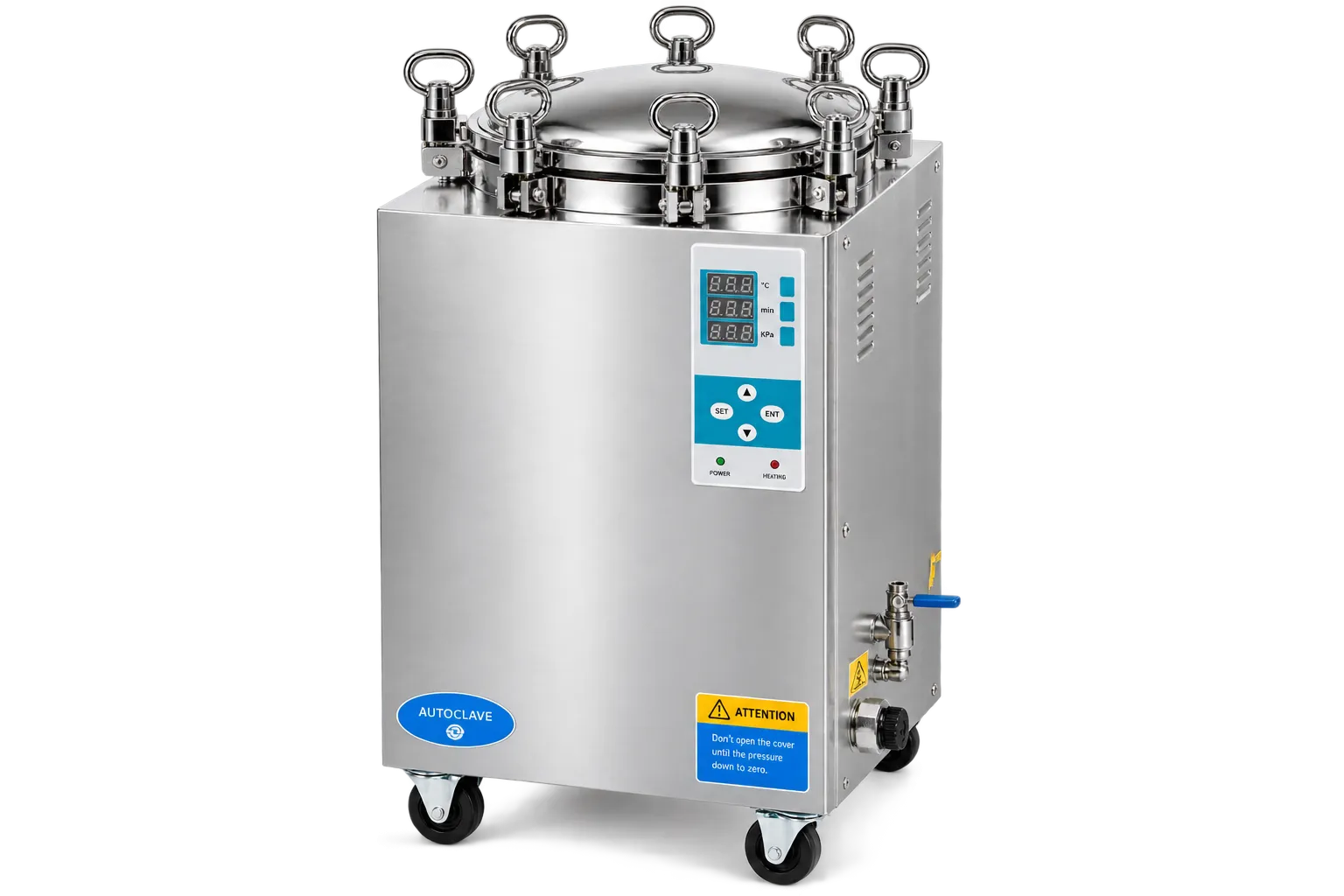

Visionstar LS-LD

Six Chamber Capacities

Volumes of 35L, 50L, 75L, 100L, 120L and 150L are offered, with chamber dimensions rising from 318 by 450mm to 510 by 740mm across the whole of the range.

Shared Working Pressure

Working pressure is 0.22 MPa on every model, with maximum working pressure listed separately at 0.23 MPa above that normal operating figure.

Temperature Scope

The temperature scope covers 105 to 134 degrees on all six units, giving a range of cycle conditions rather than a single fixed operating point for every load.

Adjustable Timer

Timer scope is 0 to 60 minutes on every model in the range, so cycle duration is set by the operator to suit the load being processed.

Heat Average Within One Degree

Heat average is quoted at within plus or minus 1 degree throughout the range, describing how evenly temperature is held right across the chamber space.

Automatic Protection

Over temperature and over pressure protection operate automatically, with separate safe protection against water lacking listed alongside both of them.

Cycle Completion Signalling

An indicator light shows the working state, and the unit shuts off automatically with a beep once sterilisation has finished, so a completed load is not left unnoticed.

Stainless Construction and Baskets

The structure is fully stainless steel with a double scale indication pressure gauge, and two stainless steel sterilising baskets are supplied with the unit.

Laboratory and Research Use

Vertical top loading vessels are the standard arrangement in laboratories, where glassware, media, flasks and consumables are awkward shapes that sit far better inside a deep chamber than within a shallow drawer. A temperature scope of 105 to 134 degrees, together with a 0 to 60 minute timer, lets a laboratory define its own cycle for its own materials and not accept a single preset condition chosen for them by somebody else.

Hospital and Clinic Departments

A department processing its own instruments and dressings can choose a capacity matched to its actual throughput rather than the nearest available size. Because every model shares the same pressure, temperature scope, timing and protections, a unit bought for one department behaves identically to one bought for another, which simplifies both the training and the written procedure across a whole site.

Veterinary Practice

Veterinary work generates mixed loads of instruments, drapes and packs, often in some quantity, and the larger capacities in this range suit that pattern well. Fully stainless construction with automatic over temperature and over pressure protection addresses the practical reality that these units will run repeatedly through a working day with only limited supervision being available.

Growing or Multi Site Operations

Six capacities on a single specification make this range straightforward for any organisation buying more than one unit at once. A small site takes 35L, a busier one takes 150L, and the operating parameters, protections and documentation are common to both. That consistency is worth as much as any individual figure when equipment is being standardised carefully across several separate locations.

One Specification, Six Sizes

Choosing within this range means choosing capacity alone. Working pressure, maximum pressure, temperature scope, timer range, heat average, construction and protections are identical from 35L to 150L. A buyer therefore sizes the vessel to the workload, without having to weigh a whole set of trade offs against one another, and an organisation running several units gets entirely consistent behaviour across all of them, which matters a great deal when a written operating procedure must cover every one of them.

Protection That Works Unattended

Automatic over temperature and over pressure protection, separate water shortage protection, automatic shut off and an audible completion signal together mean that the vessel effectively manages the whole of its own cycle unattended. For equipment that runs repeatedly through a working day while the staff are occupied with other duties, protections that act rather than merely indicate are what keep a unit safe and a load properly processed every time.

Depth Suited to Awkward Loads

A vertical chamber readily takes tall flasks, upright packs and long instruments that a shallow horizontal chamber cannot accommodate at all. Combined with two stainless baskets as standard and chamber depths from 450mm to 740mm, the range handles the mixed and irregular loads that laboratories and veterinary practices actually generate daily, rather than only the neat instrument trays a shallow chamber assumes.

The Visionstar LS-LD range offers six vertical pressure steam sterilisers from 35L to 150L, with chamber dimensions from 318 by 450mm to 510 by 740mm. All six share a working pressure of 0.22 MPa, maximum working pressure of 0.23 MPa, heat average within plus or minus 1 degree, a 0 to 60 minute timer and a temperature scope of 105 to 134 degrees. Construction is fully stainless steel with a double scale gauge, automatic over temperature and over pressure protection, water shortage protection, automatic shut off with an audible reminder, and two stainless sterilising baskets. Weights run from 56kg gross up to 135kg across the range.

One point needs correcting rather than repeating. The card carries a working temperature row reading 34 degrees, which is not a possible sterilising temperature and does not agree with the stated scope of 105 to 134 degrees on the same card. It has not been reproduced here, and the figure should be corrected at source. The electrical specification is likewise not reproduced, accessories and cycle documentation do not appear on the material held, and nothing here should be read as a claim about testing or regulatory approval.

If your laboratory, department or practice is sizing a vertical steriliser and wants the capacities and documentation checked against your loads, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm which capacity suits you and what its paperwork covers.
