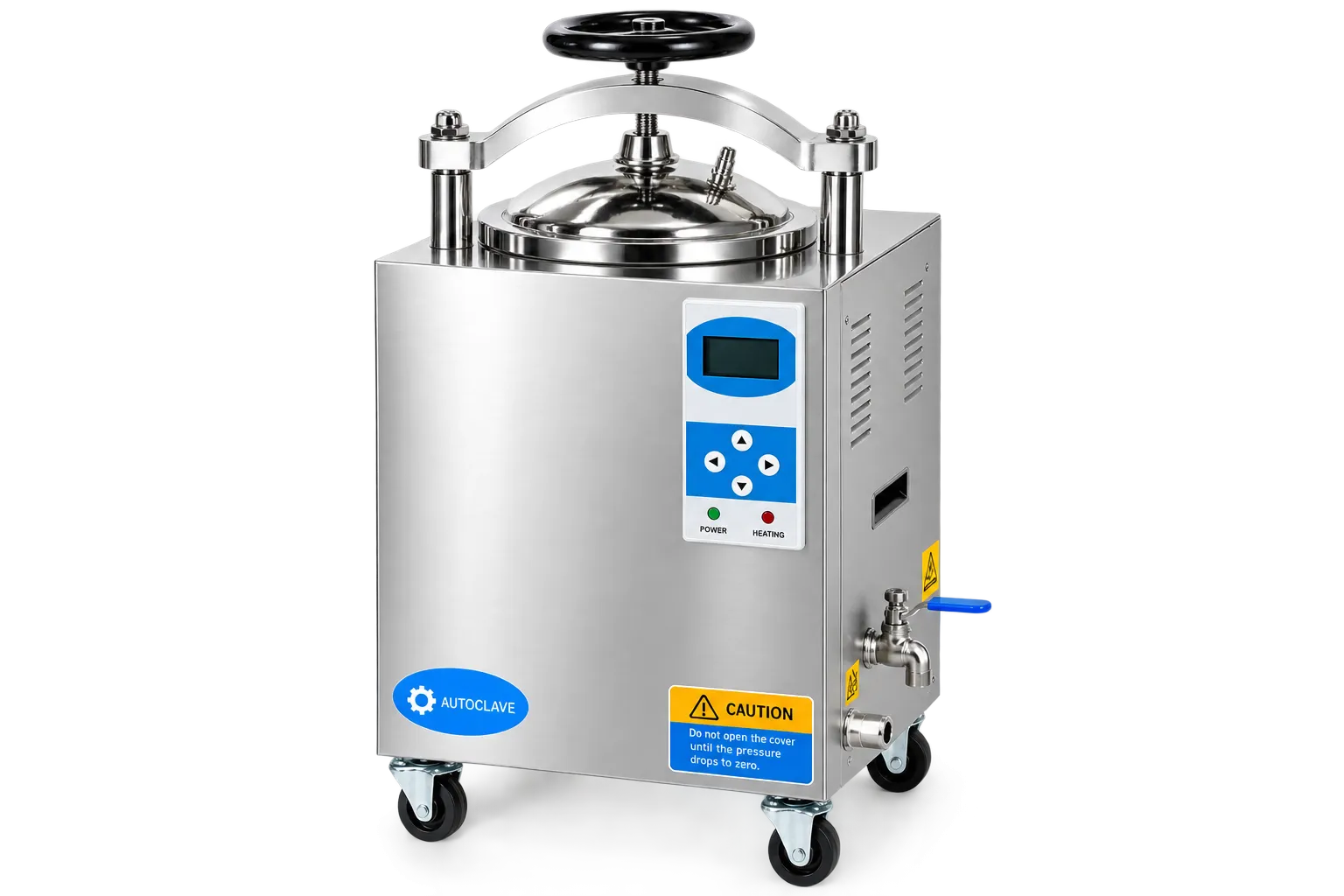

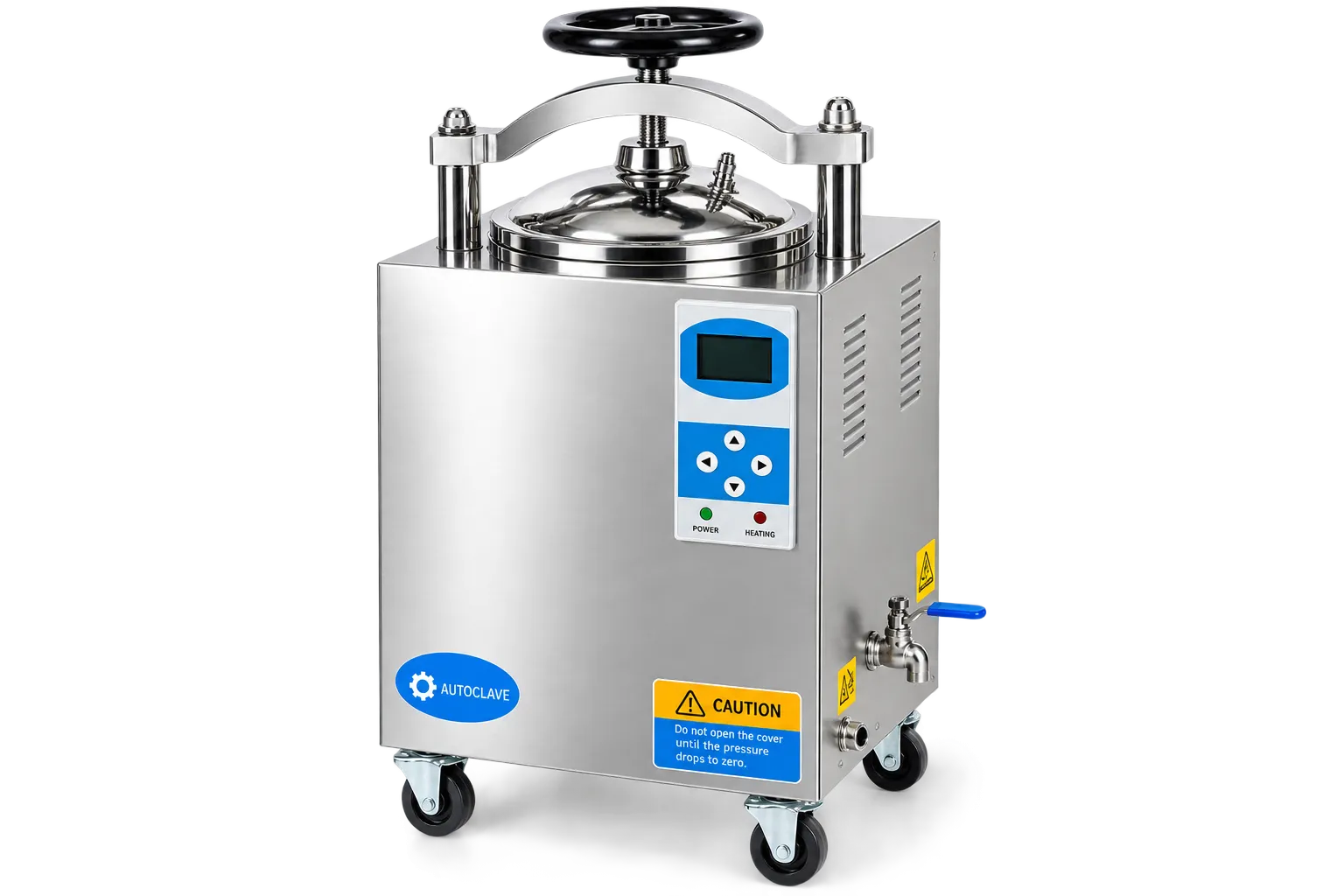

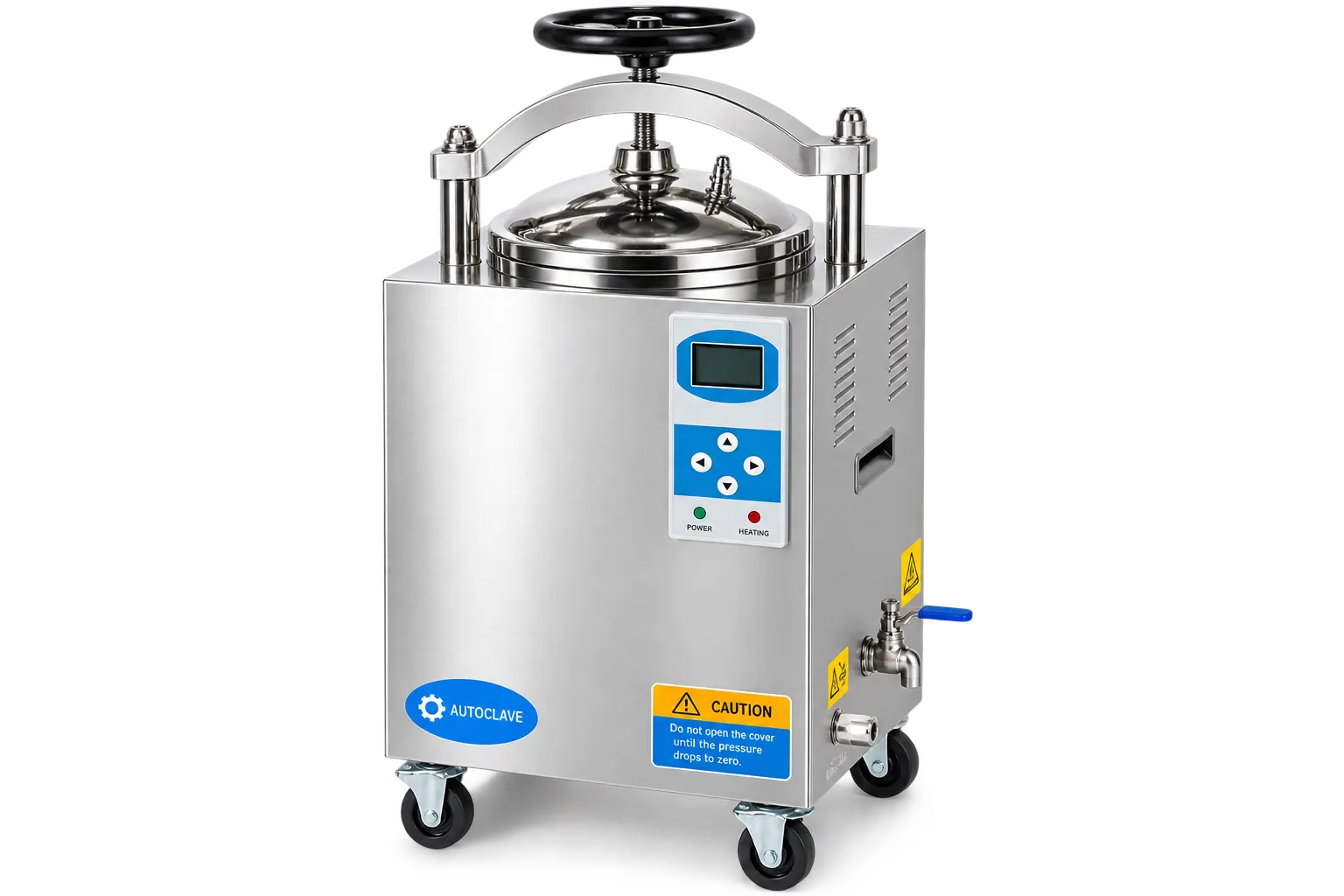

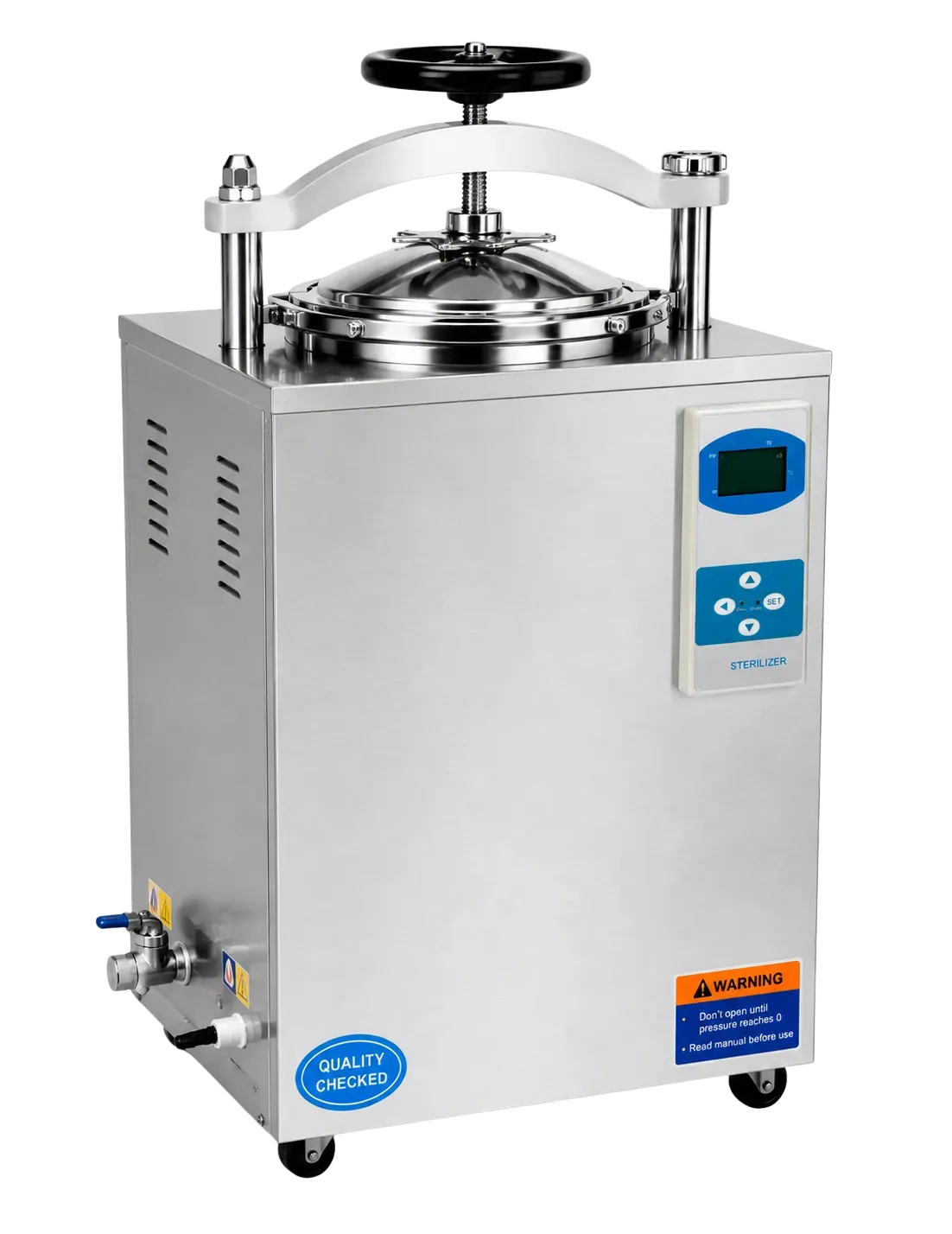

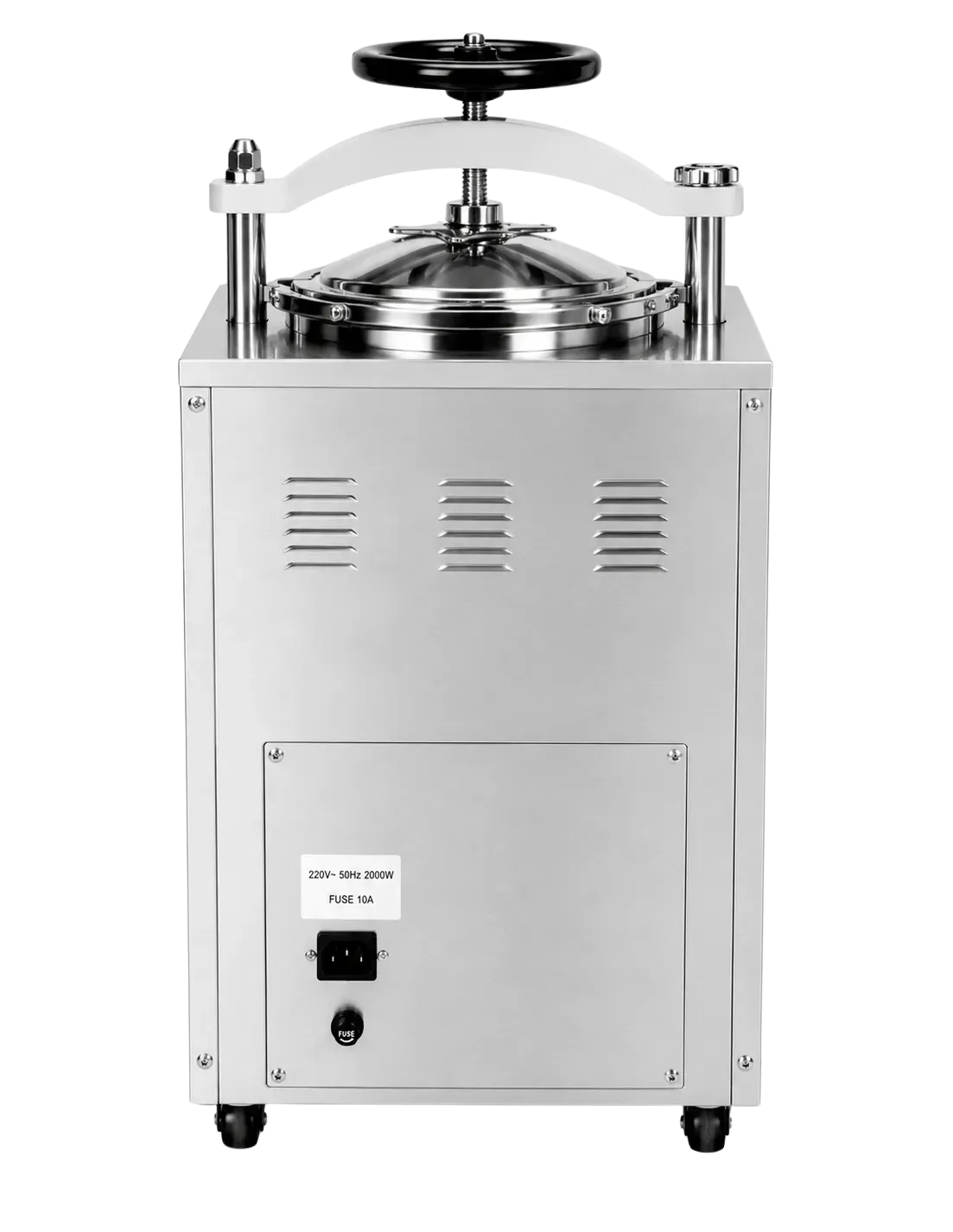

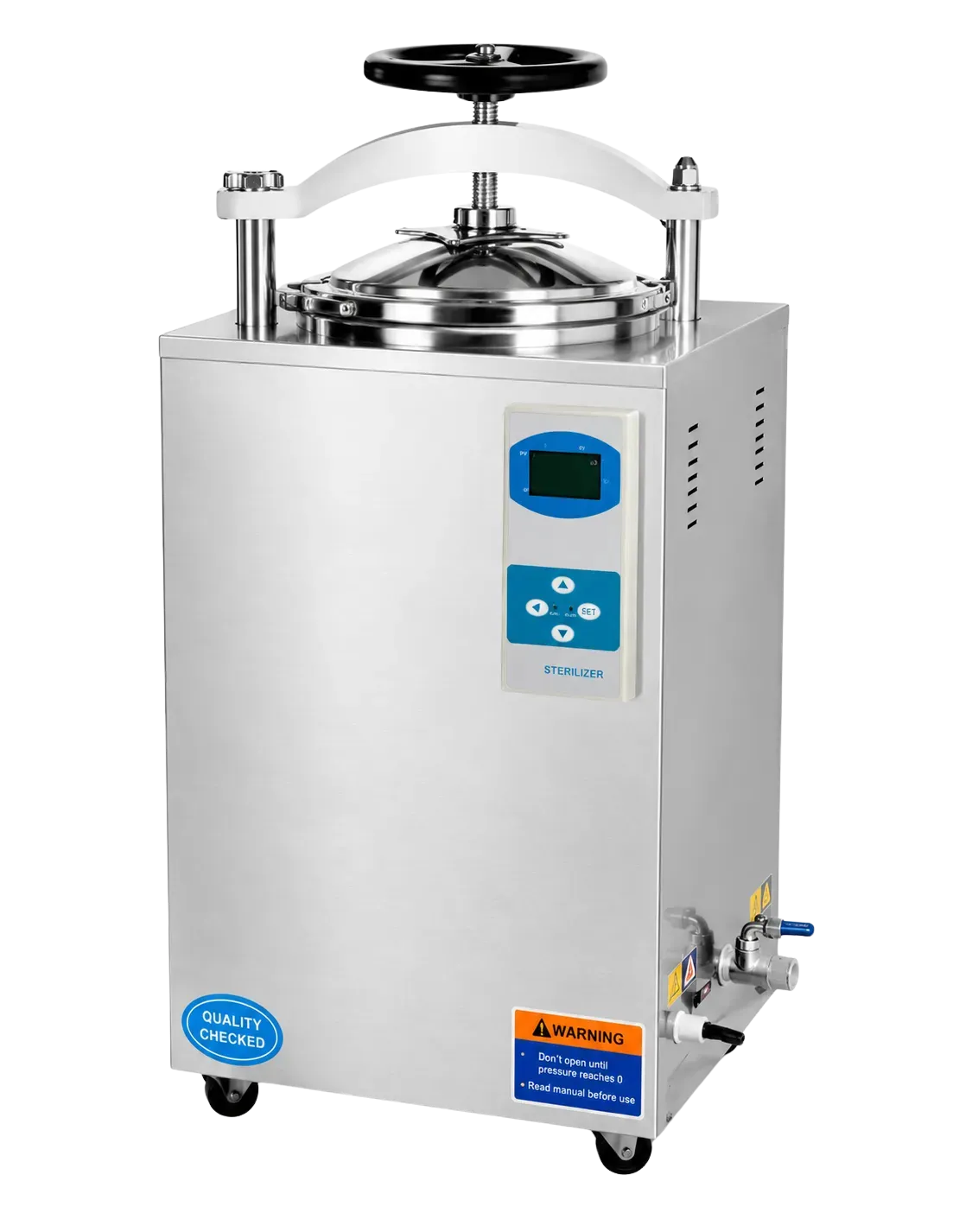

Visionstar LS-HD

Drying System Fitted

A drying system accompanies the sterilising chamber, so wrapped and packaged loads come out dry rather than wet at the end of a completed cycle.

Automatic Steam Discharge

Steam discharges automatically once sterilisation has finished, and cool air is discharged automatically before the sterilising stage begins.

Quick Open Hand Wheel Door

A hand wheel type quick open door structure replaces the butterfly nut arrangement used on simpler vessels, making opening and closing considerably faster.

Door Safety Lock and Seal

A door safety lock system prevents the vessel being opened while pressurised, and a self inflating type seal closes the door before a cycle commences.

Four Chamber Capacities

Volumes of 35L, 50L, 75L and 100L are offered, with chamber dimensions rising from 318 by 450mm to 440 by 650mm across the four separate models within the range.

Extended Timer Scope

Timer scope is listed as 0 to 99 minutes or 0 to 99 hours 59 minutes, allowing processing that extends well beyond the length of any normal working day.

Shared Operating Parameters

Working pressure is 0.22 MPa and maximum working pressure 0.23 MPa on every model, with a temperature scope of 105 to 134 degrees and heat average within plus or minus 1 degree.

LCD Display and Protections

Working status appears on an LCD display with touch type keys, alongside automatic over temperature and over pressure protection and safe protection against water lacking.

Wrapped and Packaged Loads

The drying system is the reason to choose this range. A pack that leaves an autoclave wet can draw contamination through the wrapping as it cools, so the sterilising stage alone does not finish the job for anything wrapped. For any department processing wrapped packs rather than loose instruments, a fitted drying stage is the difference between a load that is genuinely ready for storage and one that quietly is not ready at all.

Laboratory Media and Long Protocols

A timer reaching 99 hours 59 minutes is far beyond anything instrument work requires, and points squarely at laboratory use. Media preparation, extended holding and protocols running across days are all supported, with a temperature scope of 105 to 134 degrees allowing a lower condition where a material would not tolerate the full sterilising temperature without being damaged.

Busy Departments Opening Frequently

A hand wheel quick open door changes how the vessel is used across a working day. Where butterfly nuts must be loosened individually, a hand wheel opens in one movement, and the door safety lock removes the risk of the vessel being opened under pressure at all. For a unit cycling repeatedly through a session, that saves real time and removes a genuine hazard from the working day.

Veterinary and Mixed Practice

Veterinary work generates drapes, packs and instruments in quantity, often wrapped, and the larger capacities here suit that pattern. Fully stainless construction with automatic over temperature and over pressure protection addresses the practical reality that these vessels run repeatedly with limited supervision available throughout the whole of a working day.

Drying Completes the Cycle

Sterilising a wrapped pack and leaving it damp achieves very little, because moisture provides a route for recontamination once the load cools and is handled. A fitted drying system, combined with automatic steam discharge at the end of a cycle, means a pack is ready for storage when it comes out. For any department that wraps its loads, that is the single most useful thing this range offers in place of a simpler vessel.

A Door Built for Frequent Use

A hand wheel quick open structure, a self inflating seal and a door safety lock together address the part of a pressure vessel that gets handled most and causes most difficulty. Opening is quicker, sealing is automatic rather than dependent on how evenly someone tightened a set of nuts, and the vessel cannot be opened while any pressure remains inside the chamber.

Timing for Work That Is Not Routine

Two timer scopes, one to 99 minutes and one to 99 hours 59 minutes, cover both ordinary instrument cycles and extended laboratory protocols on the same equipment. A laboratory that would otherwise need separate provision for long runs can use one vessel for both, and the shared parameters across all four capacities mean the same is true whichever of the sizes is finally chosen.

The Visionstar LS-HD range offers four vertical pressure steam sterilisers from 35L to 100L, with chamber dimensions from 318 by 450mm to 440 by 650mm. All four share a working pressure of 0.22 MPa, maximum working pressure of 0.23 MPa, working temperature of 134 degrees, heat average within plus or minus 1 degree and a temperature scope of 105 to 134 degrees. Timer scope covers 0 to 99 minutes or 0 to 99 hours 59 minutes. A drying system, automatic steam and cool air discharge, hand wheel quick open door, door safety lock, self inflating seal, LCD status display, automatic protections and two stainless baskets are all fitted.

One observation is worth passing on. A companion range carries a working temperature row reading 34 degrees, which is not a possible sterilising temperature; this card reads 134 degrees in the same position, which confirms that the other figure is a truncation and should be corrected at source. The electrical specification here is not reproduced, accessories and cycle documentation do not appear on the material held, and nothing on this page should be read as a claim about testing or regulatory approval.
