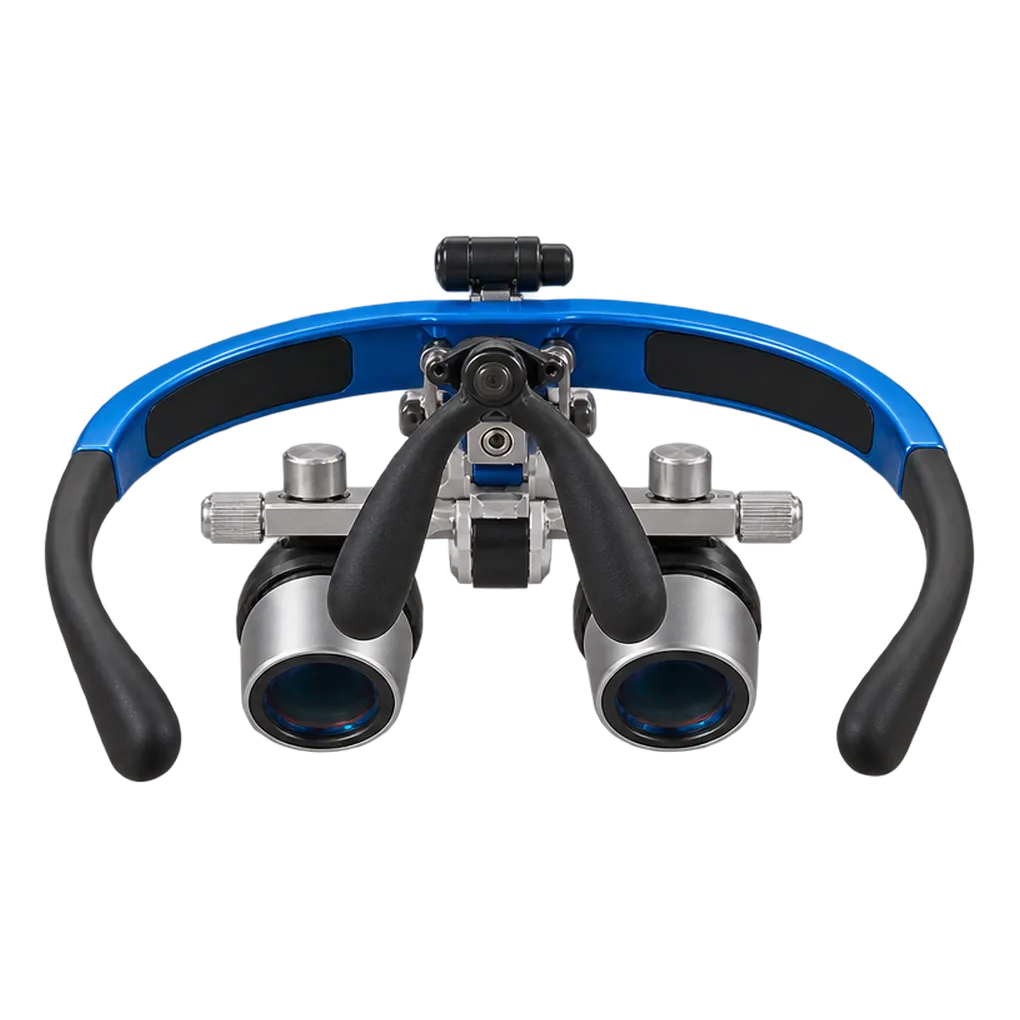

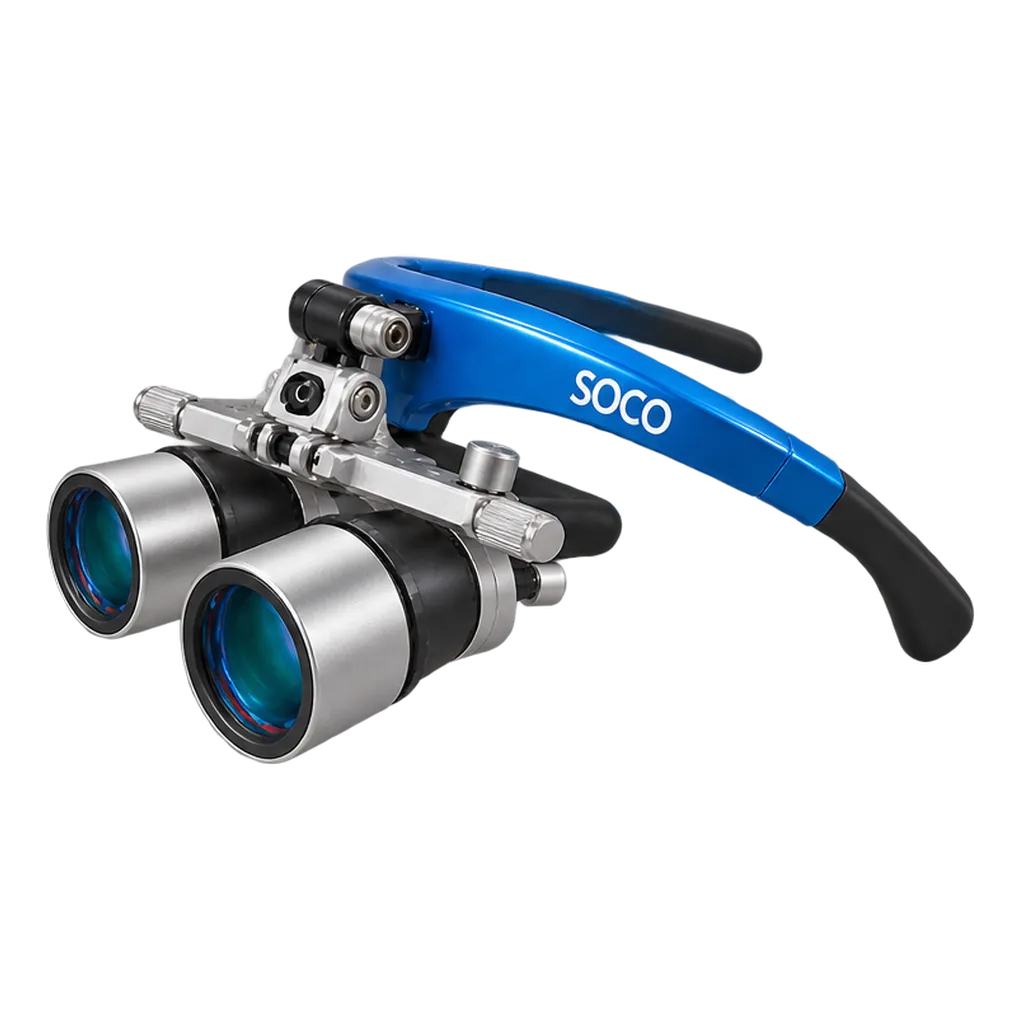

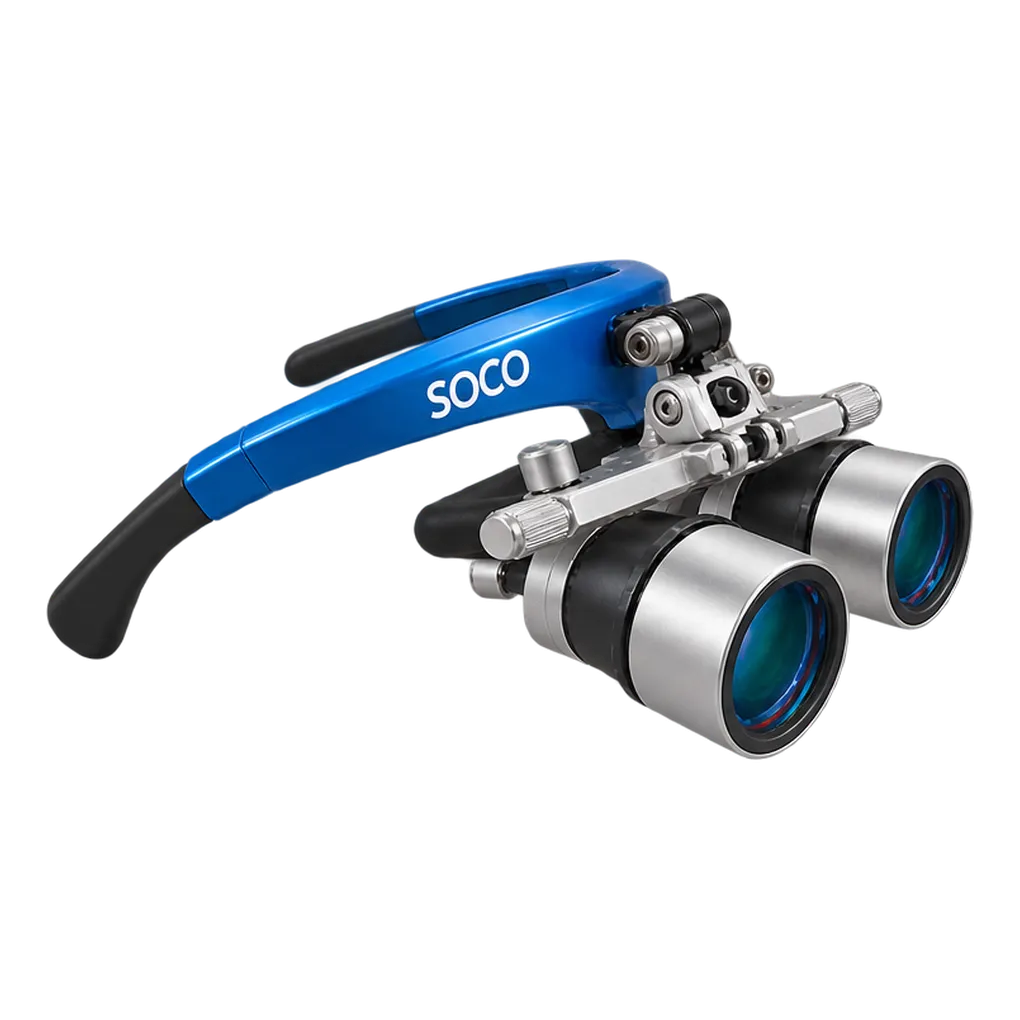

SOCO SCE300-6.0-450

The SCE300-6.0-450 is a specialist's loupe. Its natural home is the operating theatre or the specialist surgery, wherever procedures turn on structures measured in fractions of a millimetre. In plastic, reconstructive and hand surgery it supports fine suturing, nerve and small-vessel work, and delicate dissection of tissue planes. General surgeons use it for the finest closure and repair steps of a procedure.

In dentistry, endodontists use sixfold magnification to find calcified or extra canals, trace isthmuses, inspect for cracks and judge the seal of an obturation. Periodontal and implant surgeons use it for microsurgical flap design and fine suturing of soft tissue around teeth and implants. Restorative specialists turn to it for the final inspection of margins on demanding indirect work, where a defect measuring a fraction of a millimetre can change the outcome.

SOCO also lists ENT, ophthalmic, gynaecological and veterinary procedures among its loupe applications. At 6.0×, the SCE300-6.0-450 fits ENT microsurgical steps, fine anterior eye procedures, detailed gynaecological inspection and precise veterinary surgery on small patients. A 50 to 70 mm field keeps attention on the structure in hand, and the 55 to 75 mm depth of field holds it sharp during careful, controlled movement.

Users are surgeons and specialists already comfortable working under loupe magnification who want sixfold detail for their finest work. It suits clinicians who spend long, still periods at high magnification and want the head upright while doing it. Departments with a steady microsurgical caseload will find it a practical, wearable tool for those stages, carried from room to room with the surgeon.

Structures Large Enough to Work On

Sixfold enlargement turns fine sutures, vessel walls and canal entrances into structures the eye can judge with confidence. Precision steps become visible steps.

A Focused Working View

A 50 to 70 mm field concentrates attention on the structure in hand. Nothing outside the operative site competes for the surgeon's eye.

Head Level Through Still Procedures

The 45° prism path brings the image up to forward-looking eyes. Long, motionless microsurgical stages can be carried out with the neck straight.

Crisp Edges, True Colour

Apochromatic Keplerian optics keep contrast high and colour fringing controlled. Tissue planes and dentine shades read accurately at high magnification.

Wearable Precision

At 67 g, the loupe puts high magnification on the surgeon's head and moves wherever the surgeon moves. Microsurgical steps happen at the chairside or table, around the patient's position.

Exact Personal Fit

Interpupillary distance, pupil height and nose pads all adjust. At sixfold, accurate alignment is what keeps a fused image comfortable over a long case.

Unmagnified Sight on Demand

The flip-up mount lifts the barrels for orientation, team communication or a look at the monitors. They return to the same setting.

Purely Optical

With nothing electrical inside, the loupe is ready whenever it is picked up. Upkeep is lens cleaning and a check of the settings.

6.0× Keplerian Prism Optics

The Keplerian prism system delivers sixfold magnification with a sharp, high-contrast image. It is built for the finest steps of a procedure.

Apochromatic Correction

Red, green and blue light are brought to a common focus. Edges stay crisp and colours stay true across the field.

45° Deflected Optical Path

Prisms fold the light path downward by 45°. The surgeon looks forward and still sees the operative field.

50 to 70 mm Field of View

The field concentrates on a tooth, a suture line or a small surgical site. Attention stays on the work.

55 to 75 mm Depth of Field

The depth of field holds focus through controlled, careful movement. Setting the working position at the start keeps the image sharp.

450 mm Working Distance

A standard 450 mm working distance places the operative field at a natural reach. Surgeons who stand or sit at a different height can choose a customised distance of 400 to 580 mm as an option.

Interpupillary Distance Range

The mount adjusts from 50 to 80 mm between the barrels. Precise alignment matters at high magnification, and the range gives fine control over it.

Pupil Height Adjustment

The barrels can be raised or lowered to meet the pupils. The eyes look through the optical centre without strain.

Flip-Up Mount

The barrels hinge up and away from the working position. Lowering them restores the setting exactly.

Adjustable Nose Pads

The pads position the frame on the nose and share its weight. The barrels hold their height through the case.

High-Strength Lightweight Frame

Alloys and composites keep the full loupe at 67 g. The frame stays secure during extended wear.

Multi-Layer Coated Lenses

Anti-reflective coating cuts glare and light loss, which matters at high magnification. Anti-fog and anti-glare treatment keeps the view clean.

Clip-On Headlight Compatibility

A clip-on LED headlight fits the frame. Light then follows the line of sight into the small working field.

The SCE300-6.0-450 is for surgeons and specialists whose most important steps happen at the smallest scale. Sixfold Keplerian magnification with apochromatic correction makes sutures, vessels and canal anatomy large and sharp, and the 50 to 70 mm field keeps attention on them. The 45° prism path is what makes that sustainable, letting long, still microsurgical stages be done with the head level. It earns its place in plastic and reconstructive surgery, endodontics, periodontal microsurgery and fine veterinary work. For clinicians already confident under magnification and ready for sixfold detail, this 67 g loupe delivers it in a wearable form that moves with them between rooms.
