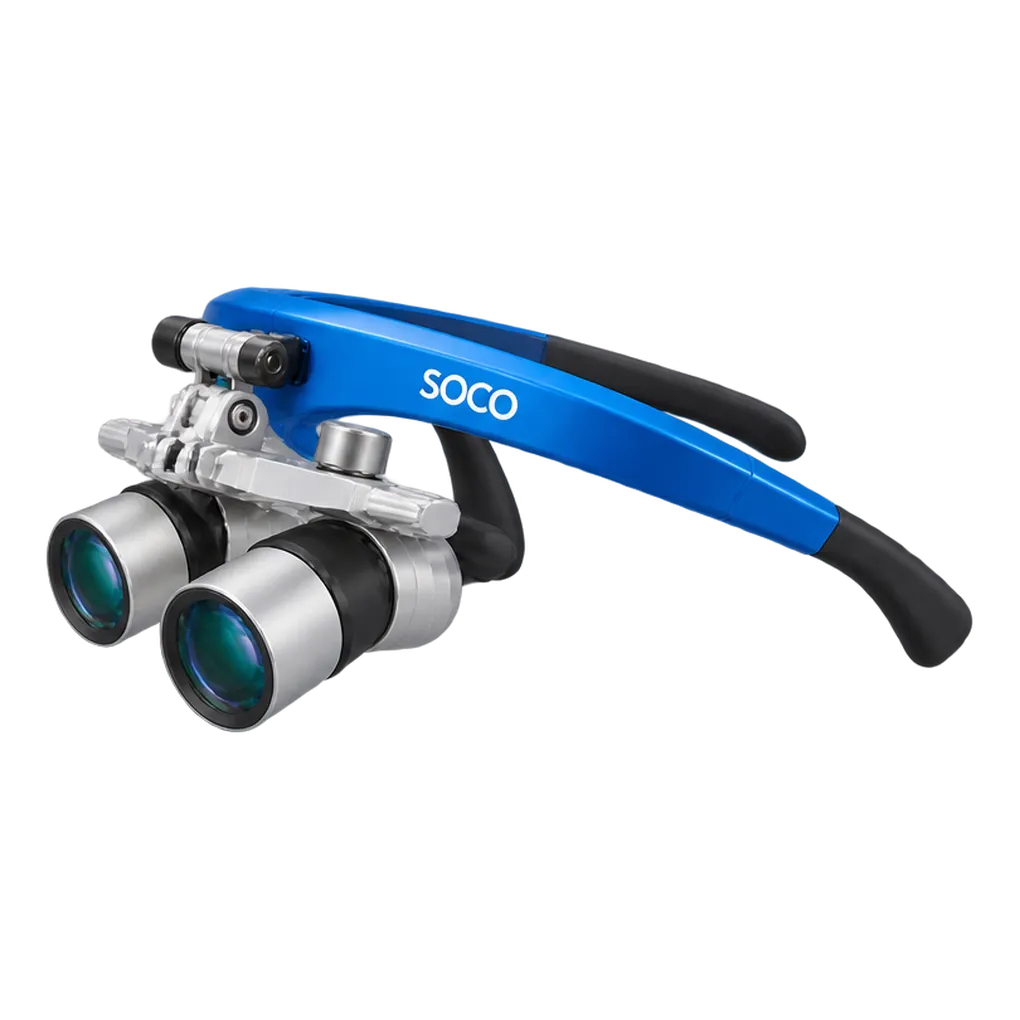

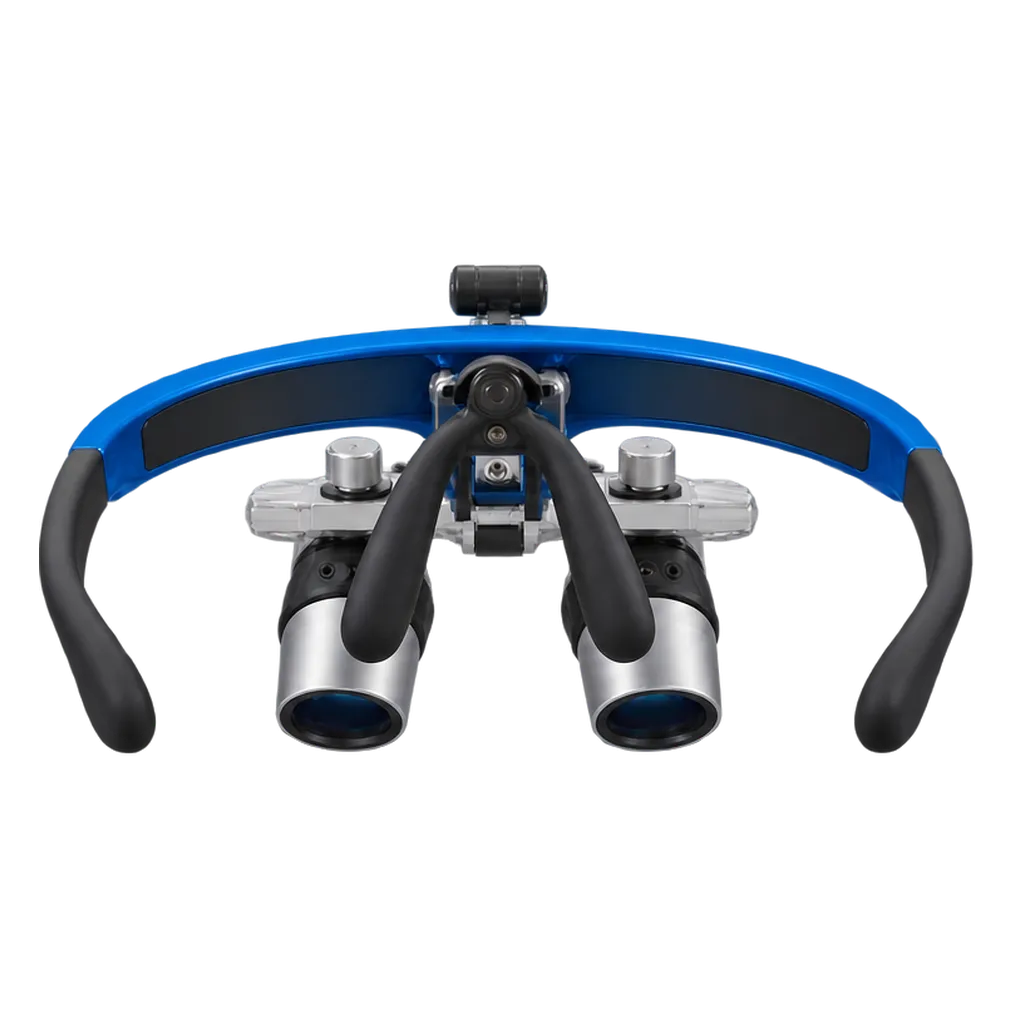

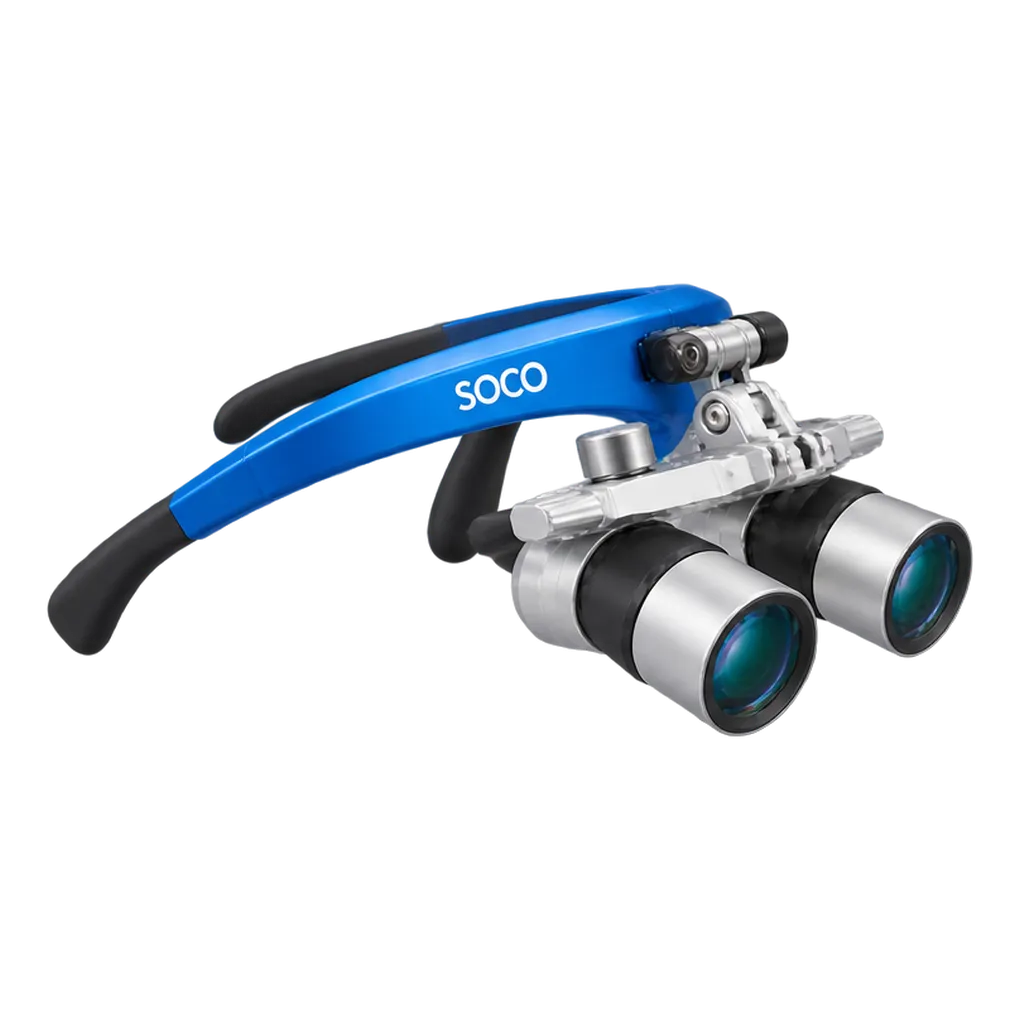

SOCO SCE300-5.0-450

The SCE300-5.0-450 belongs in rooms where high-magnification work alternates with talking to the patient. Endodontic treatment is the clearest case: locating calcified canals, managing isthmuses and checking for fractures all reward 5.0× detail. Between those steps come radiograph reviews, rubber dam checks and conversations with the patient. The flip-up hinge makes each switch a single movement.

Restorative and prosthodontic dentists use the same magnification for preparation margins, the fit of indirect restorations and the inspection of bonded surfaces. Periodontal and implant surgeons gain a clear view of fine suturing around soft tissue and implant collars, with a 60 to 75 mm field that keeps the surgical site and its edges in sight. A 70 to 115 mm depth of field supports the small movements of real clinical work.

SOCO also places its loupes in general surgery, ENT, ophthalmic, gynaecological and veterinary settings. At 5.0×, the SCE300-5.0-450 serves plastic and reconstructive suturing, hand and microvascular-adjacent dissection, ENT procedures in confined spaces, and fine veterinary surgery. In each of these, the surgeon moves between the operative field, the scrub team and the monitors many times an hour, and the hinge keeps every one of those moves quick.

Specialists and general practitioners with an advanced caseload make up its core users. It fits clinicians who already work well at 4.0× and want more detail without trading away an upright head. Practices running long endodontic or surgical sessions, where consent conversations and imaging checks punctuate the procedure, will see the workflow benefit most clearly, from the first access cavity of the day to the last.

One Movement to Unmagnified Sight

The flip-up hinge lifts the barrels away instantly. Patient conversation, team communication and screen checks fit naturally into the procedure.

Settings Held Between Uses

Lowered barrels return to the same position. Interpupillary distance and pupil height stay as set, so the image is ready the moment work restarts.

Upright Under High Magnification

The 45° prism path keeps the head level even at 5.0×. SOCO designed the angled optics to reduce cervical fatigue across long procedures.

Fine Detail for Endodontics

Fivefold enlargement brings canal orifices, cracks and margin defects into clear view. Clinical decisions rest on visible detail.

Sharp to the Edge

Keplerian prism optics with apochromatic correction give high contrast across the field. Shades of dentine, enamel and tissue stay true.

Focus That Tolerates Movement

A 70 to 115 mm depth of field keeps the image usable as instruments change and the patient settles. Refocusing by leaning becomes an occasional task.

Individual Fit, Shared Model

Pupil distance, pupil height and nose pads all adjust. One model can serve several clinicians, each set to their own eyes.

Nothing to Power

As a purely optical instrument, the loupe needs no charging or electrical testing. Clean lenses and correct settings are all it needs.

Flip-Up Hinge

The barrels hinge up from the working position and drop back down into it. Unmagnified sight is one movement away.

45° Prism Deflection

Prisms fold the optical path downward by 45°. Forward-looking eyes receive the image from the working field below.

Keplerian Prism System

The Keplerian design delivers a sharp, high-contrast image at high magnification. Clarity extends to the edge of the field.

Apochromatic Correction

Colour fringing is corrected across the visible spectrum. Fine shade differences in tooth and tissue remain readable.

5.0× Magnification

Fivefold enlargement suits precision-critical endodontic, restorative and surgical steps. Small structures become easy to judge.

60 to 75 mm Field of View

The field frames a tooth with its neighbours or a localised surgical site. The surrounding anatomy stays in view for orientation.

70 to 115 mm Depth of Field

A deep focus band keeps the image sharp through normal movement. Work flows without constant refocusing.

450 mm Working Distance

The 450 mm working distance gives a natural seated reach. Clinicians who sit taller or lower can order a customised distance between 400 and 580 mm as an option.

Interpupillary Distance Adjustment

The hinge adjusts across 50 to 80 mm. Each barrel aligns with its eye for one fused image.

Pupil Height Adjustment

Separate height setting levels the barrels with the pupils. The eyes look through the optical centre all day.

Adjustable Nose Pads

The pads set the frame's height on the nose and spread its weight. Barrels stay at the set height through movement.

Lightweight Frame at 66 g

High-strength, lightweight alloys and composites keep the full loupe at 66 g. Long sessions stay comfortable.

Anti-Fog, Anti-Glare Lenses

Multi-layer anti-reflective coating and anti-fog treatment keep the image clean. Masks and bright operatory lights stay out of the way.

Clip-On Headlight Compatibility

The frame takes a clip-on LED headlight. Illumination follows the line of sight into the canal.

The SCE300-5.0-450 is built for clinicians whose procedures demand high magnification and constant interaction at the same time. Fivefold Keplerian optics with apochromatic correction show canal and margin detail clearly across a 60 to 75 mm field, and the 45° prism path keeps the head upright while they do it. What decides the choice is the flip-up hinge. It turns every pause for the patient, the nurse or the monitor into a single movement, then returns the optics to a held setting. Endodontists, restorative specialists and surgeons running long, conversational sessions will get the most from it. At 66 g, it stays comfortable for the whole list.
