Roundfin RD-UVC600
Roundfin RD-UVC600
Roundfin Lab, Pathology & Blood Bank

Roundfin RD-UVC600

6 Slots. Up to 600 Cassettes Total Capacity. Zero Consumables. 2500 dpi. LIS/HIS/PIS Integration.

The Roundfin RD-UVC600 Cassette Printer is a UV cold light source laser cassette printer for histopathology laboratories, marking standard split cassettes at 2.5–4 seconds each with up to 2500 dpi resolution, zero consumables, six loading slots of up to 100 cassettes each, 119-cassette collection capacity, LIS/HIS/PIS connectivity, and a built-in 10-inch touch screen. Available through Medigear.uk.

Sections
Slide & Cassette Printers
Categories
Lab, Pathology & Blood Bank
Condition
New
Origin
China
Seller Type
Certified Professional Seller
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

The Roundfin RD-UVC600 Cassette Printer is a laser cassette printer that employs non-contact UV Cold Light Source Marking Technology to label standard split cassettes with high speed, high precision, and high stability of printed patterns. The RD-UVC600 uses zero printing consumables — no ink, ribbons, or cartridges — eliminating the recurring costs and supply-management overhead of consumable-based cassette printers. Medigear.uk supplies the RD-UVC600 and can advise on configuration and laboratory integration.

Printing speed is 2.5–4 seconds per cassette with a printing resolution of up to 2500 dpi. The supported cassette type is the standard split cassette, with or without lids. The instrument has six loading slots, each with a maximum capacity of 100 cassettes in tube packaging — a total loading capacity of up to 600 cassettes. Collection slot capacity is 119 cassettes. The system is software-compatible with Windows 7, Windows 10, and Windows 11 and can connect to LIS, HIS, PIS, and other medical record systems to import patient and specimen data directly.

The RD-UVC600 supports multiple data types, including alphanumeric characters, symbols, multilingual text, 1D and 2D barcodes, and graphics. It is compatible with three printing modes: custom printing, barcode-scanning printing, and EMR (Electronic Medical Record) text printing — enabling seamless integration with all major histopathology laboratory information workflows without additional middleware or data conversion steps.

Physical configurations include a built-in 10-inch touch screen and an industrial computer for on-device standalone operation, a built-in barcode scanner for barcode-scanning printing mode, and a built-in status indicator light for at-a-glance operational status monitoring. Dimensions are 486×313×497mm. Net weight is 37kg. Power requirements are 100–240V AC, 50/60Hz, 300W. We can provide the full specification and supply terms on request.

NHS histopathology departments, hospital diagnostic laboratories, and high-volume pathology services requiring high-capacity automated cassette labelling represent the primary procurement context for the Roundfin RD-UVC600 Cassette Printer. Six loading slots, each holding up to 100 cassettes, in tube packaging provide a total loading capacity of up to 600 cassettes, making the RD-UVC600 the highest-capacity cassette labelling option in the Roundfin UV printer range — suitable for high daily cassette volumes without frequent operator reloading. Medigear.uk supplies the RD-UVC600 and can provide NHS procurement documentation.

NHS cancer diagnostic centres, surgical pathology services, and busy cytology laboratories benefit from the RD-UVC600's direct integration with LIS, HIS, and PIS systems, enabling automatic printing of patient and specimen data onto cassettes from the laboratory information system without manual transcription. The built-in barcode scanner and 1D/2D barcode printing capability support full specimen traceability across the histopathology workflow from cassette labelling through to archival. Medigear.uk can advise on RD-UVC600 LIS integration requirements.

Research institutions, medical schools, and biological research laboratories benefit from the RD-UVC600's multilingual text and graphics printing capability and 100-cassette-per-slot loading capacity, which support efficient batch cassette labelling for large research studies without frequent manual intervention. The built-in status indicator light provides at-a-glance operational status monitoring. Medigear.uk can advise on the RD-UVC600 configuration for research and educational procurement.

Private pathology laboratories and commercial histopathology services will find the Roundfin RD-UVC600 available through Medigear.uk. Zero consumables eliminate ongoing ink and ribbon costs, the wide voltage range (100–240V AC) supports international deployment, and Windows 7/10/11 compatibility integrates with existing laboratory computing infrastructure. Medigear.uk can discuss the supply terms for the RD-UVC600 upon request.

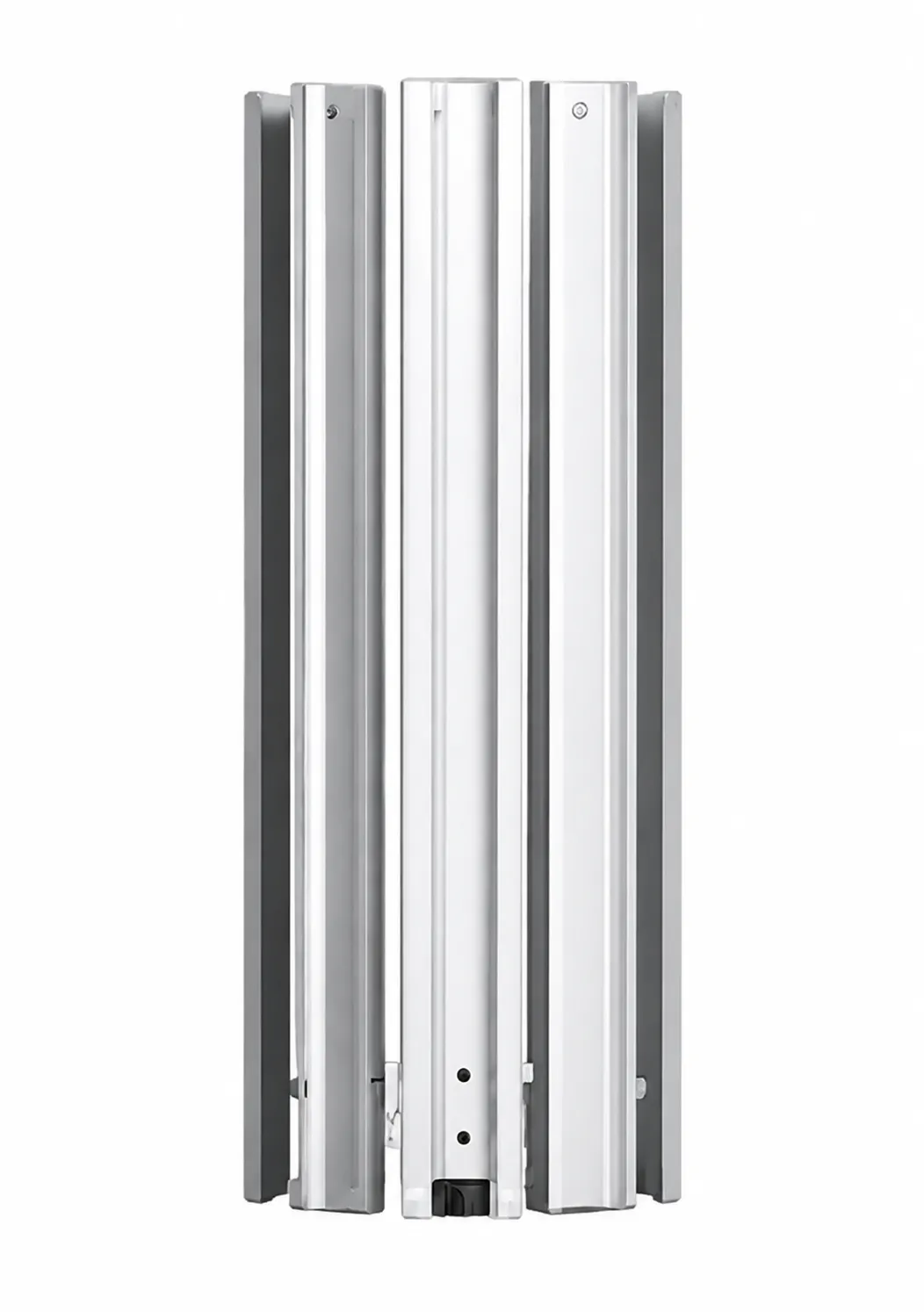

Six Loading Slots for Up to 600-Cassette Batch Processing

The RD-UVC600's six loading slots, each holding up to 100 cassettes in tube packaging, provide a total batch capacity of up to 600 cassettes — the highest loading capacity in the Roundfin cassette printer range. For high-volume NHS histopathology departments and commercial laboratories processing large daily cassette batches, this six-slot capacity supports extended uninterrupted labelling runs with minimal operator reloading compared to lower-capacity instruments.

Zero Consumables — No Ink, Ribbons, or Cartridges

Non-contact UV cold light source marking technology produces durable, permanent cassette labels with no consumables, eliminating the ongoing procurement costs, stock management, supply-interruption risk, and waste-disposal obligations associated with ink-, thermal-ribbon-, or cartridge-based cassette printers. Over the instrument's operational life, zero consumables represent a significant advantage in total cost of ownership.

High-Resolution 2500 dpi UV Laser Marking

Up to 2500 dpi printing resolution delivers clear, precise cassette labels including fine-detail text, small alphanumeric identifiers, and dense 1D/2D barcodes, all permanently marked on the cassette surface as a durable modification that withstands the tissue processing, paraffin embedding, and histological staining workflow without smearing, fading, or detaching.

LIS, HIS, and PIS Direct Integration

EMR text printing mode enables direct connection to Laboratory Information Systems, Hospital Information Systems, Pathology Information Systems, and other medical record systems, importing patient and specimen data automatically for cassette label generation without manual data entry — reducing transcription errors and supporting compliance with cassette identification standards in accredited pathology services.

Built-In Barcode Scanner with 1D and 2D Barcode Printing

The built-in barcode scanner and 1D/2D barcode printing capability support complete barcode-integrated cassette labelling workflows, enabling scan-to-print cassette labelling and full barcode-based specimen traceability from accessioning through to cassette processing, embedding, and archiving.

Built-In 10-Inch Touch Screen and Status Indicator Light

The built-in 10-inch touch screen and industrial computer support standalone on-device operation without an external workstation, and the status indicator light provides at-a-glance monitoring of operational status from across the laboratory. These integrated hardware features reduce the need for peripheral equipment and simplify installation.

Three Printing Modes for Full Workflow Flexibility

Custom printing, barcode-scanning printing, and EMR text printing modes provide the flexibility to integrate the RD-UVC600 into any histopathology cassette labelling workflow, from free-format custom labels through to fully automatic LIS-integrated labelling.

International Electrical Compatibility and Windows Support

100–240V AC, 50/60Hz power requirements support global deployment without voltage converters, and Windows 7/10/11 software compatibility integrates with existing laboratory computing infrastructure internationally.

Six Loading Slots at 100 Cassettes Each

Total loading capacity up to 600 cassettes. 119-cassette collection slot. Minimal reloading for high-volume batch processing.

Non-Contact UV Cold Light Source Technology

Permanent surface marking, no consumables. Durable marks resistant to histopathology processing chemicals.

Printing Speed: 2.5–4 Seconds Per Cassette

High-throughput cassette labelling. 100 cassettes can be labelled in approximately 4–7 minutes per slot.

Printing Resolution: Up to 2500 dpi

Precise text, barcode, and graphics on standard split cassettes. Clear identification throughout processing.

Zero Printing Consumables

No ink, ribbons, or cartridges. Eliminates recurring costs and the risk of supply interruption.

LIS/HIS/PIS Connectivity

Direct medical record system integration via EMR text printing mode—automatic patient and specimen data import.

1D and 2D Barcode Printing and Scanning

Built-in barcode scanner. Full specimen traceability support across the histopathology workflow.

Three Printing Modes

Custom printing, barcode-scanning printing, and EMR text printing for diverse workflow integration.

Built-In 10-Inch Touch Screen

Standalone on-device operation. Windows 7/10/11 compatible. Industrial computer included.

Built-In Status Indicator Light

At-a-glance operational status monitoring from across the laboratory.

Cassette Type: Standard Split Cassettes

With or without lids. Compatible with common split cassette formats used in histopathology embedding.

Power: 100–240V AC, 300W

Wide voltage range for international deployment. Net weight 37kg, dimensions 486×313×497mm.

The Roundfin RD-UVC600 Cassette Printer is a UV cold light source laser cassette printer suited to NHS histopathology departments, hospital diagnostic laboratories, cancer diagnostic centres, research institutions, and commercial pathology services requiring high-capacity, consumable-free cassette labelling with LIS, HIS, and PIS connectivity, 1D and 2D barcode printing, and up to 600-cassette total loading capacity across six slots for uninterrupted high-volume batch processing. Its non-contact UV marking technology, 2500 dpi resolution, zero consumables, built-in 10-inch touch screen, built-in barcode scanner, status indicator light, and 1-year warranty with lifetime technical support deliver a comprehensive and reliable cassette identification solution. Contact Medigear.uk for specifications, pricing, or expert procurement assistance.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The RD-UVC600 has six loading slots, each with a maximum capacity of 100 cassettes in tube packaging — providing a total loading capacity of up to 600 cassettes per loading cycle. The collection slot holds 119 cassettes. This six-slot, 600-cassette capacity makes the RD-UVC600 the higher-capacity option in the Roundfin cassette printer range, supporting large daily cassette-labelling volumes with fewer loading interventions than lower-capacity instruments.

The RD-UVC600 supports standard split cassettes with or without lids. Split cassettes are two-part cassettes commonly used in histopathology for paraffin tissue embedding, in which the base and lid separate to allow tissue loading. Medigear.uk can confirm compatibility with specific split cassette brands and dimensions on request.

UV Cold Light Source Marking Technology uses a UV laser to permanently mark or etch the surface of cassettes without physical contact between the marking head and the cassette. Unlike ink-based or hot-stamp cassette printers, UV cold-light-source marking deposits no material and requires no consumables — the mark is a permanent surface modification that is resistant to the processing chemicals, heat, and reagents encountered throughout the tissue processing, embedding, and staining workflow. The non-contact approach also eliminates the risk of cassette damage caused by physical printhead pressure.

Cassette printers that use ink, ribbons, or cartridges create ongoing procurement costs, the risk of supply interruptions when consumables run out, storage requirements for consumable stock, and waste disposal obligations. The RD-UVC600 eliminates all consumable requirements, meaning the printer is always operationally ready without monitoring consumable levels, placing orders, or managing stock. Over the instrument's operational life, the zero-consumable design represents significant savings in total cost of ownership compared to consumable-based cassette printers.

The RD-UVC600 is described as connectable to LIS (Laboratory Information Systems), HIS (Hospital Information Systems), PIS (Pathology Information Systems), and other medical record systems via its EMR text printing mode. This connectivity allows patient demographic data, specimen accession numbers, and pathology request details to be automatically imported from the laboratory information system and printed on cassettes without manual data entry. Medigear.uk can advise on LIS/HIS/PIS integration requirements for specific systems in use at the procurement site.

The RD-UVC600 prints both 1D (one-dimensional linear) and 2D (two-dimensional matrix) barcodes, as well as alphanumeric characters, symbols, multilingual text, and graphics. The built-in barcode scanner supports barcode-scanning printing mode, where the printer reads an existing barcode and automatically generates the corresponding cassette label. This barcode-integrated workflow supports specimen traceability and chain-of-custody management throughout the histopathology process.

The built-in status indicator light provides at-a-glance visual feedback on the operational status of the RD-UVC600, allowing laboratory staff to monitor the printer from a distance without checking the touch screen display. Status indicator lights typically signal operational states such as ready, printing, loading required, or fault — supporting efficient workstation monitoring in busy laboratory environments.

Both the RD-UVC600 and RD-UVC160 use the same non-contact UV cold light source marking technology, 2500 dpi resolution, and zero consumables. The RD-UVC600 has six loading slots of 100 cassettes each (up to 600 total) versus the RD-UVC160's four slots; handles split cassettes only versus the RD-UVC160's switchable integrated and split cassette slots; has a 119-cassette collection slot versus 8 cassettes; and weighs 37kg versus 25kg. The RD-UVC160 is the more compact and versatile option for mixed-cassette workflows; the RD-UVC600 is the higher-capacity option for high-volume split-cassette labelling. Medigear.uk can advise on model selection.

Yes — the RD-UVC600 supports 100–240V AC, 50/60Hz power requirements, enabling deployment in both European and North American electrical environments without a voltage converter. Windows 7/10/11 compatibility integrates with the existing laboratory computing infrastructure globally.

Three printing modes are supported: custom printing (free-format label design with text, barcodes, and graphics), barcode-scanning printing (scan an input barcode to automatically generate the corresponding cassette label), and EMR text printing (import cassette label data directly from connected LIS, HIS, or PIS systems). All three modes are accessible via the built-in 10-inch touchscreen.
