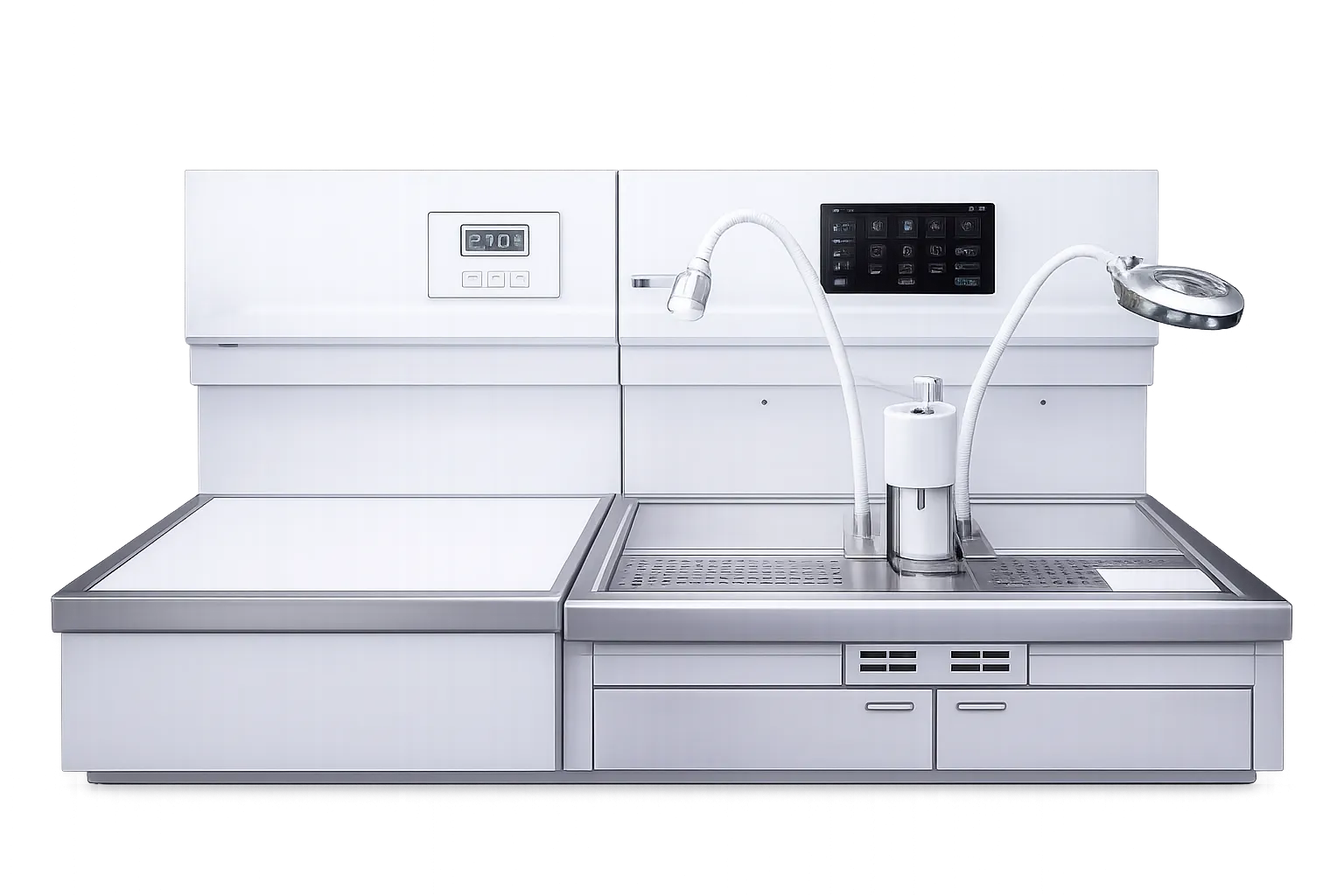

ROUNDFIN RD-BMIV

General histopathology laboratories processing routine surgical biopsies, resection specimens, and autopsy material benefit directly from the RD-BMIV's seven independently controlled working zones and large ≥6L paraffin chamber, which together support extended embedding sessions without paraffin replenishment and eliminate zone-to-zone thermal interference. For NHS trusts and hospital procurement managers, CE certification provides the documentation baseline required for device validation, risk assessment sign-off, and procurement framework compliance. Medigear.uk provides full certification packs, technical file summaries, and pre-purchase support to facilitate institutional procurement submissions.

High-throughput diagnostic laboratories processing large oncology resections, neuropathology blocks, and complex multi-specimen sessions benefit from the RD-BMIV's 360° adjustable magnifying glass for ultra-small specimen work, dual-side trimming plates for bilateral block access, and the five independent temperature channels with overheating protection. The programmable automatic scheduling function — configurable by weekday, hour, and minute — ensures the instrument reaches operating temperature before staff arrive, reducing idle warm-up time and maximising embedding productivity across shift-pattern environments.

Research institutions, veterinary pathology services, and specialist embedding facilities require instrumentation that adapts to non-standard tissue sizes, embedding protocols, and operational schedules. The RD-BMIV's broad 0–85°C paraffin range accommodates both low- and high-melt paraffin formulations, and the automatic restart function ensures operational continuity after power interruptions without requiring manual reinitiation. ROUNDFIN's OEM acceptance policy enables distributors to source branded variants of the RD-BMIV through Medigear, the UK B2B procurement channel.

Independent buyers and specialist clinics can acquire the RD-BMIV directly through Medigear.uk. The instrument's automatic memory function stores all settings at shutdown for immediate restoration at startup, reducing session preparation time and supporting consistent protocol delivery across operators.

Seven-Zone Independent Control Without Mutual Interference

The RD-BMIV's seven independently controlled working zones — Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, heating plate, small Cooling Plate, and Cryo Module — each maintain their own separately set temperature without interfering with any adjacent zone. This independent zonal architecture eliminates the temperature gradients and cross-zone contamination inherent in single-zone systems, ensuring consistent surface temperatures across all embedding operations simultaneously. For laboratories that process diverse specimen types in a single session, this is a direct quality-assurance advantage. Medigear.uk can provide zone temperature documentation for protocol planning.

≥6 Litre Paraffin Chamber with 0–85°C Range

The ≥6L paraffin chamber, covering a temperature range from 0°C to 85°C with ±1% precision, provides both high-volume capacity and exceptional thermal flexibility within a single system. The 0°C lower limit accommodates cold-state paraffin storage and low-melt applications. In contrast, the 85°C upper limit supports high-melt formulations used in specialist histology and research protocols — a range that most competitive instruments in this class do not offer. The ≥6L volume reduces the need for mid-session replenishment in high-throughput environments. Medigear.uk can advise on compatible paraffin media on request.

360° Adjustable Magnifying Glass for Ultra-Small Specimens

The 360° adjustable large magnifying glass is a dedicated embedded feature for the positioning of ultra-small tissue specimens that cannot be reliably oriented without visual magnification. The full 360° rotation range accommodates both left-handed and right-handed operators and any specimen orientation, and the magnifier's large format provides a wider field of view than standard hand-held alternatives. This feature is particularly valuable for laboratories processing fine-needle biopsies, cytology cell blocks, and other fine or fragile specimens, where mislocation during embedding can cause downstream sectioning failure.

Dual-Side Trimming Plates for Bilateral Block Access

Trimming plates on both sides of the embedding centre provide tissue block trimming access from either side of the instrument, accommodating left- and right-handed operator preferences and supporting simultaneous use by two operators at the same station. Bilateral trimming access directly improves workflow ergonomics during high-volume sessions and eliminates the need to reach across the working area or reposition the instrument to perform trimming access. The trimming surface temperature is managed through the independent zone temperature system.

Programmable Weekly Scheduling with Automatic Memory

The RD-BMIV's automatic operation mode accepts scheduled start and stop times, configurable by weekday, hour, and minute, for a full weekly schedule that persists in memory through power cycles without re-entry. This granular scheduling supports laboratories with variable daily operating hours, multi-shift patterns, and early-morning or weekend sessions without requiring operator presence at the instrument start or end. The automatic memory function stores all temperature settings and schedule parameters at shutdown and restores them at each subsequent startup.

Five Independent Temperature Channels with Overheating Protection

Five independent temperature channels manage the heated zones separately, with per-channel overheating protection that activates independently for each zone without triggering a full instrument shutdown. This per-channel architecture enables a protective response to one zone's thermal event while maintaining operation across all other zones — a direct operational continuity advantage over instruments with single-point protection, which cut power to the entire system on any thermal excursion. Full safety specification documentation is available from Medigear.uk.

Automatic Restart After Power Failure

The automatic restart function resumes instrument operation according to the stored program state automatically after any power failure, without operator intervention. This feature provides critical operational continuity for laboratories operating unattended scheduled sessions. It runs overnight runs, where a cold start after an interruption would otherwise delay the embedding session or result in incomplete block preparation. The restart function works in conjunction with the automatic memory system to restore all settings before resuming.

Built-In Socket for Three Devices

A built-in socket accommodating three external devices — lighting units, forceps warmers, or other embedding accessories — is integrated into the working area, providing powered connections for accessories without requiring separate power points or cable extensions on the bench. This integrated provision reduces cable management complexity, supports a clean and organised workstation layout, and ensures accessories remain powered and accessible at the point of use throughout each session.

CE Certification for Regulated and NHS Procurement

The RD-BMIV carries CE certification confirming conformity with applicable Medical Devices Directive requirements, satisfying the documentary prerequisite for NHS trust procurement approval, hospital device validation sign-off, and compliance with the regulated diagnostic laboratory procurement framework. Medigear.uk provides complete certification documentation, technical file summaries, and manufacturer declarations to support submissions. Certification documentation for the RD-BMIV, either on its own or as part of the RD-BMIV&BLIV system, is available from the Medigear.uk procurement team.

Seven Independent Working Zones

Seven working zones — Paraffin Chamber, Paraffin Dispenser, left Thermal Storage Compartment, right Thermal Storage Compartment, heating plate, small Cooling Plate, and Cryo Module — each independently controlled without mutual interference. Each zone maintains its own set temperature through a dedicated control circuit, ensuring adjacent zones are thermally isolated from one another during operation.

Paraffin Chamber: ≥6 Litres, 495 mm × 132 mm × 95 mm

The paraffin chamber holds ≥6 litres and measures 495 mm × 132 mm × 95 mm (W×D×H). The large capacity reduces replenishment frequency in high-throughput sessions. The chamber operates from 0°C to 85°C — among the widest temperature ranges available in this instrument class — with ±1% control precision maintained across the full range.

Temperature Range: 0–85°C, ±1Precisionon

The 0–85°C paraffin temperature range accommodates low-melt research paraffins through to high-melt diagnostic formulations, eliminating the need for separate instruments for different paraffin types. Temperature control of ±1% ensures consistent viscosity throughout each session and supports validated embedding protocols.

Thermal Chambers: Two × 240 mm × 160 mm × 50 mm

Two independent thermal chambers, each measuring 240 mm × 160 mm × 50 mm (W×D×H), provide pre-warming and holding capacity for cassettes, moulds, and supplementary items at separate, independently set temperatures. Their positions within the working area allow convenient access without interrupting the main embedding workflow.

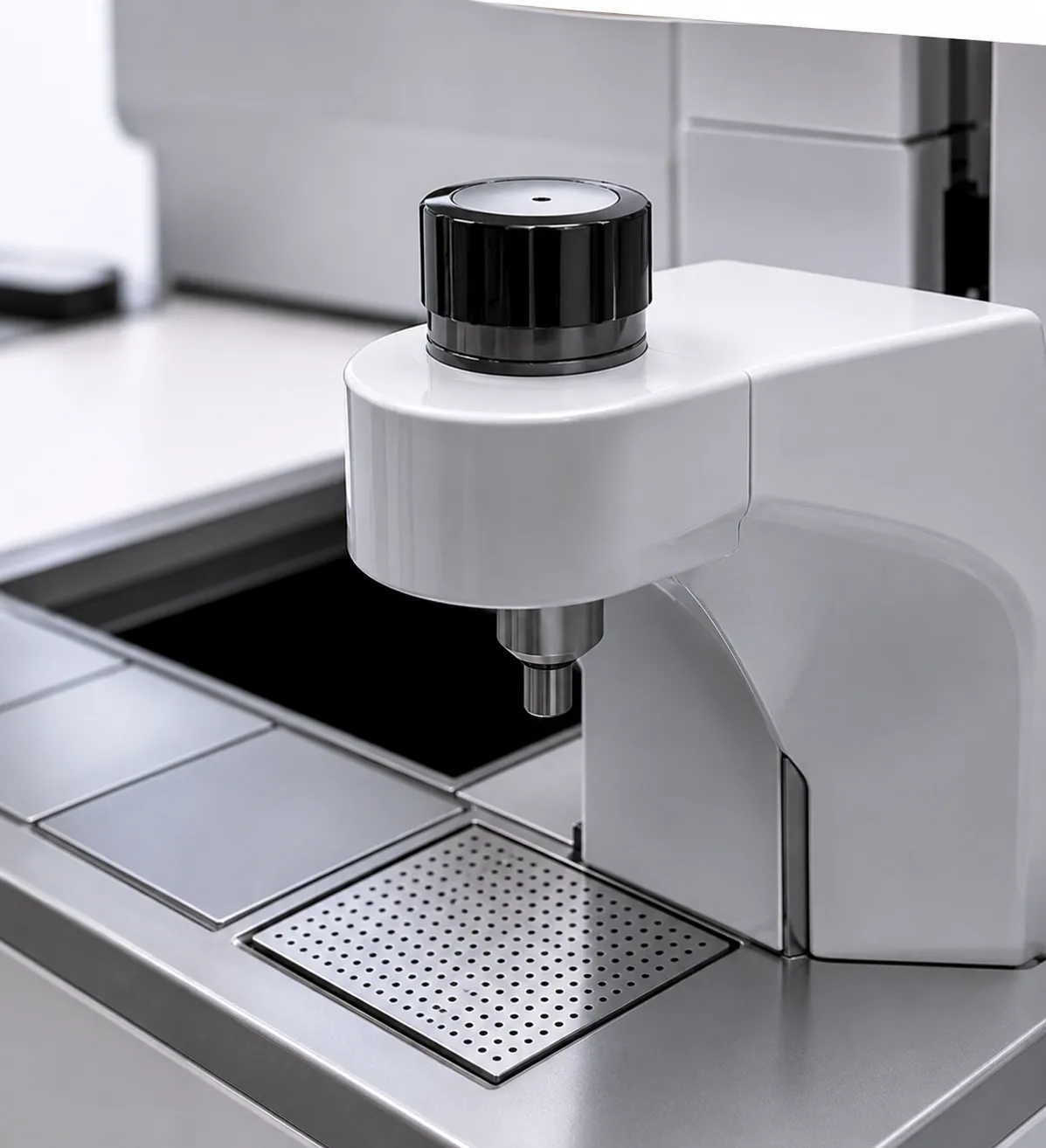

Paraffin Flow Control: Finger Touch Plate and Optional Foot Pedal

Paraffin is dispensed via a finger-touch plate as standard, with an optional foot pedal for hands-free delivery. Adjustable flow rate settings accommodate different paraffin viscosities, mould formats, and operator preferences. The dual dispensing option allows both hands to remain free for specimen and mould positioning during wax delivery.

360° Adjustable Large Magnifying Glass

The integrated 360° adjustable large magnifying glass rotates to any angle, supporting the embedding of ultra-small tissue specimens from any operator position. The large format provides a wider field of view than hand-held alternatives, and the 360° adjustment range accommodates both left-handed and right-handed operators without repositioning the instrument.

Dual-Side Trimming Plates

Trimming plates on both sides of the embedding centre provide bilateral block-trimming access for left- and right-handed use and for two-operator use. The bilateral design eliminates the need to reach across the working area to trim and improves throughput during high-volume embedding sessions.

Embedding Module Working Area: 540 × 93 mm

The embedding module's 540 × 93 mm working area accommodates standard embedding mould formats and supports simultaneous management of multiple specimens across the heated working surface during continuous embedding sessions.

Five Independent Temperature Channels with Overheating Protection

Five separate temperature channels manage the heated zones, each with independent overheating protection that responds on a per-channel basis without shutting down the entire instrument. This per-channel protection architecture supports operational continuity and is particularly valuable during unattended or extended sessions.

Programmable Manual and Automatic Operation Modes

Manual mode allows for on/off at any time. Automatic mode accepts weekly schedules configurable by weekday, hour, and minute, with settings automatically stored in memory. Both modes are accessible from the illuminated control panel and can be switched at any point during operation.

Illuminated Buttons

All control buttons are illuminated for clear status indication during operation, including in low-light laboratory environments. Illuminated buttons reduce the risk of inadvertent button presses and provide at-a-glance confirmation of the instrument's operational state.

Automatic Memory and Setting Restoration

All preset temperature parameters and schedule settings are stored automatically at shutdown and restored at each startup without operator input. This eliminates daily re-entry of protocol parameters and ensures session consistency across operators and shifts.

Automatic Restart After Power Failure

The instrument automatically resumes normal operation after any power failure, without requiring manual reinitiation. All stored settings are restored before resuming. This feature ensures operational continuity during unattended sessions and eliminates session delays caused by power interruptions.

Built-In Socket for Three Devices

An integrated socket accommodates three external devices within the working area, providing powered connections for accessories such as lighting units, forceps warmers, and other embedding tools without external power points. This reduces bench cable complexity and maintains a clean, organised workstation.

Dual-Voltage Input: AC220V and AC110V, 1000W

The RD-BMIV accepts AC220V +10% 50Hz (standard model) and AC110V +10% 60Hz, rated at 1000W. Dual-voltage compatibility supports international deployment without transformer conversion. Electrical installation requirements should be confirmed with the Medigear.uk technical team before delivery.

CE Certification

The RD-BMIV carries CE certification confirming conformity with applicable Medical Devices Directive requirements. CE marking satisfies the documentary prerequisite for NHS trust and hospital procurement approval. Complete certification documentation is available from Medigear.uk on request.

The ROUNDFIN RD-BMIV tissue embedding centre provides a validated, full-featured embedding platform suited to routine histopathology laboratories, high-throughput diagnostic services, research and veterinary pathology facilities, and independently operated clinical environments. Its seven independent working zones, ≥6L paraffin chamber, 0–85°C temperature range with ±1% precision, 360° adjustable magnifying glass, dual-side trimming plates, five independent temperature channels, programmable weekly scheduling, automatic memory and setting restoration, and auto restart after power failure collectively address the requirements of institutional procurement teams, specialist distributors, and individual laboratory managers. CE certification confirms compliance with applicable medical device standards, and full documentation is available via Medigear.uk. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
