ROUNDFIN RD-1301

General pathology laboratories processing high volumes of routine surgical biopsies benefit directly from the RD-1301's 20-program library and dual-basket architecture. Running two concurrent dehydration protocols on separate specimen groups eliminates the need to serialise batches or operate a second instrument. For NHS trusts and hospital procurement managers, CE and ISO 13485 certification provides the documentation required for device validation and compliance with procurement frameworks. Medigear.uk supplies full certification packs and technical file packages to support these submission processes.

High-dependency diagnostic environments processing oncology resections, neuropathology specimens, and large forensic cases require consistent reagent saturation across high cassette loads. The RD-1301's basket agitation system — one interval per minute under grid power — maintains reagent circulation around all cassettes throughout each stage. The triple-protection sewage heating architecture reduces the risk of incomplete dehydration in dense or lipid-rich tissue types. The green air purification system additionally supports occupational health compliance in enclosed laboratory spaces.

Research institutions, veterinary histology services, and contract providers require instrumentation adaptable to non-standard protocol libraries and diverse tissue categories. The RD-1301's 20 editable programs and delayed-start capability — configurable up to 1 year in advance — suit facilities where specimens arrive outside normal working hours. Medigear.uk supports OEM and ODM configuration requests for distributors requiring branded or protocol-customised variants.

Independent buyers and specialist clinics can acquire the RD-1301 directly through Medigear.uk. The power-off memory function resumes the active program for up to 6 hours after an outage, preserving settings without generator backup. The one-year warranty and lifetime technology support from ROUNDFIN, confirmed at point of purchase through Medigear.uk, ensures long-term operational assurance.

20 Editable Programs for Full Protocol Flexibility

The RD-1301's library of 20 independently configurable dehydration programs eliminates the need to reprogram between specimen runs manually and supports consistent protocol execution across shifts and operators. Each program can hold a unique reagent sequence, residence time profile, and agitation parameter set, accommodating everything from rapid routine biopsy cycles to extended protocols for challenging tissue types. No competing instrument in this class offers this level of stored protocol depth at a comparable price point, and the full program library is accessible directly from the 7-inch touch LCD without additional software. Medigear.uk can supply pre-configured program libraries from ROUNDFIN for standard pathology specimen categories on request.

Dual-Basket Architecture for Concurrent Processing

The RD-1301's dual-basket capability enables two independent dehydration protocols to run simultaneously on separate specimen groups within the same instrument. This is a significant throughput advantage for laboratories managing mixed caseloads — such as the concurrent processing of soft-tissue biopsies and bone specimens — without incurring the cost and footprint of a second instrument. The dual-basket configuration accepts 100 ml or 300 ml reagent cups with up to 180 specimens per basket, making it viable for high-volume diagnostic environments. Procurement teams sourcing the dual-basket RD-1301 through Medigear.uk can request configuration-specific specification documentation before ordering.

Intelligent Fault Detection and Automatic Recovery

The RD-1301's fully intelligent design detects operational abnormalities in real time and implements automatic recovery measures to protect specimens from damage before operator intervention is needed. This capability is particularly valuable during unattended overnight runs and weekend processing, where a delayed fault detection would typically result in batch loss. The automatic reset and positioning functions further reduce the risk of cycle errors due to mechanical misalignment. Laboratories with governance obligations regarding specimen integrity and incident prevention will find the fault-recovery architecture a meaningful risk-reduction measure.

Power-Off Memory for Operational Continuity

The power-off memory function retains the active program state and automatically resumes operation for up to 6 hours after any power interruption, without requiring operator input upon restoration. For laboratories without uninterruptible power supply infrastructure, this feature provides a critical safety net that prevents incomplete dehydration and specimen wastage during unexpected outages. The six-hour resume window is sufficient to cover most unplanned power interruptions in standard laboratory buildings. Buyers can confirm power continuity architecture and battery specifications with the Medigear.uk technical team as part of pre-purchase planning.

Delayed Start with One-Year Scheduling Horizon

The delayed start function allows operators to schedule any stored program to begin automatically at a preset time, configurable up to one year in advance and adjustable to the second. This is a meaningful operational capability for shift-pattern laboratories, research facilities processing overnight batches, and high-volume services where cassettes are accessioned in the evening for next-day reporting. The function eliminates the need for staff to be present at the instrument to initiate cycles, reducing labour costs and enabling more flexible staffing models. Medigear.uk can advise on compatible scheduling practices for the RD-1301 platform during pre-sale consultation.

Green Internal Air Purification for Occupational Safety

The built-in green internal air-circulation purification system continuously adsorbs and removes toxic gas vapours from dehydrating and clearing reagents, thereby reducing ambient VOC concentrations in the laboratory workspace throughout each operating cycle. Having the purification function integrated into the instrument architecture — rather than relying solely on external bench extraction — provides a defensible layer of occupational health protection that buyers can reference in COSHH risk documentation. The system operates passively throughout every cycle without separate activation. Filter maintenance schedules and replacement specifications are available from Medigear.uk as part of the instrument's technical documentation package.

CE and ISO 13485 Certification for Regulated Procurement

The RD-1301 holds CE marking and ISO 13485 certification, the two credentials that together satisfy the standard documentary prerequisites for NHS trust procurement approval, hospital device validation, and regulated diagnostic laboratory sign-off. ISO 13485 certification confirms that ROUNDFIN's manufacturing quality management system — not just the finished product — meets international medical device standards, a distinction that is increasingly scrutinised in institutional procurement due diligence. Medigear.uk can provide complete certification documentation, technical file summaries, and manufacturer declarations to support procurement submission processes at any level of institutional complexity.

OEM and ODM Availability for Distributor Customisation

ROUNDFIN accepts OEM, ODM, and logo customisation requests for the RD-1301, enabling distributors to source instruments aligned to their own product portfolio, regional compliance requirements, and market positioning. OEM arrangements cover labelling, documentation, and brand presentation. ODM configurations can extend to protocol-level and hardware-level modifications for specialised markets. Volume pricing, lead-time scheduling, and OEM agreement terms are managed through Medigear. UK B2B procurement team, which coordinates distributor relationships and bulk logistics on behalf of ROUNDFIN across international markets.

One-Year Warranty with Lifetime Technology Support

The RD-1301 is backed by a one-year manufacturer warranty and a lifetime technology support commitment from ROUNDFIN, ensuring laboratory operators have access to manufacturer-level technical guidance for the full operational life of the instrument. For procurement managers evaluating the total cost of ownership, the lifetime support commitment reduces long-term operational exposure. It assures that firmware, protocol, and maintenance guidance will remain accessible beyond the initial warranty window. Medigear.uk coordinates warranty registration, technical escalation, and service documentation for all units purchased through its platform, streamlining the post-purchase support experience.

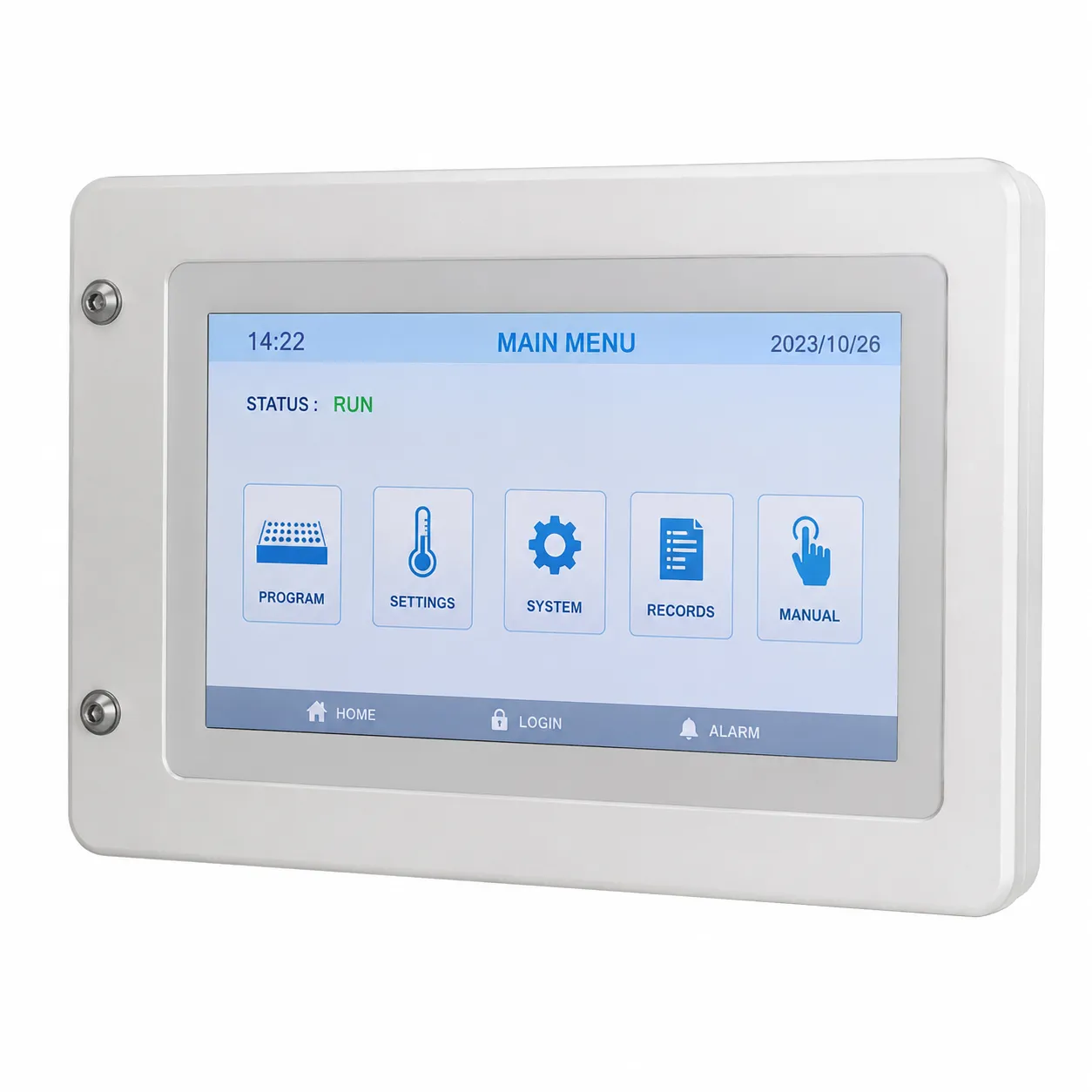

7-Inch Colour LCD Touch Screen

The RD-1301 is operated through a 7-inch colour LCD touch screen that provides a human-machine interface for all program selection, parameter configuration, and status monitoring functions. The display gives operators a clear, accessible view of cycle status, program parameters, and fault alerts without requiring separate software or external controllers. This interface design is well-suited to busy laboratory environments where multiple operators must access the instrument with minimal training.

20 Stored Editable Programs

Twenty fully editable dehydration programs are stored onboard, each configurable with independent reagent sequence, residence time, and agitation parameters. The program depth covers the full range of specimen types processed in a general or specialist diagnostic histology laboratory — from rapid routine protocols to extended overnight cycles — without requiring manual reconfiguration between runs. Program selection is performed directly at the touch LCD.

Dual-Basket Simultaneous Operation

The dual-basket function enables two independent dehydration protocols to run concurrently within the same instrument, with dedicated basket and carousel positions for each program. This allows laboratories to process two separate specimen categories — such as biopsies and bone blocks — within the same operating cycle, maximising instrument utilisation and reducing total turnaround time across mixed caseloads. Dual-basket models are available in 1000 mm and 1500 mm frame lengths via Medigear.uk.

Single-Basket Cup Capacities: 100 ml, 200 ml, 300 ml, and 500 ml

Four reagent cup capacity options are available in a single-basket configuration — 100 ml, 200 ml, 300 ml, and 500 ml — each paired with 10 liquid reagent positions and 4 paraffin cup positions. Cup size selection determines reagent volume per stage and directly influences the maximum cassette capacity the instrument can accommodate per cycle. Laboratories should select cup size based on their standard batch volume and reagent protocol design.

Single-Basket Cassette Capacity: 60 to 240 Specimens

Basket capacity in single-basket configuration scales with cup size: 60 specimens at 100 ml, 120 specimens at 200 ml, 120 specimens at 300 ml, and 240 specimens at 500 ml. This range covers the throughput needs of low- to high-volume diagnostic histology laboratories on a single instrument platform. Confirming which capacity tier aligns with daily caseload is part of the pre-purchase consultation Medigear.uk offers to all buyers.

Dual-Basket Cassette Capacity: Up to 180 Specimens per Basket

In a dual-basket configuration with 100 ml cups, each basket accommodates up to 180 specimens, for a combined cycle capacity of up to 360 when both baskets are fully loaded. The 300 ml dual-basket configuration accommodates up to 100 specimens per basket. This makes the dual-basket RD-1301 one of the highest-capacity instruments in the long-shape tissue-processor category available from Medigear.uk.

Temperature Setting Range: 0°C to 35°C

The RD-1301 maintains reagent and paraffin temperatures within a 0°C to 35°C operating range, managed by the triple-protection sewage heating system. Precise temperature control throughout each dehydration stage is critical for consistent preservation of tissue morphology and section quality in downstream processing. Buyers should confirm that their intended reagent protocols operate within this temperature envelope before ordering.

Reagent Residence Time: 0 to 99 Hours per Stage

Each reagent stage within a stored program can be assigned an independent residence time between zero and 99 hours, providing the flexibility to accommodate short, rapid-processing protocols and extended overnight or multi-day programs within the same instrument and program library. This range is sufficient for the full spectrum of tissue types and processing speeds used in routine and specialist histology.

Basket Agitation: 1/min Grid Power, 1/3min Battery Power

The basket agitation function activates at one interval per minute when the RD-1301 is powered from the electrical supply, and automatically reduces to one activation per three minutes when operating on the internal battery. This dual-frequency design maintains reagent circulation during all operating conditions, including power transitions, without operator intervention. Liquid shake time is independently adjustable in 0- to 90-second intervals within each program.

Triple-Protection Sewage Heating System

The triple-protection heating architecture delivers precise temperature control throughout the dehydration cycle while actively guarding against water vapour hazards and heating anomalies. This design is a key reliability feature for laboratories operating unattended overnight cycles, where thermal deviations during a heating stage could compromise batch quality. Full heating system specifications are available from the Medigear.uk procurement team.

Tissue Protection Station

The tissue protection station ensures that the hanging basket remains submerged in the liquid reagent tank under all operating circumstances, preventing specimens from drying while suspended in air between reagent transitions. This feature directly protects specimen integrity during the cycle and is particularly important for fragile or small biopsy specimens, where surface drying can cause artefact formation.

Delayed Start Function: Up to One Year

The delayed start scheduler accepts future start times up to one full year in advance, with time granularity to the second, by year, month, day, hour, minute, and second. This scheduling granularity enables precise integration of instrument cycles with laboratory shift patterns, courier delivery schedules, and reporting deadlines. The feature is standard across all RD-1301 model variants available through Medigear.uk.

Power-Off Memory: 6-Hour Program Retention

Following any power interruption, the power-off memory function retains the active program state and automatically resumes normal operation for up to six hours after power is restored. No operator input is required to restart the cycle, and no reprogramming is needed. This six-hour window covers the duration of most unplanned laboratory power interruptions encountered in standard building infrastructure.

Intelligent Fault Detection and Automatic Recovery

The RD-1301's fully intelligent design continuously monitors operational parameters and triggers automatic corrective responses when abnormalities are detected, protecting specimens from damage before operator intervention becomes necessary. The automatic reset and automatic positioning functions reduce the risk of cycle errors caused by mechanical misalignment or positioning faults. This fault recovery capability is a significant operational safety feature for unattended processing.

Green Internal Air Circulation Purification System

The integrated green internal air purification system operates continuously throughout every operating cycle, adsorbing and removing toxic gases generated by reagents, including clearing agents and alcohols. The system is built into the instrument chassis and requires no separate activation. It provides a workplace safety layer that complements external laboratory extraction infrastructure and supports COSHH compliance documentation.

CE Marking and ISO 13485 Certification

The RD-1301 carries CE marking confirming conformity with applicable Medical Devices Directive requirements, and ISO 13485 certification confirming that ROUNDFIN's manufacturing quality management system meets international medical device standards. These certifications are prerequisites for NHS procurement approval and regulated institutional device validation. Complete certification documentation is available from Medigear.uk upon request.

OEM, ODM, and Logo Customisation

ROUNDFIN accepts OEM branding, ODM structural customisation, and logo requests for the RD-1301, enabling distributors to source instruments aligned to their product range and regional compliance requirements. Full OEM and ODM terms, including minimum order quantities and lead time schedules, are managed through Medigear—uUKB2B procurement channel.

The ROUNDFIN RD-1301 long shape tissue processor delivers a fully automated, high-throughput dehydration platform suited to routine pathology laboratories, high-dependency diagnostic services, research and veterinary histology facilities, and independently operated clinical environments. Its 20 editable dehydration programs, dual-basket capacity, 7-inch colour touch LCD, green internal air purification system, power-off memory function, and intelligent fault detection and recovery collectively address the operational requirements of institutional procurement teams, specialist laboratory distributors, and individual facility managers. CE and ISO 13485 certification confirms compliance with international medical device manufacturing standards across all applicable deployment settings, and full documentation is available via Medigear.uk. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
