Jiadun Medical CRUTCHES WITH FOUR PEDESTALS-01

Product Code: RAMA-WAAC-3097

The neck is what holds it up. And what fails.

The swan-neck puts the grip over the centre of the base, which is exactly why it exists. It also carries the bending load, and nothing published says what condemns it, when to withdraw one, or what the tube is made of.

Sections
Crutches
Categories
Rehabilitation & Mobility Aids
Condition
New
Origin
China
Seller Type
Certified Professional Seller
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

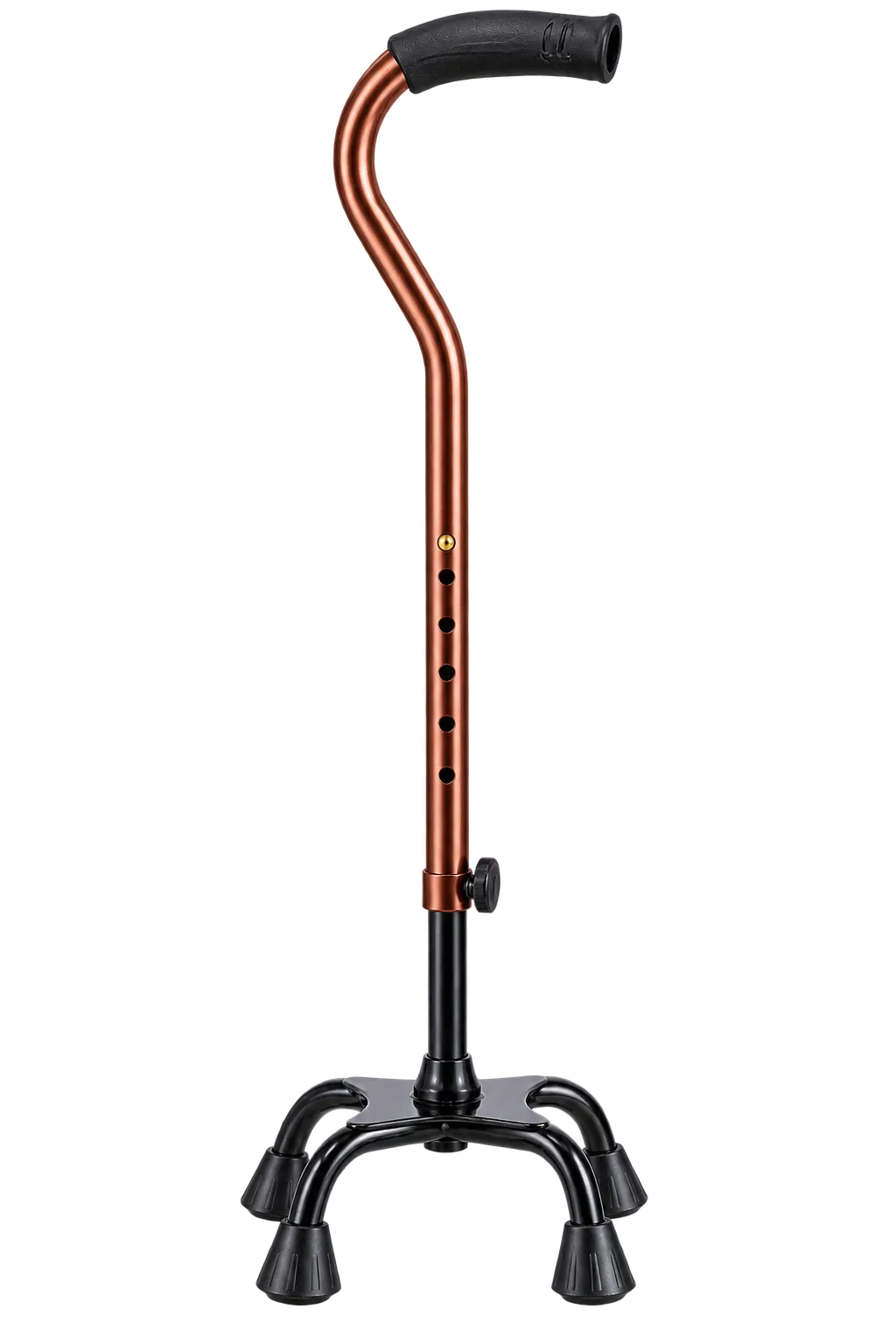

The bend near the top of this stick is what makes the geometry work, and it is also where the stress goes. Jiadun Medical publishes no specification, no dimensions and no rated weight. Photography shows an offset shaft with a swan-neck, a foam grip, a height adjustment low on the shaft, and a four-legged base carrying separate tips on each leg.

The offset exists for a good reason. It brings the grip over the middle of the base, so load travels down through the support area rather than off to one side. A straight shaft fixed at the edge of a base would apply a turning moment and work against the very stability the base is there to provide.

The bend takes that moment on instead. A curved tube under load carries higher stress around the radius than a straight section does, which makes the neck the place this stick will give way — and a crack inside a radius, under a coating, is not something anybody notices in passing.

So ask what condemns it. Request the tube diameter and wall thickness, the bend radius, whether the bend is formed or fabricated, and any inspection guidance. A deformed neck is not a field repair, so a scrapping rule belongs on the record. Ask the base footprint and the rated user weight in the same message, since neither appears anywhere on the sheet. Medigear.uk lists this stick for UK business buyers. Request the condemnation criteria from the seller before placing any order.

Equipment governance should name the neck as an inspection point. A routine that looks at the tips will find worn rubber and miss the place the structure is working hardest — and a crack inside a radius under a coating does not announce itself.

Physiotherapy should note that a quad base tends to be chosen by somebody who genuinely leans on a stick rather than touching down with it. That makes the rated user weight and the shaft specification more relevant here than on a light-touch aid.

Home assessment should check the footprint against the doorways, aisles and gaps the person actually uses, since a wide base that does not pass through the bathroom door will be left in the hall.

Whoever issues it should record a scrapping rule, because a deformed neck is not a field repair and the decision to withdraw should not rest on one person's judgement in the moment. Routes across NHS trusts, local authority equipment services and independent providers each ask for their own evidence. The conformity documentation those procurement routes require is issued by the manufacturer and provided by the seller.

The offset puts load where it belongs

The swan-neck brings the grip above the middle of the base, so weight travels down through the support area rather than off one edge. That is the correct solution to the geometry and the reason this shape exists.

A genuine four-point base

Four separate contacts spread over an area resist a sideways lean in a way no single point can, which suits somebody who puts real weight through a stick.

Individually replaceable tips

Four separate tips can in principle be renewed without replacing the base. Confirm they are separately available and ask for part numbers.

A horizontal grip over the base

The handle runs across rather than following the shaft, which lets the hand press straight down over the centre of support. Confirm the grip material and whether it is replaceable.

Height adjustment low on the shaft

Adjustment near the base keeps the mechanism away from the loaded neck. Confirm the range, the increment and how engagement is verified.

A wide stance for standing support

A base of this size lets the stick stand unsupported on level ground, removing the propping and the retrieval from the floor. Confirm the manufacturer intends it to free-stand.

Nothing electrical or powered

Inspection is visual and immediate, and there is no testing programme or disposal obligation attached.

Two figures make it assessable

The base footprint and the tube specification with bend radius together determine whether it fits the home and how much margin the structure carries.

The swan-neck

Brings the grip over the centre of the base, which is why the shape exists — and carries the bending moment that geometry creates.

Where it will fail

A curved tube under load carries higher stress around the radius than a straight section. The neck is the place this stick will give way.

Crack visibility

A crack initiating inside a radius sits where the eye does not go, often under a finish that bridges it. Ask whether the finish is expected to show one.

Condemnation criteria

Not stated. Ask what signs mean withdrawal — a change in the neck angle, deformation, a line at the radius, movement or noise under load — and record them as a scrapping rule.

Inspection routine

Not addressed. A routine that only checks tips will miss the neck. PUWER 1998 places maintenance and inspection duties on the employer where the stick is work equipment.

Tube specification

Not given. Request diameter, wall thickness, alloy or grade, finish, bend radius, and whether the bend is formed in one piece or fabricated from two.

Base orientation

The legs extend further to one side. The wider side normally faces away from the user. Ask the intended orientation relative to the handle and whether the base can rotate.

Footprint

Not stated. Request front-to-back and side-to-side across the outermost tips, plus the base height — and check against doorways and gaps in the home.

Four tips

Each wears at its own rate. Uneven wear leaves a base that does not sit flat while still looking complete. Ask diameter, compound, part number and individual wear limit.

Free-standing

Not stated. Ask whether the manufacturer intends the stick to stand unsupported and on what surfaces.

Rated user weight

Not stated. Ask the figure, whether static or dynamic — more relevant here, since a quad base suits somebody who genuinely leans.

Height range

Not stated. Ask minimum and maximum from the floor, the increment, and whether base height is included.

Grip

Foam over a horizontal handle. Material, replaceability and cleaning method unstated.

Product category

Named as a crutch, shaped as a walking stick — no forearm cuff, no underarm pad. Ask the manufacturer to confirm the category and model reference.

Model code

"Crutches with Four Pedestals-01" is a product name with a variant number rather than a full reference. Request the manufacturer's code.

Device status and registration

Walking aids supplied for a medical purpose are generally Class I devices. Ask what the declaration covers, the MHRA registration reference and the UK Responsible Person's details.

The bend in this shaft is good engineering. A four-legged base spreads its support over an area, and the load has to arrive in the middle of that area rather than at one edge — so the swan-neck brings the grip across until it sits over the centre, and the stick pushes straight down through the support instead of applying a turning moment that would work against it. That is the right answer to the geometry. It also means the bend carries the moment the layout creates, and a curved tube under load sees more stress around its radius than a straight section either side. Every step loads it again. So the neck is the place this stick will eventually give way, and a crack starting inside a radius, under a coating, is not something anybody notices while walking. Ask what condemns it — a change in the neck angle, any deformation, a line at the radius, movement or noise under load — and put those on the record as a scrapping rule. Request the tube diameter, wall thickness, bend radius and whether the bend is formed or fabricated. Then name the neck in whatever inspection routine the service runs, because one that only looks at the tips will find worn rubber and miss this. Medigear.uk lists this stick for UK business buyers. Request the condemnation criteria from the seller at quotation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

To put the grip above the centre of the base. A four-legged base spreads its support over an area, and the load needs to arrive in the middle of that area rather than at one edge. A straight shaft attached at the edge would push down off-centre and apply a turning moment, working against the stability the base exists to give. The swan-neck solves that geometrically, which is a sound piece of design.

Because it carries the moment the geometry creates. A straight tube in compression is loaded evenly along its length; a curved one is not — the radius sees higher stress than the straight sections either side, on both the inside and the outside of the curve. Every step loads it again. Over years that is the point in the structure doing the most work, and therefore the point most likely to give way first.

Not easily, which is the difficulty. A crack initiating inside a radius sits where the eye does not naturally go, often beneath an anodised or painted finish that bridges it for a while. By the time it is obvious on the outside it may be well developed. Ask the manufacturer whether the finish is expected to show a crack, and whether they advise looking at the neck specifically.

Not stated, and it should be. Ask what visible signs mean the stick should be withdrawn — a change in the angle of the neck, any deformation, a mark or line at the radius, movement or noise under load. Then put those on the record as a scrapping rule rather than leaving each person to form their own view.

Whoever holds equipment governance for the service, at intervals they set, with the person using it checking informally in between. The point of naming the neck is that a routine which only ever looks at the tips will not find the problem that matters most. PUWER 1998 places maintenance and inspection duties on the employer where the stick is provided as work equipment.

Diameter, wall thickness, alloy or grade, and the finish. Then the bend radius and whether the bend is formed in one piece or fabricated from two parts joined. Those together determine how much margin the neck has, and a fabricated joint raises a different question from a formed curve — namely how it was joined and how that joint is inspected.

Yes, and it is visible in the photograph — the legs extend further to one side than the other. The wider side is normally intended to face away from the user so the legs stay clear of the walking line. Ask the intended orientation relative to the handle, and whether the base can rotate on the shaft.

Not stated. Ask the front-to-back and side-to-side dimensions across the outermost tips, since those define both the stability envelope and whether the base will pass through the doorways, aisles and gaps the person actually uses. Ask the base height as well, since it contributes to the stick's overall length.

Neither is stated. Ask the rated user weight, whether it is a static or dynamic figure, and the height range from the floor with the increment between positions. A quad base is often chosen by somebody who genuinely leans on the stick rather than touching down with it, which makes the rated figure more relevant here than on a light-touch aid.

Four separate contacts, each wearing at its own rate depending on how the stick is loaded. Uneven wear leaves a base that does not sit flat, which is harder to spot than a single worn ferrule because the base still looks complete. Ask the tip diameter, compound, part number and individual wear limit, and check all four together.

It is described as one and it is shaped as a walking stick — a single handle at hip height with no forearm cuff and no underarm pad. That distinction matters for ordering, for records and for anybody reading a care plan, since a crutch and a stick are different provisions. Ask the manufacturer to confirm the product category and its model reference.

Anybody where the neck cannot be inspected as part of a routine, since that is where the structure works hardest and where a failure would be least expected. It is also unsuitable where the footprint has not been checked against the doorways and gaps in the person's home, where stairs dominate the route, and where the rated user weight is unknown for a heavier person.
