Arcoma Medical Diagnostic Equipment

ARCOMA ArcoCeil (2004)

Three Detectors, No Swapping.

In a general radiography room fitted with a single digital detector, that panel is carried between the table bucky, the erect stand and the tabletop for patient after patient. It is the largest recurring time cost in the room and the commonest reason a list runs late. This ArcoCeil is supplied with three digital detectors, so each position is ready when the patient reaches it. Medigear.uk confirms the detector specifications, the stand condition and the support position before quotation.

Sections
Rad Room & RF Room Systems
Categories
Medical Diagnostic Equipment
Condition
Refurbished
Year
2004
Origin
Poland
Seller Type
Certified Professional Seller
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

The case for this room rests on a workflow problem that anyone who has run a general radiography list will recognise immediately.

A busy general room handles a continuous mixture of examinations. A chest at the erect stand. A pelvis on the table. An extremity on the tabletop. A trolley patient who cannot transfer. Each requires the detector in a different place. Where the room has one panel, a radiographer removes it from the bucky, carries it, positions it, exposes, retrieves it and returns it, repeatedly, for every patient whose examination differs from the last. The panel is also charging, being cleaned, or occasionally away for repair, during which the room does not function at all.

Three detectors remove that entirely. The table bucky has one, the erect stand has one, and a free panel remains available for tabletop work, trolley and wheelchair patients, cross-table projections and anything requiring the detector to come to the patient rather than the reverse. Nothing is carried between positions, the room is ready for whatever walks through the door next, and the sequence of examinations no longer dictates the order in which patients can be seen.

The throughput effect is not marginal. In a room running a mixed list, the panel handling between examinations is frequently the single largest per-patient time cost after positioning the patient themselves. Removing it shortens each examination slightly and removes the scheduling constraint that pushes similar examinations together, which is where the larger gain sits. For a department under list pressure this is the kind of change that shows in the day's totals rather than in a specification comparison.

The second benefit is continuity. Detectors are the components most exposed to damage in a radiography room, being handled, positioned under patients and occasionally dropped. With three, a panel on charge, out for cleaning or away for repair does not stop the room. Where a single-detector room becomes unusable, this one continues at reduced convenience, which for a department with no second room is the difference between a running list and a cancelled one.

Medigear.uk confirms each panel individually rather than as a set, because they need not match and the differences matter. Panel size determines which examinations each covers comfortably. Scintillator material determines dose efficiency, with caesium iodide offering a real advantage over gadolinium oxysulphide at equivalent image quality. Age, calibration status and service history establish that each performs to specification. A room supplied with three detectors is only worth three detectors if all three are sound, and the records are what demonstrate that.

The ceiling-suspended stand is what makes the arrangement work. A tube crane travelling on overhead rails reaches the table, the erect stand and a trolley positioned anywhere in the room, with no floor column restricting where the patient can be placed or how staff move around them. For trolley and wheelchair patients in particular that matters, since the tube comes to the patient rather than requiring a transfer. The counterpart is structural: ceiling suspension transfers load into the building, so rails, steelwork and the height above the finished ceiling all form part of the installation assessment, and Medigear.uk raises these at enquiry because they determine which rooms can accept the system.

The stand's build year should be read for what it is. A 2004 tube crane is a mechanical assembly, and mechanical assemblies of this type are routinely serviceable well beyond two decades provided rails, bearings, counterbalance and brakes have been maintained. What matters is the service record and the current parts position rather than the date, and Medigear.uk establishes both directly rather than inferring supportability from the platform's age. Arcoma is a specialist radiography manufacturer of long standing, and the current support and spares route for this unit is confirmed at enquiry.

Console and acquisition software determine how the room is operated and whether images reach the reporting system properly, and are confirmed against the unit along with worklist integration and image transfer against the systems a department already runs.

Radiation compliance applies in full: room shielding, notification, radiation protection adviser appointment, local rules, employer's procedures, operator training and the critical examination required before clinical use. Because this is a fixed ceiling-mounted installation, de-installation, transport, ceiling assessment, installation and re-commissioning form a project rather than a delivery, and Medigear.uk coordinates them as one sequence.

General diagnostic radiography across chest, abdomen, pelvis, spine, extremity and skeletal work is what this room serves, at the volumes typical of a district general department, an outpatient imaging centre or a busy private practice. All clinical judgement, including whether an examination is justified, remains with the referring and reporting clinicians, and Medigear.uk supplies configuration and condition detail rather than clinical guidance.

Mixed general lists benefit most directly from the three-detector arrangement, since it is the variation between consecutive examinations that creates the panel handling in a single-detector room.

Trolley and wheelchair patients are served without transfer, since the ceiling-suspended tube travels to wherever the patient is positioned and a free panel is available for the projection required.

Cross-table and non-standard projections are practical with a free detector to hand, rather than requiring the bucky panel to be removed and returned for each one.

Erect and table work proceeds without the pause that moving a panel between them otherwise imposes, which for high chest volumes alongside skeletal work is where the daily total is decided.

Departments under list pressure should assess the arrangement against their own case mix, since the benefit scales with how varied the list is rather than with its length. Medigear.uk supplies the detector and configuration detail so that assessment can be made properly.

A Panel in Every Position

Table bucky, erect stand and a free detector each ready, so nothing is carried between positions and the room is prepared for whatever examination arrives next.

The Scheduling Constraint Removed

With one panel the order of examinations is dictated by where the detector currently is. With three, patients are taken in whatever order suits the department, which is where the larger throughput gain sits.

Continuity When a Detector Is Unavailable

Panels are the components most exposed to damage and require charging and cleaning. With three, a panel out of use is an inconvenience rather than a cancelled list.

Each Detector Confirmed Individually

Make, model, size, scintillator, age and calibration established for every panel, since they need not match and a room is only worth three detectors if all three are sound.

The Tube Reaches the Patient

Ceiling suspension lets the tube travel to the table, the erect stand or a trolley anywhere in the room, with no floor column limiting patient positioning or staff movement.

Trolley and Wheelchair Patients Without Transfer

The tube comes to the patient and a free panel is available for the projection, which removes a transfer that is slow for staff and uncomfortable for the patient.

The Stand Assessed on Service Record

A ceiling tube crane is a mechanical assembly routinely serviceable well beyond two decades where rails, bearings, counterbalance and brakes have been maintained. Service history and parts position are established directly rather than inferred from the build year.

Stand and Detectors Priced Separately

The mechanical assembly and the imaging chain age on different terms, so both are assessed on their own evidence rather than one date describing the whole room.

The Siting Requirement Raised Early

Ceiling and steelwork assessment, rail layout and height verification are established at enquiry, since they determine which rooms can accept the installation.

Compliance Groundwork Handled

Medigear.uk raises room shielding, notification, radiation protection adviser appointment, local rules, employer's procedures, operator training and the critical examination required before clinical use.

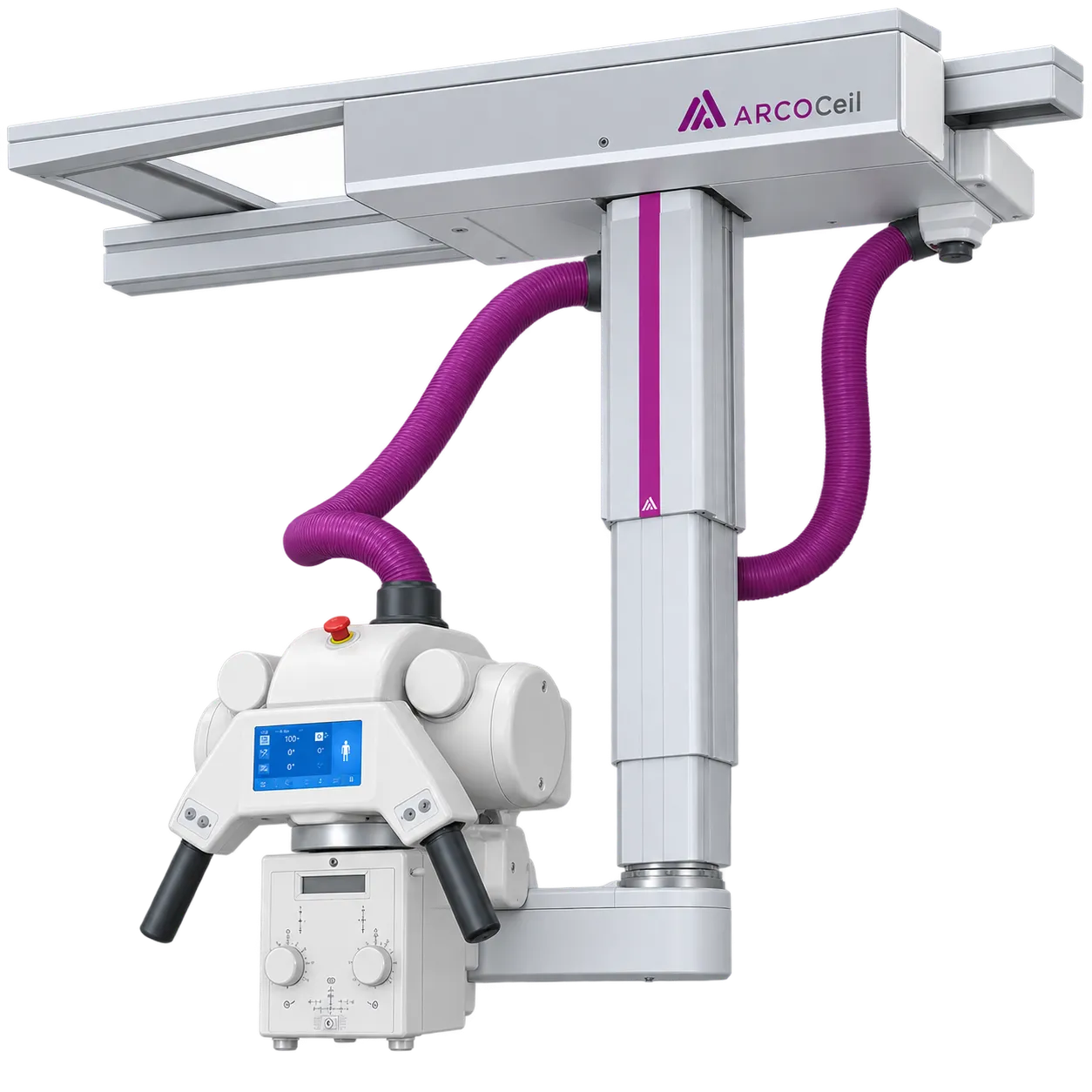

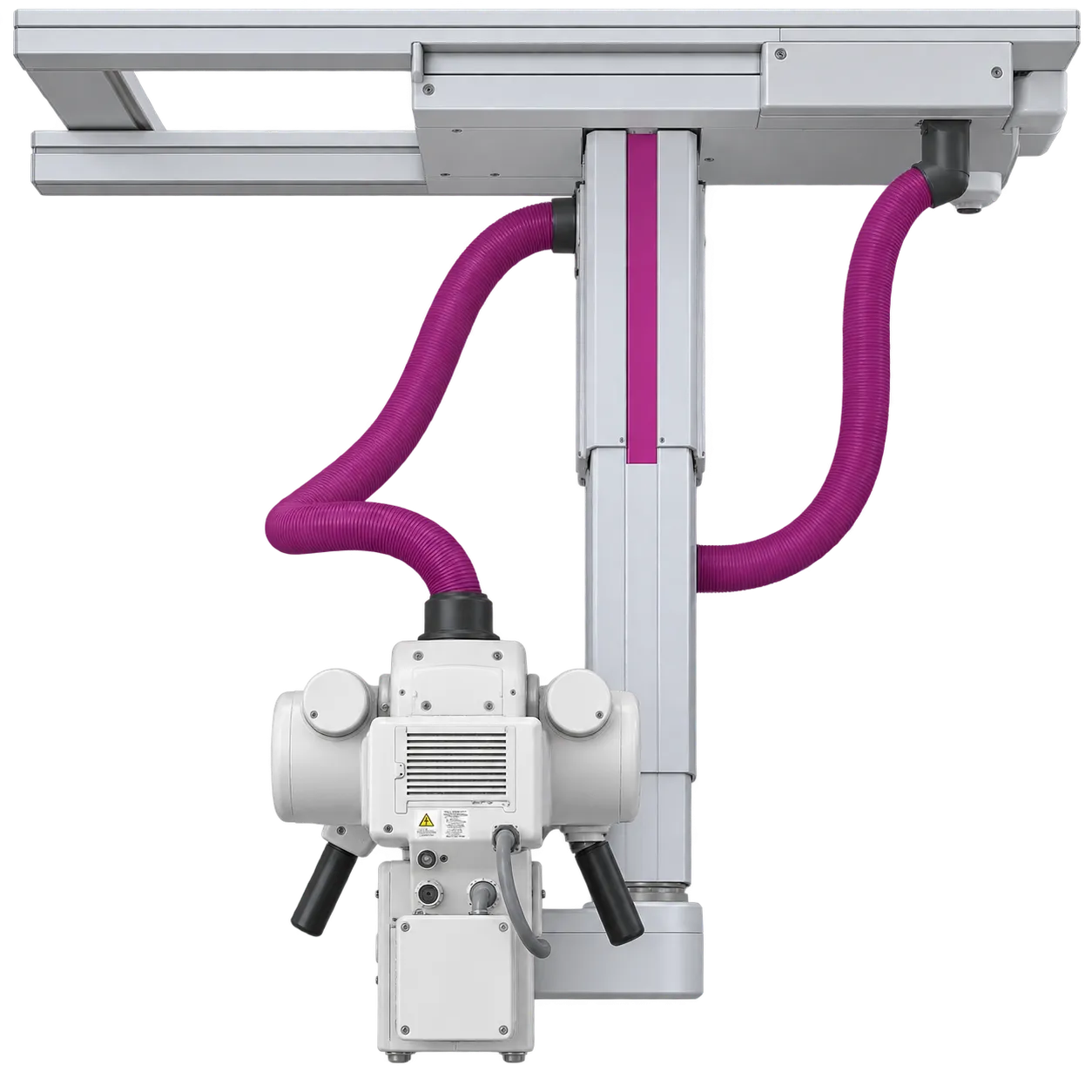

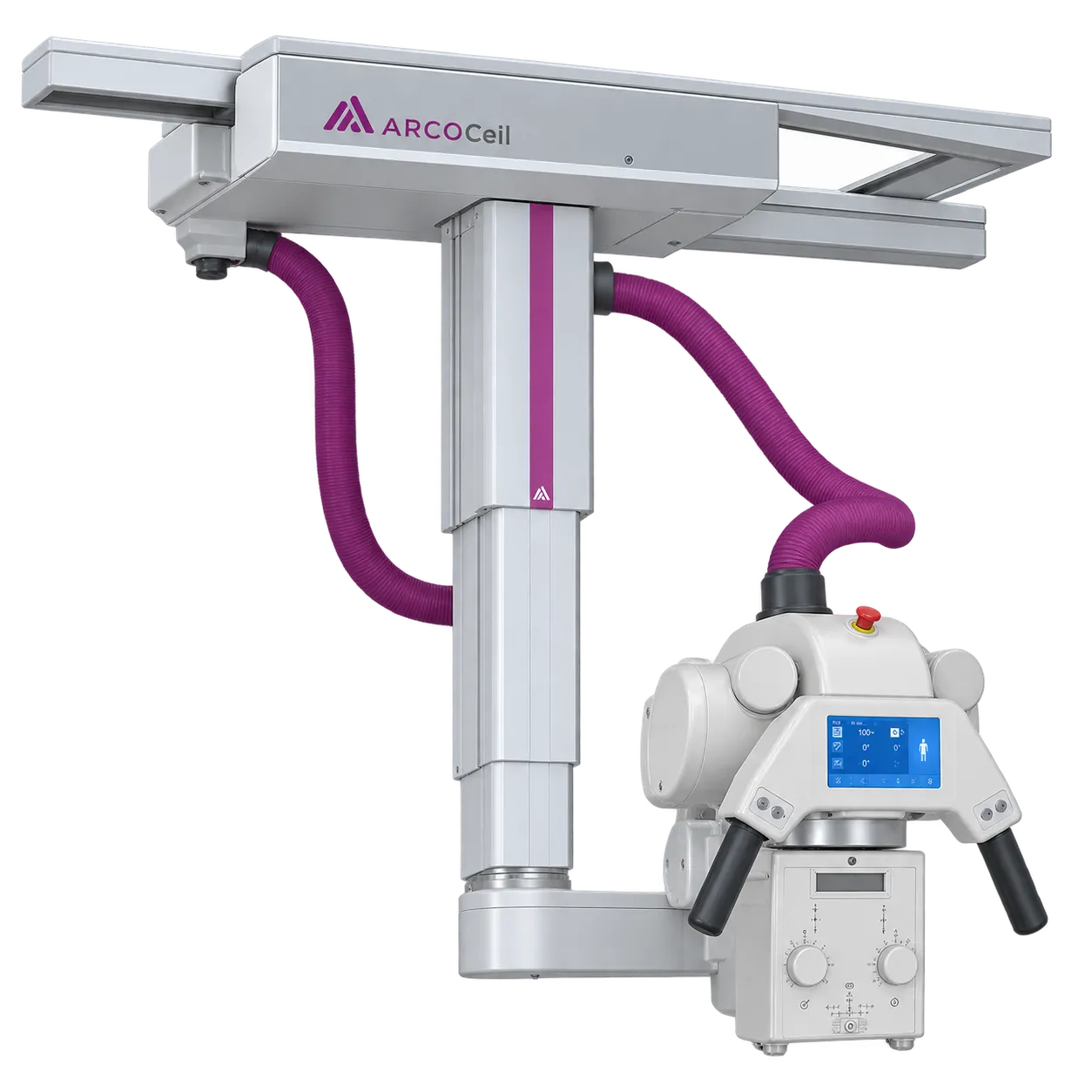

Ceiling-Suspended Tube Stand

A tube crane travelling on overhead rails, reaching the table, the erect stand and any position in the room without a floor column.

Year of Manufacture: 2004

The stand build date. On a mechanical assembly of this type it bears on service history and parts position rather than on imaging capability.

Three Digital Detectors

One for the table bucky, one for the erect stand and one free panel, so no detector is carried between positions.

Detector Makes, Models and Sizes

Confirmed individually, since panels need not match and size determines which examinations each covers comfortably.

Scintillator Type per Panel

Confirmed for each detector, since caesium iodide offers materially better dose efficiency than gadolinium oxysulphide at equivalent image quality.

Detector Ages and Calibration Records

Established separately from the stand, since the panels will have been fitted considerably later than the installation.

Free Panel for Trolley and Cross-Table Work

Available for tabletop, trolley, wheelchair and non-standard projections without disturbing the bucky detectors.

Generator Output and Exposure Range

Confirmed against the unit, since these determine the range of examinations the room covers comfortably.

Bucky, Table and Erect Stand Configuration

Assessed against the installation, as these determine how the room functions alongside the tube stand.

Ceiling Track and Load Requirement

Rail layout, travel range and structural load assessed, since ceiling suspension transfers load into the building.

Console and Acquisition Software

Confirmed against the unit, since these determine how the room is operated and how images are processed.

Connectivity and Worklist Integration

Worklist, image transfer and reporting output confirmed against the systems the department already runs.

Parts and Service Position

Current availability, service route and engineer familiarity established directly rather than inferred from the stand's age.

Installation Status and Transport

Whether the room is currently installed or already removed, established at enquiry, since de-installation, ceiling works, transport and re-commissioning form a project.

Radiation Compliance and Shielding

Medigear.uk addresses room shielding, notification, radiation protection adviser appointment, local rules, employer's procedures, operator training and the critical examination required before clinical use.

This Arcoma ArcoCeil is a ceiling-suspended radiography room supplied with three digital detectors, and that detector count is what distinguishes it. In a single-panel room the detector is carried between the table bucky, the erect stand and the tabletop for every patient whose examination differs from the last, which is frequently the largest per-patient time cost after positioning the patient themselves, and which constrains the order in which patients can be seen. With a panel in each position that handling disappears, the room is ready for whatever arrives next, and a detector on charge or away for repair no longer stops the list. Because the panels need not match, Medigear.uk confirms the make, model, size, scintillator, age and calibration of each individually, since the room is only worth three detectors if all three are sound. The stand itself is a mechanical assembly whose 2004 date bears on service history and parts position rather than on imaging capability, and both are established directly rather than inferred, alongside the ceiling and rail requirements that determine which rooms can accept the installation. Medigear.uk confirms the generator, bucky and stand configuration, the console, acquisition software and connectivity against your existing systems, coordinates de-installation, ceiling works, transport and re-commissioning, and raises the full radiation compliance picture. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

It is a ceiling-suspended tube stand for a general radiography room, with the tube travelling on overhead rails to reach the table, the erect stand and any position in the room. This installation is supplied with three digital detectors.

Because in a single-detector room the panel is carried between the table bucky, the erect stand and the tabletop for every patient whose examination differs from the last. That handling is frequently the largest per-patient time cost after positioning the patient, and with three panels it disappears.

Partly, but the larger benefit is scheduling. With one panel the order of examinations is constrained by where the detector currently is, which pushes similar examinations together. With three, the room takes whoever arrives next in whatever order suits the department.

The room keeps working. Detectors are the components most exposed to damage, being handled and positioned under patients, and in a single-detector room a failure stops the list entirely. With three, a panel on charge, being cleaned or away for repair is an inconvenience rather than a cancellation.

Not necessarily, and the differences matter. Size determines which examinations each covers comfortably, and scintillator material determines dose efficiency, with caesium iodide offering a real advantage over gadolinium oxysulphide. Medigear.uk confirms make, model, size, scintillator, age and calibration for each panel individually.

It should be read for what it is. A ceiling tube crane is a mechanical assembly, and assemblies of this type are routinely serviceable well beyond two decades where rails, bearings, counterbalance and brakes have been maintained. What matters is the service record and the current parts position, both of which are established directly.

Almost certainly not. On a room of this vintage the panels will have been fitted considerably later, so their age and condition are established separately rather than inferred from the stand's build year.

Reach without obstruction. The tube travels overhead to the table, the erect stand or a trolley positioned anywhere in the room, with no floor column limiting where a patient can be placed. For trolley and wheelchair patients the tube comes to them rather than requiring a transfer.

Ceiling and steelwork assessment, rail layout and height verification at the receiving site, alongside shielding, de-installation and transport where the room is currently installed, all coordinated as a single project.

Console, acquisition software, worklist integration and image transfer are confirmed against the systems the department already runs rather than assumed compatible.
