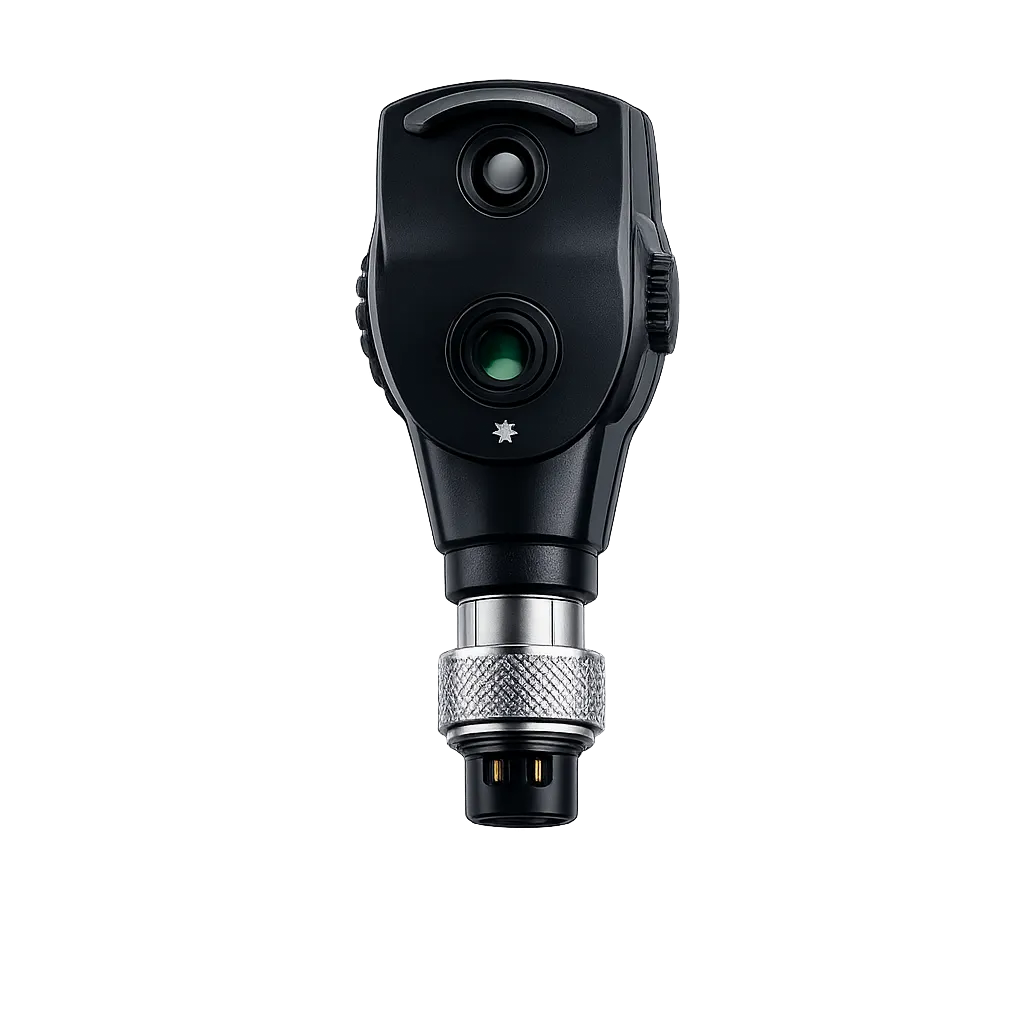

Visionstar YZ-6G

Wall Mounted Format

The instrument is described as mounted on the wall, keeping it within reach of the examination chair while leaving the working surface below entirely clear.

Five Illumination Forms

Large spot, small spot, slit, net and red free are all listed, described by the manufacturer as meeting various observation requirements without additional accessories.

Slit Beam

A narrow band of light is included among the forms. The way a slit deforms as it crosses the retinal surface assists in judging elevation and contour.

Net Graticule

The net introduces a grid into the observed field, which helps the examiner estimate the position and relative size of a feature rather than describing it loosely.

Red Free Setting

Removing red from the beam darkens the vessels against the retina behind them, giving a clearer view of vascular detail and the nerve fibre layer.

Compensation Across 24 Steps

Dioptre compensation spans minus 35D to plus 20D in 24 steps in total, reaching high myopia at one end and hypermetropic eyes at the other.

Halogen Illumination

The source is a halogen bulb rated at 3.5V and 2.8W, related by the manufacturer to a high colour temperature, good colour rendering, an even light spot and a sharp image.

Soft Start and Automatic Turn Off

Soft starting and an automatic turn off function are described as extending the service life of the bulb, with soft rubber around the eyeholes protecting and steadying the instrument.

Routine Examination in a Fixed Room

For a practice where patients come to the clinician rather than the other way round, a mounted instrument is always in the same place, always at the same height and never buried under paperwork. The working surface stays free for the notes, the trial frame and everything else a consultation accumulates. Small as it sounds, an instrument that is reliably to hand is an instrument that gets used on patients who might otherwise be examined less thoroughly.

Assessing Elevation and Position

The slit and the net are the two forms that move beyond simple illumination. A slit crossing a raised or depressed area deforms in a way that reveals contour, which helps when the question is whether something stands proud of the retinal surface. The net lays a graticule over the field so that the position and relative size of a feature can be estimated and described consistently between appointments.

Vascular and Nerve Fibre Assessment

Red free illumination raises the contrast between vessels and the retina behind them, making calibre, crossings and small haemorrhages easier to judge, and assisting with the nerve fibre layer. For a practice seeing patients with diabetes or hypertension, having that view available at the wall means a vascular question can be examined in the same appointment it arises.

Examining Across a Wide Refractive Range

Compensation from minus 35D to plus 20D across 24 steps brings both high myopes and hypermetropic patients into focus at the instrument itself. High myopes in particular repay careful examination, since their retinas carry the greater risk, and they are exactly the patients a narrower compensation range would leave blurred.

Space Recovered in a Crowded Room

Consulting rooms rarely have surface to spare. Mounting the instrument on the wall recovers the footprint a bench mounted unit would occupy, while keeping the head within easy reach of the seated patient. There is no cable trailing across the desk, nothing to move when the surface is needed for something else, and no risk of the instrument being pushed aside and forgotten. In a room used by several clinicians, a fixed position also means everyone finds it in the same place.

A Complete Set of Light Forms

Two spot sizes, a slit, a net and red free between them cover the ordinary run of observation requirements without any accessory being fetched or fitted. The practical consequence is that a clinician who notices something during a routine look can change the way they are looking at it immediately. Capability that requires hunting for a filter tends to go unused, whereas capability selected at the head becomes part of how the examination is actually conducted.

Attention to the Bulb and the User

Soft starting avoids the sudden surge that shortens filament life, and automatic turn off deals with the instrument left running between patients, both described as extending service life. Soft rubber around the eyeholes protects the user's eyes and steadies the head against the face. None of this is dramatic, but together these are the details that decide whether an instrument is still working well several years into service.

The Visionstar YZ-6G is built for a room where the instrument stays put. Mounted on the wall, it leaves the working surface clear while remaining within reach of the examination chair. Five illumination forms cover a large spot, a small spot, a slit, a net and red free, dioptre compensation spans minus 35D to plus 20D across 24 steps in total, and a halogen bulb rated at 3.5V and 2.8W is related by the manufacturer to a high colour temperature, good colour rendering and a sharp image.

This page states what the supplied material states. The mains electrical specification is deliberately not given here, and housing dimensions, mass, the wall mounting hardware, accessories, configuration and condition do not appear on that material. Nothing here should be read as a claim about testing or regulatory approval. Medigear.uk will confirm each of those points, including the correct electrical configuration for your setting and what is required to mount the instrument safely.

If your practice examines patients in a fixed consulting room and wants a capable instrument permanently to hand, and you want the specification checked against how you actually work, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm what this instrument offers and help you judge whether it suits your room.
