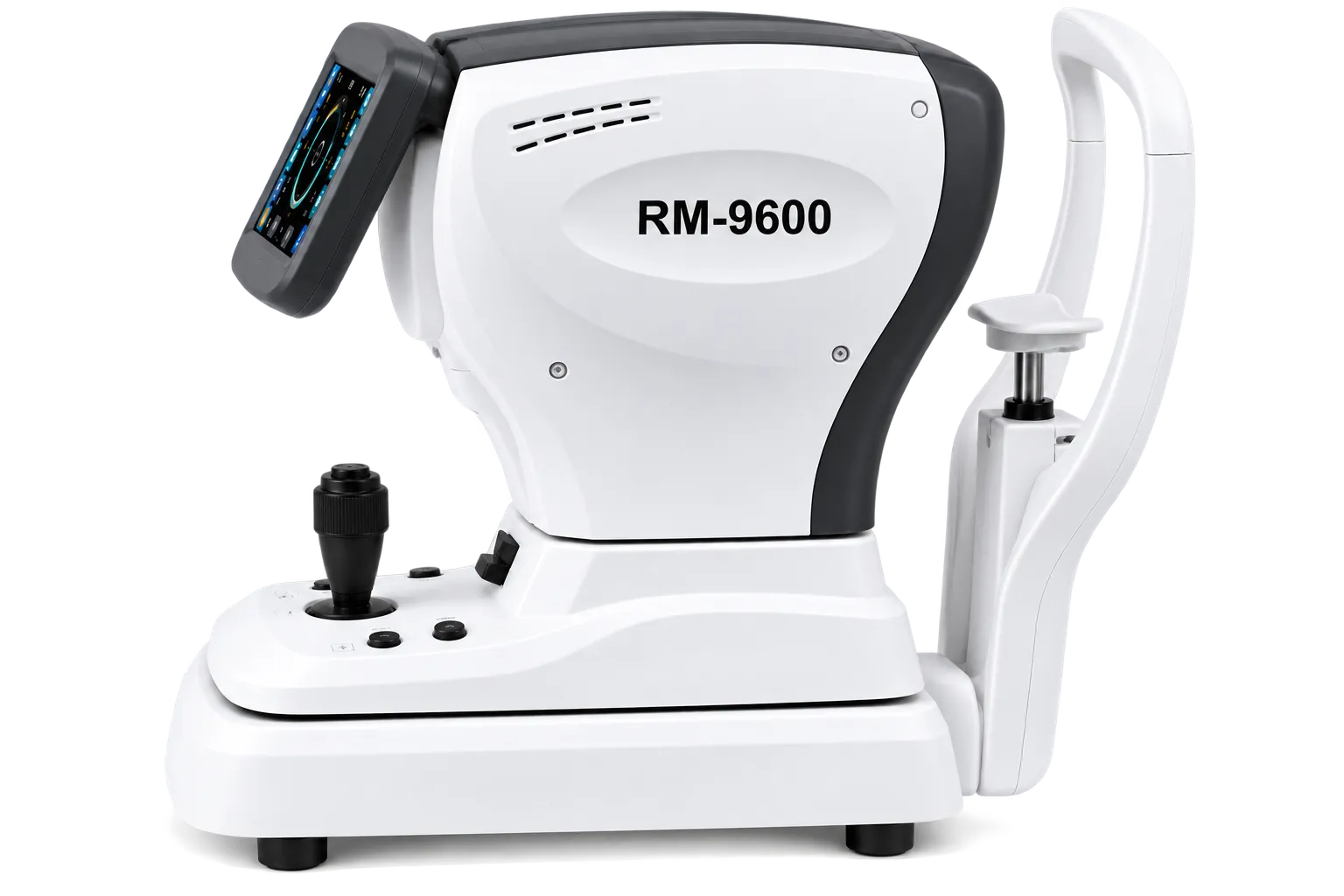

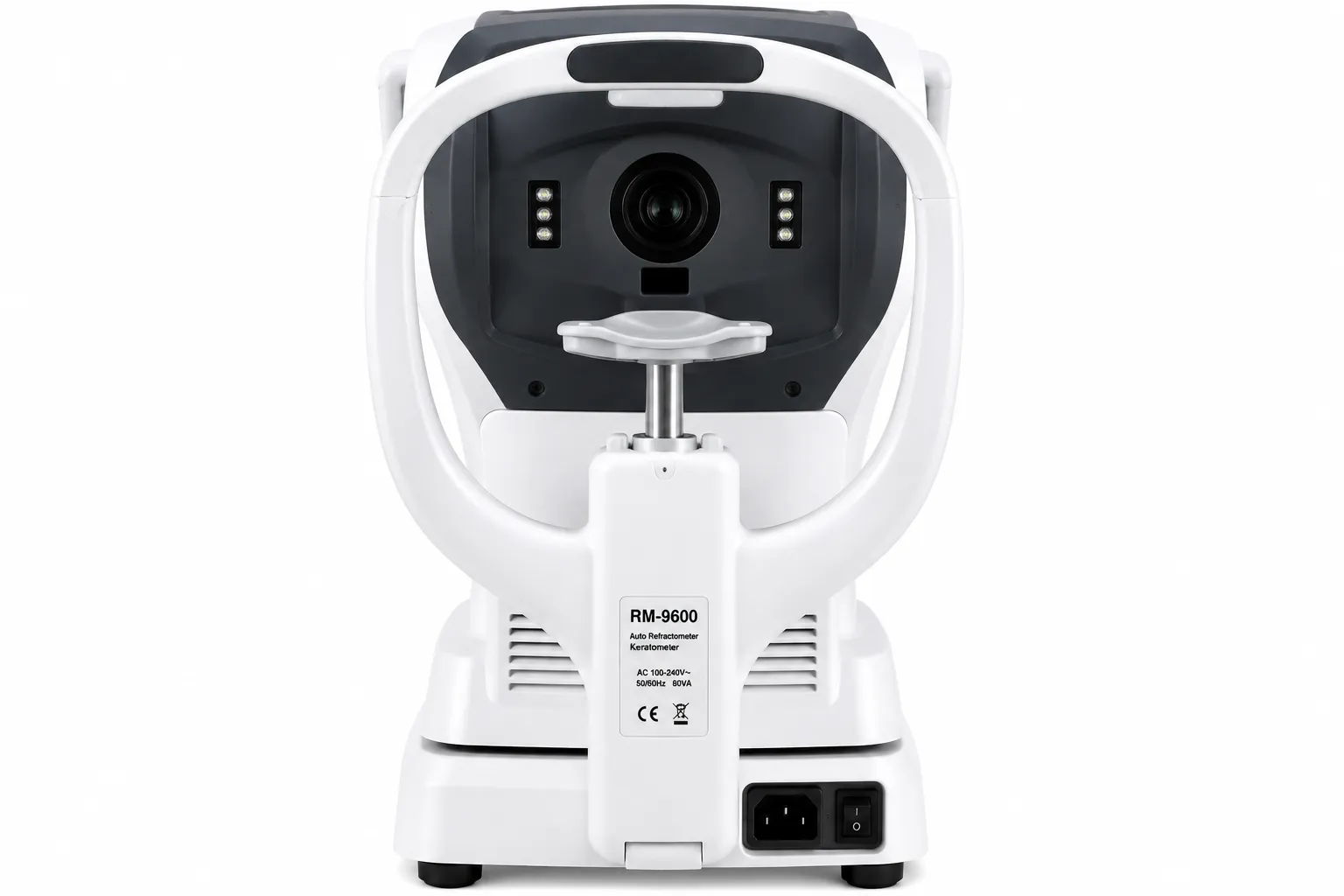

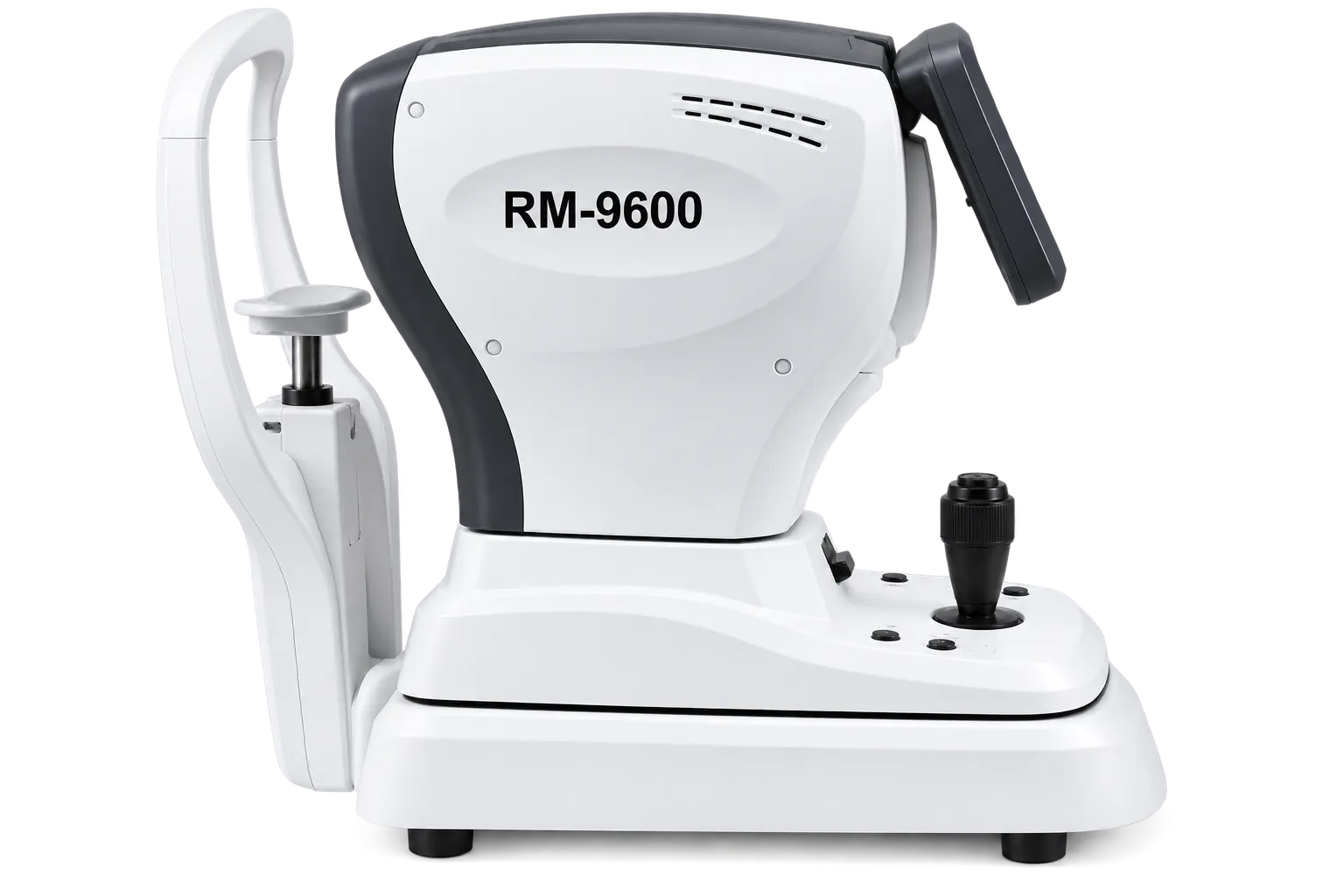

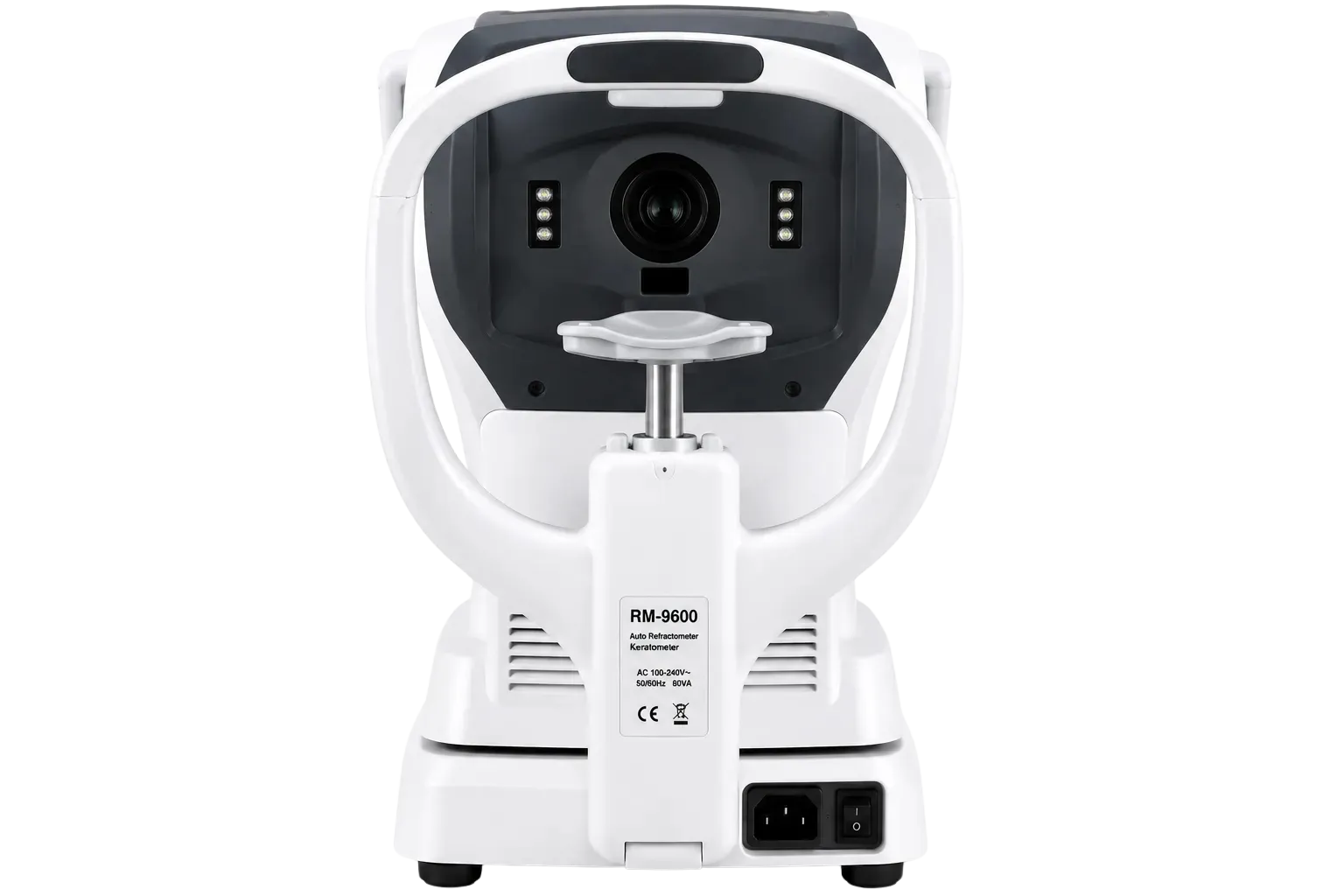

Visionstar RM-9600

Wide Sphere Range

Sphere runs from minus 25.00 to plus 22.00D at a vertex distance of 12mm, a broader span than instruments of this class commonly offer to a practice.

Cylinder and Axis

Cylinder covers 0.00 to plus or minus 10.00D and axis runs 0 to 180 degrees in 1 degree steps, with both sphere and cylinder selectable at 0.12 or 0.25D.

Auto Tracking

Auto tracking follows the eye along the vertical axis, so alignment is maintained by the instrument rather than corrected continuously by the operator's hand.

Pupil Size Measurement

Pupil size is measured and reported as a figure in its own right, alongside a minimum measurable pupil diameter of 2.0mm for the refraction itself.

Tilting Touch Screen

A 7 inch colour touch screen adjusts through 90 degrees, which the manufacturer relates to a comfortable viewing angle whether the operator sits or stands.

Motorised Chin Rest

The chin rest handles height adjustment by motor, which the manufacturer relates to easier and smoother operation, with a one key lock function also fitted.

IOL Function

An intraocular lens function is available, providing a dedicated setting for eyes that have had a lens implanted rather than measuring them as ordinary eyes.

Printing and Data Output

A built in thermal printer loads easily and cuts the paper automatically, with data output over RS232 or a wireless connection, and power saving at 5 or 15 minutes.

Practices Seeing Post Cataract Patients

The IOL function is the one feature that really distinguishes this instrument for cataract work. An implanted intraocular lens simply does not behave optically the way a natural crystalline lens does, and an autorefractor measuring it as an ordinary eye can return a figure that misleads. A dedicated setting acknowledges that, and for a practice with post surgical patients on its list, that matters considerably indeed in practice.

Patients With Small Pupils

The minimum measurable pupil diameter is 2.0mm, and pupil size is separately measured and reported. Older patients, those on certain medications and anyone examined in a bright room may present pupils too small for a less capable instrument entirely. Having the pupil figure reported as well means an operator knows why a reading was difficult rather than merely knowing that it was difficult.

High Prescriptions and Unusual Eyes

A sphere range from minus 25.00 to plus 22.00D with cylinder to 10.00D will cover prescriptions that fall outside a narrower instrument altogether. For a practice with a hospital caseload, high myopes, or patients with significant astigmatism, an instrument that reads across the whole range is what prevents a referral being made simply because the equipment simply could not measure the eye in question.

Shared and Multi Operator Rooms

A touch screen adjusting through 90 degrees, a motorised chin rest and one key locking together suit an instrument used by several people of different heights, sitting and standing. Auto tracking further reduces how much the result depends upon who is at the controls, which is what keeps readings comparable right across a whole team.

Range That Does Not Run Out

Sphere from minus 25.00 to plus 22.00D and cylinder to 10.00D is genuinely wide, and range is the specification that decides whether an instrument can measure a given patient at all. A practice with high myopes or marked astigmatism on its books will meet the limit of a narrower instrument regularly, and each time it means falling back on subjective refraction with no objective starting figure at all to work from.

The Pupil Reported, Not Just Tolerated

Most instruments quote a minimum pupil they can work with. This one measures pupil size and reports it. That turns a hidden constraint into visible information: an operator who can see the pupil diameter knows whether a difficult reading reflects the eye or the technique, and can decide whether to dim the room and try again rather than merely guessing at the cause of it.

Built for Whoever Is Operating

A screen adjusting through a full 90 degrees, a motorised chin rest and auto tracking along the vertical axis together mean the instrument accommodates the operator instead of the reverse. In a practice where several people of different heights share one machine across a working day, that is felt on every measurement and shows up in how consistent the readings actually are between them.

The Visionstar RM-9600 measures sphere from minus 25.00 to plus 22.00D at a vertex distance of 12mm and cylinder from 0.00 to plus or minus 10.00D, both selectable at 0.12 or 0.25D steps, with axis across 0 to 180 degrees and pupil distance from 10 to 85mm. Four vertex distances are offered at 0.0, 12.0, 13.75 and 15.0mm. Minimum measurable pupil diameter is 2.0mm and pupil size is separately measured. Auto tracking, an automatic fogging target, an IOL function, a 7 inch touch screen adjusting through 90 degrees, a motorised chin rest, one key locking, RS232 and wireless output and a thermal printer with auto cutter are all fitted. The instrument measures 262 by 487 by 467mm and weighs 17.5kg.

Three things are deliberately absent. The keratometry figures on the card belong to a separate model and are not reproduced here, so a practice needing corneal measurement should ask about that model. A named processor family and the manufacturer's company name, city and website are likewise not reproduced. The electrical supply specification is not given here either.

If your practice sees post cataract patients, measures high prescriptions, or shares one instrument between several operators, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm the specification and what is supplied with it.
