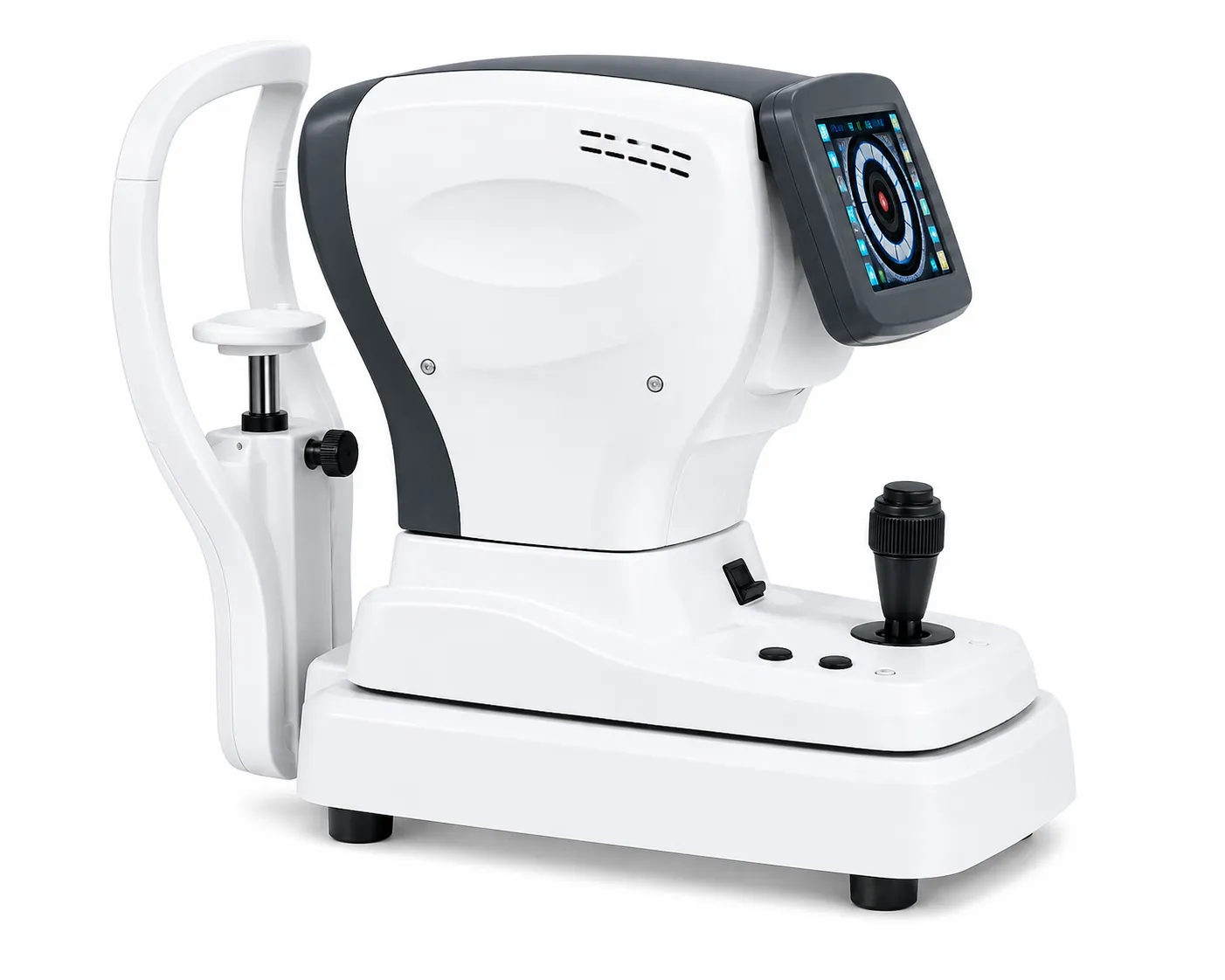

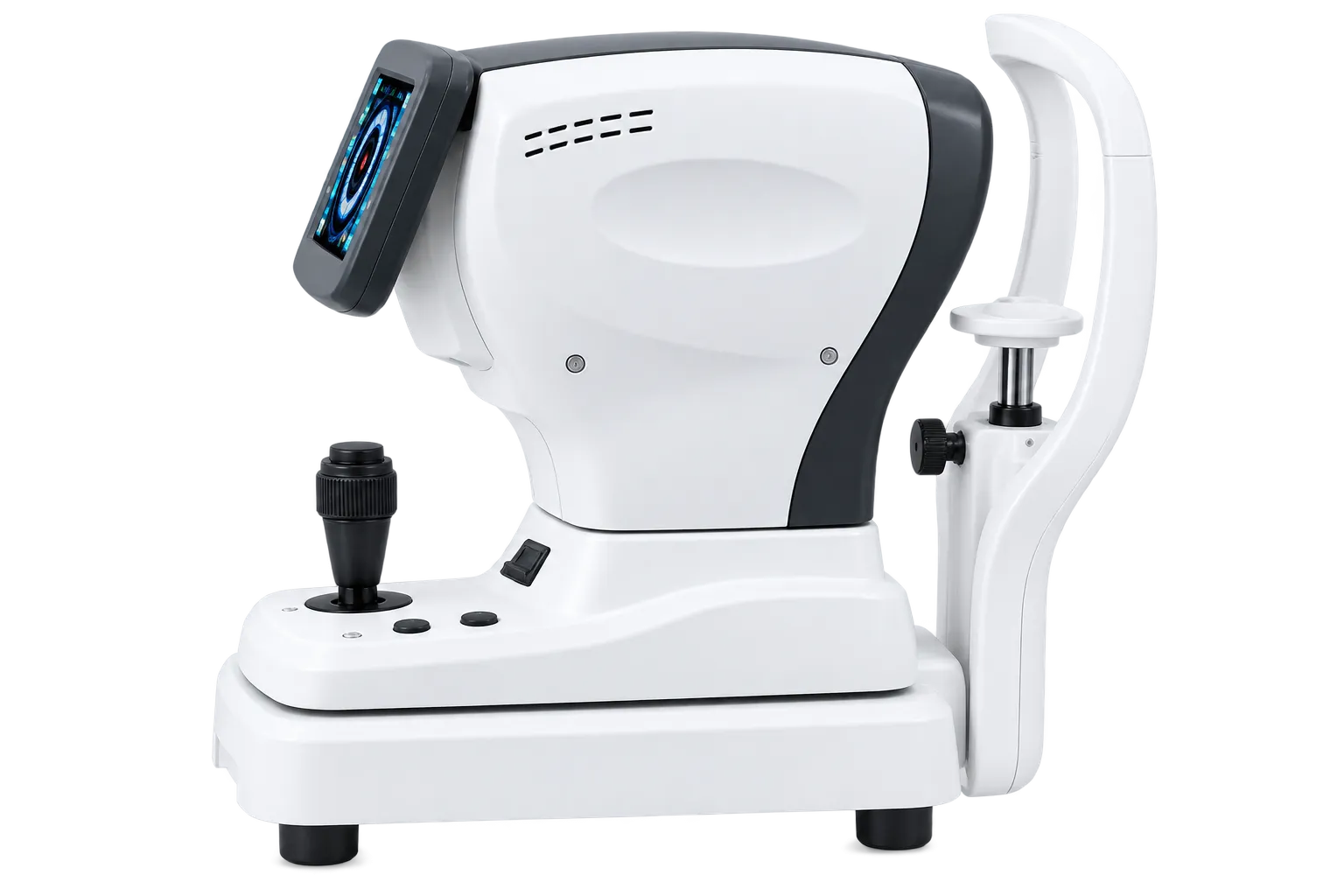

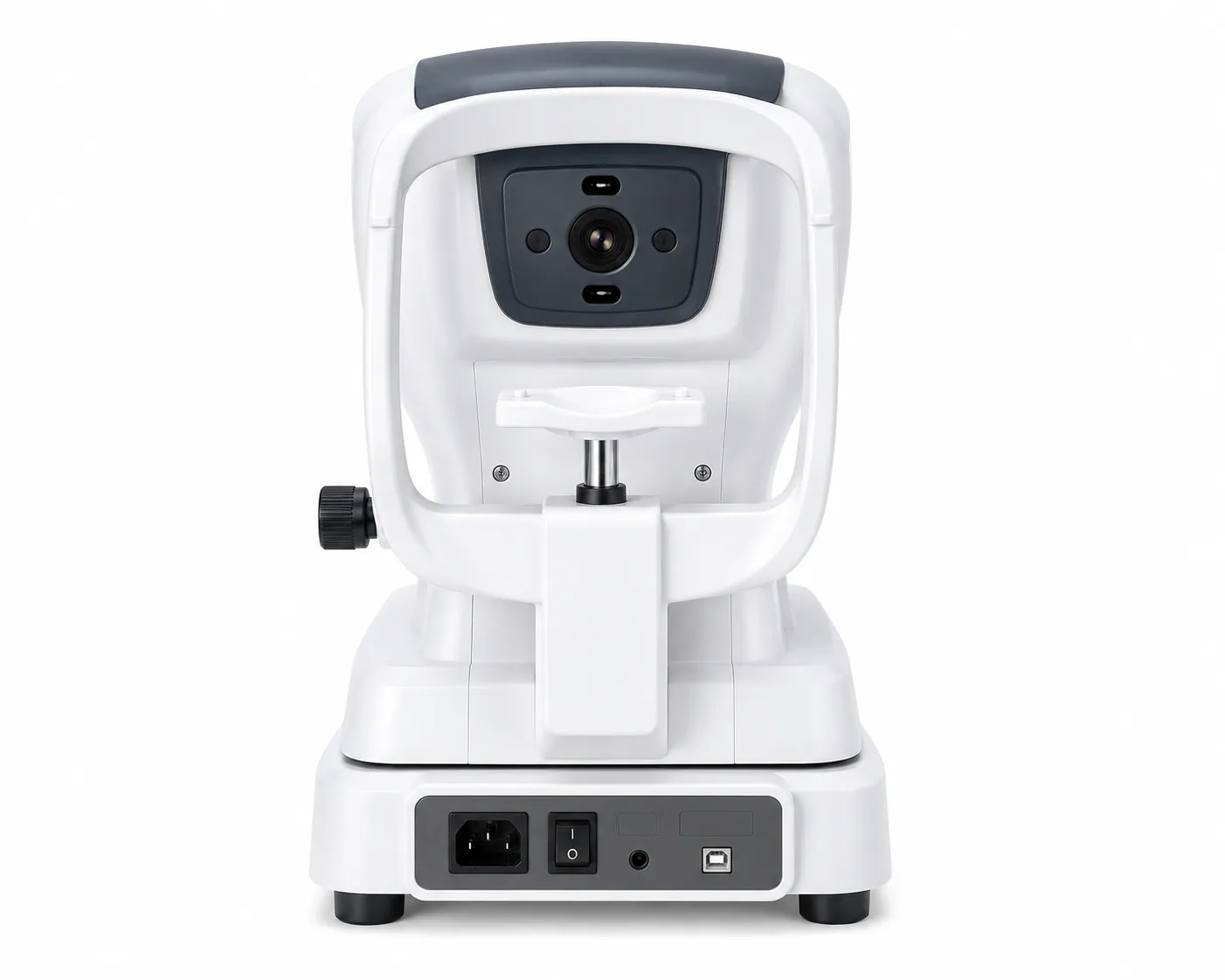

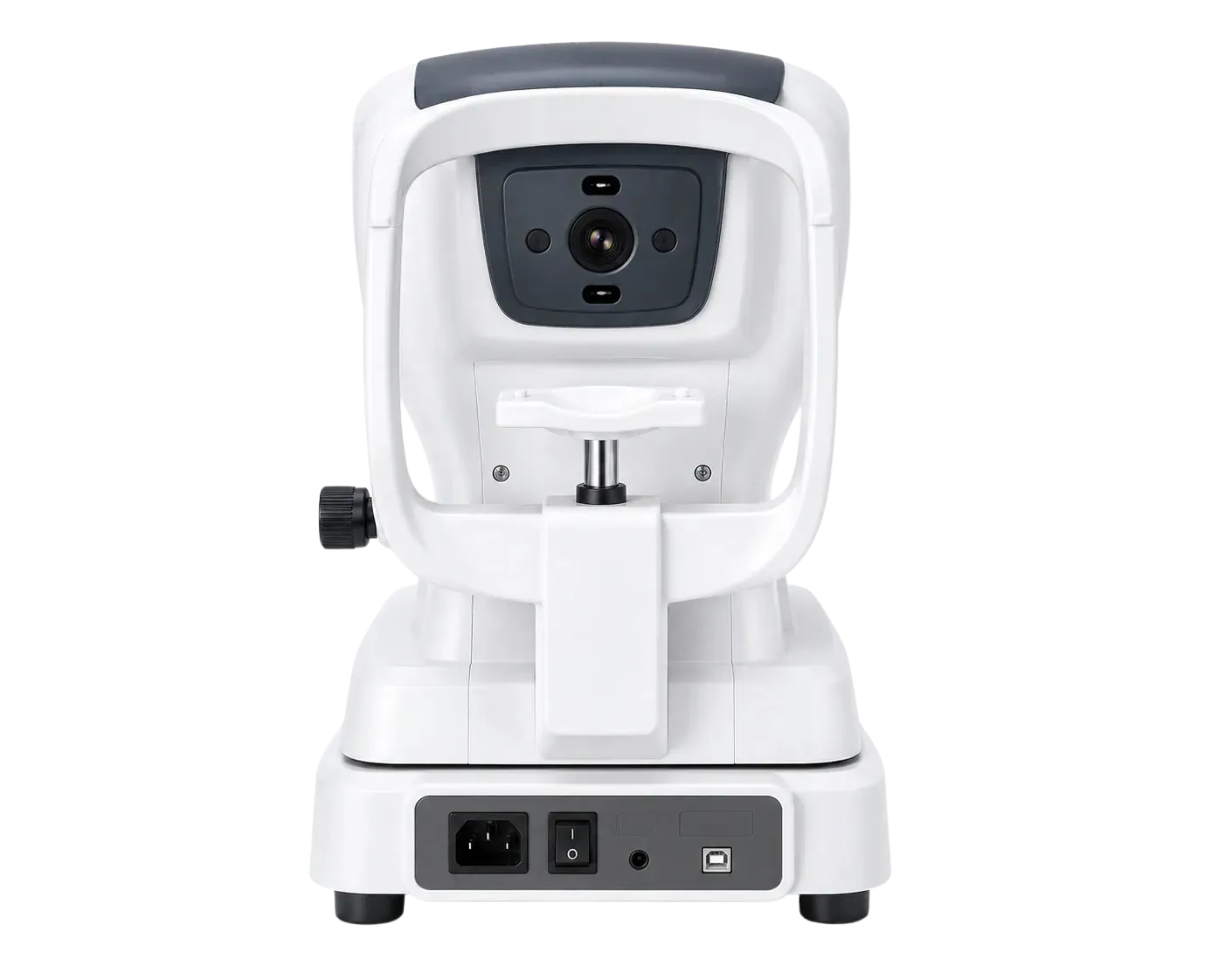

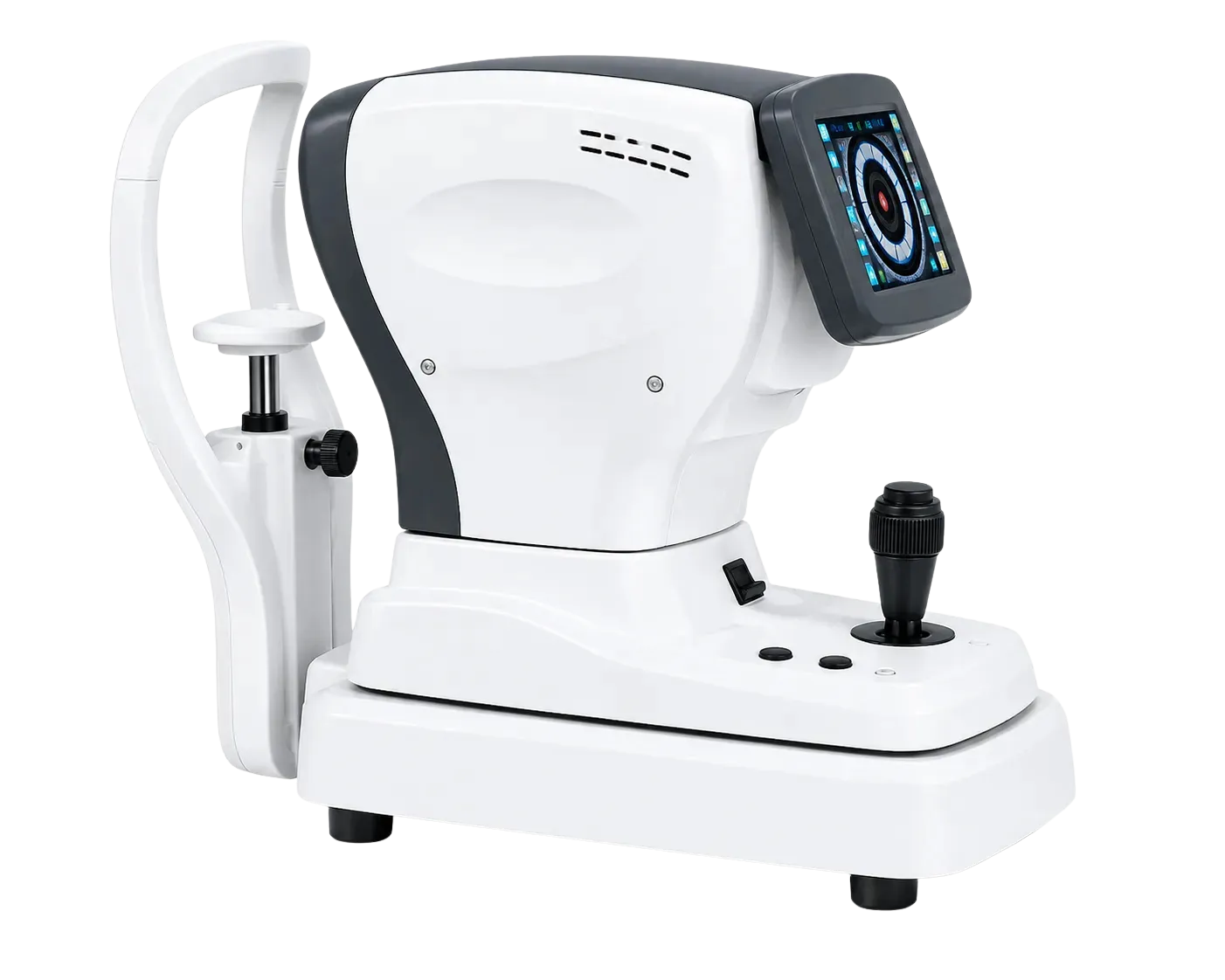

Visionstar RM-9000

Sphere and Cylinder Ranges

Sphere runs from minus 20 to plus 20D and cylinder from 0.00 to plus or minus 10.00D, each selectable in 0.12 or 0.25D resolution steps across the range.

Automatic Mist Target

An automatic mist target is described as reducing the error caused by adjustment, relaxing accommodation so an eye does not focus harder than it truly needs to.

Two Millimetre Minimum Pupil

Minimum measurable pupil diameter is 2.0mm, which is what allows a reading from patients whose pupils are too small for a less capable instrument to manage.

Integrally Cast Rack

The measuring system is mounted on a light rack of integral casting with CNC machining, which the manufacturer relates to stability and good consistency.

One Key Lock Function

A one key lock function quickly locks mobile platforms, so the instrument is secured before being moved, with no need for several separate catches to be fastened.

Automatic PD Measurement

Pupillary distance is measured automatically and the value calculated by the instrument, rather than being taken as a separate step with a rule by the operator.

Vertex Distance and Pupil Range

Four vertex distances are offered at 0, 12, 13.75 and 15mm, with pupil distance measured from 30 to 85mm and axis across 1 to 180 in 1 step increments.

Monitor, Printer and Power Saving

A 5.7 inch colour LCD provides the interface, a fast thermal printer is fitted, and power saving can be switched off or set to 5 or 15 minutes as preferred.

Patients With Small Pupils

A 2.0mm minimum measurable pupil is the figure worth noticing. Older patients, those on certain medications and anyone measured in a bright room may present pupils too small for a less capable instrument to read. Getting a result where another machine returns nothing is not a marginal gain, since the alternative is no objective starting point available at all for the refraction that follows it.

Rooms Where the Instrument Moves

A one key lock function that quickly secures mobile platforms suits a practice where the instrument is wheeled between rooms or pushed aside between appointments. Combined with an integrally cast rack, that addresses the ordinary reality that equipment does get moved, and that optical alignment has to survive being moved without drifting quietly out of true over the months that follow.

Practices Recording PD Routinely

Automatic PD measurement removes a separate manual step from every dispensing. A distance taken by rule is both slower and more variable between staff than one calculated by the instrument, and since the figure affects how a lens is glazed, having it produced consistently is worth rather more than the seconds it saves on each individual patient who is seen throughout a working day.

Practices Linking to a Phoropter

The card shows data passing to an auto phoropter and a printer as part of a connected refraction room. For a practice building toward that arrangement, an instrument that outputs its readings rather than only displaying them is the necessary starting point, and those connection details should be confirmed before anything else is ordered to sit alongside it in the refraction room.

Stability Where It Actually Matters

A light rack of integral casting with CNC machining is an unglamorous specification, but it decides how long an instrument stays accurate. Optics that are held rigidly keep giving the same answer; optics held in a frame that flexes drift quietly and nobody notices until readings stop agreeing with the subjective refraction. Specifying the casting is a fair sign of where the design effort has actually gone.

Error Reduced Before It Happens

The automatic mist target addresses accommodation, which is the most ordinary reason an objective reading comes back more minus than the eye truly needs. Rather than correcting for it afterwards, the instrument relaxes the eye during the measurement itself. That is a better answer than a clever calculation, because it removes the cause instead of merely estimating what its effect upon the final figure might be.

Readings From Difficult Pupils

Minimum pupil size decides which patients an autorefractor can measure at all, and 2.0mm is a genuinely useful figure to have available within a practice. For an older caseload, or any practice that cannot dim its room properly, the difference between an instrument which reads a small pupil and one that cannot is the difference between a starting point for the refraction and having nothing at all to work from.

The Visionstar RM-9000 measures sphere from minus 20 to plus 20D and cylinder from 0.00 to plus or minus 10.00D, both in 0.12 or 0.25D steps, with axis across 1 to 180 in 1 step increments, pupil distance from 30 to 85mm and four vertex distances at 0, 12, 13.75 and 15mm. Minimum measurable pupil diameter is 2.0mm. An automatic mist target, an integrally cast measuring rack, a one key lock function, automatic PD measurement, a 5.7 inch colour LCD, a fast thermal printer and selectable power saving at 5 or 15 minutes are all fitted.

Four points are handled deliberately. The corneal figures on the card belong to a separate model and are not reproduced here. The axis rows carry a dioptre symbol where degrees belong, which should be corrected at source. The dimensions are printed in centimetres and suggest a packed size rather than a bench footprint. And a named processor family and a country reference from the feature list are not reproduced.

If your practice measures older patients, moves its equipment between rooms, or is building toward a connected refraction room, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm the specification and what is supplied.
