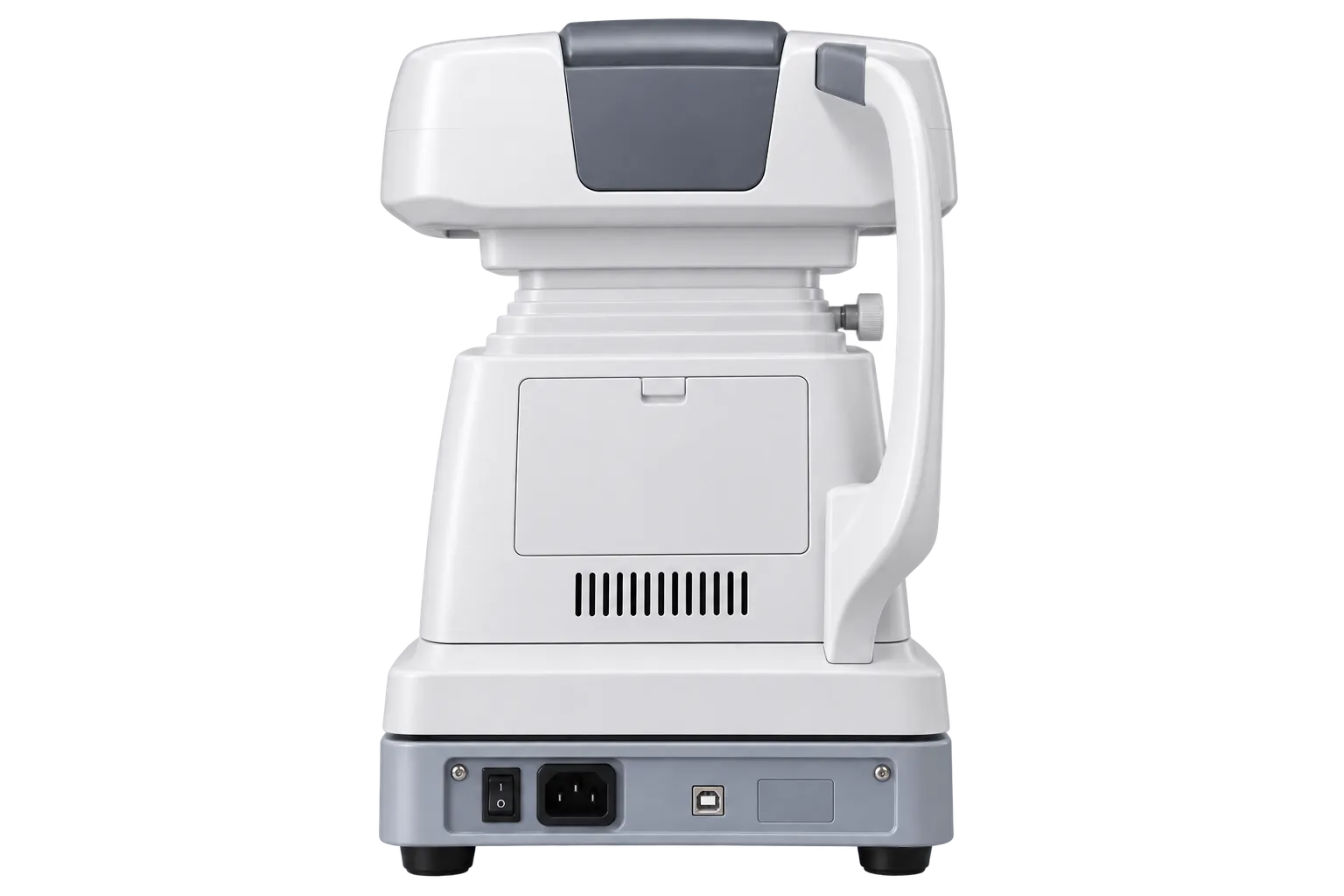

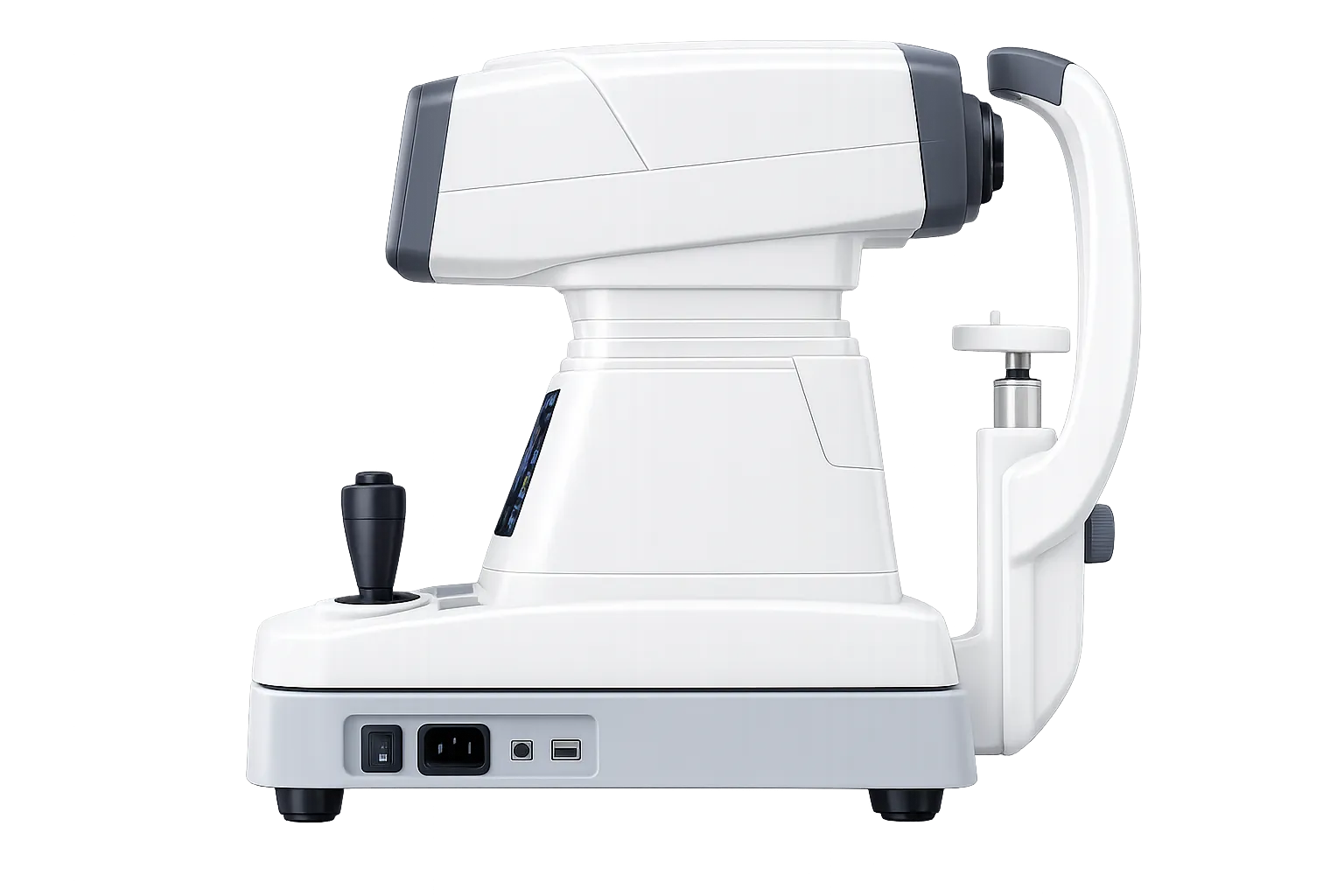

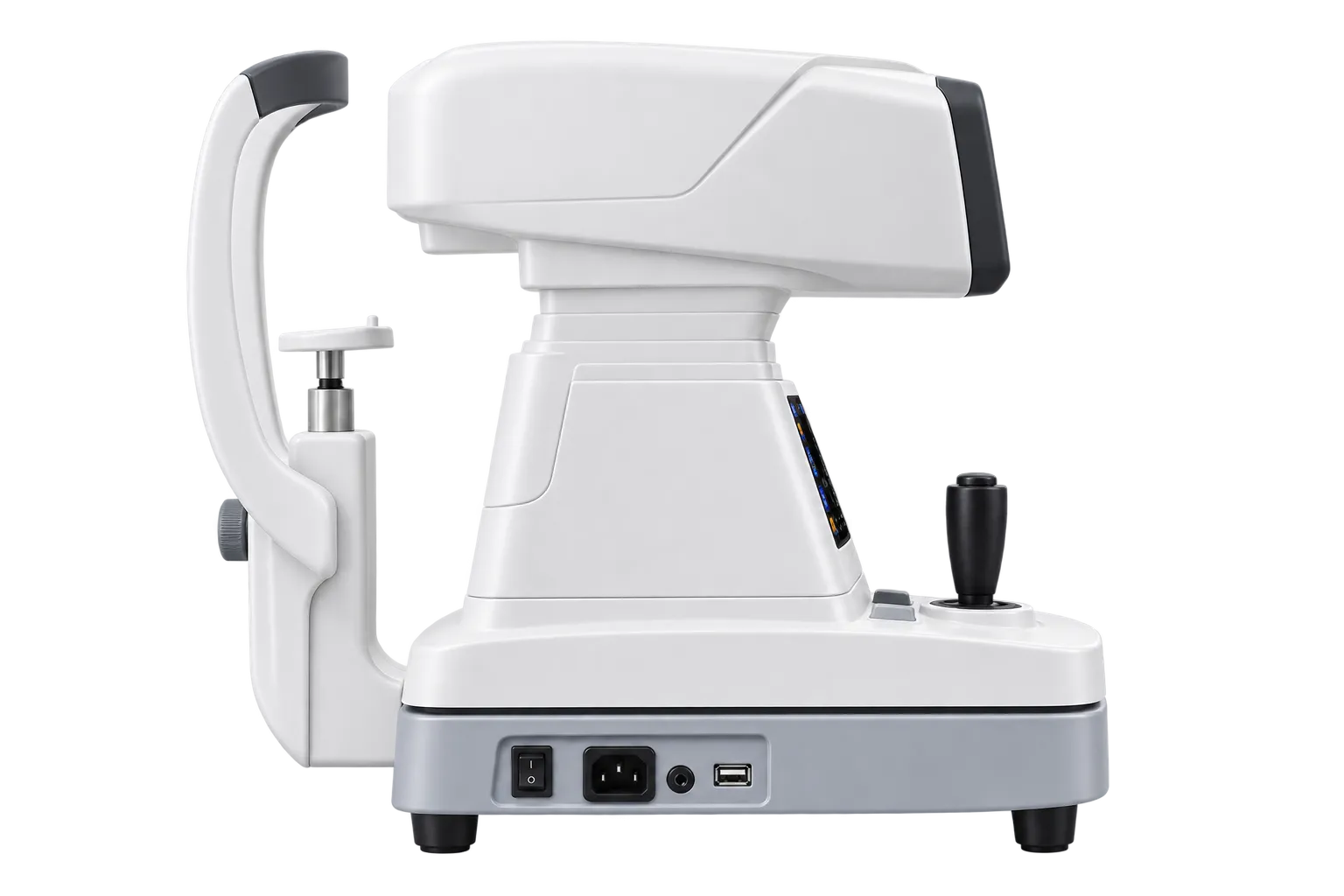

Visionstar FA-6000

One Handed Control Stick

All operations including up and down, right and left, forward and backward, and start are controlled through one control stick using a single hand.

Automatic PD Measurement

Pupillary distance is calculated automatically after measurement, so the figure comes from the instrument rather than being taken separately by the operator.

Two Millimetre Minimum Pupil

Minimum pupil size is 2.0mm, which the manufacturer relates to a broader measurement range than an instrument of this kind would ordinarily offer.

Auto and Manual Focus

Both automatic and manual focusing are described, so an operator can let the instrument focus or take over where a particular patient makes that easier.

Spherical and Cylinder Ranges

Spherical runs from minus 20 to plus 20 at a vertex distance of 12, and cylinder from minus 8 to plus 8, each selectable at 0.12 or 0.25 resolution steps.

Keratometry on the K Variant

Radius of curvature covers 5.0 to 10mm in 0.01mm increments, corneal power 33.75 to 67.50D at an index of 1.337, and corneal diameter 2.0 to 14.0mm in 0.1mm increments.

Mode Selection and Menu

Keratometry and refractometry modes are selectable, with a user menu the manufacturer describes as convenient to set up for the way a practice works.

Compact and Portable

The instrument measures 483 by 268 by 452mm and weighs 16kg, which is light enough to move between rooms without a trolley or a second person helping.

Patients With Small Pupils

A 2.0mm minimum pupil is the figure worth noticing. Older patients, those on certain medications and anyone measured in a bright room may present pupils too small for a less capable instrument to read. Getting a result where another machine returns nothing is not a marginal gain, since the alternative is sending the patient away without any objective starting point at all for the refraction.

Single Operator Working

One handed control of every movement matters where one person runs the whole appointment. With the other hand free for the patient, the chin rest or the notes, an operator is not obliged to keep releasing and regripping controls. In a practice where the same person seats the patient and takes the reading, that is felt on every single measurement taken through a day.

Contact Lens Fitting

The K variant is the one to choose here. Radius of curvature from 5.0 to 10mm in 0.01mm increments and corneal diameter from 2.0 to 14.0mm give the corneal figures a fitting depends upon, alongside corneal astigmatism to 8.00D. A practice fitting lenses regularly needs all of those, and the A variant would leave them without any of those corneal figures at all.

Practices Recording PD Routinely

Automatic pupillary distance calculation removes a separate manual step from every dispensing. A measured PD taken by rule is both slower and more variable between staff than one calculated by the instrument, and since the figure affects how a lens is glazed, having it produced consistently is worth more than the few seconds it saves on each individual patient.

Readings Where Others Fail

Minimum pupil size decides which patients an autorefractor can actually measure at all, and 2.0mm is a genuinely useful figure indeed. For an older caseload, or any practice that cannot dim its consulting room properly, the difference between an instrument that reads a small pupil and one that cannot is the difference between a starting point for the refraction, and having no objective data whatsoever to work from at all.

Designed Around One Pair of Hands

Every movement on one single stick, automatic PD calculation and selectable auto or manual focus together mean the instrument is built around a single operator working alone. Small frictions in a routine repeated dozens of times a day are what make staff rush or else avoid a piece of equipment, and removing them is worth more over a year than most of the headline specifications on a sheet ever do.

One Model, Two Levels of Capability

Offering the same instrument with and without keratometry lets a practice buy only the capability that it uses. A dispensing practice doing no contact lens work pays for the refraction alone; a contact lens clinic gets corneal curvature, power, astigmatism and diameter on that same unit. The choice is clear because nothing else differs between the two versions of this particular instrument.

The Visionstar FA-6000 is offered in two variants: the A as an auto refractometer, the K as an auto refractometer with keratometer. Spherical runs from minus 20 to plus 20 at a vertex distance of 12, cylinder from minus 8 to plus 8, both selectable at 0.12 or 0.25 resolution, with axis across 0 to 180 degrees, pupil distance from 45 to 88mm and a minimum pupil size of 2.0mm. The K variant adds radius of curvature from 5.0 to 10mm, corneal power from 33.75 to 67.50D and corneal diameter from 2.0 to 14.0mm. One handed control stick operation, automatic PD calculation, auto and manual focus, a fogging chart, ten value memory per eye and a thermal printer are fitted. The instrument measures 483 by 268 by 452mm and weighs 16kg.

Three points on the card need correcting rather than repeating. The keratometry section carries a model number heading that matches none of the models this card offers. A feature bullet describes a CRT monitor while the specification lists a TFT LCD. The cylinder form row and the focus bullet are garbled in print. All three should be resolved before publication, and the electrical supply specification is not reproduced here.

If your practice measures older patients, works with one operator per room, or fits contact lenses, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm which variant suits your work and what the corrected specification says.
