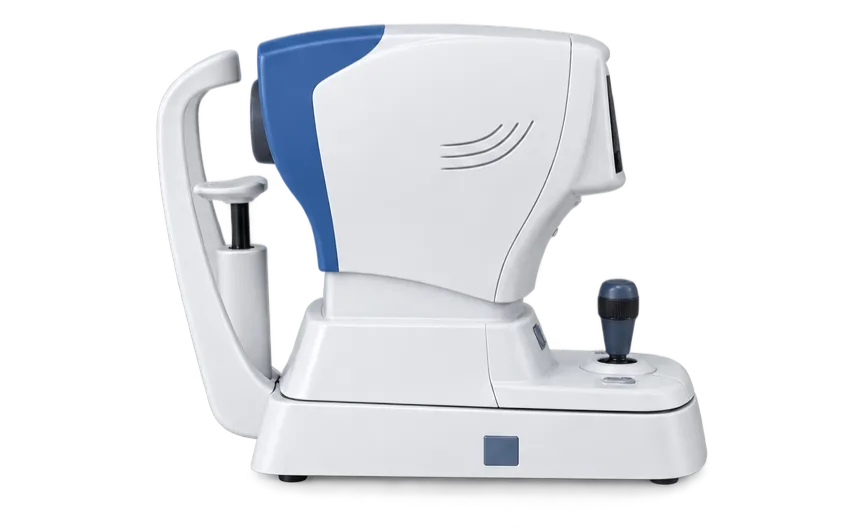

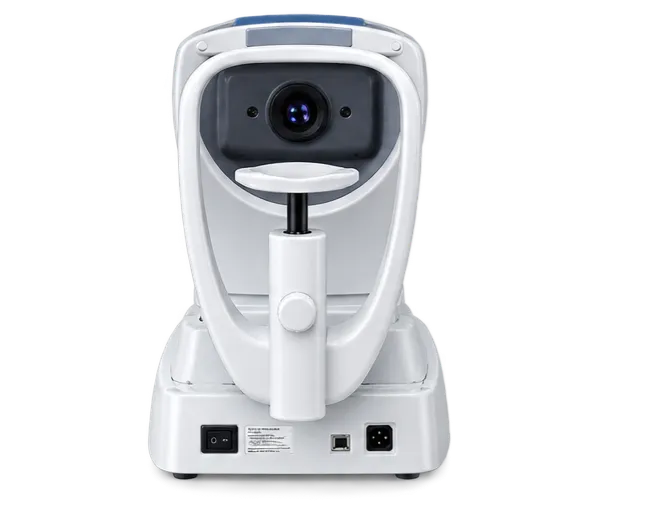

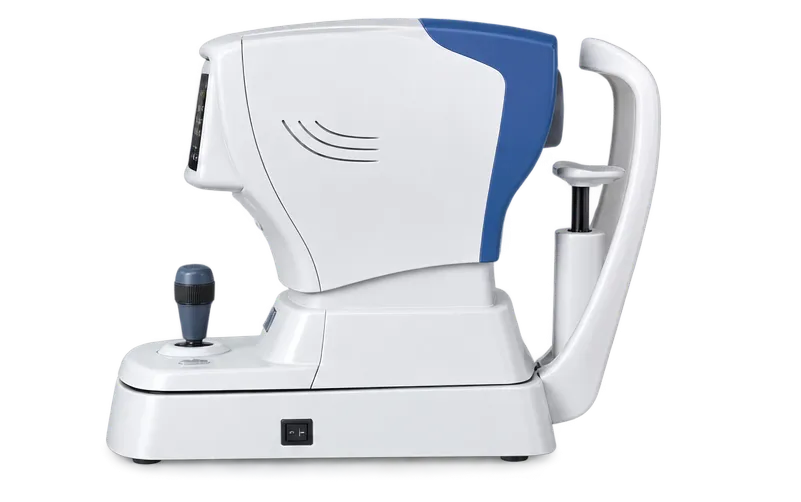

Visionstar AR-810

Practices Not Requiring Keratometry

Where corneal curvature is not routinely needed, a refraction only instrument avoids paying for capability that goes unused. Practices fitting contact lenses should consider the ref/keratometer variant instead, and the card labels which rows belong to which. Unused capability still costs money. Row tagging makes the split clear. Contact lens work needs the other variant. Labels remove the ambiguity entirely. Row labelling avoids the confusion entirely. Practices choose by function needed. Cost follows the choice.

Busy Refraction Lists

Automatic capture and a half second measurement keep a sequence moving, while the servo chin rest removes manual positioning. What is finally prescribed remains a clinical judgement rather than an instrument output. Sequences keep moving through a list. Prescribing stays a clinical judgement. Half a second keeps fixation brief. Automatic capture removes hesitation. Lists move through more quickly overall. Positioning happens without manual effort. Judgement stays clinical.

Shared Consulting Rooms

A tilting display and servo chin rest both accommodate operators of differing heights, which matters where several people use one instrument across a week rather than one person using it daily. Heights differ considerably between people. Shared rooms benefit particularly. One instrument serves several clinicians. Adjustment happens without effort. Weekly sharing is common in practices. Both adjustments accommodate that. Nobody works uncomfortably.

Services Weighing Automation Honestly

Because the tracing limitation is documented, a practice can judge whether vertical only tracking suits its work before purchase rather than discovering the constraint in use. That is worth more than an unqualified claim. Unqualified claims cannot be assessed. Constraints discovered later cost more. Judging fit beforehand avoids disappointment. Documented limits permit that judgement. Constraints found in use cost dearly. Documented limits permit real assessment. Fit is judged beforehand.

A Limitation Named Rather Than Hidden

The card states that auto tracing works vertically only, across a documented 16 millimetre range. Most instruments in this class describe automation without qualifying it, and a buyer who knows what is automated and what is not can judge whether it suits their work rather than finding out afterwards. Most cards describe automation unqualified. This one states its boundary. Buyers can weigh a stated boundary. Unqualified automation cannot be weighed. Stated boundaries beat broad assurances.

Operator Positions, Instrument Times

Automatic capture divides the task sensibly: the operator judges when the eye is properly aligned, and the instrument decides the moment to measure. That removes reaction time from the process without removing clinical judgement from it. Clinical judgement stays with the operator. Timing passes to the instrument. The division of labour makes sense. Neither party does the other's work. Reaction time no longer affects the reading.

Small Conveniences That Add Up

A servo chin rest, a tilting display and a printer that cuts its own paper are each minor. Across a full list they remove a dozen small manual actions, and instruments are lived with daily rather than admired on a specification sheet. Daily use is where such things count. Specification sheets rarely capture them. A dozen small actions disappear daily. Instruments are used rather than admired. Daily use reveals what specifications hide.

Auto Tracing Across 16 Millimetres

Tracing adjusts focus and alignment across plus or minus 16 millimetres, documented explicitly rather than described in general terms. General claims tell a buyer considerably less. Documented ranges can actually be assessed.

Vertical Tracing Only

The card states the tracing works in up and down directions only, so horizontal alignment remains an operator task. Operators still align horizontally themselves.

Automatic Capture

Once focus and alignment are satisfactory the instrument takes the measurement itself, so the operator positions and the instrument times. Reaction time leaves the process entirely.

Servo Chin Rest

Patient height adjusts under servo control rather than by hand, so positioning happens without manual effort. Manual lifting becomes unnecessary here.

Tilt Adjustable Display

The 5.7 inch TFT display angles toward the operator, which suits differing seated heights across a practice. Several people may share one instrument.

Half Second Measurement

Measuring takes half a second, which limits how long a patient must hold fixation during the reading. Children benefit from the brief fixation.

Auto-Cut Printer

The thermal printer cuts its own paper rather than leaving a strip to be torn by hand after each result. Strips need not be torn after each result.

Refraction Without Keratometry

Corneal curvature is not measured. Every keratometry row is explicitly tagged to the ref/keratometer variant instead. Row tagging makes the distinction clear. Blank cells elsewhere are less clear.

The AR-810 measures objective refraction with automatic capture once focus and alignment are satisfactory. Corneal curvature is not measured, and every keratometry row on the table is explicitly tagged to the ref/keratometer variant.

Every keratometry row carries its own model tag. Auto tracing covers plus or minus 16 millimetres and the card states plainly that it works vertically only, so horizontal alignment stays with the operator. Naming that limitation lets a practice judge whether the automation suits its work rather than discovering the constraint in use.

Judging the fit beforehand beats discovering a constraint in use. Refraction covers sphere minus 20 to plus 20 dioptres and cylinder to 10 in 0.12 or 0.25 steps, with axis in degrees, selectable cylinder sign, pupil distance across 30 to 85 millimetres and a 2 millimetre minimum pupil. Measuring takes half a second.

Small conveniences count more in daily use than on a specification sheet. A servo chin rest, tilting 5.7 inch display and auto-cut thermal printer complete the console, with power saving at 5 or 15 minutes and a 55 millimetre jaw panel. Medigear.uk supplies the AR-810 as a verified medical equipment supplier and will confirm the variant supplied, consumables and condition. Prescribing remains a clinical judgement.
