Nubway TCL5P

✓ Certified Professional Seller

Nubway Dermatology & Aesthetics

Nubway TCL5P

Product Code: DAA-3557

Body sculpting that fits on a cabinet top, with every applicator within arm's reach.

This console can fit a full sculpting menu in small rooms. Nubway describes it as portable: a central touchscreen, applicators parked in upright holders on both sides, and a published pairing of 7 Tesla magnetic pulses with 800 W radiofrequency.

Sections

Body Contouring Systems

Categories

Dermatology & Aesthetics

Condition

New

Origin

China

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

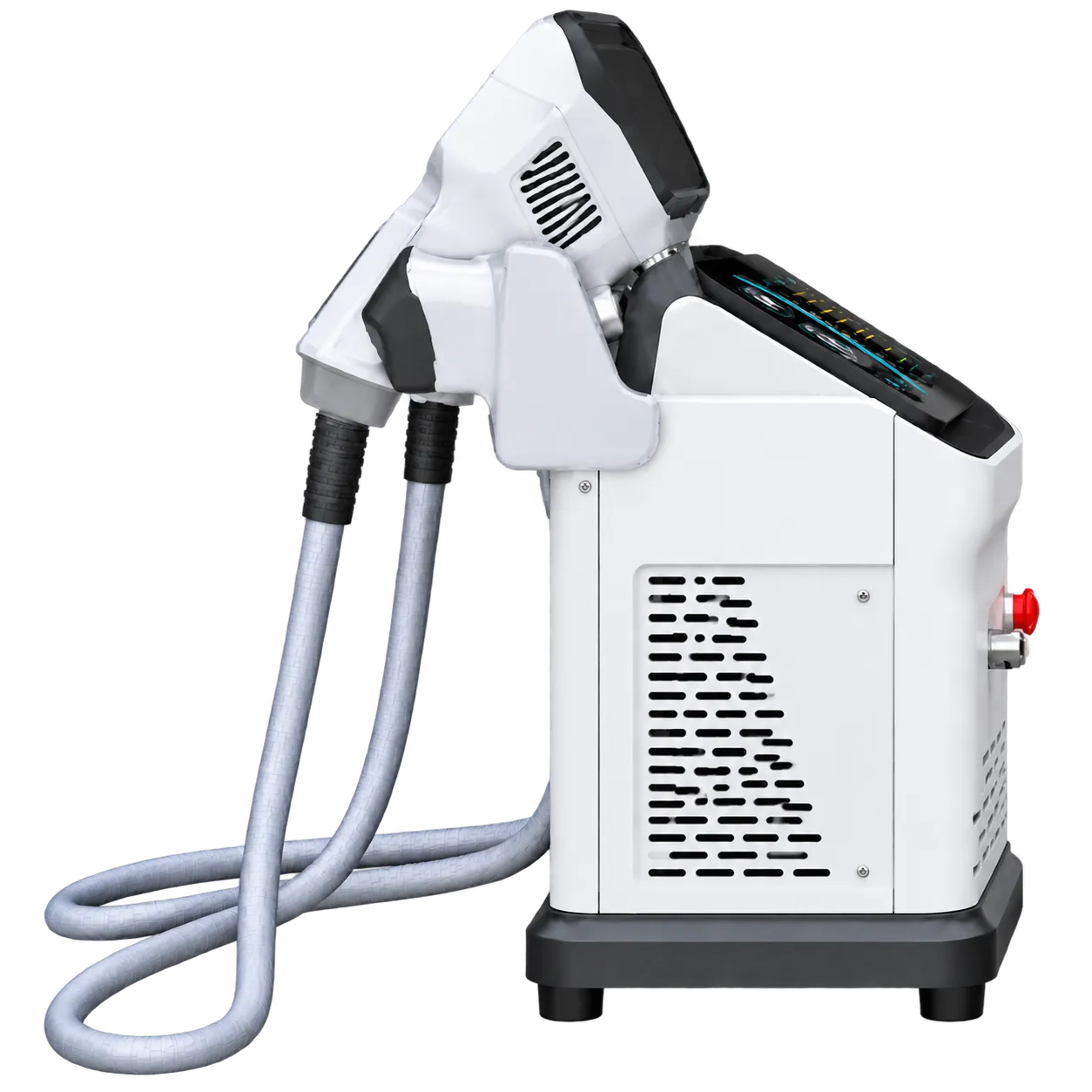

Four applicators and a touchscreen on a cabinet-top body make up the TCL5P, an electromagnetic body-sculpting console with radiofrequency from Beijing Nubway S&T. Nubway's category page lists the TCL5P alongside its Portable EMS+RF page. Medicalexpo carries the same description under the TCL5P code: 1 to 150 Hz, 5000 W rated power, 7 tesla intensity, a 12.4-inch touchscreen, a 310 µs ±10% pulse, air cooling, input at AC 220 V ±10% 10 A 50 Hz or 110 V ±10% 10 A 60 Hz, four handles able to work at the same time and 800 W of radiofrequency. Dimensions, weight, applicator sizes and channel layout are not published.

What defines this console is where it can go. A cabinet-top body means a treatment room needs a sturdy surface and a socket, so smaller rooms and satellite sites become possible. Check the electrical figures first: 10 A at 220 V is roughly 2.2 kW of input, so the 5000 W rating is almost certainly a peak figure, and the circuit should be sized from the seller's measured input data.

The front panel in the product photograph carries a round key-type switch and a red button in the position an emergency stop usually takes, with the TCL5P code printed below. Applicators rest in upright holders at both sides, with their cables looped at the front. MedicalExpo also lists a TCL5P NEO variant, so confirm whether the unit quoted includes the radiofrequency function.

Unit dimensions are not published. Medigear.uk lists the TCL5P and can arrange delivery, installation and familiarisation. Request measured dimensions and weight, input current, channel layout, the applicator list, the declaration of conformity, and field data at working distance from the seller before ordering.

The console is built for practices with a room, but not a large one. Independent aesthetic clinics, wellness studios, physiotherapy-led body studios and salons adding a single sculpting room are the natural buyers, along with groups that want sculpting at a satellite site. The same unit can also move between two rooms on a trolley, as long as each room is set up for it.

Glutes and waist are the areas most practices will market first. Applicators strapped over the gluteal muscles or across the abdomen and flanks cover the lower-body and core requests that make up most enquiries, and arms and calves follow if the applicator sizes suit them. Confirm the applicator dimensions before listing smaller areas on a treatment menu.

The right client is already close to their goal weight and wants firmer muscle and a modest change in the fat layer over it. Pre-treatment photographs and tape measurements, repeated at a follow-up visit weeks after the course ends, give both sides an honest record of change. Booking the review appointment at the start of the course keeps that follow-up from slipping.

It is not a weight loss service, and it is unsuitable for clients with implanted electronics, pregnancy or metal near the treatment area. The practice conducts an exposure assessment under the 2016 electromagnetic fields regulations, electrical safety testing, operator training under PUWER, a written screening form, and a procedure that names the emergency stop. The manufacturer issues the conformity documentation required for those inspection and procurement routes, and the seller provides it.

Sculpting without floor space

The console sits on a cabinet top in the product photograph. A practice can add sculpting to an existing treatment room without giving up floor area.

Movable between rooms and sites

Nubway describes the unit as portable. On a suitable trolley, it can serve two rooms on different days, or travel between a main clinic and a satellite site as demand shifts.

Magnetic pulses and radiofrequency together

The published configuration pairs 7 tesla magnetic pulses with 800 W of radiofrequency. Muscle work and tissue warming happen in the same session without a second device.

Up to four applicators published

Nubway's listing states four handles can work at the same time. Where the channels allow it, the operator can prepare glutes and abdomen together and run one timed programme.

Stop control on the front pan.el

A red button sits on the front panel next to a key-type switch. Once its function is confirmed, it gives the operator a visible way to halt treatment.

No consumables listed

The maker lists no consumable parts. Daily care comes down to cleaning the applicators, checking straps and cables, and keeping the air vents clear.

Settings on a 12.4-inch touchscreen

The touchscreen sits at the centre of the console, facing the operator. Programmes, intensity and time remaining are readable from beside the couch.

Dual-voltage input

Input is listed at AC 220 V 50 Hz or 110 V 60 Hz. Groups and distributors working across regions can keep to one model.

7 Tesla intensity

Nubway quotes 7 Tesla as the platform intensity. The figure is a maximum, and the field at the applicator surface is not published.

5000 W rating

The rated power is 5000 W. Given the 10 A input rating, this appears to be a peak figure, so ask for the measured input current.

800 W radiofrequency

Radiofrequency output is listed at 800 W. Temperature limits and cut-off behaviour are not published.

310 µs pulse width

Pulse width is published as 310 µs ±10%. It shapes how each contraction feels to the client.

1 to 150 Hz frequency

Frequency adjusts from 1 to 150 Hz, which lets programmes move between contraction and relaxation phases. Programme names are not published.

Four published handles

The maker lists four handles able to work at the same time. Sizes, shapes and radiofrequency capability per applicator are not stated.

Upright applicator holders

Photography shows applicators parked in upright holders on both sides of the console—cables loop at the front, clear of the work surface.

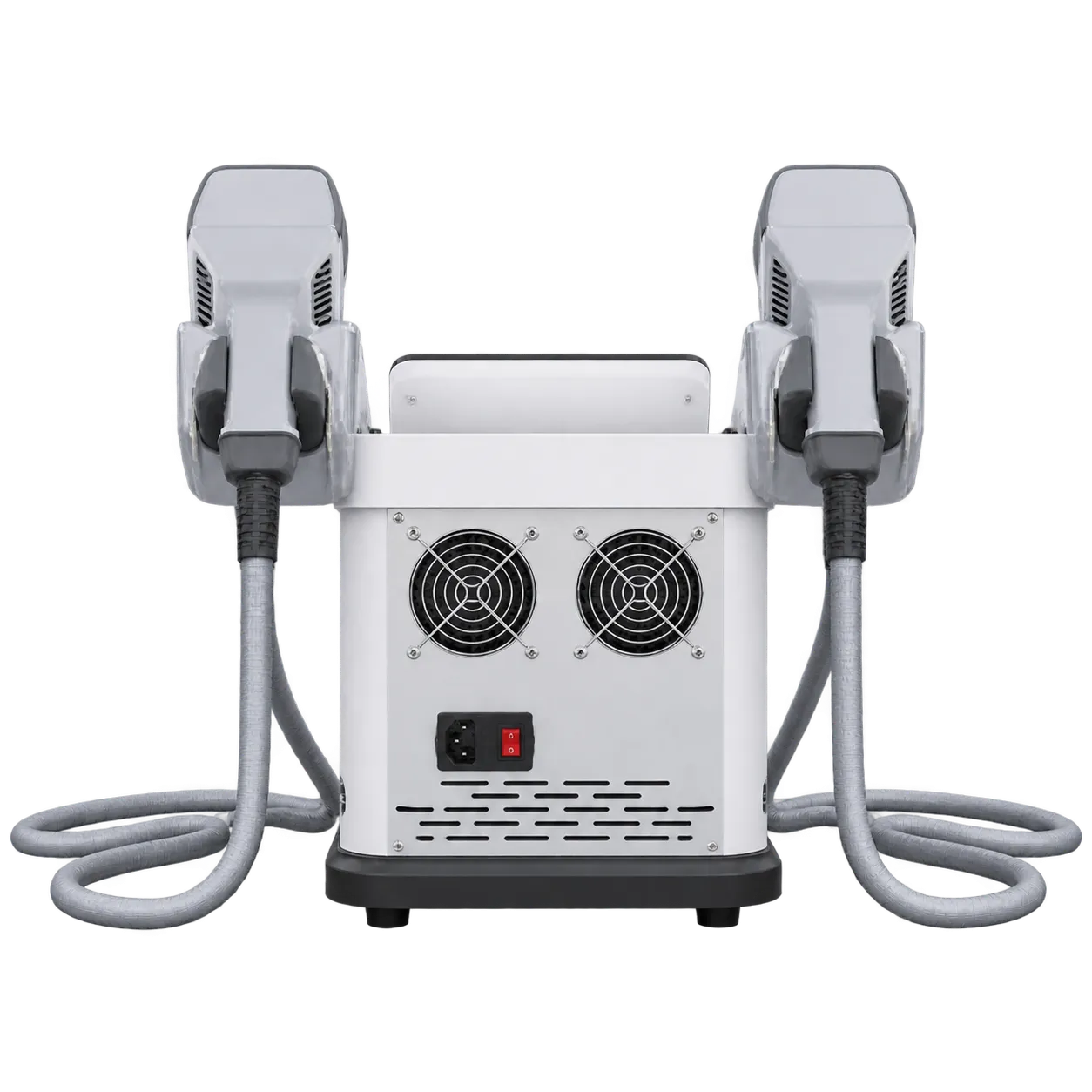

Air cooling

The console is air-cooled. Leave clear space around the vents and allow for warm exhaust air in a small room.

12.4-inch touchscreen

A 12.4-inch touchscreen runs the programmes and timers. Language options are not published.

Key-type switch

A round key-type switch sits on the front panel in the photograph. Confirm whether it locks the unit against unauthorised use.

Front-panel stop button

A red button beside the switch appears to be an emergency stop. Its function is not described, so confirm it before installation.

Dual-voltage power input

Input is listed at AC 220 V ±10%, 10 A, 50 Hz, or 110 V ±10%, 10 A, 60 Hz. Specify the plug type when ordering.

The TCL5P brings electromagnetic sculpting with radiofrequency to a cabinet-top console, opening the treatment to small rooms and satellite sites. Its case is about placement, and placement depends on details the literature leaves out: footprint, weight, measured input current and whether the radiofrequency function is fitted. The evidence for the technique shows modest, gradual change, and none of it comes from this unit. Medigear.uk lists the TCL5P for business buyers worldwide and can arrange delivery, installation, commissioning, familiarisation and service cover. Request measured dimensions and weight, input current, the channel layout, the applicator list, field data at working distance, and the seller's declaration of conformity with the quotation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The TCL5P code appears on Nubway's sculpting category page next to its Portable EMS+RF product, and MedicalExpo lists an RF skin rejuvenation unit under the TCL5P code with the same headline claims. A ten-page TCL5P catalogue exists on MedicalExpo but could not be opened for this page. The figures here therefore come from Nubway's portable product page and the TCL5P listing together. Ask the seller for the TCL5P datasheet and check the rating plate on arrival.

Any treatment room with a sturdy cabinet or trolley, a suitable socket and space for a treatment couch alongside. Air cooling means the vents need clear space, and in a small room the warm exhaust air adds up over a full day, so ventilation deserves a thought. Coils in this class of equipment also make an audible tap with each pulse, which matters in rooms that share a thin wall with a quiet space. Measure the chosen surface against the dimensions the seller provides.

Nubway lists input at 220 V ±10%, 10 A, 50 Hz, or 110 V ±10%, 10 A, 60 Hz, alongside a 5000 W rating. Those two figures do not reconcile as continuous input: 10 A at 220 V is about 2.2 kW. Treat 5000 W as a peak output figure until the seller confirms otherwise, and ask for the measured input current so an electrician can check the circuit. Avoid extension leads for equipment of this kind.

A 2018 magnetic resonance study of electromagnetic abdominal treatment reported an average 18.6% reduction in fat thickness and a 15.4% increase in rectus abdominis thickness two months after treatment, with larger changes in people of normal body mass index. A 2025 review in the Annals of Plastic Surgery judged changes of this kind likely to fall within measurement error. Neither study involved this console. Consultations should promise gradual firming for clients near their target weight, not weight loss.

Nubway's portable page says four handles can work at the same time. It does not say whether each applicator has its own channel and intensity control. Confirm the channel layout, and count the applicators supplied against the four the maker publishes, before advertising multi-area treatments.

Clients with pacemakers, defibrillators, neurostimulators, cochlear implants or other implanted electronics, and anyone pregnant, must be excluded. Metal implants near the treatment area, recent surgery, broken or infected skin, and reduced sensation require exclusion or clinical sign-off, because radiofrequency warmth depends on the client feeling and reporting heat. Keep phones, cards and watches away from the applicators during treatment. Request the manufacturer's full contraindication list at quotation.

It can. The Control of Electromagnetic Fields at Work Regulations 2016 require the employer to assess staff exposure, and in a compact room the operator sits closer to the applicators for longer. Staff who are pregnant or carry an implanted or body-worn medical device need particular attention in that assessment. Field measurements at working distance from the seller let the assessment rest on data. Electrical safety testing and PUWER training duties also apply.

In Great Britain, equipment placed on the market for aesthetic purposes only currently falls outside the UK Medical Devices Regulations 2002, and a medical purpose claimed by the manufacturer would change that. In Northern Ireland and the EU, equipment intended to reduce adipose tissue is covered by Annex XVI of the Medical Device Regulation and classed IIb under Implementing Regulation (EU) 2022/2347. The declaration of conformity shows which route the manufacturer has used.

The available literature shows no CE marking for the TCL5P code. Request the declaration of conformity and the certificate scope, naming this model, from the seller in the quotation.

A red button sits on the front panel in the photograph, next to a round key-type switch. The published material does not describe its function. Confirm whether it cuts output to all applicators at once, write it into the treatment room procedure and show every operator where it is.
