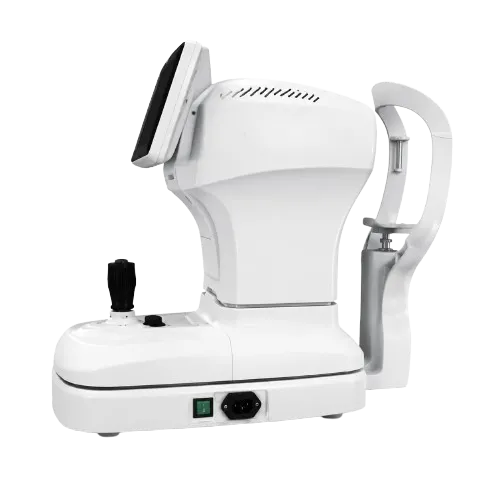

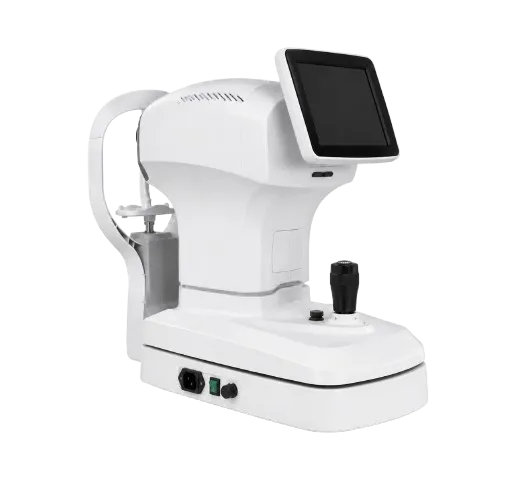

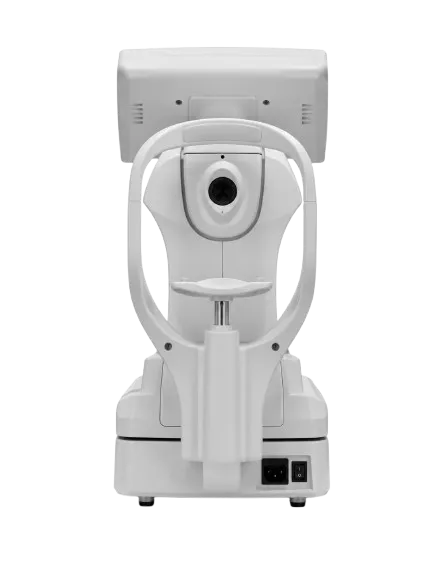

LINK ARK-4000A

General optometry practices use the ARK-4000A as a routine screening instrument for sphere, cylinder, and axis measurement ahead of full refraction, where automatic eye tracking and sub-0.5-second completion times reduce the time and training needed compared with older manual instruments. Equipment reliability is a recurring concern for busy practices with tight booking gaps, and a well-documented, function-tested unit reduces the risk of unplanned downtime disrupting a fully booked clinic schedule that runs back-to-back with appointments all day.

Cataract and post-surgical ophthalmology clinics rely on the ARK-4000A's dedicated IOL Artificial Lens Measurement Mode alongside its standard keratometry function, supporting post-implantation assessment and routine refraction from a single device rather than separate instruments for each task and appointment. This consolidation reduces the equipment footprint and workflow complexity for busy surgical follow-up clinics.

Multi-practitioner clinics and high-end optical chains favour the ARK-4000A's 9-inch capacitive touch screen and wireless Bluetooth and WiFi data transmission, which support integration with existing practice management systems and comfortable screen use across different practitioners on rotating shifts. The screen's ability to freely rotate up and down adds further flexibility for shared consulting rooms with rotating staff.

Distributor and multi-site optical group buyers use the ARK-4000A as a standardised diagnostic instrument to consistently outfit premium locations, since its wide AC 100-240V, 50/60Hz power supply works reliably across different regional power standards without modification or a separate transformer. Medigear.uk supports these buyers with bulk configuration advice, staggered delivery scheduling, and consistent documentation across multi-unit orders.

Dedicated IOL Measurement Mode

The ARK-4000A's IOL Artificial Lens Measurement Mode supports post-implantation intraocular lens assessment alongside standard refraction and keratometry, giving cataract and post-surgical clinics additional clinical utility from a single device that the standard ARK-4000 doesn't offer.

Wireless Data Transmission for Modern Workflows

Support for RS232, Bluetooth, and WiFi data transmission lets practices integrate the device with existing practice management or electronic health record systems, reducing manual data entry and transcription errors.

Automatic Eye Tracking Reduces Operator Effort

Automatic eye tracking in elevation maintains stable focus and reduces manual adjustment even when the eye moves slightly, minimising measurement error and supporting consistent results across different operators.

Larger 9-Inch Capacitive Touch Screen

The 9-inch high-definition liquid crystal capacitive screen, larger than the standard ARK-4000's display, offers a clearer interface for reviewing results and navigating device functions, including the added IOL mode.

Wide Power Supply Simplifies Multi-Region Deployment

Running on AC 100-240V at 50/60Hz means the same unit specification works across a very wide range of regional power standards without a separate transformer, a genuine advantage for distributors supplying multiple markets from a single configuration.

CE-Marked, Procurement-Ready Documentation

Units come with available service history and documentation appropriate for procurement review at the point of purchase. That documentation is usually the deciding factor in how quickly a capital equipment purchase clears sign-off. Medigear.uk can confirm what additional paperwork a specific trust or clinic requires.

Sub-0.5-Second Measurement Completion

The ARK-4000A completes a full measurement in under 0.5 seconds once correctly positioned, supporting faster patient turnaround for busy practices without sacrificing accuracy.

Distributor and Multi-Site Configuration Support

Distributors and optical groups sourcing for multiple locations get consistent unit specification and staggered delivery scheduling through Medigear.uk, simplifying procurement across several sites at once. Bulk pricing and lead-time coordination are handled directly with the Medigear.uk sales team.

Single-Supplier After-Sales Support

Buyers deal directly with Medigear.uk for warranty terms, service queries, and any follow-up support rather than coordinating between separate equipment vendors. That single point of contact simplifies ongoing equipment management for busy practices.

Sphere Range: -20.00D to +20.00D

Spherical measurement across this range, in steps as fine as 0.01D, covers the great majority of adult refractive error encountered in routine screening.

Cylindrical Diopter Range: 0.00D to ±6.00D

Cylinder measurement across this range, in steps as fine as 0.06D, supports precise astigmatism power determination.

Axis Measurement: 0° to 180°, 1° Steps

Full-axis measurement in single-degree increments supports precise astigmatism axis determination.

Cornea Curvature Radius: 6.50–9.50mm

Keratometry measurement at 0.01mm accuracy across this targeted curvature range supports precise corneal assessment.

Cornea Diopter Range: 35.90D to 51.90D

Corneal power measurement based on a corneal equivalent diopter of 1.3375 supports routine and IOL-related keratometry work.

IOL Artificial Lens Measurement Mode

A dedicated measurement mode supports post-implantation intraocular lens assessment, distinguishing this model from the standard ARK-4000.

Measurement Completion Time: Under 0.5 Seconds

Full measurement completion in under 0.5 seconds supports fast patient turnaround without sacrificing measurement accuracy.

9-Inch Capacitive Touch Screen, Adjustable

The larger high-definition capacitive screen offers a clearer interface and can freely rotate up and down for comfortable viewing.

Automatic Eye Tracking in Elevation

The device tracks the patient's eye in elevation during measurement, maintaining stable focus and reducing manual adjustment effort.

Wireless Data Transmission: RS232, Bluetooth, WiFi

Multiple data transmission options support integration with practice management systems without manual data entry.

Electric Lift Chin Rest

The electric chin rest adjusts automatically, supporting consistent patient positioning between examinations without manual effort from staff.

Automatic Paper-Cutting High-Speed Printer

The built-in thermal printer with automatic paper cutting provides fast, immediate result output at the point of examination.

Data Storage: 10 Readings Per Eye

The device stores 10 measurements for each eye, supporting comparison across repeated measurement sessions.

Wide Power Supply: AC 100-240V, 50/60Hz

The unit accepts a wide input voltage range, making it adaptable across most regional power standards without a separate transformer.

The LINK ARK-4000A auto refractometer keratometer gives opticians, hospitals, and distributor networks an upgraded refraction and keratometry instrument with a dedicated IOL Artificial Lens Measurement Mode, suited to routine screening, cataract follow-up, and post-implantation assessment alike, whether that's a busy general optometry practice, a cataract surgery centre, or a multi-site optical group standardising diagnostic equipment across locations. Its Hartmann's Principle imaging, automatic eye tracking, and wireless Bluetooth and WiFi data transmission keep both measurement accuracy and clinic workflow practical for busy teams. At the same time, the larger 9-inch capacitive screen and wide voltage compatibility add day-to-day convenience. Confirm documentation and service history for the specific unit before procurement sign-off. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
