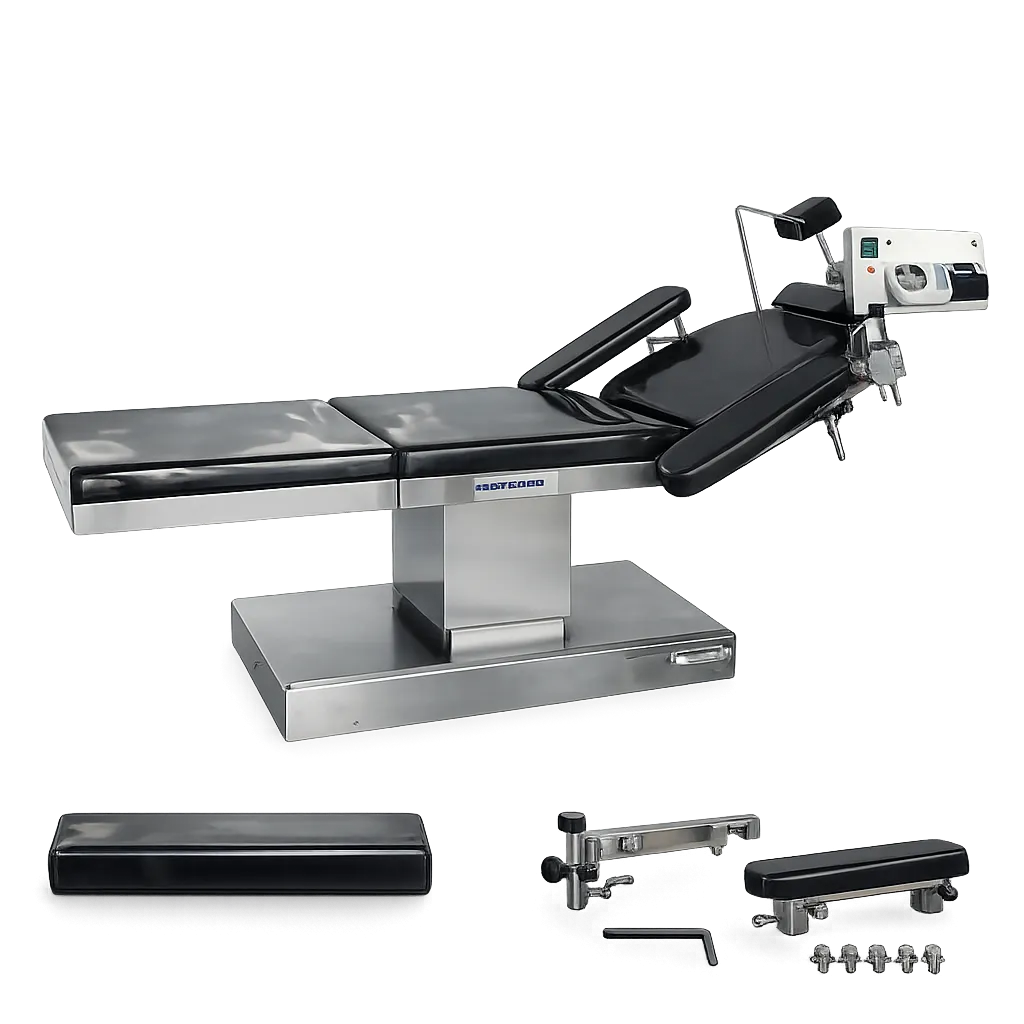

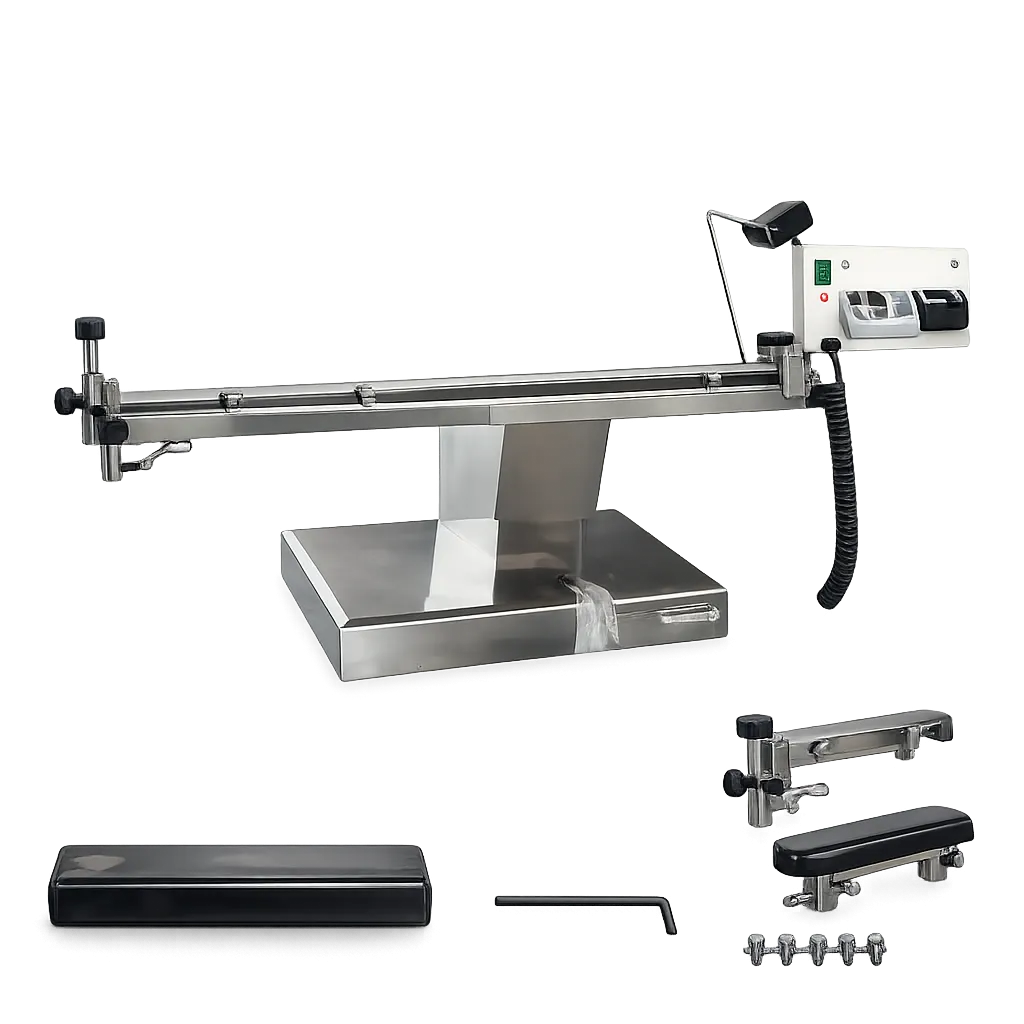

Visionstar HY-002

Powered Back Section

The back adjusts electrically through 0 to 80 degrees, letting a conscious patient be reclined and returned to sitting without physical handling by staff.

Powered Height Range

Electric elevation runs from 620mm to 820mm, described by the manufacturer as an ultra low design suited to seated work beneath a surgical microscope.

Single Handheld Controller

One handheld controller is listed in the standard configuration, bringing both powered movements under one control within reach during a procedure.

Manual Head Plate Adjustment

The head plate lifts by hand through a further 0 to 120mm, so head position can be set immediately once everything else about the setup is settled, without waiting on a powered movement.

Bed Dimensions

The bed measures 2180mm in length by 600mm in width, a narrow platform that keeps the seated surgeon close to the operating field at the patient's head.

Stainless Steel Construction

A 304 stainless steel base carries a stainless steel housing, which the manufacturer relates to a stable structure suited to a working theatre.

Seamless Leather Bedding

Bedding is described as mould formed and seamless in leather, leaving no seam in which fluid or contamination could gather between one case and the next on a list.

Complete Standard Configuration

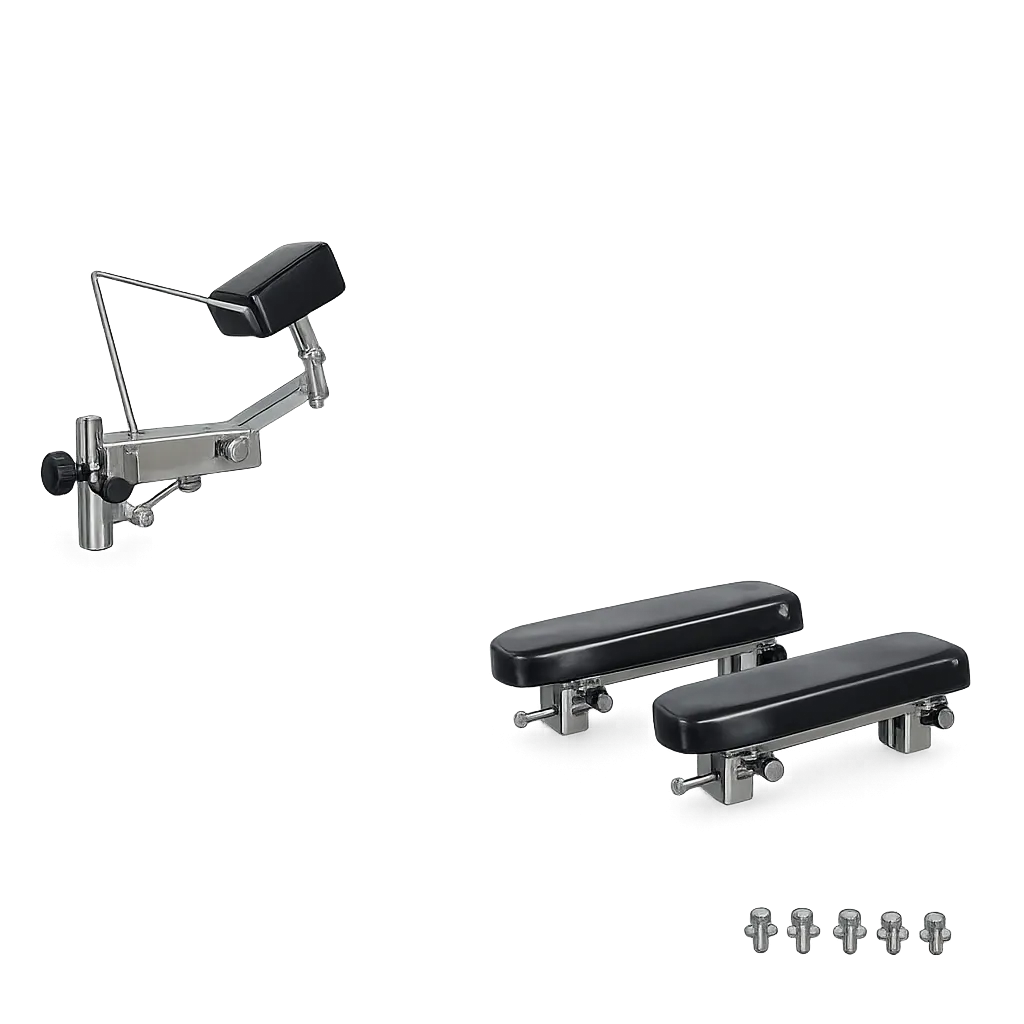

One anaesthetic screen, two surgeon hand support racks, two patient hand supports, one stainless steel base and four concealed castors are all listed as standard.

Surgery Under a Surgical Microscope

Height beginning at 620mm is what allows a seated surgeon to position a microscope correctly with their knees beneath the couch, and the manufacturer states the table is suitable for operation under an ophthalmic microscope. Cataract and anterior segment work depends on that geometry. A couch that will not descend far enough forces a compromise in either microscope position or surgeon posture, and neither compromise survives a full list without cost to accuracy or comfort.

Positioning Conscious Patients

Because the back section is powered through 0 to 80 degrees, a patient can be received sitting, reclined smoothly for the procedure and brought upright again afterwards, all from the handheld controller. Most eye surgery is performed under local anaesthetic on patients who are awake, often elderly and often anxious. Removing the physical business of helping someone lie flat and sit up removes a genuine source of discomfort and of staffing effort.

Examination, Diagnosis and Recovery

Suitability for examination and diagnosis is listed alongside surgery. A reclining back and an adjustable height make the same couch usable for assessment beforehand and for sitting a patient up afterwards while they recover enough to leave. For a unit where one room handles the whole episode, that avoids transferring patients between pieces of furniture at exactly the points where they are least steady.

Turnover and Infection Control

Seamless mould formed bedding and stainless steel surfaces are what determine how quickly a table can be turned round. There is no seam to trap fluid and no fabric to absorb it, so cleaning between cases is a wipe down rather than a process. On a day case list running several patients through a single theatre in a morning, that directly governs how many cases the session can hold.

Two Movements Under One Control

Powering both the height and the back section, and bringing them together on a single handheld controller, means the surgeon or the circulating staff can settle the patient completely without leaving position or calling for help. Each movement is useful alone, but the combination is what lets a patient be received, positioned, operated on and sat back up as one continuous sequence rather than a series of interruptions requiring hands on the patient.

A Configuration That Arrives Complete

Anaesthetic screen, surgeon hand supports, patient hand supports, controller and stainless steel base are listed as standard rather than sold separately. For a unit fitting out a theatre that removes a round of specification decisions and the risk of discovering on the first list that something assumed to be included was not. The accessories were also designed around this table rather than adapted onto it.

Surfaces Built for a Theatre

A 304 stainless steel base, stainless steel housing and seamless mould formed bedding give a table with no fabric to absorb, no seam to trap and no painted finish to chip. In a room cleaned several times daily to a standard set by infection control rather than appearance, material choice is not a detail but the basis on which the furniture is judged over years of service.

The Visionstar HY-002 brings two powered movements to a table shaped for eye surgery. Electric height runs from 620mm to 820mm and the back section adjusts electrically through 0 to 80 degrees, both from one handheld controller, while the head plate lifts manually through a further 0 to 120mm. The bed measures 2180mm by 600mm, a 304 stainless steel base and stainless steel housing carry seamless mould formed leather bedding, and the standard configuration includes an anaesthetic screen, two surgeon hand support racks, two patient hand supports and four concealed castors.

This page states what the technical data states. Electrical supply, mass, safe working load, any lateral tilt or Trendelenburg movement, castor braking, the content of the supplied surgical accessory, configuration and condition do not appear on that material, and nothing here should be read as a claim about testing or regulatory approval. Medigear.uk will confirm each of those points.

If your unit is equipping an eye theatre and wants a patient positioned entirely under power, and you want the specification checked against the lists you actually run, speak to Medigear.uk. As a verified medical equipment supplier working across medical, dental, rehabilitation and aquatic therapy settings, the team will confirm what this table offers and help you judge whether it suits your room.
