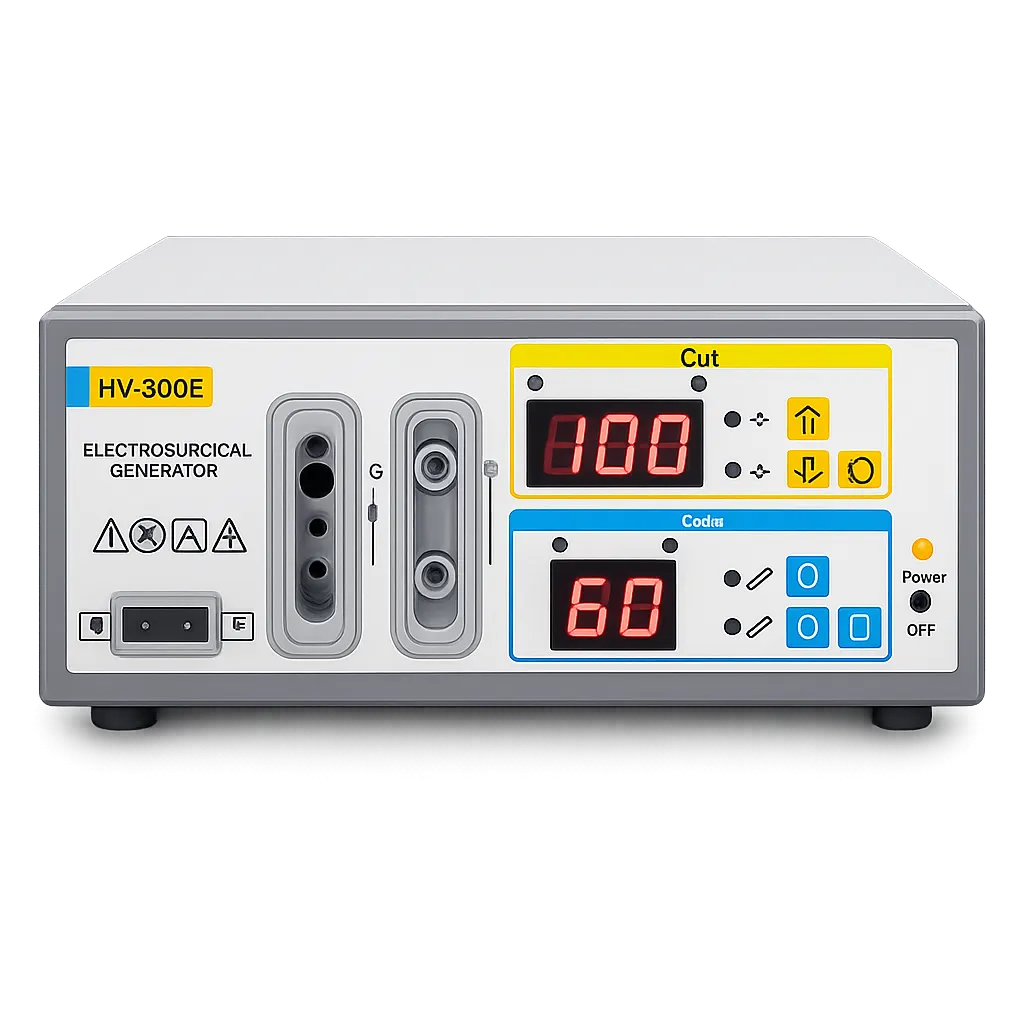

Visionstar HV-300E

Monopolar and Bipolar Function

Both are provided on one console, which the manufacturer relates to meeting a range of surgical demands without a second generator being needed in the room.

Main Frequency of 512 KHz

The main operating frequency is listed at 512 KHz, the figure that characterises how the output behaves in tissue during use, and one a biomedical department will want when comparing consoles.

Monopolar Cutting Modes

Pure cut is listed at 500 ohms rated load, 100W maximum output and 990V peak to peak. Blend cut is listed at 500 ohms, 80W and 1450V.

Coagulation Modes

Monopolar contact coagulation is listed at 300 ohms, 60W and 1550V. Bipolar standard coagulation is listed at 100 ohms, 50W and 580V.

Return Electrode Monitoring

The manufacturer describes a contact quality monitoring system that continually watches patient impedance and deactivates the generator if a contact fault is detected.

Power Readout Tolerance

Readouts are stated to agree with actual power into the rated load within plus or minus 20 per cent or 5W, whichever is greater, with a dosage error monitor that signals a discrepancy to the team.

Interface and Languages

The console is described as having an intuitive set-up for the operating room, with several selectable interface languages available, so the panel can be presented in the language the team actually works in.

Weight and Compatibility

Weight is listed at 6.5kg, and compatibility with a smoke evacuation system is stated, though the particular system named on the card is not reproduced here.

Cutting in Open Surgery

Two monopolar cutting modes are listed, pure cut at 100W into 500 ohms and blend cut at 80W into the same load with a higher peak voltage of 1450V. The distinction between them is the balance of cutting and haemostatic effect, which surgeons select according to tissue and technique. Which mode and which setting suit a given procedure is a surgical judgement, and nothing on a product page should be read as guidance on it.

Haemostasis

Monopolar contact coagulation is listed at 60W into 300 ohms with 1550V peak to peak, and bipolar standard coagulation at 50W into 100 ohms with 580V. Bipolar working confines current between the forceps tips rather than passing it through the patient to a return electrode, which is why both are commonly wanted on the same console for different parts of an operating list.

Specialties Named by the Manufacturer

The card lists application across general surgery, dermatology, vascular surgery, obstetrics and gynaecology, ORL and ENT, minimally invasive surgery, cerebral and neurosurgery, orthopaedics and plastic surgery. That breadth reflects a general purpose generator rather than one built around a single discipline, which suits a unit whose theatre list changes through the week and whose generator therefore cannot be specialised.

Patient Safety Monitoring

Return electrode monitoring runs continuously, watching patient impedance and deactivating the generator when a contact fault appears. Return electrode burns are among the recognised hazards of monopolar electrosurgery, and a monitoring system addresses the mechanism directly. The manufacturer's description of the effect is its own and should be assessed alongside your own governance and safety requirements before any decision is taken.

Specification You Can Actually Compare

Rated load, maximum output power and maximum peak to peak voltage are published for all four modes rather than summarised as a single headline wattage. That is the information a biomedical engineering department needs to compare one generator against another meaningfully, since a wattage figure quoted without the load it was measured into tells a purchaser very little about how the unit will behave in use on real tissue.

Monitoring Built Into the Circuit

A return electrode monitoring system that watches impedance continuously and cuts output on a fault addresses the principal hazard specific to monopolar working. Combined with a stated readout tolerance and a dosage error monitor, the console is designed to tell the team when something is not as expected rather than continuing quietly. For a theatre, equipment that fails noticeably is preferable to equipment that fails silently, because the first is dealt with and the second is not.

One Console for a Mixed List

Monopolar and bipolar function together, across four defined modes and a broad list of stated specialties, means a single generator covers work that would otherwise require choosing between units or moving equipment between rooms. Selectable interface languages and stated smoke evacuation compatibility extend that flexibility to the team using it and to the wider arrangement of equipment around it in theatre.

The Visionstar HV-300E is a general purpose diathermy console specified mode by mode. Monopolar pure cut runs to 100W into 500 ohms at 990V peak to peak, blend cut to 80W at 1450V, monopolar contact coagulation to 60W into 300 ohms at 1550V and bipolar standard coagulation to 50W into 100 ohms at 580V, all at a main frequency of 512 KHz. Return electrode monitoring watches patient impedance continuously, power readouts carry a stated tolerance with a dosage error monitor, and the unit weighs 6.5kg.

Three things are deliberately absent from this page. The mains supply figures, the leakage current measurements and any electrical safety classification printed on the card are not reproduced, because these are tested characteristics that a supplier should confirm rather than a listing assert. The dimension figures carry no unit on the card and are given here as printed. Nothing here should be read as a claim about testing or regulatory approval, and this generator is for appropriately trained surgical teams.
