Zonare Z.one

General abdominal imaging covering liver, biliary, renal and general abdominal assessment runs on a curved array transducer from the cart configuration, with the full monitor and keyboard available for reporting.

Emergency and acute assessment suits the carried configuration, since the engine reaches the patient wherever the patient is and a cold boot of around twenty seconds keeps the delay short.

Anaesthesia and nerve block work uses high-frequency linear transducers, with the engine taken to the block trolley and returned to the cart afterwards.

Cardiac work runs on a phased array transducer with the Doppler mode set, and adult transoesophageal imaging is available where the probe and application are supplied.

Vascular assessment runs on linear transducers with colour, power and spectral Doppler according to the configuration supplied.

Women's healthcare covering obstetric and gynaecological work runs on curved array and endocavity transducers, with breast strain elastography available where that application is licensed.

Services covering more than one location gain most from a convertible platform, since one imaging system serves a scheduled list and a bedside call.

The Imaging System Travels

Beamforming, processing and the applications sit in a Scan Engine weighing five and a half pounds, so the part that produces the image is the part that can be carried.

Converted Without Interrupting the Study

The engine can come off the docking deck mid-examination and scanning continues on it, with imaging held across both configurations.

A Full Console When Docked

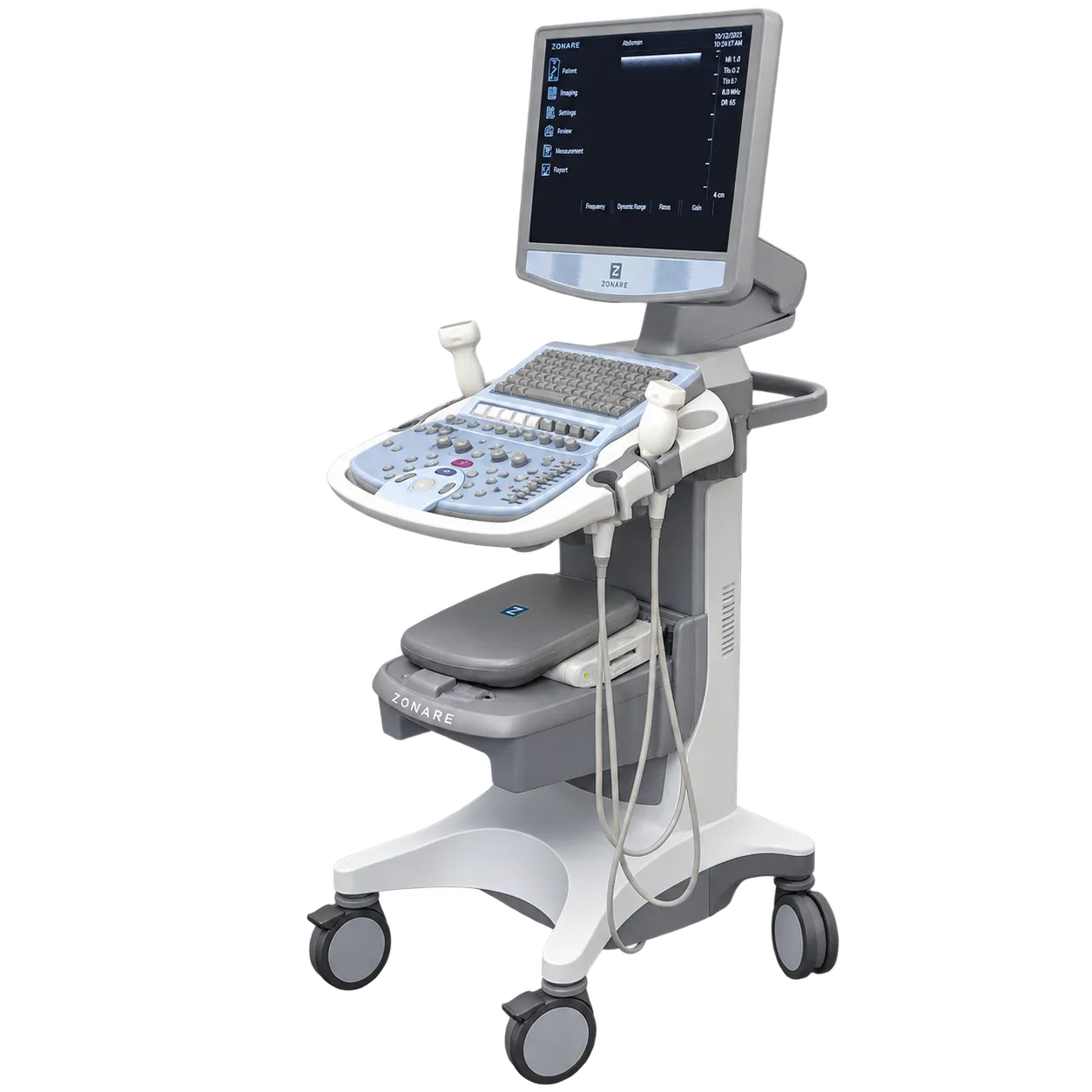

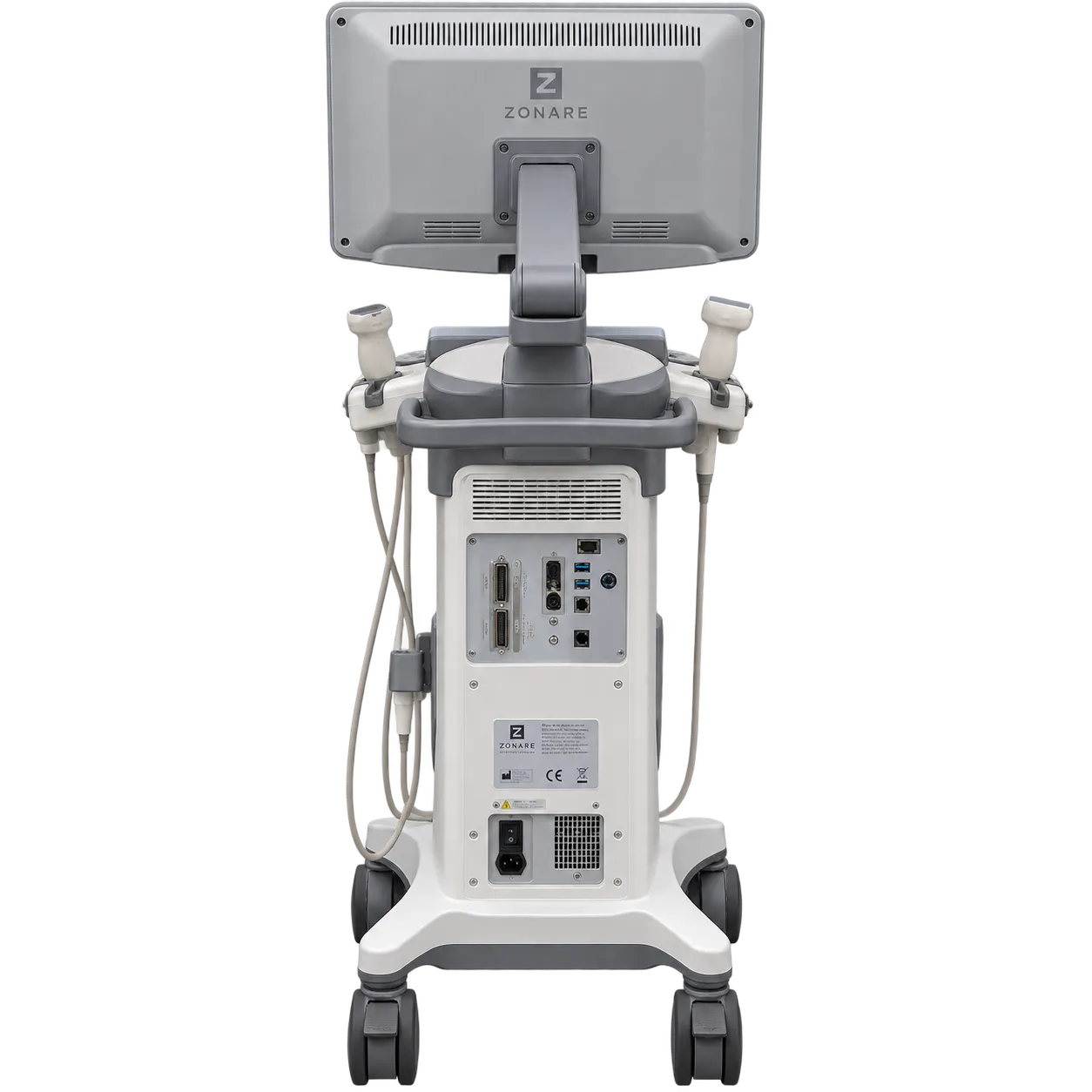

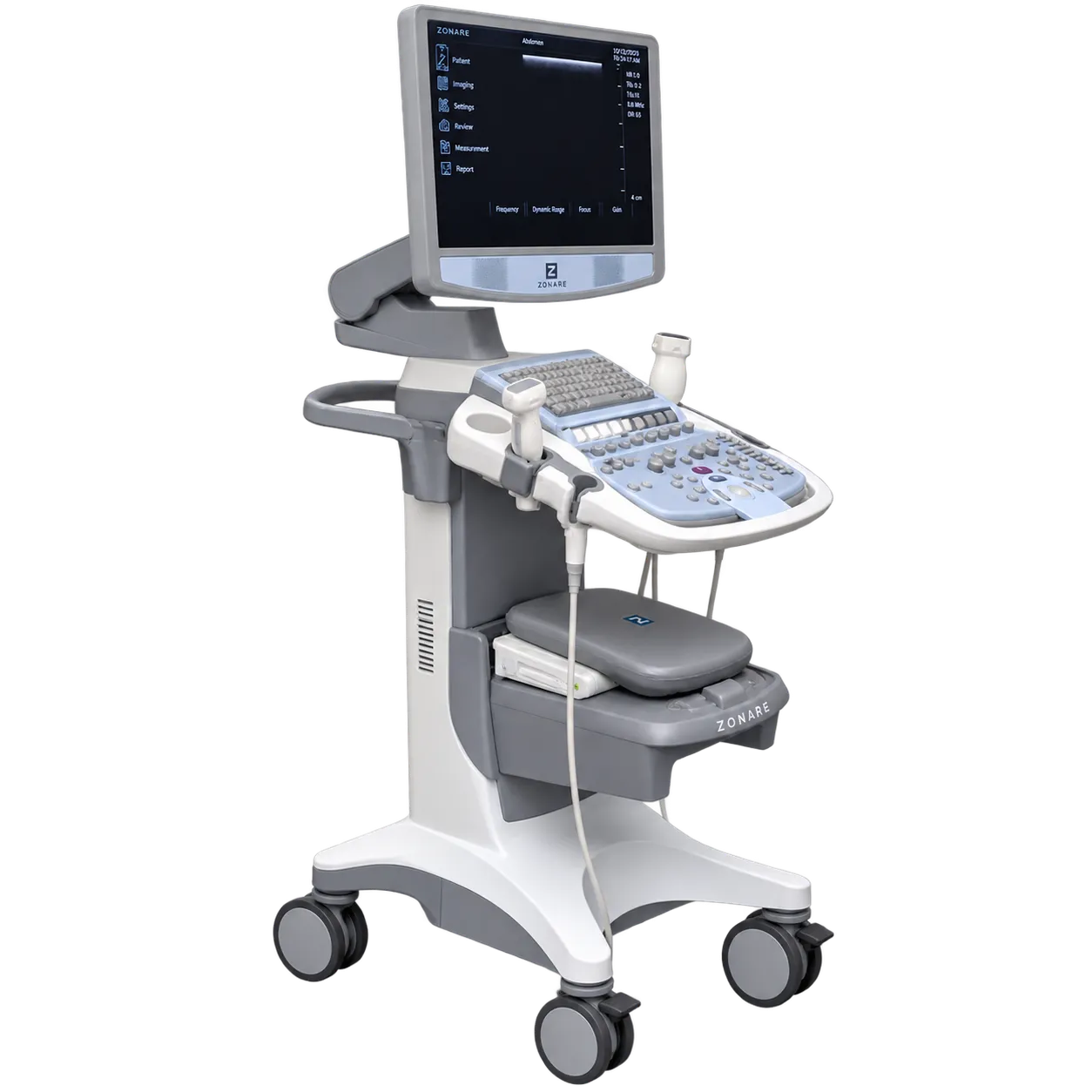

Docked to the SmartCart the engine drives a nineteen-inch high-resolution monitor, a full-size QWERTY keyboard and three connected transducer ports.

Zone Acquisition for Speed

Zone Sonography takes the image in zones rather than line by line, supporting frame rates above 400 frames per second across the acquisition.

Parameters Adjusted After the Fact

Retained channel domain data allows many imaging parameters to be optimised retrospectively, after an acquisition has already been taken.

Performance Delivered Through Software

The software-defined architecture means processing advances reach imaging performance by software on this platform.

Ready in Around Twenty Seconds

A cold boot of roughly twenty seconds suits a system that is switched off while it moves between rooms.

Three Hours Away From Mains

The battery pack supports around three hours of scanning, which extends where and how long the platform can be used.

A Cart That Moves Easily

The SmartCart carries one of the smaller cart footprints, so it transfers between examination rooms without difficulty.

Modest Site Requirements

Heat output for the engine and cart together sits at roughly 625 BTU per hour, which keeps room requirements straightforward.

Engine Count and Configuration Stated Before Order

The number of Scan Engines supplied, the software version and the licensed applications are all set out by the seller at quotation, so what a buyer receives is established in writing.

Convertible Ultrasound Platform

A SmartCart with docking deck paired to a removable Scan Engine, covering general imaging, cardiology, vascular, emergency medicine, anaesthesia and women's healthcare according to the transducers supplied.

Removable Scan Engine

The imaging system in a unit weighing five and a half pounds, holding beamforming, processing and the imaging applications.

Docking Deck Conversion

Conversion between cart-based and carried configurations, available during an ultrasound study.

Zone Sonography Acquisition

Image acquisition taken in zones rather than one line at a time, raising acquisition speed across the study.

Channel Domain Processor Architecture

The processing architecture the platform is built on, holding channel domain data through the imaging path.

Retrospective Optimisation

Imaging parameters adjustable after acquisition, made possible by the retained channel domain data.

Frame Rate Above 400 fps

Maximum frame rate supported by the architecture, according to mode and depth selected.

Useable Dynamic Range Above 150 dB

The dynamic range available across the imaging path.

19-Inch High-Resolution Flat-Panel Monitor

The cart-mounted clinical display used in the docked configuration.

Full-Size QWERTY Keyboard

A full keyboard on the cart for patient data entry and annotation.

Three Transducer Ports

A mixed probe set connected simultaneously on the cart, with selection made at the panel.

20-Second Cold Boot

Start-up time from cold, suited to a system switched off between locations.

Three-Hour Battery Pack

Battery scanning time away from mains power, with pack condition on this unit provided by the seller at quotation.

Transducer Family

Curved array, linear, phased array and endocavity designs across a wide frequency span, with those supplied listed at quotation.

Imaging Modes and Doppler

Two-dimensional imaging with colour, power and spectral Doppler, according to the transducers supplied and the applications licensed.

3D Imaging

Three-dimensional imaging available as a licensed application on this platform.

Breast Strain Elastography

Strain elastography available for breast work where the application and transducer are supplied.

Adult Transoesophageal Imaging

TEE work supported where the probe and application are among those supplied.

DICOM Connectivity

Transfer into a service's records, with connectivity confirmed at quotation against the systems in use.

Software-Defined Architecture

Imaging performance delivered through software on this platform, with the version installed set out by the seller at quotation.

Site Requirements

Heat output of roughly 625 BTU per hour for the engine and cart together, with an ambient range of 0 to 35 degrees Celsius.

Licensed Imaging Applications

Active list set out by the seller at quotation, since applications are licensed individually.

CE Marking and Declaration of Conformity

Issued by the manufacturer and requested from the seller at quotation.

Decontamination Certificate and Warranty Terms

Provided by the seller at quotation, in line with normal practice for used clinical equipment.

The case for the Zonare Z.one rests on where the imaging system lives. Beamforming, processing and the applications sit together in a Scan Engine weighing five and a half pounds, and that engine is the system: docked to the SmartCart it drives a nineteen-inch monitor, a full keyboard and three connected transducer ports, and lifted off the docking deck it is carried to the patient with the study continuing on it, the conversion available mid-examination and the imaging held across both forms. Behind it, Zone Sonography acquires in zones rather than line by line for frame rates above 400 frames per second, retained channel domain data allows imaging parameters to be optimised after an acquisition has been taken, and the software-defined architecture means performance is delivered through software. A twenty-second cold boot and a three-hour battery suit a platform that moves. Interpretation remains with the practitioner throughout. The platform variant, software version, number of Scan Engines, licensed applications and transducers supplied with their test results are set out by the seller at quotation. Medigear.uk lists the system for UK business buyers and can arrange delivery, installation, staff familiarisation, service cover and the supply of spares and consumables. Enquire for a written quotation.
