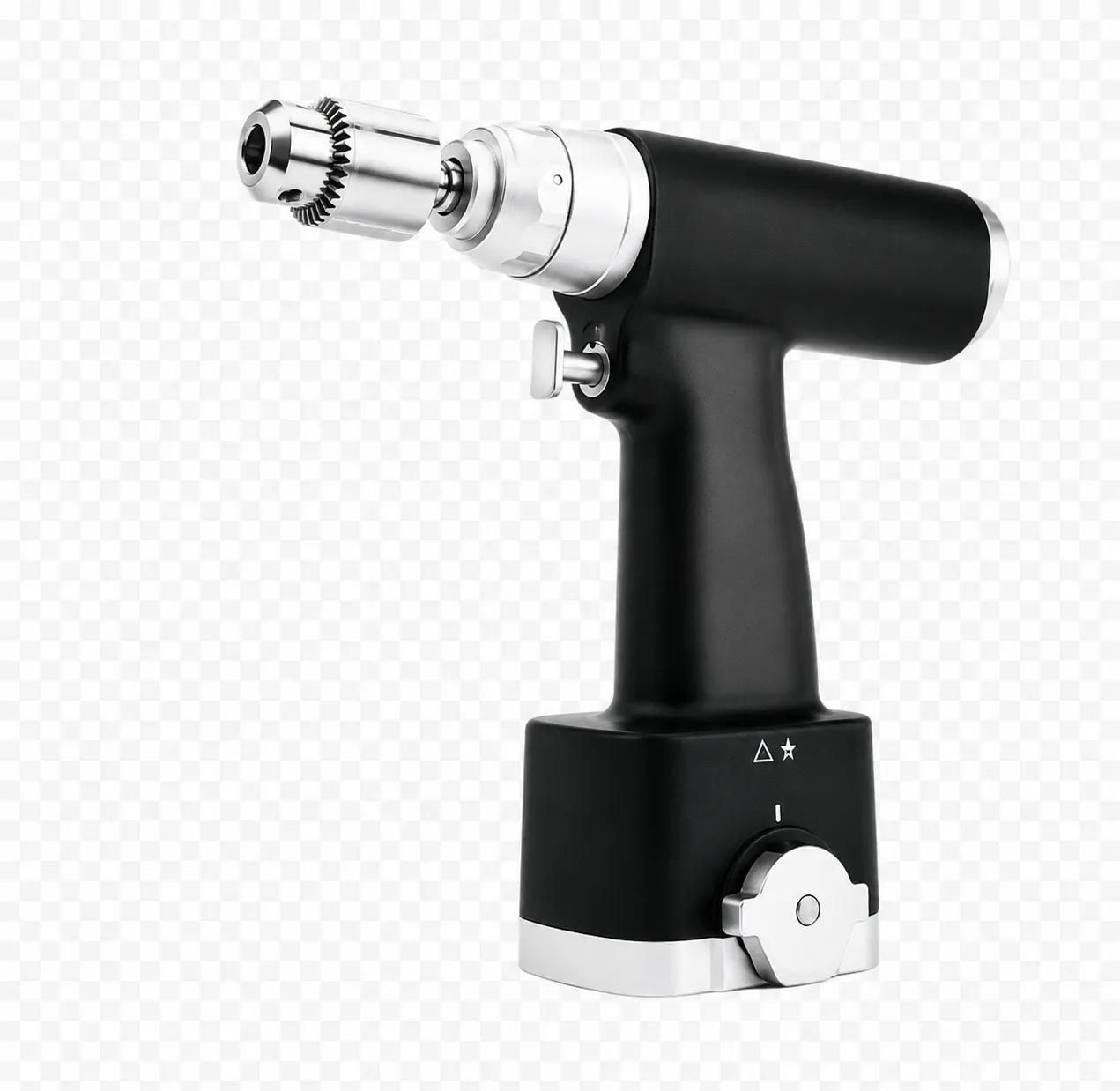

XC N-Series Bone Drill

General orthopaedic trauma theatres performing high-volume fracture fixation and plate and screw surgery require a bone drill that combines drilling accuracy, low noise, and reliable long-term sterilisation performance. The N Series Bone Drill, available through Medigear.uk, delivers stepless variable speed from 0 to 1200 rpm in a high-strength stainless steel handpiece with ≤ 0.05 mm axial run-out, providing the concentric precision required for accurate implant placement across the full range of orthopaedic trauma techniques. CE Certification and ISO 13485-aligned documentation support the approval requirements of hospital procurement teams and NHS buying frameworks.

In elective joint arthroplasty and reconstruction, drill hole accuracy directly determines the seating, rotational stability, and long-term alignment of the implanted prosthetic components. The N Series Bone Drill's ≤ 0.05 mm run-out ensures that guide pin, screw hole, and fixation wire tracks follow the intended axis through the full depth of the drill path, while the stepless variable trigger allows real-time speed modulation as cortical density and bone anatomy change. Medigear.uk can supply the full technical specification for clinical engineering and institutional procurement review.

Trauma teams performing intramedullary nail preparation, external fixator pin placement, and multi-fragment fracture fixation benefit from the N Series Bone Drill's Jacobs chuck range of 0.7 to 6.5 mm, which covers all standard drill bit and guide pin diameters used across these techniques from a single handpiece. The forward-and-reverse direction switch supports bit extraction and wire withdrawal without releasing the grip. The complete set from Medigear.uk arrives ready for immediate commissioning of sterile services.

B2B distributors building orthopaedic trauma power tool catalogues can include the N Series Bone Drill at 0 to 1200 rpm as a standard-speed platform alongside cannulate drills, oscillating saws, and reciprocating saws. Volume pricing, OEM labelling, and CE and ISO documentation packages are available through the Medigear.uk procurement team.

1200 rpm Standard Speed — The Accepted Clinical Ceiling for Safe Orthopaedic Bone Drilling

The N Series Bone Drill's 1200 rpm maximum speed is the established domestic and international clinical standard for battery-powered orthopaedic bone drills, providing the rotational force needed for efficient cortical and cancellous bone penetration while remaining within the thermal safety threshold, where frictional heat generation at the drill site is acceptable under standard technique. This speed ceiling is specified as the standard operating speed in the class documentation for the N Series Bone Drills. It aligns with the approval parameters used in hospital medical device procurement assessments. Medigear.uk can confirm the speed specification and supply supporting technical documentation for institutional review.

≤ 0.05 mm Axial Run-Out — Implant Placement Accuracy Throughout the Bone Channel

The N Series Bone Drill maintains axial concentricity run-out at or below 0.05 mm, ensuring the drill tip remains within 0.05 mm of the intended rotational axis throughout the full operating speed range and operative depth. This precision is required in orthopaedic trauma and arthroplasty, where the accuracy of hole placement in the bone directly determines how well the implanted screw, wire, or nail aligns with the prepared channel and seats within the implant system geometry. The specification is confirmed in the N Series Bone Drill product documentation available through Medigear.uk.

≤ 63 dB Low-Noise Operation — Reduced Theatre Acoustic Burden

The N Series Bone Drill operates at or below 63 dB, within the ambient acoustic range of a standard orthopaedic theatre, and well below the levels that require supplementary hearing protection for theatre teams under standard occupational health guidelines. Low-noise drilling reduces cumulative auditory fatigue during extended trauma lists and supports clearer communication between team members during complex procedures where verbal coordination is important. The noise specification is confirmed in the N Series Bone Drill technical data sheet.

CE Certified and ISO 13485-Aligned — Compliance Ready for Trauma Theatre Procurement.

The N Series Bone Drill is CE-certified and manufactured to ISO 13485, meeting the compliance requirements of NHS trust procurement committees, hospital medical device approval panels, and government framework buying assessors. Medigear.uk has the Declaration of Conformity and technical documentation ready to issue with the product, so procurement teams can complete institutional approval submissions without waiting for compliance paperwork to be sourced separately after the purchase decision. This documentation readiness is particularly valuable for procurement teams working against tight commissioning timelines.

Jacobs Key Chuck: 0.7 to 6.5 mm — Full Standard Orthopaedic Drilling Range

The Jacobs key chuck of the N Series Bone Drill accommodates instruments from 0.7 to 6.5 mm — a range that covers all standard K-wires, guide pins, cortical twist drill bits, and intramedullary nail preparation instruments used across the common orthopaedic trauma plating and fixation techniques. The keyed retention mechanism provides a secure, reliable grip under the high-torque demands of cortical bone drilling. Replacement chuck keys are available through Medigear.uk for ongoing set maintenance.

High-Strength Biomedical Stainless Steel — Autoclavable at 135°C for Long Instrument Life

The N Series Bone Drill handpiece is manufactured from high-strength biomedical stainless steel that maintains structural integrity and corrosion resistance through repeated autoclave sterilisation at 135°C at 1.6 MPa. This material specification is the standard for reusable Class II surgical power tools and supports the instrument's operational lifespan through the daily sterilisation demands of a busy hospital trauma programme.

Stepless Variable Speed — Real-Time Drilling Control Across All Bone Types and Sites

The full 0 to 1200 rpm range is delivered via a proportional, stepless trigger with no stepped transitions, allowing the surgeon to begin at zero speed for bit positioning, advance smoothly to full working speed during cortical drilling, and then reduce speed as the bit approaches the far cortex or a critical anatomical structure. This stepless characteristic is the accepted standard for precision surgical bone drills used in trauma and arthroplasty.

Forward and Reverse Direction Control — Bit Extraction Without Releasing the Grip

The integrated direction switch enables forward and reverse rotation from the handpiece without releasing the grip, supporting drill bit withdrawal from binding bone, K-wire extraction after provisional fixation, and screw backing during implant adjustment. The switch requires deliberate actuation and is positioned for thumb operation from the standard pistol grip.

OEM and Volume Supply — Standard-Speed Bone Drill for Distributor Trauma Catalogues

Medigear. The UK offers the N Series Bone Drill for OEM configuration, volume pricing, and custom set composition, making it a versatile stock product for B2B distributors building standard-speed orthopaedic trauma power tool catalogues. We can provide white-label branding and regulatory documentation in different market formats, depending on order volume. The Medigear.uk business team provides CE and ISO documentation packages for distributor regulatory submissions.

Minimum Speed: 0 rpm — Zero-Start for Accurate Cortical Engagement

The N Series Bone Drill starts from zero rpm, allowing the drill bit to be positioned on the cortical surface before any rotation begins. This zero-start prevents skating at the start of each drill pass and is a fundamental requirement for accurate hole placement in guided orthopaedic technique.

Maximum Speed: 1200 rpm — International Clinical Standard for Orthopaedic Drilling

The 1200 rpm maximum operating speed is the established standard for surgical bone drills in domestic and international orthopaedic practice, providing sufficient cutting efficiency for cortical and cancellous bone without exceeding accepted thermal generation thresholds. This is the class-standard speed for the N Series Bone Drill as supplied by Medigear.uk.

Total Speed Range: 0 to 1200 rpm — Stepless Variable Control

The complete 0 to 1200 rpm range is continuously variable via the trigger, with no stepped transitions. This stepless control allows real-time speed modulation across all bone densities and anatomical sites encountered during the drill path from initial cortical entry to full operative depth.

Axial Concentricity Run-Out: ≤ 0.05 mm — High-Precision Drilling

The ≤ 0.05 mm axial run-out ensures the drill tip remains within 0.05 mm of the intended rotation centre during operation. This precision is required for accurate implant hole placement in joint reconstruction and trauma fixation, and is confirmed in the N Series product documentation from Medigear.uk.

Noise Level: ≤ 63 dB — Below Supplementary Hearing Protection Threshold

The N Series Bone Drill operates at or below 63 dB, a level consistent with the ambient acoustic environment of a standard orthopaedic theatre. Low-noise operation reduces cumulative auditory fatigue among theatre teams during extended trauma-drilling lists.

Temperature Rise: ≤ 25°C — Comfortable Extended-Use Handpiece

The motor and handpiece surface temperature rise during sustained operation is maintained at or below 25°C above ambient, ensuring the handpiece remains comfortable to hold throughout extended drilling sequences. This specification is confirmed in the N Series Bone Drill technical data sheet.

Chuck Type: Jacobs Key Chuck, 0.7 to 6.5 mm

The Jacobs key chuck accommodates instruments ranging from 0.7 to 6.5 mm, covering standard K-wires, guide pins, and drill bits used in trauma plating, intramedullary nail preparation, and the cannulated screw technique. The keyed mechanism provides secure retention under high-torque cortical drilling loads.

Direction Control: Forward and Reverse Switch on Handpiece

An integrated direction switch enables forward and reverse rotation without releasing the grip. Reverse is used for bit extraction, K-wire removal, and screw repositioning. The switch requires deliberate actuation and is positioned for thumb operation.

Battery: 14.4 V NiMH — Non-Autoclavable, Removed Before Sterilisation

The 14.4 V NiMH battery provides power to the unit and must be removed before handpiece sterilisation. Replacement batteries are available through Medigear.uk as spare parts for ongoing set maintenance.

Handpiece Material: High-Strength Biomedical Stainless Steel — Autoclavable at 135°C

The handpiece is manufactured from high-strength biomedical stainless steel and is autoclavable at up to 135°C and 1.6 MPa once the battery is removed. This material is the accepted standard for reusable Class II surgical power tools.

Sterilisation: Handpiece Autoclavable at 135°C at 1.6 MPa

The handpiece is autoclavable at 135°C at 1.6 MPa once the battery is removed. The sterilising channel in the standard set supports internal bore sterilisation. The validated protocol is documented in the user manual and available from Medigear.uk for sterile services departments.

Set Contents: Handpiece, Battery, Charger, Jacobs Chuck with Key, Sterilising Channel, Aluminium Case

The complete N Series Bone Drill set is supplied in an aluminium alloy case containing all components required for immediate clinical deployment. Replacement items, including batteries, sterilising channels, and chuck keys, are available from Medigear.uk for ongoing maintenance.

The N Series Bone Drill is a CE Certified, autoclavable orthopaedic power tool delivering precise variable speed from 0 to 1200 rpm for trauma fixation, joint arthroplasty, intramedullary nail preparation, and plate and screw procedures. Its ≤ 0.05 mm run-out, 0.7 to 6.5 mm Jacobs chuck, forward- and reverse-direction control, and low-noise operation make it a practical and reliable choice for hospital trauma theatre procurement, B2B distributor catalogues, and institutional surgical instrument programmes. ISO 13485-aligned compliance documentation and full CE conformity paperwork are available through the Medigear.uk procurement team to support institutional approval. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
