Visionstar ML- 400

No plug, no console, no update. Just glass, brass and technique.

The instrument refraction is taught on. The ML-400 covers +16.75 to -19.00D sphere and cylinder to -8.00D at 0.25D, with anti-reflection coated optics, Manus cross cylinders, fingertip sphere control and a complete auxiliary dial — in 4.38 kg with nothing to power.

Sections
Phoropters
Categories
ENT, Ophthalmic & Sensory
Condition
New
Origin
China
Seller Type
Certified Professional Seller
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

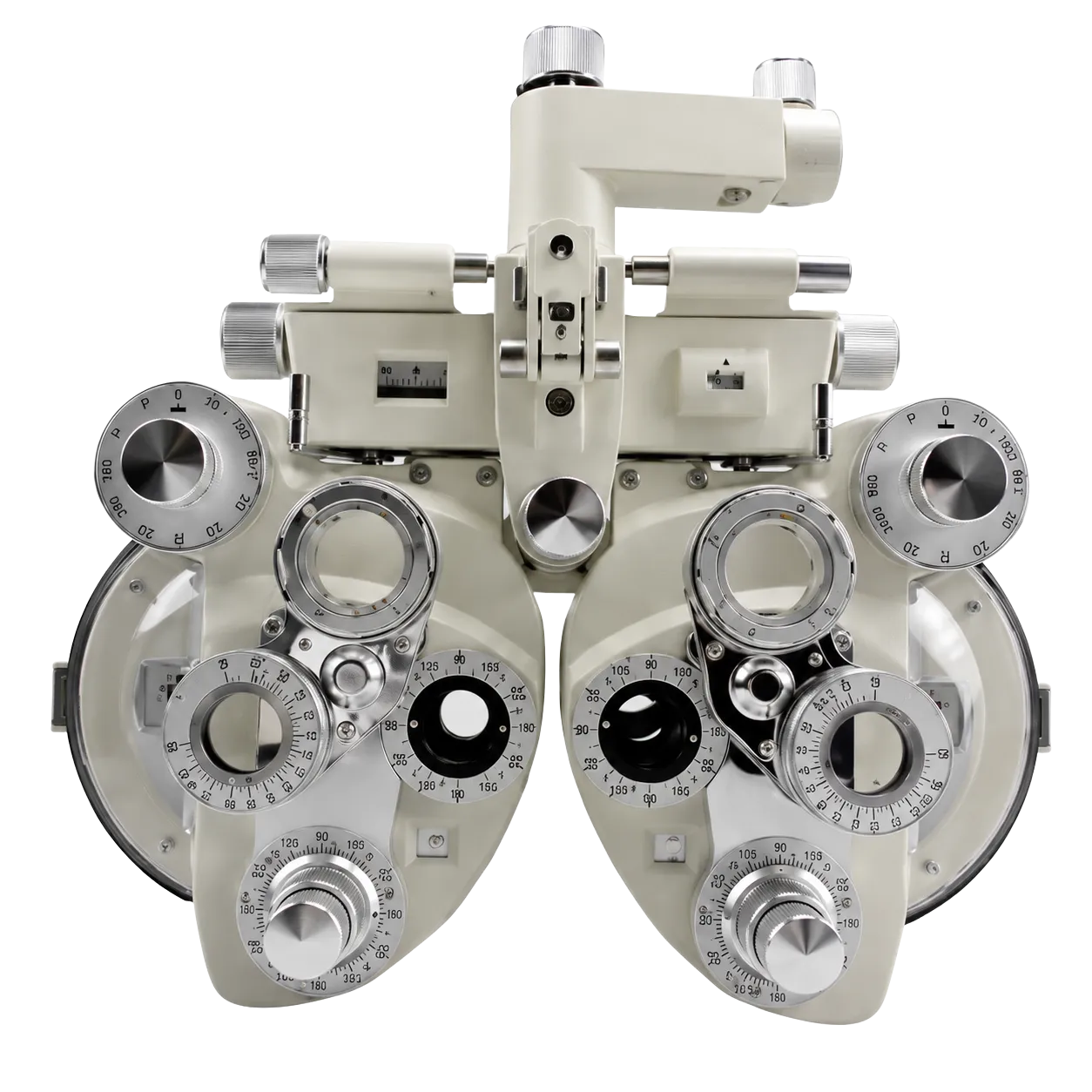

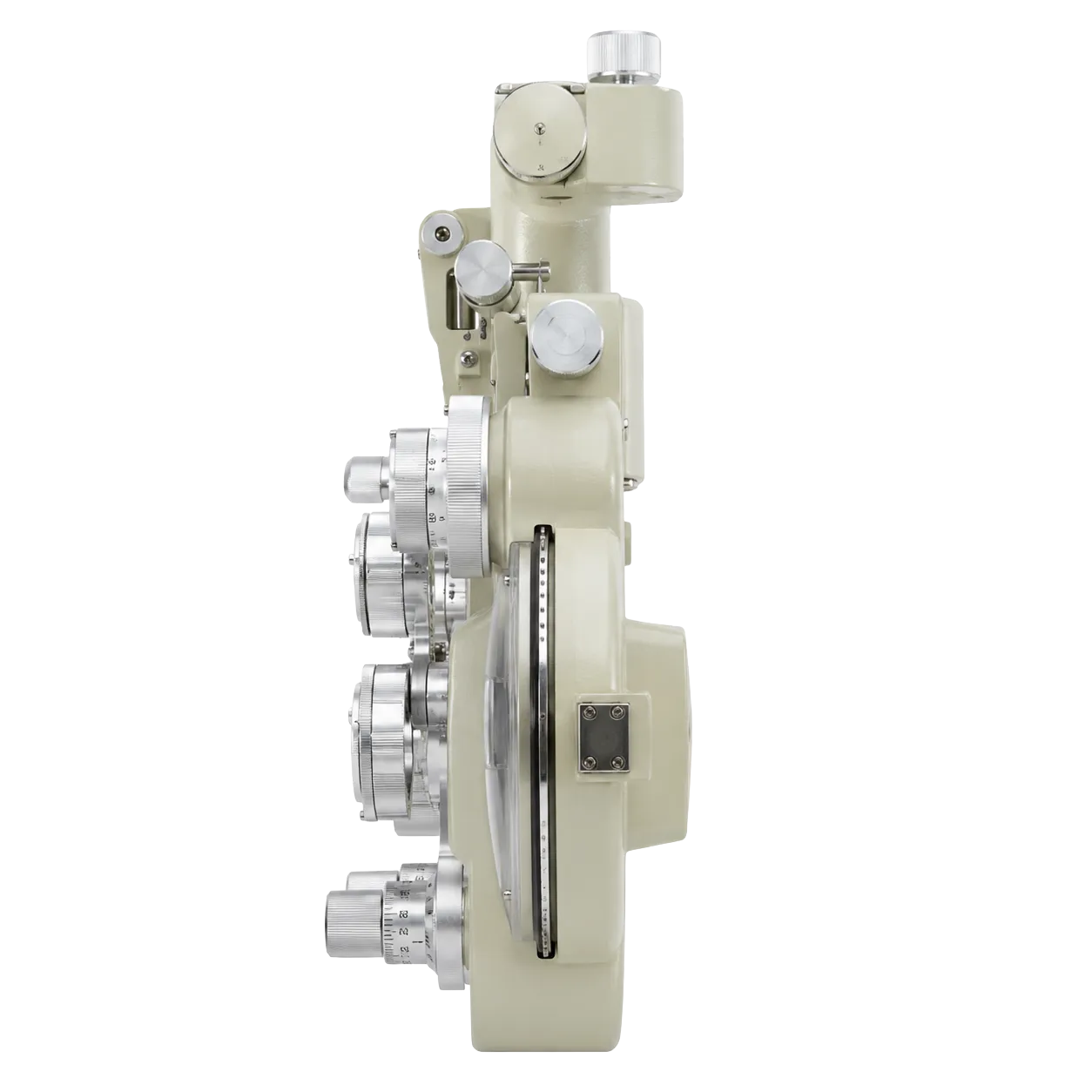

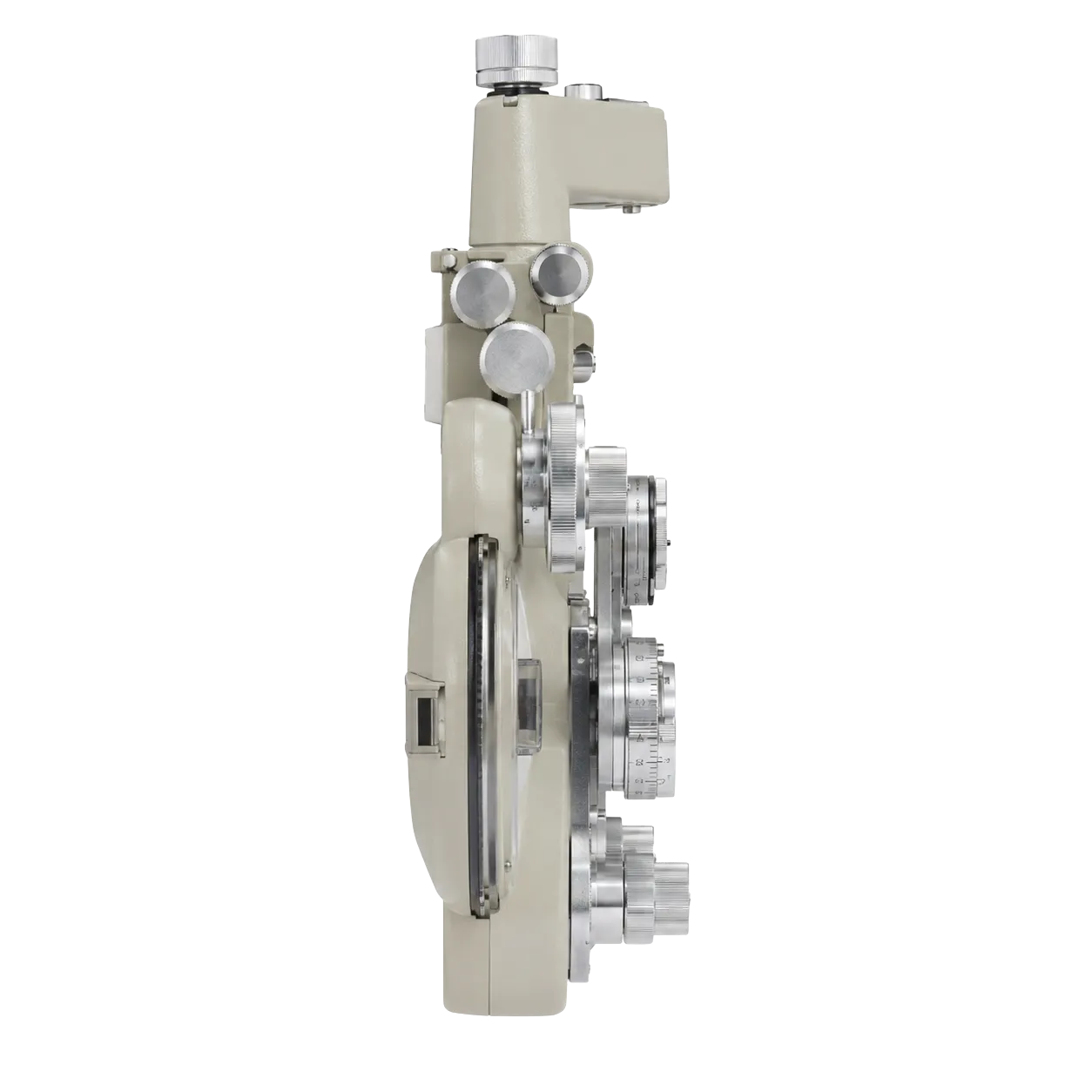

The Visionstar ML-400 is a manual phoropter — a precision mechanical refractor head with no electronics, no display and no power requirement of any kind. The clinician dials sphere, cylinder and axis by hand and selects auxiliary lenses from a rotating dial. This is the instrument on which subjective refraction has been taught and practised for a century, and the reasons for buying one today are specific and defensible rather than nostalgic.

Spherical power covers +16.75D to -19.00D in 0.25D steps. Cylinder covers 0.00 to -6.00D as standard, extending to -8.00D with the supplied additional -2.00D lens, also in 0.25D increments. Cylinder axis reads 0–180° in 5° steps. The cross cylinder is ±0.25D, and the manufacturer specifies Manus cross cylinder lenses throughout. Rotary prisms cover 0 to 20 in single steps, and pupillary distance adjusts across 48–75 mm in 1 mm increments.

The auxiliary lens dial is comprehensive: open aperture in two positions, retinoscopic lens at +1.50D, polarising lens at 45° left and 135° right, Maddox rods vertical and horizontal in white left and red right, red lens, +0.12D sphere, pinhole, dissociating prisms of 10Δ base in left and 6Δ base up right, a ±0.50D fixed cross cylinder, and an occluder. That complement covers routine subjective refraction, duochrome, binocular balance, phoria measurement by both von Graefe and Maddox techniques, and near addition determination without reaching for a separate trial set.

All lenses carry anti-reflection coating, which matters more on a manual head than the specification suggests — stray internal reflection is most disruptive at exactly the low-contrast endpoint where fine judgements are made. The instrument adds a levelling mechanism, fingertip sphere power control and a convergence system for near testing, and the manufacturer states machining to fine tolerances. Dimensions are 400 × 350 × 160 mm at 4.38 kg net. Note that Visionstar publishes this technical data across its manual phoropter series, so the exact finish and variant supplied should be confirmed at order. Medigear.uk supplies the ML-400 with pre-despatch functional inspection and documentation review.

Optometric education is the clearest application. Pre-registration optometrists, ABDO dispensing optician students and optical assistants working towards competence in refraction learn on manual instruments, because dialling sphere, cylinder and axis by hand builds an understanding of the optics that operating a console does not. University and college departments equipping teaching lanes, and practices hosting pre-registration placements, get substantially more educational value per pound from a manual head than from an automated one — and can equip several teaching stations for the price of one automated lane.

School and community screening is the manufacturer's stated second application, and the reasoning is sound for fixed screening rooms. An instrument needing no power, no charging and no network is straightforward to site and cannot be defeated by a flat battery or an absent socket. The practical qualification is that it still requires an arm or stand and an upright seated patient, so it suits a dedicated screening room rather than a genuinely mobile service.

High-street spectacle shops and hospital ophthalmology departments use manual heads both as primary instruments in secondary consulting rooms and as redundancy against automated instrument downtime. When an automated head goes away for service, a practice with a manual instrument continues refracting; a practice without one cancels appointments. At this capital cost, that insurance is inexpensive.

General community optometry uses the full auxiliary complement routinely — duochrome and binocular balance via the red-green and red lenses, phoria measurement by von Graefe using the dissociating prisms and by Maddox rod in both meridians, pinhole to separate refractive from pathological acuity loss, and the ±0.50D fixed cross cylinder for near addition. Practices should note that the 5° axis step limits precision on high cylinders, where trial frame confirmation remains advisable, and that patients unable to sit upright at the instrument need trial frame refraction regardless.

Nothing to power, charge, update or replace

There is no display, no firmware, no battery and no mains requirement. The instrument cannot be stopped by an electronic fault, orphaned by a discontinued software platform or delayed by a flat console. Its working life is set entirely by its optics and its mechanism.

The technique teaches the optics

Dialling lenses by hand builds an understanding of what each change does that no console sequence conveys. For any practice or department training optometrists, dispensing opticians or optical assistants, that is the whole argument, and it is a strong one.

Several teaching stations for the price of one

The capital difference against an automated head is substantial, which changes what a training department can equip. A college or university lane budget stretches considerably further, and a practice can afford a dedicated teaching instrument rather than sharing the clinical one.

Inexpensive insurance against downtime

When an automated head goes for service, a practice holding a manual instrument keeps refracting and a practice without one cancels appointments. At this capital cost the redundancy pays for itself the first time it is needed.

Anti-reflection coating where it counts

Stray internal reflection is most damaging at the low-contrast endpoint, which is exactly where the patient is deciding between two near-identical presentations. Coated optics throughout the lens stack make that judgement cleaner and more confident.

Complete auxiliary complement

Retinoscopic lens, polarising filters, Maddox rods in both meridians, red lens, +0.12D sphere, pinhole, dissociating prisms, fixed cross cylinder and occluder are all on the dial, so binocular vision assessment runs without reaching for a separate trial lens set.

Fingertip sphere control

Sphere power adjusts under fingertip pressure rather than requiring a firm grip and a deliberate turn, which matters across a full list where the same movement is repeated hundreds of times.

Cylinder to -8.00D with the supplied lens

Standard cylinder range extends from -6.00D to -8.00D using the included -2.00D auxiliary lens, bringing higher astigmatic prescriptions within reach without a second instrument.

A complete working set in the box

Near-point card with holder and reading rod, dust cover, face shield, accessory lens case and auxiliary cylinder and plano lenses all ship with the instrument. Beyond a mounting arm, there is nothing further to specify.

Manual mechanical operation

Sphere, cylinder, axis, prism and auxiliary lens selection are all controlled by hand, with no electronic actuation, display or power supply of any kind.

Sphere power +16.75D to -19.00D

Spherical power spans 35.75 dioptres in 0.25D steps, covering the overwhelming majority of prescriptions met in general community optometry.

Cylinder power to -8.00D

Cylinder covers 0.00 to -6.00D as standard and extends to -8.00D with the supplied additional -2.00D lens, in 0.25D increments throughout.

Cylinder axis 0–180° in 5° steps

Axis adjusts across the full semicircle in five-degree increments, adequate for the majority of prescriptions with trial frame confirmation advisable on high cylinders.

Cross cylinder ±0.25D

A ±0.25D cross cylinder handles cylinder power and axis refinement, with the manufacturer specifying Manus cross cylinder lenses throughout the instrument.

Rotary prisms 0–20

Rotary prisms cover 0 to 20 in single steps for phoria measurement, vergence assessment and prism prescribing.

Anti-reflection coated optics

Every lens in the instrument carries anti-reflection coating to reduce stray internal reflection and preserve contrast at the refraction endpoint.

Comprehensive auxiliary lens dial

Open aperture in two positions, +1.50D retinoscopic lens, polarising lens at 45° left and 135° right, vertical and horizontal Maddox rods in white left and red right, red lens, +0.12D sphere, pinhole, 10Δ base in left and 6Δ base up right dissociating prisms, ±0.50D fixed cross cylinder and occluder.

Pupillary distance 48–75 mm

Pupillary distance adjusts across 48 mm to 75 mm in 1 mm increments, covering the range of adult and older paediatric interpupillary measurements.

Fingertip sphere power control

Sphere adjustment responds to light fingertip pressure, reducing the physical effort of a movement repeated hundreds of times across a clinic list.

Levelling mechanism

A levelling mechanism sets the instrument square to the patient, which is the foundation of accurate binocular presentation and consistent axis measurement.

Convergence system for near testing

A dedicated convergence mechanism angles the apertures for near-point testing, presenting the near target correctly to both eyes.

Supplied auxiliary cylinder lenses

Two -0.12D and -2.00D cylinder lenses ship with the instrument, extending cylinder range and providing a fine intermediate step.

Plano sealing lenses

Two plano lenses seal the front openings when the instrument is not in use, protecting the internal lens stack from dust ingress.

Near-point card, holder and reading rod

A complete near-point assembly is supplied for near acuity and near addition work, mounting directly to the instrument.

Face shield and dust cover

A face shield protects the patient contact area and a dust cover protects the coated optics during idle periods, which is the principal preservation measure for a manual head.

400 × 350 × 160 mm at 4.38 kg

The instrument measures 400 × 350 × 160 mm with a net weight of 4.38 kg, comparable to automated heads while requiring no console, power box or cabling alongside it.

The Visionstar ML-400 is a precision manual phoropter for UK practices and teaching departments that want refraction capability without electronics. Sphere from +16.75D to -19.00D, cylinder to -8.00D with the supplied auxiliary lens, a ±0.25D cross cylinder, rotary prisms to 20, anti-reflection coated optics throughout and a comprehensive auxiliary lens dial cover routine subjective refraction, duochrome, binocular balance, phoria measurement and near addition — with nothing to power, charge, update or have discontinued. It suits optometric training departments and practices hosting placements, school and fixed-site screening services, spectacle shops and hospital ophthalmology departments, and any practice wanting inexpensive redundancy against automated instrument downtime. The 5° axis step limits precision on high cylinders, and patients unable to sit upright at the instrument need trial frame refraction. Medigear.uk supplies the ML-400 into the UK with pre-despatch functional inspection, documentation review and ongoing support. Contact the Medigear.uk team for current pricing, quantity quotations for teaching lanes, refraction arm compatibility, or bespoke configuration enquiries.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

Four reasons that hold up. Training, because manual refraction is what competence is taught and assessed on and the technique teaches the optics rather than a button sequence. Cost, because the capital difference against an automated head is substantial. Reliability, because there is nothing electronic to fail and no software to be discontinued. And redundancy, because when an automated head goes for service, refraction does not stop.

No. The optics are the same and the endpoint depends on patient response either way. Automation changes the speed and the physical labour of lens changes, not the accuracy of the result. What an automated head genuinely offers is throughput, a printed record and integration with other instruments; what it does not offer is a better refraction.

It is arguably the best use for it. Pre-registration optometrists and dispensing optician students learn refraction on manual instruments because dialling the lenses builds an understanding of what is happening optically. A practice hosting placements, or a university or college department, gets more educational value from a manual head than from an automated one, at a fraction of the cost per teaching station.

Sphere runs +16.75D to -19.00D in 0.25D steps. Cylinder covers 0.00 to -6.00D as standard and extends to -8.00D using the supplied -2.00D auxiliary lens. That covers the overwhelming majority of prescriptions in general community optometry. Very high powers and high astigmatism beyond those limits require trial frame and loose lens refraction.

Cylinder axis adjusts in 5° increments rather than the 1° available on many instruments. For most prescriptions this is adequate, since dispensing tolerances on axis are wider at low cylinder powers. For high cylinders, where axis precision matters more, the 5° step is a genuine limitation and refinement to a finer axis needs trial frame confirmation. Buyers should weigh this against the cost advantage honestly.

Because stray internal reflection reduces contrast, and the moments that matter in subjective refraction are exactly the low-contrast endpoint judgements where the patient is deciding whether one presentation is genuinely better than another. Coated optics throughout a phoropter's lens stack make a measurable difference to how confidently that call gets made.

Manus is the manufacturer's specified cross cylinder lens type for this instrument. The literature supplied does not define the term further. If cross cylinder lens construction or provenance matters to your purchasing decision, ask for a written description at enquiry — Medigear.uk will obtain it rather than paraphrase a term we cannot substantiate.

A near-point card with holder and reading rod, a dust cover, a face shield, an accessory case for lenses, two -0.12D and -2.00D cylinder lenses, and two plano lenses for sealing the front openings. That is a complete working set; the only additional purchase most practices need is the mounting arm or stand.

The head mounts to a refraction unit arm or a dedicated phoropter stand — it is not free-standing. Mounting interfaces vary between manufacturers, so the arm or unit it will hang from must be confirmed before order. Practices without an existing refraction unit will need a stand or combined chair-and-stand specified alongside; Medigear.uk can quote for that at the same time.

The manufacturer positions it for spectacle shops, hospital ophthalmology departments and schools, and the reasoning holds: it needs no power, nothing to charge and no network. Practical caveat — it still mounts to an arm or stand and needs an upright seated patient, so it suits a fixed screening room rather than a mobile setup. Young children and patients unable to hold position need trial frame refraction regardless of instrument.

A phoropter is a non-invasive ophthalmic measuring instrument, most consistently classified as Class I under the UK Medical Devices Regulations 2002, or higher where configuration dictates. Manufacturer CE marking is noted where it appears in the product literature; Medigear.uk confirms CE marking, the declaration of conformity and current UKCA status against the shipping batch at quotation rather than asserting it in advance.

Very little, which is much of the point. Keep the lens apertures and coated surfaces clean with appropriate lens tissue, clean the face shield between patients with manufacturer-approved agents, and use the dust cover when the instrument is idle — dust on coated optics is the main enemy here. The mechanical detents and dials benefit from periodic inspection but there is no software, no battery and no calibration subscription. Typical warranty is 12 to 24 months against manufacturing defect, confirmed at quotation.
