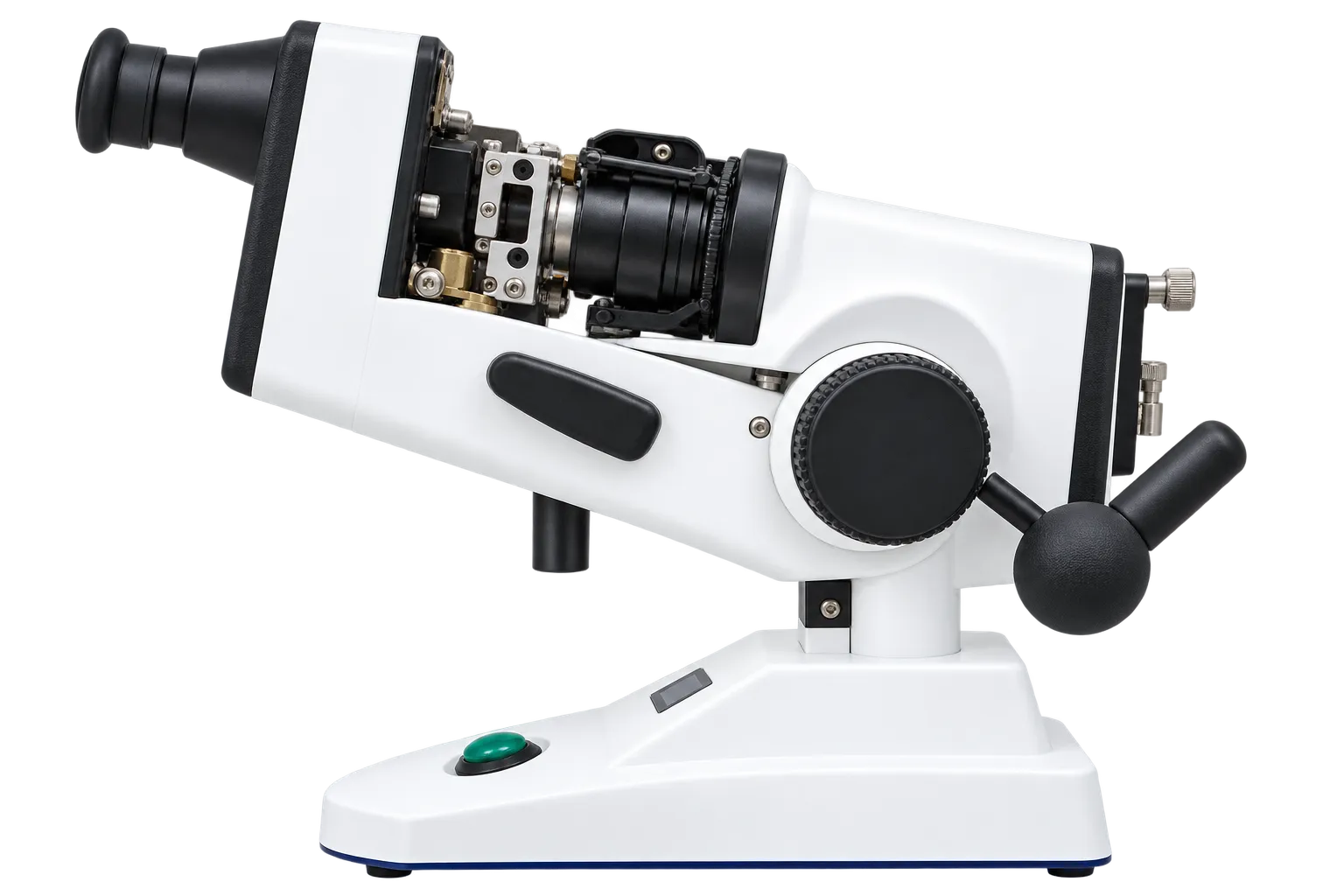

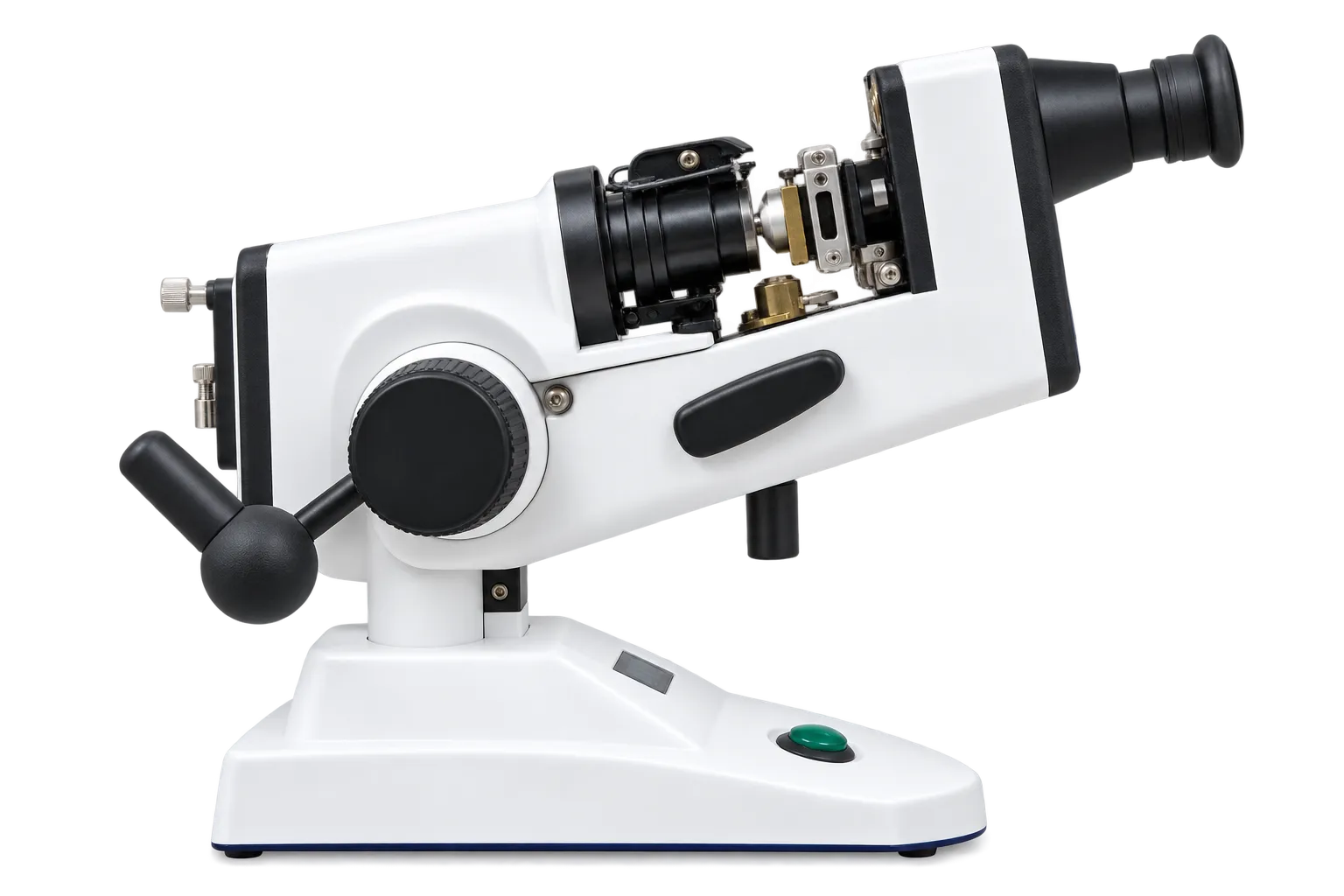

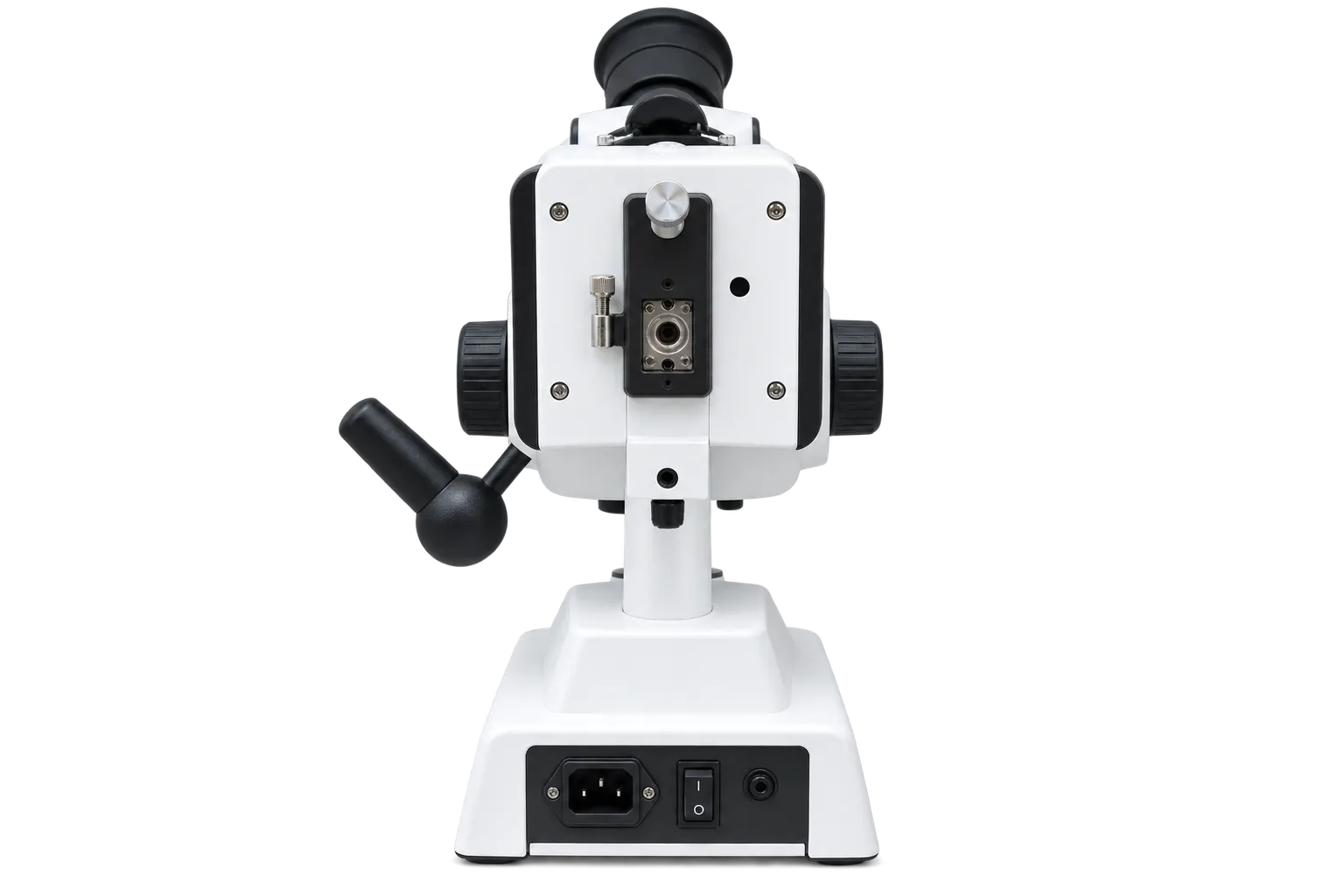

Visionstar GJD-7

In UK community optometry the focimeter closes the loop between prescribing and dispensing, and every finished pair should be verified against the order before it reaches the patient. The GJD-7 covers that check across the full ±25D span. General Optical Council registrants — optometrists and dispensing opticians alike — depend on documented verification as evidence of the standard of care they provide, and the consequences of releasing an incorrectly powered pair are serious, particularly in paediatric dispensing where the patient may not be able to report the error.

The glazing bench and in-house edging setup are where this specification fits most naturally. The marking mechanism stamps optical centre, cylinder axis and prism base ready for edging and finished-mount confirmation, and a purely mechanical instrument tolerates the dust and vibration of a workshop far better than an electronic one. The narrow 120 mm depth also leaves worktop free for the rest of a glazing operation, which matters in the compact back rooms typical of UK high-street premises.

Within NHS General Ophthalmic Services, practices dispensing against voucher entitlement carry the same verification obligation as private work, and this instrument adds nothing to the cost per check. Hospital eye service dispensing departments use manual focimetry alongside automated instruments for tinted, polarised and high-prism lenses that defeat automatic detection, and for aphakic and low vision prescriptions where lens geometry is unusual — the 20Δ compensation device earns its place there.

Training is the third major application. Pre-registration optometrists, ABDO dispensing optician students and optical assistants working towards competence in prescription checking learn neutralisation on manual instruments, because the technique teaches the optics rather than a button sequence. Specialist contact lens practices also use the instrument for single vision rigid lens vertex power checks, noting that varifocal rigid designs sit outside what any standard focimeter can reliably verify.

Nothing electronic to fail

There is no display, no firmware, no sensor array and no power draw beyond the illumination bulb. The instrument cannot be stopped by an electronic fault, and there is no scenario in which a practice loses its verification capability while waiting for a part. For a single-focimeter practice this is a substantive operational argument.

The lightest and narrowest option on the bench

At 4 kg on a 275 × 120 mm footprint, this occupies less worktop than most keyboards and can be repositioned one-handed. UK consulting, dispensing and glazing rooms are almost always space-constrained, and an instrument that does not fight for bench depth is easier to site.

Verification without a running cost

Nothing is consumed per measurement — no thermal paper, no printer head, no calibration cartridge, no software licence. For a practice checking several thousand pairs a year the cumulative difference against an instrument with consumables is not trivial.

Fine resolution where prescriptions actually sit

The 0.125D graduation runs from 0 all the way to ±5D, the band containing the great majority of dispensed prescriptions, with 0.25D above that where lens manufacturing tolerances are wider anyway. Precision is concentrated where the work is rather than spread uniformly.

Internal reading keeps the eye on the target

With the power and axis scales inside the eyepiece field, the operator never breaks gaze between focusing and reading. That removes the transcription risk of looking away to an external drum, and speeds the repetitive rhythm of a checking session considerably.

Prism handled properly, to 20Δ

Direct reading to 5Δ covers everyday work, and the supplied compensation device extends measurement to 20Δ in single-prism-dioptre steps. High-prism prescriptions are verified on the same bench rather than estimated or referred elsewhere.

Suits a workshop as well as a consulting room

Dust, vibration and knocks are ordinary conditions on a glazing bench, and a purely mechanical instrument handles them better than one with a display and control board. The marking function makes it directly useful in the edging workflow rather than only in final checking.

Immune to software lifecycles

No driver, no operating system dependency, no network requirement, nothing to patch. The instrument cannot be orphaned by a software update or a practice management migration, and its working life is set entirely by its optics and mechanics.

The reference technique for training

Manual focimetry is what competence in prescription checking is taught and assessed on. A practice holding one of these can train optical assistants, host pre-registration placements and evidence internal competence checks on its own equipment, at the lowest capital cost in the category.

Internal reading optical system

Dioptre and axis scales are presented inside the eyepiece field alongside the target, so focusing, axis alignment and value reading complete in one continuous observation without the operator looking away.

Full ±25D measurement range

Measurement spans 0 to ±25D, covering ordinary dispensing powers through to aphakic and high myopic prescriptions without any change of accessory or attachment.

Dual graduation scheme

Resolution is 0.125D from 0 to ±5D and 0.25D from ±5D to ±25D, concentrating the fine increment in the power band that holds the overwhelming majority of prescriptions.

Outer reading at 0.125D

The outer scale reads to a minimum of 0.125D, giving a consistent fine increment for direct transcription independently of the eyepiece scales.

Cylinder axis scale, 0–180° in 1° steps

Axis reads across the full semicircle in single-degree increments, matching the notation used on UK prescription orders, glazing instructions and laboratory paperwork.

Direct prismatic reading to 5Δ

Prismatic power reads directly from 0 to 5Δ in single prism-dioptre graduations, covering routine prescribed prism without additional fitment.

Prism compensation device to 20Δ

The supplied compensator extends prismatic measurement to 20Δ in 1Δ steps, bringing high-prism prescriptions onto the same instrument rather than a second one.

Prism base angle across 0–180°

Base direction reads over the full 0–180° range, so base setting is recorded in standard notation alongside the prism magnitude.

Eyepiece adjustment of ±5D

Five dioptres of adjustment either side of plano lets each operator set the graticule sharply for their own vision — a step to repeat deliberately whenever staff change over.

Wide field of vision observation

A generous observation field improves target visibility and makes low cylinders easier to detect, particularly at 0.25D and below where the two principal meridians sit close together.

Objective support for Φ16–Φ86 mm lenses

The lens support accommodates diameters from 16 mm to 86 mm, covering drilled rimless, paediatric and large modern frame fronts without adapters or workarounds.

Optical centre marking mechanism

An integral marker stamps optical centre, cylinder axis and prism base direction directly onto the lens, ready for glazing, edging or fitting-cross confirmation against the pupil centre.

Dual voltage illumination

A 3W bulb runs from either a 220V or 110V supply according to variant, with UK voltage configuration and plug type confirmed at order.

Compact 275 × 120 × 430 mm envelope

The instrument occupies a narrow strip of bench with its height carried in the column, making siting straightforward in constrained consulting, dispensing and glazing rooms.

4 kg cast construction

A rigid cast base and column hold optical alignment through routine handling, at a weight light enough to lift and reposition single-handed.

Inclined eyepiece geometry

The angled eyepiece places the observation axis at a comfortable working height for a seated operator, which matters across sessions where thirty or more pairs are checked in sequence.

The Visionstar GJD-7, also listed as the NJC-6A, is a purely optical internal-reading manual lensmeter for UK optical practice — no display, no firmware, nothing electronic to fail. Its ±25D range, 0.125D graduation, 1° axis scale, 20Δ prism compensation device, Φ16–86 mm lens support and 275 × 120 mm footprint cover routine verification, neutralisation, high-prism work and optical centre marking, with no consumable cost, no software dependency and maintenance that amounts to clean optics and a spare bulb. At 4 kg it is among the lightest and narrowest bench focimeters available, which suits glazing benches, in-house edging setups, community optometry practices, hospital eye service departments, training providers and any practice wanting dependable redundancy alongside an automatic instrument. Medigear.uk supplies the GJD-7 into the UK with pre-despatch functional inspection, documentation review and ongoing spares support. Contact the Medigear.uk team for current pricing, quantity quotations, holder and accessory options, or bespoke configuration enquiries.
