Saikang CQ8K

The Saikang CQ8K serves paediatric wards, children's day-surgery units, and specialist paediatric departments across NHS trusts and private children's hospitals. Its primary application is general paediatric ward care, where children require monitored rest, regular nursing assessments, IV therapy, and positional support during recovery from illness, surgery, or injury. The bed's low height range of 480–770 mm suits children who may attempt to exit the bed unsupervised, and its secure aluminium alloy side rails provide the fall-prevention structure required by paediatric ward safety policies.

In paediatric surgical recovery, the CQ8K's Trendelenburg and reverse Trendelenburg positions support post-operative positioning without manual handling. After general anaesthesia, young patients are frequently nursed in the recovery position or with slight head elevation; the CQ8K's electric backrest and Trendelenburg functions allow nursing staff to achieve and maintain these positions without physical effort, reducing both caregiver musculoskeletal strain and the risk of disturbing a drowsy child during repositioning.

Children undergoing respiratory conditions — including asthma, bronchiolitis, and post-operative airway management — benefit from precise backrest elevation. The CQ8K reaches 75°, supporting a near-sitting position that improves respiratory mechanics and reduces the effort of breathing in children with airway compromise. The bed's smooth, quiet electric adjustment avoids the noise and vibration associated with manual cranks, which can distress young patients or disturb sleeping children in shared bays.

The bed is also suited to paediatric rehabilitation admissions, where children recovering from orthopaedic procedures, neurological events, or trauma need a stable, adjustable sleeping and resting surface over extended periods. The IV pole provision, drainage hook positions, and low floor height simplify daily care routines for physiotherapists, occupational therapists, and nursing teams working with children who have complex needs. Medigear.uk distributes the CQ8K to NHS paediatric departments and private children's facilities across the UK.

Fall Prevention for Young Patients

The CQ8K's aluminium alloy side rails with extra protection lock securely in the raised position and fold smoothly for caregiver access. The low minimum height of 480 mm reduces the risk of serious injury if a young patient does exit the bed. Secure rail locking, combined with the central castor brake, keeps the bed stable during active children who move during sleep or in response to discomfort.

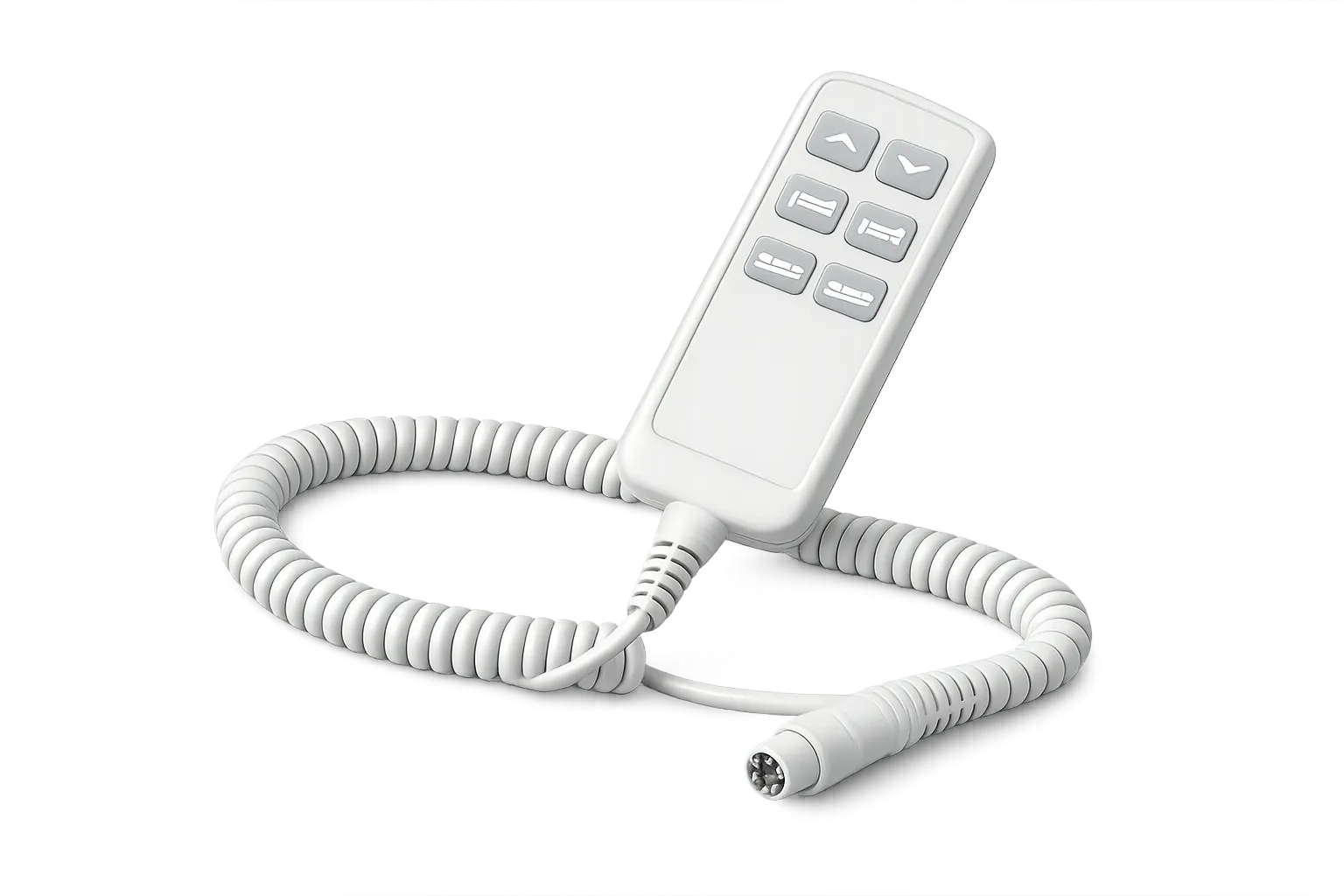

Five Powered Functions via Hand Controller

All five bed positions — backrest, knee-rest, height, Trendelenburg, and reverse Trendelenburg — are controlled from a single hand controller. Nurses can adjust the bed with one hand while maintaining contact with the patient, avoiding the manual effort and positional interruptions associated with crank-operated beds. This supports faster responses during monitoring rounds and reduces disruption to sleeping children.

Quiet, Smooth Linear Motor Operation

Four linear motors provide smooth, near-silent operation that avoids disturbing young patients during position changes. In shared paediatric bays where multiple children may be sleeping simultaneously, quiet equipment significantly reduces unnecessary waking. The motors' smooth ramp-up and ramp-down motion prevents sudden jolts that could distress an anxious child or dislodge an IV cannula.

Paediatric-Proportioned Platform

The mattress platform of 1485 × 640 mm is designed for children, not scaled-down adults. The width accommodates a child's sleeping posture with appropriate rail clearance while keeping the total bed footprint compact enough for standard paediatric bay widths. The overall external width of 780 mm allows the bed to pass through standard door openings and navigate ward corridors without difficulty.

Infection Control Build Quality

The 11-stage epoxy paint finish, ASTM-tested antibacterial coating, and sterilisable plastic components support infection prevention protocols appropriate for paediatric wards, where children with immunological vulnerabilities require high standards of environmental hygiene. Smooth, crevice-free surfaces simplify wipe-down decontamination, and the aluminium alloy rail and bed end design avoids the crevices and plastic joints where pathogens can accumulate.

Central Castor Locking

Five-inch double-side castors with a single-pedal central locking mechanism allow one nurse to lock or release all four wheels simultaneously without bending. This is particularly important when managing active or distressed children, where a bed that shifts position unexpectedly creates a fall or injury risk. The central lock also ensures the bed remains stable during procedures that require the nurse to apply force — such as wound dressing or IV insertion.

Motor Brand Flexibility

The CQ8K is available with motors from Linak, Timotion, Dewert, or Jiechang, allowing NHS procurement teams to align the specification with their existing maintenance infrastructure and spare-parts contracts. Trusts with an established Linak service relationship, for example, can specify Linak motors across their entire Saikang bed estate, simplifying technical support and reducing the number of motor types held in stock.

Optional Back-Up Battery and X-Ray Surface

The available back-up battery maintains full electric function during power interruptions — a critical safety feature in paediatric environments where a child's position may need to be changed urgently. The optional X-ray translucent bed surface allows portable radiography without patient transfer, reducing radiation exposure time and the distress associated with moving an unwell child to a separate imaging surface.

CE-Marked for NHS Procurement

CE marking under MDD 93/42/EEC confirms conformity with European medical device requirements. Medigear.uk holds UK distribution pathway documentation and can supply the full Declaration of Conformity, ISO certificates, and technical file index to support NHS trust procurement, clinical engineering assessment, and MHRA registration requirements for medical devices.

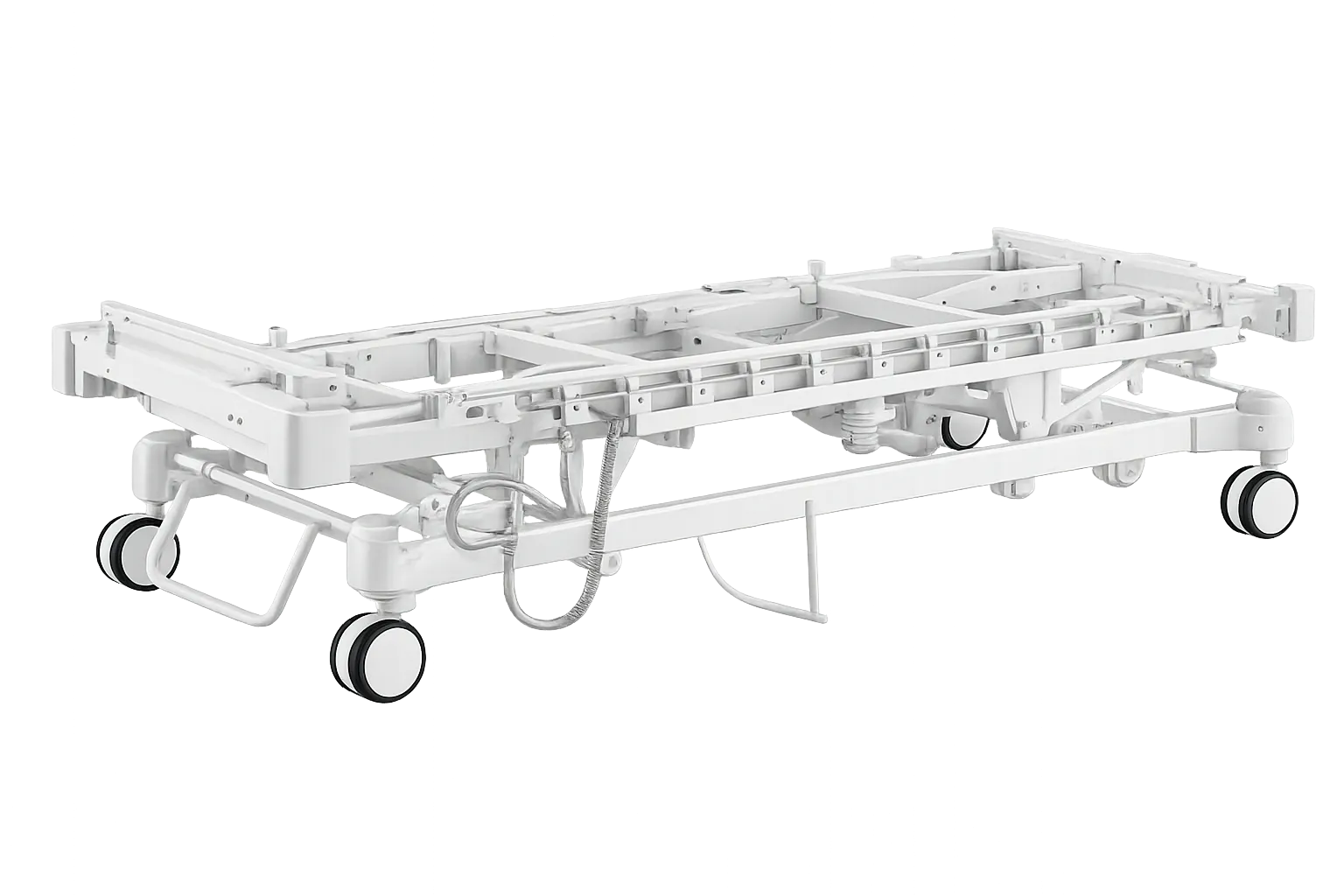

Four-Motor Electric System

Four independent linear motors drive the CQ8K's five adjustable functions. Each motor operates on a dedicated circuit, meaning a fault in one motor does not disable other functions. The hand controller provides intuitive directional control with clearly labelled icons, suitable for use by nursing staff across varying shifts without specialist training. The motor system complies with EN 60601 electrical safety requirements for medical electrical equipment.

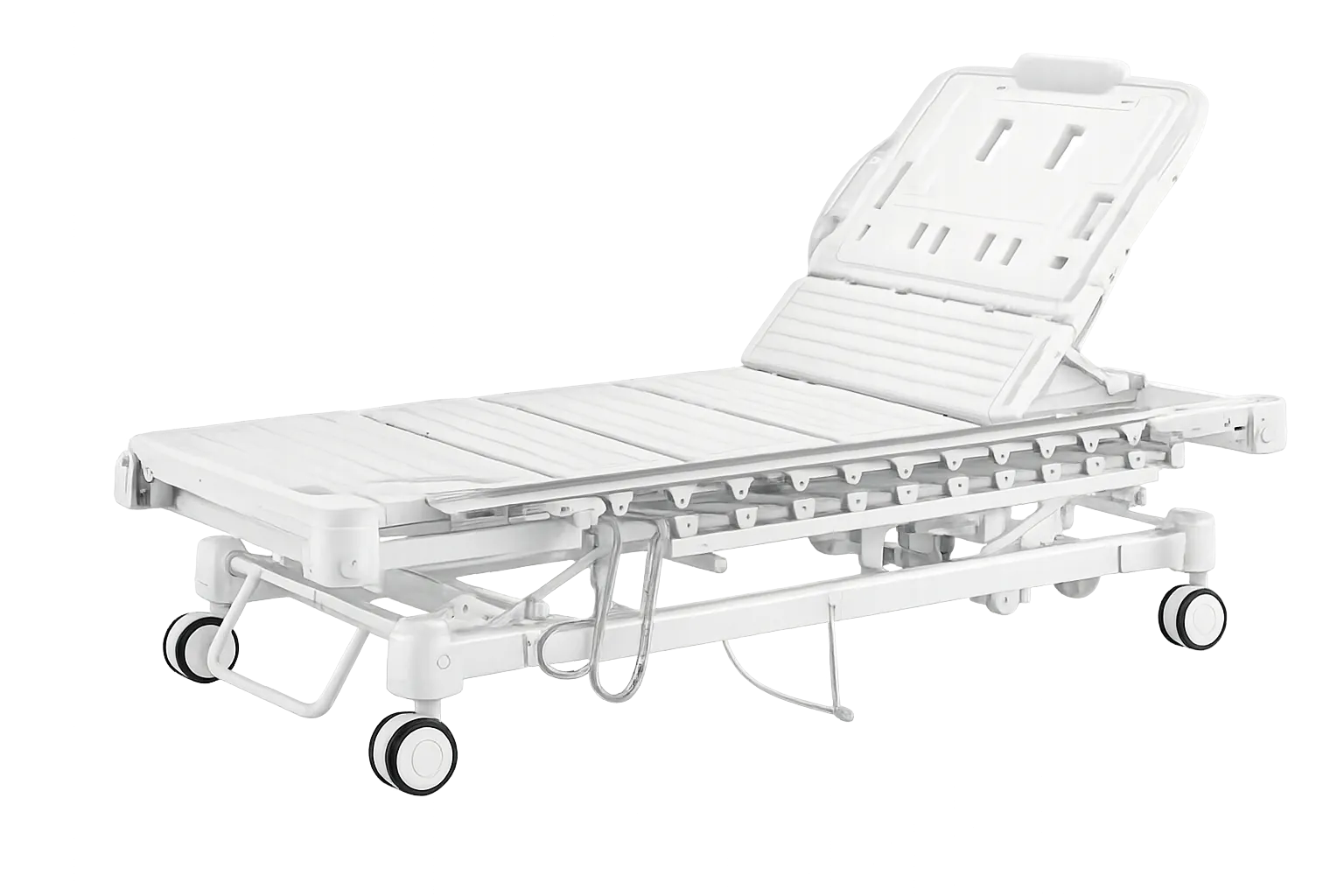

Backrest Adjustment: 0–75° (±10°)

The powered backrest raises to a maximum of 75°, placing the patient in a near-sitting position suitable for feeding, respiratory support, physiotherapy exercises, and comfortable waking hours. The ±10° tolerance allows fine-tuned positioning for clinical needs such as specific post-operative angles. Movement is smooth and continuous, with no stepped positions that limit the nurse's ability to find the exact required angle.

Knee-Rest Adjustment: 0–35° (±10°)

The powered knee-rest elevation supports patients who require lower-limb elevation for post-operative oedema management, orthopaedic positioning, or comfort during extended bed rest. It adjusts independently of the backrest, allowing combined positions such as the semi-Fowler and Fowler variants used in paediatric respiratory and post-surgical nursing.

Height Adjustment: 480–770 mm

The 290 mm height range is driven by a dedicated linear motor and provides a working height appropriate for nurses of varying statures. At 480 mm, the floor clearance is low enough to reduce the severity of any unsupervised exit attempt. At 770 mm, the platform height supports examination, wound care, and IV procedures without the nurse having to adopt a stooped posture over extended periods.

Trendelenburg and Reverse Trendelenburg: 0–12°

Both Trendelenburg (foot up, head down) and reverse Trendelenburg (head up, foot down) positions reach 12°. Trendelenburg is used in post-anaesthetic recovery and circulatory support; reverse Trendelenburg assists in anti-reflux positioning and respiratory management. Both are electric and controlled from the hand controller, eliminating the manual effort and imprecision of mechanical tilt systems.

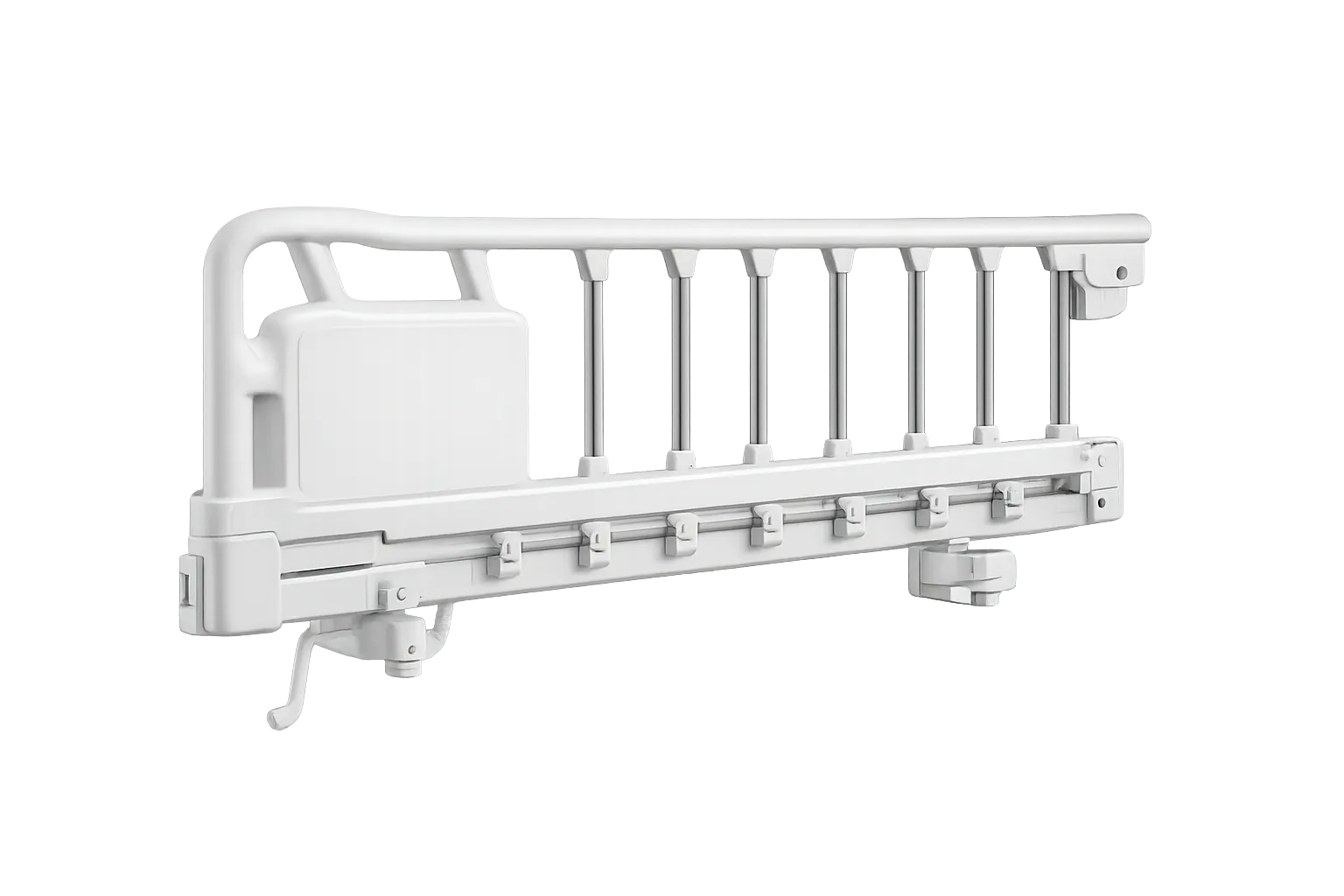

Aluminium Alloy Side Rails with Extra Protection

Full-length aluminium alloy side rails run along both sides of the mattress platform. They fold downward smoothly for caregiver access and lock automatically when raised. The extra-protection designation indicates additional anti-entrapment design features appropriate for paediatric use, where limb or head entrapment between rail and mattress is a recognised safety risk. The rails are easy to clean and resistant to corrosion from cleaning agents used in clinical environments.

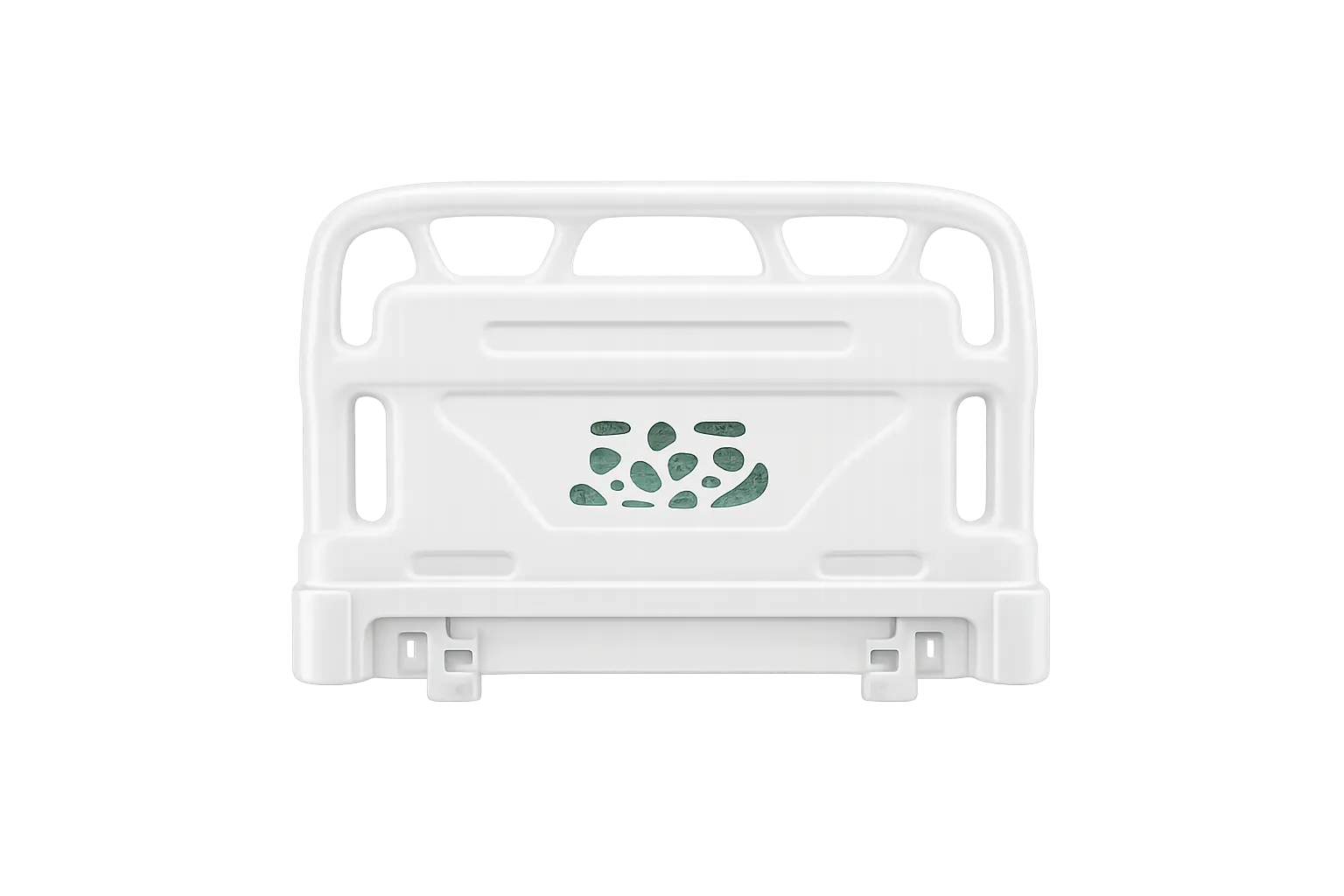

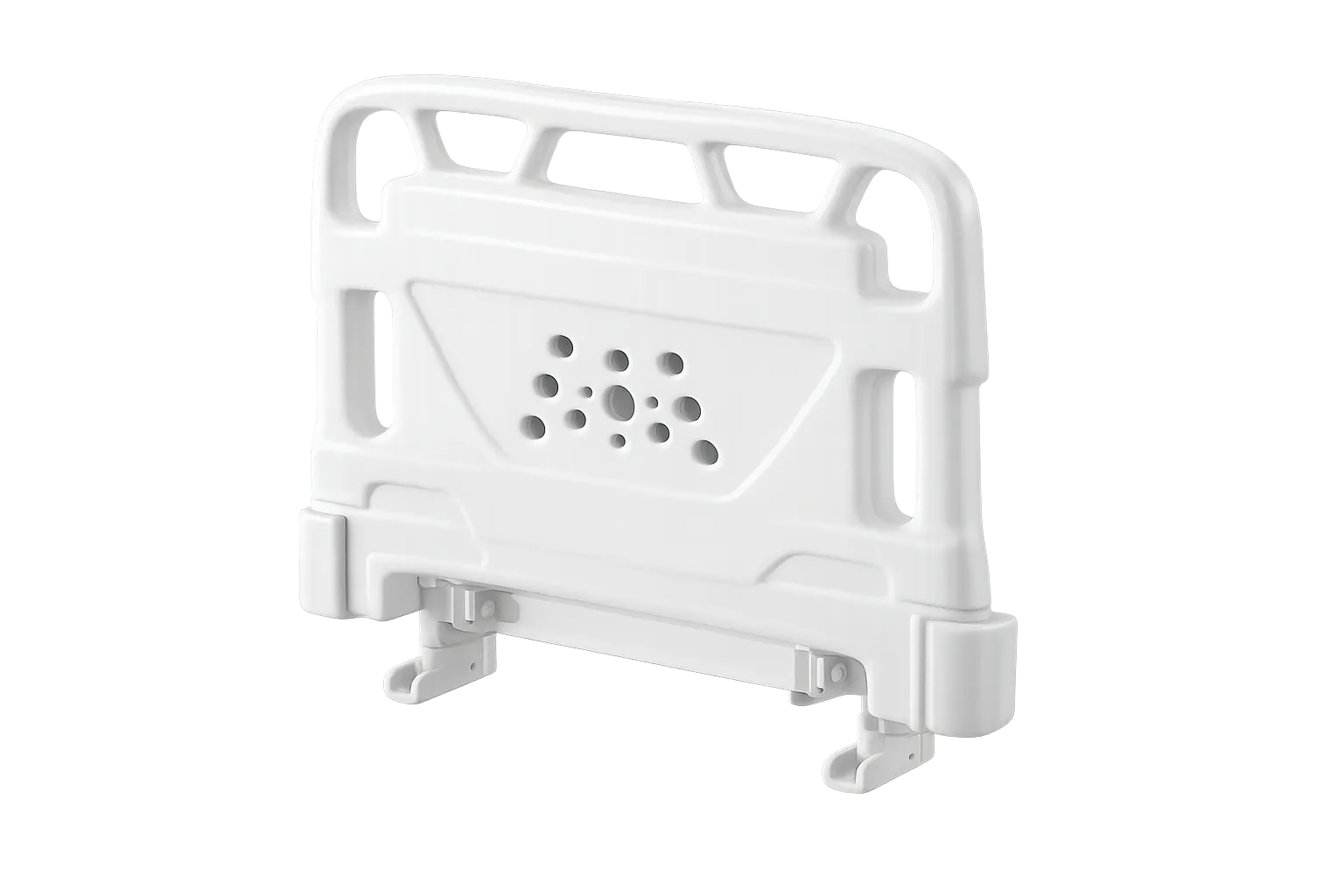

Aluminium Alloy Bed Ends

Head and foot boards are manufactured from aluminium alloy, providing structural rigidity, resistance to impact, and ease of decontamination. The bed ends incorporate a safe-lock mechanism that prevents accidental detachment during patient transfer or bed manoeuvring. Their smooth profile reduces sharp edges and entrapment points in a paediatric environment where children may grip or push against the bed ends.

Five-Inch Double-Side Castors, Central Locking

The 5-inch hardshell castors provide smooth rolling on ward floor surfaces and are sized to cross small floor transitions without catching. The double-side braking surface on each castor engages securely under the central locking pedal. Central locking release is equally smooth, allowing a single nurse to mobilise the bed quickly for patient transfer without bending or repositioning to reach individual wheel brakes.

IV Pole and IV Pole Provision

A standard IV pole is included, with four IV pole provision sockets allowing flexible pole placement depending on the patient's IV access site and the nurse's preferred working position. The IV pole height is adjustable to accommodate bags of different volumes and to position infusions appropriately for the patient's current bed height and angle.

Drainage Hook Provision

Two drainage hooks are positioned on the bed frame for urine drainage bags, wound drain collection chambers, and other dependent drainage systems. Their placement ensures drainage bags hang at the correct dependent height relative to the patient regardless of the bed's elevation, supporting accurate drain assessment and preventing backflow.

Epoxy Paint Finish, ASTM Antibacterial Standard

The 11-stage epoxy paint process produces a uniform, hard coating tested to ASTM antibacterial performance standards. Paint thickness of 0.12 mm and a brightness of 60° indicate a durable, even finish resistant to chipping under the 50 kg impact test. The antibacterial properties of the surface coating contribute an additional layer of infection control beyond surface decontamination cleaning.

ABS Plastic Components, Sterilisable at 100°C

All plastic bed components — including side rail body panels, controller housing, and IV pole provision caps — are manufactured from environmental ABS plastic with a tensile strength of up to 30 MPa. The material withstands sterilisation at 100°C, enabling terminal decontamination between patient admissions without component degradation. This standard is particularly important in paediatric settings where patients may include immunocompromised children requiring enhanced infection control standards.

Optional X-Ray Translucent Bed Surface

The optional X-ray translucent mattress platform allows portable radiograph acquisition without moving the patient. In paediatric care, avoiding unnecessary patient transfers reduces distress, eliminates transfer-associated risks, and shortens the time required to obtain diagnostic images during acute admissions. The option is specified at the point of order through Medigear.uk.

Optional Back-Up Battery

The optional back-up battery maintains full powered bed function during mains supply interruptions. In paediatric environments where a child's position may change rapidly as a result of clinical deterioration, nurse call, or emergency response, battery-maintained function ensures that bed adjustment remains available regardless of power status. The battery specification, including charge capacity and recharge time, is confirmed with Medigear.uk at point of order.

Optional Directional Wheel Function

A directional wheel function is available optionally, converting one or more castors to a steerable configuration for easier navigation in narrow ward corridors or around bay furniture. This option is particularly useful in older ward environments where bay geometry makes standard castor beds difficult to manoeuvre without disturbing adjacent patients or equipment.

The Saikang CQ8K is a well-specified, CE-marked electric paediatric bed that meets the core requirements of NHS children's wards and private paediatric facilities: secure fall prevention, precise five-function electric positioning, infection-resistant construction, and flexible motor options. Its aluminium alloy rail system, low minimum height, and quiet four-motor operation address the specific safety and care challenges of paediatric inpatient environments. Medigear.uk distributes the CQ8K across the UK with full procurement documentation support, including the Declaration of Conformity, ISO certificates, and pre-delivery site assessment. Contact Medigear.uk to request configuration advice, packing dimension confirmation, or to initiate an NHS procurement quotation.
