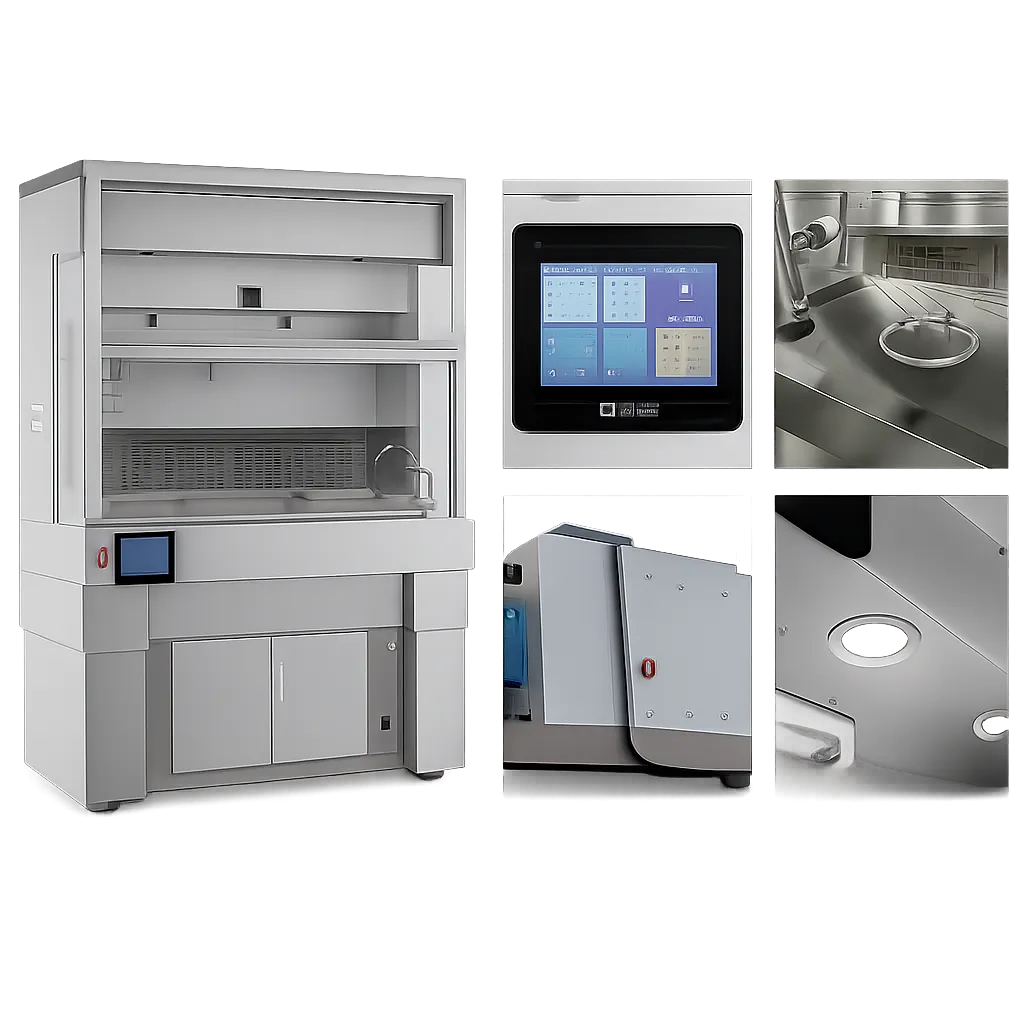

ROUNDFIN RD-907S-M

Hospital pathology departments represent the primary clinical setting for the RD-907S-M, where the demands of daily surgical specimen grossing — including colectomy resections, mastectomy specimens, and complex multi-organ cases — require a workstation capable of sustained contamination control and ergonomic consistency across multiple operators and shifts. The integrated formalin distribution and collection system with a waste-liquid full alarm, combined with backdraft exhaust and activated-carbon filtration, directly supports hospitals' statutory obligations under COSHH regulations governing formaldehyde exposure, reducing the risk of reportable exposure incidents and the associated governance burden on laboratory managers. Procurement leads within NHS trust pathology departments sourcing replacements or capacity expansions can access compliance documentation, technical specifications, and bulk pricing through Medigear.uk.

Academic and university research institutions represent a second major application environment for the ROUNDFIN RD-907S-M Pathology Grossing Station, particularly in histopathology or oncology research programmes that require consistent specimen-preparation conditions across long experimental series. The motorised height adjustment and touch screen control panel allow researchers to standardise their working position and operational parameters across sessions, reducing procedural variability that can affect downstream histological outcomes. The optional video and photo recording system — mountable via the integrated camera holder and display bracket — supports documentation workflows required by research ethics and grant reporting frameworks. Institutions evaluating the RD-907S-M for laboratory fit-out or equipment replacement programmes can request quotations and lead-time confirmations from Medigear.uk.

Forensic pathology units, mortuary facilities, and medico-legal laboratories form a third established use environment for the RD-907S-M, where the combination of a fully enclosed splash-proof working window, multi-layer biological waste processing, and end-of-session UV sterilisation meets the stricter decontamination standards required following examination of decedents or high-risk biological material. The station's 304 stainless steel construction throughout — with 316 stainless steel available on request — provides the chemical resistance required for the range of preservatives and disinfectants used in forensic and mortuary settings. The touchscreen panel's centralised control of all safety systems supports audit requirements in regulated forensic environments. Facilities managers specifying grossing stations for mortuary or forensic laboratory projects are encouraged to contact Medigear.uk for site-specific configuration guidance.

Private diagnostic laboratories, specialist histopathology services, and independent clinical laboratories represent a fourth procurement segment for the RD-907S-M, particularly where organisations are scaling throughput capacity and require a hospital-grade workstation with CE and ISO certification to satisfy insurer, accreditation body, or commissioning client requirements. The ODM and OEM customisation options—including an optional display screen, keyboard, and video recording integration— allow private operators to configure the station to their specific workflow and branding requirements. The 5- to 15-working-day dispatch lead time supports rapid deployment to new or expanding facilities. Individual laboratory buyers and small specialist operators can access procurement support, product specifications, and independent expert guidance directly through Medigear.uk.

Multi-Layer Contamination Control Engineered into the Workstation Architecture

The RD-907S-M addresses formalin and biological contamination through three independent yet integrated systems: backdraft exhaust ventilation at 30 m³/min, activated carbon filtration of expelled air, and an enclosed, height-adjustable, splash-proof window that contains aerosols and liquid splashes during wet dissection. This layered approach reduces reliance on PPE alone as the primary exposure control and supports a defence-in-depth strategy aligned with COSHH hierarchy-of-controls requirements. For laboratory managers tasked with demonstrating compliance during Health and Safety Executive inspections or UKAS accreditation audits, the station's engineering controls provide a documentable, measurable means of reducing exposure. Full technical data to support COSHH risk assessments is available from Medigear.uk.

Touch Screen Centralisation Reduces Manual Contact Points During Active Specimen Handling

By routing height adjustment, exhaust control, flushing activation, UV sterilisation, and formalin management through a single touchscreen interface, the RD-907S-M eliminates the need for operators to touch multiple separate controls with contaminated gloves during a grossing session. This reduces the risk of cross-contamination between the specimen zone and control surfaces — a recognised infection-prevention consideration in high-throughput pathology environments. The keyboard and display screen holder allows connection of LIS or digital pathology software without requiring a separate workstation, streamlining documentation within the existing workspace footprint. Departments evaluating total workflow efficiency gains alongside capital cost will find the operational case straightforward to model.

Motorised eight adjustment from 800 mm to 1000 mm. Supports Multi-Operator Ergonomics.

A 200 mm motorised height range eliminates the need for supplementary ergonomic furniture and accommodates operators of different statures sharing a single station across shift patterns. Prolonged static posture is a primary cause of work-related upper limb disorders among pathology staff, and height-adjustable workstations are a recognised engineering intervention in occupational health guidance for laboratory environments. The adjustment is controlled via the touch screen without requiring the operator to leave the working position, enabling real-time postural correction during long grossing sessions. Human resources and occupational health teams within larger laboratories or organisations will find the motorised adjustment a straightforward inclusion in workplace health risk assessments.

CE and ISO Certification Satisfies Hospital and Institutional Procurement Compliance Requirements

CE and ISO certification for the RD-907S-M removes a significant procurement barrier for NHS trusts, hospital groups, and accredited private laboratories whose purchasing frameworks require documented compliance with standards before capital equipment approval. The certification package supports OJEU and framework agreement procurement routes where technical compliance evidence is a mandatory submission. Procurement officers can request the full set of certification documentation, including the E declaration of conformity and ISO compliance statements, directly through Medigear.uk, reducing the administrative overhead of sourcing compliance evidence independently. ODM customisations are available for organisations that require modified specifications without compromising the base certification envelope.

560 W On-Station Pulveriser Eliminates Separate Biological Waste Processing Equipment

The integrated 560 W pulveriser, operating at 4200 r/min with a 1200 mL capacity, processes biological waste directly at the grossing station before sewer discharge, removing the need for a separate waste management unit and the associated infection risk of transferring biological waste across the laboratory. This reduces both capital equipment expenditure and the procedural complexity of waste-handling compliance, which is a meaningful operational benefit for smaller laboratories that manage equipment budgets carefully. The built-in hair separator in the sink prevents drain blockages from fibrous biological material, reducing maintenance call-outs. Buyers comparing the total cost of ownership across competing grossing stations should factor in the value of integrated waste processing when evaluating the RD-907S-M through Medigear.uk.

UV Sterilisation and Automatic Flushing Support End-of-Session Decontamination Without Chemical Application

The combination of an integrated UV sterilisation and an automatic electric flushing device in the lower deck provides a repeatable, chemical-free end-of-session decontamination cycle that reduces the time and consumable costs associated with manual surface disinfection. UV decontamination is particularly valuable in multi-user environments where session turnaround time is operationally constrained, as it eliminates the need for staff to remain present during disinfection. The formalin distribution and collection system's waste-liquid full alarm prevents overflow events that would otherwise require emergency cleaning procedures and potentially reportable exposure incidents. Laboratories reviewing the efficiency of decontamination protocols as part of a quality management system improvement programme will find the automated features directly relevant.

ODM and OEM Customisation Available for Distributors and Multi-Site Procurement Networks

The manufacturer's confirmed availability of ODM and OEM makes the RD-907S-M suitable for distributors, healthcare group procurement teams, and specialist laboratory equipment resellers who require branded, modified, or volume-configured units. Customisationsinclude an alternative stainless steel grade (316), adjusted standard part configurations, an optional display screen and video recording integration, and manufacturer-coordinated branded labelling. Supply capacity is confirmed at 30 units per month, supporting multi-unit deployments across hospital networks or research infrastructure programmes. B2B buyers and distribution partners interested in establishing an RD-907S-M supply arrangement should contact the Medigear.uk procurement team to obtain ODM terms and bulk pricing structures.

Integrated Documentation and Camera Mounting Supports Digital Pathology Workflows

The RD-907S-M includes mounting brackets for a keyboard, display screen, and camera as standard, enabling the grossing station to serve as a complete documentation workstation without the need for a separate recording setup adjacent to the dissection area. The optional video and photo recording system extends this capability to full macroscopic image capture for digital pathology platforms, telepathology programmes, and research documentation workflows. Reducing the physical distance between the specimen and the documentation system decreases the risk of specimen identification errors during the labelling and imaging phase of gross examination. Individual laboratory buyers investing in digital pathology infrastructure will find the integrated mounting system a practical advantage over workstations requiring aftermarket adaptation.

Straightforward Installation Reduces Commissioning Time and Specialist Labour Cost

The RD-907S-M connects to standard building water supply, drainage, and ventilation infrastructure without requiring specialist pathology equipment engineers for installation — a qualified laboratory fitter or facilities contractor is typically sufficient for the mechanical and plumbing connections. The touchscreen panel's intuitive interface minimises normal staff training requirements, and the manufacturer provides installation schematics and operator guides that are available through Medigear.uk alongside the unit's delivery. For facilities managers coordinating laboratory commissioning alongside other capital projects, reduced dependence on specialist labour lowers both programme risk and installation budget. Packing and freight specifications for site access planning are available on request from Medigear.uk.

Minimum Table Height: 800 mm

At its lowest motorised position, the RD-907S-M work surface is 800 mm — a height suitable for seated or lower-stature operators and for procedures requiring close visual access to larger specimen containers. This minimum height is achieved and maintained without manual adjustment tools, controlled entirely from the touch screen panel. For departments transitioning from fixed-height grossing benches, the 800 mm floor position ensures the station accommodates the full range of existing operator heights without supplementary equipment.

Maximum Table Height: 1000 mm

The upper limit of 1000 mm accommodates taller operators and procedures in which an elevated working angle is clinically preferable, such as examinations of large organ resections that require overhead visual access. The full 200 mm motorized range means that height changes between users require no tools and no interruption to laboratory workflow. Medigear.uk can provide ergonomic configuration guidance for departments specifying the RD-907S-M as part of a multi-station laboratory fit-out.

Total Motorized Height Range: 200 mm (800–1000 mm)

The 200 mm total adjustment range is among the broadest available in this class of pathology grossing station. It is particularly valuable in multi-operator environments where a single station must serve staff of significantly different stature across multiple shifts. Motorized control from the touch screen eliminates the risk of incorrect manual adjustments and ensures that height settings can be recalled consistently between sessions. The adjustment can be made without requiring the operator to vacate the working position, thereby supporting uninterrupted specimen handling.

Touch Screen Operation Panel — Full System Control

The centralised touchscreen panel governs table height, exhaust ventilation, UV sterilisation, automatic flushing, formalin distribution, and water delivery from a single interface, minimising the number of discrete control points during active specimen handling. The panel is constructed to withstand the cleaning agents and disinfectant solutions routinely used in pathology environments without surface degradation. Optional display screen and keyboard integration via the dedicated mounting bracket allows the station to serve simultaneously as a documentation terminal for specimen labelling and LIS data entry.

Fully Enclosed Height-Adjustable Splash-Proof Window

The front-facing safety window provides a physical containment barrier during wet dissection, capturing aerosols, liquid splash, and chemical vapour within the working zone and directing them toward the exhaust system rather than into the operator's airspace. The window adjusts in synchronisation with the table height, maintaining consistent protection geometry across the full 200 mm motorised range. This engineering control supports a COSHH-hierarchy approach to reducing exposure to formalin and biological aerosols that goes beyond PPE alone.

Backdraft Exhaust Ventilation: 500 r/min, 30 m³/min, 39 dB

The back-pressure exhaust system draws contaminated air from the rear and underside of the work surface — the zones of highest formalin and biological aerosol concentrations — and displaces it at 30 cubic metres per minute through ducting that is connectable to the building's main ventilation circuit or directly to an external exhaust point. At 39 dB operational noise, the fan runs without creating a disruptive acoustic environment in open-plan laboratory settings. The grid-type air inlet on top of the equipment draws clean filtered air across the work surface from front to back, establishing a directional airflow pattern that keeps contaminants away from the operator's breathing zone.

Activated Carbon Filtration System

Working in tandem with the backdraft exhaust, the activated carbon filtration array captures formalin vapour and other volatile organic pollutants before they are expelled into the building ventilation or external environment. This dual-system approach — mechanical exhaust plus chemical filtration — provides a measurable reduction in airborne formaldehyde concentrations at the breathing zone that can be quantified in COSHH workplace exposure monitoring. Filter elements require periodic replacement according to usage volume and frequency, with replacement parts and maintenance schedules available through Medigear.uk.

UV Disinfection Lamp — Touch Screen Activated

The integrated  UV sterilisation lamp provides surface decontamination of the grossing workspace at the end of each session without requiring chemical application, reducing consumable costs and minimising the risk of residual chemical hazards on working surfaces. Activation and cycle timing are managed via the touchscreen panel, allowing laboratory managers to programme automated end-of-session disinfection as part of a standardised closing procedure. The UV lamp output wavelength and replacement schedule should be verified against the manufacturer's specification sheet, available from Medigear.uk.

Formalin Distribution and Collection System with Waste Liquid Full Alarm

The integrated formalin circuit manages the delivery and collection of formalin fixative within the grossing station, containing the fluid in a closed system to reduce the risk of uncontrolled spills during specimen fixation workflows. The waste-liquid full alarm triggers before the overflow capacity is reached, giving operators time to drain the system safely and preventing uncontrolled formalin release onto the laboratory floor — an event that would typically trigger a COSHH emergency response. The full alarm integrates with the touch screen panel's status display, making it immediately visible to any operator in the station's vicinity.

Three-Piece Detachable Perforated Table Plates with Electric Flushing

The upper work surface is formed from three independently removable perforated stainless steel plates that allow fluid and small particulate material to drain directly through into the lower discharge deck, minimizing pooling on the working surface during wet grossing procedures. The lower deck's electric flushing device activates via the touch screen, directing a pressurized water rinse across the discharge surface and flushing biological and chemical residue through the sink and waste processor before sewer discharge. The detachability of the upper plates allows them to be removed for autoclave sterilisation or deep manual decontamination when required by infection control protocols.

Integrated Sink: 340 × 400 × 250 mm with Hair Separator

The built-in sink measures 340 mm wide by 400 mm deep by 250 mm high, providing adequate capacity for specimen container rinsing, instrument cleaning, and washdown tasks without requiring a separate sink unit in the laboratory bay. The integrated hair separator prevents blockage of the drain by fibrous biological material — a common maintenance issue on grossing stations without this feature — reducing plumbing call-outs and the associated downtime. The sink's proximity to the pulveriser inlet enables a continuous waste-processing workflow without requiring waste to be transferred across the laboratory.

Pulveriser: 560 W, 4200 r/min, 1200 mL Capacity

The on-station pulveriser reduces biological waste to a particle size suitable for sewer discharge before it leaves the grossing station, replacing the need for a standalone biological waste processing unit and the associated infection risk of transporting biological material across the laboratory. At 560 W and a rotation speed of 4200 r/min, the pulveriser handles tissue volumes typical of high-throughput surgical pathology departments, and its 1200 mL per-cycle capacity accommodates large specimen residues from complex resection cases. The pulveriser inlet is positioned near the sink to enable direct waste transfer without aerosol-generating transport steps.

Hot and Cold Water Mixing Faucet — Wrist Blade Handles and Optional Foot Pedal

The swing-spout hot-and-cold water mixing faucet is fitted as standard with wrist-blade handles, allowing operators to control water flow without finger contact. This hands-free approach reduces the risk of cross-contamination between gloved hands and faucet surfaces during active specimen handling. An optional foot pedal provides an additional hands-free control mode for facilities where wrist contact is also considered a contamination risk. The swing spout provides lateral reach across the sink and lower work surface for flexible washdown positioning.

6.5-Foot Flexible Hand Spray

The hand spray is supplied with a 6.5-foot flexible hose, giving operators reach across the full width and depth of the RD-907S-M work surface from a single wall connection point without repositioning the hose assembly. The extended reach is particularly useful during post-session washdown of the dissection area and for rinsing large or irregularly shaped specimen containers in situ. The hose material is specified for resistance to the disinfectants and formalin concentrations routinely used in pathology laboratory cleaning workflows.

304 Stainless Steel Throughout — 316 Available on Request

The RD-907S-M frame, work surfaces, sink, and all structural elements are fabricated from 304-grade stainless steel, which provides the corrosion resistance, cleanability, and mechanical durability required for sustained use in chemical- and biologically active laboratory environments. For facilities handling higher concentrations of chlorine-based disinfectants, saline solutions, or more aggressive chemical reagents, 316 stainless steel is available as a material upgrade on request through Medigear.uk — offering enhanced resistance to pitting and crevice corrosion. The monolithic stainless-steel construction eliminates the risk of laminate or painted-surface delamination that can create harbourage points for biological contamination over the equipment's service life.

CE- and ISO-Certified — Full Documentation Available via Medigear.uk

CE certification confirms the RD-907S-M's compliance with applicable European safety directives for laboratory equipment, and ISO certification demonstrates conformance with internationally recognized quality and safety standards — both of which are standard requirements for equipment entering hospital, university, and regulated private laboratory procurement frameworks. The complete certification documentation pack, including the declaration of conformity and any applicable ISO compliance certificates, is available to procurement teams through Medigear.uk without requiring direct contact with the manufacturer. ODM and OEM customisation are available and do not affect the base certification status of the core station configuration.

Magnetic Instrument Tray, Tissue Holder, and Magnifying Glass as Standard

The RD-907S-M includes a magnetic instrument tray for organised placement of dissection tools within the working zone, reducing the risk of instrument loss or misplacement during active grossing and supporting instrument-count protocols used in some clinical pathology departments. The stainless steel tissue holder provides a stable support for larger specimen sections during examination and sectioning, and the included magnifying glass supports detailed gross assessment of small lesion features without requiring a separate illuminated magnifier unit. These ancillary items are supplied as standard rather than optional extras, reducing the total equipment setup cost for new laboratory installations.

The ROUNDFIN RD-907S-M Pathology Grossing Station delivers a clinically engineered, contamination-controlled grossing environment that addresses the ventilation, ergonomics, waste management, and decontamination requirements of professional histopathology practice in a single CE- and ISO-certified unit. It is suited to hospital pathology departments, academic and forensic pathology laboratories, and private diagnostic services that require a standards-compliant workstation with the flexibility of ODM and OEM configurations. Across all of these settings — from high-throughput NHS surgical pathology to specialist private histopathology — the ROUNDFIN RD-907S-M Pathology Grossing Station provides the engineering infrastructure that supports safe, efficient, and auditable specimen grossing practice. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
