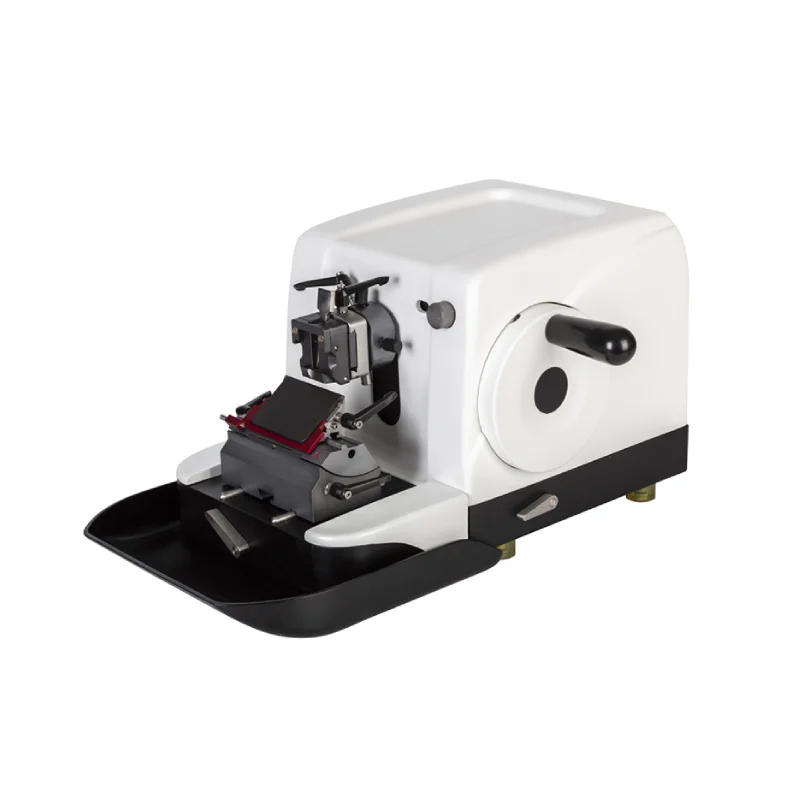

Roundfin RD-465 Rotary Microtome

NHS pathology departments, hospital histopathology laboratories, and diagnostic pathology services represent the primary procurement context for the Roundfin RD-465 Rotary Microtome. The instrument's ±5% sectioning accuracy and graduated 0–60 μm thickness control with increments as fine as 0.5 μm support the precise, reproducible tissue sectioning required for diagnostic histopathology, where section quality directly affects diagnostic interpretability. The antibacterial housing and easy-clean, nano-silver-coated cover meet infection control standards expected in clinical pathology laboratories. Medigear.uk supplies the RD-465 and can provide NHS procurement documentation.

University pathology departments, medical school histology laboratories, and research institutions benefit from the RD-465's durable knife holder, suited to sectioning tissues, bones, polymer materials, and plant samples, supporting diverse research and teaching applications beyond standard clinical histopathology. The quick-change clamp system, compatible with international-standard embedding cassette clamps or paraffin block clamps via a dovetail slot design, supports an efficient workflow across varied sample-preparation protocols. Medigear.uk can advise on RD-465 configuration for academic and research procurement.

Veterinary pathology laboratories and animal diagnostic services benefit from the RD-465's flexible specimen orientation, a broad maximum specimen size of 75 × 60 mm, and a durable knife holder rated for bone sectioning, which support the varied tissue types and specimen sizes encountered in veterinary pathology practice. The adjustable knife holder allows precise blade angle adjustment from 0° to 10° to suit different specimen characteristics. Medigear.uk can advise on the suitability of RD-465 for veterinary pathology applications.

Private pathology laboratories and contract diagnostic testing facilities seeking a reliable, ergonomic rotary microtome with lifetime technical support will find the Roundfin RD-465 available through Medigear.uk. The balanced handwheel design and anti-static, non-stick blade coating support consistent, fatigue-reducing operation across high sectioning volumes. Medigear.uk can discuss RD-465 supply terms and lifetime technical support arrangements.

±5% Sectioning Accuracy with Fine Graduated Thickness Control

The RD-465's ±5% sectioning accuracy, combined with thickness increments as fine as 0.5 μm in the 0–2 μm range, provides the precision required for diagnostic histopathology where section quality directly affects diagnostic interpretability. The graduated increment structure across the full 0–60 μm range — finer at thin settings, coarser at thick settings — matches the typical clinical workflow of fine diagnostic sectioning alongside coarser specimen trimming, all within a single thickness control system.

German Linear Guide Rails and Japanese Precision Components

The integration of German linear guide rails and Japanese precision-machined components reflects a deliberate engineering approach combining recognised international precision manufacturing standards. The maintenance-free lifetime lubrication of these components reduces the routine maintenance burden on laboratory technical staff while supporting consistent, stable cutting performance throughout the instrument's operational life — a meaningful consideration for laboratories planning long-term capital equipment investment.

Antibacterial Housing for Laboratory Infection Control Standards

The nano-silver antibacterial metal top panel prevents microbial growth, resists corrosion, and is easy to clean and replace, directly supporting the infection control and surface hygiene standards expected in clinical pathology laboratory environments. This feature addresses a practical laboratory hygiene requirement that is not universally standard across rotary microtome equipment, providing a meaningful differentiator for laboratories with stringent infection control protocols.

Quick-Change Clamp System with Dovetail Slot Compatibility

The quick-change clamp system, supporting both international standard embedding cassette clamps and paraffin block clamps via a dovetail slot design, allows laboratories to process mixed specimen preparation formats within the same instrument without tools or extended downtime between clamp changes. This flexibility is particularly valuable in laboratories transitioning between cassette-based and traditional block-based workflows, or processing both formats concurrently.

Durable Knife Holder for Diverse Specimen Types

The high-hardness knife holder material, rated for tissues, bones, polymers, and plant samples, extends the RD-465's applications beyond standard soft-tissue histopathology into bone pathology, materials science research, and botanical sectioning. This broad specimen compatibility means that a single instrument investment can serve a wider range of laboratory sectioning requirements than instruments designed solely for soft-tissue work.

Visualised Orientation System for Efficient Specimen Setup

The clear zero-position indicator of the visualised orientation system, combined with an XY 8° tilt and a 360° adjustable specimen orientation, supports quick and accurate specimen alignment, reducing setup time per specimen and ensuring consistent sectioning quality across operators and specimens. This visual feedback system is particularly valuable in high-throughput laboratory settings, where setup efficiency directly affects daily case-processing capacity.

Ergonomic Design for Operator Comfort During Long Sessions

The fully ergonomic design, a balanced handwheel delivering light, smooth operation, and flexible 360° continuous or 180° trimming handwheel modes collectively reduce operator fatigue during extended sectioning sessions. For histotechnicians processing high volumes of specimens throughout full working days, these ergonomic design features meaningfully impact operator comfort, repetitive strain risk, and sustained sectioning quality throughout the working session.

Comprehensive Safety Features

The secure handwheel lock available at any 360° position and the blue knife guard covering the entire blade edge provide operator safety during specimen setup, instrument idle periods, and blade handling. Combined with the anti-static waste tray for safe debris collection and the anti-static, non-stick blade coating that reduces wax buildup, the RD-465's safety features address the practical hazards of routine rotary microtome operation.

1-Year Warranty with Lifetime Technical Support

The combination of a 1-year standard warranty and lifetime technical support provides laboratories with both initial ownership protection and ongoing access to technical assistance throughout the instrument's full operational life. This extended support commitment is a meaningful consideration in laboratory capital equipment procurement, where long-term reliability and access to vendor support influence the total cost of ownership and operational continuity.

Section Thickness Range: 0–60 μm

Graduated increments from 0.5 μm (0–2 μm) to 5 μm (20–60 μm) for precise diagnostic sectioning through coarse trimming control.

Sectioning Accuracy: ±5%

Precision sectioning accuracy supporting diagnostic histopathology quality requirements.

German Linear Guide Rails

Maintenance-free lifetime lubrication. Supports smooth, stable cutting performance throughout instrument life.

Japanese Precision-Machined Components

Internationally sourced precision components for consistent mechanical performance and durability.

Antibacterial Nano-Silver Cover

The top panel prevents microbial growth, resists corrosion, and is easy to clean and replace. Supports laboratory infection control standards.

Quick-Change Clamp System

Compatible with international standard embedding cassette clamps or paraffin block clamps via dovetail slot design.

Durable Knife Holder

High-hardness material for tissues, bones, polymer materials, and plant samples. Adjustable angle 0°–10° with blue safety knife guard.

Visualised Orientation System

Clear zero-position indicator for quick, accurate specimen alignment. XY 8° tilt, adjustable to any angle within 360°.

Specimen Orientation: 35mm Horizontal / 60mm Vertical Stroke

Maximum specimen size 75 × 60 mm. Supports diverse specimen dimensions for varied sample types.

Handwheel Lock

Securely locked at any 360° position for operational safety during setup and idle periods.

Anti-Static Waste Tray

The detachable tray collects section debris, making it easy to clean. Supports laboratory hygiene and workflow efficiency.

Dimensions: 620 × 300 × 290 mm, 45 KGS

Compact laboratory bench footprint. Net weight of 45 kg supports stable, secure benchtop operation.

The Roundfin RD-465 Rotary Microtome is a precision histopathology sectioning instrument suited to NHS pathology departments, hospital histopathology laboratories, university research institutions, veterinary pathology services, and private diagnostic laboratories requiring accurate, durable, and ergonomic tissue sectioning equipment with German and Japanese mechanical components for smooth, stable, and consistent cutting performance across long working hours. Its 0–60 μm section thickness range, ±5% sectioning accuracy, antibacterial housing, quick-change clamp system, durable knife holder, adjustable specimen orientation, and 1-year warranty with lifetime technical support deliver a comprehensive and reliable rotary microtome solution for diagnostic, research, and veterinary pathology applications. Contact Medigear.uk for specifications, pricing, or expert procurement assistance.
