Periodmed RevoT2

Hospital radiology departments and general diagnostic imaging services deploying a premium cart system represent the primary setting for the Revo T2. Departments requiring high-volume throughput across multiple probe types and complex imaging modes benefit from the Revo T2's i3-1215U processing capability, 23.8-inch 1920×1080 display, and four probe connectors that eliminate connector change during complex multi-probe examinations. For departments that have outgrown the Revo T1 or are specifying a premium system from the outset, the Revo T2 provides a documented step-up in processing, display, and connectivity. Medigear.uk supports hospital radiology procurement with full specification documentation and institutional pricing.

Obstetric and gynaecological imaging services use the Revo T2's transvaginal C9-5R10N, convex C5-2R60N, and micro-convex C5-2R20N probes, alongside seven fetal weight calculation formulae and obstetric fetal growth curve support, for a complete antenatal and gynaecological scanning platform. The 23.8-inch display provides the image area required for detailed fetal biometry review, while the 13.3-inch touch screen simplifies parameter management between examination stages. Medigear.uk can advise on Revo T2 configuration for obstetric service procurement.

Cardiac and vascular services use the Revo T2's phased-array P4-2L15SI probe, TDI, CW Doppler, and seven LV function measurement methods for structured echocardiographic assessment. The i3-1215U CPU supports sustained high-frame-rate cardiac and Doppler scanning across a full cardiac session. The four-probe connector configuration allows simultaneous connection of phased-array, linear, and convex probes without manual reconfiguration between imaging stages.

Specialist interventional and high-volume outpatient services benefit from elastography, Needle Enhancement, and high-frequency linear probe capabilities for image-guided procedures and fine-structural imaging. The dual-display architecture reduces keyboard interaction during active scanning, supporting faster examination completion in high-turnover environments. Medigear.uk can provide a full specification comparison between the Revo T1 and Revo T2 for departments evaluating which system best fits their requirements.

23.8-Inch Medical LCD at 1920×1080 Plus 13.3-Inch Integrated Touch Screen

The Revo T2's dual-display architecture — a 23.8-inch medical-grade LCD at 1920×1080 resolution as the primary imaging display, complemented by an integrated 13.3-inch touch screen for operator control — provides the display area, resolution, and interface efficiency required for complex diagnostic imaging in high-volume departments. The 1920×1080 resolution significantly exceeds the Revo T1's 1080×768 resolution, and the additional touchscreen eliminates the workflow interruption caused by keyboard-only parameter management during active scanning.

i3-1215U CPU — Processing Power for Complex Imaging and High-Volume Throughput

The Intel i3-1215U is a modern multi-core processor that provides substantially greater computational capability than the J1900 used in the Revo T1. This processing capacity directly supports elastography colour mapping, high-frame-rate scanning, Auto Trace boundary detection, multi-mode simultaneous display, and sustained performance across a full clinical workday of back-to-back examinations. For high-volume radiology departments where imaging system performance directly affects patient throughput, the i3-1215U is a procurement-relevant specification advantage.

Four Simultaneous Probe Connectors — No Manual Connector Change Between Probe Types

Four simultaneous probe connectors allow four different probe types to be connected and instantly switched between during a complex examination — linear, convex, phased-array, and transvaginal, for example — without requiring manual connector substitution between imaging stages. For complex radiology examinations that use multiple probe types in sequence, this eliminates a time-consuming step that the Revo T1's three-connector architecture requires. The four-probe interface extends further to 4D and high-frequency linear probe types.

192/64 Element Channel Architecture for Premium Beam-Forming

The Revo T2's 192/64 element channel architecture provides greater beam-forming capacity than the Revo T1's 128/64 configuration, supporting improved lateral resolution, extended Doppler range, and more consistent image quality across the six compatible probe types. This element count is particularly relevant for detailed cardiac, vascular, and interventional imaging, where beam-forming precision directly affects diagnostic confidence.

Ergonomically Adjustable Console for Operator Comfort in High-Volume Environments

The Revo T2's 295mm adjustable console height, −75° to +75° monitor tilt, 90° arm rotation, 30° panel tilt, and up/down button control provide comprehensive ergonomic adjustments for operators of varying heights and scanning-position preferences. The rebound keyboard deploys on demand for full manual operation. In high-volume departments where operators scan for extended periods, ergonomic adjustability is a direct occupational health and productivity specification that the Revo T1 does not offer.

CE-Certified Compliance for Hospital Diagnostic Imaging Procurement

CE certification confirms that the Revo T2 meets the requirements of the applicable medical device directive across its full system specification. For procurement teams specifying a premium cart system for a high-volume department, CE compliance provides the governance baseline required for institutional equipment approval. The declaration of conformity and technical file are available through Medigear.uk for governance teams and clinical engineering review.

8G RAM and 256G Storage for Large Case Volumes and Long-Term Archiving

The Revo T2's 8G RAM and 256G hard disk — double the Revo T1's 4G/128G specification — provide the processing and storage capacity required for large case volumes, extended examination storage, and long-term archiving within a departmental scanning environment. For departments where storage capacity and processing stability under high daily case counts are operational requirements, this doubled specification is a direct practical advantage.

TDI and CW Doppler for Advanced Cardiac Assessment Without a Separate System

TDI and CW Doppler are standard features on the Revo T2 — consistent with the Revo T1 — enabling quantitative myocardial velocity assessment and high-velocity valvular Doppler measurement within the primary diagnostic system. For hospitals or clinics requiring advanced cardiac capabilities without a dedicated echo system, this dual-mode cardiac Doppler eliminates the need for a separate platform. At the same time, the i3-1215U ensures sustained performance during cardiac scanning sessions.

Elastography Standard — No Module Upgrade Required

Elastography tissue stiffness mapping is a standard feature on the Revo T2, available without additional module purchase or activation for breast lesion characterisation, liver fibrosis assessment, thyroid evaluation, and musculoskeletal imaging. For departments where elastography is a non-negotiable requirement, including it as a standard Revo T2 feature reduces the total cost of ownership compared to systems that charge for elastography as an add-on module.

Element Channel: 192/64

The Revo T2's 192/64-element channel architecture provides premium beam-forming capability across all six compatible probe types, supporting the image quality required for complex diagnostic, cardiac, vascular, and interventional imaging.

CPU: Intel i3-1215U with 8G RAM and 256G Hard Disk

Modern multi-core i3-1215U processing, 8G RAM, and 256G storage provide the computational and storage capacity required for high-volume departmental scanning with complex imaging modes, large case archives, and sustained performance throughout extended clinical workdays.

Main Display: 23.8-Inch Medical LCD, 1920×1080

The 23.8-inch medical-grade LCD at 1920×1080 resolution provides the display area and resolution required for detailed diagnostic imaging review, elastography colour mapping, Doppler waveform analysis, and fine structural assessment across all probe types and imaging modes.

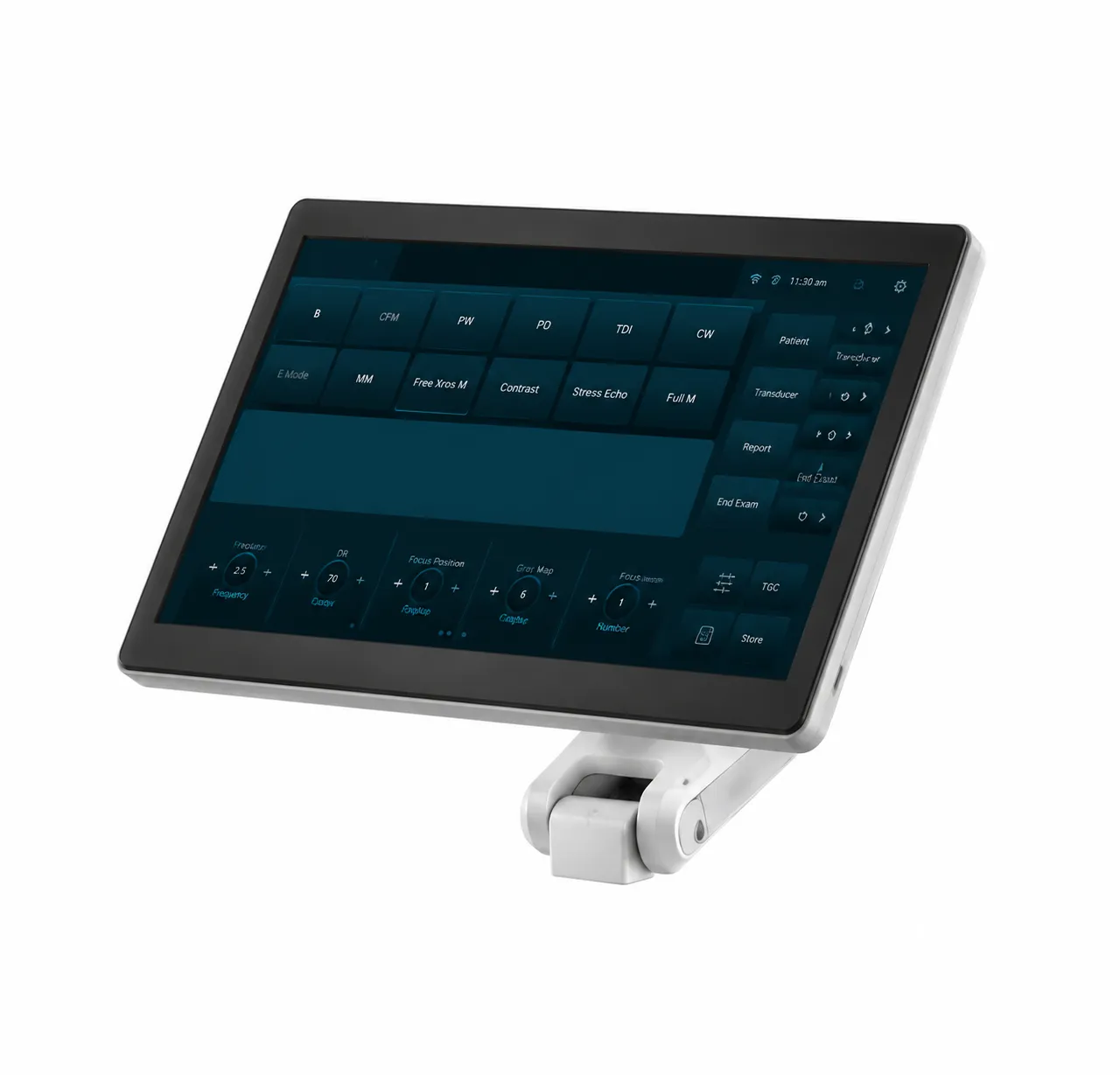

Secondary Display: 13.3-Inch Integrated Touch Screen

The integrated 13.3-inch touch screen provides a dedicated operator control interface for parameter adjustment, mode selection, and patient data management, reducing dependence on the keyboard during active scanning and improving workflow efficiency in high-volume environments.

Probe Connectors: 4 Simultaneous Connections

Four simultaneous probe connectors allow four probe types to be connected and instantly switched between without manual connector changes — reducing examination interruptions in complex multi-probe diagnostic workflows.

Linear Probe L12-5L40H: 5.0–10.0 MHz (+ H8.0–H12.0 MHz)

The L12-5L40H covers 5.0, 7.5, 8.5, and 10.0 MHz with harmonic modes at H8.0, H9.0, H10.0, and H12.0 MHz — the highest harmonic frequency in the Revo T2 probe range, providing near-field resolution for thyroid, breast, and vascular imaging.

Convex Probe C5-2R60N: 2.5–6.0 MHz (+ H3.6–H6.0 MHz)

The C5-2R60N covers 2.5, 3.5, 4.0, 5.0, and 6.0 MHz with harmonic modes at H3.6, H4.0, H5.0, and H6.0 MHz, addressing the full range of adult abdominal, obstetric, and deep pelvic imaging requirements.

Phased Array Probe P4-2L15SI: 2.0–4.0 MHz (+ H3.2–H4.0 MHz)

The P4-2L15SI covers 2.0, 3.0, and 4.0 MHz, with harmonic modes at H3.2, H3.6, and H4.0 MHz, for cardiac sector imaging, and is supported by the Revo T2's TDI and CW Doppler modes for advanced echocardiographic assessment.

Micro-Convex Probe C5-2R20N: 2.5–6.0 MHz (+ H3.6–H6.0 MHz)

The C5-2R20N provides a small-footprint convex probe for paediatric, neonatal, and intercostal imaging where the standard convex probe aperture is too large for the target window.

Trans-Vaginal Probe C9-5R10N: 4.0–9.0 MHz (+ H7.0–H9.0 MHz)

The C9-5R10N covers 4.0, 5.0, 6.5, 8.0, and 9.0 MHz with harmonic modes at H7.0, H8.0, and H9.0 MHz for trans-vaginal gynaecological and first-trimester obstetric imaging.

Trans-Rectal Probe L12-5L60N: 5.0–10.0 MHz (+ H8.0–H12.0 MHz)

The L12-5L60N covers 5.0, 7.5, 8.5, and 10.0 MHz for transrectal prostate and lower bowel imaging, with harmonic imaging up to 12.0 MHz.

12 Imaging Modes Including TDI and CW Doppler

The complete mode suite — B/2B/4B/BM/M/CM/CF/PW/PDI/DPDI/TDI/CW — covers all diagnostic, cardiac, vascular, and obstetric imaging requirements, with Triplex mode enabling simultaneous structural and flow imaging within a single frame.

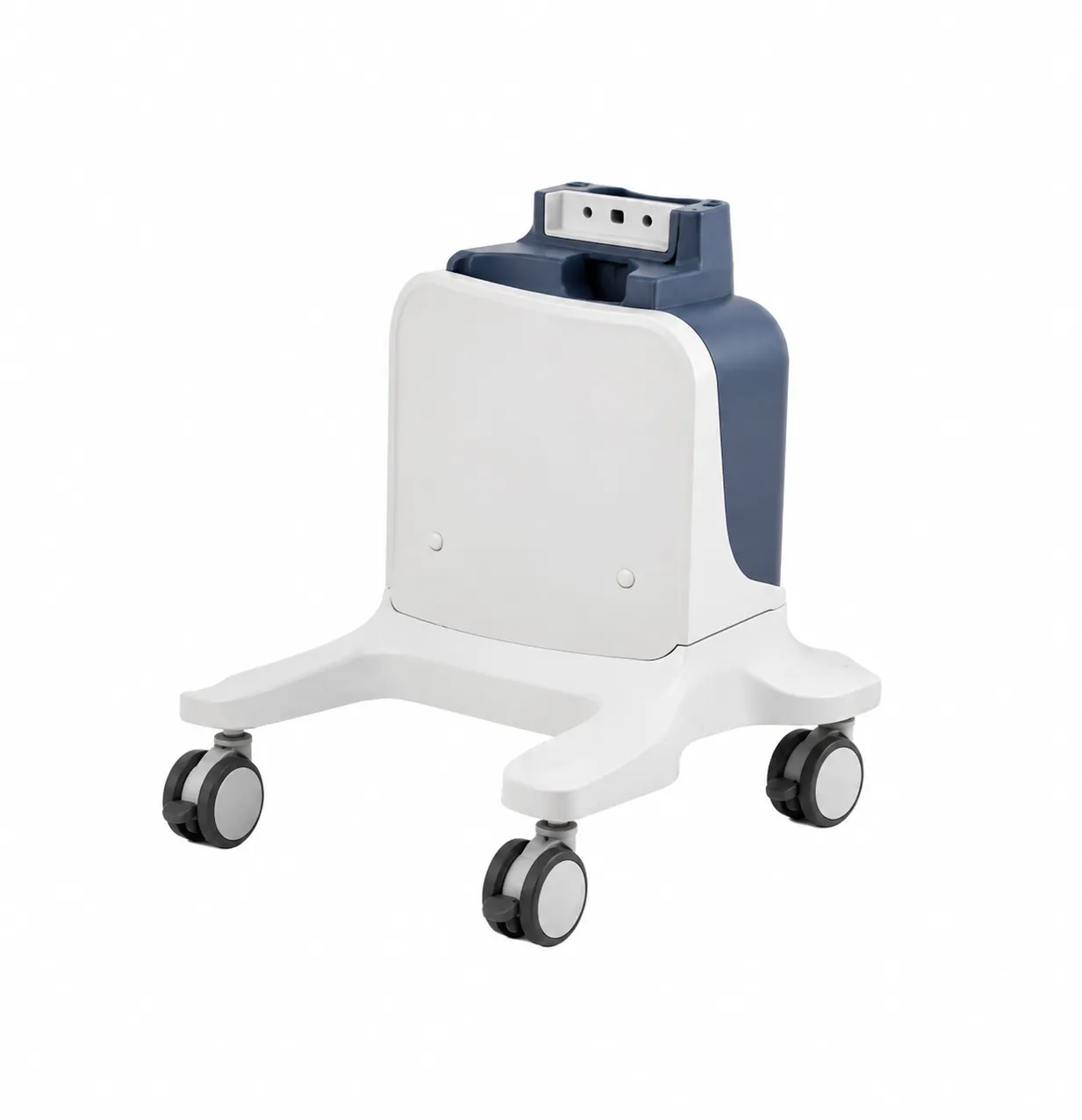

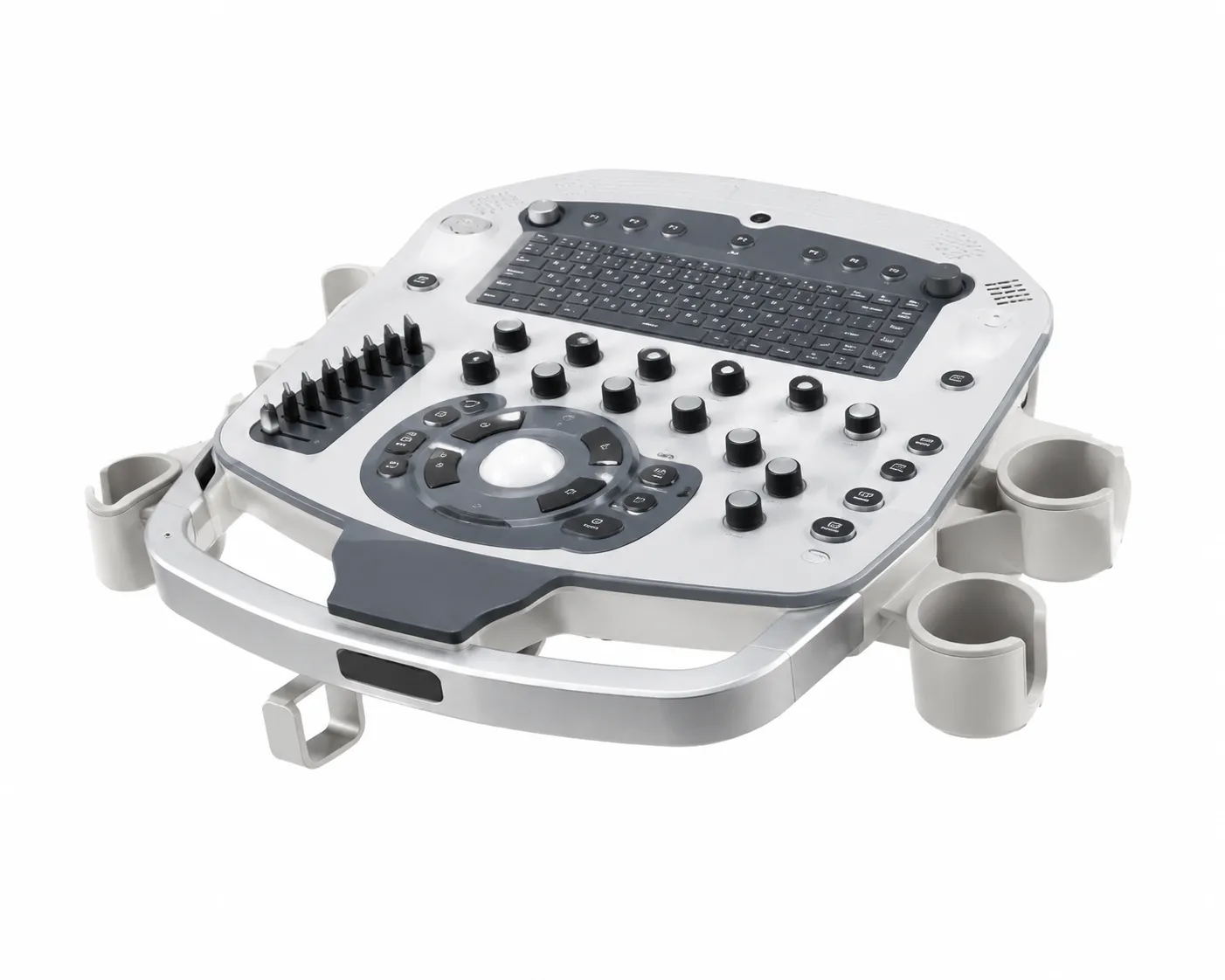

Ergonomic Console: Up/Down Button, 295mm Height Range, Rebound Keyboard

The motorised up/down console height adjustment (295mm range), −75° to +75° monitor tilt, 90° arm rotation, 30° panel tilt, and rebound keyboard provide comprehensive ergonomic adjustments for operators of all heights and scanning-position preferences in high-volume departments.

The Periodmed Revo T2 diagnostic ultrasound system is a CE-certified full-cart platform designed for high-volume hospital radiology departments, obstetric and gynaecological services, cardiac and vascular units, and specialist diagnostic centres requiring premium imaging performance. Its 192/64 element channel architecture, Intel i3-1215U CPU, 23.8-inch medical LCD at 1920×1080, integrated 13.3-inch touch screen, four simultaneous probe connectors, 12 imaging modes including TDI and CW Doppler, standard elastography, comprehensive fetal and cardiac measurement packages, and ergonomically adjustable console deliver the highest-specification cart ultrasound in the Periodmed diagnostic portfolio. Whether you're specifying a primary department system for a high-volume radiology service or moving from the Revo T1, the Revo T2 offers a verified, CE-certified, clinically complete diagnostic imaging solution. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
