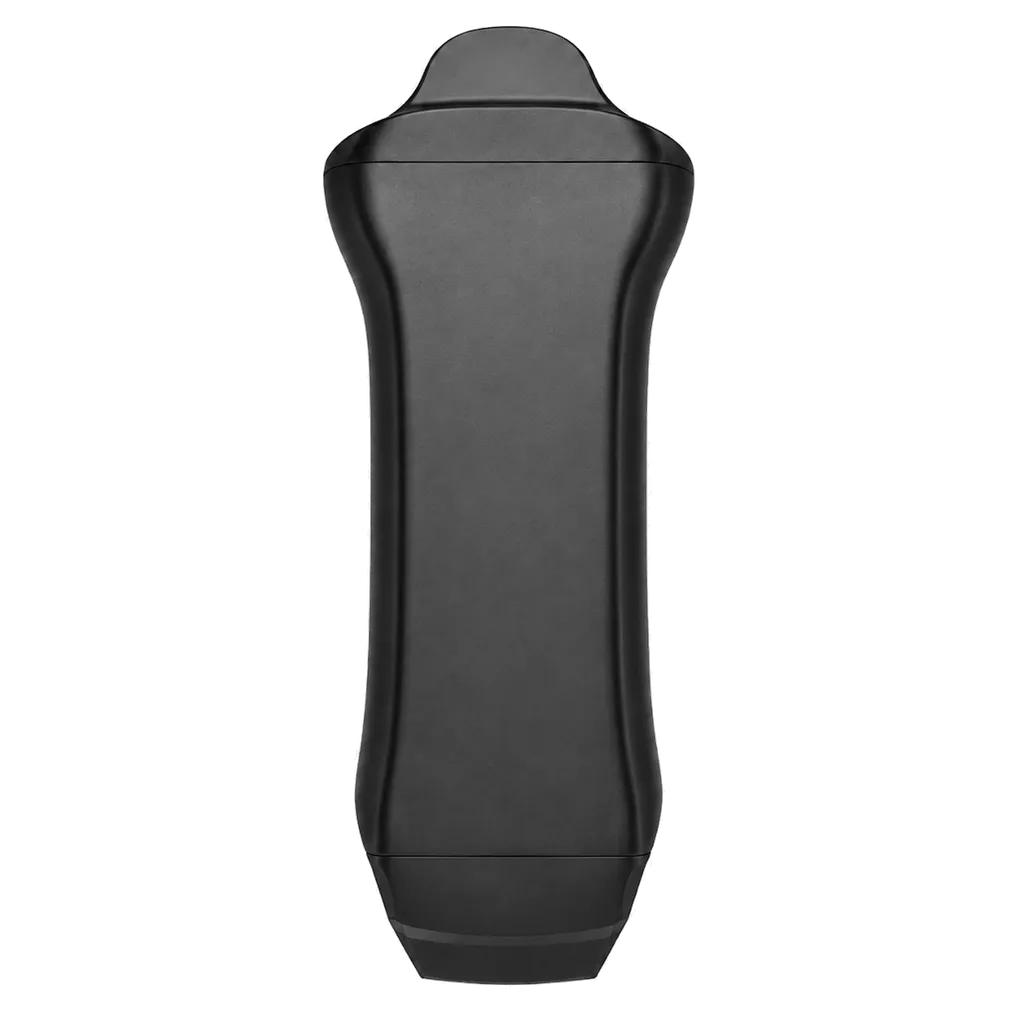

Periodmed PIU2B

Community vascular services and primary care vascular nurses represent a primary deployment setting for the PIU2B. Carotid duplex screening, peripheral arterial and venous assessment, and post-operative vascular monitoring are achievable without cart access or fixed imaging infrastructure. PW Doppler to ±100 cm and colour flow to ±48 cm cover standard adult vascular Doppler in any location. Medigear.uk supports community vascular procurement with full specification documentation and volume pricing for mobile clinical fleet purchasing.

Community procedural services — including nurse-led injection clinics and outreach biopsy services — benefit directly from Needle Enhancement mode across the PIU2B's full frequency range. Peripheral nerve blocks, vascular access, joint injections, and tissue biopsies require consistent needle tip visualisation wherever the procedure takes place — in a GP practice, a community clinic, or a patient's home. The PIU2B's CE certification, 229 g weight, and IPX7 waterproofing support procedural use across all these environments. Each procedural buyer group is a distinct community market segment supported through Medigear.uk.

Breast and thyroid screening programmes use the PIU2B's upper frequency range — 10.5 and 12.0 MHz with H12 MHz harmonic mode — for nodule characterisation, lesion assessment, and lymph node evaluation in community diagnostic centres and mobile screening units away from hospital radiology. The 128-element array delivers lateral resolution appropriate for TIRADS and BIRADS-aligned clinical reporting. Medigear.uk can advise on DICOM workflow integration for community diagnostic reporting environments.

Musculoskeletal and physiotherapy practitioners use the PIU2B for tendon, joint, and soft tissue assessment across community clinics and domiciliary settings. The 3200 mAh battery recharged in 60 minutes and Android/iOS/Windows compatibility make the PIU2B fully deployable without mains access. Medigear.uk provides purchasing support and after-sales guidance for the full Intelligent Series product range.

Needle Enhancement Mode for Safe Procedural Imaging in Any Setting

Needle Enhancement digitally improves needle and cannula visibility in real time across the PIU2B's full 5.0–12.0 MHz frequency range, supporting guided nerve blocks, vascular access, joint injections, and tissue biopsies wherever the procedure takes place. For community and outreach practitioners, consistent needle tip visualisation outside a procedure room environment is a patient safety requirement that the PIU2B delivers without restriction or additional equipment. Medigear.uk stocks the PIU2B as a ready-to-deploy procedural imaging solution for community and mobile clinical buyers.

CE-Certified for Community, Mobile, and Outreach Clinical Deployment

CE certification confirms that the PIU2B meets the applicable medical device directive requirements throughout its full specification and is suitable for clinical deployment in any setting — hospital, community, mobile, or outreach. This is the primary compliance requirement for clinical equipment governance in all these contexts, and the PIU2B satisfies it without restriction. The declaration of conformity and technical documentation are available through Medigear.uk for community governance and procurement review.

3200 mAh Battery for All-Day Community and Outreach Use

The 3200 mAh battery reaches full charge in 60 minutes via wireless induction, with 43% restored in 30 minutes — enabling a full community visiting day of scanning without returning to a fixed charging point. For home visiting practitioners, mobile clinic teams, and outreach services operating in locations without consistent mains access, this charge performance is essential for operations. Medigear.uk can advise on charging accessories and deployment logistics for field-based community use.

229 g — Light Enough for a Clinical Bag, Durable Enough for Daily Field Use

At 229 g with IPX7 waterproofing, the PIU2B is built for the physical demands of field-based clinical practice — carried in a bag between visits, used in non-clinical environments, and disinfected by submersion between patients without fixed clinical infrastructure. For community organisations procuring imaging equipment for daily field deployment, the PIU2B's weight and durability specifications are as important as its imaging performance.

Harmonic Imaging at H10 and H12 MHz for Near-Field Clarity in Any Environment

Harmonic modes at H10 and H12 MHz reduce artefacts and improve tissue boundary definition at near-field depths, extending the PIU2B's diagnostic capability in challenging near-field imaging scenarios encountered in community and outreach practice — such as suboptimal lighting, patient positioning constraints, and variable acoustic conditions. This is particularly relevant for thyroid, breast, and peripheral nerve imaging in non-clinical environments where optimising acoustic coupling is more demanding than in a hospital ultrasound room.

PW Doppler to ±100 cm — Full Vascular Linear Doppler in a Pocket-Sized Device

PW Doppler extending to ±100 cm provides the velocity coverage required for carotid, upper and lower limb arterial and venous Doppler without aliasing. For community vascular services, this means a full-capability vascular linear Doppler assessment available at the patient's location without scheduling a hospital outpatient appointment or transporting the patient to imaging. Medigear.uk can confirm that the range meets specific community vascular workflow requirements.

Android, iOS, and Windows Compatibility — Works on Any Device the Practitioner Already Carries

The PIU2B connects wirelessly to any smartphone, tablet, or laptop without a proprietary display terminal. For community practitioners who already carry a tablet for patient records or consultation documentation, the PIU2B integrates directly without adding a separate display device to the clinical bag. DICOM output supports remote image transfer to hospital PACS or community diagnostic reporting systems. Medigear.uk supports IT governance documentation for community diagnostic DICOM integration.

Scalable Supply for Community Organisations, Mobile Clinic Networks, and Outreach Programmes

The PIU2B is available through Medigear.uk for individual practitioners to purchase and for bulk supply to community health organisations, mobile clinic networks, and outreach programmes. OEM arrangements help branded products reach distribution partners in the community and primary care diagnostic markets. Whether you choose to equip a single community nurse practitioner or standardise a regional outreach imaging fleet, Medigear.uk provides the supply chain flexibility and commercial support you need.

Part of the Full Intelligent Series Portfolio Through Medigear.uk

The PIU2B is one of eight Intelligent Series models available through Medigear.uk — alongside convex (PIU1A/1D/2A), phased-array (PIU1C/2E/2F), and the complementary PIU1B linear model. Community organisations building a complete wireless diagnostic imaging capability can source the full portfolio through Medigear.uk, with consistent CE documentation, after-sales support, and procurement terms across all models in the Intelligent Series range.

128-Element Linear Transducer

The PIU2B's 128-element linear array provides the element density and aperture required for diagnostic-grade beam-forming across a 20–150 mm depth range, enabling harmonic imaging at H10 and H12 MHz and the ±100 cm PW Doppler range required for adult vascular clinical work in any deployment environment.

Fundamental Frequency Range: 5.0–12.0 MHz (Five Selectable Frequencies)

Five selectable fundamental frequencies — 5.0, 7.5, 9.0, 10.5, and 12.0 MHz — span the full resolution-penetration range required for superficial linear imaging across vascular, musculoskeletal, thyroid, breast, and peripheral nerve applications in community and mobile settings.

Harmonic Imaging Modes: H10 and H12 MHz

Harmonic modes at H10 and H12 MHz improve tissue contrast and boundary definition at near-field depths — extending the PIU2B's diagnostic capability in the suboptimal acoustic conditions sometimes encountered in non-clinical community and outreach environments.

Imaging Depth: 20–150 mm

A 20–150 mm depth range covers all clinically relevant superficial anatomy across adult community and outreach imaging applications, from subcutaneous structures at 20 mm to deeper fascial compartments, peripheral vessels, and musculoskeletal structures at 150 mm.

Dynamic Range: 36–120 dB

A consistent 36–120 dB dynamic range across all seven frequency modes ensures predictable image contrast throughout clinical workflows in any environment — a consistency requirement when the same device is used across diverse community and outreach deployment locations.

Gain: 1–100%

Full 1–100% gain adjustment across all imaging and Doppler modes gives each practitioner complete brightness control for individual patients, tissue types, and the variable ambient conditions of community clinical practice.

8-Segment Time Gain Compensation (TGC)

Eight independent depth-zone TGC controls allow gain correction at each tissue level, compensating for attenuation across the 20–150 mm depth range without affecting overall gain — a standard requirement for diagnostic-grade superficial and vascular imaging in any setting.

Single Optimised Transmit Focus

The PIU2B uses a single transmit focus optimised for the linear probe's superficial imaging depth range, providing consistent beam quality across the 20–150 mm clinical window without requiring operator selection between focus positions — reducing the setup burden in non-specialist community deployment contexts.

PW Doppler Range: ±5 cm / ±100 cm

Two selectable PW Doppler ranges — ±5 cm for near-field small-vessel flow assessment and ±100 cm for carotid and peripheral arterial Doppler — provide full vascular linear Doppler capability in any community or outreach deployment setting, without aliasing in standard adult presentations.

Colour Flow Doppler Range: ±3 cm / ±48 cm

Two colour flow ranges — ±3 cm for near-field small-vessel mapping and ±48 cm for broader superficial vascular colour flow — allow precise velocity-scale matching across the PIU2B's community vascular and procedural applications.

Needle Enhancement Mode

Needle Enhancement mode is available across the full 5.0–12.0 MHz frequency range of the PIU2B, improving needle visibility in real time during guided procedures in any setting — from a community clinic procedure room to a patient's home or a mobile unit. This mode directly supports the safe delivery of guided procedures by community and outreach practitioners outside hospital environments.

Display Modes: B, CF, PW, M, PDI, DPDI, Needle Enhancement

The full mode set covers all standard diagnostic and Doppler requirements for community vascular, superficial, musculoskeletal, and procedural linear imaging. The mode suite is consistent across all Intelligent Series models, reducing cross-training requirements for organisations deploying multiple models.

Spot Reduction: On/Off

Switchable spot reduction reduces speckle noise, improving the visual clarity of tissue boundaries and vessel interfaces — useful during thyroid, breast, and vascular imaging in the variable acoustic and environmental conditions of community and outreach practice.

3200 mAh Battery with 60-Minute Wireless Fast Charging

The 3200 mAh lithium cell reaches full charge in 60 minutes via wireless induction, with 43% restored in 30 minutes — supporting all-day community and outreach deployment without mains dependency. Wireless charging eliminates exposed contacts, maintaining IPX7 housing integrity throughout the device's field operational lifetime.

IPX7 Waterproof and Dustproof Enclosure

IPX7 certification enables full submersion disinfection in any clinical environment — a particularly relevant capability for community practitioners who may not have access to the full infection-control infrastructure of a hospital. The dustproof classification protects internal components in the varied and sometimes challenging environments of field-based clinical practice.

Android, iOS, and Windows Wireless Connectivity with DICOM, BMP, and JPG Output

Wireless connectivity to Android, iOS, and Windows removes the need for a proprietary display unit — the practitioner uses the device they already carry. DICOM output supports remote transfer to hospital or community PACS. BMP and JPG support telemedicine, referral documentation, and patient consultation records from any location. Medigear.uk supports IT governance documentation for community DICOM integration.

The Periodmed Intelligent PIU2B wireless colour Doppler ultrasound is a CE-certified, 128-element linear probe from the Intelligent Series designed for community health, outreach, mobile clinical, and remote deployment across vascular, breast, thyroid, musculoskeletal, and procedural imaging applications. Its 5.0–12.0 MHz frequency range with H10 and H12 MHz harmonic modes, Needle Enhancement, PW Doppler to ±100 cm, IPX7 waterproof rating, and 3200 mAh fast-charging battery deliver diagnostic-grade linear imaging in a 229 g device that operates on any Android, iOS, or Windows platform without fixed infrastructure. Whether equipping an individual community practitioner, a mobile clinic fleet, or a regional outreach programme, the PIU2B provides a verified, CE-certified, and field-ready linear imaging solution. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
