Nubway S200

Product Code: DAA-LAET-4071

One session moves from cavitation to vacuum RF without changing machines.

Cavitation at 60 kHz works the waist and flanks first; then vacuum RF with infrared and multipolar RF at 1, 5 or 8 MHz carry the same appointment on. Seven handles stay plugged into one tabletop console.

Sections

Radiofrequency & Ultrasound Devices

Categories

Dermatology & Aesthetics

Condition

New

Origin

China

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

The S200 from Nubway is a tabletop body and face contouring console built for clinics and salons that combines fat-reduction and skin-tightening steps in one appointment. Nubway lists 60 kHz ultrasonic cavitation through an 80 mm array and radio frequency at 1, 5 or 8 MHz with 300 W of continuous output. Infrared from a laser diode and vacuum to 82 kPa complete the four technologies, on 500 W across seven handles. The S200 has no cooling plates, muscle stimulation or needles.

Workflow is the defining feature. All seven handles stay plugged into sockets along the front, so the operator moves from cavitation over the waist and flanks to vacuum R,d then to multipolar RF on the face without reconnecting anything or fetching a second machine. The photographed screen shows four adjustable dials and a start button for the stage in hand. A combined appointment therefore runs as one sequence at one couch, with gel and handles laid out before the client arrives.

Nubway's component list names a Japanese solenoid valve, an Italian air pump, a triple-frequency RF supply from Japan and an infrared laser diode from a US maker. The vacuum RF handle combines multipolar RF, suction and infrared for face and body, and the multipolar RF handle comes in three sizes. The photographed console carries a 12.1-inch landscape touchscreen, handle racks on both sides of a central tray and a front row of seven sockets beside one larger connector. Nubway offers 220 V and 110 V versions.

The quotation pack lists unit dimensions, weight and any trolley option. Buyers in more than 80 countries can order through Medigear.uk, and the enquiry team provides stock and lead times.

The S200 suits aesthetic clinics, beauty salons, medspas, and slimming studios that build packages around the waist, flanks, abdomen, thighs, and upper arms. Cavitation targets fatty areas, vacuum RF follows over the same zones to firm and smooth the skin, and the smaller multipolar handles deliver RF to the face and neck. Clients near their goal weight with a stubborn local area are the natural audience, and the tabletop format suits rooms without floor space for a tower.

Published trials of the combination are small but consistent in direction. In one five-week controlled study, women on a low-calorie diet who also received RF and cavitation of the abdomen and flanks reduced abdominal circumference by 9 per cent, compared with 5 per cent on diet alone. A 2025 study in Korean women recorded smaller waist and superficial fat measurements after combined ultrasound contouring and RF, though visceral fat did not change. Neither used the S200, so the figures describe the combination and not this console.

Combined appointments need a clear routine. Each client is screened, measured and photographed at the start of a course, with consent recorded for every technology used, and the same measurements are repeated at agreed intervals. Electrical safety testing and PUWER 1998 duties cover the console, and the infrared laser class sets any further room controls. Group buyers that purchase through procurement teams normally review the device file at the tender stage. The conformity documentation required for those procurement routes is issued by the manufacturer and shared by the enquiry team.

Every handle plugged in from the start

Seven handles stay connected to the front sockets all day. Moving to the next stage means lifting a different handle and selecting it on screen.

Fat and skin stages in one appointment

Cavitation, vacuum RF and multipolar RF run in sequence at the same couch. Clients book one appointment for the whole combined plan.

Three RF frequencies from one supply

The RF supply outputs 1, 5 or 8 MHz. Operators match heating depth to the area without changing equipment.

A wide cavitation array for broad areas

The 80 mm cavitation array covers large zones such as the abdomen and thighs in fewer passes. Bigger areas fit within a standard booking.

Handles sized from face to body

Nubway supplies the multipolar RF handle in three sizes. Small heads reach the jaw and around the eyes, and larger heads cover the body.

A console for compact rooms

The photographed S200 sits on a worktop with its handles racked beside the screen. Rooms with no space for a floor-standing tower can still offer combined contouring.

Progress that can be measured

Waist and area measurements taken at the start and at set points give clients a clear record. Those figures support honest conversations about modest, gradual change.

Settings for each stage on one screen

The 12.1-inch touchscreen shows a body figure, four adjustable dials and a start button. Operators set each stage from the same place.

Ultrasonic cavitation at 60 kHz

Nubway says the cavitation handle runs at 60 kHz. It treats fatty areas with a coupling gel layer.

80 mm cavitation array

Nubway quotes an 80 mm diameter array on the cavitation head. Its size suits broad body zones.

RF at 1, 5 and 8 MHz

A triple-frequency RF supply outputs three fixed frequencies. Lower settings heat deeper, and higher ones work closer to the surface.

300 W continuous RF output

RF power reaches 300 W in a continuous output mode. Settings change with the handle and the area.

Vacuum up to 82 kPa

Nubway lists a vacuum of 82 kPa, printed as 82 kp. Suction lifts tissue into the vacuum RF head during treatment.

Infrared laser diode

The infrared source is described as a laser diode from a US maker. The label and documentation state its BS EN 60825-1 class.

Vacuum RF handle

This handle combines multipolar RF, suction and infrared. Nubway presents it for both face and body work.

Multipolar RF handles in three sizes.

The multipolar RF handle with infrared comes in three sizes. Each size suits a different scale of area, from face to body.

Seven handles in total

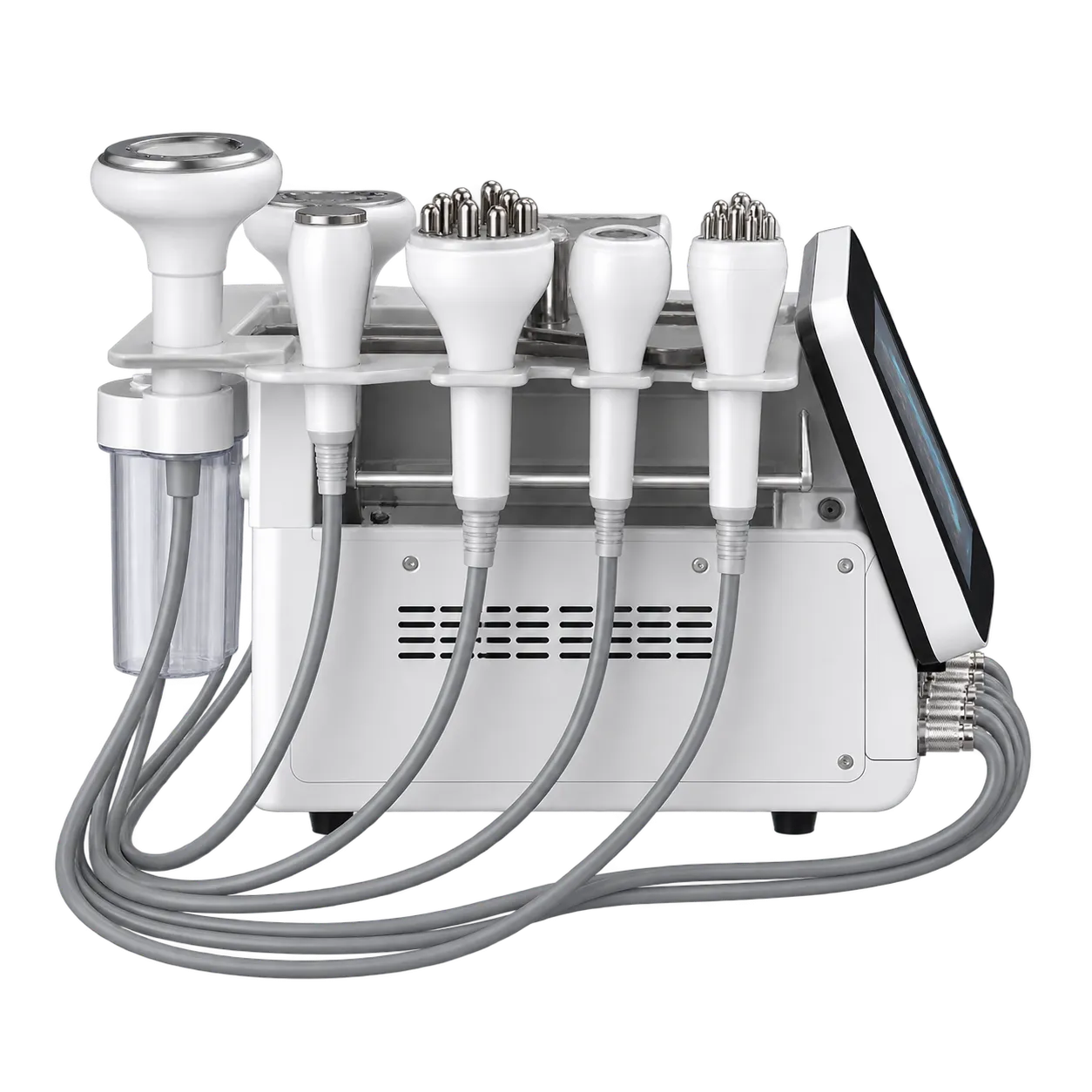

Nubway's specification lists seven handles. The photographed console holds them on racks either side of a central tray.

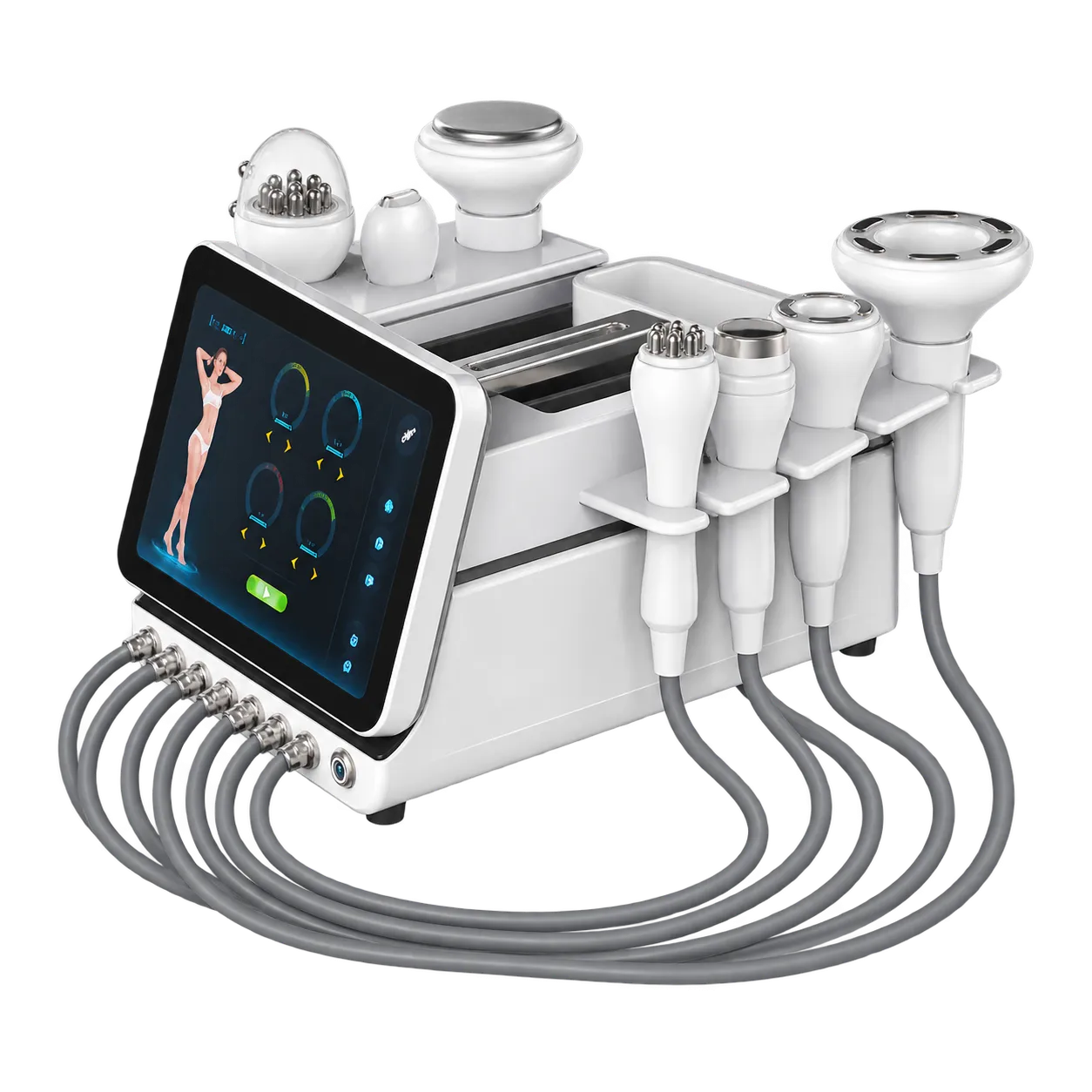

12.1-inch touchscreen

The landscape touchscreen shows a body figure, four dials with adjustment arrows and a green start button. Side icons select functions.

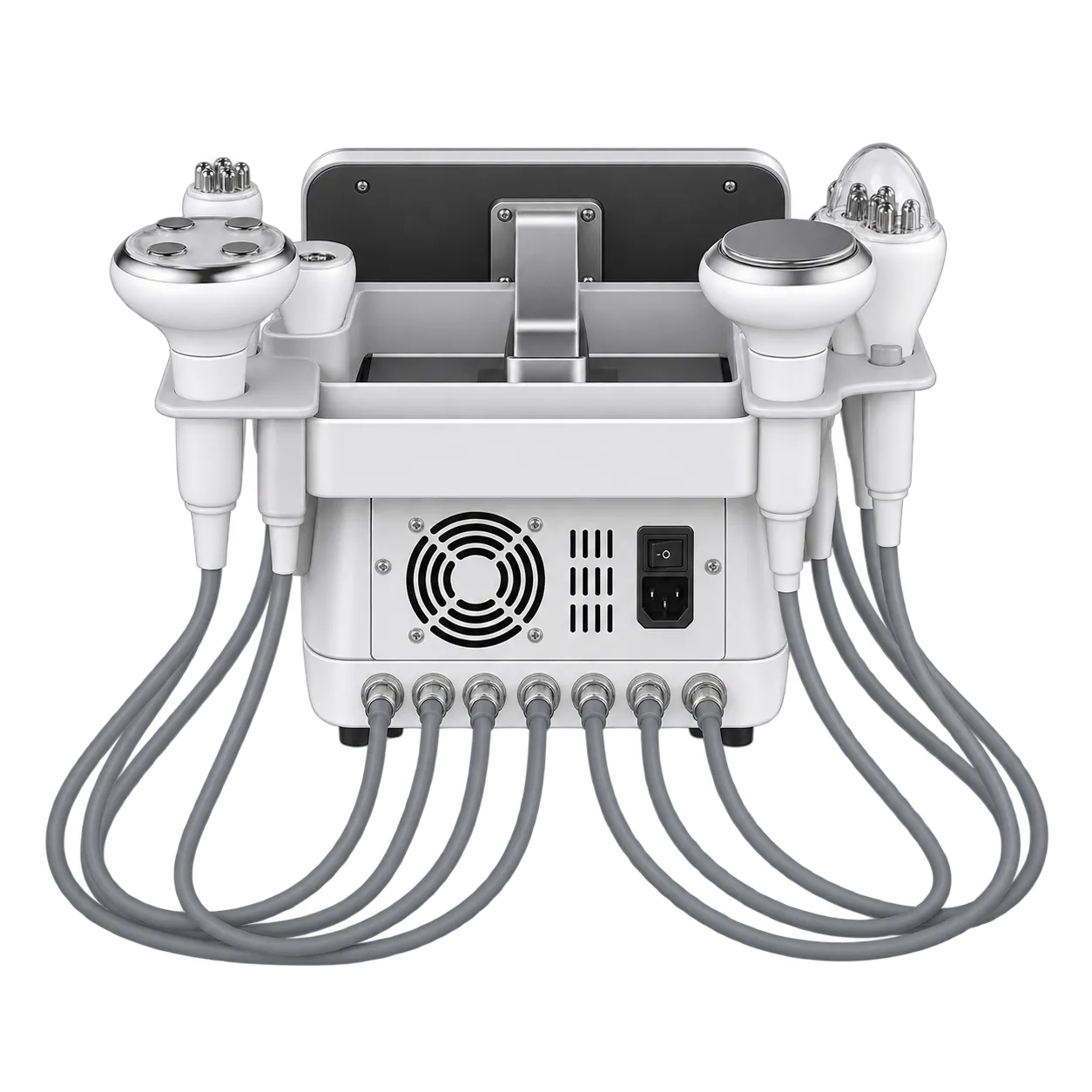

Front socket row

Seven round sockets and one larger connector line the front of the console. Each handle cable plugs in there, keeping the work surface clear.

Named components

Nubway lists a Japanese SMC solenoid valve, an Italian air pump and a Japanese triple-frequency RF supply. The service manual covers their maintenance.

500 W power on 220 V or 110 V

Total power is 500 W, and Nubway lists 220 V and 110 V versions. One ordinary wall socket powers the console.

The S200 suits clinics, salons and slimming studios that sell combined fat-reduction and skin-tightening appointments from a compact room. Its case is workflow: seven connected handles let one operator run cavitation, vacuum RF and multipolar RF as a single sequence on one couch. It suits practices expecting large or permanent fat loss, or clients who need medical weight management. Settle the handle list and frequencies, the infrared laser class and whether a trolley ships before ordering. Medigear.uk lists the S200 for business buyers worldwide and can arrange delivery, installation, commissioning, familiarisation and service cover. Ask the enquiry team for the laser class details, the declaration of conformity with its standards list, the instructions for use and the S200 configuration sheet before ordering.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

Three handle types make up the set of seven. The cavitation handle carries an 80 mm array at 60 kHz for broad fatty areas. The vacuum RF handle pairs suction with multipolar RF and infrared for face and body, and the multipolar RF handle with infrared comes in three sizes from face to body. The S200 configuration sheet lists all seven handles and the frequency each uses.

A typical protocol measures and photographs the area first, then runs cavitation over the fatty zone, follows with vacuum RF across the same skin and finishes with multipolar RF where tightening is wanted. Because every handle stays connected, switching between stages means picking up the next handle and selecting it on screen. The manual and Nubway's training set the stage timings for each area.

Lower radio frequencies generally heat deeper tissue, and higher ones concentrate heat nearer the surface. A choice of 1, 5 and 8 MHz therefore lets the operator match heating depth to the area, from broad body zones to thinner facial skin. The configuration sheet assigns a frequency to each handle.

A 2025 study of combined ultrasound contouring and RF in Korean women recorded an average waist reduction of 3.83 cm, with no measurable change in visceral fat. An earlier five-week trial found larger circumference losses when the two technologies were added to a low-calorie diet than with the diet alone.—present results as modest, gradual and paired with diet and exercise.

Nubway describes the infrared source as a laser diode. Every laser product carries a class under BS EN 60825-1, and that class decides whether eyewear, local rules and other laser controls apply in the room. The class appears on the product label and in the manufacturer's documentation, which the enquiry team shares.

Common exclusions for cavitation and RF include pregnancy, an implanted pacemaker or defibrillator, metal implants in the treatment area, liver or kidney disease, wounds or skin infection, and an operation within recent months. Clients with clotting disorders or on anticoagulants need care around suction. The instructions for use list the exclusions that apply to this console.

Cavitation and RF heads need an even layer of coupling gel to maintain contact, and the gel is replenished as each area dries. Wipe and disinfect every head that touches skin between clients with a product the manual approves. Vacuum heads also need their suction openings kept clear of gel and debris.

Nubway lists vacuum up to 82 kPa, and heavy suction over delicate skin can cause redness, pinpoint bleeding under the skin or bruises. Low initial suction, constant head movement, and checking the skin after each pass reduce that risk. Clients taking blood thinners need especially gentle settings.

The photographed console stands on a worktop, while MedicalExpo lists the S200 as trolley-mounted, so the quotation states whether a trolley ships. Any treatment room with a couch, power nearby and clear air around the vents will do. Add any controls required by the infrared laser class to that room.

Supplied only for cosmetic contouring, the S200 currently falls outside Great Britain's medical device regulations, and electrical safety legislation governs the console. Where it is supplied for a medical purpose, the S200 is typically Class IIa under UK MDR 2002, or higher depending on use, as stated on the manufacturer's declaration of conformity, which the enquiry team shares. Equipment that both reduces fat and treats skin with RF can fall within Annex XVI groups 4 and 5 for Northern Ireland and EU buyers, and both groups are classed as IIb for that market. Conformity requirements differ by destination market, and the enquiry team shares the manufacturer's documentation for the country the unit is going to.

Each London borough licenses electrical treatments as special treatments, with conditions attached to the premises. In England, radio frequency sat in the amber, medium-risk tier of the government's 2023 licensing proposals for non-surgical cosmetic work, and the regulations have still to be laid. Scottish, Welsh and Northern Irish rules are set separately, so their own authorities check each premises.
