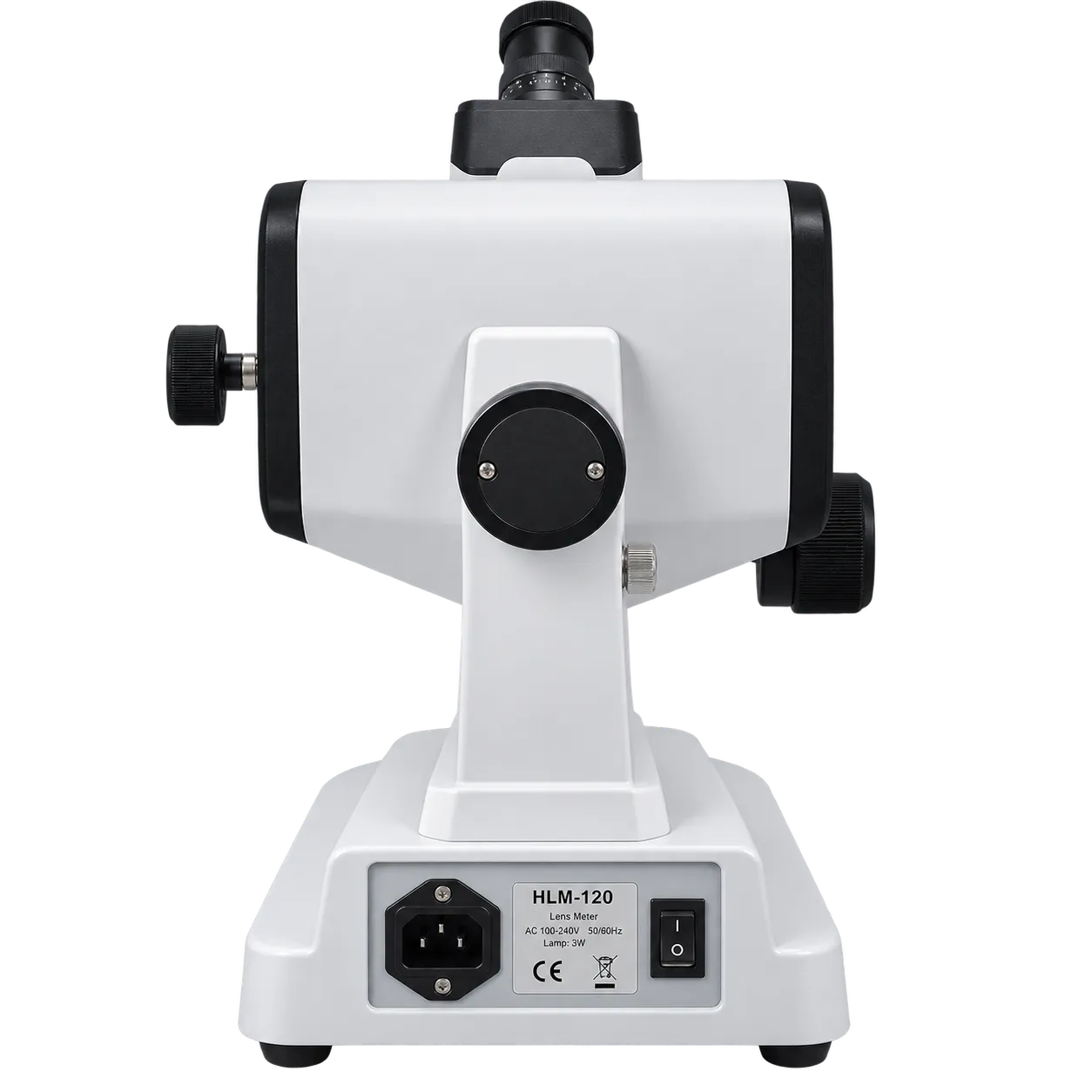

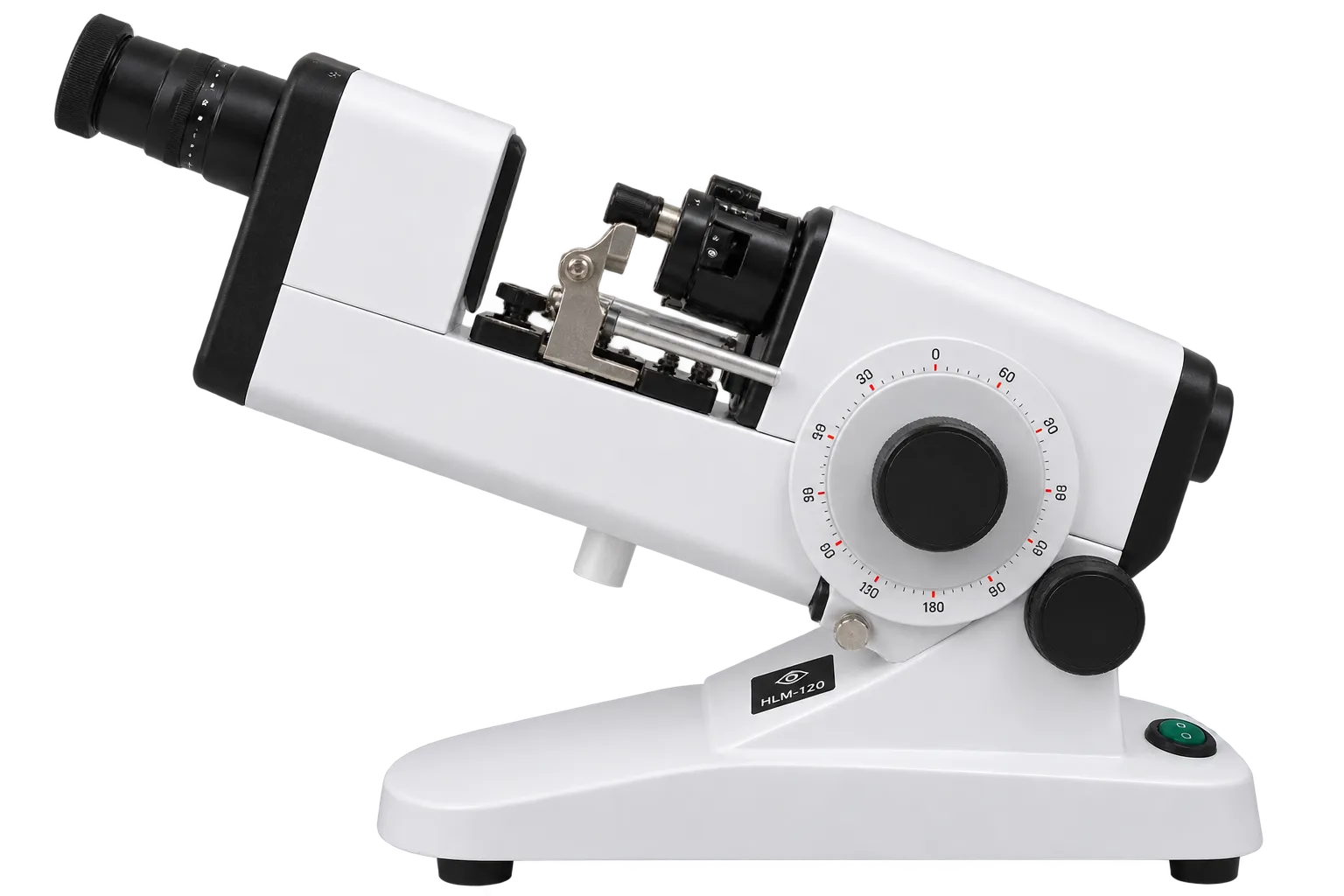

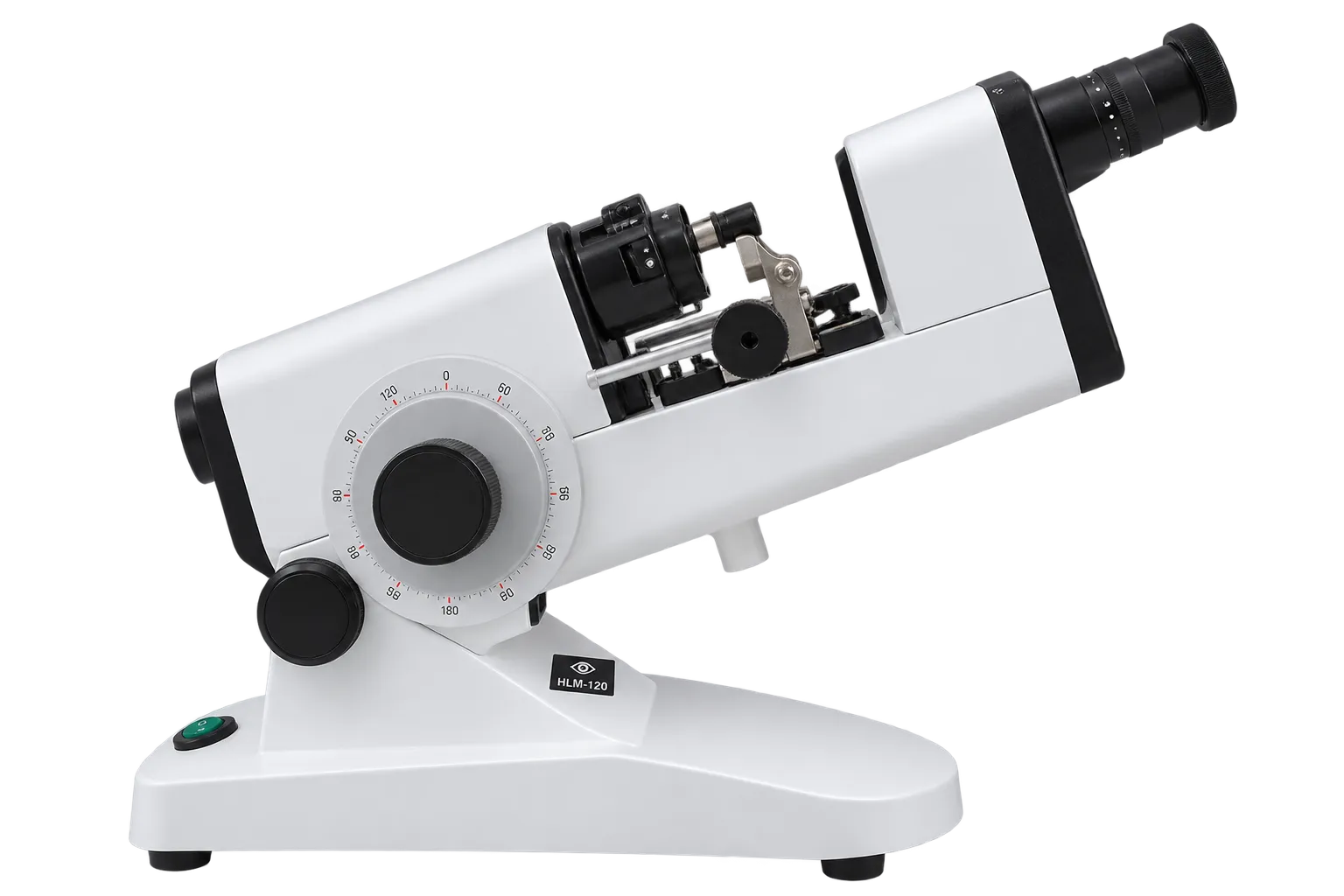

LINK HLM-120

Teaching and Student Training

An optical instrument that requires the operator to align the target and read graduations teaches what a focimeter measurement actually is. Students who learn this way understand sphere, cylinder, axis and prism as things observed rather than numbers that appear on a screen. For training practices and colleges the instrument earns its place on that basis alone, and the adjustable eyepiece means a class of students with differing eyesight can each work at the same instrument comfortably.

Second Bench and Fallback Provision

Practices operating from one instrument have no fallback when it is unavailable. A compact optical unit at 4kg provides continuity without occupying meaningful space or requiring elaborate setup. Verification continues, patients are not asked to return another day, and the practice keeps its checking routine intact during a period when it would otherwise lapse entirely.

High Prism Prescription Work

With the compensation device engaged, prismatic power reads to 20 prism dioptres in single dioptre graduations, and base angle across the full 0 to 180 degree range. Patients managed for binocular vision anomalies can carry substantial prism, and having an instrument that measures it in single dioptre steps keeps that work within the practice instead of treating each case as an exception requiring outside help.

Domiciliary and Multi-Site Working

Portability at 4kg opens up working patterns that a heavier powered unit rules out. Practices covering more than one site, or running domiciliary sessions, can take genuine verification capability with them rather than deferring every check until returning to the main premises. The compact 275mm by 120mm by 430mm footprint packs readily for transport.

Straightforward and Long-Lived

An instrument built around optics and graduated scales has few components that can fail in the way electronic assemblies do. For practices that value equipment continuing to work predictably over many years, mechanical and optical simplicity is a real virtue rather than a limitation. There is correspondingly little to configure, and nothing that needs setting correctly before a reading can be trusted. Simplicity also keeps the instrument usable in rooms where power provision is limited.

Teaches What It Measures

Because the operator aligns the target and reads the scale, the relationship between what the lens does and what gets recorded stays visible throughout. That is valuable for training, and it remains useful afterwards: an optician who has learned to read a focimeter optically tends to interpret any lens measurement more critically, and is quicker to notice when a figure looks implausible. That habit of scrutiny stays with an operator long after the training itself.

Portable Verification Capability

Four kilograms and a compact footprint make the instrument genuinely transportable. Verification stops being tied to one bench in one building, which suits multi-site practices, domiciliary work and teaching sessions held away from the main premises. Few powered bench instruments can be picked up and carried to where the work happens to be that day. Capability that travels is capability that gets used.

Optical Reading Through the Eyepiece

The operator observes the target directly and reads graduated scales. Nothing interprets the measurement on the way, which means the reading depends on the optics and the observer rather than on a processing stage.

Measurement to Twenty-Five Dioptres

The range covers zero to plus or minus 25D, with outer reading resolving to a minimum of 0.125D. That span reaches well beyond routine dispensing into stronger prescriptions.

Graduated Inner Reading

Inner reading provides 0.125D graduations from zero to plus or minus 5D, changing to 0.25D graduations from 5D through to 25D, so resolution is finest where most prescriptions actually sit.

Prism Compensation to Twenty Dioptres

Prismatic power reads from zero to 5 prism dioptres directly, and the compensation device extends this to 20 prism dioptres in 1 dioptre graduations. Substantial prism stays measurable.

Wide Field of Vision

A wide observation field assists target viewing, which makes judging the position of the mires less demanding on the operator and helps when working for extended periods.

Adjustable Eyepiece

Eyepiece adjustment across plus or minus 5D lets each operator set focus to their own eye. Where several people share an instrument, that adjustment prevents one person's setting degrading another's reading.

Broad Objective Lens Acceptance

Objective lens diameter from 16mm to 86mm accommodates small and large lenses alike, covering rimless work at one end and generous frames at the other.

Compact and Genuinely Portable

At 275mm by 120mm by 430mm and 4kg, the instrument moves between rooms or premises easily. Weight of this order makes a second location practical rather than theoretical.

The LINK HLM-120 manual focimeter measures finished lenses the direct way, with the operator sighting through the eyepiece and reading graduated scales. It covers zero to plus or minus 25D, with outer reading to a minimum of 0.125D and inner reading graduated at 0.125D up to 5D and 0.25D from there to 25D. Cylinder axis reads across 0 to 180 degrees, prismatic power from zero to 5 prism dioptres directly, and from zero to 20 prism dioptres with the compensation device in use, with base angle across the full range.

A wide field of vision assists observation, the eyepiece adjusts across plus or minus 5D to suit each operator, and objective lens diameter from 16mm to 86mm accepts small and large lenses alike. At 275mm by 120mm by 430mm and 4kg the instrument suits teaching, second bench provision, prism work and portable use. Supply arrangements and bulb specification are best confirmed rather than assumed, as are certification status, condition, available variants and reseller and listing rights for the manufacturer trademark. An optical instrument of this kind holds its usefulness for many years, so it is worth establishing the exact configuration at the outset. Speak to Medigear.uk, a verified medical equipment supplier, and we will confirm exactly what a given unit includes before you commit to it.
