Jiadun Medical JD-YLC7-02

One handset. Seven movements. The whole bed answers to a single thumb.

Every position this bed reaches sits under one wired handset — backrest to 75°, legs to 40°, powered height, Trendelenburg both ways and full left-right frame tilt. Moulded grab openings in the guardrails let patients contribute to the rest.

Sections

ICU & Electric Beds

Categories

Hospital Furniture & Fixtures

Condition

New

Origin

China

Seller Type

Certified Professional Seller

Size:

2040 × 960 × 480 mm

CE & ISO Certified

Global Shipping

Supplier: Medigear

The JD-YLC7-02 from Hengshui Jiadun Medical Equipment is a seven-function electric hospital bed built around a single corded handset. Backrest elevation through 0–75° (±5°), leg-section elevation through 0–40° (±5°), powered deck height, whole-frame forward and backward tilt, and whole-frame left and right tilt all run from that one control, driven by a medical-grade actuator set. Consolidating every movement into a single pendant matters on a busy ward: staff learn one device, and the same control reaches a nurse standing at either side of the bay without walking round the frame.

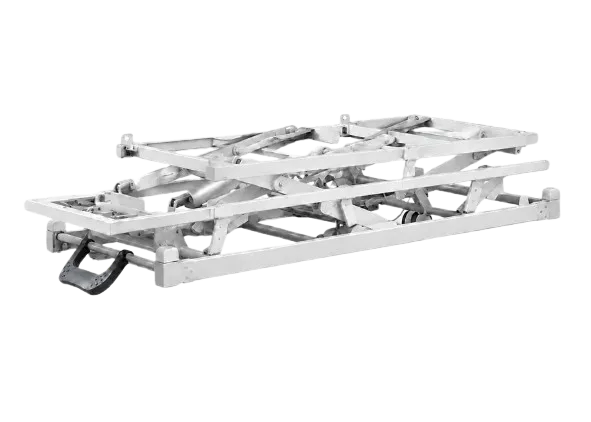

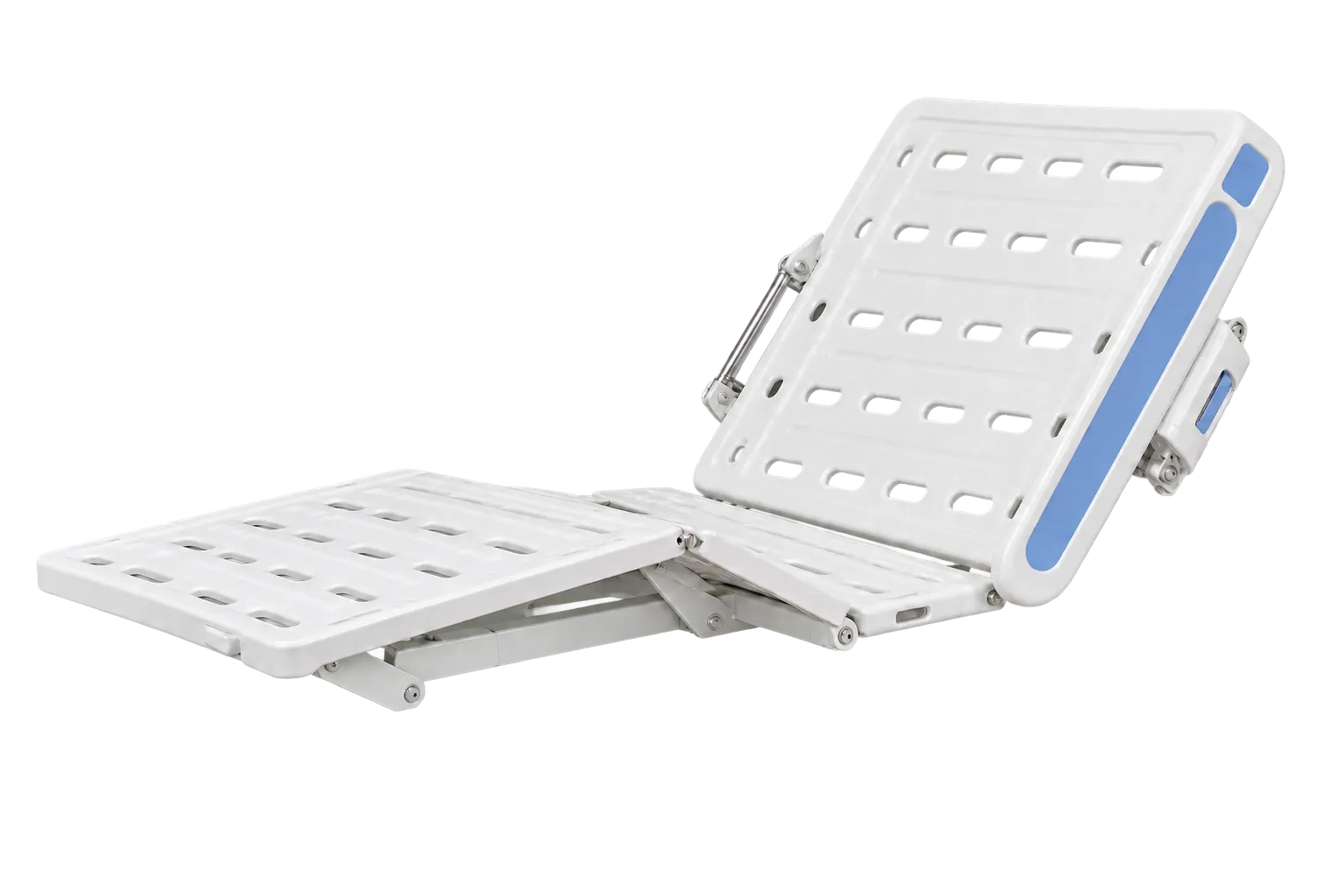

The four-section deck carries moulded ABS head and tail boards that lift clear for emergency access, and four short-length ABS guardrails fitted two per side. Each guardrail carries a moulded grab opening at its upper edge, giving patients a defined hand position for repositioning and supervised egress rather than leaving them to grip the rail's top rail edge or reach for furniture. Head and tail boards carry the same moulded openings for handling during bed moves.

Four drainage hooks sit at frame level for catheter and wound-drainage bags, and a stainless steel infusion stand locates into the corner sockets. Mobility runs on castors governed by a central control wheel and central braking system, so one pedal action locks or releases the whole bed.

The deck measures 2040 × 960 mm overall at a published height of 480 mm, sized for standard UK ward mattresses and pressure-redistributing replacements. Medigear.uk supplies the JD-YLC7-02 to UK hospitals, private clinics, and care groups, with a declaration of conformity, technical file, and current UKCA position confirmed at quotation.

The JD-YLC7-02 suits UK settings where positioning is frequent, staffing is stretched and control simplicity matters more than feature count. In acute medical and surgical wards — around 117,500 adult beds across NHS England — powered backrest and leg articulation cover routine semi-Fowler nursing, post-operative recovery and respiratory support. In contrast, powered height sets a safe working level that limits cumulative back loading across a shift.

In high-dependency and intensive care areas, the tilt functions carry the clinical weight. Forward and backward whole-frame tilt deliver Trendelenburg and reverse Trendelenburg for circulatory management, aspiration risk reduction and procedural positioning. Department of Health critical care design guidance identifies electric operation, Trendelenburg capability and compatibility with pressure-relieving mattresses as baseline expectations for beds in these units.

Tissue viability teams use the left- and right-tilt pair for assisted repositioning. Powered lateral movement supports the tilted side-lying positions used to offload the sacrum and greater trochanter, making overnight turning intervals achievable without recruiting extra staff to each turn. It supplements a pressure-redistributing mattress and a documented repositioning plan rather than replacing either.

Rehabilitation and long-stay wards benefit most from the handset-plus-grab-opening combination. A patient who can adjust their own backrest and use the moulded rail openings to reposition is practising the movements that precede discharge, aligning with the early-mobilisation emphasis running through UK rehabilitation practice.

Hospices, care homes and private hospitals regulated by the CQC use the bed for complex and palliative care, where a single intuitive control reduces training burden across rotating and agency staff. Procurement teams working through NHS Supply Chain's pressure area care and patient handling framework, or through trust and ICB routes, should note NICE's late-stage assessment guidance on bed frames for adult acute wards; Medigear.uk supplies the conformity documentation those exercises require.

One control, one training session

Every movement lives on a single corded handset. Wards, running, rotating, and agency staff train on one device instead of a rail panel, pendant, and foot control, which shortens induction and removes the hesitation that slows an urgent Trendelenburg or a rapid height drop.

Patients can take part in their own positioning.ing

Where clinical assessment permits, handing the patient the handset converts a call-bell request into a self-managed adjustment. That reduces interruption load on the team and gives patients back a measure of control over comfort, which matters most on long stays.

Grab openings built into the rail, not bolted to it

The hand openings are moulded into the guardrail body, so there is no bracket to loosen and no aftermarket fitting to fail an inspection. Patients get a defined hand position for rolling and supervised sit-to-stand instead of gripping a rail edge or reaching for furniture.

Seven functions consolidated into one a.sset

Backrest, leg section, height, both Trendelenburg directions and both lateral tilts sit in a single frame. Wards that would otherwise buy a profiling bed plus separate turning equipment consolidate into one asset with one service contract and one spares list.

One pedal locks all four ca.stors

Central braking removes the most common pre-transfer failure — a castor missed under time pressure. Staff engage or release the whole bed from a single control, shortening the safety check and cutting the repeated stooping that four-pedal systems demand.

Integral rails, not aftermarket fittings

The guardrails are designed into the bed. MHRA incident analysis consistently shows third-party rails retrofitted to beds they were never designed for account for the majority of serious entrapment events. Starting from an integrated system removes a whole category of risk before individual assessment begins.

Short rails preserve a route out .of bed

Two short rails per side give barrier protection at head and hip while leaving the mid-bed section clear. Patients able to weight-bear keep an exit route, supporting early mobilisation and easing the pressure to use rails as de facto restraint — a distinction the CQC examines closely.

Documentation supplied for procurement, not promised

Medigear.uk provides the declaration of conformity, certificate scope, standards evidence and current UKCA position with the quotation. Procurement and medical physics teams verify the file before commitment rather than chasing it after delivery.

Seven-function electric drive

Back lift and lower, leg lift and lower, whole-frame forward tilt, whole-frame backwards tilt, whole-frame left tilt, whole-frame right tilt, and overall height adjustment, all from one medical-grade actuator set.

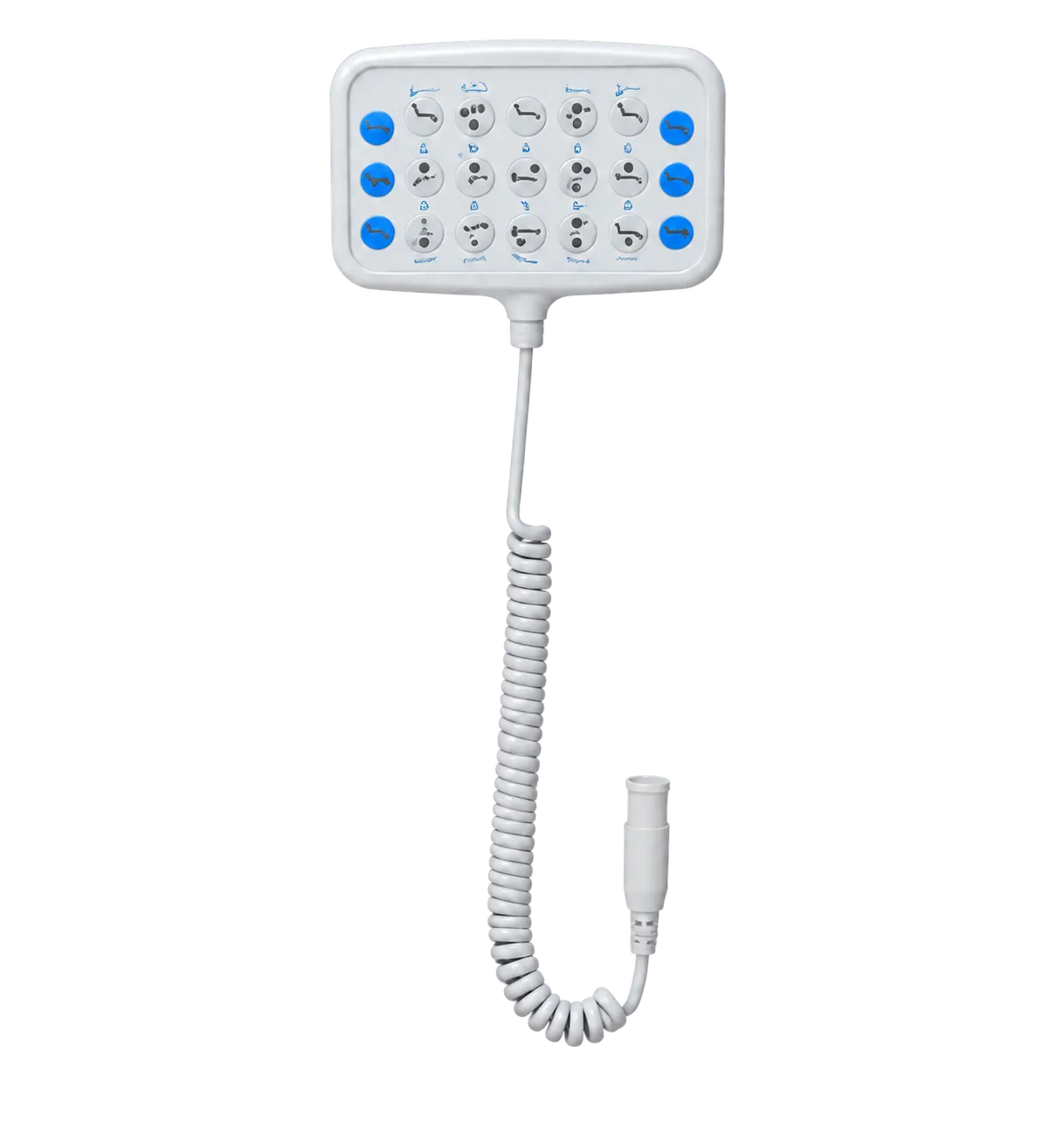

Wired handset control

A single corded pendant drives every movement, reachable from either side of the bed and stowable on the guardrail between uses.

Backrest elevation 0–75° (±5°)

Travel from flat to 75° covers supine nursing through to a near-upright sitting position for feeding, respiratory support and patient interaction.

Leg section elevation 0–40° (±5°)

Independent leg articulation to 40° supports knee-break positioning, oedema management and post-operative limb elevation without disturbing backrest angle.

Whole-frame lateral tilt, left and right

Powered tilt of the complete deck in both lateral directions, giving assisted movement towards side-lying orientation for pressure offloading and hygiene access.

Trendelenburg and reverse Trendelenburg

Forward and backward whole-frame tilt provide head-down and head-up positioning for circulatory management, airway protection and procedural requirements.

Powered deck height adjustment

Full-deck height travel sets a safe working height for staff during care episodes and a lower height for patient egress and falls risk reduction.

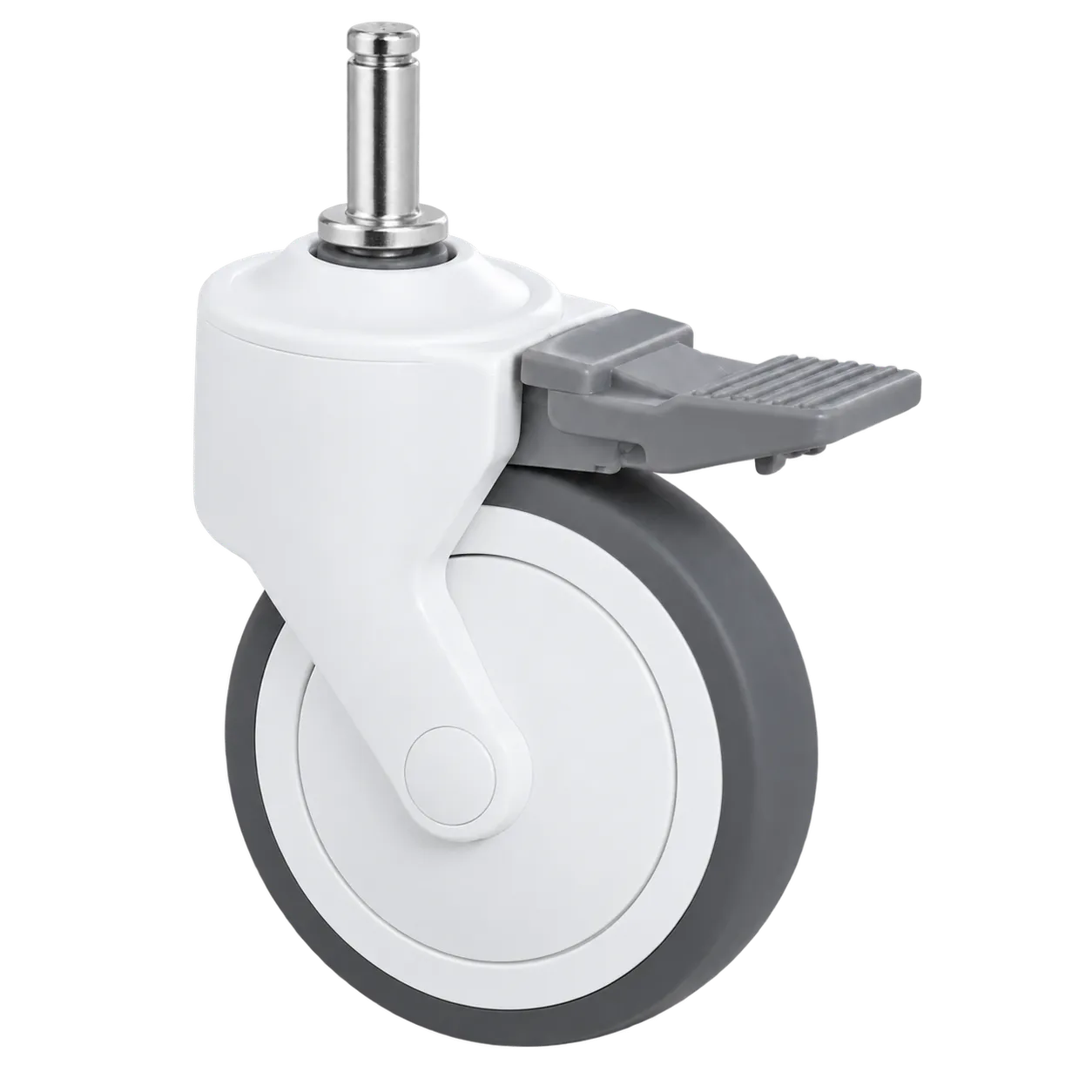

Central control wheel with central braking

A single pedal-linked system locks and releases all castors together, replacing individual castor brakes and shortening the pre-transfer check.

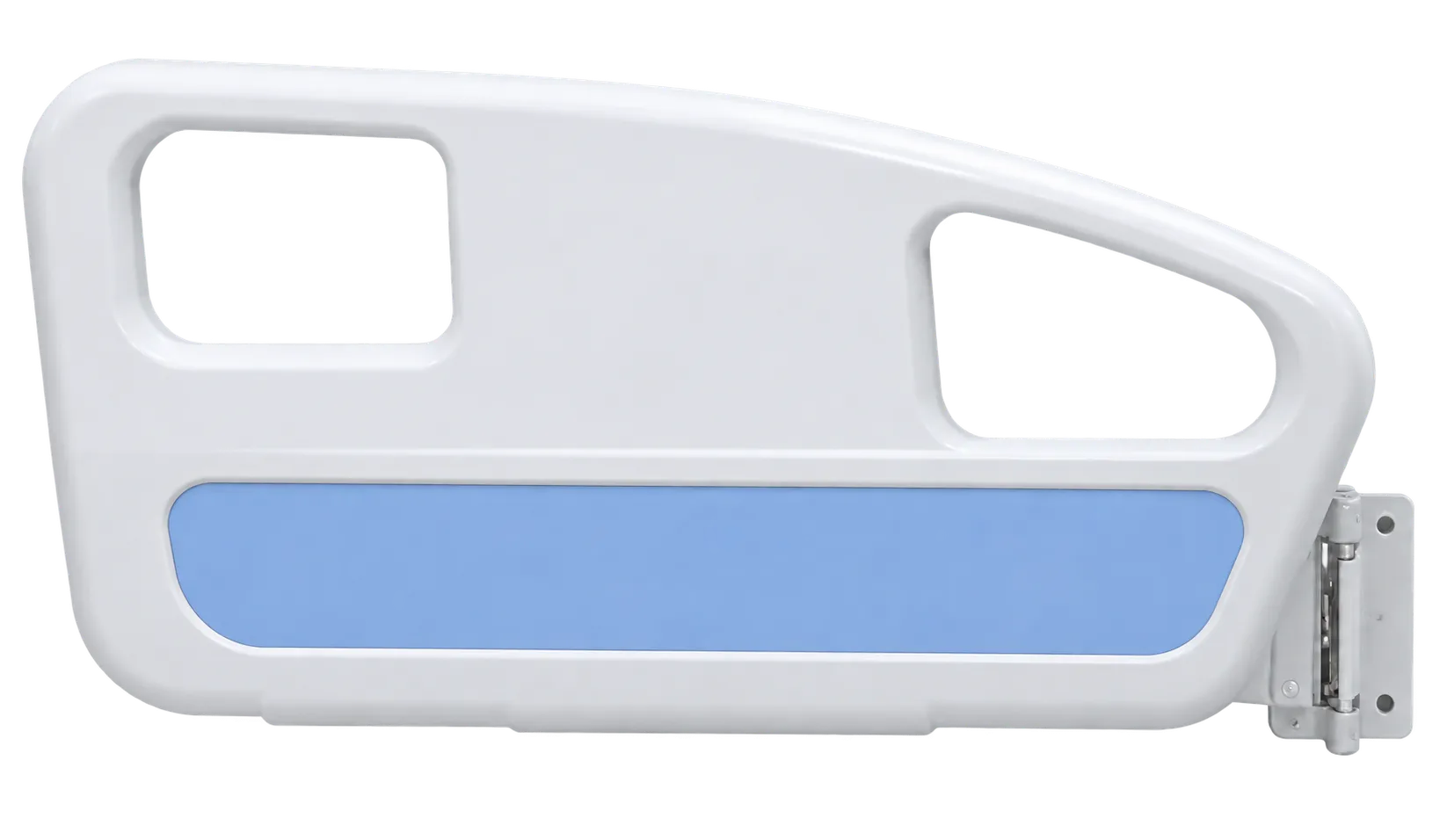

Four ABS guardrails with moulded grab openings

Short-length ABS rails, two per side and integral to the frame, each carrying a moulded hand opening at the upper edge for patient-assisted repositioning.

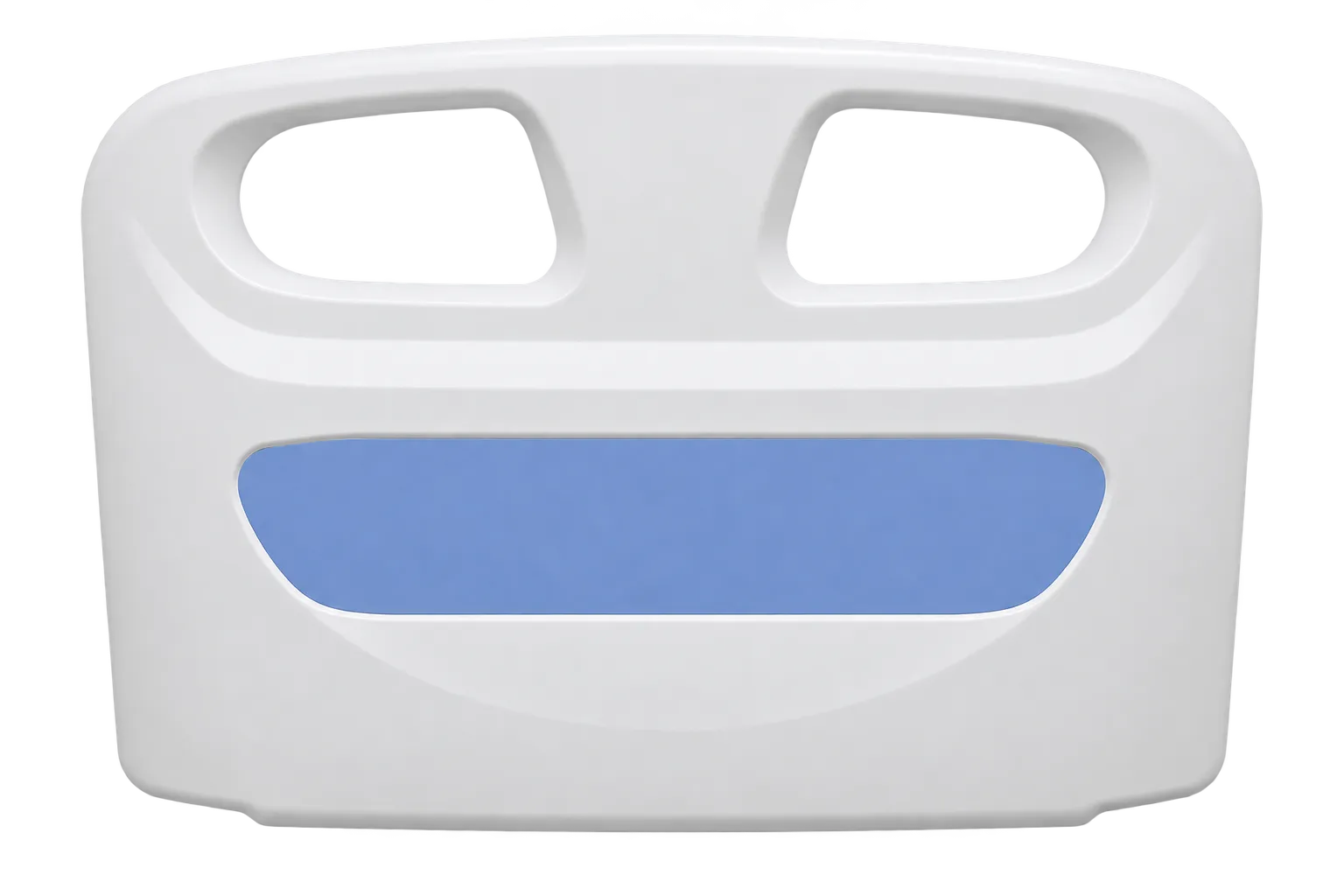

ABS bed head and tail boards

Moulded, wipe-clean boards with handling openings, detachable for emergency access and terminal cleaning, with smooth low-crevice profiles for infection prevention.

Deck footprint 2040 × 960 mm

An overall deck of 2040 × 960 mm at a published 480 mm height, sized for standard UK ward mattresses and high-specification foam, hybrid or alternating-air replacements.

Four frame-mounted drainage hooks

Designated positions for catheter and wound-drainage bags, keeping lines clear of the tilt mechanism and bags positioned below patient level.

Stainless steel infusion stand

Supplied as standard, locating into corner sockets on the frame and repositionable to the working side of the bed.

Single-crate delivery at 2020 × 930 × 480 mm

The bed ships in one crate at approximately 0.90 m³, simplifying goods-in handling, pre-commissioning storage and multi-unit ward refits.

Optional bedside and companion furniture

Mattress, bedside table, dining table and chairs, companion chairs and mobile dining table are available as configured options to complete a bay or side room.

Manufacturer quality system certification

Hengshui Jiadun Medical Equipmentholdss ISO 9001, ISO 14001, ISO 4500,1 and ISO 13485certifications, along withe EU CE certificatio;h certificate scope confirmed at quotation.

The JD-YLC7-02 puts a complete positioning repertoire behind one wired handset: backrest to 75°, legs to 40°, powered height, Trendelenburg in both directions and full left-right frame tilt, on a 2040 × 960 mm deck. Integral short-length ABS guardrails with moulded grab openings, central braking, four drainage hooks and a stainless steel infusion stand round out a bed that arrives ready for the bay. It fits acute and high-dependency wards, intensive care areas, rehabilitation and long-stay units, hospices and CQC-regulated care groups — anywhere control simplicity, patient participation and safe manual handling carry equal weight. Medigear.uk supplies the JD-YLC7-02 across the UK with conformity documentation, configuration options and service support. Contact our team for a quotation, multi-unit pricing, a mattress compatibility review, or a bespoke configuration.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The corded handset drives all seven movements: backrest raise and lower, leg-section raise and lower, powered height, forward and backward whole-frame tilt, and left and right whole-frame tilt. Whether a patient should hold it is a clinical decision, not a product one. Patients with intact cognition and adequate hand function often benefit from self-adjusting backrest and height — it supports autonomy, reduces call-bell load and encourages independent repositioning. For confused, sedated or high-falls-risk patients, the handset is normally kept under staff control. Confirm the specific lockout arrangement on the supplied handset with Medigear.uk at order, since configurations vary across production batches.

The openings are formed into the ABS guardrail body rather than bolted on, so there is no separate fixing to work loose. They give patients a defined hand position for rolling and for sitting-to-standing under supervision. Two cautions apply. First, they are a repositioning aid, not a transfer pole — a patient who needs to pull their full body weight up should be assessed for a proper transfer aid. Second, a hand opening in a rail is still part of the rail system for entrapment assessment purposes, and the limb-entrapment zones defined in BS EN 60601-2-52 apply to it. Check it with the mattress actually in use.

Adult medical beds for UK acute and community use are assessed against BS EN 60601-2-52:2010+A1:2015, which covers basic safety and essential performance for adult medical beds and sets the dimensional requirements governing entrapment gaps. Castors fall under BS ISO 22882:2016, and general electrical safety under the IEC 60601-1 series. The separate BS EN 50637:2017 specification covers beds intended for smaller adults and children — the JD-YLC7-02 is an adult bed. It is not a substitute where a smaller-anatomy bed is clinically indicated. Medigear.uk confirms the manufacturer's test evidence against these standards at quotation.

Hengshui Jiadun Medical Equipment publishes ISO 9001, ISO 14001, ISO 45001 and ISO 13485 certification alongside EU CE certification for its bed range. That is manufacturer-published positioning rather than an asserted UK regulatory status. Great Britain currently continues to accept CE-marked devices under the extended acceptance arrangements, with UKCA available as the alternative route. Every quotation from Medigear.uk carries the declaration of conformity, the certificate scope and the current UKCA position, so procurement and medical physics teams verify the file rather than take it on trust.

A powered adult hospital bed in this configuration is typically handled as Class I under the UK Medical Devices Regulations 2002, or higher where the specific configuration or intended use alters the risk profile. Classification is confirmed against the manufacturer's declaration of conformity at order rather than assigned by the supplier.

The purchaser is. The four guardrails are integral to the bed rather than third-party fittings, which the MHRA identifies as the safer starting point — retrofitted aftermarket rails account for the majority of reported serious entrapment events. The duty does not end there. MHRA guidance on managing and using bed rails safely, updated in August 2023 and reinforced by the associated national patient safety alert, requires an individual risk assessment before rails are used and re-assessment whenever the bed system changes, including a change of mattress. The NHS classifies chest or neck entrapment in a bed rail as a Never Event.

The 2040 × 960 mm deck accommodates standard UK ward mattresses plus high-specification foam, hybrid and alternating-air replacements within that footprint. Two specification points matter. Mattress depth directly changes the effective guardrail height and therefore the entrapment assessment — a deeper dynamic mattress can drop the exposed rail height below the safe threshold. A dynamic mattress also needs a pump position and mains socket that will not foul the tilt travel or snag the handset cable. Confirm mattress model and pump mounting with Medigear.uk so the combination is assessed as a system.

Treat the handset and its cable as a high-touch item on the same cleaning schedule as the bed rails. Wipe the moulded body with standard ward-grade disinfectant; wipe the cable along its full length, not just the grip, since it contacts bedding and rails throughout a stay. Follow the manufacturer's instructions on fluid ingress — handsets are sealed to a rated standard but are not designed for immersion or spray saturation. Route the cable so it hangs clear of the deck gap during profiling, both for cleaning access and to prevent the cable being pinched by the tilt mechanism.

The bed runs from a standard mains supply. It should be added to the estate's asset register for scheduled electrical safety testing under your trust or provider policy, in line with the IEC 60601-1 series and MHRA device management guidance. Position the socket so the mains lead reaches at full height and full tilt without tension, since the frame moves through its whole travel while plugged in. Where beds share a bay socket run with dynamic mattress pumps and monitoring, check the total load with estates before commissioning.

The bed ships in one crate at 2020 × 930 × 480 mm and approximately 0.90 m³. Because the assembled frame exceeds two metres, plan a two-person handling route and confirm lift dimensions, corridor turning radius and doorway width before delivery. Gross shipped weight is not published in the manufacturer's literature — for upper-floor wards, request the confirmed figure from Medigear.uk and pass it to estates for floor loading sign-off before ordering. Plan a documented annual service covering actuator function, handset and cable condition, brake engagement, rail locking and fastener integrity. Typical warranty in this class runs 12–24 months,as confirmedin thet quotation.
