Jiadun Medical JD-YLC5-02

The JD-YLC5-02 is specified for general inpatient work rather than a single specialist function—the wards where the same five movements are used dozens of times a day across a mixed caseload. Across NHS England's roughly 117,500 adult acute medical and surgical beds, that demand is consistent: sitting patients up for meals, observations, and respiratory comfort; elevating limbs after surgery; and setting a working height that protects the staff delivering care.

In medium-dependency and long-stay areas, powered height is the function that most measurably improves staff outcomes. Cumulative back loading from stooping over a fixed-height bed is a recognised driver of musculoskeletal injury across nursing and healthcare assistant roles, and a bed that rises to the carer then drops for the patient removes that exposure from every episode—the low setting also underpins falls-prevention strategies built on safe egress rather than rails.

Forward and backward frame tilt provide Trendelenburg and reverse Trendelenburg for circulatory management, aspiration risk reduction and procedural positioning, extending the bed's range beyond routine profiling under nursing direction.

Rehabilitation and care of the elderly wards make the most of the guardrail grab openings and the low height setting. A patient who can adjust position using a defined hand hold and step down from a bed set at the right height is practising the movements that precede discharge — aligning with the early-mobilisation emphasis running through UK rehabilitation practice.

Hospices, private hospitals and CQC-regulated providers use the same bed for general inpatient care. Procurement teams working through NHS Supply Chain frameworks or trust and ICB routes should note NICE's late-stage assessment guidance on bed frames for adult acute wards; Medigear.uk supplies the conformity documentation those exercises require.

Height adjustment that protects the people doing the care

Raising the deck to carer height for washing, dressing and wound care removes the stooping behind a large share of nursing back injury. Dropping it for transfers does the same job for the patient. It is the most-used control on the bed and the one with the clearest measurable return.

A frame that dries out instead of holding damp

Perforated deck sections let air move through the platform rather than sealing humidity into the void beneath the mattress. After a spill or a cleaning cycle, that void dries instead of staying wet under a solid panel — a hygiene gain that shows up in cleaning turnaround rather than in a spec line.

Grab openings moulded into the rail, not bolted to it

The hand openings are formed into the guardrail body, so there is no bracket to loosen and no aftermarket fitting to fail an inspection. Patients get a defined hand position for rolling and supervised sit-to-stand instead of gripping a rail edge or reaching for furniture.

One pendant, one training session

Every movement lives on a single corded keypad. Wards and agency staff train on one device, which shortens induction and removes the hesitation that slows an urgent height drop.

One pedal locks all four castors.

Central braking removes the most common pre-transfer failure — a castor missed under time pressure. Staff engage or release the whole bed from a single confirmable action rather than stooping to four separate pedals.

Short rails preserve a route out of bed.d

Two short guardrails per side protect the head and hip zones while leaving the mid-bed section clear. Patients able to weight-bear keep an exit route, supporting early mobilisation and easing the pressure to use rails as de facto restraint — a distinction the CQC examines closely.

Wipe-clean ABS throughout

Moulded ABS boards and rails present smooth, low-crevice surfaces that tolerate routine ward disinfection, and the head and tail boards lift clear for emergency access and terminal cleaning without special consumables.

Documentation supplied for procurement, not promised

Medigear.uk provides the declaration of conformity, certificate scope, standards evidence and current UKCA position with the quotation, so procurement and medical physics teams verify the file before commitment rather than chasing it after delivery.

Five-function electric drive

Back lift and lower, leg lift and lower, overall height adjustment, whole-frame forward tilt and whole-frame backward tilt, all from one medical-grade actuator set.

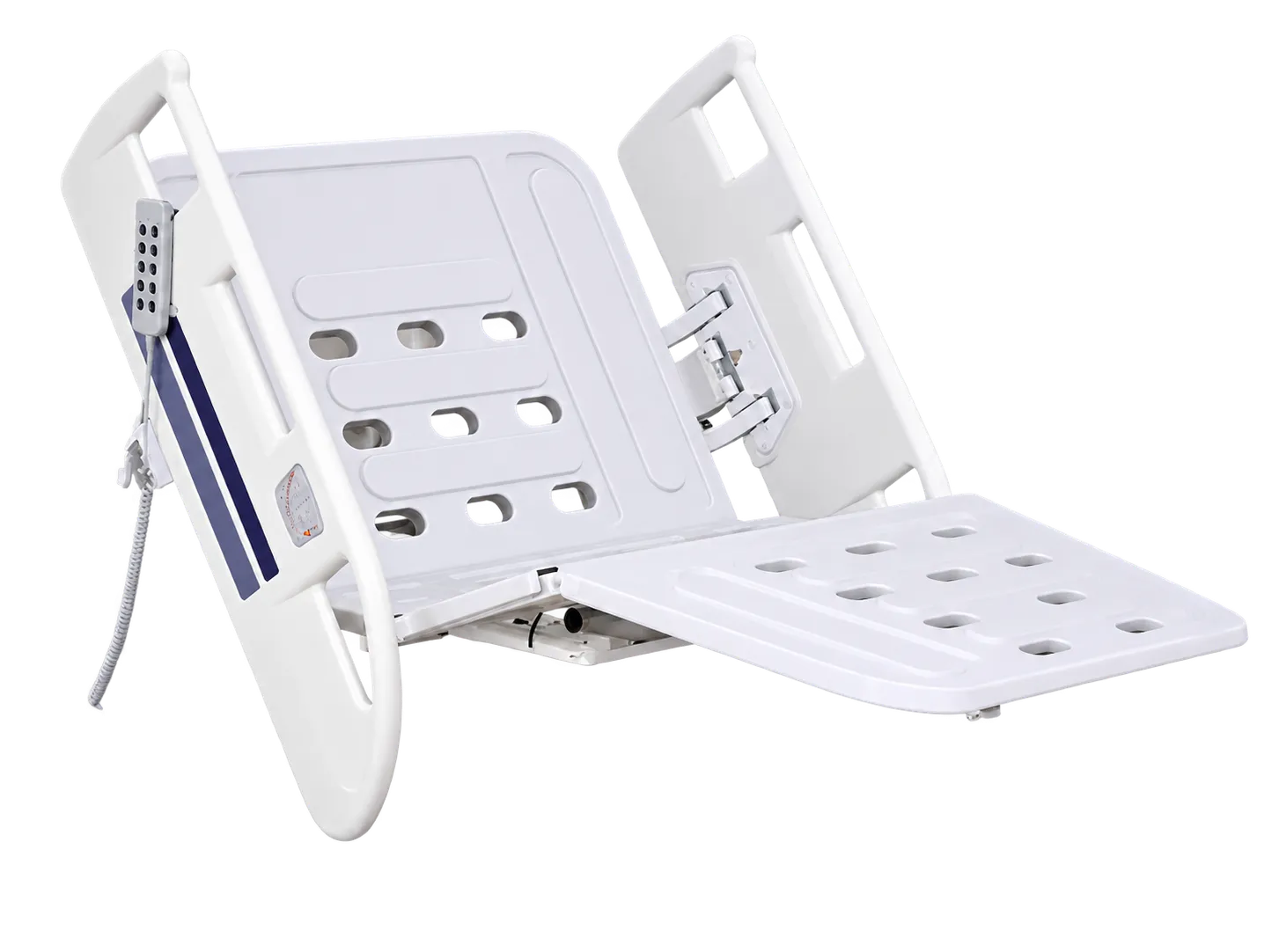

Perforated ABS deck sections

Deck panels formed with through-perforations, allowing air to move into the void beneath the mattress and drying faster after spills and cleaning cycles.

Backrest elevation 0–75° (±5°)

Travel from flat to 75° covers supine nursing through to a near-upright sitting position for meals, observations, respiratory support and patient interaction.

Leg section elevation 0–40° (±5°)

Independent leg articulation to 40° supports knee-break positioning, oedema management and post-operative limb elevation without disturbing backrest angle.

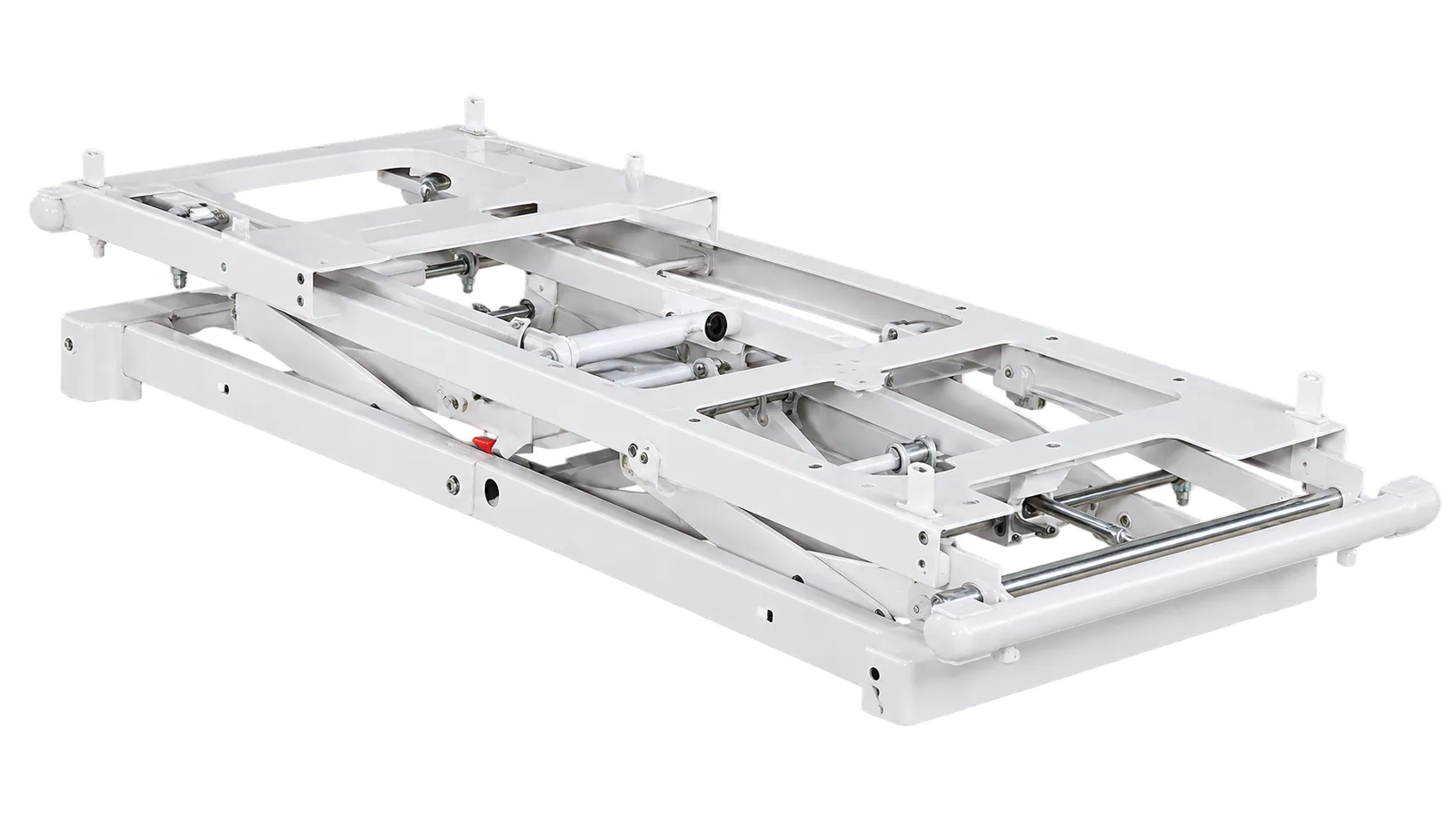

Powered deck height adjustment

Full-deck height travel sets a carer-height working level during care episodes and a low setting for supervised transfer and falls risk reduction.

Trendelenburg and reverse Trendelenburg

Forward and backward whole-frame tilt provide head-down and head-up positioning for circulatory management, airway protection and procedural requirements.

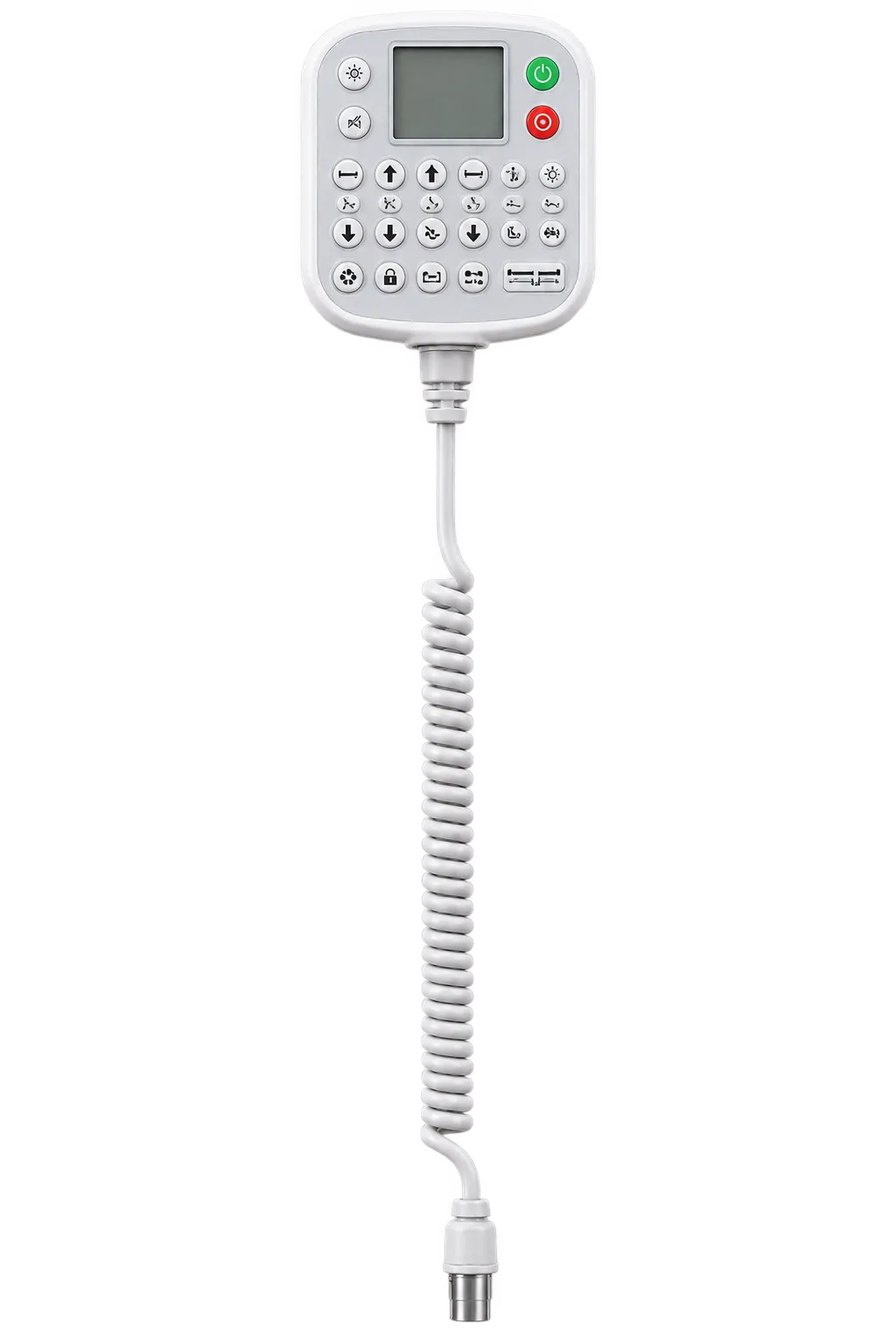

Corded keypad pendant

A single corded pendant drives all five movements, is reachable from either side of the bed, and is stowable on the guardrail between uses.

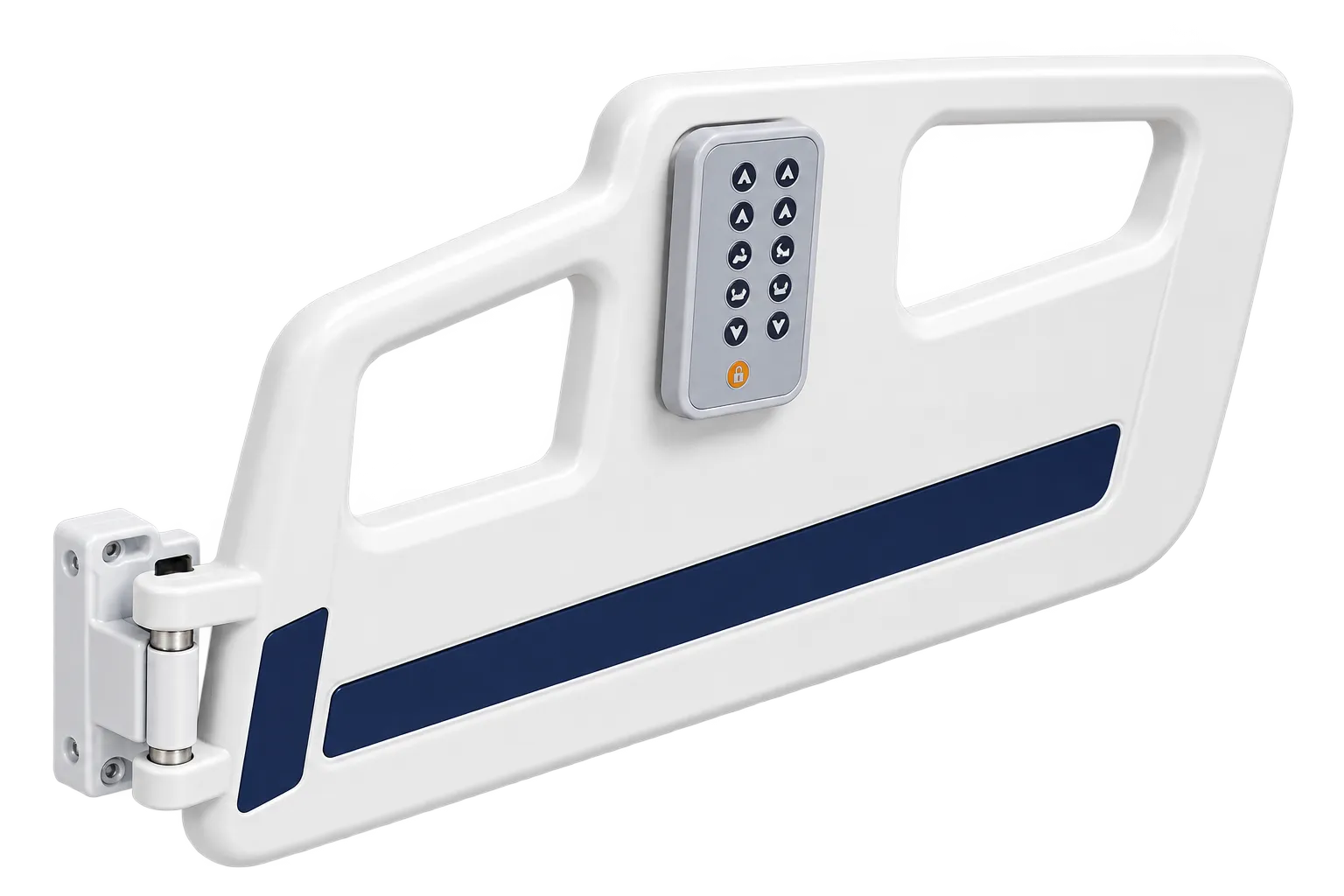

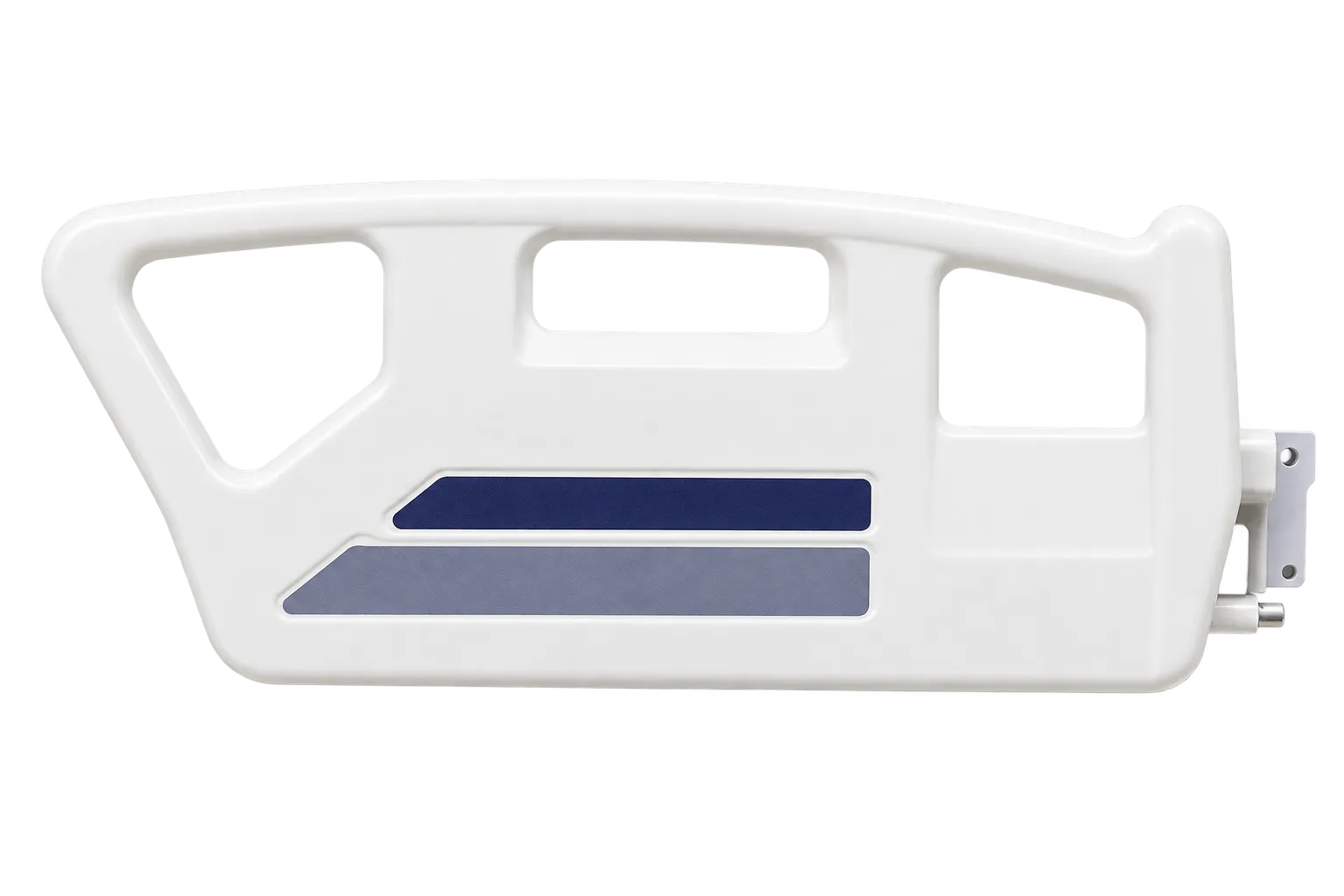

Four ABS guardrails with moulded grab openings

Short-length ABS rails, two per side and integral to the frame, each carrying a moulded hand opening at the upper edge for patient-assisted repositioning.

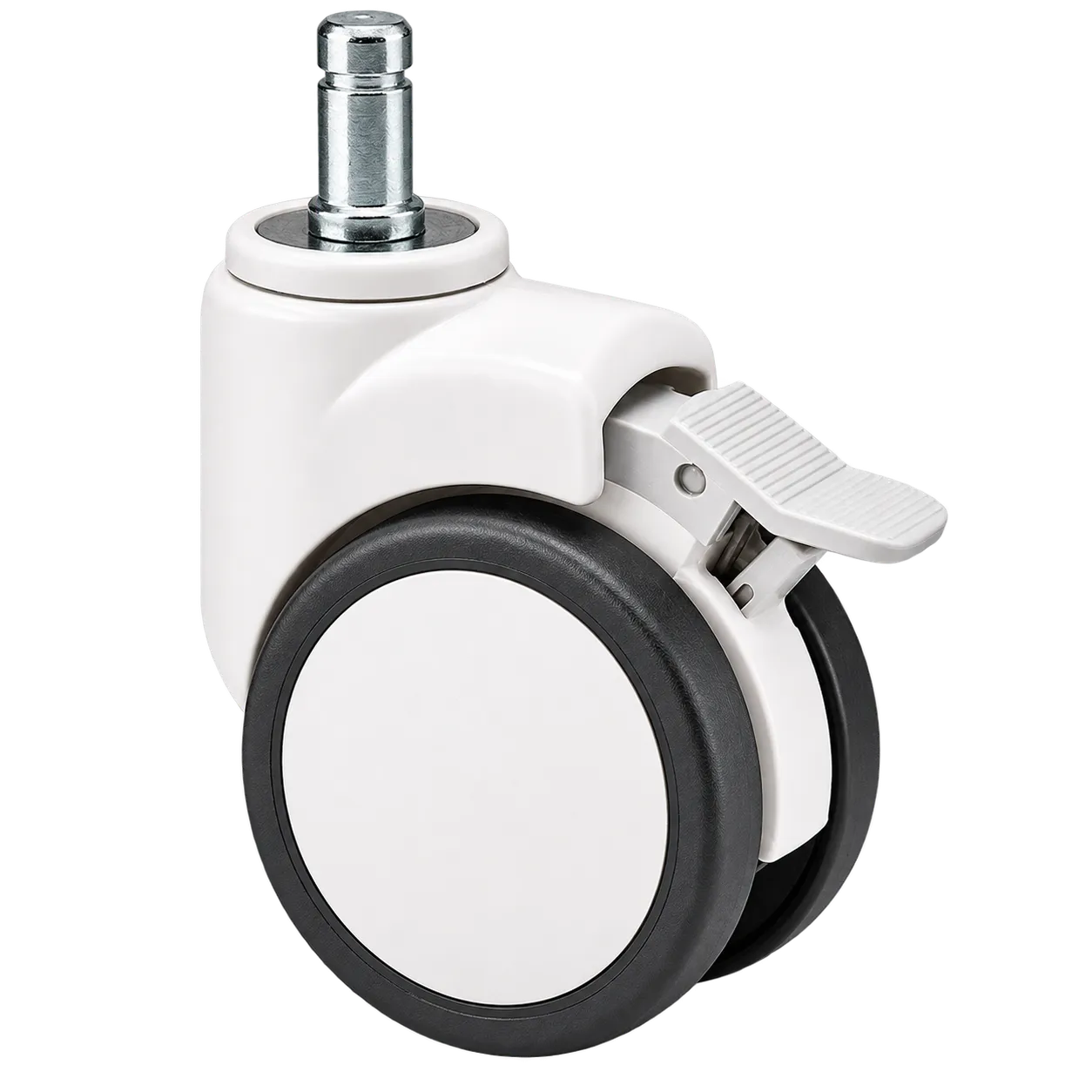

Central control wheel with central braking

A single pedal-linked system locks and releases all four castors together, replacing individual castor brakes and shortening the pre-transfer check.

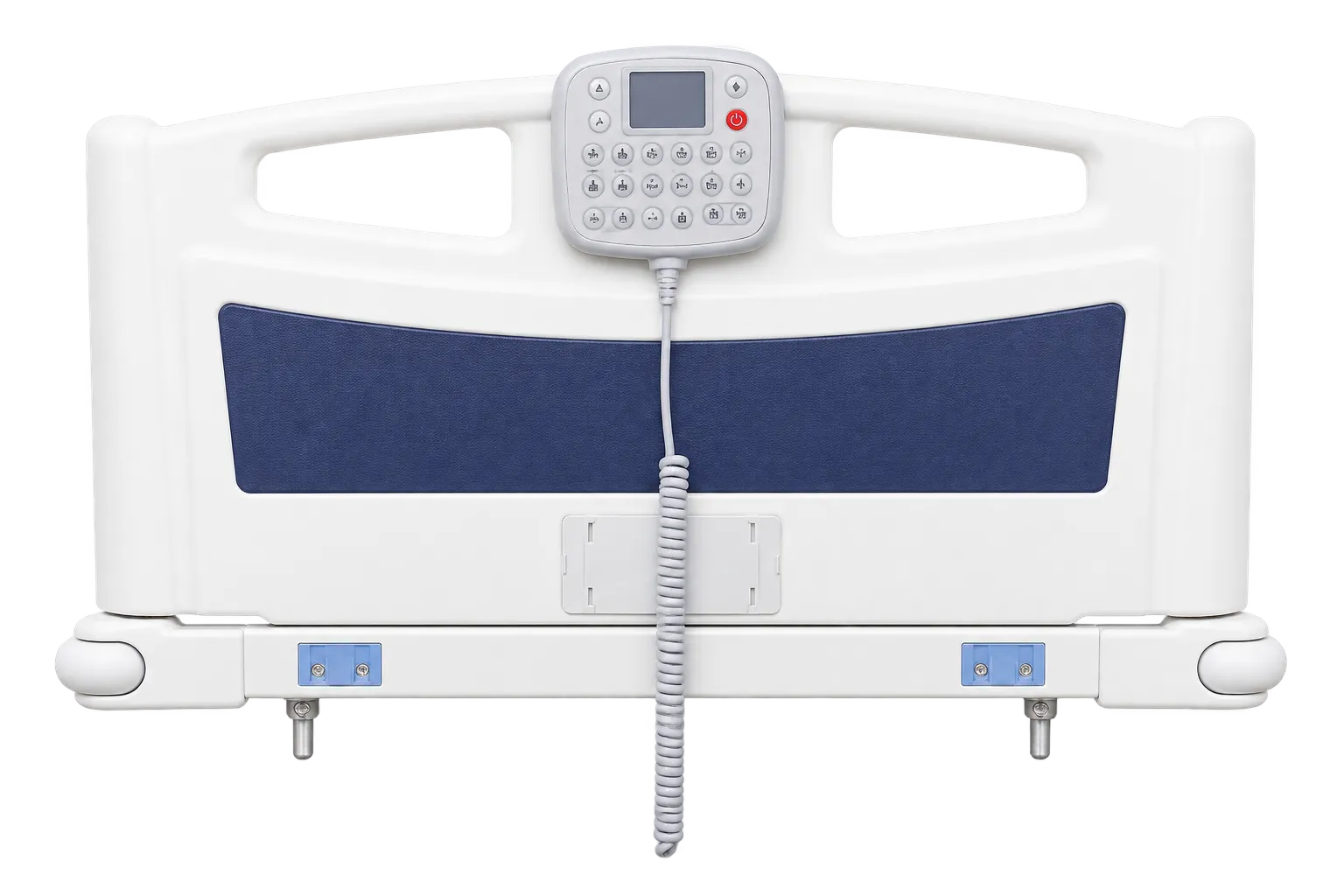

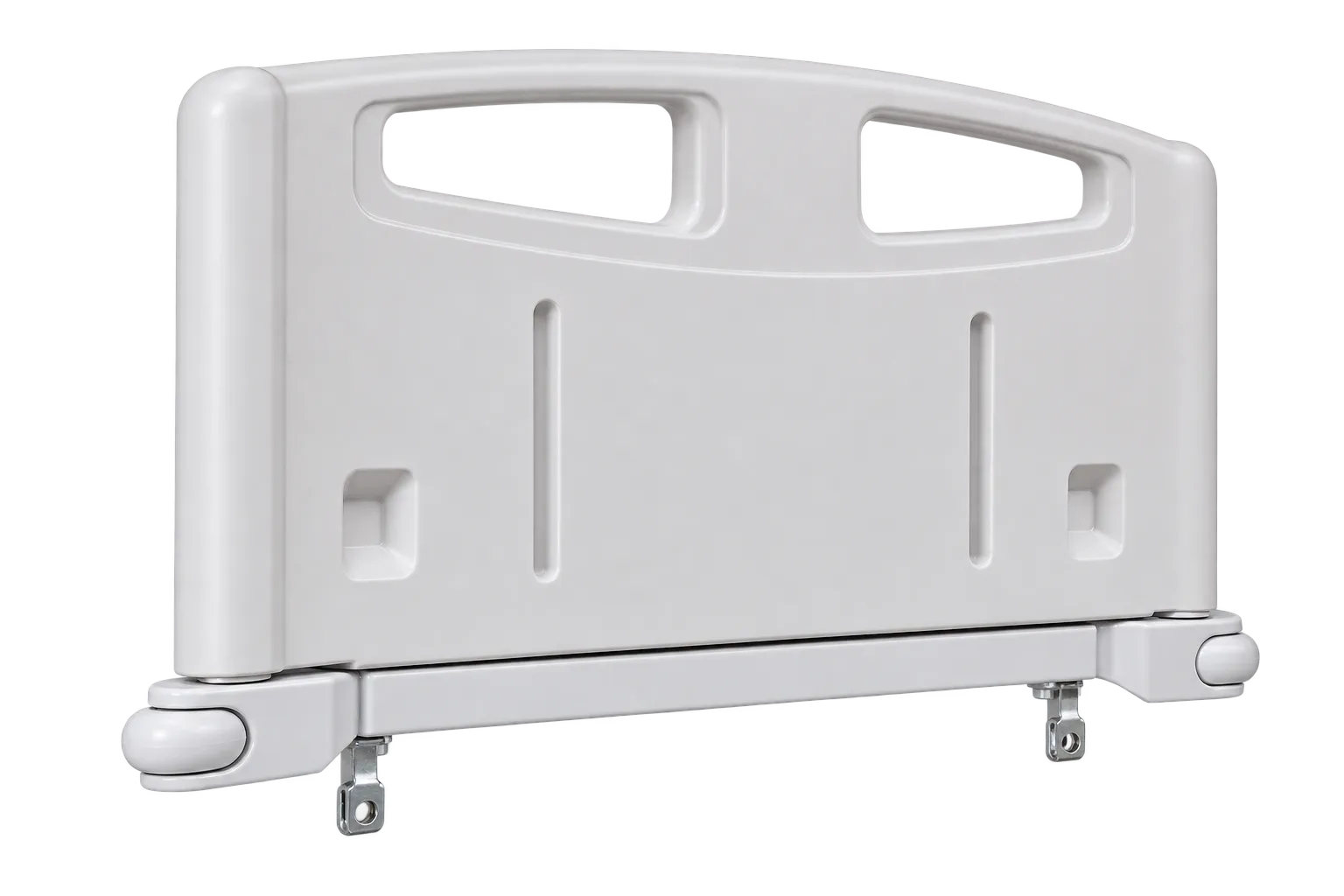

ABS bed head and tail boards

Moulded, wipe-clean boards with handling openings, detachable for emergency access and terminal cleaning, with smooth low-crevice profiles for infection prevention.

Deck footprint 2040 × 960 mm

An overall deck of 2040 × 960 mm at a published 480 mm height, sized for standard UK ward mattresses and high-specification foam, hybrid or alternating-air replacements.

Four frame-mounted drainage hooks

Designated positions for catheter and wound-drainage bags, keeping lines clear of the moving deck sections and bags positioned below patient level.

Stainless steel infusion stand

Supplied as standard, locating into corner sockets on the frame and repositionable to the working side of the bed.

Single-crate delivery at 2020 × 930 × 480 mm

Ships in one crate at approximately 0.90 m³, simplifying goods-in handling, pre-commissioning storage and multi-unit ward refits.

Manufacturer quality system certification

Hengshui Jiadun Medical Equipment holds ISO 9001, ISO 14001, ISO 45001, and ISO 13485 certifications, along with EU CE certification; certificate scope confirmed at quotation.

The JD-YLC5-02 covers the general inpatient day without asking staff to learn anything complicated. Five powered functions — backrest to 75°, legs to 40°, powered height and Trendelenburg in both directions — run from one corded keypad pendant. Perforated ABS deck sections let the void beneath the mattress dry out rather than hold moisture, and four integral short-length guardrails carry moulded openings that give patients a defined handhold. Central braking on a single pedal, four drainage hooks, a stainless steel infusion stand and detachable ABS head and tail boards complete a bed that arrives ready for the bay. It suits general inpatient wards, medium-dependency and long-stay areas, rehabilitation and care of older people, hospices and CQC-regulated private providers. Medigear.uk supplies the JD-YLC5-02 across the UK with conformity documentation, mattress compatibility review and service support. Contact our team for a quotation, multi-unit pricing or bespoke configuration.
