Grace Medy BCME-MY05-1

General inpatient wards benefit directly from the BCEM-MY05-1's 500 mm minimum platform height, which places the mattress surface within the fall-prevention range endorsed by clinical governance frameworks. Nursing teams can lower the bed sufficiently to allow assisted patient egress without a step stool, reducing bed-fall incidents and associated reporting burden. NHS trusts and procurement managers sourcing fall-prevention-compliant ICU beds will find complete CE and ISO certification documentation readily available through Medigear.uk to support capital equipment submissions.

Intensive care and high-dependency units require positioning precision that the four-motor system on the BCEM-MY05-1 delivers without interruption. Trendelenburg and reverse Trendelenburg adjustments to 12 degrees support venous drainage, airway positioning during intubation, and post-procedural recovery, while near-silent motor control avoids disturbing lightly sedated patients. The 15.6-inch HD control screen provides a clear readout ICU nurses need during time-critical procedures, and the quick-release CPR mechanism lowers the platform to the resuscitation position from any height in seconds.

Rehabilitation wards and physiotherapy departments use the BCEM-MY05-1 across the full recovery arc, from immediate post-operative care to progressive mobilisation. The 360 mm height travel range lets clinicians adapt the working surface for standing transfers, seated edge work, and full recumbent therapy without having to substitute equipment throughout the patient's stay. Physiotherapy teams can contact Medigear.uk to specify mattress depth and accessory configuration to align the bed with departmental protocol.

Home care and post-discharge settings are served by the bed's removable PP head and foot boards and central-brake castor system, which simplifies repositioning within domestic room layouts. Family carers operate the 10.1-inch touch controller with minimal training, accessing height adjustment and backrest positioning without professional supervision. Individual buyers and discharge planning teams can reach Medigear.uk directly for delivery scheduling, installation guidance, and ongoing clinical support.

Hospital-Grade Fall Prevention at 500 mm

The BCEM-MY05-1 platform lowers to 500 mm from the floor, meeting clinical governance thresholds for low-bed fall-prevention programmes in acute and sub-acute settings. At this height, patients who attempt independent egress are far less likely to sustain injury, and nursing staff can supervise transfers without introducing additional assistive equipment. For NHS trusts operating structured falls-reduction audits, the 500 mm specification provides a documentable, measurable safety metric that strengthens incident-reduction reporting. Medigear.uk supplies the full specification sheet to support trust-level equipment approval submissions.

Four Independent Motors for Precise Clinical Positioning

Unlike single-motor or dual-motor ICU beds that require sequential adjustment, the BCEM-MY05-1's four-motor system allows simultaneous independent control of height, backrest, knee section, and Trendelenburg tilt. This independence is operationally significant during complex positioning manoeuvres such as simultaneous head elevation and leg lowering for cardiovascular management, where sequential adjustment would require repeated fine-tuning. Each motor operates nearly silently, maintaining a low-noise environment appropriate for sedated, postoperative, and light-sleep patients in critical care bays.

Dual HD Touchscreens for Confident Caregiver Control

The primary 15.6-inch high-definition display control screen delivers a large, clearly labelled interface visible from standing clinical distance, reducing the risk of inadvertent function selection during fast-paced ward activity. The secondary 10.1-inch side-mounted touch controller places full bed control at the nurse's position without requiring them to cross to the opposite rail. Together, the two screens eliminate the single-point-of-failure risk associated with beds that rely on a hand-pendant controller as the sole input device, improving resilience in high-acuity environments.

CE and ISO Certification Supporting Compliant Procurement

The BCEM-MY05-1 carries CE certification confirming conformance with applicable medical device directives, alongside ISO quality management compliance that validates the manufacturing process from which it originates. These certifications satisfy the baseline documentation requirements of most institutional procurement frameworks, including NHS capital equipment acquisition processes. Distributors and procurement officers can obtain the declaration of conformity, test reports, and quality management certificates through Medigear.uk without additional supplier qualification steps.

Quick-Release CPR Mechanism for Immediate Resuscitation Response

The dedicated CPR flat-release mechanism on the BCEM-MY05-1 drops the backrest to a fully flat resuscitation position from any elevated angle without requiring caregiver interaction with the motor control system, saving seconds that are clinically significant during cardiac arrest response. This feature is accessible from both sides of the bed, ensuring that whichever team member reaches the patient first can initiate effective chest compression positioning immediately. The mechanism resets for normal motor operation once the emergency is resolved.

Integrated Smart Toilet Module for Continence Care Efficiency

The BCEM-MY05-1 incorporates a smart toilet packing module rated at 50 uses per pack, which is integrated directly into the bed frame rather than supplied as a separate accessory requiring staff assembly. This integration reduces the time and consumable management burden associated with continence care in ICU settings, where frequent patient repositioning is already staff-intensive. For procurement managers specifying all-inclusive ICU bed systems, this feature reduces the number of accessory SKUs and simplifies consumable ordering through Medigear.uk.

Operational Logistics Designed for Multi-Bay Deployment

The 125 mm dual-brake castors with central locking allow a single nurse to reposition the fully equipped BCEM-MY05-1 across clinical flooring without physical strain, and the single-pedal brake engages all four castors simultaneously to prevent frame drift on sloped or uneven surfaces. The removable PP head and foot boards reduce the transit envelope for corridor movement between bays or departments, and the plug-in locking mechanism allows reassembly in under a minute. Facilities managers and ward coordinators sourcing beds for multi-bay critical care expansions can discuss delivery and commissioning logistics with the Medigear.uk team.

OEM and Bulk Distributor Supply with Flexible Configuration

The BCEM-MY05-1 is available through Grace Medy's OEM programme with options for colour customisation, label configuration, and feature specification adjustment to meet distributor or private-label requirements. This flexibility allows healthcare equipment distributors to align the bed with their existing product range, aesthetics, and specification tiers without undertaking a separate product development programme. Bulk pricing, minimum order quantities, and sample inspection arrangements are all managed through Medigear.uk, simplifying the commercial pathway for new distribution partners.

Home-Care Accessibility Without Clinical-Grade Compromise

Individual buyers and post-discharge care providers benefit from the same four-motor precision and 360 mm height range that clinical institutions rely on, without any feature reduction for the domestic market. The 10.1-inch touch controller is operable by family carers with no prior medical equipment experience, and the removable board design allows the frame to be installed and partially dismantled within a standard domestic bedroom doorway clearance. Medigear.uk provides dedicated buyer support for individual purchasers, covering product selection, delivery, and post-installation guidance.

Minimum Platform Height: 500 mm

The bed platform lowers to 500 mm from floor level, placing it within the range defined by most acute and sub-acute clinical governance frameworks as a low-bed fall-prevention position. This height allows supervised patient egress without a step stool and reduces impact force during an unwitnessed patient transfer. Buyers requiring confirmation of this specification for procurement submissions can obtain the relevant datasheet from Medigear.uk.

Maximum Platform Height: 860 mm

The platform raises to a maximum of 860 mm, providing an ergonomic working height for caregivers performing procedures such as wound care, line insertion, and personal hygiene assistance without stooping. This upper limit also supports standing transfer practice in rehabilitation contexts, where a higher platform height reduces the physical effort required for patient-assisted standing. The full height range of 360 mm gives clinicians flexibility across the entire care episode without adjusting any ancillary equipment.

Total Height Travel: 360 mm

The 360 mm continuous travel between 500 mm and 860 mm is achieved through the primary height-adjustment motor operating within the One-Control-Four-Motor system. This range exceeds the height travel found on many standard ward beds and reflects the BCEM-MY05-1's design intent as a full-function ICU and acute-care unit. The motor adjusts height at a consistent, near-silent speed appropriate for occupied-bed operation.

Backrest Adjustment: 0° to Full Fowler's Position

The backrest section elevates from flat through progressive Fowler's positions under dedicated motor control, accommodating patient preference, respiratory positioning, feeding, and post-procedural recovery requirements. The integrated angle indicator on the adjacent side rail provides visual confirmation of the backrest angle without requiring the caregiver to consult the screen. Confirm the exact backrest degree range with the Medigear.uk procurement team for specification documentation.

Knee-Section Lift: Motorised Elevation

The knee section of the articulating platform elevates independently under its own motor to support lower-limb elevation for oedema management, post-operative venous drainage, and patient comfort during extended bed rest. Independent control means the knee section can be raised or lowered while the backrest, height, and tilt positions remain unchanged. Confirm the exact lift range in degrees with the Medigear.uk procurement team.

Trendelenburg and Reverse Trendelenburg: 0° to 12° Both Directions

The BCEM-MY05-1 tilts the entire platform to 12 degrees head-down (Trendelenburg) and 12 degrees feet-down (reverse Trendelenburg) under independent motor control. Trendelenburg positioning supports venous access procedures, hypotensive management, and airway management during intubation, while reverse Trendelenburg assists aspiration prevention and respiratory function in mechanically ventilated patients. The 12-degree range is consistent with standard ICU clinical practice for both functions.

Motor System: One-Control-Four-Motor, 220 VAC

The One-Control-Four-Motor configuration assigns an independent linear motor to each of the four primary positioning functions, preventing mechanical interference between simultaneous adjustments. The system operates at 220 VAC with a standard national plug, a backup battery for mains-failure resilience, and an emergency-stop switch accessible from the bedside. Near-silent motor operation is particularly relevant in ICU environments, where noise reduction is a recognised component of patient recovery protocols.

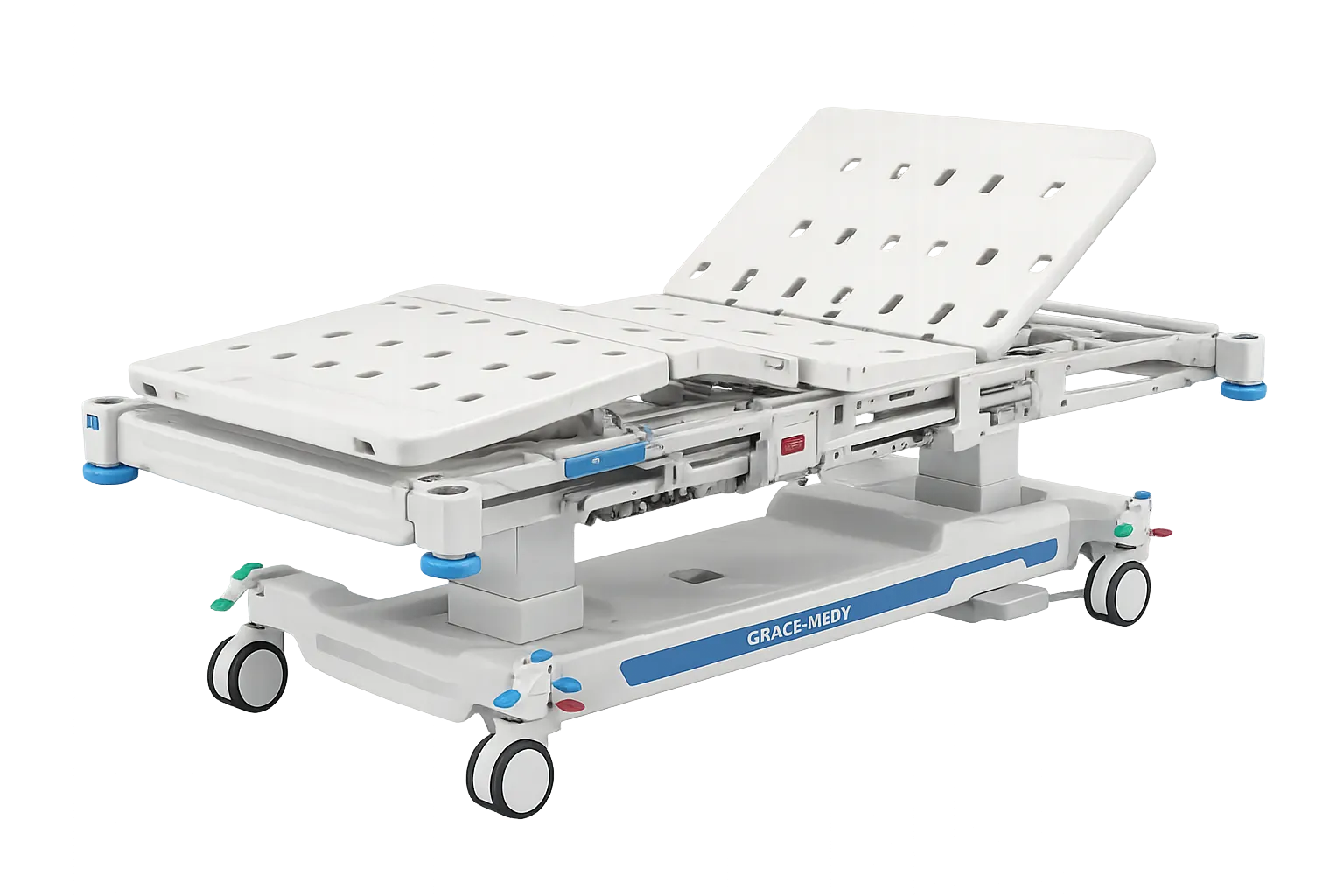

Frame Section Count: Four-Section Articulating Platform

The platform is divided into four mechanically independent sections — head, backrest, seat, and knee — each capable of adjustment without affecting the geometry of adjacent sections. This four-section design is the mechanical basis for the BCEM-MY05-1's full Fowler's, Trendelenburg, and knee-lift capabilities. The section joints are smooth-finished to prevent sheet and mattress snagging during articulation.

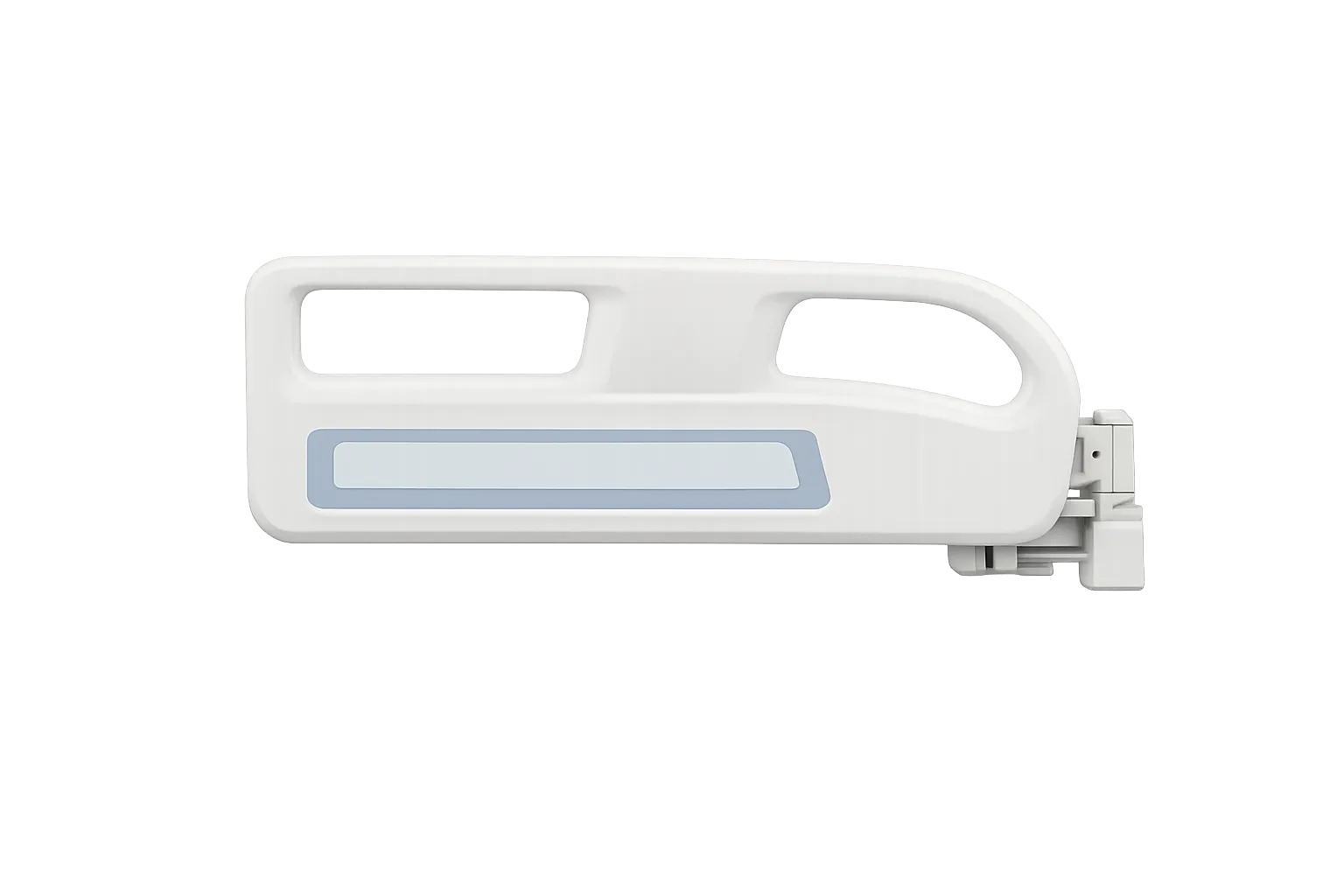

Rail System: Four Large ABS Side Rails with Integrated Angle Indicators

Four large ABS side rails surround the patient surface, each incorporating an angle indicator that displays the current backrest or section angle at a glance without screen reference. The head-section rails lower via a single-hand release mechanism for unobstructed nursing access, while the lower leg-section rails are fixed to provide a permanent secondary fall barrier. The ABS material is impact-resistant, easy to wipe clean, and resistant to standard clinical disinfectants.

Remote Controller: 15.6-Inch HD Primary Screen and 10.1-Inch Side Touch Controller

The primary 15.6-inch high-definition display control screen is the main clinical interface, providing a large, clearly labelled touchscreen that is visible from a standing position across the bed. The 10.1-inch side-mounted touch controller provides a secondary input point at the nurse's working position without requiring movement around the frame. Both screens access all four motor functions and the child-lock toggle, and neither depends on the other for operation.

Child-Lock Mechanism: Software-Controlled Patient-Side Disable

The child-lock function turns off patient-accessible control inputs without affecting caregiver screens, preventing unsupervised self-adjustment by patients, paediatric occupants, or visitors during clinical holds. The lock engages and disengages through the caregiver interface without tools or key access, allowing rapid state changes during handovers or multi-patient rounds. Medigear.uk provides the operator manual, which includes full coverage of child-lock operation.

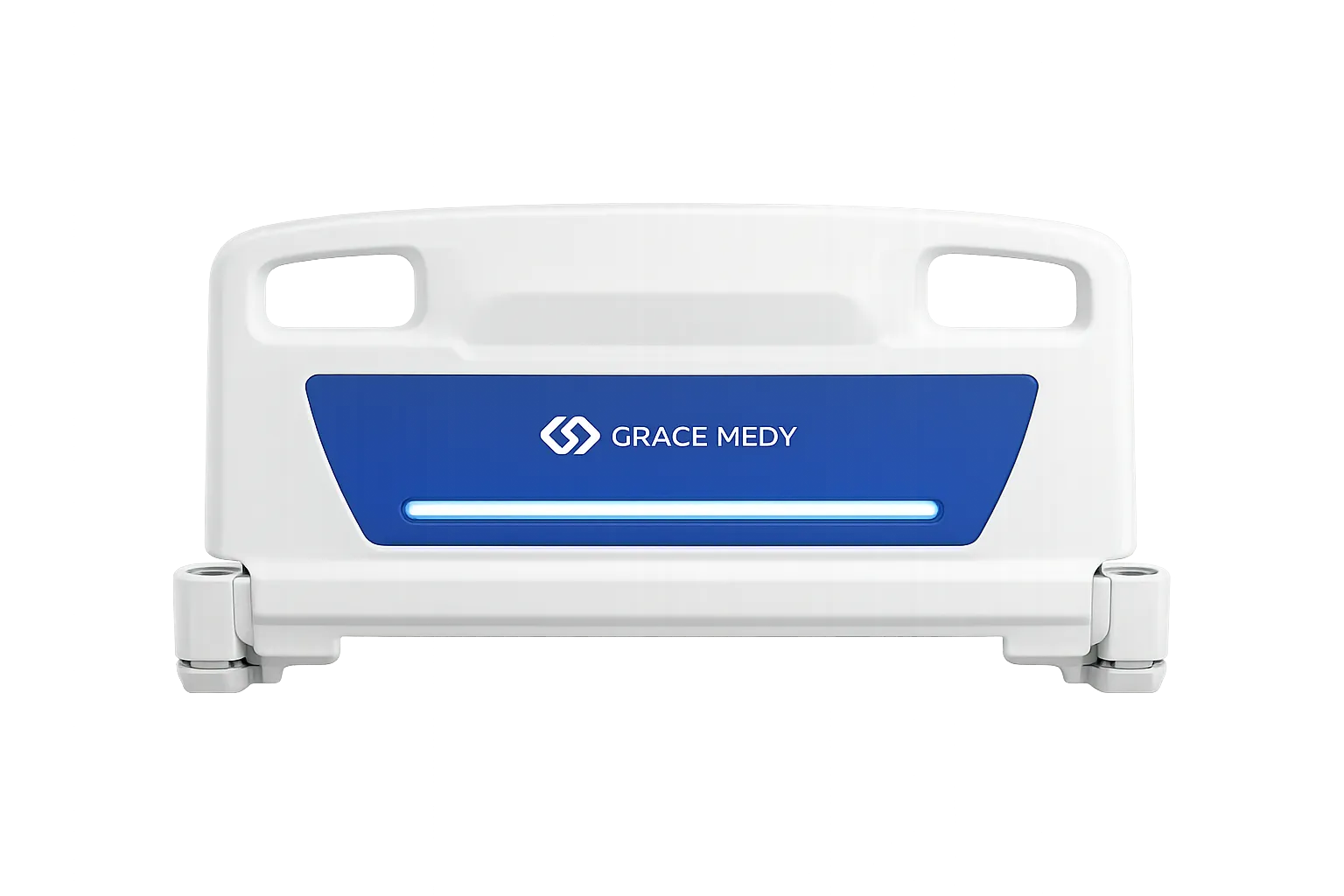

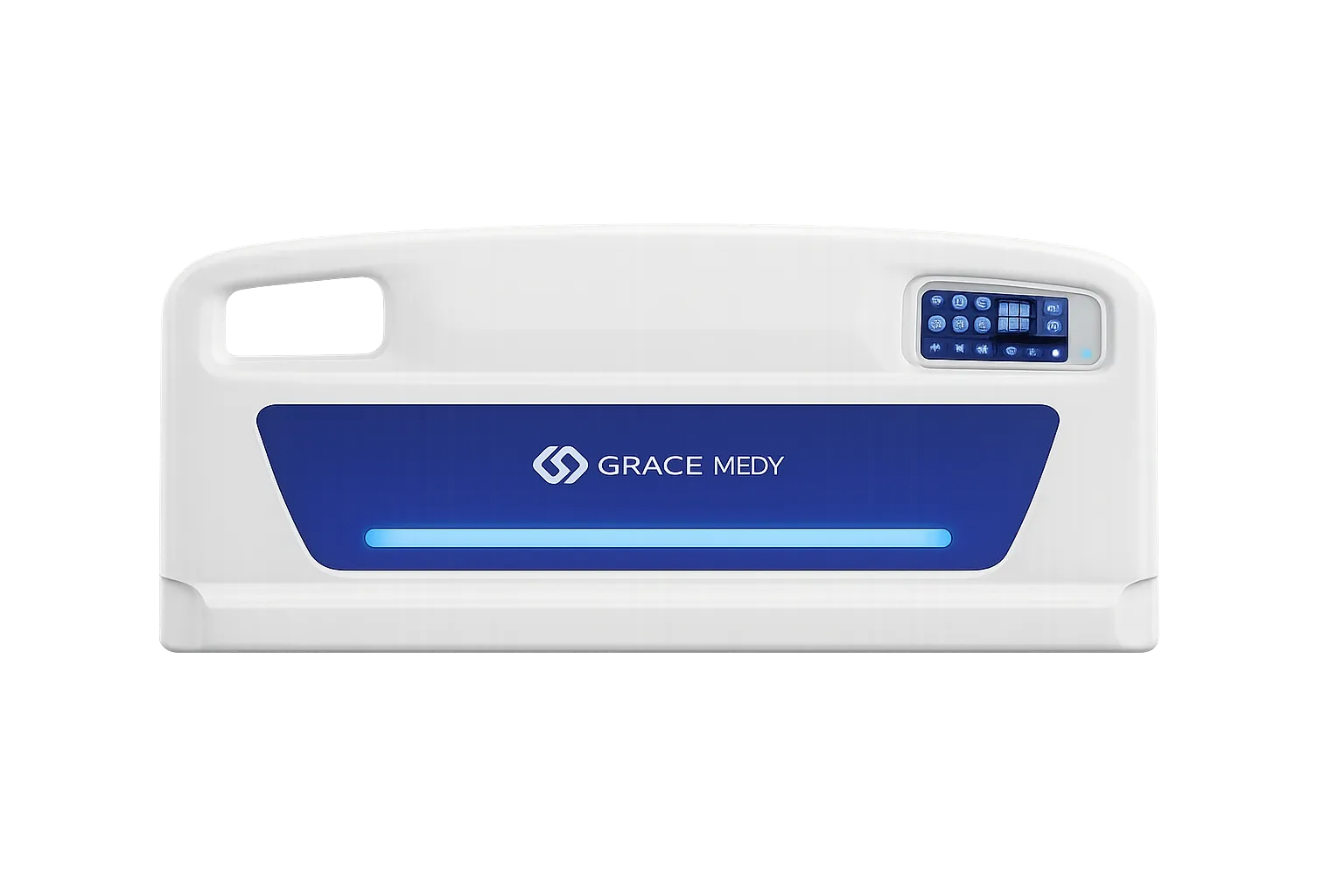

Head and Foot Boards: Impact-Resistant PP with Plug-In Locking

The removable head and foot boards are moulded from impact-resistant polypropylene (PP) and attach to the main frame via a secure plug-in locking mechanism that requires no tools for removal or reattachment. Removal reduces the transport and storage footprint and simplifies access for procedures requiring an unobstructed head or foot approach. PP construction allows wipe-clean disinfection with standard clinical agents and resists cracking under routine ward impact.

Mattress Platform: 2040 mm × 900 mm, Compatible with Standard Hospital Mattress Depths

The 2040 mm by 900 mm usable platform surface is sized for standard adult hospital mattresses and provides full support across all four articulating sections during motorised adjustment. Mattress depth compatibility should be confirmed against the side rail clearance height for the intended mattress model; the Medigear.uk team can advise on compatible mattress specifications. Anti-decubitus, viscoelastic, and hybrid foam mattresses are accommodated, provided their dimensions fall within the stated platform area.

Fold and Transport Mechanism: Removable Boards, Central-Brake Castor System

The head and foot boards detach without tools to reduce the transit profile, and the four 125 mm dual-brake castors with central locking allow single-operator repositioning across flat clinical flooring. The central brake pedal engages all four castors simultaneously, and a second pedal releases them, eliminating the need to transport each caster manually. This is a sport design that supports multi-bay deployment and corridor movement without additional handling equipment.

Frame Material: Cold-Rolled Steel with Electrostatic Powder Coating

The welded cold-rolled steel frame provides the structural rigidity required to support patient weight across the full height and tilt range without frame flex or joint wear over the product's service life. Electrostatic powder coating provides a smooth, uniform surface finish that resists corrosion, chemical cleaning agents, and surface marking from routine clinical contact. Frame colour options and surface specification variants are available through the Medigear.uk procurement team for OEM and high-volume buyers.

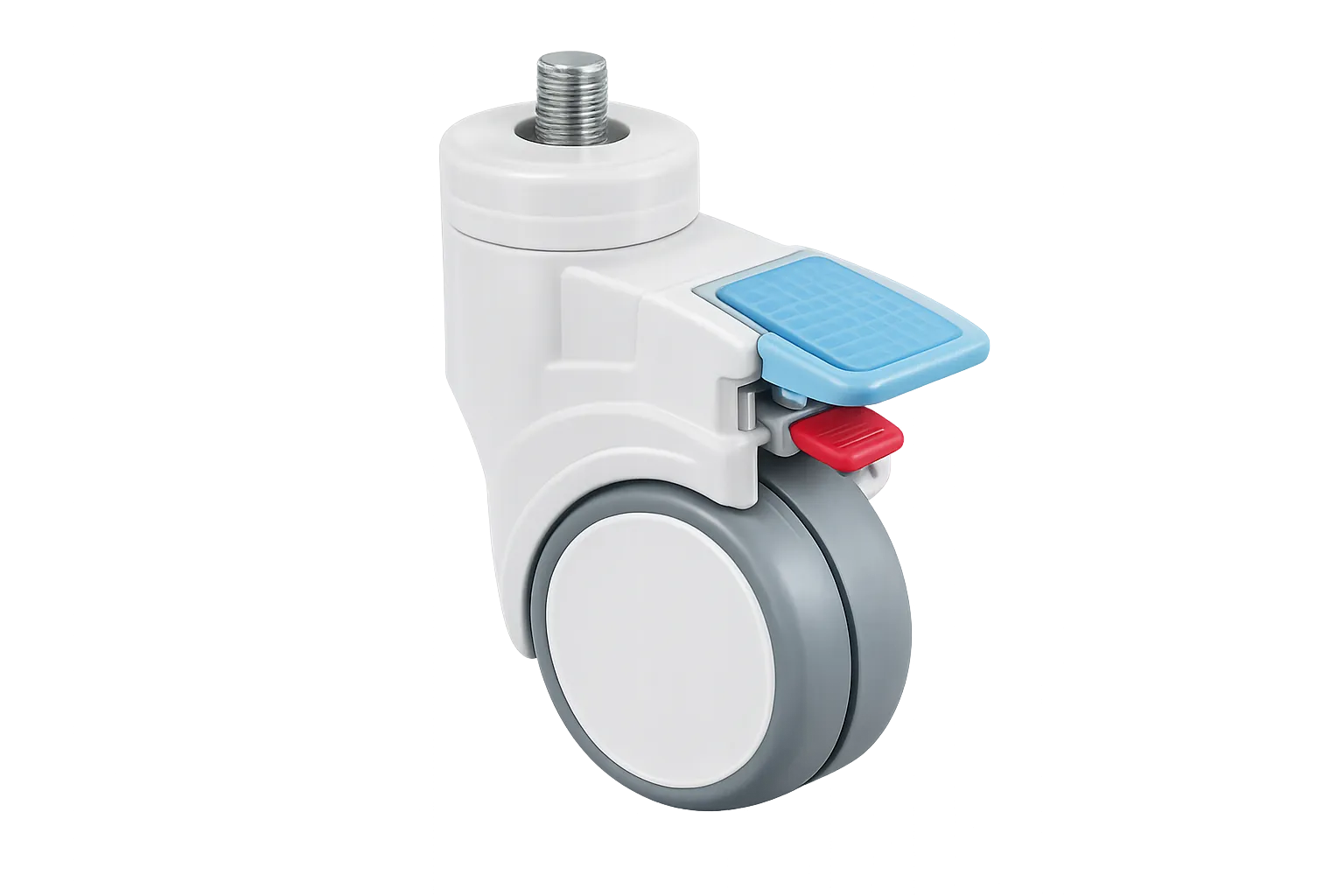

Castor Specification: Four 125 mm Dual-Brake Castors with Central Locking

The four 125 mm dual-brake castors are rated for the bed's full-laden weight, including the patient, mattress, and standard clinical equipment. Dual-brake construction locks both the rotation and the swivel of each castor wheel when engaged, preventing frame drift on surfaces with slight gradients. The central-locking pedal mechanism engages or releases all four castors from a single foot-operated control point at the foot of the frame.

The Grace Medy BCEM-MY05-1 Multifunctional Hospital Electric ICU Bed delivers a clinically verified combination of four-motor precision positioning, dual HD touchscreen control, and CE-certified construction suitable for inpatient wards, intensive care units, rehabilitation departments, and home-care settings. Its 500 mm to 860 mm height range, 12-degree Trendelenburg capability, quick-release CPR mechanism, and integrated smart toilet module address the full spectrum of patient dependency, from high-acuity ICU admissions to supported recovery at home. The bed satisfies CE and ISO certification requirements, supporting procurement submissions for NHS trusts, distributors, and private buyers without additional compliance work. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
