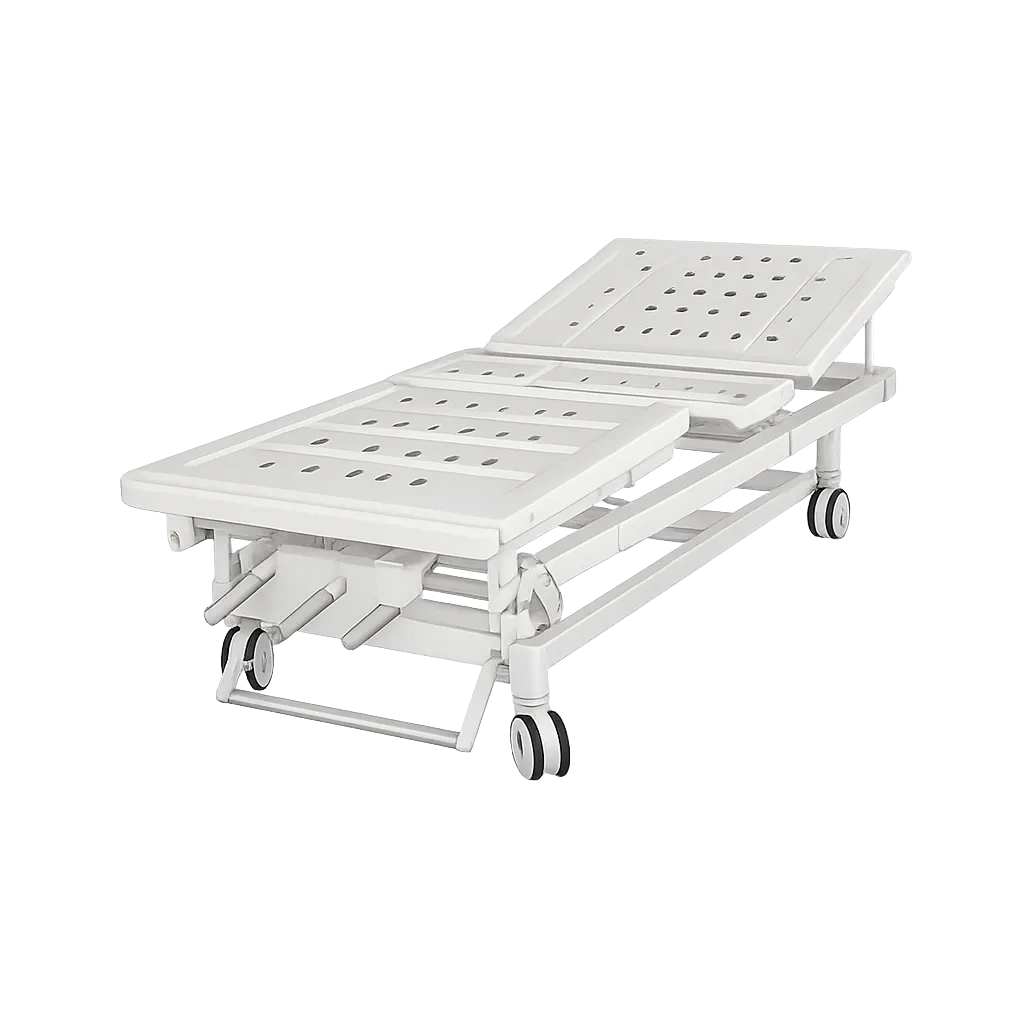

Grace Medy BCM3-SMJ02-8

General inpatient wards with space constraints benefit from the Grace Medy BCM3-SMJ02-8 three-function manual hospital bed, whose 960 mm frame width allows easier transit through tighter corridors without sacrificing a full 2020 × 900 mm patient platform. The gear guardrail provides positive, indexed locking to support fall-prevention governance with an auditable engagement mechanism. Manual height adjustment from 420 mm to 680 mm supports safe transfers without powered infrastructure. Medigear.uk supports NHS procurement teams throughout the specification and approval process.

Rehabilitation settings benefit from the BCM3-SMJ02-8's three-function crank adjustment across a patient's recovery arc. The back section ranges from 0° to 75°, supporting the full progression from supine rest to near-upright sitting, and the knee section ranges from 0° to 45°, supporting lower-limb elevation and gait preparation at each physiotherapy stage. The replaceable stainless steel crank makes the bed well-suited to high-frequency rehabilitation environments where the crank is operated many times daily. Medigear.uk can provide specification packs for rehabilitation procurement teams.

Care homes and long-term residential environments benefit from a compact manual hospital bed that avoids the maintenance overhead of motor components. The BCM3-SMJ02-8 provides the postural range needed for long-term resident care — including pressure relief and post-meal elevation — through a crank mechanism that care staff can operate without technical training. The 960 mm frame width allows placement in smaller residential rooms where a standard-width bed would restrict staff access. Medigear.uk offers care home procurement teams volume pricing and multi-unit delivery coordination.

Home care settings benefit from the BCM3-SMJ02-8's compact frame and infrastructure-independent operation. A trained carer can operate all three adjustment functions through the ABS folding crank without a powered connection, and the gear guardrail locks securely without a secondary check. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging provision ahead of discharge.

Compact 960 mm Frame for Space-Constrained Clinical and Domestic Environments

The BCM3-SMJ02-8 has an overall frame width of 960 mm — narrower than the standard 1040 mm hospital bed profile — making it better suited to tighter clinical bays, rehabilitation rooms, and domestic environments where clearance around the bed is a practical constraint. The reduced width allows the bed to pass through standard domestic doorways and many ward doorway configurations without the access difficulties of full-width frames, while still providing a full 2020 × 900 mm patient platform. For NHS procurement officers sourcing beds for legacy ward bays with constrained dimensions, the BCM3-SMJ02-8 delivers manual three-function capability in a smaller footprint. Medigear.uk can provide dimensioned drawings for bay fit planning.

Gear Guardrail for Positive, Indexed Rail Locking

Unlike friction or spring-loaded guardrail systems, the gear guardrail on the BCM3-SMJ02-8 engages positively at defined mechanical positions through a gear mechanism, providing an audible and tactile confirmation that the rail is securely locked. This indexed locking behaviour means the rail will not creep or slip under lateral patient load, which is a meaningful clinical safety advantage over guardrails that rely on clamping pressure alone. For ward managers and procurement officers assessing guardrail safety specifications, the gear mechanism provides a verifiable and repeatable locking standard. Full guardrail specifications are available through Medigear.uk.

ABS Folding Hidden Crank With Replaceable Stainless Steel Option

The standard ABS folding hidden crank is lightweight, corrosion-resistant, and stores flush against the frame, eliminating protrusion hazards during patient care. The optional replaceable stainless steel crank provides greater mechanical durability for high-frequency clinical use without requiring a new bed, as the crank assembly is designed to be swapped in the field. This dual-option approach allows procurement teams to specify the appropriate crank material for the intended deployment environment — ABS for home care and lower-acuity settings, stainless steel for busy acute or rehabilitation wards. Medigear.uk can confirm crank configuration and replacement availability at the point of order.

Cost-Efficient Manual Operation Without Electrical Infrastructure

The BCM3-SMJ02-8 delivers full three-function adjustable positioning through a manual crank that requires no electrical connection to the bed frame, making it suitable for ward bays, care home rooms, and home environments where powered bed infrastructure is unavailable or where the procurement budget favours a lower capital cost. The absence of motor components also removes servicing and electrical compliance overhead associated with powered models, reducing long-term total cost of ownership. For NHS trusts managing fleet replacement across large ward counts, Medigear.uk procurement advisors can provide cost-comparison documentation on request.

CE Certification for NHS and Regulatory Compliance

The BCM3-SMJ02-8 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline requirement for NHS supply frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building verified-supplier-accredited catalogues, the CE certification supports straightforward compliance with product listing requirements across NHS and private-sector supply channels.

Central Brake Castor Control for Single-Action Bed Security

The five-inch castors on the BCM3-SMJ02-8 feature central brake control, allowing a single staff member to immobilise all four wheels simultaneously in one action rather than engaging individual wheel locks. In busy ward and care home environments, this reduces the time required to secure the bed after movement and minimises the risk of a bed being left in an unsafe state after braking. The central brake system supports bed-brake compliance on general wards and in care home settings without adding operational complexity. Castor load rating and brake specifications are available from Medigear.uk.

Full 2020 × 900 mm Platform Within a Compact Frame

The BCM3-SMJ02-8 delivers a full 2020 × 900 mm mattress platform despite its 960 mm overall frame width, meaning the patient surface matches the standard hospital mattress dimensions in common clinical use. Procurement teams can retain existing approved mattress stock when integrating the BCM3-SMJ02-8 into a bed fleet, avoiding additional mattress specification or procurement work. For NHS trusts upgrading beds in legacy bays, this platform compatibility reduces the total cost of asset integration. Medigear.uk procurement advisors can confirm mattress compatibility for specific existing stock.

Distributor and OEM Flexibility for Regional Supply Chains

The BCM3-SMJ02-8 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, and IV stand provision, as well as the choice between ABS and stainless steel crank specification. Distributors building regional clinical and care-home supply catalogues can structure volume agreements through Medigear.uk and offer a fully configured, compact manual bed package without sourcing accessories separately. The configurable crank option allows distributors to differentiate product tiers for different buyer segments from a single base model.

Ergonomic Staff Safety Through 260 mm of Manual Height Adjustment

The 260 mm manual height range — from 420 mm to 680 mm — allows nursing and care staff to position the bed at an appropriate working height for clinical tasks and lower it to transfer height through crank operation, reducing the need for awkward postures during bedside procedures. Although manual rather than motorised, the crank-operated height adjustment still eliminates the need for staff to lift or reposition a fixed-height bed frame physically. For procurement teams assessing manual handling risk, Medigear.uk can provide supporting documentation.

Minimum Platform Height: 420 mm

The BCM3-SMJ02-8 reaches a minimum platform height of 420 mm, supporting natural foot-to-floor contact during assisted patient transfers and meeting clinical safe-handling recommendations for patients at elevated fall risk. This low starting height supports early mobilisation in rehabilitation settings and reduces fall risk at the transfer point for elderly and post-surgical patients.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable working level for nursing and care staff, minimising forward flexion during wound care, catheter management, and other bedside procedures. The 680 mm maximum accommodates the working height preferences of taller clinical staff without requiring additional bed risers or platform extensions.

Total Height Adjustment Range: 260 mm

The total manual height adjustment range of 260 mm — from 420 mm to 680 mm — covers the clinical spectrum from safe transfer height to optimal working height through crank operation. This range is achieved independently of the back and knee section positions, allowing height adjustments at any backrest or knee angle without resetting the other axes.

Overall Frame Width: 960 mm

The overall frame width of 960 mm is narrower than the standard 1040 mm hospital bed profile, improving manoeuvrability through tighter ward corridors, rehabilitation room doorways, and domestic entrance widths. Procurement teams undertaking bay fit assessments should verify local corridor and bay widths against the 960 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning on request.

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° to a maximum of 75° through the manual crank, covering supine positioning through high-Fowler's for respiratory management, assisted feeding, and post-surgical recovery. The wide back section range supports the full clinical positioning spectrum without requiring a separate wedge or positioning aid.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° via the same crank mechanism, enabling lower-limb elevation, providing flexion support during lower-body assessment, and providing comfort positioning for patients on extended bed rest. Independent knee adjustment supports orthopaedic recovery, pressure area management, and lower-limb oedema protocols.

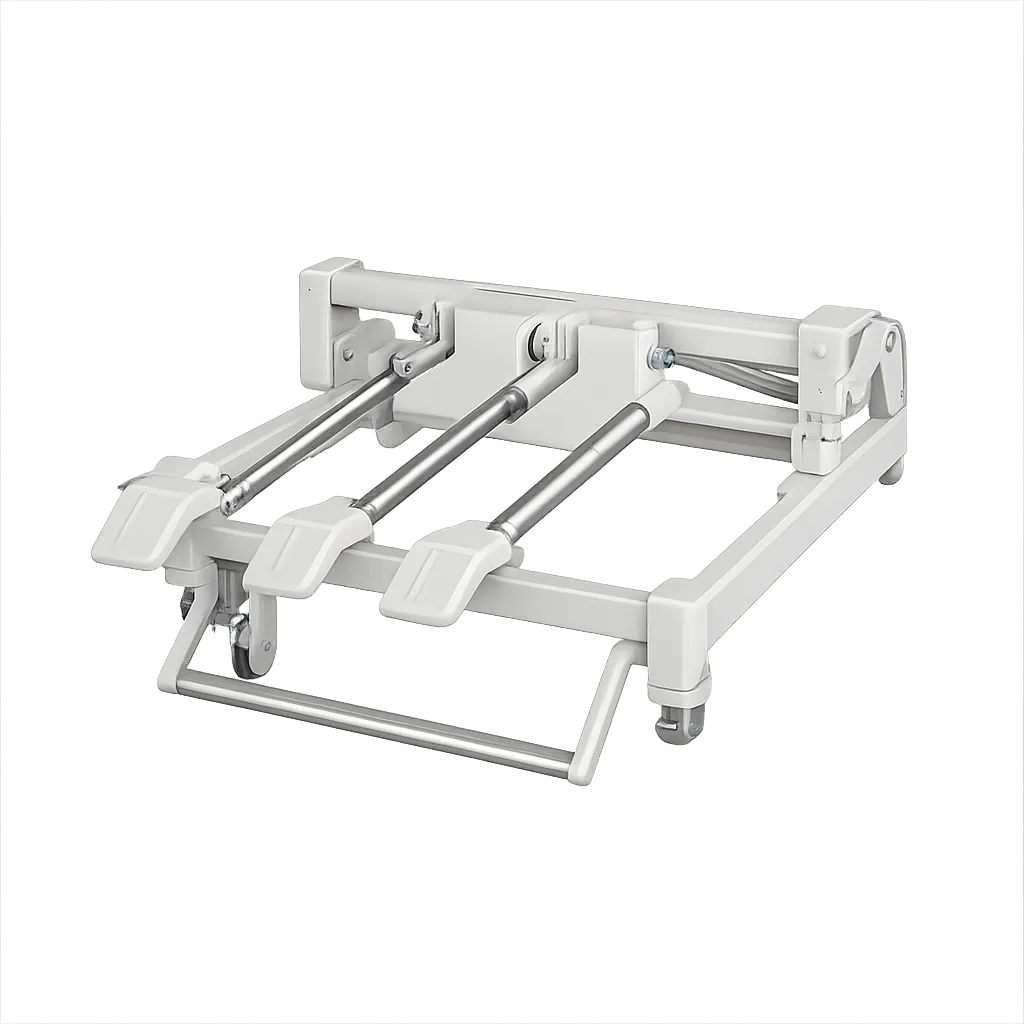

ABS Folding Hidden Crank

The standard crank is constructed from ABS, folds compactly, and retracts flush against the frame when not in use, eliminating protrusion hazards for staff and patients during ward transit and bedside care. The ABS material is lightweight, corrosion-resistant, and suitable for routine hospital disinfection protocols.

Replaceable Stainless Steel Crank Option

The stainless steel crank is available as a field-replaceable alternative to the standard ABS unit, offering greater mechanical durability for high-frequency clinical environments. The replaceable design means a worn or damaged crank can be swapped without replacing the bed frame. Confirm availability and lead time with the Medigear.uk procurement team.

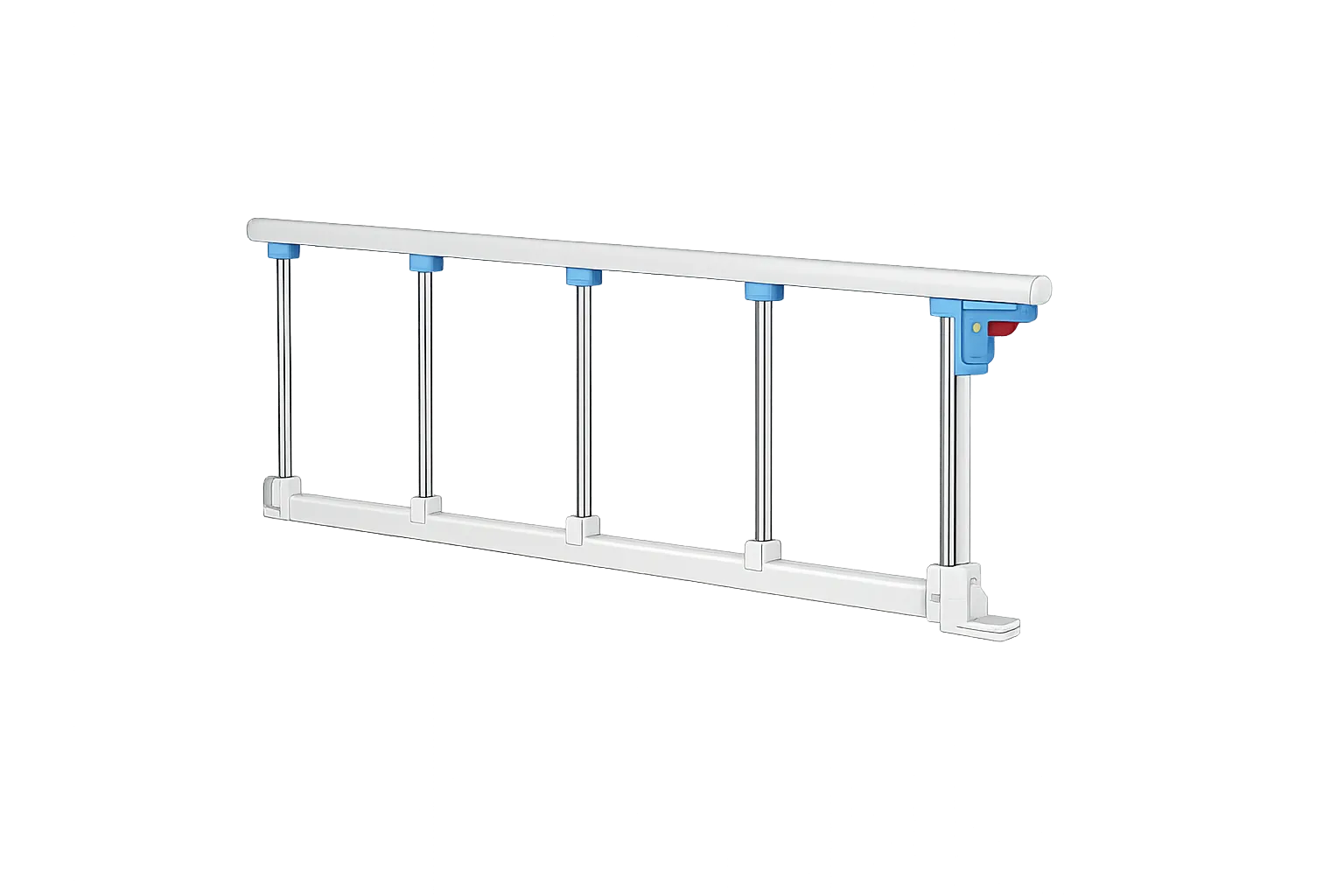

Gear Guardrail System

The gear guardrail engages at defined mechanical positions through a positive gear mechanism, providing an audible and tactile confirmation of secure rail locking at each position. Unlike friction-based rail systems, the gear mechanism prevents lateral slippage under patient load. Full guardrail specification is available from Medigear.uk.

Head and Foot Boards: Matched Set Supplied

Head and foot boards are supplied as a matched set, defining the bed's overall profile and contributing to patient containment and ward aesthetics. Confirm material specification and colour options with the Medigear.uk procurement team before placing a bulk or OEM order.

Mattress Platform: 2020 × 900 mm

The usable mattress surface measures 2020 mm in length and 900 mm in width, matching the standard dimensions of hospital mattresses in common clinical use. The full-size platform is delivered within the compact 960 mm frame width, allowing existing approved mattress stock to be retained without additional procurement work.

Mattress Depth Compatibility

Compatible mattress depth should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by gear guardrail height and head and foot board clearances specific to the BCM3-SMJ02-8. Using a mattress outside the confirmed depth range may affect the effectiveness of guardrail containment and is not recommended for clinical use.

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish that is resistant to repeated cleaning with standard hospital-grade disinfectant agents. Chemical compatibility information is available from Medigear.uk for infection control assessments.

Castor Specification: Five-Inch With Central Brake, Central Control

Five-inch castors with central brake and central control are fitted as standard, allowing a single staff member to lock all four wheels simultaneously in one action. The central control system reduces the risk of a partially braked bed and supports bed-brake compliance on general wards and in care home environments.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCM3-SMJ02-8 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk. Procurement teams and distributors should confirm required optional configurations with Medigear.uk during the specification phase.

The Grace Medy BCM3-SMJ02-8 three-function manual hospital bed delivers a CE-certified, infrastructure-independent positioning platform within a compact 960 mm frame width for general inpatient wards, rehabilitation settings, care homes, and post-discharge home care. Its ABS folding hidden crank with replaceable stainless steel option, gear guardrail system, and central brake castors make it a durable and operationally practical choice for NHS procurement officers managing cost-efficient fleet expansion in space-constrained environments, regional distributors building manual bed supply portfolios, and individual home care buyers where frame width and crank durability are primary considerations. Full specification documentation, certification files, and logistics support are available through Medigear.uk at every stage of procurement. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
