Grace Medy BCM3-SMJ02-2

General inpatient wards benefit from the Grace Medy BCM3-SMJ02-2 three-function manual hospital bed as a reliable, infrastructure-independent platform for bays where powered bed supply is limited, or procurement budgets favour a cost-efficient alternative. The four-rail guardrail system supports fall-prevention governance and compliance with patient-safety targets. Medigear.uk supports NHS and private hospital procurement teams throughout the specification and approval process.

Rehabilitation settings need beds that adapt to a patient's progress across a recovery arc, and the BCM3-SMJ02-2 provides a back range of 0° to 75° and a knee range of 0° to 45°. Physiotherapists can advance patients from supine through supported sitting to near-upright positioning without a separate therapy surface. The knee section supports lower-limb elevation and gait preparation exercises during intermediate recovery. Medigear.uk can provide specification packs for teams sourcing manual beds for rehabilitation units.

Care home environments often favour manual beds for their lower maintenance requirements and the absence of motor components that require periodic servicing. The BCM3-SMJ02-2 provides the postural range needed for long-term resident care — including pressure relief and post-meal elevation — through a simple crank that care staff can operate without technical training. Anti-collision wheels on the head and foot boards protect interior fixtures during routine bed repositioning. Medigear.uk offers care home procurement teams volume pricing and delivery coordination.

Home care and post-discharge settings benefit from a manually operated hospital bed that a trained family carer can use without a powered connection. The ABS folding crank stores flush against the frame when not in use, keeping the profile safe in a domestic environment. The platform height range of 420 mm to 680 mm supports assisted transfers for carers managing patients with varying mobility levels. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging provision ahead of discharge.

Cost-Efficient Clinical Positioning Without Electrical Dependency

The BCM3-SMJ02-2 delivers full three-function adjustable positioning — back, knee, and height — via a manual crank mechanism that requires no electrical connection to the bed frame. This makes it suitable for ward bays, care home rooms, and home environments where powered bed infrastructure is unavailable or where the procurement budget favours a lower capital cost per unit. For NHS trusts managing fleet replacement across large ward counts, the absence of motor components also reduces long-term servicing and parts costs. Medigear.uk procurement advisors can provide unit cost and total-cost-of-ownership comparisons on request.

Hospital-Grade Fall Prevention Through Four-Rail Perimeter Containment

The BCM3-SMJ02-2 is fitted with four individual guardrails that lock securely in the raised position and lower one at a time, providing full perimeter containment on both sides of the bed simultaneously. This configuration supports fall prevention governance requirements under clinical risk frameworks and is appropriate for patients assessed as high fall risk on general wards and in rehabilitation settings. The four-rail design also provides bilateral containment during crank adjustment, preventing unintended lateral patient movement during positional changes. Full guardrail locking specifications are available through Medigear.uk.

ABS Folding Hidden Crank for Safe Ward Use

The folding, hidden crank mechanism is constructed from ABl. It retracts flush against the bed frame when not in use, eliminating the protrusion hazard associated with fixed-handle manual beds. In busy ward environments and home care settings, a protruding crank handle represents a snagging risk for staff clothing and bedding and a potential injury point for patients mobilising alongside the bed. The flush-stored crank profile also contributes to a cleaner bed aesthetic in residential and home care environments. Operating instructions are available from Medigear.uk.

Anti-Collision Head and Foot Boards for Facility Protection

The head and foot boards supplied with the BCM3-SMJ02-2 incorporate integrated anti-collision wheels that protect ward walls, corridor fixtures, and door frames during routine bed movement between bays, rooms, or assessment areas. In care homes and residential settings where interior walls and skirting boards are a significant maintenance concern, anti-collision wheel protection directly reduces repair costs associated with bed transit. This feature also supports ward operational efficiency by reducing the caution required during bed repositioning. Medigear.uk can confirm board material and anti-collision wheel specification on request.

Central Brake Castor Control for Single-Action Bed Security

The four five-inch twin-wheel castors are fitted with a central brake control system that allows a single staff member to immobilise all four wheels in a single action, without engaging individual wheel locks in sequence. In both ward and home care environments, this reduces the time and physical effort required to secure the bed after movement and minimises the risk of a partially braked bed being left in an unsafe state during a busy clinical shift. The castor specification and brake confirmation details are available from Medigear.uk for clinical equipment safety assessments.

CE Certified for NHS and Regulatory Compliance

The BCM3-SMJ02-2 carries CE marking under the Medical Device Directive 93/42/EEC, satisfying the baseline technical certification requirement for NHS supply frameworks, CQC care home compliance, and OJEU tendering. Medigear.uk holds the full declaration of conformity and technical file, which can be released to procurement officers and clinical governance reviewers on request. For distributors supplying verified-supplier-accredited product catalogues, the certification suite supports straightforward compliance with product listing requirements without additional documentation.

Standard Mattress Platform for Existing Stock Compatibility

The 2020 mm × 900 mm platform dimensions match the standard profile of hospital and care mattresses in common clinical use, enabling procurement teams to retain existing approved mattress stock when replacing or expanding a bed fleet. For NHS trusts and care homes upgrading beds while maintaining current mattress supply contracts, this compatibility avoids the additional procurement and approval process associated with sourcing a new mattress specification. Medigear.uk procurement advisors can assist with mattress compatibility confirmation for specific stock on request.

Distributor and OEM Flexibility for Regional Clinical Supply

The BCM3-SMJ02-2 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, and IV stand provision. Distributors building regional clinical and care home supply catalogues can structure volume agreements with Medigear.uk and offer a fully configured manual bed package without sourcing accessories separately. The optional accessory suite allows distributors to tailor the product to different buyer segments — acute ward, rehabilitation, care home, and home care — from a single base model.

Operational Simplicity for Staff and Carer Training

The single-crank, three-function design of the BCM3-SMJ02-2 reduces the training burden for both clinical staff and family carers compared with multi-control or electronically operated bed systems. All positional adjustments use the same ABS folding crank with direction-of-rotation governing the axis of movement, making the operating principle straightforward to demonstrate during ward induction or home care set-up. Medigear.uk can arrange product orientation sessions for institutional buyers and supply printed care guides for home care purchasers.

Minimum Platform Height: 420 mm

The BCM3-SMJ02-2 reaches a minimum platform height of 420 mm, supporting natural foot-to-floor contact during assisted patient transfers and meeting clinical safe-handling recommendations for patients at elevated fall risk. This low starting height is particularly relevant for elderly patients, post-operative patients, and patients with limited lower-limb strength during early mobilisation.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable working level for nursing and care staff during wound care, catheter management, and other bedside clinical procedures, reducing cumulative forward flexion across a clinical shift. The 680 mm maximum also accommodates the working height preferences of taller clinical staff without requiring additional bed risers or platform extensions.

Total Height Adjustment Range: 260 mm

The total manual height adjustment range of 260 mm — from 420 mm to 680 mm — covers the clinical spectrum from safe transfer height to optimal nursing working height through crank-operated mechanical adjustment. This range is independent of the positions of the backrest and knee sections, allowing height changes at any backrest or knee angle without resetting other axes.

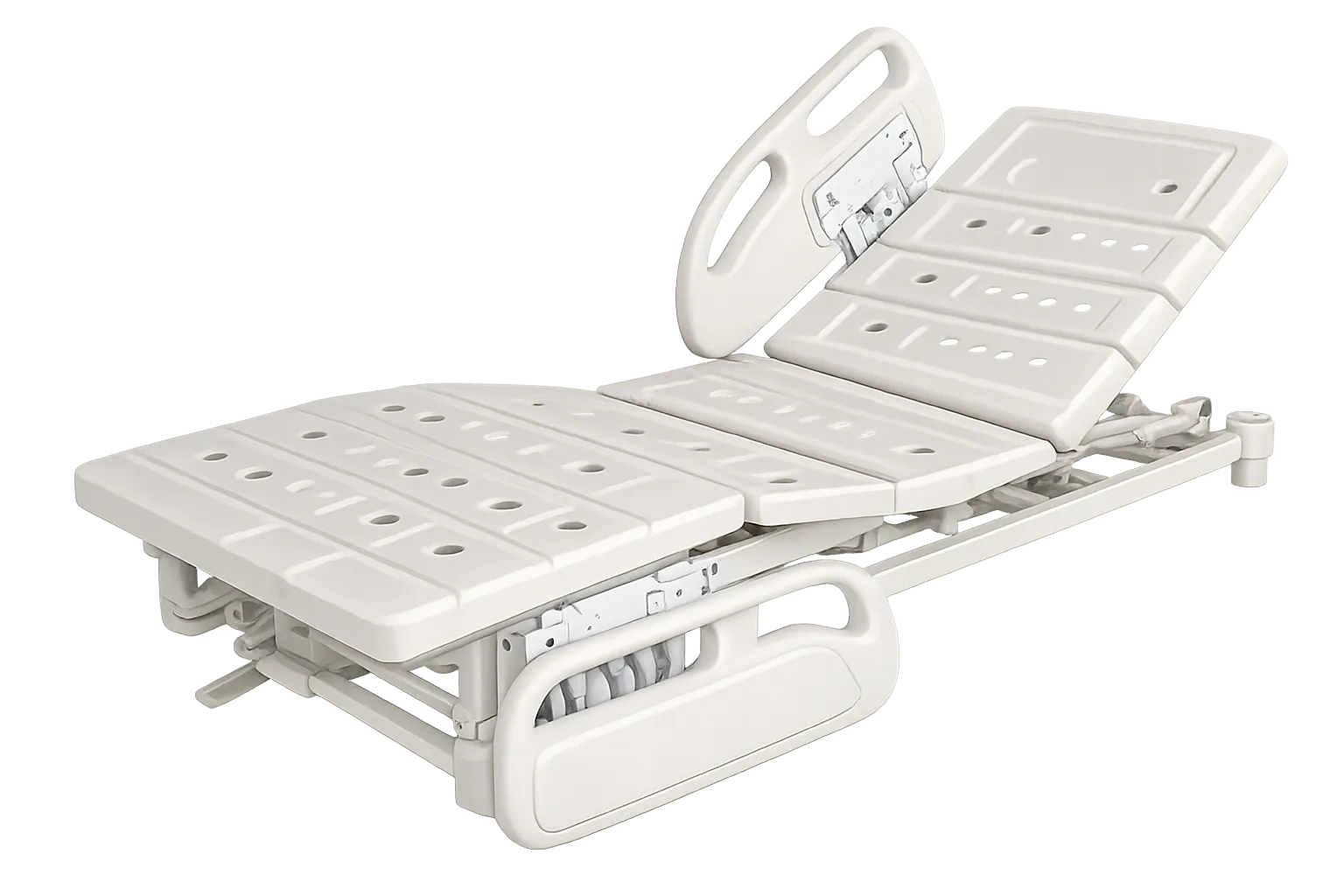

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° position to a maximum of 75° through the ABS folding crank, covering the clinical range from supine positioning through Fowler's and high-Fowler's positions used in respiratory management, assisted feeding, and post-surgical recovery. The 75° maximum backrest angle is sufficient for the majority of positioning protocols used in both acute and rehabilitation inpatient care.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° through the same crank mechanism, providing lower-limb elevation, flexion support during lower-body assessment, and comfort positioning for patients on extended bed rest. Independent knee adjustment without simultaneous backrest movement supports orthopaedic recovery, pressure area management, and lower-limb oedema protocols without requiring the patient to transfer to a separate surface.

ABS Folding Hidden Crank Mechanism

All three adjustment functions — back elevation, knee flexion, and platform height — are operated through a single ABS folding hidden crank that retracts flush with the bed frame when not in use. The ABS material provides durability under repeated clinical use while remaining lightweight for single-handed operation. The folding and hidden storage design eliminates protrusion hazards and supports a clean bed profile in both ward and residential environments.

Four Individual Guardrails

Four individual small-profile side rails are supplied as standard, each raising to a secure locked position and lowering independently for single-side patient access. The four-rail configuration provides bilateral perimeter containment across the full platform length, supporting fall prevention governance in both high-risk and standard inpatient settings. Full rail locking mechanism specifications are available from Medigear.uk.

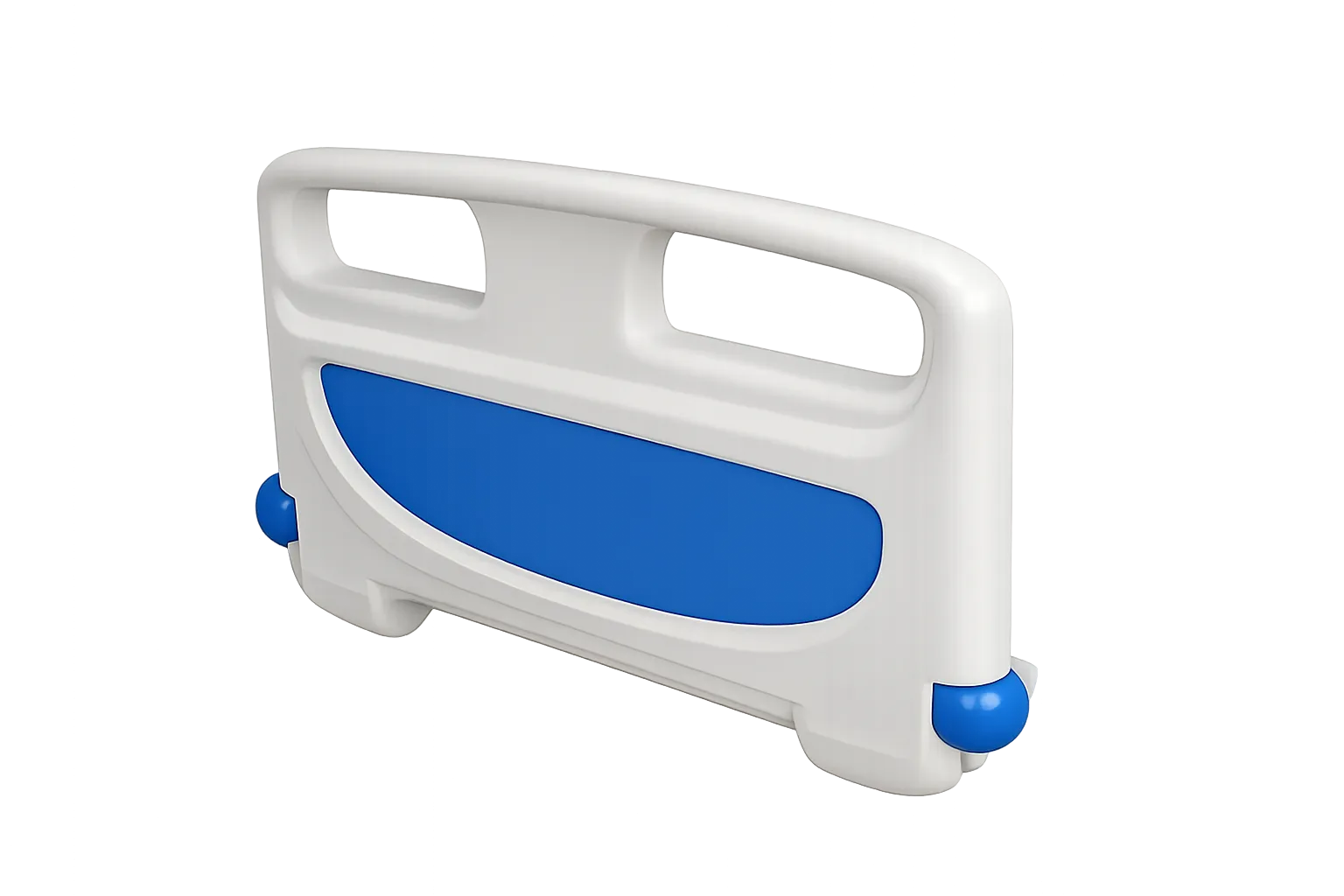

Head and Foot Boards With Anti-Collision Wheels

Head and foot boards are supplied as a matched set and incorporate integrated anti-collision wheels that protect ward walls, corridor fixtures, and residential interior surfaces during bed movement. The anti-collision wheel feature is particularly valuable in care homes and home care environments where repeated bed transit through doorways and along corridors can cause cumulative surface damage. Confirm board material specification with the Medigear.uk procurement team.

Mattress Platform: 2020 × 900 mm

The usable mattress surface measures 2020 mm in length and 900 mm in width, corresponding to the standard dimensions of hospital and care mattresses in common clinical use. This platform size accommodates full-length adult patients and allows existing approved ward mattresses to be retained during bed-fleet replacement, simplifying procurement and asset integration.

Mattress Depth Compatibility

The compatible mattress depth range should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by guardrail height and head and footboard clearance dimensions specific to the BCM3-SMJ02-2 configuration. Using a mattress outside the confirmed depth range may affect the effectiveness of guardrail containment and is not recommended for clinical deployment.

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish that resists repeated cleaning with standard hospital-grade disinfectants and maintains its structural integrity under the mechanical loads associated with daily ward use. The frame material specification and chemical compatibility information are available from Medigear.uk for infection control assessments.

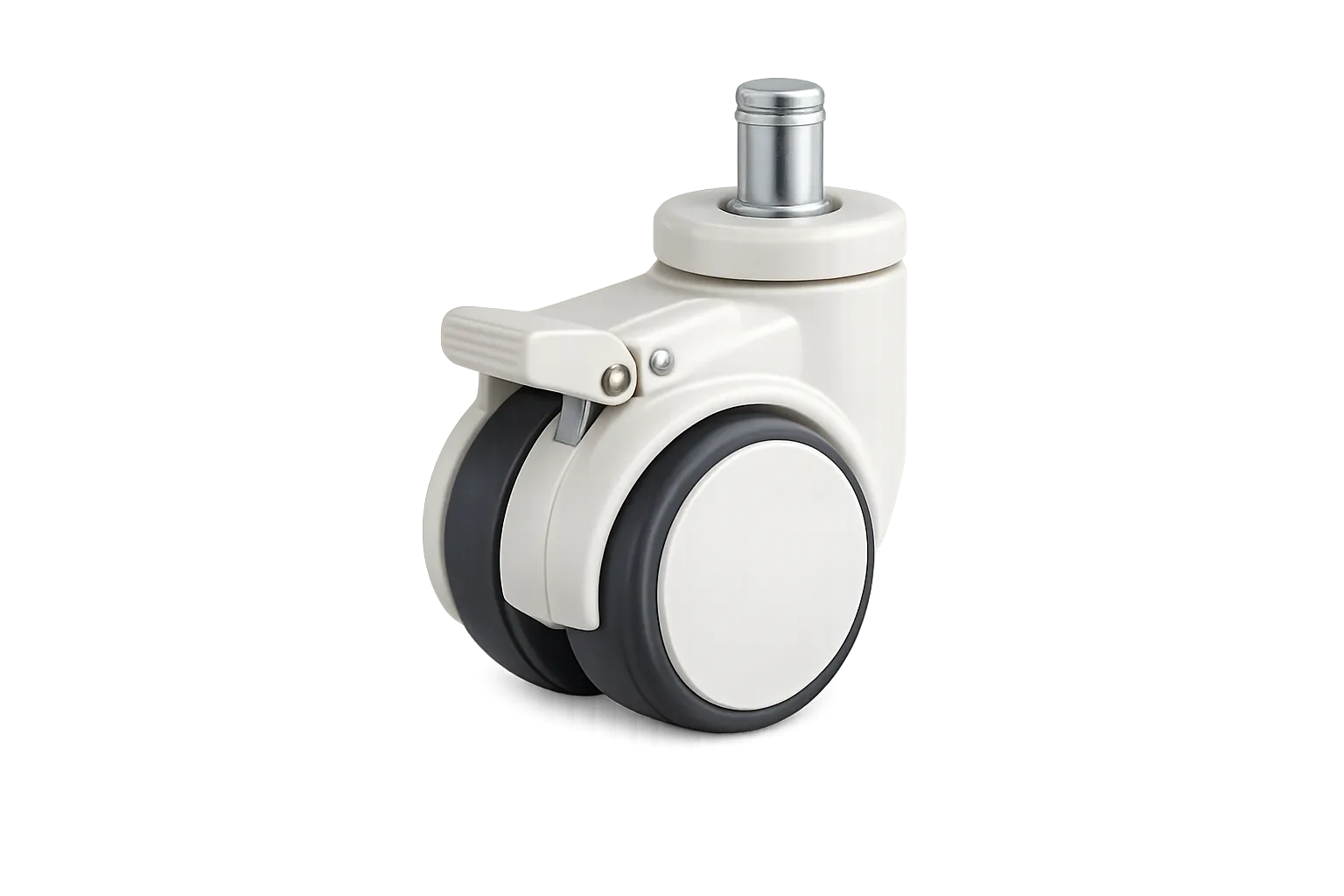

Castor Specification: Five-Inch Twin-Wheel With Central Brake

Four five-inch twin-wheel castors are fitted as standard, each contributing to the bed's total supported weight capacity. The central brake control system allows a single staff member to lock all four castors simultaneously in a single action, eliminating the need for sequential individual wheel locking and reducing the risk of an incompletely secured bed in busy ward and home care environments.

Overall Frame Dimensions: 2090 × 1040 × 680 mm

The overall frame dimensions of 2090 mm in length, 1040 mm in width, and 680 mm at maximum height are designed to fit within standard single-bay clinical spaces and pass through typical ward corridor and doorway clearances. Procurement teams undertaking bay fit or room layout assessments should verify local corridor and bay widths against the 1040 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning purposes.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCM3-SMJ02-2 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk and are not available as post-purchase field additions in all configurations. Procurement teams and distributors should confirm the required optional configuration with Medigear.uk during the specification phase.

The Grace Medy BCM3-SMJ02-2 three-function manual hospital bed delivers a clinically comprehensive, CE-certified positioning platform for general inpatient wards, rehabilitation settings, care homes, and post-discharge home care arrangements, without dependence on electrical infrastructure. Its ABS folding hidden crank system, four-rail guardrail configuration, anti-collision head and foot boards, and central brake castors make it a practical and compliant choice for NHS procurement officers managing cost-efficient fleet expansion, regional distributors serving care home and home care supply chains, and individual buyers arranging home hospital provision. Full specification documentation, certification files, and logistics support are available through Medigear.uk at every stage of procurement. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
