Grace Medy BCE3-ZR02-11

General paediatric inpatient wards require bed systems that combine adjustable positioning with reliable fall prevention, and the Grace Medy BCE3-ZR02-11 three-function electric hospital bed addresses both in a single platform. The four-rail guardrail system with angle-display indicators supports fall-prevention governance, helping clinical teams demonstrate compliance with patient-safety reduction targets. Electrically driven height adjustment eliminates manual lifting during transfer procedures, reducing musculoskeletal risk for ward staff. Medigear.uk supports NHS and private hospital procurement teams throughout the specification and approval process.

Paediatric intensive care and high-dependency units place exceptional demands on positioning precision, and the BCE3-ZR02-11 responds with three independently operated motor-driven axes. Clinical staff can modify back, knee, or platform height without disturbing the other postural parameters or interrupting monitoring leads. The three-motor system operates with low acoustic output, reducing ambient noise exposure for light-sedation patients during overnight periods. Medigear.uk can provide motor noise specifications on request for HDU environment assessments.

Paediatric rehabilitation settings rely on a bed that adapts to a patient's changing functional status across a recovery arc spanning days or weeks. The back section, ranging from 0° to 75°, accommodates supine rest, supported sitting, and near-upright positioning, enabling physiotherapists to advance mobilisation protocols within a single platform. The knee section adjustment from 0° to 45° supports lower-limb elevation, gait preparation, and post-orthopaedic positioning without requiring transfer to a separate therapy surface.

Home care and post-discharge settings benefit from an electrically operated hospital bed that a trained family carer can operate safely without clinical supervision. The hand-held remote controller, combined with the child-lock mechanism, allows approved positional adjustments while preventing unintended operation. The platform height range of 420 mm to 680 mm supports safe transfers for carers assisting patients of varying mobility levels. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging provision ahead of discharge.

Hospital-Grade Fall Prevention Through Independent Guardrail Design

The BCE3-ZR02-11 is fitted with four individual angle-display guardrails that lock securely when raised and lower one at a time for controlled patient access. Each rail displays the current bed section angle, giving ward staff a visual confirmation of the bed's postural configuration at all times. This design directly supports fall-prevention governance requirements within clinical risk frameworks, making the bed a strong candidate for high-dependency and general ward procurement, where incident-reduction metrics are monitored. NHS procurement teams can request guardrail load and locking specifications through Medigear.uk.

Three-Motor Independence for Precise Clinical Positioning

Unlike single-motor or dual-motor alternatives that link positional axes together, the BCE3-ZR02-11 operates back, knee, and height adjustment through three separate motor-driven systems. Clinical staff can raise the backrest to 75° while holding the knee section at 30° and the platform at transfer height simultaneously, without the axes interfering with one another. This level of independence is clinically significant for post-surgical care, respiratory positioning, and rehabilitation protocols where each axis serves a distinct therapeutic purpose.

Full CE and IEC 60601 Certification for NHS Procurement Compliance

The BCE3-ZR02-11 carries CE marking under Medical Device Directive 93/42/EEC and meets IEC 60601 electrical safety standards, satisfying the baseline technical requirements for NHS supply frameworks, private hospital procurement, and OJEU tendering. Medigear.uk holds the full declaration of conformity and technical file, which can be released to procurement officers and clinical governance reviewers on request. For distributors supplying verified-supplier-accredited product catalogues, the certification suite supports straightforward compliance with listing requirements.

Ergonomic Staff Safety Through 260 mm of Motorised Height Adjustment

The platform height range of 420 mm to 680 mm allows nursing and care staff to adjust the bed to an appropriate working height for clinical tasks and then lower it to transfer height without manual lifting or repositioning. Manual handling injuries represent a significant occupational health cost in inpatient settings, and motorised height adjustment is consistently cited in safe-patient-handling literature as a primary control measure. Medigear.uk can provide evidence-based documentation to support safe-handling assessments for clinical risk managers.

Operational Simplicity Through Central Brake Castor Control

The four five-inch twin-wheel castors are fitted with a central brake control system, allowing a single staff member to immobilise all four wheels in a single action rather than engaging individual wheel locks. In busy ward environments, this reduces the time required to secure a bed after movement and minimises the risk of a partially braked bed being left in an unsafe state. The castor specification and brake confirmation mechanism details are available from Medigear.uk for clinical equipment safety reviews.

Repeatable Positioning Through Angle-Display Guardrails

The angle-display feature integrated into each of the four guardrails provides a continuous visual reference for the back and knee section positions without requiring the nurse to consult the remote controller or estimate the angle. In rehabilitation settings, where physiotherapy protocols specify precise positioning angles across a recovery arc, this direct readout supports protocol adherence and enables consistent documentation. Distributors positioning this bed in rehabilitation procurement catalogues will find the angle-display feature a differentiating clinical attribute.

Child-Lock Remote Controller for Safe Mixed-Acuity Use

The hand-held remote controller incorporates a dedicated child-lock function that turns off all motor-driven inputs until reactivated by a member of staff. In paediatric wards, mixed-acuity environments, and home care settings where the patient or family members may handle the controller, this function provides an essential layer of protection against accidental repositioning. The lock does not require tools or a PIN, making it practical for frequent engagement across a shift without adding workflow friction. Full controller specifications are available through Medigear.uk.

Broad Mattress Compatibility for Existing Stock Integration

The 2020 mm × 900 mm platform dimensions match the standard profile of hospital mattresses in common clinical use, enabling procurement teams to source compatible mattresses from existing approved suppliers without additional specification work. For NHS trusts upgrading their bed fleet while retaining current mattress stock, this compatibility reduces total procurement costs and simplifies asset integrations. Medigear.uk procurement advisors can assist with mattress compatibility confirmation for specific existing stock.

Distributor and OEM Flexibility for Regional Supply Chains

The BCE3-ZR02-11 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, and IV stand provision. Distributors building regional clinical supply catalogues can structure agreements around volume tiers, and branding or configuration customisation can be discussed at the commercial terms stage. The optional accessory suite — confirmed at point of order with Medigear.uk — allows distributors to offer a fully configured bed package without sourcing accessories from a separate supplier.

Minimum Platform Height: 420 mm

The BCE3-ZR02-11 reaches a minimum platform height of 420 mm, positioning the mattress surface at a level that facilitates natural foot-to-floor contact during assisted patient transfers. This low starting height is particularly relevant for patients with limited lower-limb strength and supports adherence to safe patient handling guidelines in clinical settings.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable clinical working level for nursing and care staff of average stature, minimising forward flexion during wound care, catheter management, and other bedside clinical procedures. Operating at working height rather than transfer height throughout a clinical task materially reduces cumulative lumbar loading across a shift.

Total Height Adjustment Range: 260 mm

The total motorised height-adjustment range of 260 mm — from 420 mm to 680 mm — covers the full spectrum from safe patient transfer to optimal clinical working height without any manual intervention. This range is delivered through the dedicated height motor. It is independent of back and knee section adjustments, allowing height changes at any backrest or knee angle without resetting the other axes.

Backrest Adjustment: 0° to 75°

The back section motor raises the backrest from a fully flat 0° position to a maximum of 75°, covering the clinical range from supine positioning through Fowler's and high-Fowler's positions used in respiratory management, post-operative care, and assisted feeding. The angle-display guardrails confirm the current backrest position at a glance, supporting protocol adherence without requiring staff to estimate the angle visually.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° via a dedicated motor, enabling lower-limb elevation, providing flexion support during lower-body assessment, and providing comfort positioning for patients on extended bed rest. Independent knee flexion without simultaneous backrest movement is clinically important for orthopaedic recovery and pressure area management protocols.

Three-Motor System: Independent Axis Control

The bed is fitted with one set of three motors, each assigned exclusively to one of the three adjustment axes — back, knee, and height. Motor independence means that back, knee, and height positions can each be modified independently, enabling complex compound positions to be set and held reliably. This architecture supports the positioning precision required in HDU, rehabilitation, and post-surgical care environments.

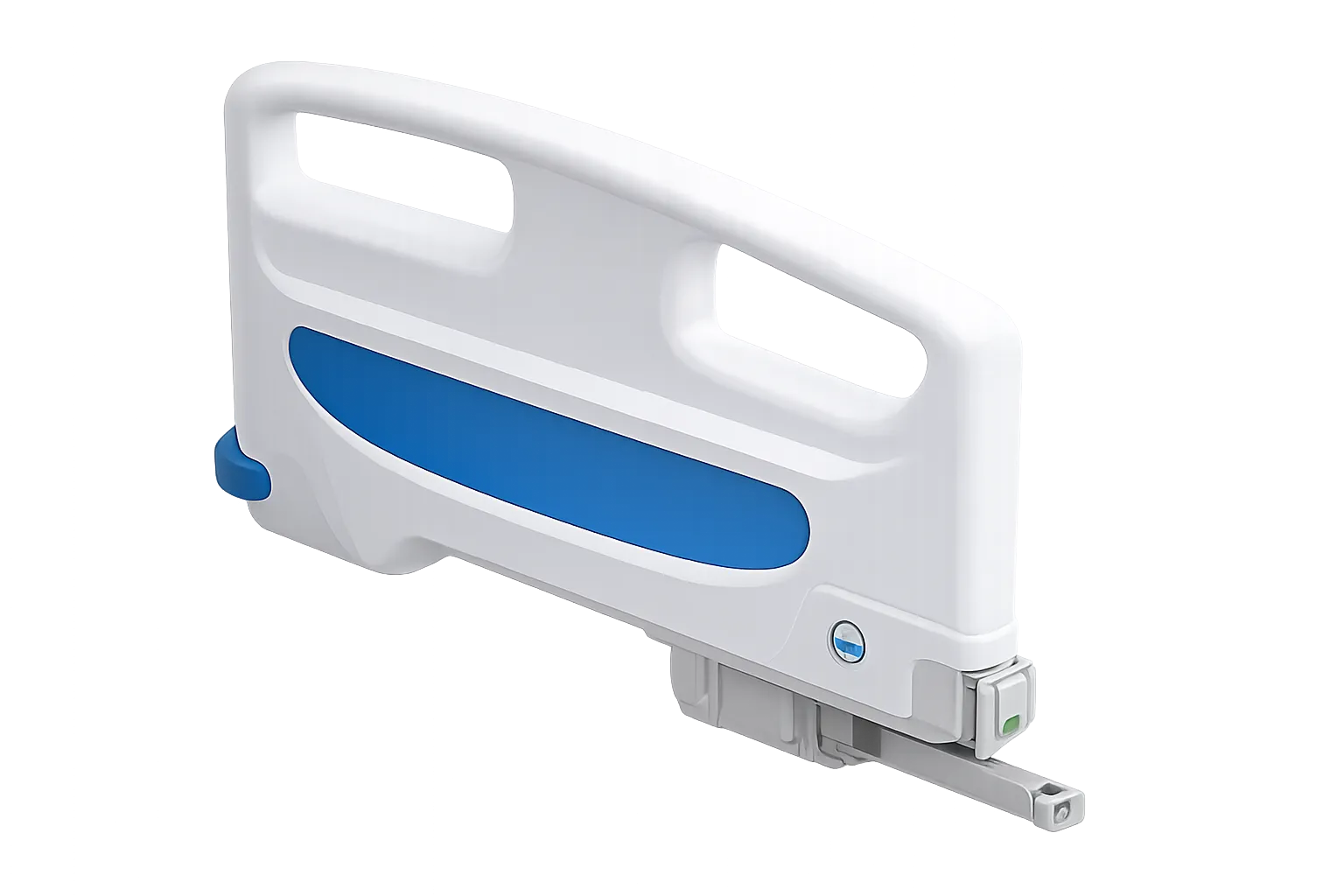

Four Angle-Display Guardrails

Four individual side rails are supplied as standard, each incorporating an angle-display indicator that shows the adjacent bed frame's current section angle. The rails lower individually for single-side patient access and lock securely in place. The angle-display function eliminates the need for staff to visually estimate backrest or knee angles during repositioning, supporting accurate protocol documentation.

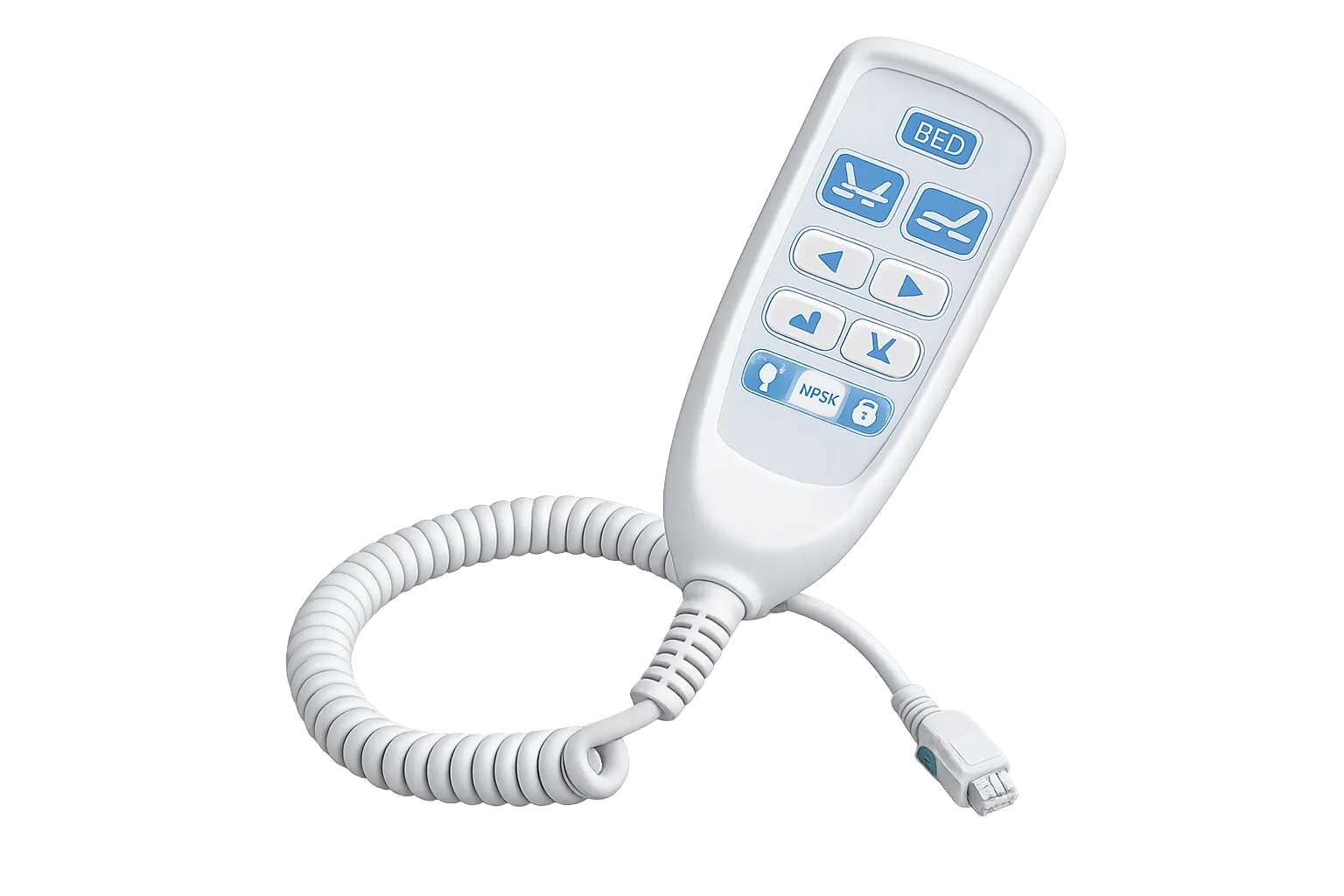

Hand-Held Remote Controller With Child-Lock

The remote controller included as standard with the BCE3-ZR02-11 provides dedicated controls for each of the three motor functions and incorporates a child-lock mechanism. When the child-lock is engaged, all motor inputs are turned off until a staff member reactivates the controller, preventing accidental or unsupervised repositioning. The controller design is suitable for use in both institutional ward settings and home care environments where non-clinical users may have access.

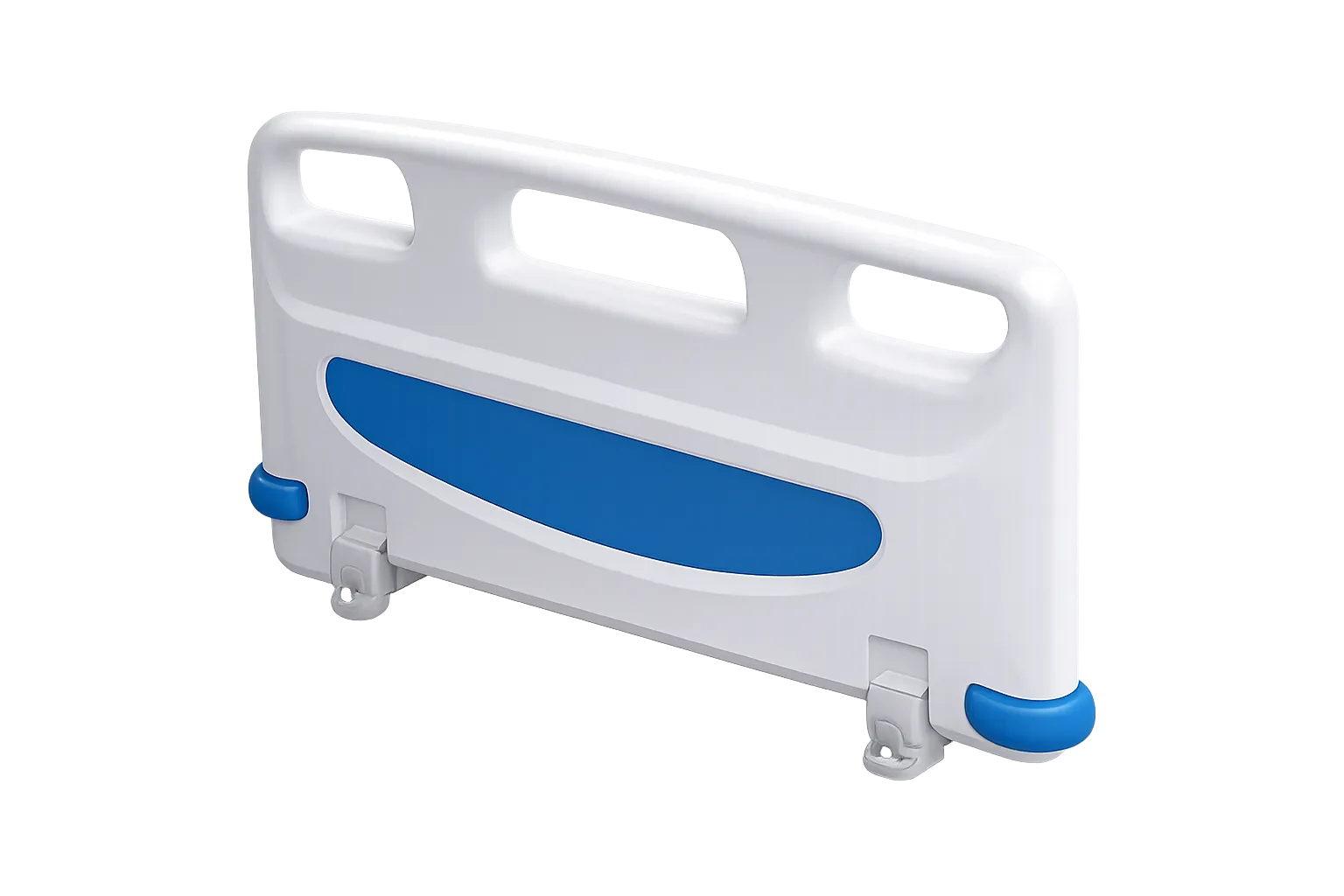

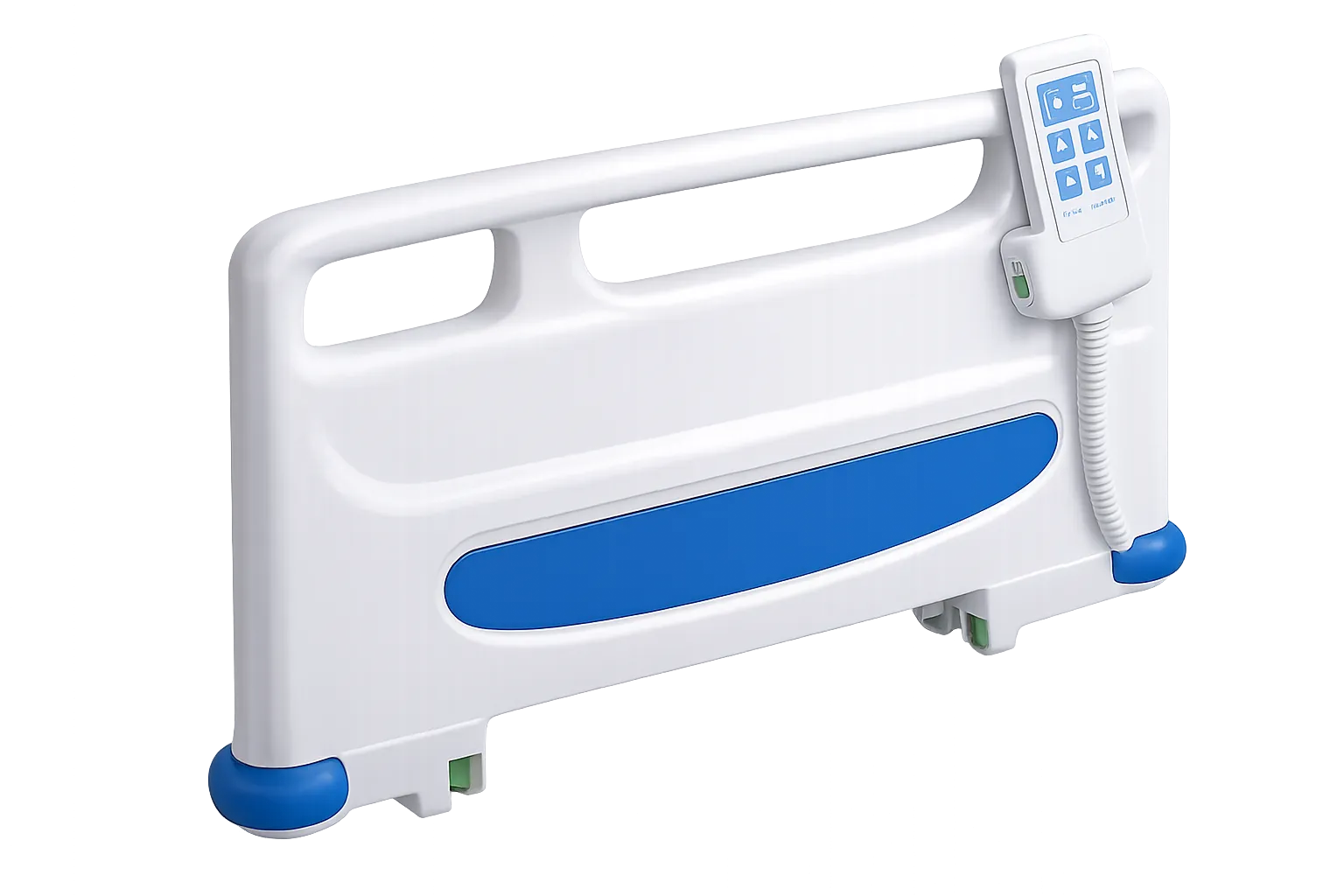

Head and Foot Board: Matched Set Supplied

Head and foot boards are supplied as a matched set with the BCE3-ZR02-11. The boards define the bed's overall profile, support patient safety at the head and foot ends of the platform, and contribute to the bed's clinical aesthetic in ward environments. Confirm material specification and colour options with the Medigear.uk procurement team.

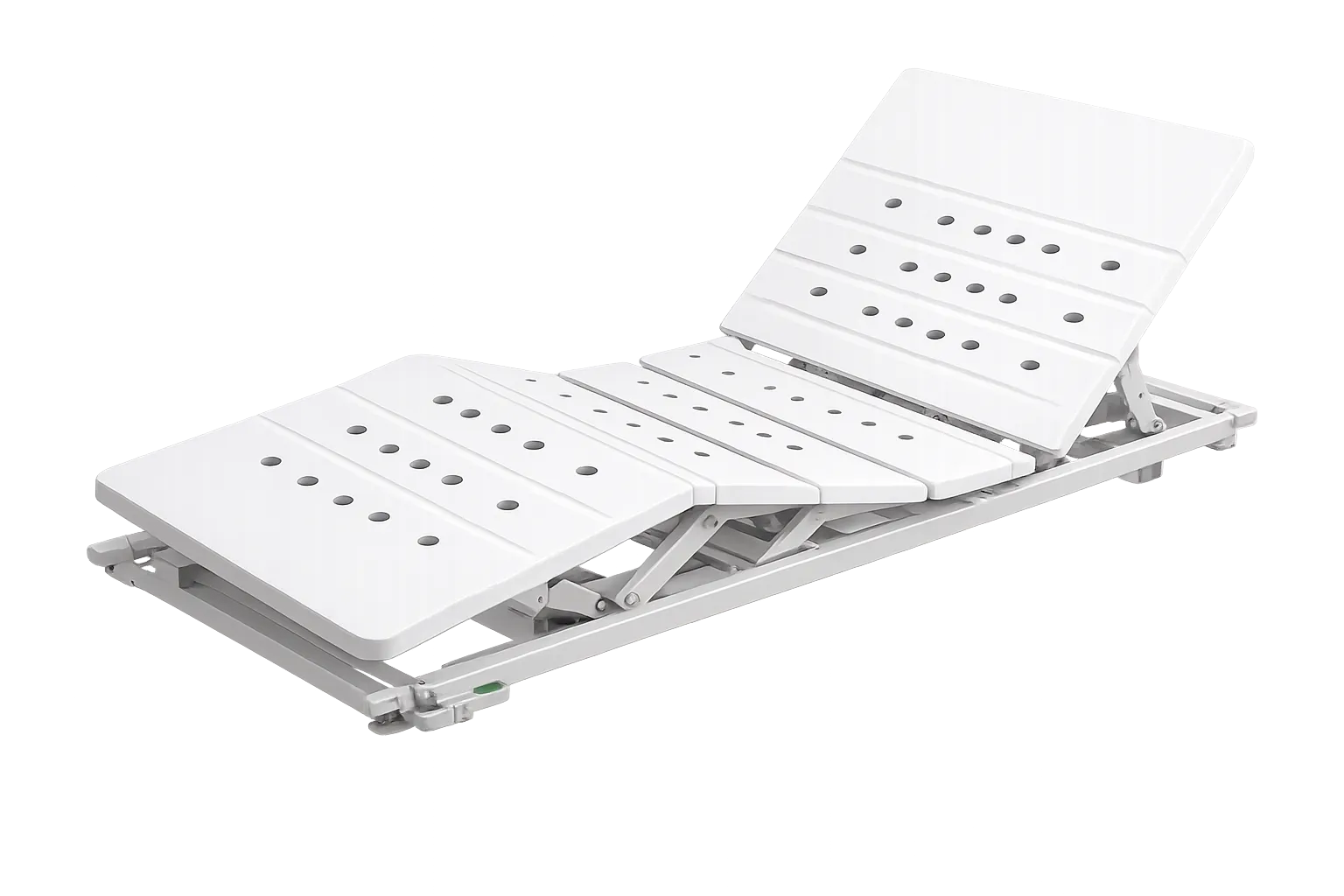

Mattress Platform: 2020 × 900 mm

The usable mattress surface measures 2020 mm in length and 900 mm in width, corresponding to the standard dimensions of hospital mattresses in common clinical use. This platform size accommodates full-length adult patients and allows standard ward mattresses to be used without additional specification work, simplifying the procurement and asset integration process for NHS trusts.

Mattress Depth Compatibility

The compatible mattress depth range should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by guardrail height and head and foot board clearance dimensions specific to the unit configuration. Using a mattress outside the confirmed depth range is not recommended for clinical use, as it may affect the effectiveness of guardrail containment.

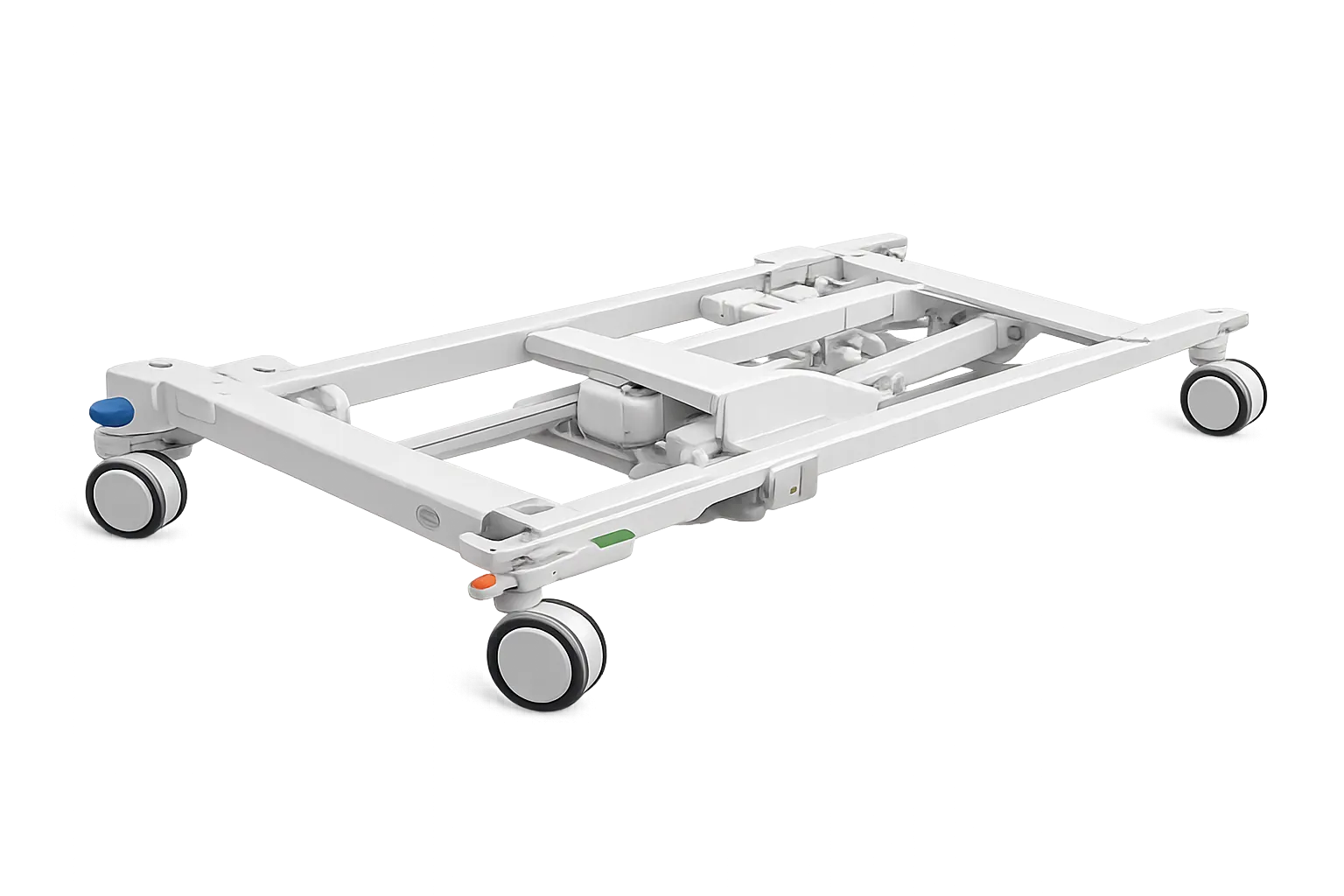

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coat surface finish. The powder coat provides resistance to repeated cleaning with standard hospital-grade disinfectant agents and maintains its integrity under the mechanical demands of daily ward use. The frame material specification and chemical compatibility list are available from Medigear.uk for infection control assessments.

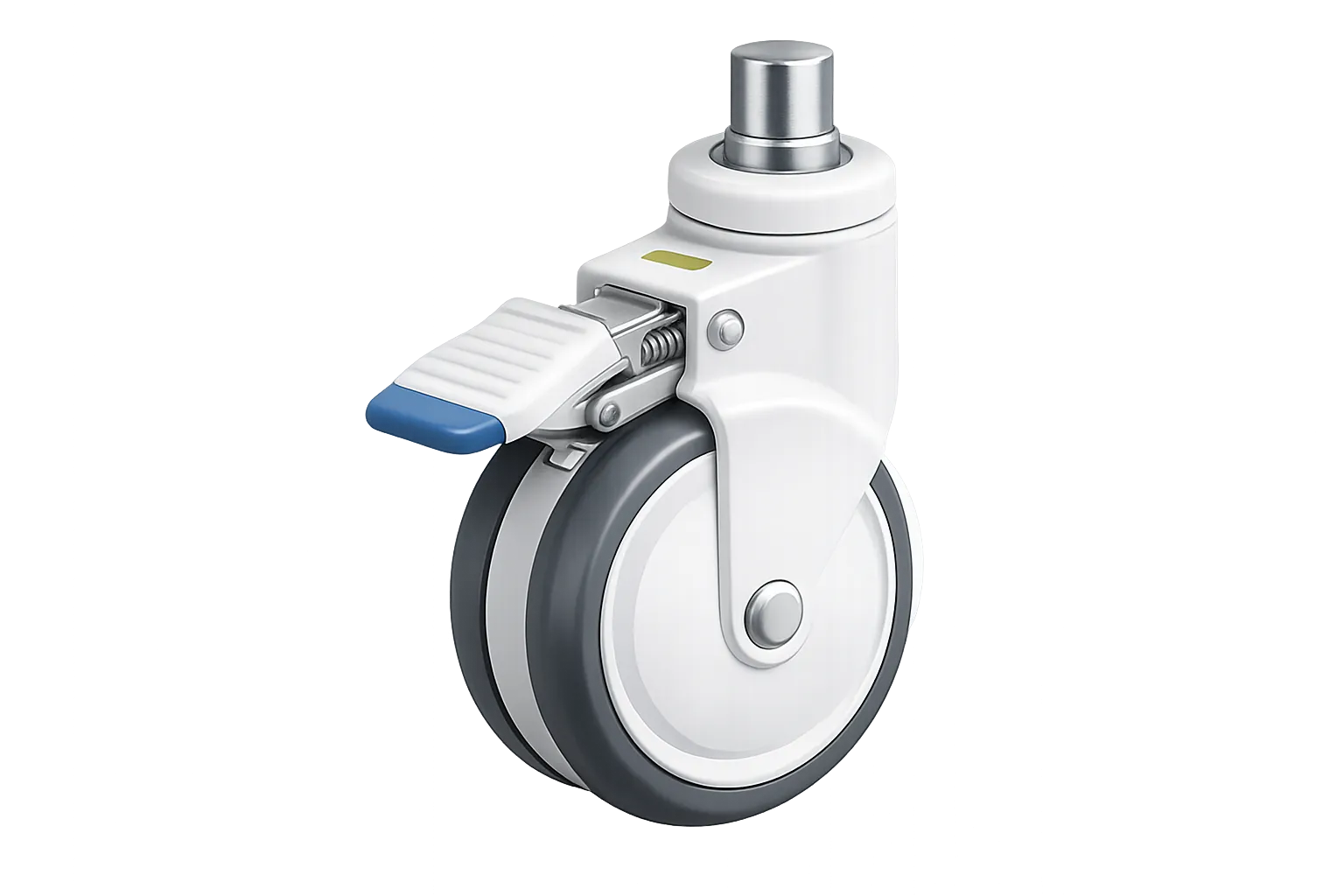

Castor Specification: Five-Inch Twin-Wheel With Central Brake

Four five-inch twin-wheel castors are fitted as standard, each rated to contribute to the bed's total weight capacity. The central brake control system allows a single staff member to lock all four castors simultaneously in a single action, eliminating the need to engage each wheel lock and reducing the risk of a partially braked bed in ward environments.

Overall Frame Dimensions: 2090 × 1040 mm

The overall frame dimensions of 2090 mm in length and 1040 mm in width are designed to fit within standard single-bay clinical spaces and pass through typical ward corridor and doorway clearances. Procurement teams undertaking bay fit assessments should verify local corridor and bay widths against the 1040 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning purposes.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCE3-ZR02-11 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk and are not available as post-purchase field additions in all configurations. Distributors and hospital procurement teams should confirm the required optional configuration with Medigear.uk during the specification phase.

The Grace Medy BCE3-ZR02-11 three-function electric hospital bed provides a clinically comprehensive positioning platform for general paediatric wards, paediatric high-dependency units, rehabilitation settings, and post-discharge home care arrangements. Its three-motor independent drive system, four-rail angle-display guardrail configuration, and full CE and IEC 60601 certification make it a compliant and operationally practical choice for NHS procurement officers, regional distributors building clinical product portfolios, and individual buyers arranging home hospital care. The complete specification range, certification documentation, and logistics information are all available through Medigear.uk, where expert procurement support is provided at every stage. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
