GE HealthCare Logiq P6 (2010)

✓ Certified Professional Seller

GE HealthCare Medical Diagnostic Equipment

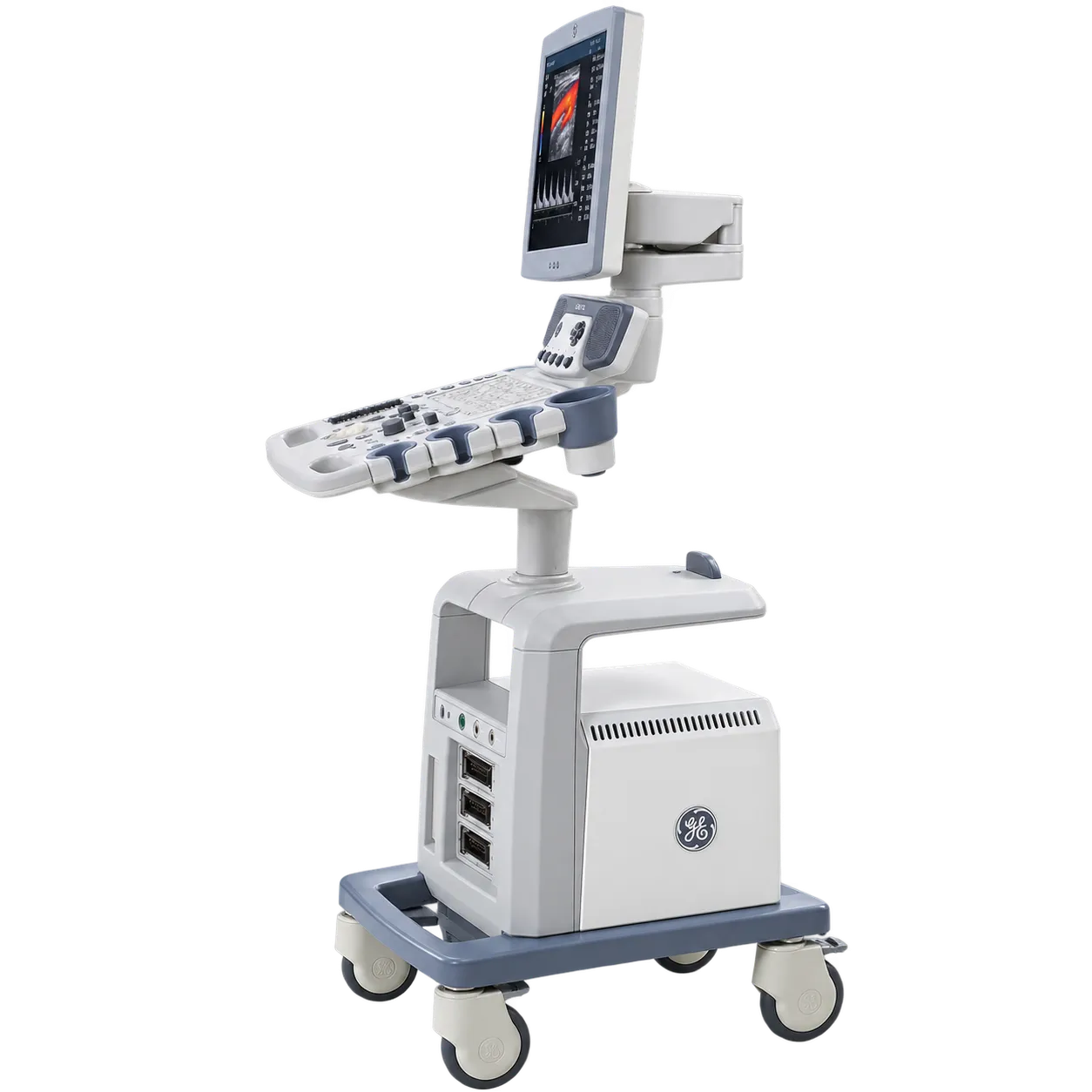

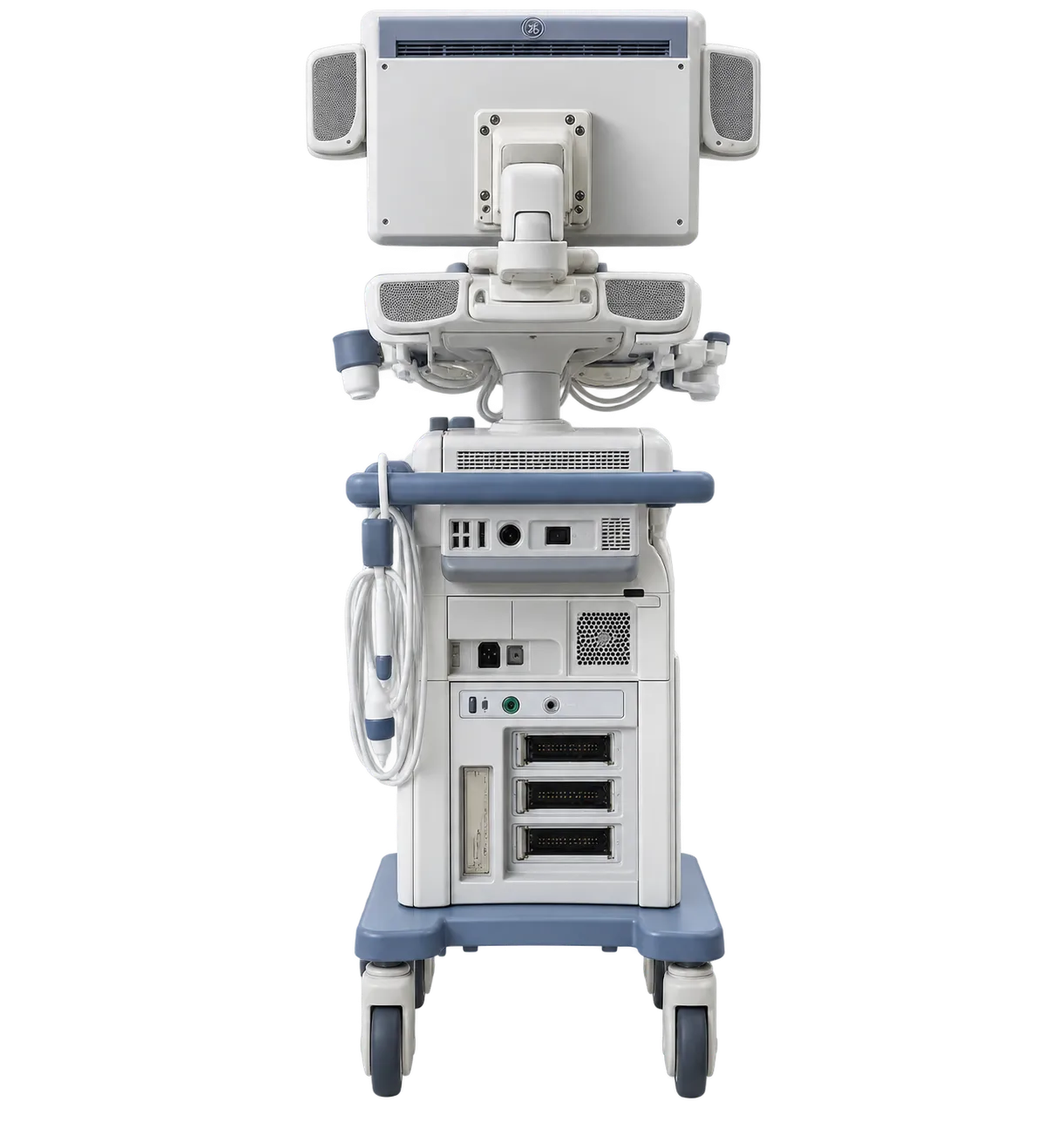

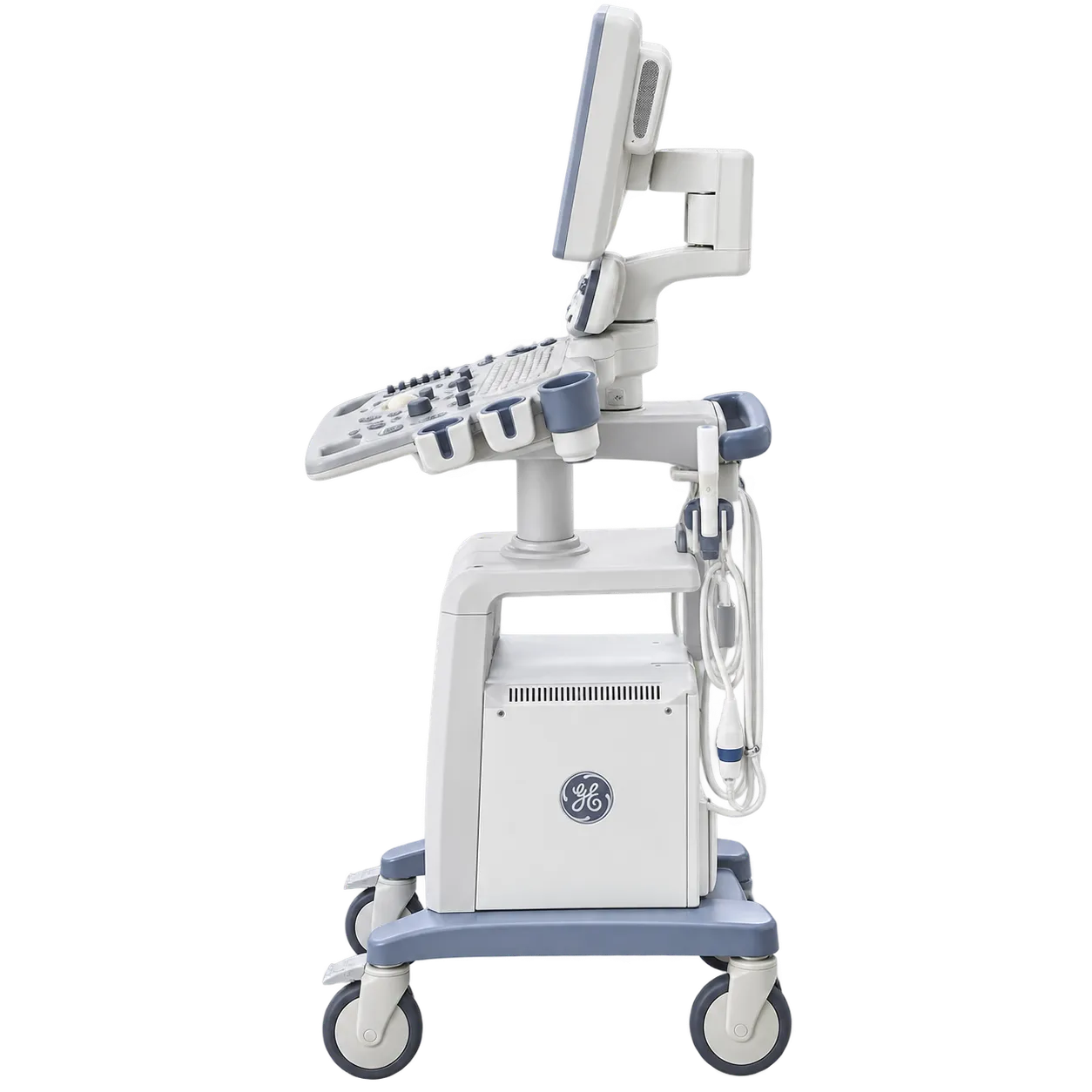

GE HealthCare Logiq P6 (2010)

The Difference Shows in the Waveform.

For routine grey-scale imaging, ultrasound consoles converge quickly and most tiers produce a diagnostic picture. Where they separate for a general department is Doppler: colour sensitivity at low flow, the cleanliness of a spectral trace, and the measurement packages that turn a waveform into a reportable result. Vascular work depends on all three. This Logiq P6 was built in 2010, and Medigear.uk confirms the Doppler configuration, the enabled measurement packages and the probe set before quotation.

Sections

Ultrasound Machine

Categories

Medical Diagnostic Equipment

Condition

Refurbished

Year

2010

Origin

Poland

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

The distinction worth drawing on any general imaging ultrasound system is between what produces the picture and what produces the diagnosis, because on a good deal of work they are not the same thing.

In routine abdominal or obstetric imaging the grey-scale picture largely is the examination, and consoles at most tiers produce one that is diagnostic. In vascular work the picture is the starting point. The diagnosis comes from flow: whether a vessel fills with colour, in which direction, at what velocity, with what waveform shape, and how those velocities compare across a stenosis. A carotid study is reported on peak systolic and end diastolic velocities and their ratios. A peripheral arterial study is reported on waveform morphology and velocity change. A venous study depends on demonstrating flow, augmentation and compressibility. None of that is read from the B-mode image.

That is why Doppler capability rather than grey-scale performance is what separates consoles for a department doing this work, and it separates them in three specific ways.

The first is colour sensitivity at low flow. Filling a small or slow-flowing vessel reliably, without dropout and without excessive noise, is where cheaper systems struggle and where an examination becomes equivocal rather than diagnostic.

The second is spectral quality. A clean trace with a well-defined envelope can be measured confidently; a noisy one introduces uncertainty into exactly the number the report turns on. Angle correction and the stability of the sample volume matter here as much as raw sensitivity.

The third is measurement and reporting, and it is the one most often overlooked because it is software rather than physics. Velocity ratios, stenosis criteria, automated calculations and structured vascular reporting are what convert measurements into a result a clinician can act on. These are frequently licensed or configured rather than inherent, so two consoles of identical model and year can differ in what a vascular list can actually produce from them. Medigear.uk confirms the enabled packages against the unit, since a system without them requires the measurements to be done and assembled by hand.

The probe port arrangement is a practical detail that matters more in daily use than its specification suggests. Where several transducers can be connected simultaneously, a curved array, a linear probe and a third transducer are all live at once, and changing between them is a button press rather than unplugging and reconnecting cables mid-examination. On a mixed list, or during a single examination that requires more than one probe, that removes a recurring interruption and a recurring opportunity to damage a connector.

The transducers determine coverage, as on any ultrasound system. Medigear.uk lists the probes supplied with what each one covers, and establishes their condition through testing rather than observation, since dead elements, lens delamination and internal cable damage all degrade an image while leaving a probe that powers up perfectly well. On vascular work the linear transducer carries most of the load, so its condition deserves particular attention.

A 2010 build places this in the middle of the used market. The console generation and operating system determine network acceptability, which affects DICOM transfer and reporting integration and belongs with the receiving organisation's IT function before purchase rather than at installation. GE ultrasound is among the most widely installed platforms in the world, which sustains parts availability, familiar engineers and an established independent service market, and the current route and cost for this specific unit are confirmed at purchase.

Compliance differs from the ionising modalities: no radiation regime, no radiation protection adviser and no critical examination. Medical device regulation applies, and in daily practice decontamination matters most, with probe hygiene between patients a genuine infection control requirement and endocavity transducers carrying considerably more demanding arrangements. Medigear.uk raises these alongside a decontamination certificate and confirmation of current marking status.

Carotid duplex assessment is among the applications this class of console is most commonly bought for, reported on peak systolic and end diastolic velocities and their ratios rather than on the grey-scale appearance alone. All clinical judgement, including whether an examination is indicated and how findings are interpreted, remains with the performing and reporting clinicians, and Medigear.uk supplies configuration and condition detail rather than clinical guidance.

Peripheral arterial studies depend on waveform morphology and velocity change across a lesion, which places the demand on spectral quality and angle correction rather than on image resolution.

Venous assessment including deep vein thrombosis scanning depends on demonstrating flow, augmentation and compressibility, where reliable colour filling at low velocity is what makes an examination conclusive rather than equivocal.

Graft and access surveillance requires repeatable velocity measurement over time, which places weight on both consistent technique and the measurement packages that record it.

General abdominal, small parts, obstetric and gynaecological work runs on the same console where suitable transducers are supplied, which is what allows a vascular-capable system to fill a mixed list rather than sitting idle between vascular sessions.

Services whose principal requirement is detailed cardiac assessment should consider equipment specified for echocardiography instead, and Medigear.uk will set out that distinction rather than leave it to be discovered.

Doppler Is Where the Tiers Actually Separate

Grey-scale imaging converges quickly once a console is adequate. Colour sensitivity at low flow, spectral trace quality and measurement capability are what differ, and they are what vascular work depends on.

Confident Measurement Rather Than Equivocal Images

A clean spectral envelope can be measured with confidence; a noisy one introduces uncertainty into precisely the number the report turns on.

Measurement Packages Confirmed, Not Assumed

Velocity ratios, stenosis criteria and structured vascular reporting are frequently licensed rather than inherent. A console without them requires the work to be assembled by hand, so the enabled list is established against the unit.

Several Transducers Live at Once

Multiple probe ports mean changing between a curved array, a linear probe and a third is a button press rather than unplugging mid-examination, removing a recurring interruption and a recurring risk to connectors.

The Linear Probe Given Particular Attention

On vascular work the linear transducer carries most of the load, so its condition is established by testing rather than observation.

Probes Tested Rather Than Switched On

Dead elements, lens delamination and internal cable damage degrade an image while leaving a probe that powers up normally. Testing establishes condition; powering up does not.

A Mixed List From One Console

General abdominal, small parts, obstetric and gynaecological work run on the same system where suitable probes are supplied, so a vascular-capable console fills a full list rather than sitting idle between sessions.

An Honest Account of Scope

This is a general imaging console with vascular capability rather than a dedicated echocardiography platform, and Medigear.uk states that rather than selling it into a role it does not suit.

The Network Question Raised Before Purchase

Console generation and operating system determine network acceptability, which affects DICOM transfer and reporting and belongs with the receiving IT function before order.

A Well-Supported Platform

GE ultrasound is among the most widely installed in the world, sustaining parts availability, familiar engineers and an established independent service market.

Cart-Based General Imaging Console

An ultrasound platform with colour and spectral Doppler covering abdominal, small parts, obstetric, gynaecological and vascular work.

Year of Manufacture: 2010

Bearing on console generation, operating system, network acceptability and remaining service expectation.

Colour and Spectral Doppler

Enabled modes confirmed against the unit, since these carry the clinical work on vascular examinations.

Vascular Measurement and Reporting Packages

Velocity ratios, stenosis criteria and structured reporting confirmed, since these are frequently licensed rather than inherent.

Multiple Probe Ports

Several transducers connected simultaneously, so changing between them during a mixed list is a button press rather than a cable change.

Transducers Supplied

Listed individually with the applications each covers, since the probe set determines the system's clinical range.

Probe Condition and Element Testing

Established through testing rather than observation, with particular attention to the linear transducer on a vascular-capable system.

Probe Availability and Replacement Cost

Current sourcing and cost established for any transducer a service would need to add.

Angle Correction and Sample Volume Control

Confirmed against the unit, since both bear on the reliability of spectral measurement.

Console Condition and Operating System

Confirmed, including operating system generation, since this determines network acceptability.

DICOM Connectivity and Reporting

Image transfer and reporting output confirmed against the systems a department already runs.

Service Route and Parts Availability

Manufacturer and independent service provision, parts supply and probe repair arrangements established at purchase.

Marking and Regulatory Status

Current marking and regulatory position confirmed, as required for medical electrical equipment entering clinical service.

Decontamination and Probe Hygiene

Decontamination certificate requested with the unit, and probe hygiene requirements raised including the more demanding arrangements for endocavity transducers.

Operator Training and Familiarisation

Training requirements identified, particularly around measurement and reporting workflows where a vascular service depends on consistent technique.

This GE HealthCare Logiq P6 was built in 2010, and the useful way to assess a console of this class is by what it does after the grey-scale image rather than by the image itself. In routine abdominal and obstetric work the picture largely is the examination, and most tiers produce a diagnostic one. In vascular work the picture is only the starting point: a carotid study is reported on peak systolic and end diastolic velocities and their ratios, a peripheral arterial study on waveform morphology and velocity change, a venous study on demonstrating flow, augmentation and compressibility. None of that is read from the B-mode image, which is why colour sensitivity at low flow, spectral trace quality and the measurement packages that turn a waveform into a reportable result are what separate consoles for a department doing this work. Those packages are frequently licensed rather than inherent, so Medigear.uk confirms the enabled list against the unit rather than assuming it from the model. The probe set is listed with the applications each transducer covers and established by testing rather than observation, with particular attention to the linear probe that carries most vascular work. Medigear.uk also confirms the console and operating system generation with the network question that follows, the service and parts route, the marking position and the decontamination arrangements this modality requires. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

It is a cart-based general imaging ultrasound console with colour and spectral Doppler, covering abdominal, small parts, obstetric, gynaecological and vascular work. This unit was built in 2010.

Because in vascular work the diagnosis comes from flow rather than from the picture. A carotid study is reported on velocities and their ratios, a peripheral arterial study on waveform morphology, a venous study on demonstrating flow and augmentation. None of that is read from the B-mode image.

Colour sensitivity at low flow, where cheaper systems produce dropout and an equivocal examination. Spectral trace quality, since a clean envelope can be measured confidently and a noisy one introduces uncertainty into the number the report turns on. And the measurement and reporting packages that convert those measurements into a result.

Because they are software rather than physics and are frequently licensed rather than inherent. Velocity ratios, stenosis criteria and structured vascular reporting are what a vascular list needs, and a console without them requires the measurements to be assembled by hand. Medigear.uk confirms what is enabled.

Live transducers rather than stored ones. With a curved array, a linear probe and a third connected at once, changing between them is a button press rather than unplugging and reconnecting mid-examination. On a mixed list that removes a recurring interruption and a recurring risk to connectors.

On vascular work the linear transducer carries most of the load, so its condition deserves particular attention. Medigear.uk tests rather than observes, since dead elements, lens delamination and cable damage degrade an image while leaving a probe that powers up normally.

It is a general imaging console with vascular capability rather than a dedicated echocardiography platform. A service whose requirement is detailed cardiac work should look at equipment specified for it, and Medigear.uk will say so rather than sell this into that role.

The console generation and operating system determine network acceptability, and that question belongs with the receiving organisation's IT function before purchase. Medigear.uk confirms the console and connectivity position so it can be assessed properly.

GE ultrasound is among the most widely installed platforms in the world, which sustains parts, familiar engineers and an established independent service market. The current route and cost for this unit are confirmed at purchase.

No radiation regime applies. Medical device regulation applies, and decontamination matters most in daily practice, particularly probe hygiene between patients and the more demanding requirements for endocavity transducers.
