AQUAMAXX SPA-8298A

Recovery and conditioning settings make extensive use of the SPA-8298A, as active work and passive recovery share the same shell. A swimmer can finish a set against the twin-motor current and move directly into the 24-nozzle massage area, without leaving the water or relocating to separate equipment. Warm water immersion after exercise is widely used for its effect on comfort and perceived muscle soreness. Medigear.uk supplies the SPA-8298A on the basis that it is exercise and wellness equipment, not a treatment device.

Supervised aquatic exercise programmes can use the adjustable current to establish a defined working condition and repeat it session to session. Buoyancy reduces joint loading during movement, while the current provides opposition matched to the individual, and the four-adult capacity suits small-group or one-to-one supervised work. Where the SPA-8298A forms part of any therapeutic programme, exercise prescription and clinical judgement remain with the qualified practitioner directing the session, and Medigear.uk provides manufacturer documentation to support a facility's own equipment assessment.

Training environments benefit most directly from the 4.5-metre swimming zone, which allows for a full stroke rather than a compressed action. A combined drive of 5.6 kW provides resistance for sustained pace work. At the same time, chest expander and rowing pole accessories add resistance-training options, and an underwater treadmill can be equipped for jogging. Medigear.uk confirms accessory compatibility with the factory before order.

Residential wellness installations account for much of the demand, since a single shell provides swimming, hydrotherapy, and heated relaxation without pool construction. Forty-five water-line lamps and a pool-bottom lamp support evening use, and Medigear.uk supports private buyers from site assessment through to installation documentation.

A 4.5 Metre Swimming Zone

Zone length is the specification a swimmer notices first, because a short space forces a truncated stroke no matter how much water is moving past. At 4.5 metres, the SPA-8298A provides room for full extension and a natural catch. This is why the shell runs to 6900 mm rather than a more compact option. Medigear.uk assesses site dimensions against that footprint before order.

Twin Motors Delivering 5.6 kW of Combined Drive

Two 2.8 kW motors work with a two-speed pump to generate the current. Combined drive of this order moves substantially more water than a single motor arrangement, which is what allows a trained swimmer to work against sustained resistance rather than outpacing it. Two sensor systems support the configuration. Medigear.uk confirms the adjustment range with the manufacturer on request.

Aristech Acrylic Named Rather Than Unspecified

The shell uses Aristech acrylic imported from the United States, which is unusual to see stated explicitly. Sheet quality governs appearance retention and staining resistance across a shell that will hold treated water for years. A named source is materially more useful to a buyer than a generic reference to imported acrylic. Medigear.uk confirms material specification before supply.

Backflow Engineered Around the Seating

The manufacturer specifies a grid arrangement around the seats, creating backflow and improving circulation and filtration exactly where bathers spend the most time. Water quality is most tested in seating areas, and treating that as a design problem rather than leaving it to general circulation is a genuine engineering distinction. It affects both water clarity and treatment demand. Medigear.uk can supply the technical description on request.

Independent Massage and Circulation Circuits

A 3 HP massage pump drives the 24 nozzles separately from the 1 HP circulating pump that serves filtration and heating. Separation means massage runs at working pressure without compromising water treatment, and circulation continues regardless of how the spa is being used. This is a built-in distinction that reveals itself in daily operation rather than on a specification sheet.

Swimming and Recovery Without Leaving the Water

One shell provides the swim zone and the massage area, so a session moves from working effort into heated recovery with no change of location. For households, this removes the choice between an exercise pool and a spa. For facilities,s it consolidates two functions into a single footprint. Both benefit from the same water treatment set.

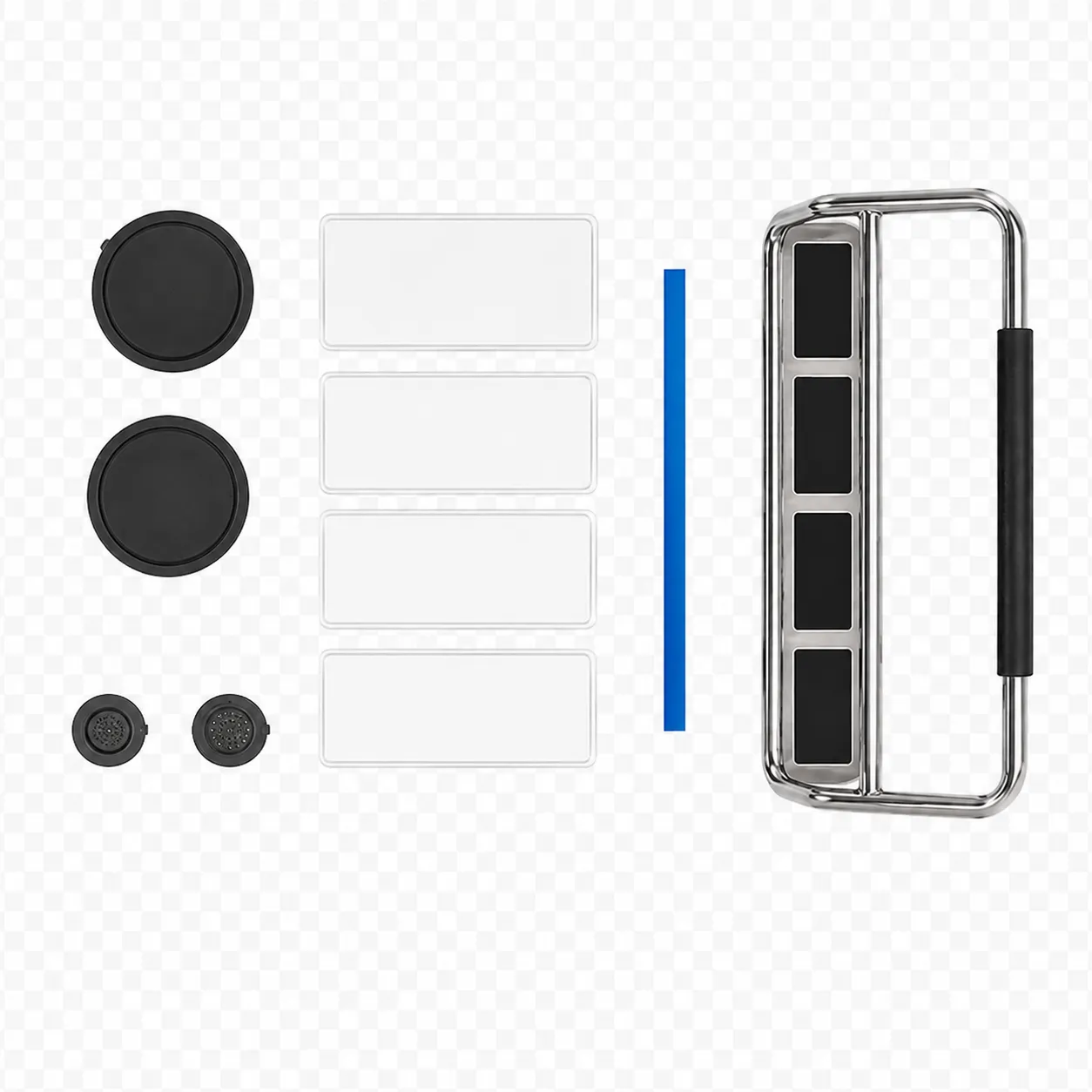

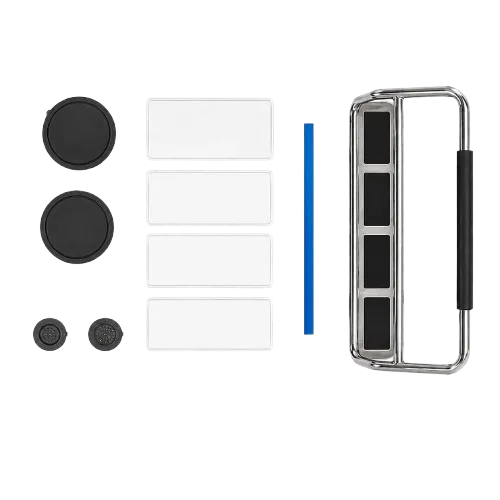

Expandable With Exercise Accessories

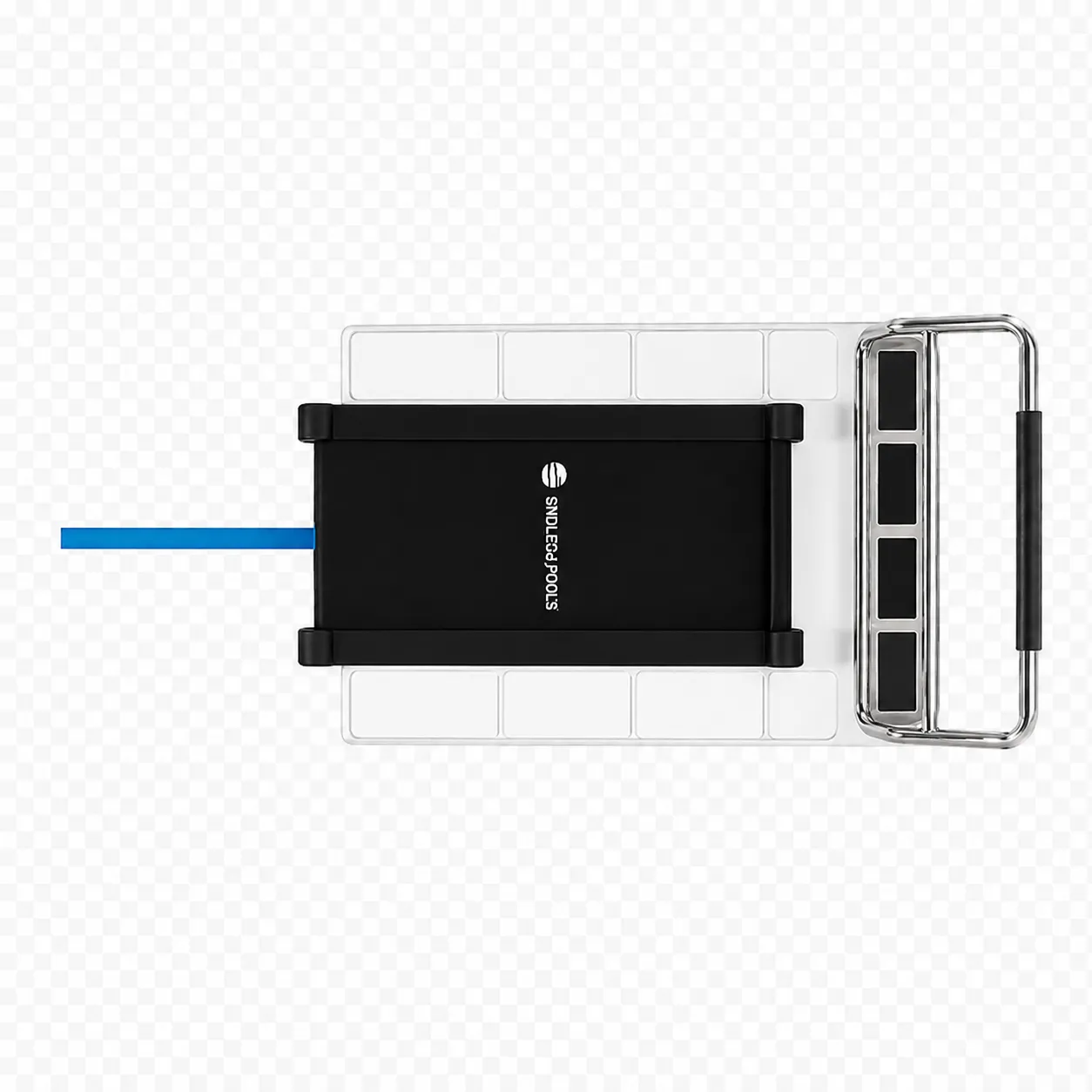

The manufacturer offers a chest expander and rowing pole, and an underwater treadmill can be equipped so the unit supports jogging alongside swimming. This extends a swim spa into a broader training installation without additional floor space. Accessory compatibility is confirmed for each build rather than assumed. Medigear.uk handles that dialogue with the factory.

Specification Verification Before Order

The manufacturer's own materials give two different figures for the swimming outlet width on this model, which is precisely the sort of discrepancy to settle before purchase rather than after. Medigear.uk resolves it in writing at quotation, alongside the exact electrical configuration within the stated 220 to 380V range. Buyers therefore commit against verified figures.

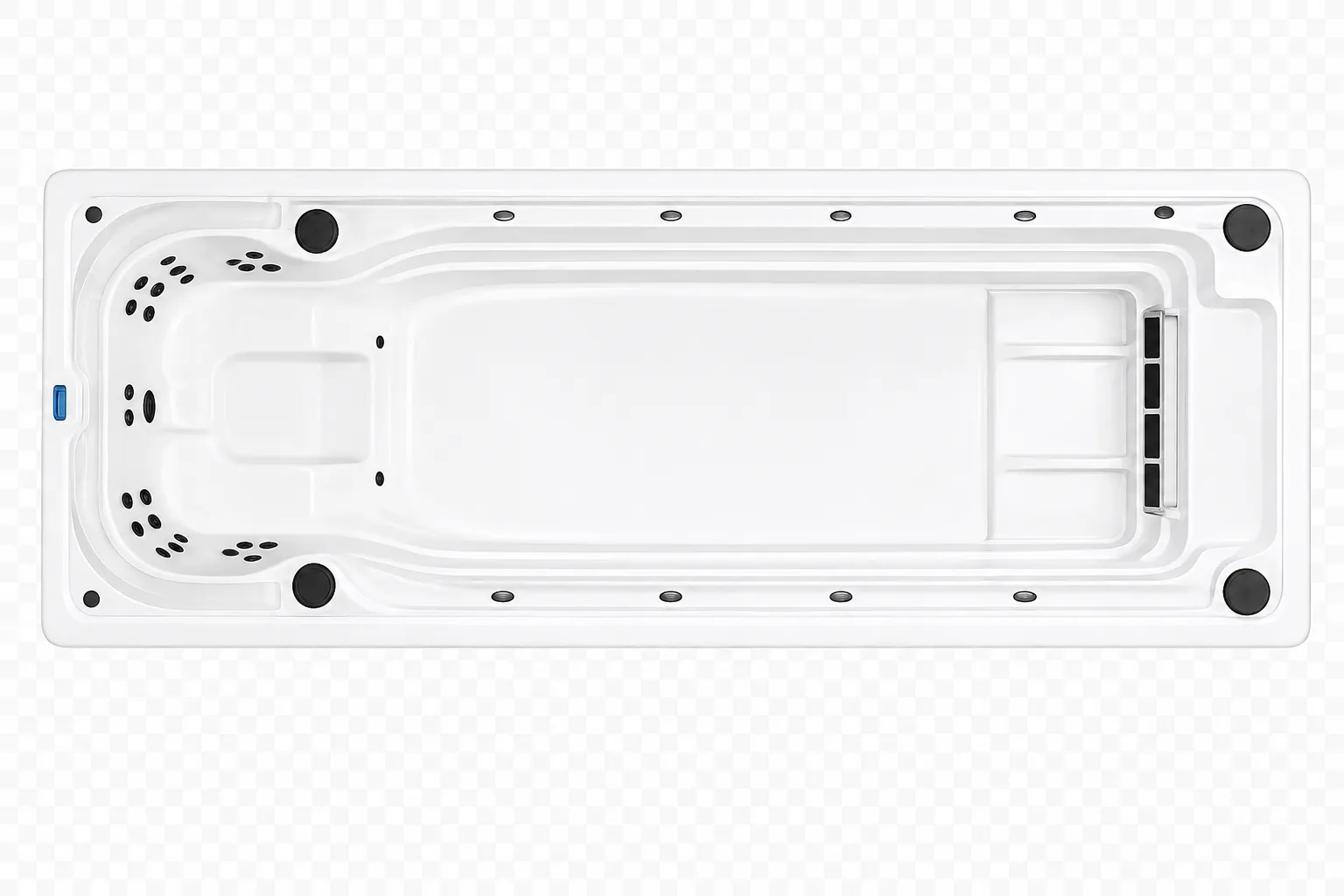

Overall Dimensions: 6900 × 2280 × 1500/1610 mm

The shell measures 6900 mm long by 2280 mm wide, with a height ranging from 1500 to 1610 mm. Ground area works out at close to 16 m² before access space is added. Length of nearly seven metres makes the delivery route a genuine planning constraint.

Swimming Zone: 4.5 Metres

The manufacturer specifies a dedicated swimming zone of 4.5 metres within the shell. This is the working length available to a swimmer, distinct from the overall dimension. The specification determines whether a full stroke is possible.

Water Capacity: 10826 Litres

The unit holds 10826 litres when filled, adding nearly 11 tonnes to the dry shell weight. This makes structural assessment essential for any raised, decked or suspended base. Capacity also governs heat-up time and treatment demand.

Twin 2.8 kW Motors

Two 2.8 kW motors generate the swim current, giving 5.6 kW of combined drive. Motor capacity determines the volume of water moved and therefore the resistance available to the swimmer. Both are included in the base specification.

Two-Speed Pump

The manufacturer specifies a two-speed pump working with the motor arrangement. Two-speed operation allows the output to be matched to the user rather than running at a single fixed rate. This is standard rather than optional provision.

Swimming Outlet Port

The equipment list specifies a 980 mm swimming nozzle, while the descriptive text in the same source lists 940 mm. Outlet width shapes the flow column presented to the swimmer, so Medigear.uk confirms the operative dimension in writing before order.

24 Massage Nozzles

Twenty-four massage nozzles are fitted as standard within the shell. These serve the recovery function independently of the swim current. Nozzle count is a direct measure of massage coverage across the seating positions.

3 HP Massage Pump

A dedicated 3 HP pump drives the massage nozzles, separate from the circulation system. This allows massage to run at working pressure without affecting filtration or heating. It is a standard, not an optional, provision.

1 HP Circulating Pump

A 1 HP circulating pump serves filtration, heating and general water movement. It operates continuously in normal use rather than only during sessions. Continuous circulation is what allows ozone treatment and filtration to work effectively.

3 kW Heater

A 3 kW heater maintains the water temperature throughout the 10826-litre volume. Heater rating governs heat-up time from cold and the ability to hold temperature during extended use. It contributes substantially to the electrical load assessment.

Ozone Generator and Paper Core Filtration

One ozone generator operates alongside a paper core filter system for water treatment. Ozone reduces chemical dosing requirements while the filter removes particulates. Together they allow water to be maintained rather than frequently replaced.

Grid Backflow Design Around the Seating

The manufacturer specifies grids around the seats forming backflow, improving circulation and filtration in the seating area. This targets water treatment in the part of the shell where bathers spend most of their time. It is a design feature rather than an accessory.

Aristech Acrylic Imported from the United States

The shell is formed from Aristech acrylic imported from the United States, finished in ivory white. Acrylic quality determines appearance retention and staining resistance across the service life. The source is named by the manufacturer rather than described generically.

Corrosion-Resistant Stainless Steel Structure

The supporting structure is corrosion-resistant stainless steel supplied as one matched pair. Structural specification matters because the frame carries close to 11 tonnes when fully loaded. It also sits permanently in a humid environment.

Complete Valve Set with Spillway System

The valve set comprises one drain valve, two inlet valves, two air valves and one safety valve, working with a spillway system for overflow management. Together, these give full control over filling, draining and pressure relief. All are standard fit.

45 LED Water Line Lamps and Bottom Lighting

Forty-five colour-changing LED lamps run along the waterline, working with a colour-changing pool-bottom lamp. Coverage at this level suits a shell of early seven metres. Two ice buckets are also fitted as standard.

Control System, Twin Sensors and Insulation

The unit ships with a control system, two sensor systems that match the twin-motor arrangement, a PS apron, and standard insulation. R-10 full insulation, an anti-corrosion dry chassis, an insulation cylinder head and a PS step are available as options. Supply is specified at 220-380V, 50Hz.

The SPA-8298A Pro Swim Spa delivers a 4.5-metre swimming zone driven by twin 2.8 kW motors alongside a 24-nozzle heated massage area, all within one self-contained shell of 6900 × 2280 × 1500/1610 mm holding 10826 litres. That combination suits residential wellness installations, fitness and performance facilities, recovery settings and supervised aquatic exercise programmes alike. Aristech acrylic imported from the United States, a corrosion-resistant stainless-steel structure, ozone treatment with paper-core filtration and grid backflow, engineered around the seating, support a long service life, with water managed by the unit rather than by building services. Certification records, the exact electrical configuration and the swimming outlet dimension are all verified against this specific model before supply. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
