AQUAMAXX SPA-8268A

Recovery and conditioning settings make the clearest case for the SPA-8268A, as the unit combines active work and passive recovery in a single installation rather than requiring two. A session can move directly from swimming against the propeller current into heated immersion with fourteen massage nozzles, without leaving the water or moving to separate equipment. Warm water immersion following exercise is widely used for its effect on perceived muscle soreness and comfort. Medigear.uk supplies the SPA-8268A to facilities and individuals on the basis that it is exercise and wellness equipment, not a treatment device.

Supervised aquatic exercise programmes can use the adjustable current to set a defined working condition and reproduce it session to session. Buoyancy reduces joint loading during movement while the current supplies opposition that can be dialled to the individual, and the two-adult specification suits one-to-one supervised work. Where the SPA-8268A is used within any therapeutic programme, exercise prescription and clinical judgement remain with the qualified practitioner directing the session, and Medigear.uk provides manufacturer documentation to support a facility's own equipment assessment.

Fitness and performance training environments use the unit for continuous swimming within a footprint no larger than that of a small vehicle. The optional underwater treadmill takes this further, allowing jogging work alongside swimming in the same shell, while the chest expander and rowing pole accessories add resistance-training options. Medigear.uk confirms accessory compatibility with the factory before order.

Residential wellness installations account for a substantial share of demand, since the SPA-8268A delivers swimming, hydrotherapy, and heated relaxation from a single self-contained unit that requires no pool construction. Colour-changing LED lighting across the floor and at 25 water line positions supports evening use, and Medigear.uk supports private buyers from site assessment through to installation documentation.

Propeller Drive Rather Than Jet Pump

The SPA-8268A generates its current by turning a propeller driven by a 2.8 kW motor, rather than forcing water through jets. A propeller moves a larger volume at lower pressure, producing a broad, even column rather than a narrow high-velocity stream. A broad flow tends to hold the body position more naturally during a long swim. This is why the model sits in the professional rather than the domestic range.

Swimming and Recovery Without Leaving the Water

A single shell provides both the swim current and fourteen massage nozzles served by a dedicated 2 HP pump. A session can transition from working effort straight into heated recovery with no change of location or equipment. For facilities, this consolidates two functions into a single footprint. For households,s it removes the choice between an exercise pool and a spa.

Independent Massage and Circulation Circuits

The 2 HP massage pump operates independently of the 1 HP circulating pump, which serves filtration and heating. Keeping the circuits apart means massage can run at working pressure without compromising water treatment. Circulation continues uninterrupted regardless of how the spa is being used. This is a build-quality distinction that only becomes apparent in daily operation.

Self-Contained With No Pool Construction

Heating, filtration, ozone treatment, circulation and overflow management are all built into the unit. Installation, therefore, becomes a matter of base preparation, access, and services rather than a construction project. The 4900 × 2280 mm footprint fits directly into many domestic gardens and facility spaces. Medigear.uk assesses site suitability before order.

Water Managed by Ozone and Filtration

An ozone generator uses a paper-core filter system so that water can be retained between changes rather than replaced frequently. Ozone reduces dependence on chemical dosing, thereby affecting both running costs and user comfort. A spillway system handles overflow automatically. Operating labour stays low as a result.

Corrosion-Resistant Build for Permanent Water Contact

The shell uses imported acrylic over a corrosion-resistant stainless-steel structure, supplied as a matched pair. Equipment that continuously holds treated water depends on material specifications for its service life. The optional anti-corrosion dry chassis and R-10 full insulation extend this further where conditions demand—Medigear.uk prices optional upgrades alongside the base unit.

Expandable With Exercise Accessories

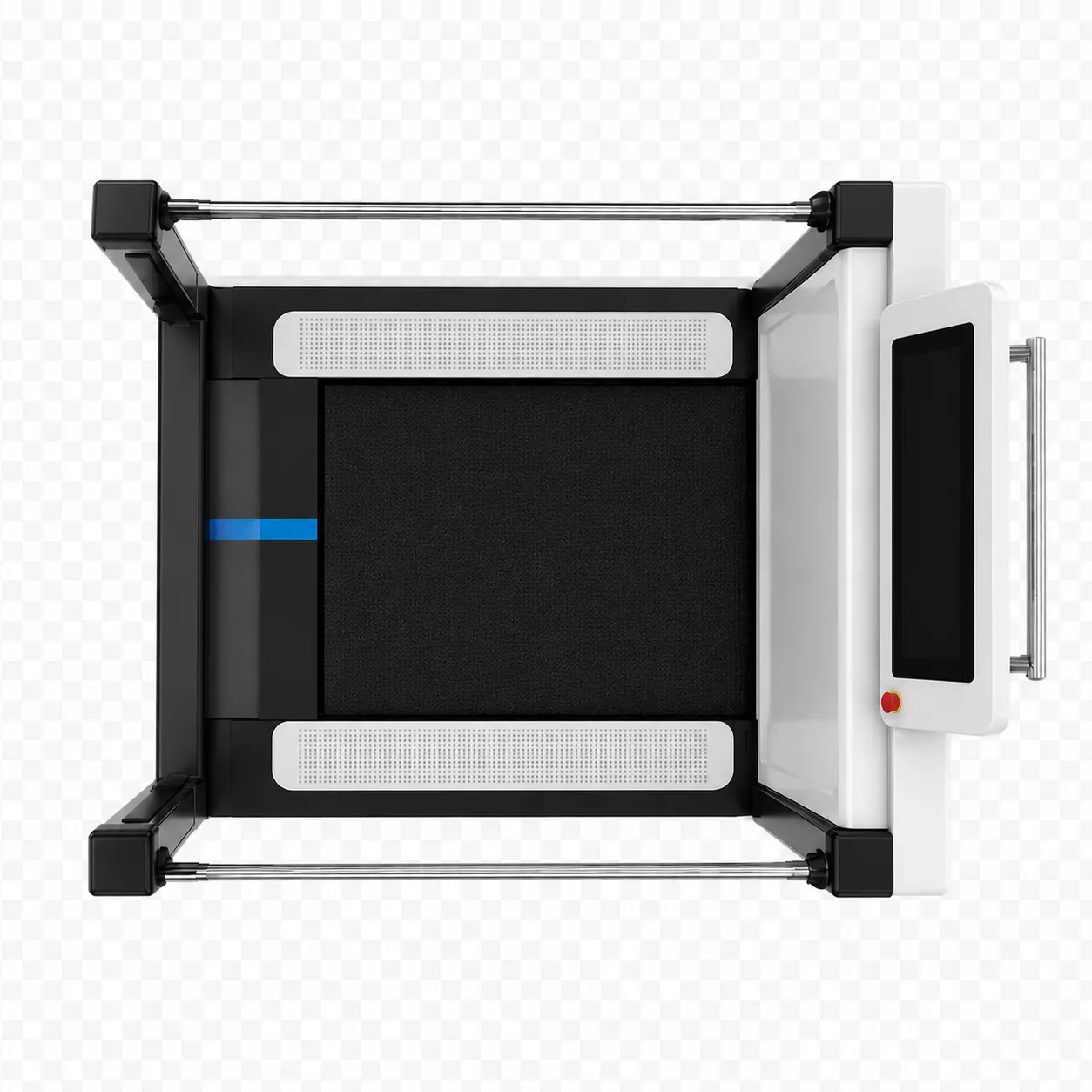

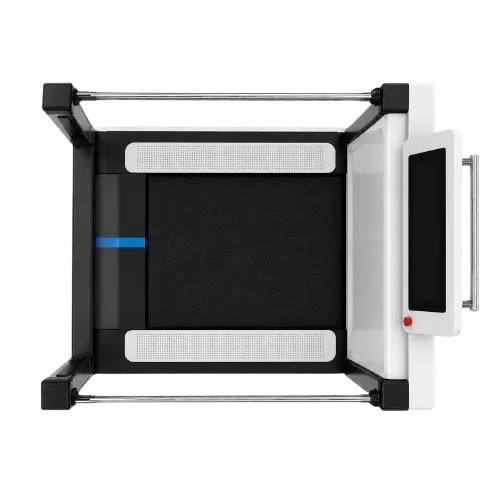

The manufacturer offers a chest expander and rowing pole, and an underwater treadmill can be equipped so the unit supports jogging as well as swimming. This turns a swim spa into a more comprehensive training installation without requiring additional floor space. Accessory compatibility is confirmed for each build rather than assumed. Medigear.uk handles that dialogue with the factory.

Specification Verification Before Order

Several parameters on this model, including the exact electrical configuration within the stated 220 to 380V range, require confirmation rather than assumption. Medigear.uk obtains these in writing at quotation stage so buyers commit against verified figures. The same rigour applies to single-unit purchases and distributor volume orders alike. Written lead times are issued either way.

Overall Dimensions: 4900 × 2280 × 1380/1500 mm

The shell measures 4900 mm long by 2280 mm wide, with a height ranging from 1380 to 1500 mm. Ground area works out at just over 11 m² before access space is added. The dual height figure should be read carefully when planning a recessed installation.

Water Capacity: 5822 Litres

The unit holds 5822 litres when filled. This adds close to 5.8 tonnes to the dry shell weight, making structural assessment essential for any raised or suspended base. It also determines heat-up time and water treatment demand.

Seating Capacity: 2 Adults

The SPA-8268A is specified for two adults. This figure describes the seating and massage provision within the shell. It should guide session planning in shared household or facility use.

Propeller Drive with Adjustable Current

The current is produced by a propeller rather than a jet pump, and the speed is adjustable rather than fixed. This allows one unit to serve swimmers across a range of capability. Adjustment is made through the control system during use.

2.8 kW Drive Motor

A 2.8 kW motor drives the propeller assembly. Motor rating determines the volume of water moved and therefore the resistance available to the swimmer. It forms a significant part of the total electrical load.

480 mm Swimming Nozzle

Current is discharged through a single 480 mm swimming nozzle. The aperture width shapes the flow column presented to the swimmer. A wider discharge distributes resistance across the body rather than concentrating it.

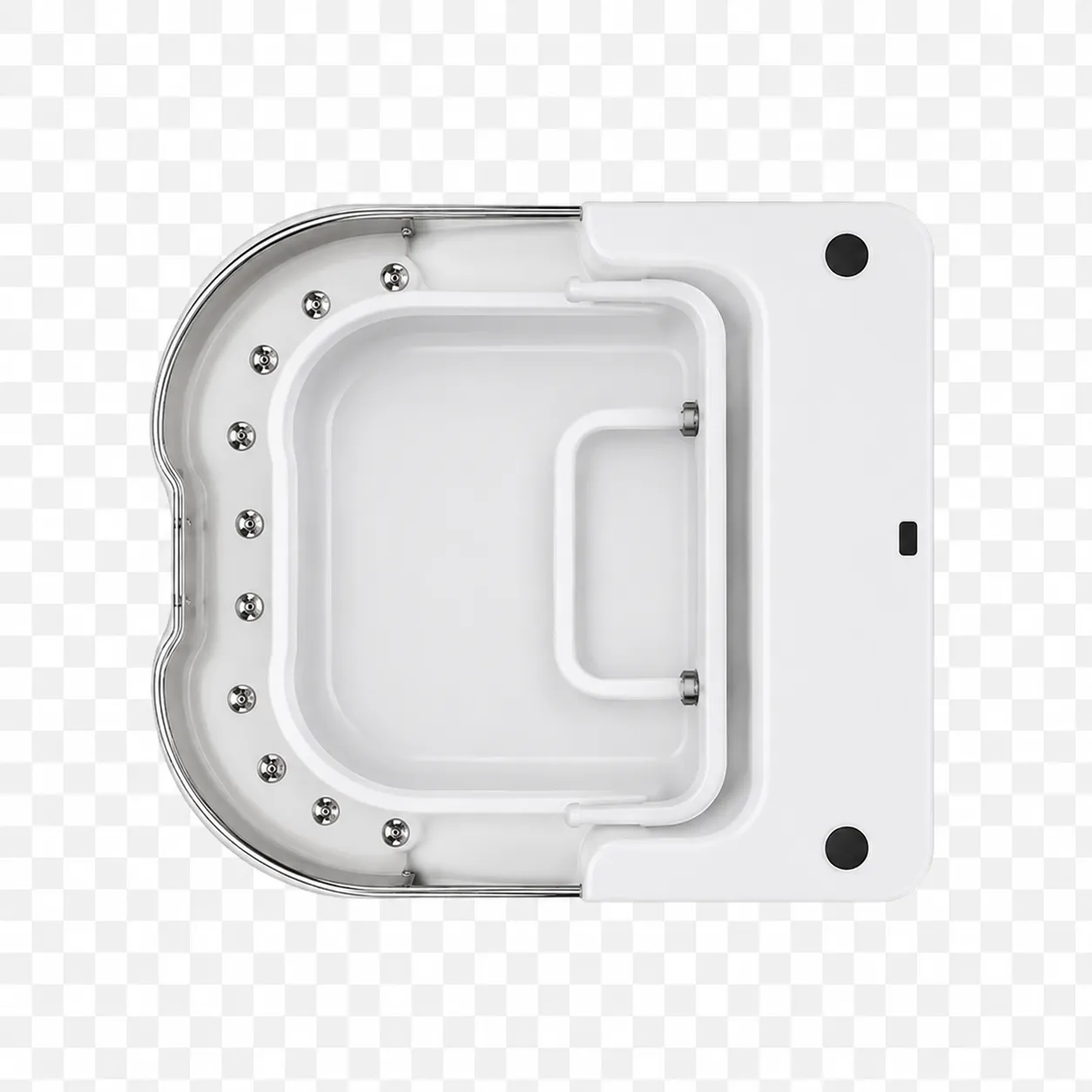

14 Massage Nozzles

Fourteen massage nozzles are fitted as standard within the shell. These serve the recovery and hydrotherapy function separately from the swim current. Nozzle count is a direct indicator of massage coverage.

2 HP Massage Pump

A dedicated 2 HP pump drives the massage nozzles independently of circulation. Separating the circuits allows massage to run at pressure without affecting filtration. This is standard rather than optional provision.

1 HP Circulating Pump

A 1 HP circulating pump serves filtration, heating and water movement. It operates continuously in normal use rather than only during sessions. Circulation is what allows ozone and filtration to work effectively.

3 kW Heater

A 3 kW heater maintains water temperature within the shell. Heater rating governs both heat-up time from cold and the ability to hold temperature during use. It contributes substantially to the electrical load assessment.

Ozone Generator and Paper Core Filtration

One ozone generator operates alongside a paper core filter system for water treatment. Ozone reduces chemical dosing requirements while the filter handles particulates. Together they allow water to be maintained rather than frequently replaced.

Imported Acrylic Shell in Ivory White

The shell uses imported acrylic sheet finished in ivory white. Acrylic quality determines both appearance retention and resistance to staining over the unit's life. Colour is specified at order.

Corrosion-Resistant Stainless Steel Structure

The supporting structure is corrosion-resistant stainless steel, supplied as one matched pair. Structural specification matters because the frame carries close to six tonnes when the unit is filled. It also sits in a permanently humid environment.

Complete Valve Set with Spillway System

The valve set comprises one drain valve, two inlet valves, one air valve, and one safety valve, and works with a spillway system for overflow management. This provides full control over filling, draining and pressure relief. All are standard rather than optional.

LED Bottom Lighting and 25 Water Line Lamps

Colour-changing LED lighting is fitted to the pool bottom, with 25additionalr LED lamps at the waterline. Lighting supports safe evening use and visibility of the swimming area. Both sets are included in the base specification.

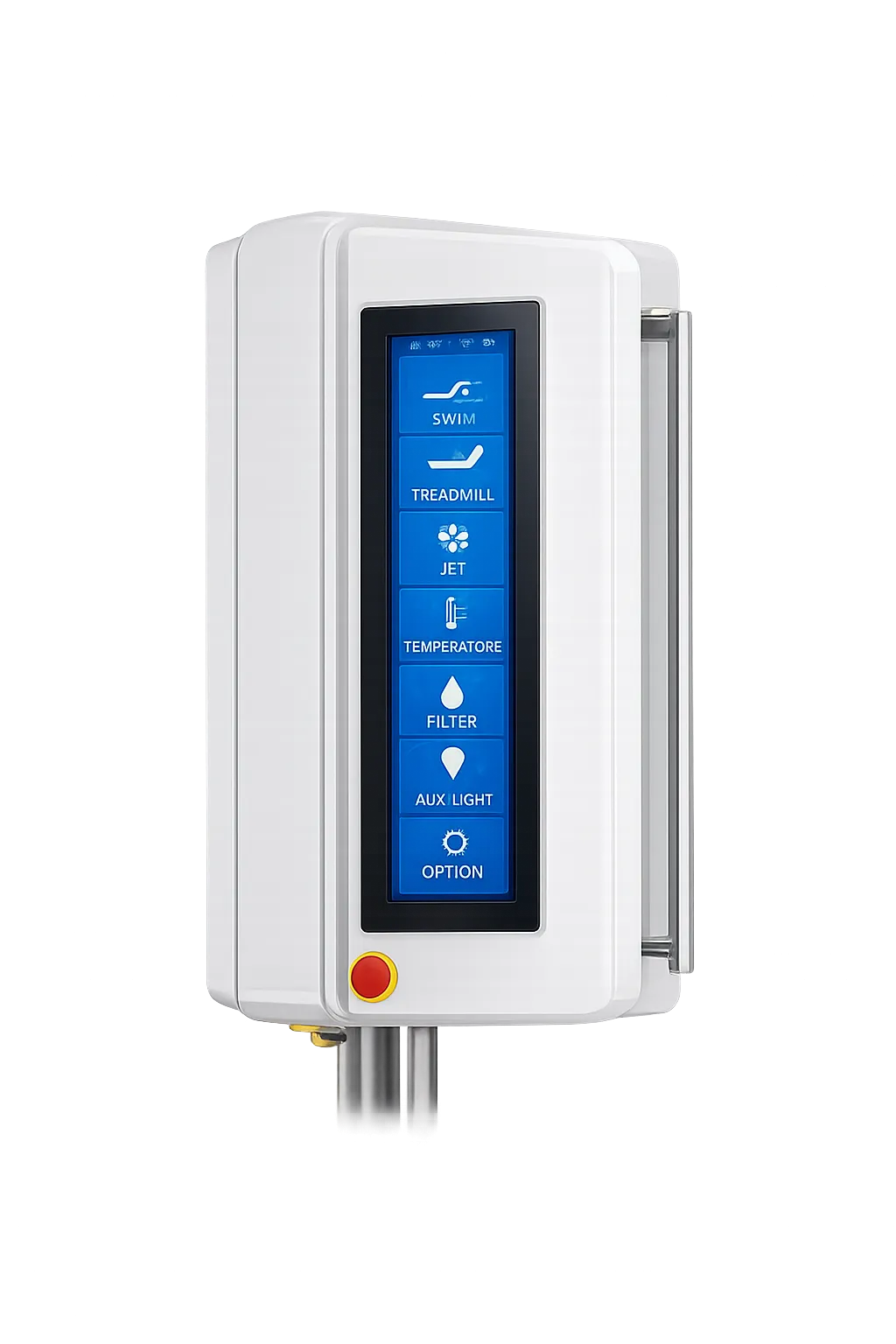

Control System, Sensor System and Insulation

The unit is supplied with a dedicated control system, a sensor system, a PS apron and standard insulation. Sensors feed the control system, which manages heating and circulation automatically. R-10 full insulation is available as an upgrade where heat retention matters.

Power Supply: 220 to 380V, 15 to 50Hz

The manufacturer specifies a supply range of 220 to 380V at 15 to 50Hz, spanning single-phase and three-phase configurations. The exact arrangement must be confirmed at the time of order rather than assumed from the range. Medigear.uk provides the confirmed electrical specification ahead of delivery.

The SPA-8268A Pro Swim Spa delivers continuous, adjustable-current swimming and full, heated hydrotherapy from a single self-contained shell, which is why it is viable where a separate exercise pool and spa would not be. A propeller driven by a 2.8 kW motor, a 480 mm swimming nozzle, fourteen massage nozzles on a dedicated 2 HP pump and a 3 kW heater suit residential wellness installations, fitness and performance facilities, recovery settings and supervised aquatic exercise programmes alike. Ozone treatment and paper core filtration are controlled by the unit's control unit rather than by building services. Certification records and the exact electrical configuration are verified against this specific model before supply. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
