233 Medical HD-820

Gynaecology

Examination and operative work through the uterine cavity and pelvis depend on light reaching a confined space and the camera holding detail where that light weakens. Integrated 100 watt illumination feeds the scope directly, and sensitivity at 0.3 lux carries the picture into the recesses a beam struggles to fill. For clinic rooms as much as theatres, having illumination and imaging inside one console matters practically, since space beside an examination couch is usually far tighter than space in an operating room.

Otolaryngology

Airway and sinus work happens in narrow, reflective passages where too much light is as unhelpful as too little. The wide shutter range manages returned glare from wet mucosal surfaces, while the panel function menu allows quick adjustment as the scope moves between structures of different character. The compact single-console arrangement suits ENT rooms, which frequently accommodate several services and cannot dedicate a full tower to one of them.

Orthopaedics

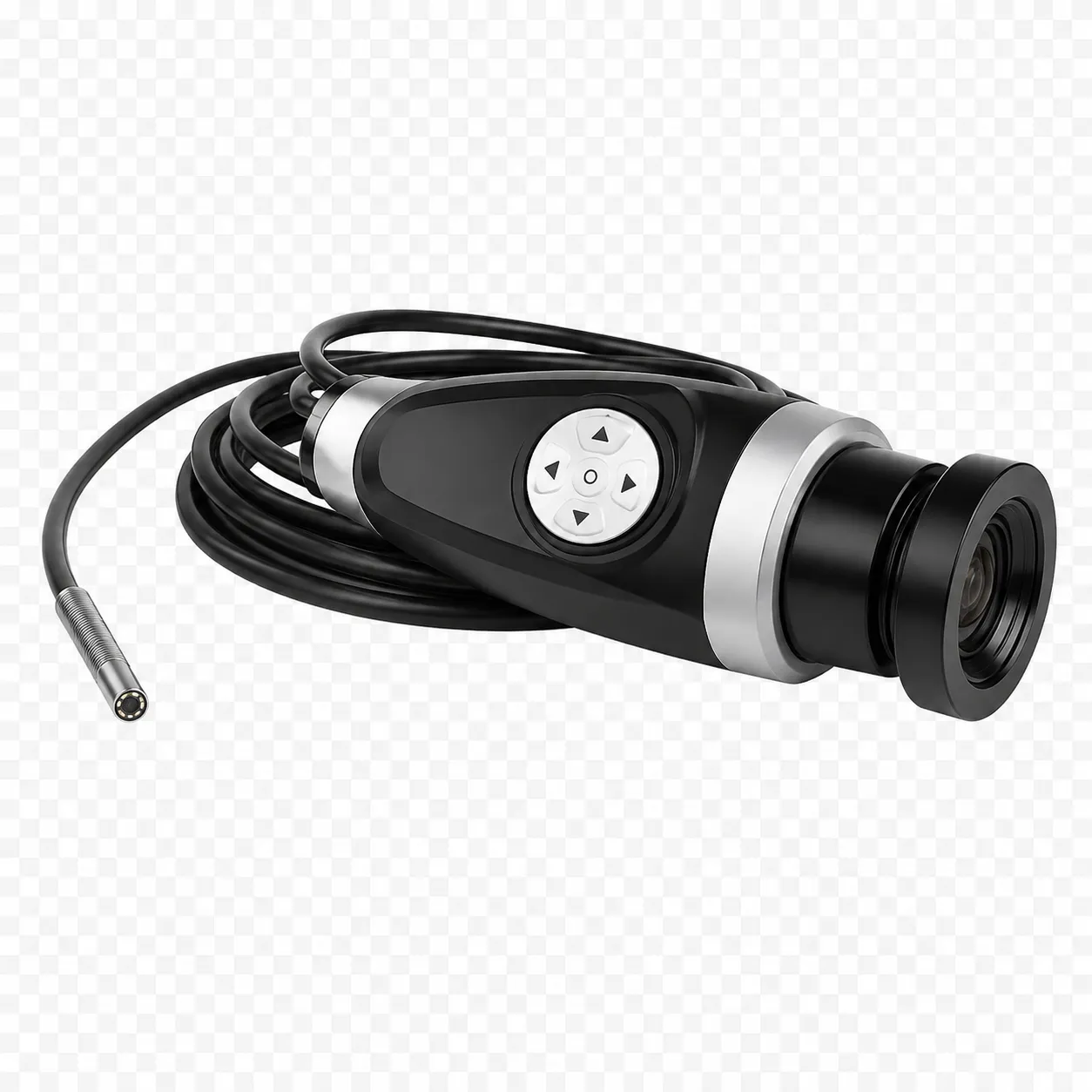

Joint work involves confined fluid-filled spaces, frequent repositioning of the scope and long periods with the field under continuous illumination. The lightweight camera head suits that handling pattern and its 2.5 metre cable permits movement around a limb without straining. Consistent output from a long-life emitter means the picture a surgeon sees late in a list matches what they saw at the start of it.

Cosmetic Procedures and Teaching

Fine aesthetic work rewards faithful colour and steady detail, and the generous sensor format supports both. Network capability paired with two-way audio lets a specialist observe a live field from elsewhere and hold a spoken exchange with the operator, which turns ordinary sessions into supervised teaching without adding any equipment to the room.

One Console Instead of Two

Building illumination into the imaging unit removes an entire device from the tower along with its mains connection, its cabling and its share of shelf space. For departments working in clinic rooms, day-case units or anywhere the trolley footprint is genuinely constrained, that consolidation is the difference between a workable setup and an awkward one. Fewer boxes also mean fewer connections to check before a list and fewer things to go wrong once it has started.

Predictable Long-Term Illumination

An emitter rated beyond 50,000 hours dims progressively rather than failing without warning, so a department plans around a known performance curve instead of holding spares against a sudden loss. Consistent output across that span also means imaging settings established early remain valid later, rather than needing correction as the source ages and the picture quietly shifts. Gradual decline also gives ample warning when service eventually approaches.

Connective Reach and Two-Way Teaching

Nine interfaces covering video, audio and network let the console join almost any existing tower, keeping long-serving monitors productive through VGA and BNC alongside current standards. Audio in both directions turns network operation into genuine consultation, so guidance from a colleague elsewhere arrives while it can still shape the procedure rather than afterwards. Existing display investment keeps earning its place rather than being written off.

Integrated 100 Watt Lamp

Illumination is built into the console rather than supplied by a separate unit, with 100 watts feeding the scope from the front port. One device leaves the tower, taking its mains lead and cabling with it.

Emitter Life Beyond 50,000 Hours

The lamp is rated for 50,000 hours or more of service. Output declines gradually with age rather than ending abruptly, so performance stays predictable across a long interval and planning becomes straightforward.

Sensitive 1/1.8 Inch CMOS Sensor

A 2,000,000 pixel array on a generous 1/1.8 inch sensor gives each photosite substantial area for gathering light. The result is clean rendering at 1920 by 1200 with a stated 1200 lines of definition.

Low Light Capability to 0.3 Lux

Minimum illumination of 0.3 lux keeps the picture workable as light diminishes within a cavity. Detail survives in shadowed regions where the beam reaches least effectively.

Nine Interface Connection Set

SDI, BNC, DVI, HDMI, VGA, LAN and USB sit alongside audio input and output. Mixed towers accept the console without adaptors, and rooms with long-serving displays stay fully usable.

Audio in Both Directions

Dedicated audio channels running each way lift remote consultation beyond passive viewing. A colleague elsewhere both sees the field and speaks with the team working in it.

Panel Function Menu

A menu on the console face reaches a variety of imaging operations from one surface. Adjustments happen without navigating layered controls, keeping attention on the procedure itself.

Wide Shutter Speed Range

Shutter speed runs from 1/60 to 1/60000 under NTSC and 1/50 to 1/50000 under PAL, controlling reflections from instruments and wet tissue while surrounding detail survives intact.

The HD-820 addresses a constraint that specification sheets rarely acknowledge: the amount of room a department actually has. By fitting a 100 watt lamp rated beyond 50,000 hours inside the imaging console itself, it removes an entire unit from the tower along with its power lead and cabling, which matters most in clinic rooms and day-case settings where a full stack was never realistic.

The imaging behind that consolidation holds its own. A 2,000,000 pixel 1/1.8 inch CMOS sensor delivers 1920 by 1200 at a stated 1200 lines, the generous sensor format supports sensitivity down to 0.3 lux, and a shutter range reaching 1/60000 controls the glare that instruments and irrigation throw back during ordinary work.

Connectivity remains comprehensive despite the compact form. Nine interfaces spanning SDI, BNC, DVI, HDMI, VGA, LAN, USB and audio in both directions let the console join a mixed tower, while a panel function menu keeps adjustment simple. The 2.5 metre camera cable can be customised where a room requires it.

Medigear.uk supplies the HD-820 as a verified medical equipment supplier and will confirm the mains configuration, selectable interface languages, scope compatibility, condition and accessory content for your unit. Contact the team to discuss specification and arrange a quotation for your department.
