233 Medical HD-720

Sees in the dark, sets up in minutes

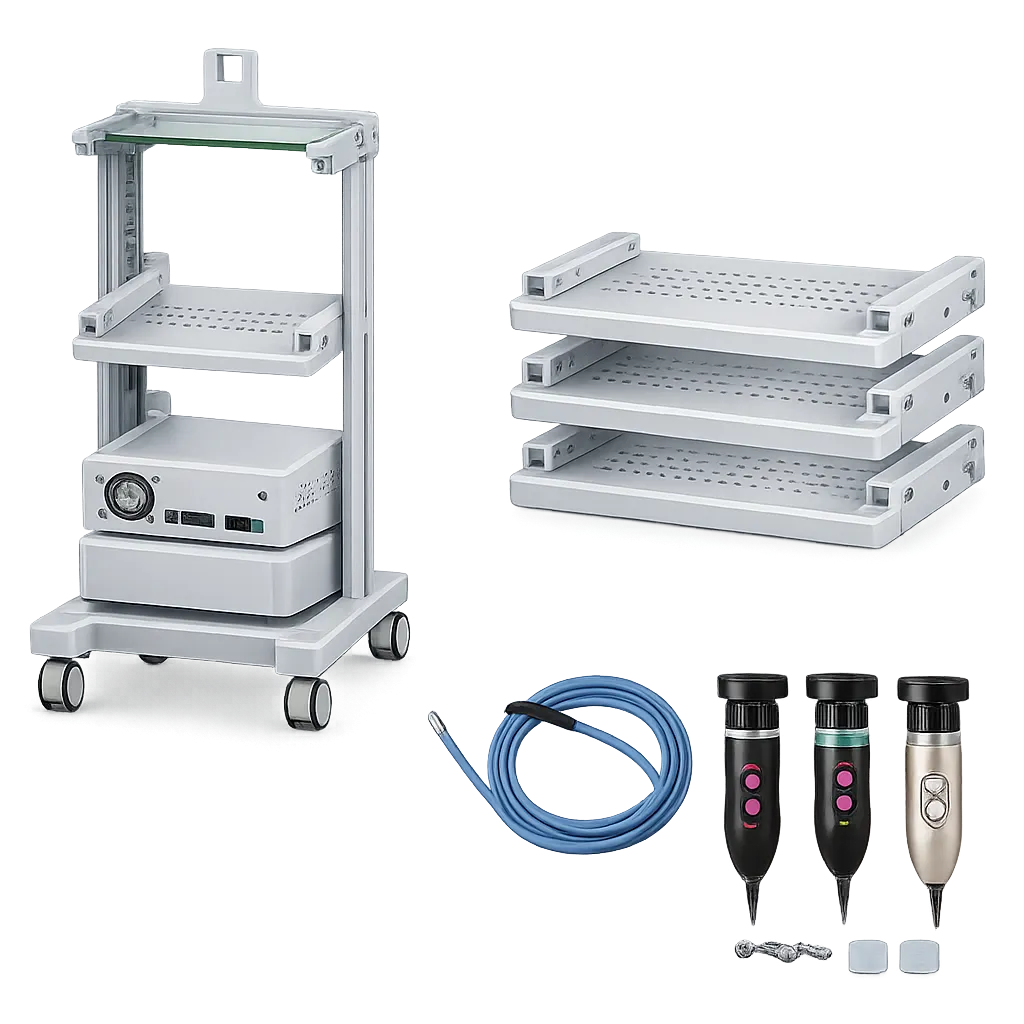

The HD-720 SD endoscopy camera console from 233 Medical reaches 0.1 lux minimum illumination, the most light-sensitive figure in its family. A 100 watt lamp sits inside the unit and two BNC outputs keep installation straightforward, suiting departments that want capability without complication.

Sections
Endoscopy Camera Systems & Towers
Categories
Gastroenterology Equipment
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

The HD-720 makes a clear choice about what matters. Rather than spreading capability across many interfaces, it concentrates on seeing well in poor light and on being simple to put into service. Minimum illumination is rated at 0.1 lux, and that figure is the lowest across this console family, meaning the camera continues returning a usable picture in conditions where other units begin to struggle.

The camera uses a 1,800,000 pixel 1/3 inch sensor producing a 1560 by 900 picture at a stated definition of 900 lines. This is a standard definition platform, and that is a deliberate position rather than a shortcoming: many examination rooms display on established monitors, record to established equipment, and gain nothing from resolution their screens cannot show. Shutter speed spans 1/60 to 1/60000 under NTSC and 1/50 to 1/50000 under PAL, managing glare returned from wet tissue and polished instruments.

Illumination is built into the console. A 100 watt lamp rated beyond 50,000 hours of service feeds the scope from the front port, removing a second device from the trolley along with its mains lead and cabling. For clinic rooms where space is tight and a full equipment tower was never practical, that consolidation is the whole point.

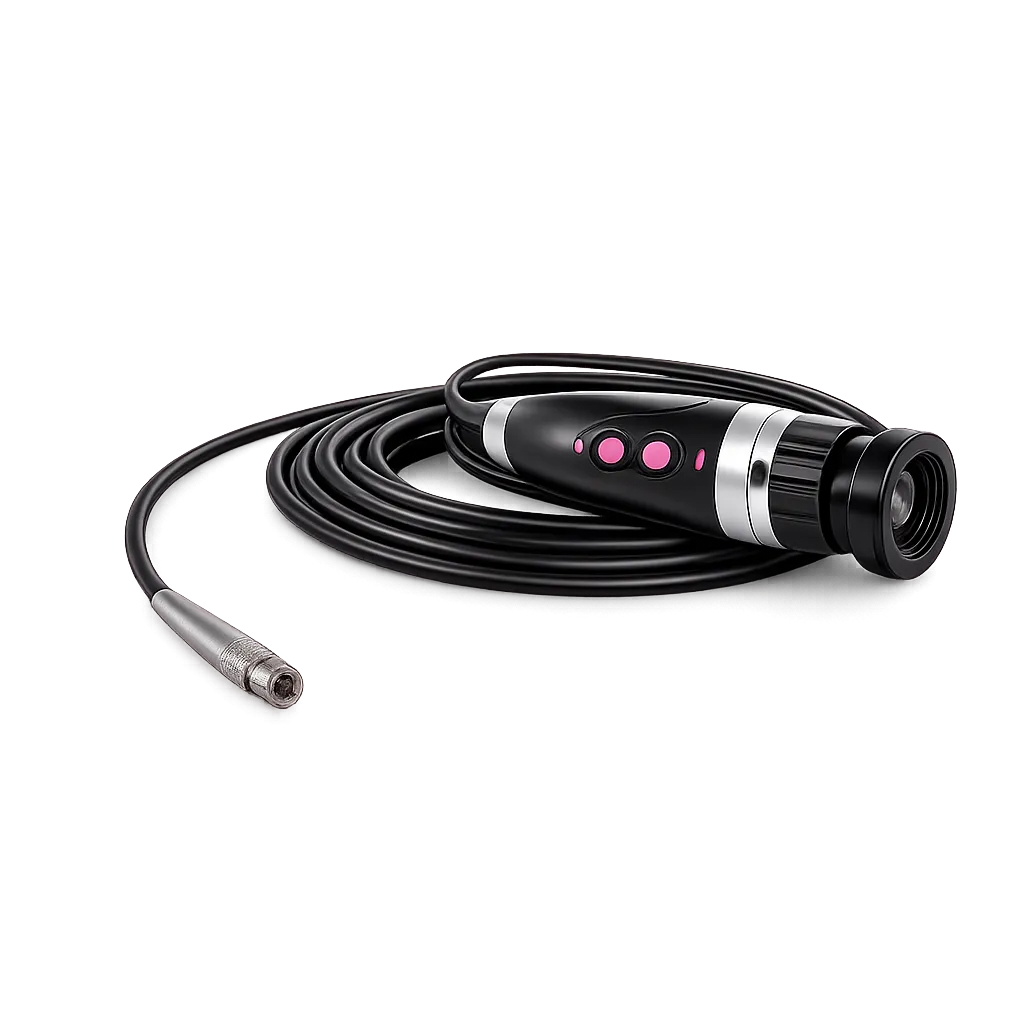

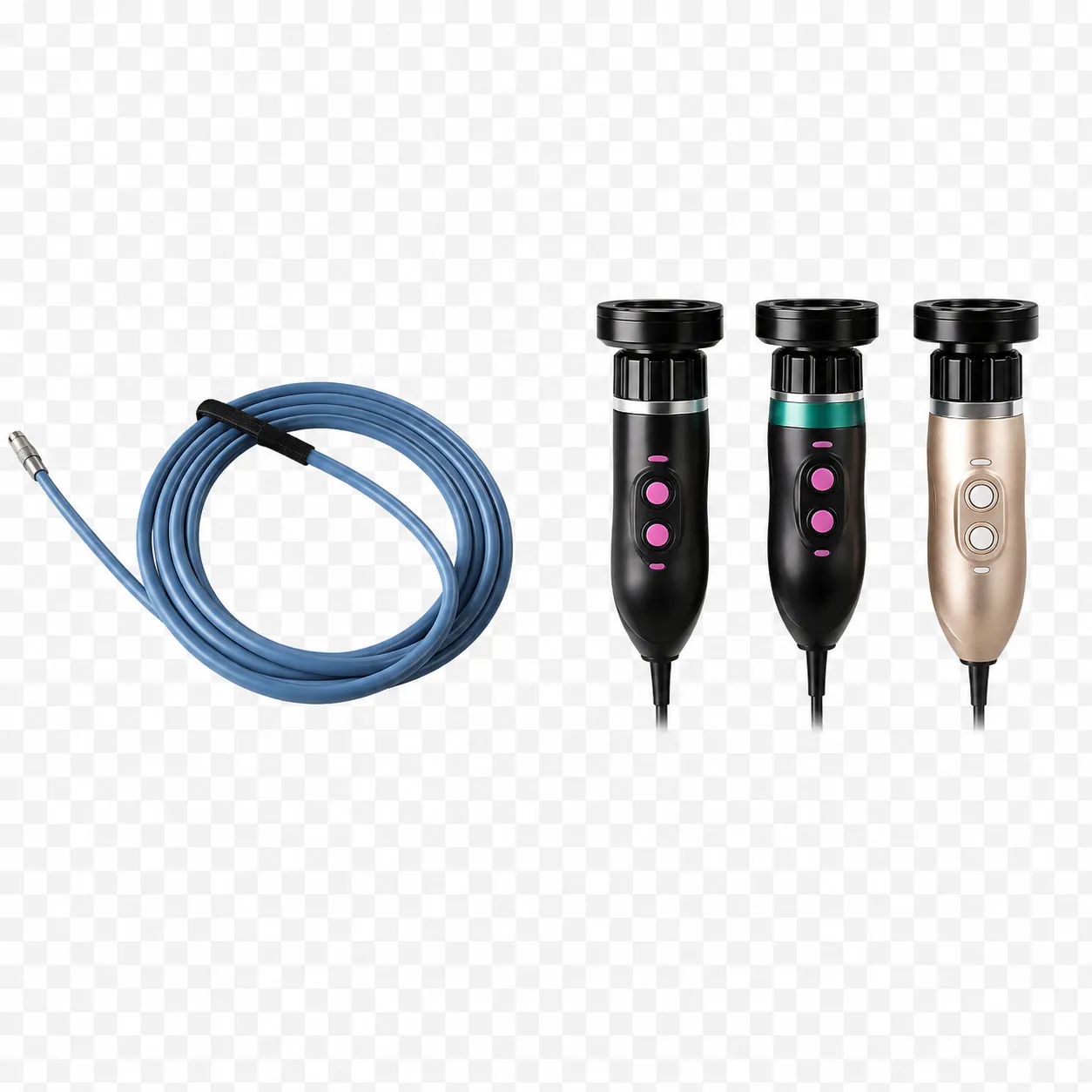

The camera head is light enough for sustained one-handed work and couples to standard endoscopes already held by most departments, so adopting the console rarely disturbs the wider instrument set. Video output is by two BNC connections. Installation is correspondingly direct, with fewer cables to seat and fewer things to check before a session. Operation runs through a panel function menu on the console face, reaching a variety of imaging operations from one surface. The camera cable measures 2.5 metres as supplied, with lengths customised on request. Interface language is selectable from several options. Medigear.uk will confirm the mains configuration, selectable languages, scope compatibility, condition and accessory content before despatch.

Gynaecology

Examination through the uterine cavity and pelvis places the scope where light arrives poorly and weakens further with distance, which is precisely where 0.1 lux sensitivity earns its keep. Integrated 100 watt lighting feeds the scope directly from the same console, and the compact single-unit arrangement suits clinic rooms where space beside an examination couch is considerably tighter than in a theatre. Simple BNC output connects to monitors these rooms very often already have installed.

Otolaryngology

Airway and sinus passages are narrow, reflective and awkwardly angled, so the camera must cope with both scarce light and sudden bright returns. Exceptional low light capability handles the first, while the wide shutter range manages the second as the scope meets wet mucosal surfaces. ENT rooms frequently serve several functions and cannot dedicate a full tower to one, making a self-contained console a practical fit for the space actually available.

Orthopaedics

Joint examination involves confined spaces, frequent repositioning and extended periods with the field under continuous lighting. The lightweight camera head suits that handling and its 2.5 metre cable permits movement around a limb without strain. Consistent output from a long-life emitter means the picture late in a session matches the one at the start, which supports reliable assessment throughout.

Cosmetic Procedures and Routine Examination

Routine work across cosmetic and general examination rewards a console that starts quickly and behaves predictably. With lighting integrated and output limited to two straightforward connections, preparation is brief and few things stand between switching on and beginning. For high-volume clinic sessions, that directness matters more than an extensive interface set nobody uses.

Sensitivity Where It Counts

At 0.1 lux the HD-720 is the most light-sensitive console in this family, and that capability addresses the situation clinicians actually meet: light falling away with distance, absorbed by tissue, leaving the periphery of the field dim just as something needs examining there. A camera that keeps working in those conditions is worth more in daily practice than resolution a monitor cannot display, and this console prioritises accordingly.

Simplicity as a Deliberate Choice

Two BNC outputs and a built-in lamp mean installation is genuinely quick, with few cables, one mains connection and nothing to configure before a session begins. Departments gain equipment that staff learn in minutes and that offers little to go wrong. For clinic environments without dedicated technical support on hand, that reliability is often the deciding factor. Training a new member of staff takes minutes rather than a scheduled session.

Space and Cost Discipline

Consolidating camera and lighting into one housing removes a device, a power lead and a shelf position from the arrangement, which matters where a full tower was never realistic. Emitter life beyond 50,000 hours extends that discipline over time, since gradual decline replaces sudden failure and the department plans around a known curve rather than holding spares against surprises. Fewer devices in the chain also means fewer connections working loose over time.

Minimum Illumination of 0.1 Lux

Sensitivity reaching 0.1 lux is the defining strength of this console. The camera holds a workable picture deep inside a cavity and toward the periphery of a passage, where light arrives sparingly and detail is usually first to disappear.

Integrated 100 Watt Lamp

Lighting is fitted inside the console rather than supplied separately, feeding the scope from the front port. A second device leaves the trolley, taking its mains connection and cabling with it.

Emitter Life Beyond 50,000 Hours

The lamp carries a rating exceeding 50,000 hours. Output declines gradually with age rather than ceasing abruptly, so performance remains predictable and service planning stays straightforward.

Two BNC Video Outputs

Video leaves the console through two BNC connections, a long-established and robust standard. Installation involves few cables, and departments already equipped with BNC monitors connect without adaptors.

Panel Function Menu

A menu on the console face reaches a variety of imaging operations from one surface. Adjustments happen without navigating layered controls, keeping attention on the examination itself.

Wide Shutter Speed Range

Shutter speed runs from 1/60 to 1/60000 under NTSC and 1/50 to 1/50000 under PAL. That range manages reflections thrown back by wet mucosal surfaces and polished instruments.

Compact Self-Contained Format

Camera control and lighting occupy one housing, so a complete working arrangement takes a single position on a trolley or bench. Rooms serving several functions accommodate it readily.

Customisable 2.5 Metre Cable

The camera cable is supplied at 2.5 metres, with other lengths available on request. Rooms with unusual bench layouts can specify something better matched to their geometry.

The HD-720 knows what it is for. Minimum illumination of 0.1 lux makes it the most light-sensitive console in this family, and that strength addresses the condition clinicians genuinely encounter, where light weakens across distance and the edges of the field go dim exactly when detail is wanted there. A 1,800,000 pixel 1/3 inch sensor delivers 1560 by 900 at a stated 900 lines, matched sensibly to the monitors many examination rooms already run.

Lighting is built in rather than added. A 100 watt lamp rated beyond 50,000 hours feeds the scope from the console face, removing a second device from the trolley with its mains lead and cabling, which matters most in clinic rooms where a full tower was never a realistic proposition.

Output through two BNC connections keeps installation direct, and a panel function menu reaches imaging operations from a single surface. The 2.5 metre camera cable can be customised where a room requires it. The platform serves gynaecology, otolaryngology, and orthopaedic and cosmetic work across routine examination and surgery alike.

Medigear.uk supplies the HD-720 as a verified medical equipment supplier and will confirm the mains configuration, selectable interface languages, scope compatibility, sensor details, condition and accessory content for your unit. Contact the team to discuss specification and arrange a quotation for your department.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

Minimum illumination is rated at 0.1 lux, which is the most sensitive figure across this console family. The practical effect is that the camera keeps returning a usable picture deep inside a cavity and toward the walls of a narrow passage, where light arrives sparingly and image detail normally fails first. This degree of sensitivity is the console's most distinctive characteristic overall.

The camera delivers a 1560 by 900 picture with a stated definition of 900 lines, drawn from a 1,800,000 pixel 1/3 inch sensor. This is a standard definition platform, matched to the established monitors and recording equipment many examination rooms already have in service. Definition of 900 lines describes the detail the system actually resolves on screen.

A 100 watt lamp is fitted inside the console and feeds the scope from the front port, so a complete working arrangement occupies one position on the trolley and draws a single mains connection. Rated service life exceeds 50,000 hours, with output declining gradually rather than ending suddenly.

Video output is by two BNC connections. This is a long-established and mechanically robust standard, widely fitted to monitors and recording equipment already installed in examination rooms, so connection is usually possible without adaptors and installation stays brief. Medigear.uk can confirm which cables accompany a particular unit.

Shutter speed ranges from 1/60 to 1/60000 in NTSC mode and 1/50 to 1/50000 in PAL mode. The fast end of that range lets the console manage bright reflections returned by wet mucosal surfaces and polished instruments without darkening the field around them.

A panel function menu on the console face reaches a variety of imaging operations from a single surface. Adjustments are made without working through layered controls, so the operator keeps attention on the examination rather than on the equipment. Having controls on one face also means nothing is hidden behind a submenu during a session.

The camera cable is supplied at 2.5 metres, and other lengths can be customised on request. Checking the length against your own bench or trolley position is worthwhile, since a cable falling fractionally short puts constant tension on the connection during use.

The card lists gynaecology, otolaryngology, and orthopaedic and cosmetic work, spanning routine examination as well as surgery. The self-contained format particularly suits rooms serving several functions, where dedicating space to a full equipment tower is not practical. Departments running several of these services can work to one standard across their rooms.
