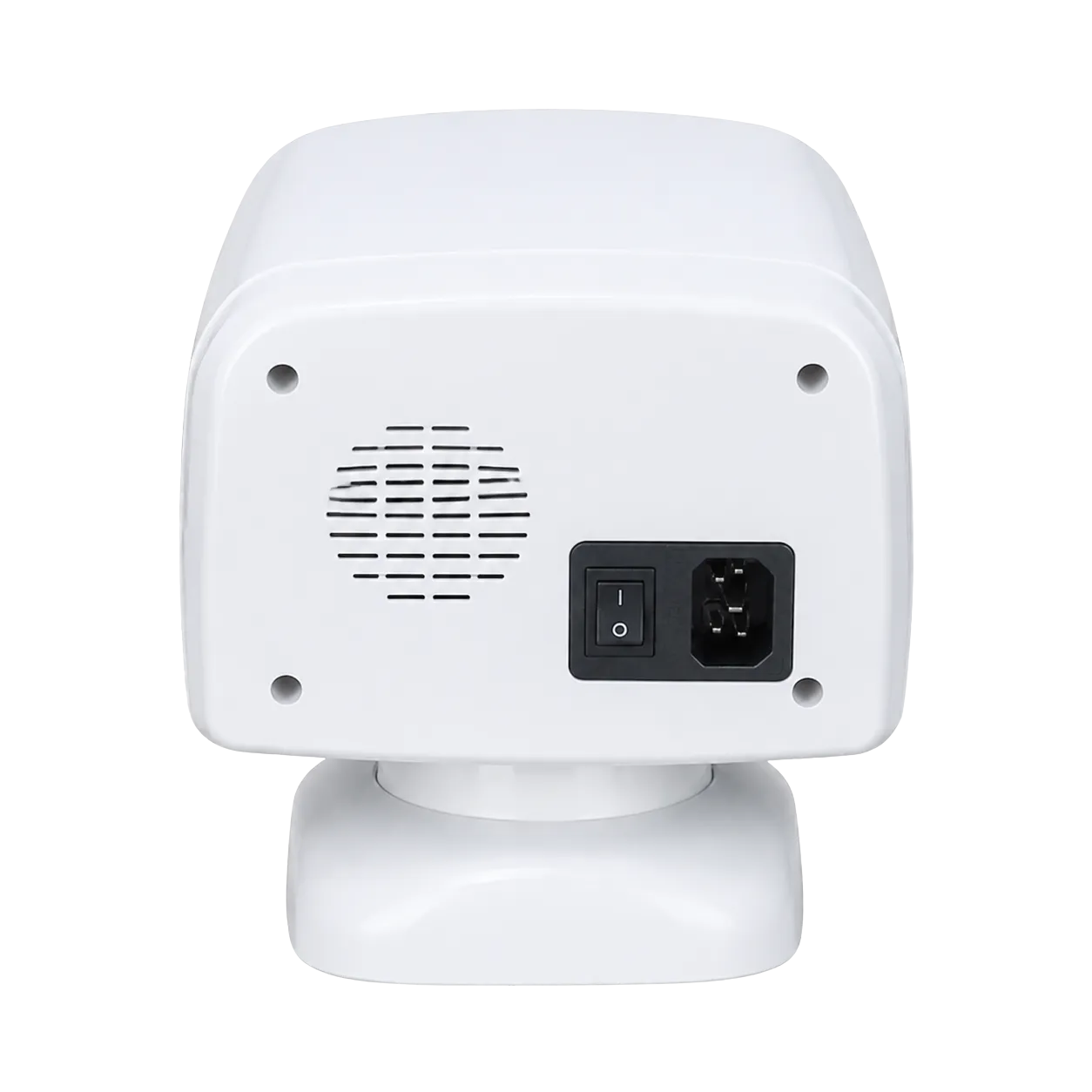

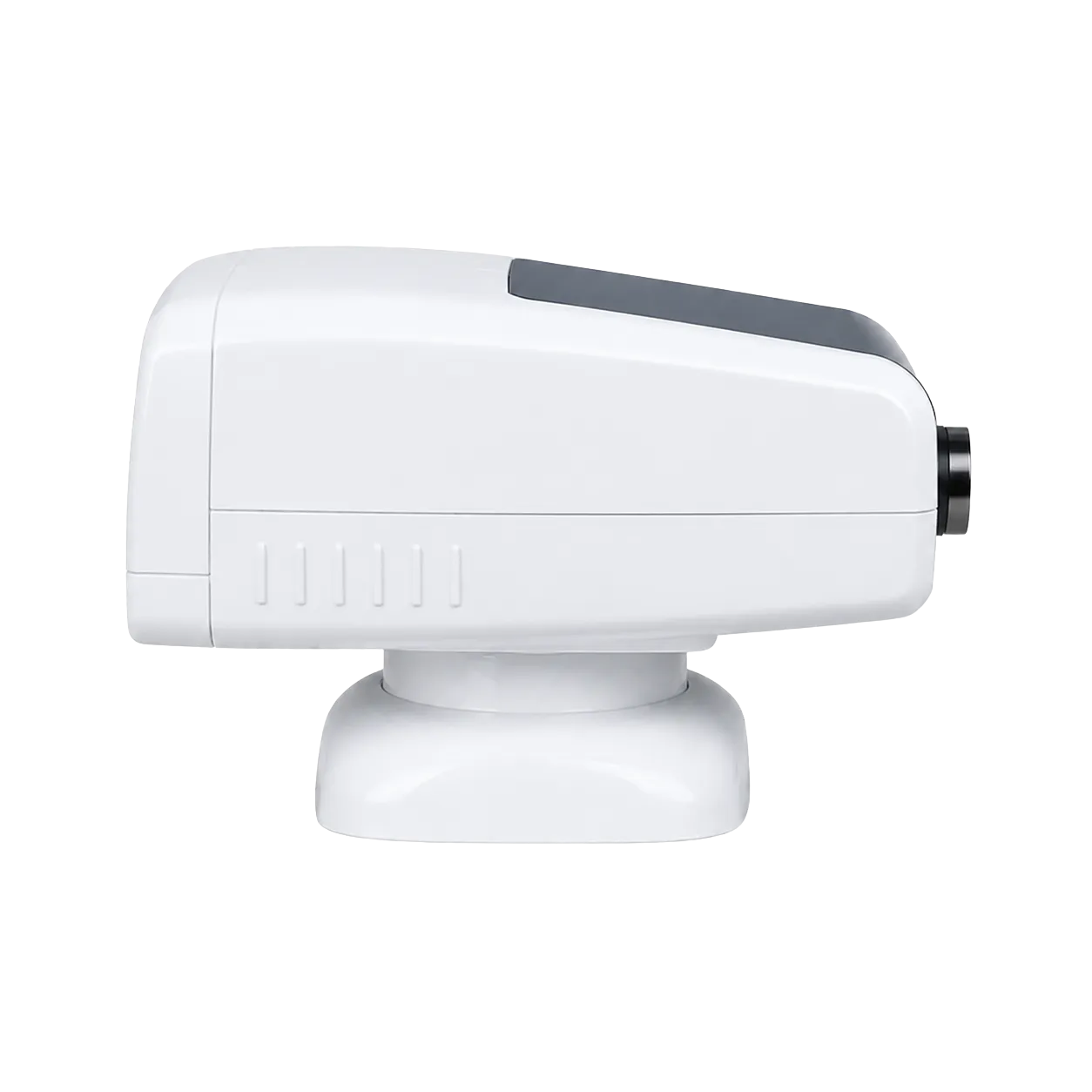

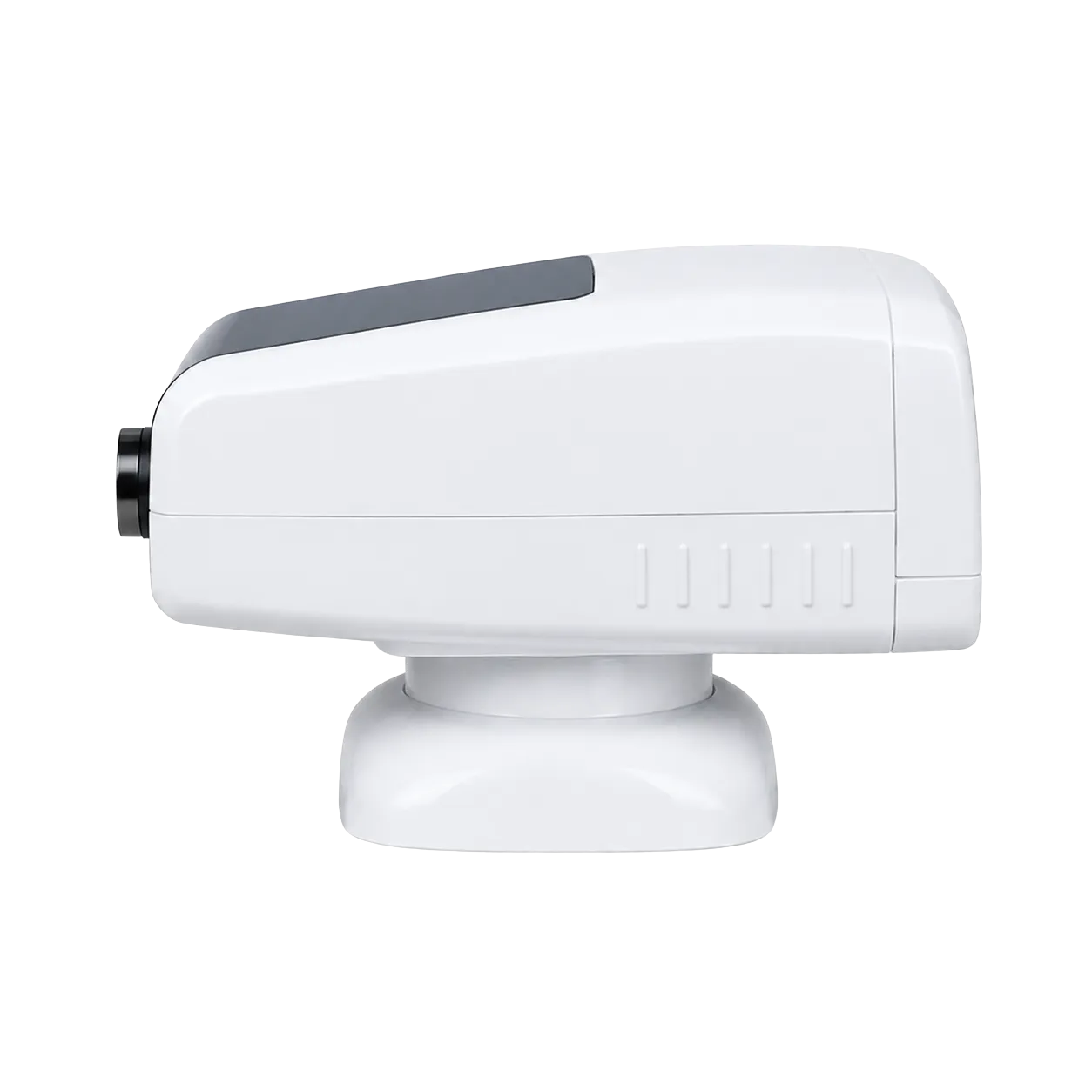

Visionstar ACP-1500

Accurate acuity measurement depends on the target being genuinely sharp, and this is where the focus adjustment earns its place. A projector set at the factory for a nominal distance and then installed at a different throw produces letters with soft edges. At the acuity limit — where the patient is deciding whether they can resolve a letter at all — that softness is indistinguishable from blur originating in the eye, and the recorded acuity is worse than the truth. Practices whose room dimensions do not match a catalogue assumption benefit directly from being able to focus on the screen as installed.

Binocular vision assessment is served by the polarised chart set, the supplied polarised metal screen and the polarised glasses. Optical dissociation lets each eye see part of the image independently, which is what makes heterophoria, fixation disparity and vertical imbalance measurable from the chart. The manufacturer specifies ocular muscle imbalance detection explicitly, and for practices investigating asthenopia, headache and reading difficulty in the screen-working population that capability sits at the centre of the examination rather than at its margins.

Duochrome testing supports refinement of the spherical endpoint and checking of single and binocular vision. Because it relies on the eye's chromatic aberration rather than on patient acuity, it works as an objective cross-check on a subjective result — useful with patients whose responses are inconsistent and in teaching, where a trainee's endpoint can be verified independently.

Room geometry determines practical fit. The 1.5 to 7 metre range covers mirrored six-metre lanes, direct long rooms and short rooms where mirroring is impractical. Two decisions belong at order: the chart variant must be confirmed as carrying optotypes appropriate to UK acuity notation, since the manufacturer's variants differ in letter set and script, and the mounting method — table, optional floor or wall stand, or a projector-rated phoropter arm — should be specified alongside rather than discovered afterwards.

Focus set in the room, not at the factory

A screw adjustment lets the operator focus on the actual screen at the actual throw. Rooms are not built to catalogue dimensions, and a projector that cannot be focused to its installed position produces soft letters that read as reduced acuity.

The instrument stops contaminating the measurement

At the acuity limit a soft edge and a blurred eye look identical to the patient. Being able to sharpen the target removes the instrument from the result, which is the difference between measuring vision and measuring the projector.

Switching faster than the patient registers

Chart and mask both change in 0.01 to 0.02 seconds. Fixation and attention stay where they were, and nothing in the sequence waits on the equipment.

Ocular muscle imbalance from the chart

Polarised charts with the supplied screen and glasses make heterophoria, fixation disparity and vertical imbalance measurable without separate apparatus. For practices investigating headache and asthenopia that capability is central rather than optional.

Duochrome as an objective cross-check

Because duochrome depends on chromatic aberration rather than acuity, it verifies a subjective endpoint independently. That is valuable with inconsistent responders and in teaching, where a trainee's result can be checked without repeating the whole refraction.

Seven metres of reach

The upper end of the range covers direct long lanes as well as the mirrored six-metre arrangement standard in UK practice, so room layout rarely rules the instrument out.

Short rooms accommodated too

A 1.5 metre minimum throw suits rooms where a mirrored lane is impractical, which is a real constraint in converted and upper-floor premises.

Programmed sequences from the remote

Two programmes of up to 30 steps each let a practice define its test order once and reproduce it consistently, which matters where locums and trainees share a room.

Standby protects the lamp

Automatic standby after 10 minutes of idle time extends halogen lamp life, reduces heat in a confined consulting room and prevents a projector running unattended after a clinic ends.

Screw focus adjustment

A focus screw allows the projected image to be sharpened deliberately on the screen at the installed throw distance, rather than relying on a fixed factory setting.

Projection distance 1.5–7 m

The projector operates at any throw from 1.5 to 7 metres, accommodating short direct rooms, mirrored six-metre lanes and long direct lanes alike.

30× magnification at 5 m

Magnification is 30× at 5 metres, producing a 330 × 270 mm projected image at that distance.

Thirty chart patterns

Thirty different chart patterns cover distance acuity, astigmatic targets, duochrome and the specialist charts used across a routine examination.

Thirty-six mask positions

The mask plate provides one open position, five horizontal line masks, eight vertical line masks, 21 single-letter masks and one red/green; note the manufacturer's summary states 35 and should be confirmed.

Chart switching in 0.01–0.02 seconds

Chart conversion completes within two hundredths of a second, effectively instantaneous from the patient's position.

Duochrome test charts

Duochrome targets support refinement of the spherical endpoint and checking of both single and binocular vision using the eye's chromatic aberration.

Polarised test charts

Polarised targets, used with the supplied screen and glasses, dissociate the two eyes for binocular vision assessment and detection of ocular muscle imbalance.

410 mm polarised metal screen

A metal plate with polarising coating is supplied as a standard accessory, enabling polarised testing from the day of installation.

Polarised glasses supplied

Polarised viewing glasses ship with the unit, completing the optical dissociation required for binocular and muscle imbalance assessment.

Two programmable sequences

Two stored programmes each hold up to 30 steps, allowing a practice test order to be defined once and reproduced by any clinician.

Halogen or LED lamp

A 12V 50W halogen lamp or a 12V 10W LED module according to variant, with the choice made on expected lane volume and whole-life cost.

80 W power consumption

Total rated consumption is 80 W, with UK voltage configuration and plug type confirmed at order.

Automatic standby after 10 minutes

Power saving engages after 10 minutes of idle time, extending lamp life and reducing heat output in a confined room.

Optional floor and wall stands

Floor and wall stands are available as optional accessories for practices without a suitable table, shelf or projector-rated instrument arm.

The Visionstar ACP-1500 is an auto chart projector built around a simple but consequential idea: that the operator should be able to focus it. A screw adjustment sharpens the projected image at the throw distance the room actually provides, which removes the instrument from the acuity measurement rather than letting a soft edge masquerade as reduced vision. Thirty chart patterns, a 36-position mask plate, 0.01 to 0.02 second switching, a 1.5 to 7 metre throw and two programmable 30-step sequences cover the routine examination, while duochrome and polarised charts with the supplied screen and glasses handle spherical endpoint refinement, binocular vision assessment and ocular muscle imbalance detection. It suits practices whose room dimensions do not match a catalogue assumption, those doing serious binocular vision work, and any lane where the equipment should not be a variable. Three things belong at order: the chart variant must carry optotypes appropriate to UK acuity notation, the halogen or LED choice should be made on whole-life cost, and the mounting method must be specified since floor and wall stands are optional extras. Medigear.uk supplies the ACP-1500 into the UK with pre-despatch functional inspection, documentation review and chart variant confirmation. Contact the Medigear.uk team for current pricing, quantity quotations, stand and arm compatibility, or bespoke configuration enquiries.
