Saikang XO1-5

The Saikang X01-5 Baby Crib is designed for postnatal ward environments where accessory integration, bassinet decontamination, and IV access management are regular clinical demands. The detachable ABS bassinet shell addresses one of the more time-consuming aspects of neonatal equipment decontamination: the difficulty of cleaning the internal surface of a fixed bassinet around frame uprights. By allowing the shell to be removed entirely, the X01-5 enables a flat-surface decontamination workflow that is faster, more thorough, and easier to audit against ward infection-prevention protocols.

The IV-pole provision built into the X01-5 frame removes the need for a standalone drip stand adjacent to the crib. In the immediate postnatal period, neonates requiring fluid supplementation or phototherapy are managed at the crib side, and the IV pole integrated into the crib structure keeps the line path short, reduces trip hazards from floor-standing stands, and simplifies the physical arrangement of the bay. The dual-socket configuration allows the pole to be moved to either side of the crib, depending on the clinical layout of the specific room.

The Neutral Trendelenburg tilt at 18° ± 3° covers the positional range used in standard neonatal nursing protocols, including head-up positioning for gastro-oesophageal reflux management and foot-up positioning for certain physiotherapy and drainage procedures. The single air-spring mechanism means the tilt is controlled from one point, reducing the training burden on rotating ward staff and simplifying the maintenance inspection process. The 18° range is wider than that of fixed-tilt cribs common in older ward equipment inventories, giving clinical leads more flexibility in positional management without requiring a specialist piece of equipment.

The utility basket and stainless steel frame combine to support the organisational demands of busy postnatal shifts. The basket provides a defined storage point in the crib for consumables needed repeatedly during a shift — nappy packs, linen, documentation — without cluttering the floor or placing items on surfaces near the infant. The stainless steel frame is selected for its suitability in high-humidity environments and its resistance to the cleaning agents used in standard NHS decontamination cycles, including QAC wipes and chlorine-based solutions.

Detachable Bassinet for Thorough Decontamination

The ABS bassinet shell unclips from the stainless steel frame and can be removed entirely for decontamination on a flat bench surface. This eliminates the restricted-access cleaning problem associated with fixed bassinets and supports a more complete decontamination cycle between admissions. For NHS trusts with high postnatal throughput, the detachable design reduces the time required to return a crib to clinical service after discharge.

Integrated IV-Pole Provision as Standard

The X01-5 includes two IV-pole sockets and one full IV-pole set in the standard configuration, removing the need for a separate floor-standing drip stand at the crib side. This reduces bay clutter, shortens IV line paths, and removes a category of trip hazard common in postnatal bays where multiple pieces of equipment are clustered around the mother and infant.

18° Neutral Trendelenburg Range

The wider 18° ± 3° tilt range gives clinical teams greater positional flexibility than most fixed-tilt neonatal cribs. The single air-spring mechanism controls tilt from a single point, simplifying staff training and reducing the number of components requiring annual PPM inspection. The range accommodates the majority of neonatal positional protocols used in standard UK postnatal practice.

Stainless Steel Frame for High-Humidity Environments

The stainless steel frame construction provides the corrosion resistance appropriate for maternity and neonatal wards, where humidity levels are higher than in general medical wards and cleaning frequency is greater. The frame is compatible with QAC wipes and chlorine-based decontamination solutions and does not require a surface treatment to maintain its integrity.

Utility Basket for Organised Clinical Environments

The under-bassinet utility basket provides a designated storage area for crib-side consumables, keeping them off the floor and keeping the bay organised during busy shifts. Organised bay environments are associated with reduced handling errors and faster clinical assessments during ward rounds.

CE-Marked and Documentation-Ready

The X01-5 carries CE marking and is supplied with a Declaration of Conformity and full technical documentation. Medigear.uk can provide supplementary materials to support NHS procurement frameworks, incoming inspection processes, and medical device register submissions.

3-Inch Covered Castors for Clean Mobility

The four covered 3-inch castors provide smooth mobility on standard ward flooring, while the covered housing design reduces debris accumulation in the castor mechanism. In maternity environments where shed materials, such as linen and packaging, are common, covered castors require less maintenance and cleaning than open-hub designs.

Full Accessory Set Reduces Commissioning Steps

By including the IV pole, utility basket, adjustable air spring, and mattress in the standard supply, the X01-5 reduces the procurement steps required before the unit enters clinical service. Trusts do not need to source compatible accessories separately or manage multiple purchase orders to equip a single crib station.

Compact Footprint for Bay Layouts

The 810 mm external length and 525 mm width sit within the standard single-room bay allocation in modern NHS maternity unit designs. The fixed height of 790 mm removes the space envelope required by a height-adjustable column system, keeping the unit profile compact in both horizontal and vertical dimensions.

Fixed 790 mm Working Height

The platform height of 790 mm is fixed and consistent across all units, eliminating height variation that can occur with gas-spring systems that are not returned to a standard position between shifts. The fixed height simplifies manual-handling risk assessment for the ward, as all cribs in a bay present the same working height to staff.

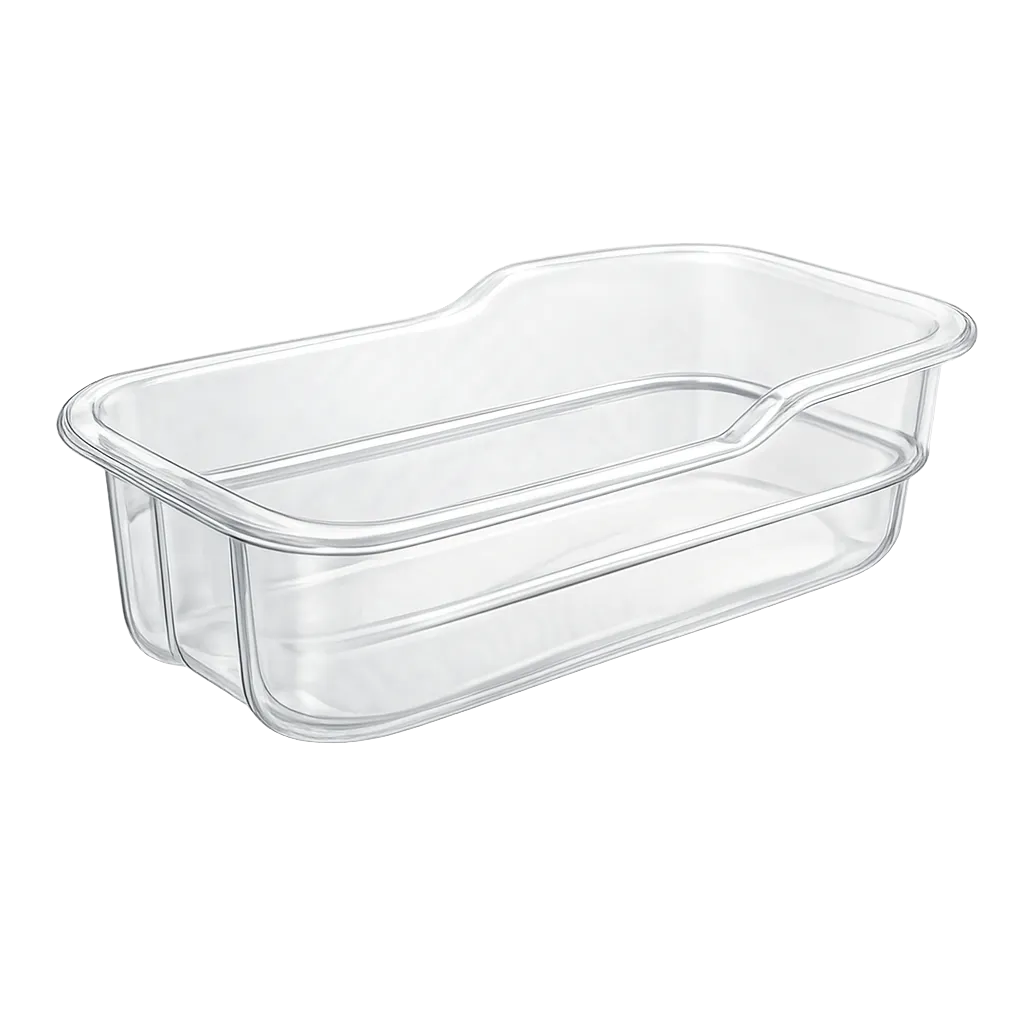

Detachable ABS Bassinet Shell

The bassinet shell is manufactured from ABS thermoplastic and is designed to unclip from the frame uprights without tools. The detachment mechanism is accessible from the sides of the frame and requires no special training beyond the initial commissioning briefing. The ABS material is impact-resistant, chemically compatible with standard NHS disinfectants, and moulded with smooth internal radii to reduce points for biofilm accumulation.

Adjustable Air Spring Tilt Control

The single adjustable air spring replaces the dual gas-spring column system used on the X01-1 series. It is mounted centrally beneath the bassinet platform and controls the full Neutral Trendelenburg range of 18° ± 3°. The sealed pneumatic unit requires no lubrication and is inspected annually as part of a standard PPM cycle. The spring holds position without drift when the release lever is engaged.

Dual IV-Pole Provision Sockets

Two IV-pole sockets are integrated into the frame uprights at a height suitable for standard hospital drip bags and infusion pumps. The dual-socket configuration allows the ward team to position the pole on either the left or right side of the crib without requiring an adaptor or bracket. The pole set supplied is compatible with standard NHS infusion equipment.

Utility Basket (Wire or Formed Tray)

The utility basket is mounted beneath the bassinet shell on a bracket integrated into the frame. It is manufactured from a material compatible with standard ward decontamination wipes and is sized to hold folded linen, standard nappy packs, and A4-format documentation folders. The basket is removable for separate decontamination if required by local infection-prevention protocols.

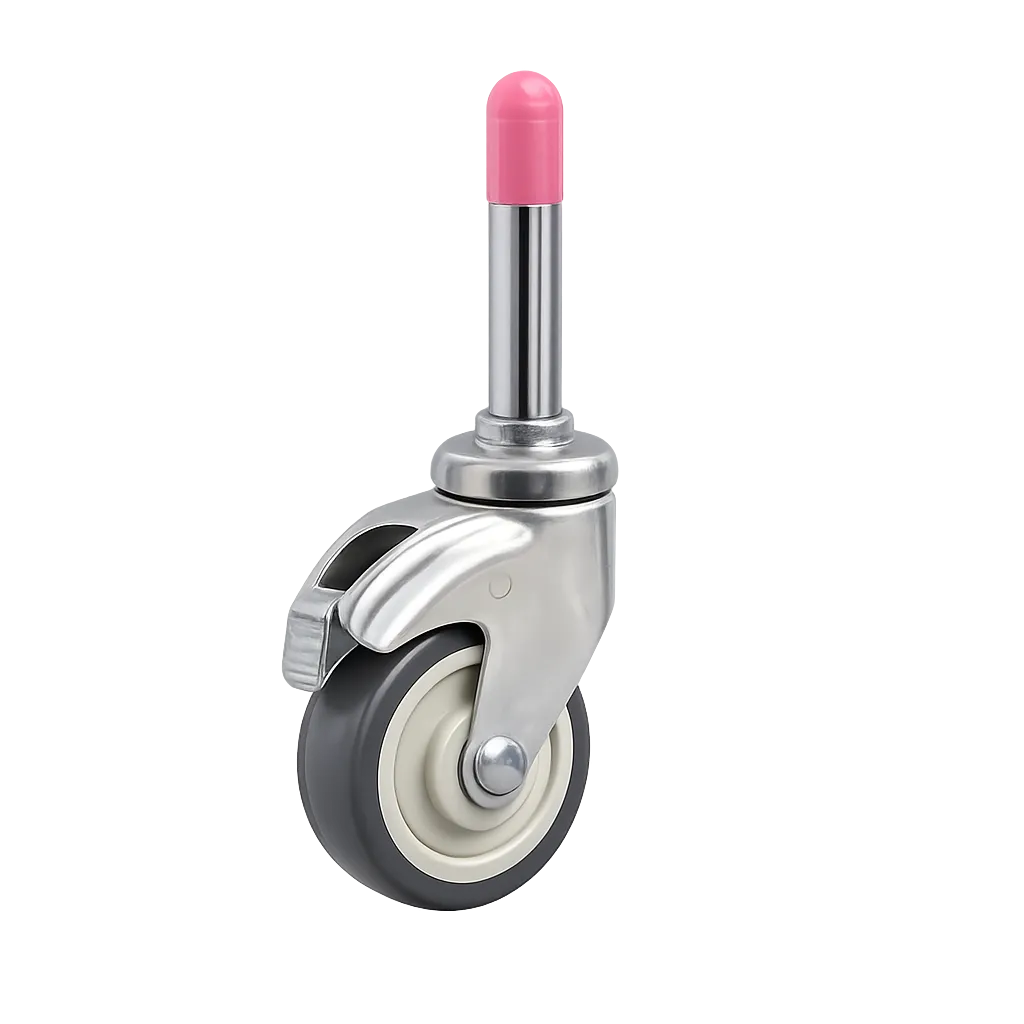

3-Inch Covered Castor Wheels (×4)

All four castors are 3-inch (76 mm) diameter with a covered housing that encloses the wheel hub and bearing surfaces. The covered design reduces the ingress of hair, threads, and packaging debris common in maternity ward environments, which can impair castor function in open-hub designs. The castors lock individually and should be locked whenever the unit is stationary and unattended.

2 cm Thickness Mattress (Included)

The mattress supplied as standard is a 2 cm foam unit cut to the internal dimensions of the ABS bassinet shell. The fitted dimensions eliminate edge gaps that are identified as entrapment risks in NHS Estates guidance on infant sleeping equipment. The mattress is supplied with a wipe-clean cover; replacement covers are available through Medigear.uk's spares service.

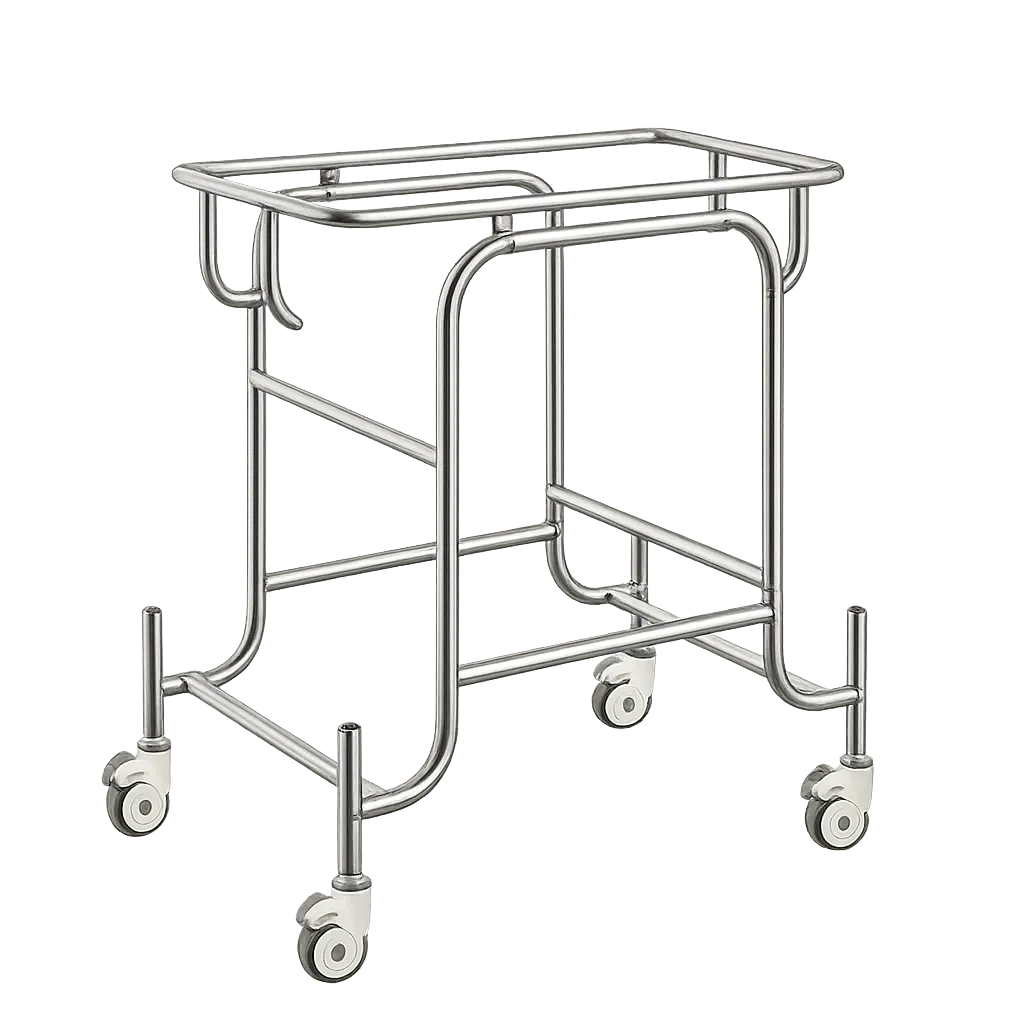

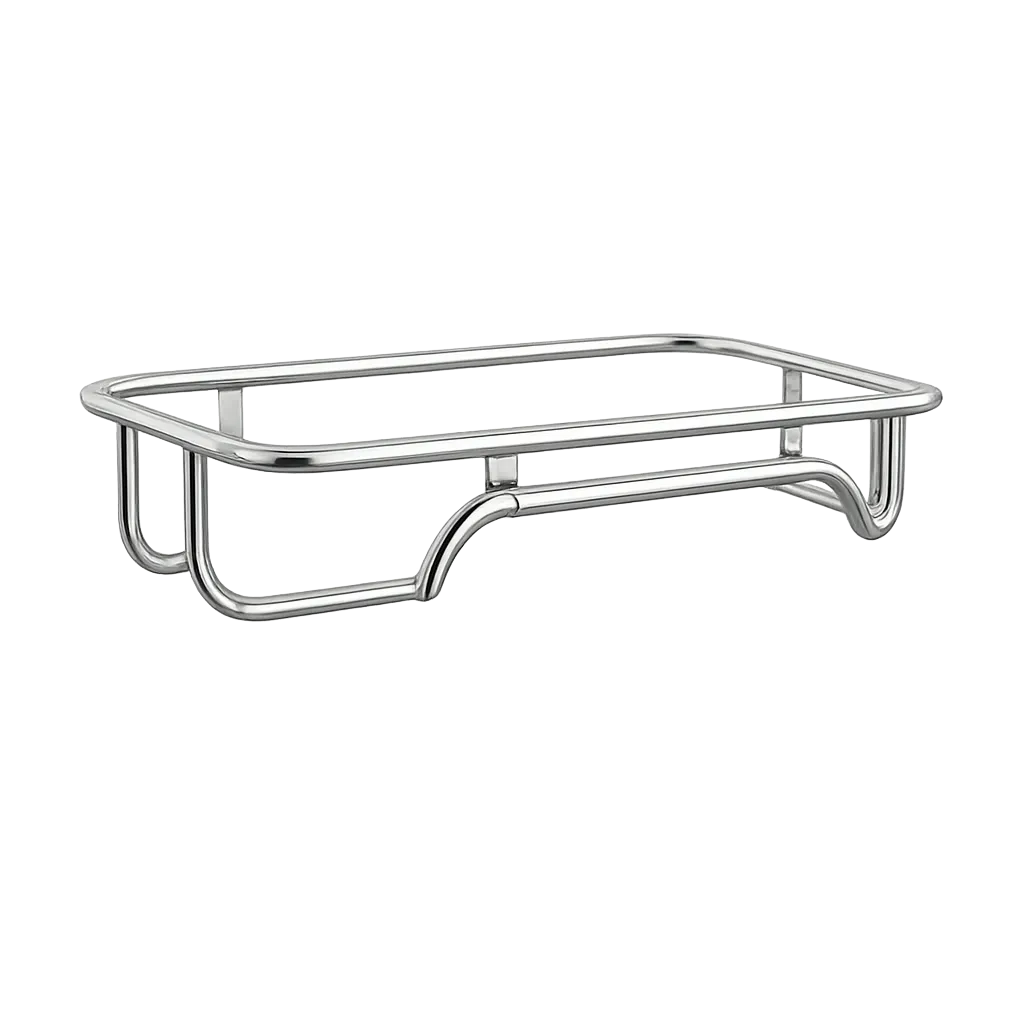

Stainless Steel Frame Construction

The frame is manufactured from Grade 304 stainless steel (or equivalent), selected for its corrosion resistance in hospital-grade cleaning environments and its structural durability under repeated use in wards. The frame geometry positions the centre of mass low and centrally, providing static stability at the 790 mm working height under standard lateral loading conditions. No surface coating is required to maintain corrosion resistance, removing the risk of coating degradation over repeated decontamination cycles.

Neutral Trendelenburg at 18° ± 3°

The tilt mechanism provides a single neutral Trendelenburg position rather than independent head-up and foot-up mechanisms. The 18° range accommodates both head-up (reverse) and foot-up (standard) protocols, with the direction selected by the operator before engaging the air spring lock. The wider-angle envelope, compared with many fixed-tilt competitors, gives the clinical team greater flexibility in positional management without requiring a specialist tilt platform.

Bassinet Rim Profile for Observation and Draught Control

The rim of the ABS bassinet is profiled to reduce air circulation at infant head height while maintaining a full visual and physical access envelope for staff on all four sides. The rim height is calibrated to allow standard nursing observations — including colour checks, respiratory rate assessment, and temperature reads — without requiring the staff member to lean over the rim or tilt the bassinet.

Compatible with Standard NHS Disinfectants

All contact surfaces on the X01-5 — including the ABS bassinet, stainless steel frame, mattress cover, and utility basket — are compatible with QAC wipes and chlorine-based solutions at NHS-standard concentrations. Medigear.uk provides a materials compatibility sheet with each unit. For trusts using HPV terminal decontamination in side rooms, compatibility should be confirmed with Medigear.uk before the unit is included in an HPV cycle.

Complete Configuration from First Delivery

The X01-5 is supplied as a complete unit with all accessories — IV pole, utility basket, adjustable air spring, mattress, and castor-fitted frame — included in the standard delivery. Ward managers do not need to source ancillary items separately before the unit can be placed in clinical service, reducing the administrative burden associated with commissioning new equipment.

The Saikang X01-5 Baby Crib, available in the United Kingdom through Medigear.uk, is a stainless steel, fixed-height neonatal platform that integrates the accessory set most commonly needed in a busy postnatal bay into a single CE-marked unit. The detachable ABS bassinet, IV-pole provision, utility basket, and 18° Neutral Trendelenburg tilt address the core clinical and operational demands of NHS maternity wards without requiring additional equipment. The covered 3-inch castors, compatible surface materials, and complete out-of-the-box configuration reduce both the maintenance workload and the commissioning steps required before clinical deployment. For NHS trusts, private maternity units, and procurement teams seeking a professionally specified, well-equipped, and readily serviceable infant crib, the X01-5 represents a coherent and practical choice supplied by a dedicated UK medical equipment distributor.
