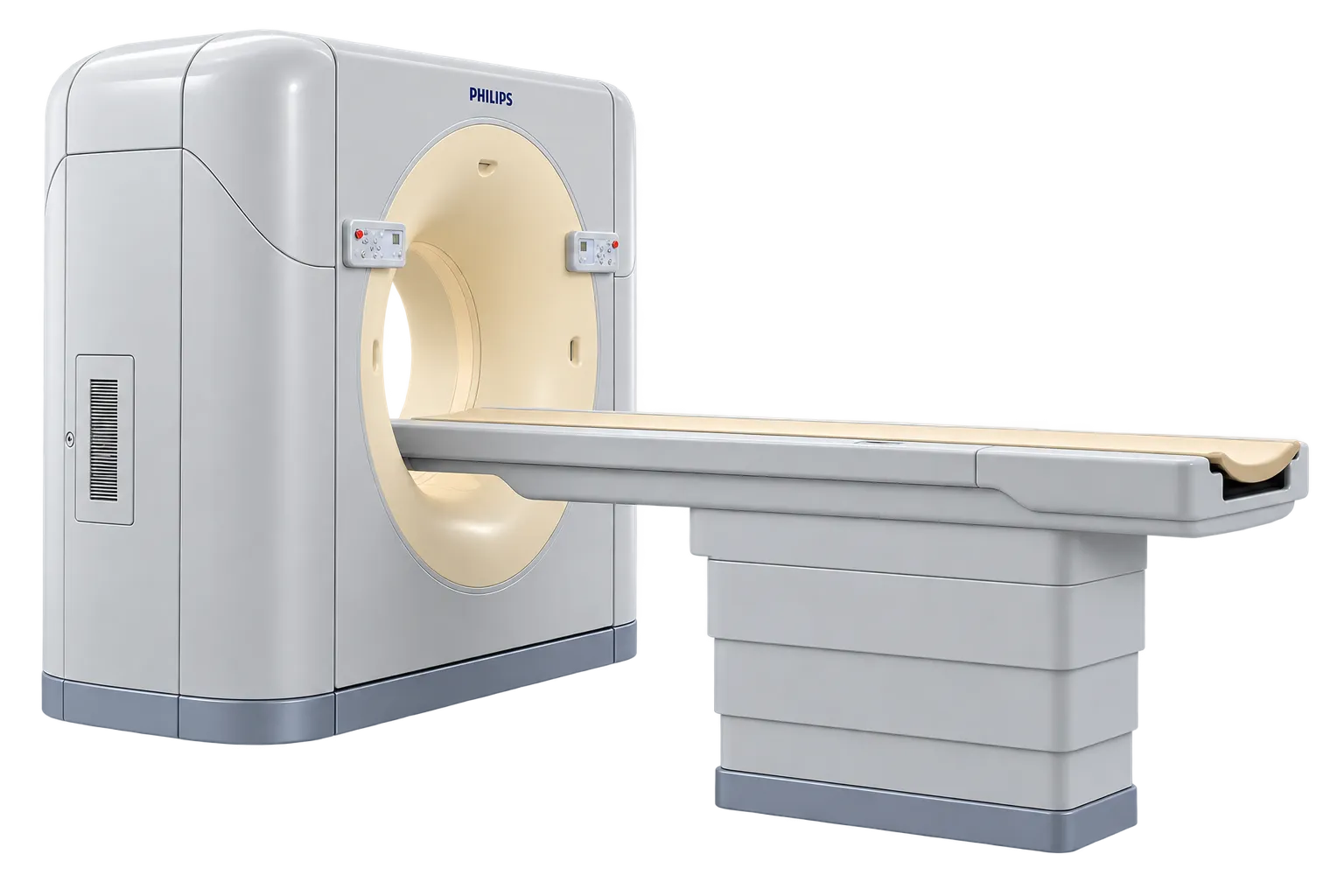

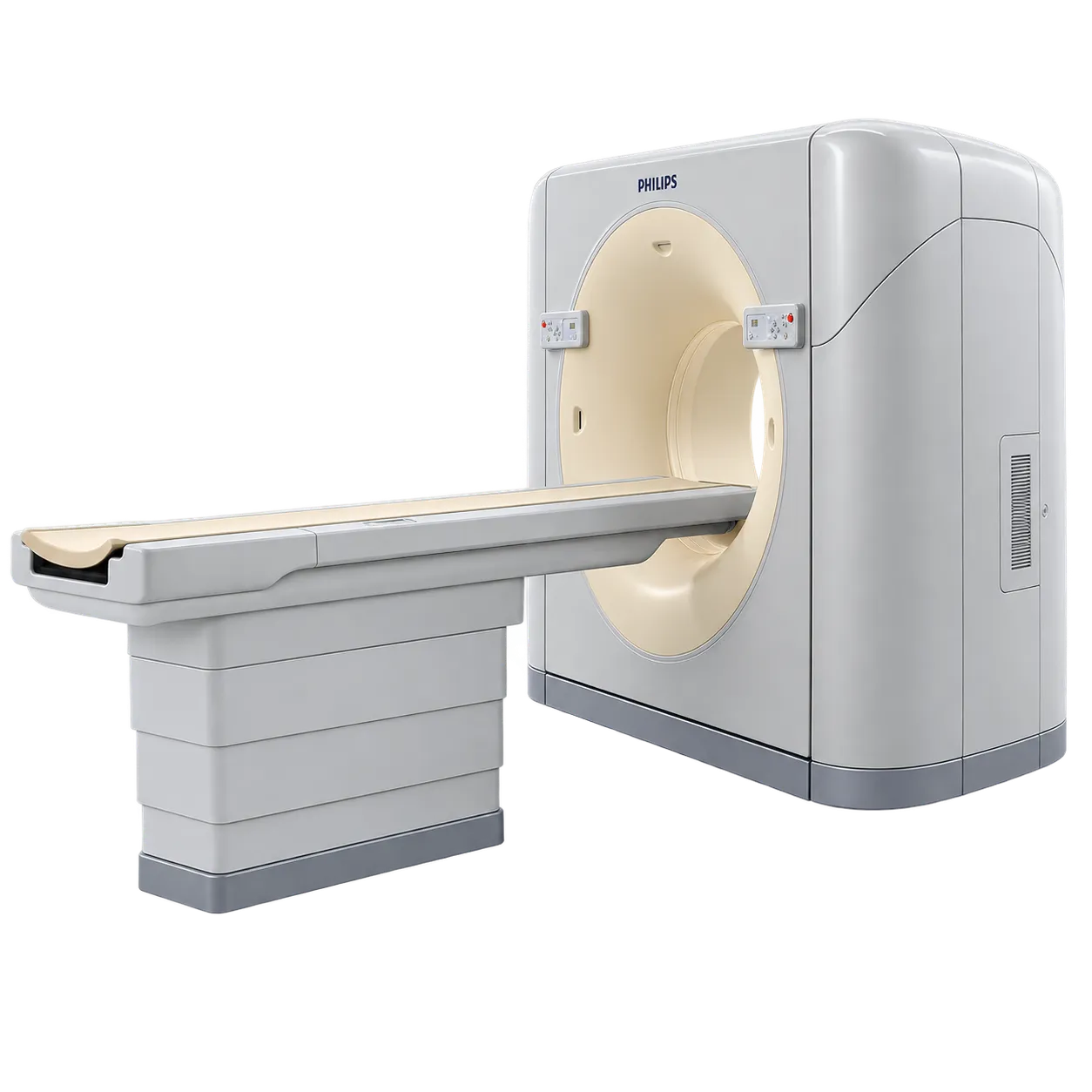

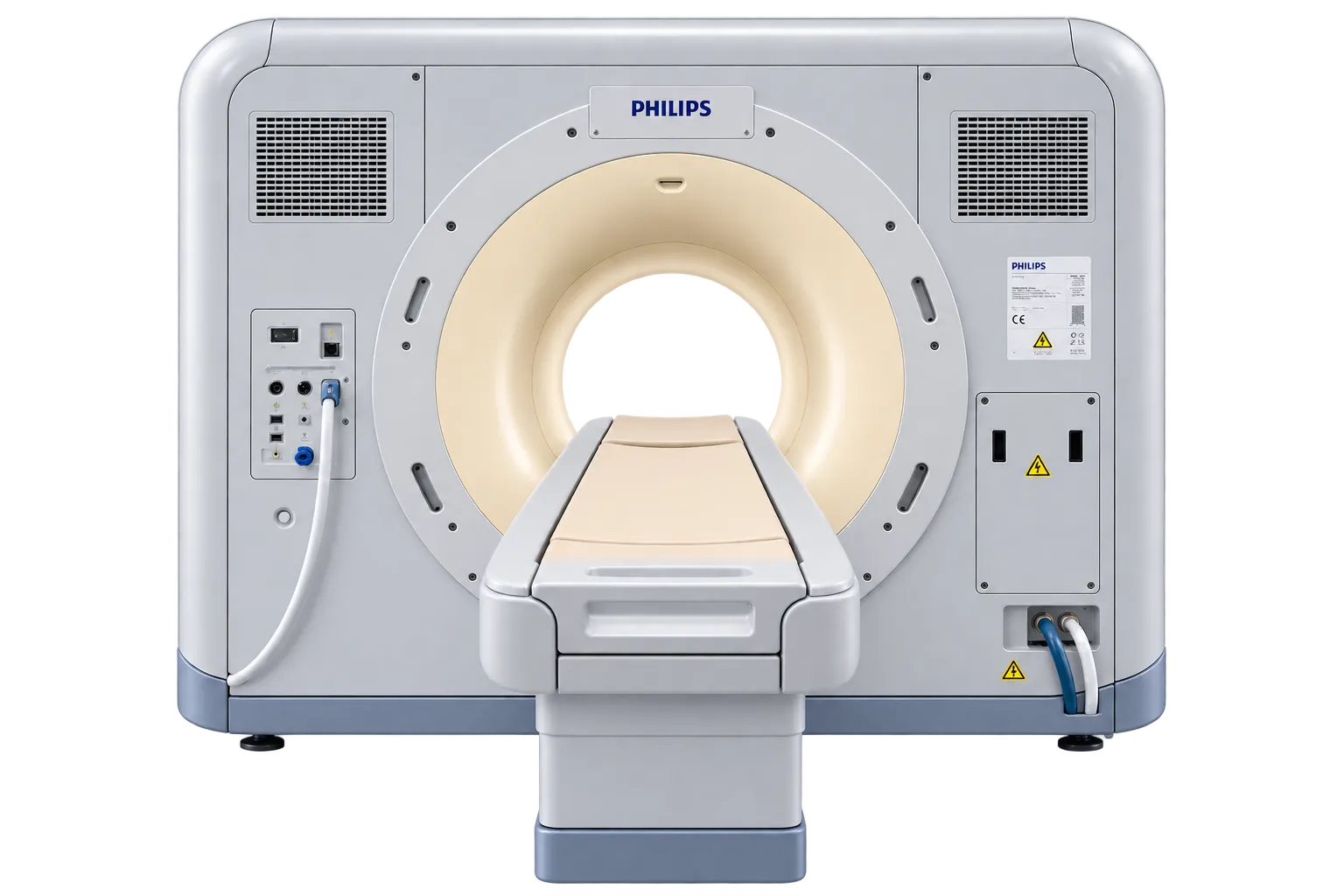

Philips Brilliance 16 (2009)

Small structures clearly defined, with spatial resolution reaching 24 lp/cm.

Spatial resolution in CT is set by how densely the projection data is sampled. Dynamic Focal Spot deflects the electron beam rapidly during the sweep, doubling the sampling rate and taking the ultra-high resolution mode to 24 line pairs per centimetre. Listed on Medigear.uk for UK business buyers.

Sections

CT Scanner

Categories

Medical Diagnostic Equipment

Condition

Refurbished

Year

2009

Origin

China

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

Resolution in computed tomography is limited by sampling. A detector row of a given width can only resolve detail as fine as the density of measurements taken across the projection, and adding physical detector elements is not the only route to that density.

Dynamic Focal Spot takes the other route. The focal spot on the anode is deflected rapidly during the rotation, so each detector channel receives measurements from two slightly offset positions within the same sweep. The sampling rate effectively doubles, and the ultra-high resolution mode reaches 24 line pairs per centimetre, which is what defines small structures within the reconstruction. Tach Technology, a Philips application-specific integrated circuit, handles signal conversion within the detector path.

Acquisition is flexible across the sixteen channels. Slice modes cover 16 × 0.75 mm and 16 × 1.5 mm for thin-slice coverage, with 8 × 3 mm, 4 × 4.5 mm and 2 × 0.6 mm available, and minimum slice thickness reaches 0.6 mm. Spiral slice widths run from 0.65 to 7.5 mm and axial from 0.6 to 12 mm. Scan range extends to 175 cm, the scan field of view spans 25 to 50 cm and reconstruction from 5 to 50 cm, with an extended reconstruction field to 65 cm available as an option.

Rotation time is 0.5 seconds with 0.4 seconds available, and temporal resolution reaches as low as 53 milliseconds, which is what brings motion-sensitive work within range. Reconstruction runs at 6 images per second on RapidView 6, with RapidView 20 raising that to 20 images per second where fitted. Maximum continuous scan time is 100 seconds.

The tube and generator define the scanner's ceiling. A 5.0 MHU tube with a 48 kW generator supports routine work along with CT colonography, CT angiography and pulmonary imaging. An 8.0 MHU MRC tube with a 60 kW generator raises throughput and extends the system into advanced applications and bariatric imaging, with anode rotation at 105 Hz and oil-to-air cooling. Voltage runs at 90, 120 and 140 kVp with tube current from 20 to 500 mA in 1 mA steps.

Dose management runs under DoseWise, which brings together automatic current selection with angular and longitudinal modulation, so exposure follows patient attenuation through the rotation and along the scan. Adaptive filtration and low signal correction work on the reconstruction side.

Cardiac work is supported by Rate Responsive technology where fitted, covering calcium scoring with both retrospective and prospective gating. Spiral Auto Start allows a contrast injection to be monitored and the scan initiated and stopped from the console, and multilingual AutoVoice delivers patient instructions before, during and after the examination. The Brilliance Workspace console carries multiplanar reformatting, maximum intensity projection, three-dimensional and volume rendering according to the applications licensed, and the system is DICOM 3.0 compliant for archive and networking.

The patient table takes 204 kg as standard, extending to 295 kg where bariatric support is fitted.

Diagnostic interpretation remains with the reporting radiologist, and exposure decisions with the operator and the employer's dose framework. The tube and generator configuration, tube condition and slice count, software version, licensed applications and service history are provided by the seller at quotation, with CE marking documentation, the declaration of conformity, a decontamination certificate and warranty terms issued by the manufacturer or held by the seller.

Routine head, chest, abdominal and musculoskeletal computed tomography is covered across both tube configurations, with slice modes selected to the study and reconstruction available from 5 cm upwards.

Emergency and trauma imaging is supported by a scan range extending to 175 cm and subsecond rotation, so a whole-body survey is acquired quickly on an uncooperative patient.

CT angiography is supported by thin-slice acquisition at 16 × 0.75 mm and by Spiral Auto Start, which allows a contrast injection to be monitored and the scan initiated from the console.

Pulmonary imaging benefits from short breath-hold acquisitions across sixteen channels, with temporal resolution reaching as low as 53 milliseconds for motion-sensitive work.

CT colonography is supported on both configurations, with the Brilliance Workspace carrying three-dimensional and volume rendering according to the applications licensed.

Cardiac calcium scoring is available where Rate Responsive technology is fitted, with both retrospective and prospective gating supported.

Bariatric imaging is supported on the 8.0 MHU and 60 kW configuration with the extended field of view and bariatric table support, taking table load to 295 kg.

Sampling Density Raised at the Source

Dynamic Focal Spot deflects the electron beam during the rotation so each channel samples from two offset positions, doubling the sampling rate within the same sweep.

Small Structures Clearly Resolved

The ultra-high resolution mode reaches 24 line pairs per centimetre, which is what defines fine detail in the reconstruction.

Thin Slices Across Sixteen Channels

16 × 0.75 mm and 16 × 1.5 mm modes give thin-slice coverage with short breath-hold times, and minimum slice thickness reaches 0.6 mm.

Motion Brought Within Range

Rotation at 0.5 seconds, with 0.4 seconds available, and temporal resolution as low as 53 milliseconds support pulmonary and short breath-hold cardiac work.

Images at the Console Quickly

Reconstruction runs at 6 images per second, rising to 20 where RapidView 20 is fitted, so waiting time at the console is short.

Exposure Following the Patient

DoseWise brings automatic current selection together with angular and longitudinal modulation, so dose follows attenuation through the rotation and along the scan.

Heat Capacity for Long Acquisitions

The MRC tube provides the heat capacity that sustains longer scan times and thin-slice imaging, with continuous scanning to 100 seconds.

Contrast Timed From the Console

Spiral Auto Start allows an injection to be monitored and the scan started and stopped without leaving the console.

Patient Instructions Delivered Consistently

Multilingual AutoVoice gives instructions before, during and after the examination, so guidance is the same for every patient.

A Console Carrying the Post-Processing

Brilliance Workspace holds multiplanar reformatting, maximum intensity projection, three-dimensional and volume rendering according to the applications licensed.

Tube Condition Provided Before Order

Tube condition and slice count are provided by the seller at quotation, so the working life remaining is established in writing.

Sixteen-Channel Multislice CT Scanner

A gantry, patient table and Brilliance Workspace console supporting routine and advanced computed tomography.

Dynamic Focal Spot

Rapid deflection of the electron beam during rotation, doubling the sampling rate across the detector channels.

Ultra-High Resolution: Up to 24 lp/cm

The spatial resolution available in the ultra-high resolution mode.

Tach Technology

A Philips application-specific integrated circuit handling signal conversion in the detector path.

Slice Acquisition Modes

16 × 0.75 mm, 16 × 1.5 mm, 8 × 3 mm, 4 × 4.5 mm and 2 × 0.6 mm.

Minimum Slice Thickness: 0.6 mm

With spiral slice widths from 0.65 to 7.5 mm and axial from 0.6 to 12 mm.

Rotation Time: 0.5 s Standard

With 0.4 seconds available as an option for a full 360 degree rotation.

Temporal Resolution: As Low as 53 ms

Supporting motion-sensitive acquisitions.

RapidView Reconstruction

6 images per second on RapidView 6, with RapidView 20 available at 20 images per second.

Tube and Generator: 5.0 MHU with 48 kW

Covering routine work with colonography, CT angiography and pulmonary imaging.

Tube and Generator: 8.0 MHU MRC with 60 kW

Raising throughput and extending into advanced applications and bariatric imaging, with anode rotation at 105 Hz.

Oil-to-Air Tube Cooling

The cooling arrangement for the MRC tube assembly.

Voltage and Current: 90, 120 and 140 kVp

With tube current from 20 to 500 mA in 1 mA steps.

Maximum Continuous Scan Time: 100 s

The longest single continuous acquisition supported.

Gantry Aperture: 70 cm

The patient opening through the gantry.

Maximum Scan Range: 175 cm

The longest scan length along the table.

Scan and Reconstruction Fields of View

Scan field 25 to 50 cm and reconstruction field 5 to 50 cm, with extension to 65 cm available as an option.

Contrast Resolution

4 mm at 0.3 percent at 120 kVp and 250 mAs.

DoseWise Dose Management

Automatic current selection with angular and longitudinal dose modulation.

Adaptive Filtration and Low Signal Correction

Reconstruction-side processing applied to low signal regions.

Rate Responsive Cardiac Imaging

Calcium scoring with retrospective and prospective gating, available where fitted.

Spiral Auto Start

Contrast injection monitored with scans initiated and stopped from the console.

Multilingual AutoVoice

Recorded patient instructions delivered before, during and after the examination.

Brilliance Workspace Console

Multiplanar reformatting, maximum intensity projection, three-dimensional and volume rendering according to licensing.

Table Load: 204 kg Standard

Extending to 295 kg where bariatric support is fitted.

DICOM 3.0 Compliance

Archive and networking in DICOM 3.0 format, with connectivity confirmed at quotation.

Gantry Dimensions and Weight

Approximately 2030 × 2390 × 940 mm at 1896 kg, to be confirmed with the seller for site planning.

CE Marking and Declaration of Conformity

Issued by the manufacturer and requested from the seller at quotation.

Decontamination Certificate and Warranty Terms

Provided by the seller at quotation, in line with normal practice for used imaging equipment.

The case for the Philips Brilliance 16 rests on how densely it samples. Resolution in computed tomography is limited by the density of measurements taken across the projection, and Dynamic Focal Spot addresses that by deflecting the focal spot during the rotation so each detector channel samples from two offset positions in the same sweep, doubling the sampling rate and taking the ultra-high resolution mode to 24 line pairs per centimetre. Around that sits a sixteen-channel scanner built for a general list: slice modes from 16 × 0.75 mm down to a 0.6 mm minimum thickness, rotation at 0.5 seconds with 0.4 available, temporal resolution as low as 53 milliseconds, a scan range to 175 cm, reconstruction at 6 or 20 images per second, and DoseWise bringing automatic current selection together with angular and longitudinal modulation. The tube and generator configuration sets the ceiling, and tube condition and slice count set the working life remaining, both provided by the seller at quotation. Diagnostic interpretation remains with the reporting radiologist. Medigear.uk lists the scanner for UK business buyers and can arrange a site survey, delivery, installation, staff familiarisation, service cover and the supply of spares and consumables. Enquire for a written quotation

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

It is a sixteen-channel multislice CT scanner with a 70 cm gantry aperture, subsecond rotation and the Brilliance Workspace console, supporting routine and advanced computed tomography according to the configuration supplied.

The focal spot on the anode is deflected rapidly during the rotation, so each detector channel takes measurements from two slightly offset positions and the sampling rate effectively doubles.

Up to 24 line pairs per centimetre in the ultra-high resolution mode, which governs how finely small structures are defined.

16 × 0.75 mm and 16 × 1.5 mm for thin-slice coverage, along with 8 × 3 mm, 4 × 4.5 mm and 2 × 0.6 mm, with minimum slice thickness of 0.6 mm.

0.5 seconds for a full 360 degree rotation as standard, with 0.4 seconds available as an option, and temporal resolution reaching as low as 53 milliseconds.

A 5.0 MHU tube with a 48 kW generator covers routine work along with colonography, CT angiography and pulmonary imaging, while an 8.0 MHU MRC tube with a 60 kW generator raises throughput and extends into advanced applications and bariatric imaging.

6 images per second on RapidView 6, rising to 20 images per second where RapidView 20 is fitted.

Automatic current selection with angular and longitudinal dose modulation, so exposure follows patient attenuation through the rotation and along the length of the scan.

Rate Responsive technology supports calcium scoring with retrospective and prospective gating where that option is fitted on the unit.

204 kg as standard, extending to 295 kg where bariatric support is fitted.

The tube and generator configuration, the tube's condition and slice count, and the licensed applications. All are provided by the seller at quotation, and Medigear.uk can arrange a site survey and installation.
